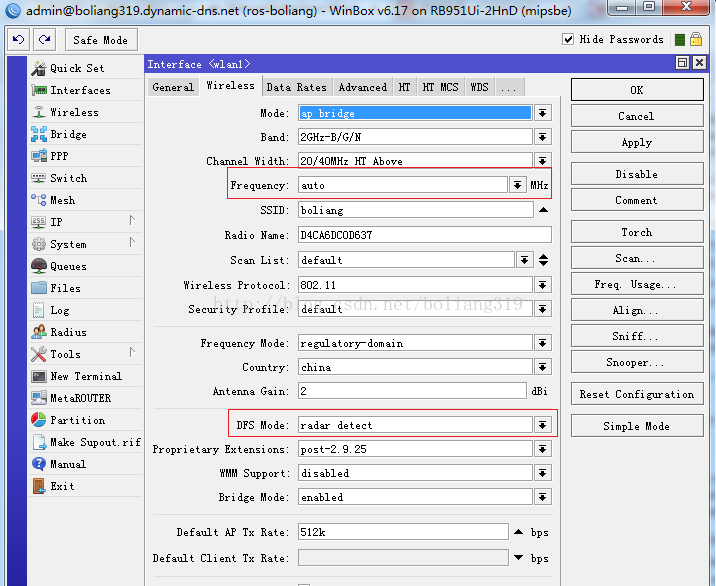

1. 在routeros中,wifi使用的频率设置说明
DFS的全称是Dynamic Frequency Selection,即自动频率选择,只有在DFS Mode设置为None时,Frequency才有效,此时可以手工选择频率置。否则DFS会根据一定的算法自动选择工作频率。关于DFS的具体说明如下:
Controls DFS (Dynamic Frequency Selection).
- none - disables DFS.
- no-radar-detect - Select channel from scan-list with the lowest number of detected networks. In 'wds-slave' mode this setting has no effect.
- radar-detect - Select channel with the lowest number of detected networks and use it if no radar is detected on it for 60 seconds. Otherwise, select different channel. This setting may be required by the country regulations.
2. 发射功率的选择

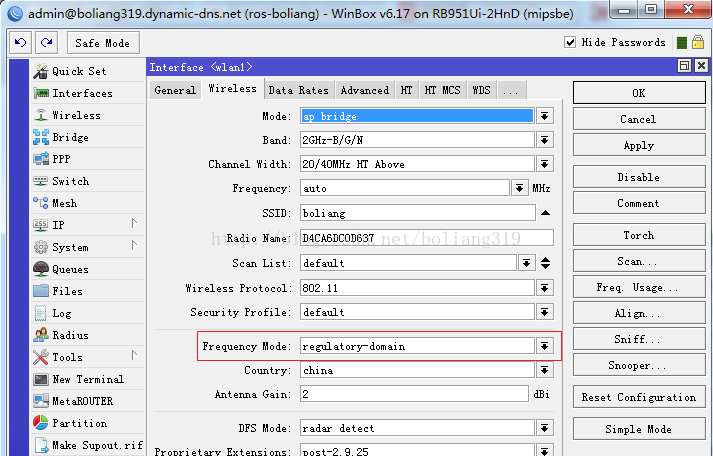

发射功率的选择首先看Frequency Mode的设置:
有关该参数的设置,官方说明如下:
Three frequency modes are available:
- regulatory-domain - Limit available channels and maximum transmit power for each channel according to the value of country
- manual-txpower - Same as above, but do not limit maximum transmit power.
- superchannel - Conformance Testing Mode. Allow all channels supported by the card.
所以,如果想简单点,就直接选择regulatory-domain,这样可用频率和发射功率都根据所选的国家自动设置。

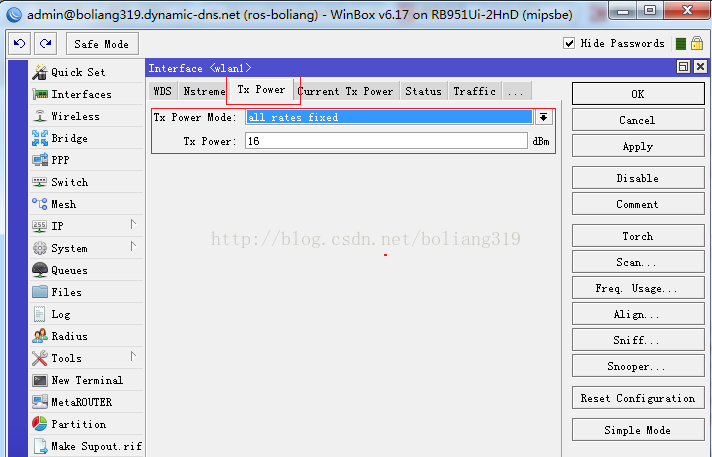

如果想手动控制发射功率,可是选择Manual-txpower,此时,发射功率由Tx Power Mode和Tx Power两个参数决定:
有关Tx Power Mode参数的官方说明如下:
sets up tx-power mode for wireless card
- default - use values stored in the card
- card-rates - use transmit power as defined by tx-power setting
- all-rated-fixed - use same transmit power for all data rates. Can damage the card if transmit power is set above rated value of the card for used rate
- manual-table - define transmit power for each rate separately. Can damage the card if transmit power is set above rated value of the card for used rate.
