在xcode中应用opencv开发iphone应用程序

         opencv是一个强大的计算机视觉库，对图像处理的底层函数进行了很好的封装，并提供全面的C和C++接口函数供上层开发。本文简单的介绍在xcoe中应用opencv开发一个实例的程序。

        首先，为了对objective-c有个整体的了解，上张关于objective-c的图：

          而关于如何在xcode中应用opencv开发iphone程序可以参考博文：IOS平台下OpenCV的配置和使用。首先，我们创建一个single view application，取名为HelloWorld_CV，记住勾选住“using storyboard"复选框。创建后的界面如下所示：

         接着，点击左栏的”MainStoryboard.storyboard“文件，从”控件“中选择”UIImageView“拖到storyboard上，另外找到”toolbar“控件，也拖到storyboard上，并调整大小。完成后的界面如下所示：

         接下来，打开”HelloWorld_CVViewController.h“文件，分别添加一个UIImageView和UIBarButtonItem属性，并申明一个IBAction的操作，完成后代码如下：

@interface HelloWorld_CVViewController : UIViewController<UIImagePickerControllerDelegate, UINavigationControllerDelegate>
{
    //UIImage* image;
}
@property (nonatomic, weak) IBOutlet UIImageView* imageView;
@property (nonatomic, weak) IBOutlet UIBarButtonItem* loadButton;

- (IBAction)loadButtonPressed:(id)sender;
@end

       在调用opencv中的图像处理函数之前，首先我们还要完成一件工作，那就是要实现opencv中的cv::Mat和UIImage的转换，因此先实现这个类直接的相互转换，其代码如下：

// convert cv::Mat to UIImage
static UIImage* MattoUIImage( const cv::Mat& m)
{
    //CV_ASSERT(m.depth() == CV_8U);
    if (m.depth() !=CV_8U)
        return nil;
    NSData* data = [NSData dataWithBytes:m.data length:m.elemSize()*m.total()];
    CGColorSpaceRef colorSpace = m.channels() ==1 ? CGColorSpaceCreateDeviceGray():CGColorSpaceCreateDeviceRGB();
    CGDataProviderRef provider = CGDataProviderCreateWithCFData((__bridge CFDataRef)data);
    // Creating CGImage from cv::Mat®
    CGImageRef imageRef = CGImageCreate(m.cols, m.rows, m.elemSize1()*8, m.elemSize()*8, m.step[0], colorSpace, kCGImageAlphaNoneSkipFirst|kCGBitmapByteOrderDefault, provider, NULL, false, kCGRenderingIntentDefault);
    UIImage* finalImage = [UIImage imageWithCGImage:imageRef];
    CGImageRelease(imageRef);
    CGDataProviderRelease(provider);
    CGColorSpaceRelease(colorSpace);
    return  finalImage;
}

// convert UIImage to cv::Mat
static void UIImagetoMat(const UIImage* image, cv::Mat& m)
{
    CGColorSpaceRef colorSpace = CGImageGetColorSpace(image.CGImage);
    CGFloat cols = image.size.width;
    CGFloat rows = image.size.height;
    m.create(rows, cols, CV_8UC4);

    CGContextRef contextRef = CGBitmapContextCreate(m.data, cols,rows, 8, m.step[0], colorSpace, kCGImageAlphaNoneSkipLast|kCGBitmapByteOrderDefault);

    CGContextDrawImage(contextRef, CGRectMake(0, 0, cols, rows), image.CGImage);

    CGContextRelease(contextRef);
    CGColorSpaceRelease(colorSpace);
}

       接下来的工作就是从iphone的工作目录中加载一张图片，并调用opencv库函数处理后显示出来。思路很简单，不一一细述，直接贴代码，以下是HelloWorld_CVViewController.mm除了上面两个函数的代码：

@interface HelloWorld_CVViewController ()

@end

@implementation HelloWorld_CVViewController
@synthesize imageView;
@synthesize loadButton;
- (void)viewDidLoad
{
    [super viewDidLoad];
	// Do any additional setup after loading the view, typically from a nib.
    NSString* filename = [[NSBundle mainBundle] pathForResource:@"helloworld" ofType:@"png"];
    UIImage* image = [UIImage imageWithContentsOfFile:filename];
    if ( image!=nil)
    {
        // imageView.image = image;
        cv::Mat m, gray;
        UIImagetoMat(image, m);

        cv::cvtColor(m, gray, CV_BGR2GRAY);
        cv::GaussianBlur(gray, gray, cv::Size(5,5), 1.2,1.2);
        cv::Canny(gray, gray, 0, 50);
        m = cv::Scalar::all(255);
        m.setTo(cv::Scalar(0,128,255,255),gray);
        imageView.contentMode = UIViewContentModeScaleAspectFit;
        imageView.image = MattoUIImage(m);
    }
}

- (void)didReceiveMemoryWarning
{
    [super didReceiveMemoryWarning];
    // Dispose of any resources that can be recreated.
}

- (IBAction)loadButtonPressed:(id)sender
{
    UIImagePickerController* picker = [[UIImagePickerController alloc]init];
    picker.delegate=self;

    if (![UIImagePickerController isSourceTypeAvailable:UIImagePickerControllerSourceTypePhotoLibrary])
        return;
    picker.sourceType = UIImagePickerControllerSourceTypePhotoLibrary;
    [self presentModalViewController:picker animated:YES];
}

- (void)imagePickerController:(UIImagePickerController *)picker didFinishPickingMediaWithInfo:(NSDictionary *)info
{
    [picker dismissViewControllerAnimated:YES completion:nil];
    UIImage* image = [info objectForKey:@"UIImagePickerControllerOriginalImage"];

    if ( image!=nil)
    {
        // imageView.image = image;
        cv::Mat m, gray;
        UIImagetoMat(image, m);

        cv::cvtColor(m, gray, CV_BGR2GRAY);
        cv::GaussianBlur(gray, gray, cv::Size(5,5), 1.2,1.2);
        cv::Canny(gray, gray, 0, 50);
        m = cv::Scalar::all(255);
        m.setTo(cv::Scalar(0,128,255,255),gray);
        imageView.contentMode = UIViewContentModeScaleAspectFit;
        imageView.image = MattoUIImage(m);
    }
}

- (void)imagePickerControllerDidCancel:(UIImagePickerController *)picker
{
    [picker dismissViewControllerAnimated:YES completion:nil];
}

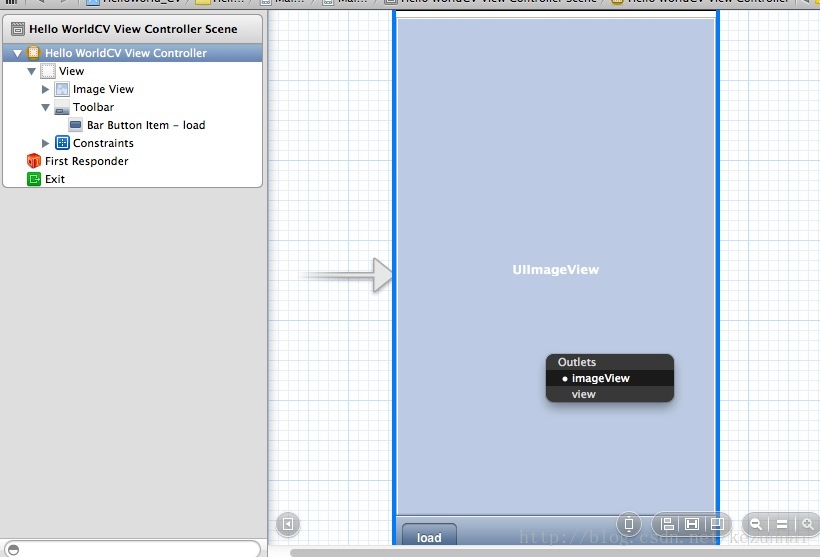

      到这里，代码部分已经完成了，接下来的工作就是要实现imageView和loadButton与storyboard对象的连接。连接方式为：按住”control“键，点击”Hello WorldCV View Controller“并拖到UIImageView控件上，选择imageView，如下图所示。同样实现loadButton与 loadButtonPressed的连接。

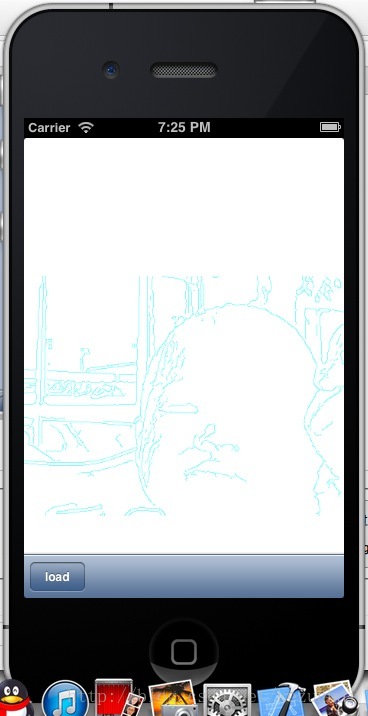

         至此，程序已经完成，点击”run"运行界面如下所示：

        这个程序的代码可以通过下面的连接下载：http://download.csdn.net/detail/kezunhai/6021719
