SensorThread线程

这里再来看一下SensorThread线程是怎么监听数据的

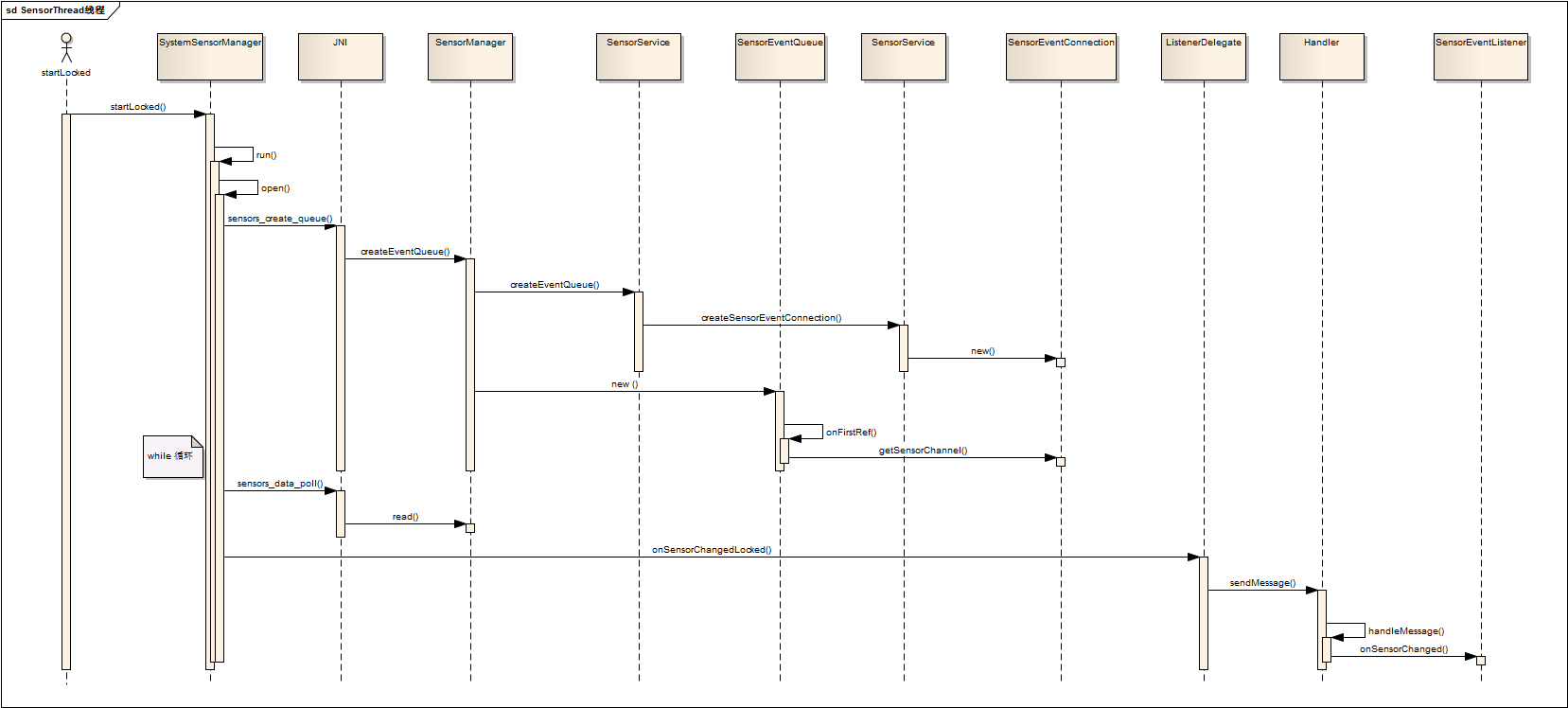

首先看一下流程图

我们来看一下SensorThreadRunnable的run方法

 public void run() {
                //Log.d(TAG, "entering main sensor thread");
                final float[] values = new float[3];
                final int[] status = new int[1];
                final long timestamp[] = new long[1];
                Process.setThreadPriority(Process.THREAD_PRIORITY_URGENT_DISPLAY);

                if (!open()) {//创建一个到service的连接queue
                    return;
                }

                synchronized (this) {
                    // we've open the driver, we're ready to open the sensors
                    mSensorsReady = true;
                    this.notify();
                }

                while (true) {
                    // wait for an event
                    final int sensor = sensors_data_poll(sQueue, values, status, timestamp);//监听是否有数据到来

                    int accuracy = status[0];
                    synchronized (sListeners) {
                        if (sensor == -1 || sListeners.isEmpty()) {
                            // we lost the connection to the event stream. this happens
                            // when the last listener is removed or if there is an error
                            if (sensor == -1 && !sListeners.isEmpty()) {
                                // log a warning in case of abnormal termination
                                Log.e(TAG, "_sensors_data_poll() failed, we bail out: sensors=" + sensor);
                            }
                            // we have no more listeners or polling failed, terminate the thread
                            sensors_destroy_queue(sQueue);
                            sQueue = 0;
                            mThread = null;
                            break;
                        }
                        final Sensor sensorObject = sHandleToSensor.get(sensor);
                        if (sensorObject != null) {
                            // report the sensor event to all listeners that
                            // care about it.
                            final int size = sListeners.size();
                            for (int i=0 ; i<size ; i++) {
                                ListenerDelegate listener = sListeners.get(i);
                                if (listener.hasSensor(sensorObject)) {//把数据发送到所有的监听了这个sensor的listener
                                    // this is asynchronous (okay to call
                                    // with sListeners lock held).
                                    listener.onSensorChangedLocked(sensorObject,
                                            values, timestamp, accuracy);
                                }
                            }
                        }
                    }
                }
                //Log.d(TAG, "exiting main sensor thread");
            }

这里open创建一个queue

 private boolean open() {
                // NOTE: this cannot synchronize on sListeners, since
                // it's held in the main thread at least until we
                // return from here.
                sQueue = sensors_create_queue();
                return true;
            }

sensors_create_queue是一个jni的接口

static jint
sensors_create_queue(JNIEnv *env, jclass clazz)
{
    SensorManager& mgr(SensorManager::getInstance());
    sp<SensorEventQueue> queue(mgr.createEventQueue());
    queue->incStrong(clazz);
    return reinterpret_cast<int>(queue.get());
}

调用SensorManager的createEventQueue

sp<SensorEventQueue> SensorManager::createEventQueue()
{
    sp<SensorEventQueue> queue;

    Mutex::Autolock _l(mLock);
    while (assertStateLocked() == NO_ERROR) {
        sp<ISensorEventConnection> connection =
                mSensorServer->createSensorEventConnection();//创建一个连接
        if (connection == NULL) {
            // SensorService just died.
            ALOGE("createEventQueue: connection is NULL. SensorService died.");
            continue;
        }
        queue = new SensorEventQueue(connection);?/以connection为参数创建一个SensorEventQueue
        break;
    }

首先调用createSensorEventConnection，对应到SensorService里面

sp<ISensorEventConnection> SensorService::createSensorEventConnection()
{
    sp<SensorEventConnection> result(new SensorEventConnection(this));
    return result;
}

这里newSensorEventConnection

SensorService::SensorEventConnection::SensorEventConnection(
        const sp<SensorService>& service)
    : mService(service), mChannel(new BitTube())
{
}

这里new在service端new 了一个BitTube



回到SensorManager::createEventQueue，接下来queue =new SensorEventQueue(connection)新建了一个queue

我们看到在SensorEventQueue里有一个

void SensorEventQueue::onFirstRef()
{
    mSensorChannel = mSensorEventConnection->getSensorChannel();
}

这样在第一次使用智能指针引用SensorEventQueue时就会调用onFirstRef获得一个和service通信的BitTube

到这里sensors_create_queue就成功创建了一个和service通信的queue



回到SystemSensorManager的run函数

接下来调用sensors_data_poll检测是否有数据到来

sensors_data_poll也是一个jni的函数



static jint
sensors_data_poll(JNIEnv *env, jclass clazz, jint nativeQueue,
        jfloatArray values, jintArray status, jlongArray timestamp)
{
    sp<SensorEventQueue> queue(reinterpret_cast<SensorEventQueue *>(nativeQueue));
    if (queue == 0) return -1;

    status_t res;
    ASensorEvent event;

    res = queue->read(&event, 1);//从queue中读数据
    if (res == 0) {
        res = queue->waitForEvent();
        if (res != NO_ERROR)
            return -1;
        // here we're guaranteed to have an event
        res = queue->read(&event, 1);
        ALOGE_IF(res==0, "sensors_data_poll: nothing to read after waitForEvent()");
    }
    if (res <= 0) {
        return -1;
    }

    jint accuracy = event.vector.status;
    env->SetFloatArrayRegion(values, 0, 3, event.vector.v);
    env->SetIntArrayRegion(status, 0, 1, &accuracy);
    env->SetLongArrayRegion(timestamp, 0, 1, &event.timestamp);

    return event.sensor;
}

这里read

ssize_t SensorEventQueue::read(ASensorEvent* events, size_t numEvents)
{
    return BitTube::recvObjects(mSensorChannel, events, numEvents);
}

就从前面创建的和service 的通道中读数据

这样，从sensor传感器来的数据就能传到应用 了。
