关于MatConvNet的反向传播原理及源码解析

MatConvNet深度学习库的反向传播原理如下图所示：

上图是简化版的反向传播原理推导，具体的张量表示法参考相关手册。

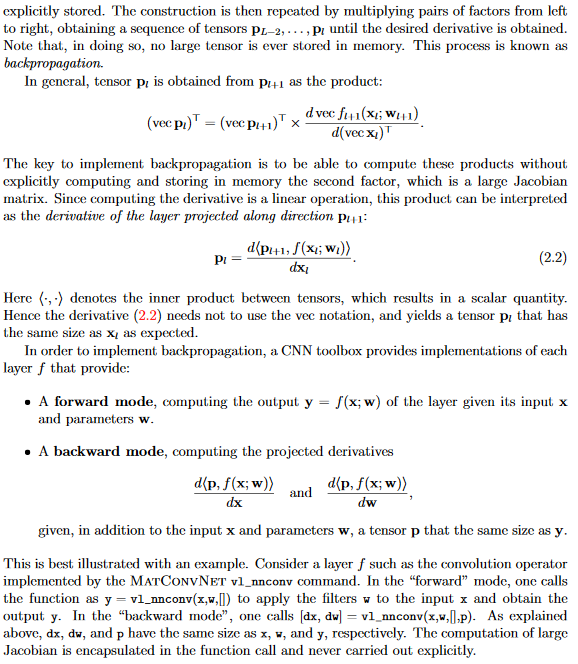

为了方便对比及具体详尽的原理推导，在手册中，关于反向传播的推导部分截图如下：

其中在上图中，重点注意的地方就是式（2.2），它只是关于x的导数。为了引起重视，下面有一个练习：

%下面实现一个由一个卷积层和ReLU层构成的两层卷积网络的反向传播实现示例

%前向模式：计算卷积和卷积后的ReLU输出
y = vl_nnconv(x, w, []) ;
z = vl_nnrelu(y) ;

%初始化一个随机投影张量
p = randn(size(z), 'single') ;

%反向传播模式：映射偏导
dy = vl_nnrelu(z, p) ;
[dx,dw] = vl_nnconv(x, w, [], dy) ;

那么，修改上述代码，实现一个级联的Conv+ReLU+Conv网络，该如何实现呢？尤其是在反向模式下，vl_nnconv的第四个参数偏导该传入什么呢？会在后面给出完整参考代码。

下面进行反向传播的MatConvNet的反向传播实现方式：

res = struct(...
    'x', cell(1,n+1), ...
    'dzdx', cell(1,n+1), ...
    'dzdw', cell(1,n+1), ...
    'aux', cell(1,n+1), ...
    'stats', cell(1,n+1), ...
    'time', num2cell(zeros(1,n+1)), ...
    'backwardTime', num2cell(zeros(1,n+1))) ;


% -------------------------------------------------------------------------
%                                                             Backward pass
% -------------------------------------------------------------------------

if doder
  res(n+1).dzdx = dzdy ;
  for i=n:-1:backPropLim
    l = net.layers{i} ;
    res(i).backwardTime = tic ;
    switch l.type

      case 'conv'
        [res(i).dzdx, dzdw{1}, dzdw{2}] = ...
          vl_nnconv(res(i).x, l.weights{1}, l.weights{2}, res(i+1).dzdx, ...
          'pad', l.pad, ...
          'stride', l.stride, ...
          'dilate', l.dilate, ...
          l.opts{:}, ...
          cudnn{:}) ;

      case 'convt'
        [res(i).dzdx, dzdw{1}, dzdw{2}] = ...
          vl_nnconvt(res(i).x, l.weights{1}, l.weights{2}, res(i+1).dzdx, ...
          'crop', l.crop, ...
          'upsample', l.upsample, ...
          'numGroups', l.numGroups, ...
          l.opts{:}, ...
          cudnn{:}) ;

      case 'pool'
        res(i).dzdx = vl_nnpool(res(i).x, l.pool, res(i+1).dzdx, ...
                                'pad', l.pad, 'stride', l.stride, ...
                                'method', l.method, ...
                                l.opts{:}, ...
                                cudnn{:}) ;

      case {'normalize', 'lrn'}
        res(i).dzdx = vl_nnnormalize(res(i).x, l.param, res(i+1).dzdx) ;

      case 'softmax'
        res(i).dzdx = vl_nnsoftmax(res(i).x, res(i+1).dzdx) ;

      case 'loss'
        res(i).dzdx = vl_nnloss(res(i).x, l.class, res(i+1).dzdx) ;

      case 'softmaxloss'
        res(i).dzdx = vl_nnsoftmaxloss(res(i).x, l.class, res(i+1).dzdx) ;

      case 'relu'
        if l.leak > 0, leak = {'leak', l.leak} ; else leak = {} ; end
        if ~isempty(res(i).x)
          res(i).dzdx = vl_nnrelu(res(i).x, res(i+1).dzdx, leak{:}) ;
        else
          % if res(i).x is empty, it has been optimized away, so we use this
          % hack (which works only for ReLU):
          res(i).dzdx = vl_nnrelu(res(i+1).x, res(i+1).dzdx, leak{:}) ;
        end

      case 'sigmoid'
        res(i).dzdx = vl_nnsigmoid(res(i).x, res(i+1).dzdx) ;

      case 'noffset'
        res(i).dzdx = vl_nnnoffset(res(i).x, l.param, res(i+1).dzdx) ;

      case 'spnorm'
        res(i).dzdx = vl_nnspnorm(res(i).x, l.param, res(i+1).dzdx) ;

      case 'dropout'
        if testMode
          res(i).dzdx = res(i+1).dzdx ;
        else
          res(i).dzdx = vl_nndropout(res(i).x, res(i+1).dzdx, ...
                                     'mask', res(i+1).aux) ;
        end

      case 'bnorm'
        [res(i).dzdx, dzdw{1}, dzdw{2}, dzdw{3}] = ...
          vl_nnbnorm(res(i).x, l.weights{1}, l.weights{2}, res(i+1).dzdx, ...
                     'epsilon', l.epsilon, ...
                     bnormCudnn{:}) ;
        % multiply the moments update by the number of images in the batch
        % this is required to make the update additive for subbatches
        % and will eventually be normalized away
        dzdw{3} = dzdw{3} * size(res(i).x,4) ;

      case 'pdist'
        res(i).dzdx = vl_nnpdist(res(i).x, l.class, ...
          l.p, res(i+1).dzdx, ...
          'noRoot', l.noRoot, ...
          'epsilon', l.epsilon, ...
          'aggregate', l.aggregate, ...
          'instanceWeights', l.instanceWeights) ;

      case 'custom'
        res(i) = l.backward(l, res(i), res(i+1)) ;

    end % layers

    switch l.type
      case {'conv', 'convt', 'bnorm'}
        if ~opts.accumulate
          res(i).dzdw = dzdw ;
        else
          for j=1:numel(dzdw)
            res(i).dzdw{j} = res(i).dzdw{j} + dzdw{j} ;
          end
        end
        dzdw = [] ;
        if ~isempty(opts.parameterServer) && ~opts.holdOn
          for j = 1:numel(res(i).dzdw)
            opts.parameterServer.push(sprintf('l%d_%d',i,j),res(i).dzdw{j}) ;
            res(i).dzdw{j} = [] ;
          end
        end
    end
    if opts.conserveMemory && ~net.layers{i}.precious && i ~= n
      res(i+1).dzdx = [] ;
      res(i+1).x = [] ;
    end
    if gpuMode && opts.sync
      wait(gpuDevice) ;
    end
    res(i).backwardTime = toc(res(i).backwardTime) ;
  end
  if i > 1 && i == backPropLim && opts.conserveMemory && ~net.layers{i}.precious
    res(i).dzdx = [] ;
    res(i).x = [] ;
  end
end

由上述实现方式，练习题的参考答案如下：

%下面实现一个由Conv+ReLU+Conv构成的三层卷积网络的反向传播实现示例

%前向模式：计算卷积和卷积后的ReLU输出
y = vl_nnconv(x, w, []) ;
z = vl_nnrelu(y) ;
y1=vl_nnconv(z,w,[]);

%初始化一个随机投影张量
p = randn(size(y1), 'single') ;

%反向传播模式：映射偏导
[dz,dw]=vl_nnconv(z,w,[],p);
dy = vl_nnrelu(y, dz) ;
[dx,dw] = vl_nnconv(x, w, [], dy) ;
