eNSP中的VRRP负载均衡配置

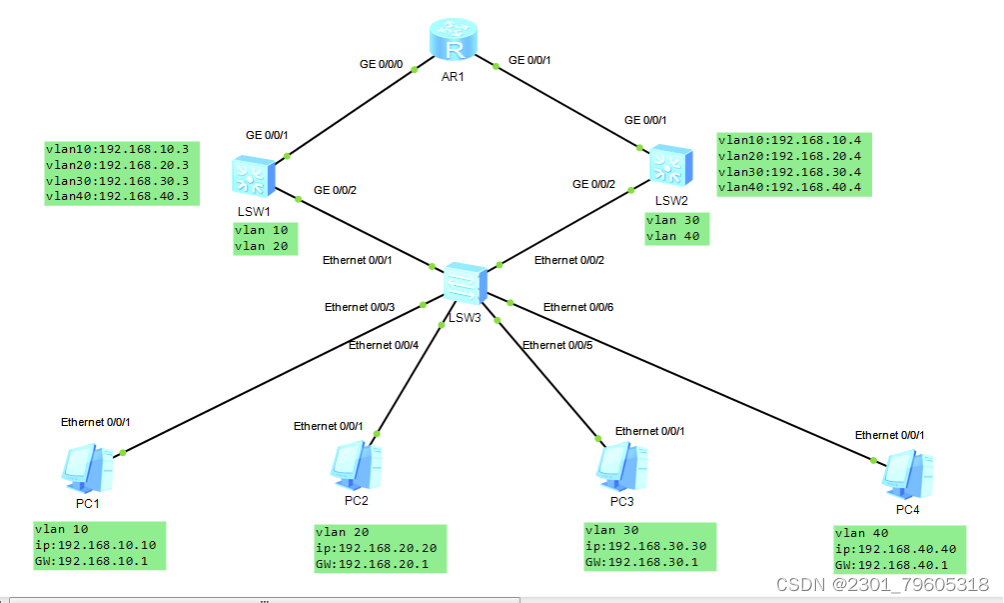

构建如上网络拓扑，令SW1作为vlan10和vlan20的主设备，vlan30和vlan40的备用设备；SW2作为vlan30和vlan40的主设备，vlan10和vlan20的备用设备

进行基本的网络配置

SW1和SW2

[SW1]vlan batch 10 20 30 40
[SW1]int g0/0/2
[SW1-GigabitEthernet0/0/2]port link-type trunk
[SW1-GigabitEthernet0/0/2]port trunk allow-pass vlan 10 20 30 40
[SW1]int v10
[SW1-Vlanif10]ip address 192.168.10.3 24
[SW1-Vlanif10]int v20
[SW1-Vlanif20]ip address 192.168.20.3 24
[SW1-Vlanif20]int v30
[SW1-Vlanif30]ip address 192.168.30.3 24
[SW1-Vlanif30]int v40
[SW1-Vlanif40]ip address 192.168.40.3 24

SW3

[SW3]vlan batch 10 20 30 40
[SW3]int e0/0/1
[SW3-Ethernet0/0/1]port link-type trunk
[SW3-Ethernet0/0/1]port trunk allow-pass vlan 10 20 30 40
[SW3-Ethernet0/0/1]int e0/0/2
[SW3-Ethernet0/0/2]port link-type trunk
[SW3-Ethernet0/0/2]port trunk allow-pass vlan 10 20 30 40
[SW3-Ethernet0/0/2]int e0/0/3
[SW3-Ethernet0/0/3]port link-type access
[SW3-Ethernet0/0/3]port default vlan 10
[SW3-Ethernet0/0/3]int e0/0/4
[SW3-Ethernet0/0/4]port link-type access
[SW3-Ethernet0/0/4]port default vlan 20
[SW3-Ethernet0/0/4]int e0/0/5
[SW3-Ethernet0/0/5]port link-type access
[SW3-Ethernet0/0/5]port default vlan 30
[SW3-Ethernet0/0/5]int e0/0/6
[SW3-Ethernet0/0/6]port link-type access
[SW3-Ethernet0/0/6]port default vlan 40

对SW1和SW2进行VRRP的配置

设置虚拟ip

[SW1]int Vlanif 10
[SW1-Vlanif10]vrrp vrid 10 virtual-ip 192.168.10.1
[SW1-Vlanif10]int v20
[SW1-Vlanif20]vrrp vrid 20 virtual-ip 192.168.20.1
[SW1-Vlanif10]int v30
[SW1-Vlanif30]vrrp vrid 30 virtual-ip 192.168.30.1
[SW1-Vlanif30]int v40
[SW1-Vlanif40]vrrp vrid 40 virtual-ip 192.168.40.1

分别对SW1和SW2进行优先级的设置

[SW1]int v10
[SW1-Vlanif10]vrrp vrid 10 priority 105
[SW1-Vlanif10]int v20
[SW1-Vlanif20]vrrp vrid 20 priority 105

[SW2]int v30
[SW2-Vlanif30]vrrp vrid 30 priority 105
[SW2-Vlanif30]int v40
[SW2-Vlanif40]vrrp vrid 40 priority 105
