前言
想要成功的做出美妙的数学动画,做一些基础性的学习是必要,接下来让我们从最基本的图形开始我们的学习。
一、属性
1.共有属性
属性 | 备注 |
color | 颜色,默认为白色 |
opacity | 透明度,默认为0 |
gloss | 反光度 |
shadow | 阴影 |
2.图形属性
属性 | 备注 |
fill_color | 填充的颜色 |
fill_opacity | 填充的透明度 |
stroke_color | 轮廓线的颜色 |
stroke_opacity | 轮廓线的透明度 |
stroke_width | 轮廓线的粗细 |
draw_stroke_behind_fill | 是否在填充后在绘制轮廓线 |
background_image_fill | 图形填充图片的路径 |
二、点

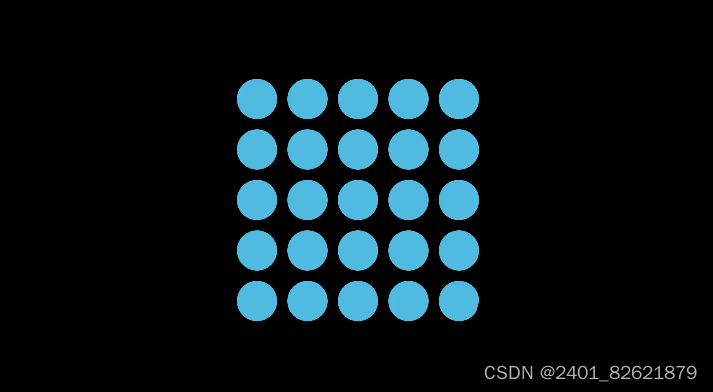

点是其他图形的基础,你可以选择用点为其他图形定位,这里的点可以是三维点[x,y,z]。也可以是二维点,如果绘制二维点只需要将z坐标令为0,即[x,y,0]。接下来我们以5×5的点阵为例
from manim import*
class example(Scene):
def construct(self):
for x in range(-2,3):
for y in range(2,-3,-1):
dot = Dot([x,y,0],color = BLUE,radius = 0.4)
self.play(Create(dot))
其中,color赋予dot一种颜色,radius赋予dot半径,可以根据需要自行改变
三、线

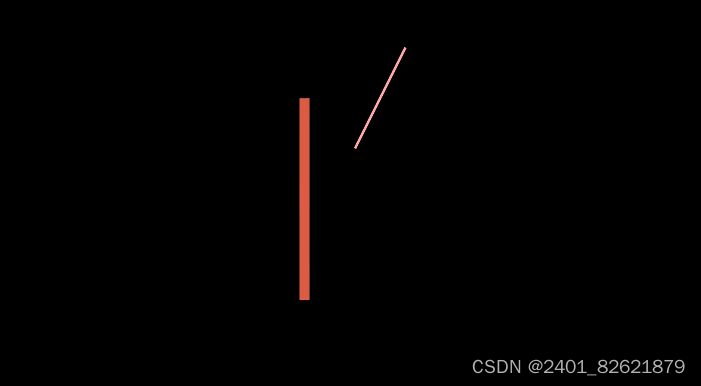

1.直线
提供两个点,通过Line来进行划线
from manim import*
class example(Scene):
def construct(self):
line1 = Line([0,1,0],[1,3,0],color = RED_A,stroke_width = 5)
self.play(Create(line1))
line2 = Line([-1,-2,0],[-1,2,0],color = RED_E,stroke_width = 20)
self.play(Create(line2))
在manim中每种color默认有五种色号从A到E,通过stroke_width可以调整线的粗细

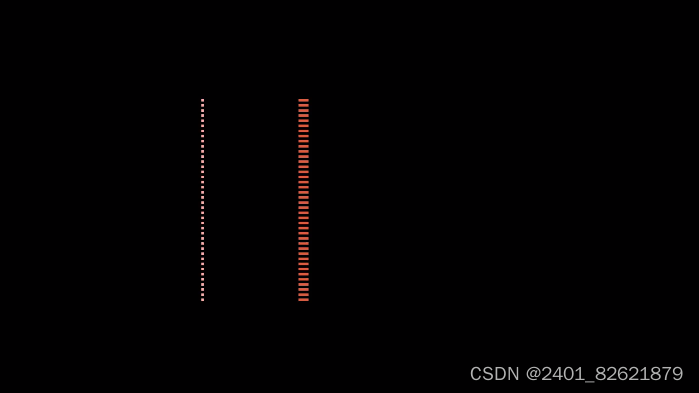

2.虚线
和直线类似,使用DashedLine调用
from manim import*
class example(Scene):
def construct(self):
line1 = DashedLine([-3,-2,0],[-3,2,0],color = RED_A,stroke_width = 5)
self.play(Create(line1))
line2 = DashedLine([-1,-2,0],[-1,2,0],color = RED_E,stroke_width = 20)
self.play(Create(line2))
self.wait(1)

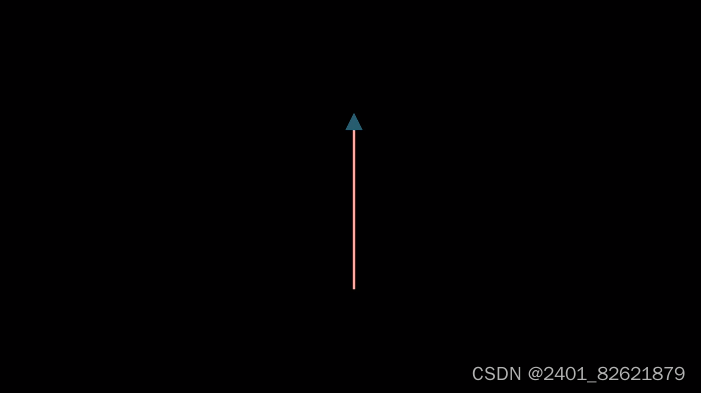

3.箭头
使用Arrow调用箭头
from manim import*
class example(Scene):
def construct(self):
line1 = Arrow([0,-2,0],[0,2,0],color = RED_A,stroke_width = 5,tip_style ={"fill_opacity":0.5,"fill_color":BLUE_C,"stroke_color":YELLOW_D})
self.play(Create(line1))
self.wait(1)
在tip_style这个字典中你可以改变箭头的属性
4.圆弧

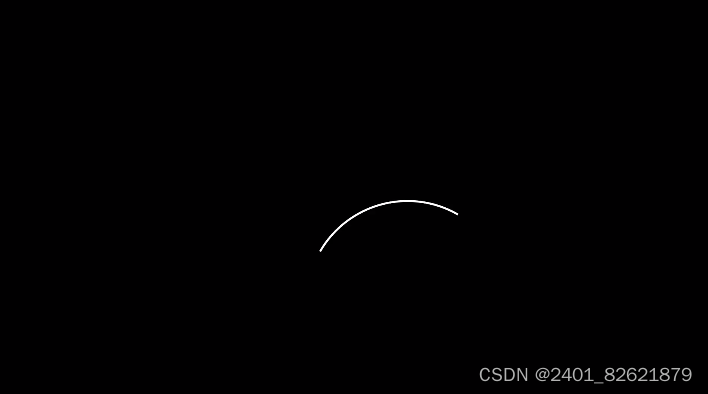

1.使用Arc调用圆弧
from manim import*
class example(Scene):
def construct(self):
arc = Arc(arc_center = [1,-2,0],radius = 2,start_angle = PI/3,angle = PI/2)
self.play(Create(arc))
self.wait(1)
arc_center设置圆弧的圆心,radius设置圆弧的半径,start_angle设置圆弧的起始角度,angle设置圆弧结束点到圆心连线和起始点到圆心连线的夹角

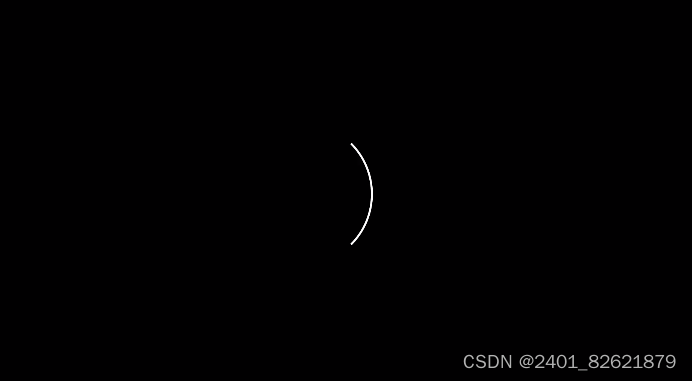

2.两点式圆弧
from manim import*
class example(Scene):
def construct(self):
arc = ArcBetweenPoints(start = [0,-1,0],end = [0,1,0],angle = PI/2)
self.play(Create(arc))
self.wait(1)
start为起始点,end为结束点,angle为转过的角度

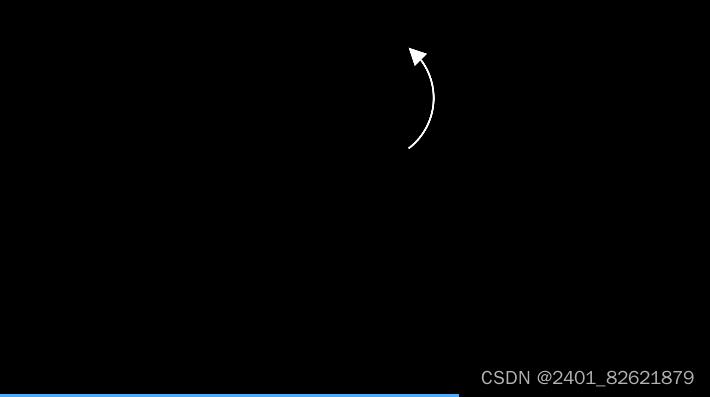

5.曲线箭头
使用CurvedArrow调用曲线箭头
from manim import*
class example(Scene):
def construct(self):
A = CurvedArrow(start_point = [1,1,0],end_point = [1,3,0])
self.play(Create(A))
self.wait(1)
start_point为箭头起始的位置,end_point为箭头结束的位置

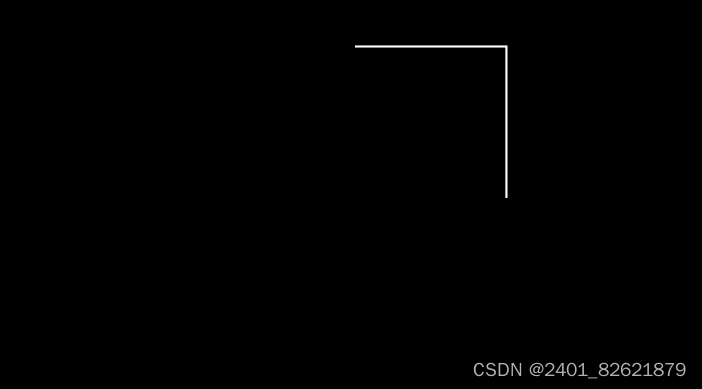

6.直角
利用Elbow,调用直角
from manim import*
class example(Scene):
def construct(self):
exp = Elbow(angle = 0,width = 3)
self.play(Create(exp))
self.wait(1)
通过angle调整直角面对的方向,

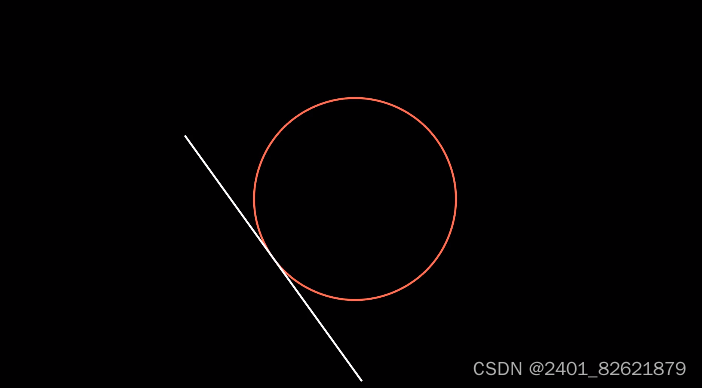

7.切线
利用TangentLine调用切线
from manim import*
class example(Scene):
def construct(self):
exp = Circle(radius=2)
line = TangentLine(vmob = exp,alpha = 0.6,length = 6)
self.play(Create(exp))
self.play(Create(line))
self.wait(1)
vmob表示需要画切线的曲线,alpha为切点沿着曲线走过的长度和曲线总长的比值,length表示切线的长度。
四、面
1.多边形
利用Polygon调用多边形
from manim import*
class example(Scene):
def construct(self):
exp = Polygon(np.array([1,2,0]),np.array([1,-3,0]),np.array([-1,-1,0]),np.array([-1,2,0]))
self.play(Create(exp))
self.wait(1)
输入n个点,自动生成多边形
2.正多边形
使用RegularPolygon,创造正n边形
from manim import*
class example(Scene):
def construct(self):
exp = RegularPolygon(n=6)
self.play(Create(exp))
self.wait(1)

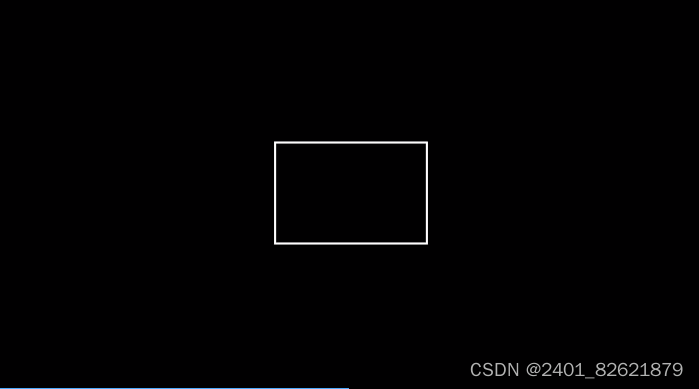

3.矩形
用Rectangle创造矩形
from manim import*
class example(Scene):
def construct(self):
exp = Rectangle(height = 2,width = 3)
self.play(Create(exp))
self.wait(1)
height设置矩形在y轴方向的长度,width设置矩形在x轴方向的长度

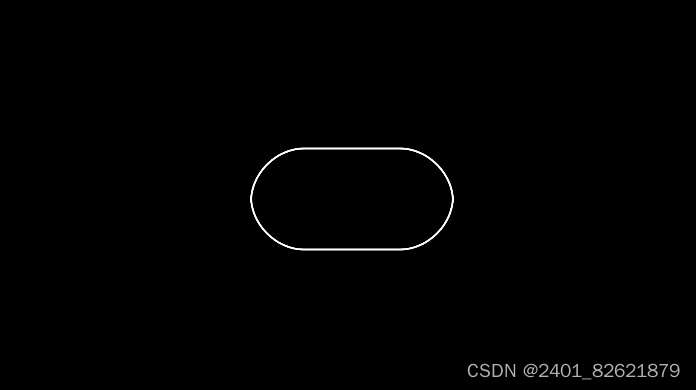

4.圆角矩形
通过RoundedRectangle创造圆角矩形
from manim import*
class example(Scene):
def construct(self):
exp = RoundedRectangle(corner_radius=PI/3)
self.play(Create(exp))
self.wait(1)
corner_radius表示圆角所对的角度
5.圆
使用Circle创造圆
from manim import*
class example(Scene):
def construct(self):
exp = Circle(radius = 3)
self.play(Create(exp))
self.wait(1)
radius设置圆的半径

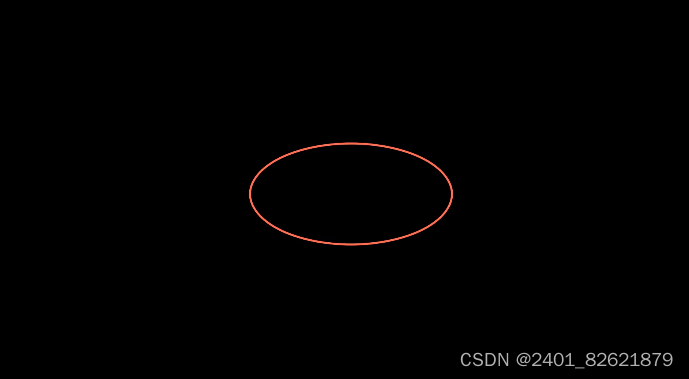

6.椭圆
使用Ellipse创造一个椭圆
from manim import*
class example(Scene):
def construct(self):
exp = Ellipse(width = 4,height = 2)
self.play(Create(exp))
self.wait(1)
width为长轴的长度,height为短轴的长度

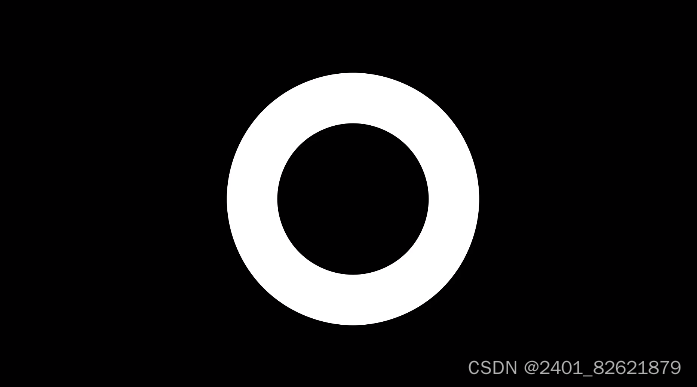

7.环
使用Annulus创造圆环
from manim import*
class example(Scene):
def construct(self):
exp = Annulus(inner_radius = 1.5,outer_radius = 2.5)
self.play(Create(exp))
self.wait(1)
inter_radius为环的内径,outer_radius为环的外径

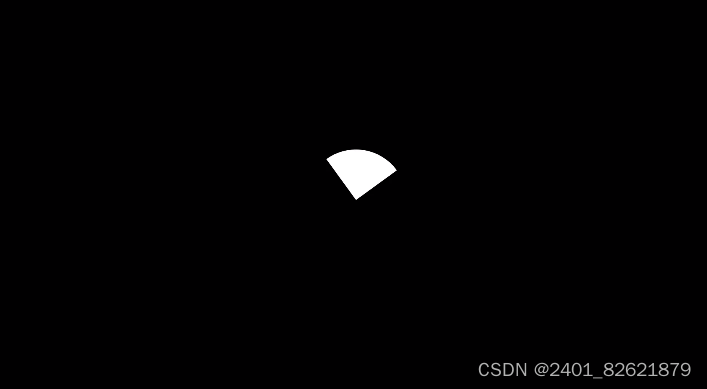

8.扇
使用Sector创造扇
from manim import*
class example(Scene):
def construct(self):
exp = Sector(start_angle = PI/5,angle = PI/2)
self.play(Create(exp))
self.wait(1)
start_angle为开始时的角度,angle为扇形的角度

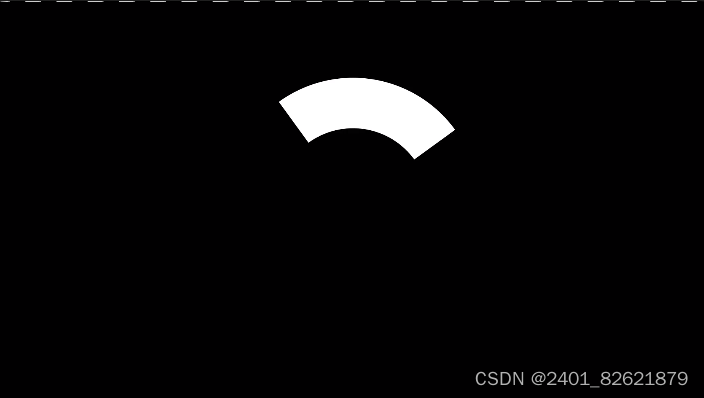

9.扇环
使用AnnularSector创造扇环
from manim import*
class example(Scene):
def construct(self):
exp = AnnularSector(inner_radius = 1.5,outer_radius = 2.5,start_angle = PI/5,angle = PI/2)
self.play(Create(exp))
self.wait(1)
inter_radius为环的内径,outer_radius为环的外径,start_angle为开始时的角度,angle为扇形的角度
