手把手搭建经典神经网络系列（3）——GoogLeNet_basicconv2d

import torch.nn.functional as F

class GoogLeNet(nn.Module):
def init(self, num_classes=1000, aux_logits=True, init_weights=False):
super(GoogLeNet, self).init()
self.aux_logits = aux_logits

    self.conv1 = BasicConv2d(3, 64, kernel_size=7, stride=2, padding=3)
    self.maxpool1 = nn.MaxPool2d(3, stride=2, ceil_mode=True)

    self.conv2 = BasicConv2d(64, 64, kernel_size=1)
    self.conv3 = BasicConv2d(64, 192, kernel_size=3, padding=1)
    self.maxpool2 = nn.MaxPool2d(3, stride=2, ceil_mode=True)

    self.inception3a = Inception(192, 64, 96, 128, 16, 32, 32)
    self.inception3b = Inception(256, 128, 128, 192, 32, 96, 64)
    self.maxpool3 = nn.MaxPool2d(3, stride=2, ceil_mode=True)

    self.inception4a = Inception(480, 192, 96, 208, 16, 48, 64)
    self.inception4b = Inception(512, 160, 112, 224, 24, 64, 64)
    self.inception4c = Inception(512, 128, 128, 256, 24, 64, 64)
    self.inception4d = Inception(512, 112, 144, 288, 32, 64, 64)
    self.inception4e = Inception(528, 256, 160, 320, 32, 128, 128)
    self.maxpool4 = nn.MaxPool2d(3, stride=2, ceil_mode=True)

    self.inception5a = Inception(832, 256, 160, 320, 32, 128, 128)
    self.inception5b = Inception(832, 384, 192, 384, 48, 128, 128)

    if self.aux_logits:
        self.aux1 = InceptionAux(512, num_classes)
        self.aux2 = InceptionAux(528, num_classes)

    self.avgpool = nn.AdaptiveAvgPool2d((1, 1))
    self.dropout = nn.Dropout(0.4)
    self.fc = nn.Linear(1024, num_classes)
    if init_weights:
        self._initialize_weights()

def forward(self, x):
    # N x 3 x 224 x 224
    x = self.conv1(x)
    # N x 64 x 112 x 112
    x = self.maxpool1(x)
    # N x 64 x 56 x 56
    x = self.conv2(x)
    # N x 64 x 56 x 56
    x = self.conv3(x)
    # N x 192 x 56 x 56
    x = self.maxpool2(x)

    # N x 192 x 28 x 28
    x = self.inception3a(x)
    # N x 256 x 28 x 28
    x = self.inception3b(x)
    # N x 480 x 28 x 28
    x = self.maxpool3(x)
    # N x 480 x 14 x 14
    x = self.inception4a(x)
    # N x 512 x 14 x 14
    if self.training and self.aux_logits:    # eval model lose this layer
        aux1 = self.aux1(x)

    x = self.inception4b(x)
    # N x 512 x 14 x 14
    x = self.inception4c(x)
    # N x 512 x 14 x 14
    x = self.inception4d(x)
    # N x 528 x 14 x 14
    if self.training and self.aux_logits:    # eval model lose this layer
        aux2 = self.aux2(x)

    x = self.inception4e(x)
    # N x 832 x 14 x 14
    x = self.maxpool4(x)
    # N x 832 x 7 x 7
    x = self.inception5a(x)
    # N x 832 x 7 x 7
    x = self.inception5b(x)
    # N x 1024 x 7 x 7

    x = self.avgpool(x)
    # N x 1024 x 1 x 1
    x = torch.flatten(x, 1)
    # N x 1024
    x = self.dropout(x)
    x = self.fc(x)
    # N x 1000 (num_classes)
    if self.training and self.aux_logits:   # eval model lose this layer
        return x, aux2, aux1
    return x

def _initialize_weights(self):
    for m in self.modules():
        if isinstance(m, nn.Conv2d):
            nn.init.kaiming_normal_(m.weight, mode='fan_out', nonlinearity='relu')
            if m.bias is not None:
                nn.init.constant_(m.bias, 0)
        elif isinstance(m, nn.Linear):
            nn.init.normal_(m.weight, 0, 0.01)
            nn.init.constant_(m.bias, 0)

class Inception(nn.Module):
def init(self, in_channels, ch1x1, ch3x3red, ch3x3, ch5x5red, ch5x5, pool_proj):
super(Inception, self).init()

    self.branch1 = BasicConv2d(in_channels, ch1x1, kernel_size=1)

    self.branch2 = nn.Sequential(
        BasicConv2d(in_channels, ch3x3red, kernel_size=1),
        BasicConv2d(ch3x3red, ch3x3, kernel_size=3, padding=1)   # 保证输出大小等于输入大小
    )

    self.branch3 = nn.Sequential(
        BasicConv2d(in_channels, ch5x5red, kernel_size=1),
        # 在官方的实现中，其实是3x3的kernel并不是5x5，这里我也懒得改了，具体可以参考下面的issue
        # Please see https://github.com/pytorch/vision/issues/906 for details.
        BasicConv2d(ch5x5red, ch5x5, kernel_size=5, padding=2)   # 保证输出大小等于输入大小
    )

    self.branch4 = nn.Sequential(
        nn.MaxPool2d(kernel_size=3, stride=1, padding=1),
        BasicConv2d(in_channels, pool_proj, kernel_size=1)
    )

def forward(self, x):
    branch1 = self.branch1(x)
    branch2 = self.branch2(x)
    branch3 = self.branch3(x)
    branch4 = self.branch4(x)

    outputs = [branch1, branch2, branch3, branch4]
    return torch.cat(outputs, 1)

class InceptionAux(nn.Module):
def init(self, in_channels, num_classes):
super(InceptionAux, self).init()
self.averagePool = nn.AvgPool2d(kernel_size=5, stride=3)
self.conv = BasicConv2d(in_channels, 128, kernel_size=1) # output[batch, 128, 4, 4]

    self.fc1 = nn.Linear(2048, 1024)
    self.fc2 = nn.Linear(1024, num_classes)

def forward(self, x):
    # aux1: N x 512 x 14 x 14, aux2: N x 528 x 14 x 14
    x = self.averagePool(x)
    # aux1: N x 512 x 4 x 4, aux2: N x 528 x 4 x 4
    x = self.conv(x)
    # N x 128 x 4 x 4
    x = torch.flatten(x, 1)
    x = F.dropout(x, 0.5, training=self.training)
    # N x 2048
    x = F.relu(self.fc1(x), inplace=True)
    x = F.dropout(x, 0.5, training=self.training)
    # N x 1024
    x = self.fc2(x)
    # N x num_classes
    return x

class BasicConv2d(nn.Module):
def init(self, in_channels, out_channels, **kwargs):
super(BasicConv2d, self).init()
self.conv = nn.Conv2d(in_channels, out_channels, **kwargs)
self.relu = nn.ReLU(inplace=True)

def forward(self, x):
    x = self.conv(x)
    x = self.relu(x)
    return x

        在model.y文件中，搭建了GoogLeNet的网络结构。其中，**核心模块Inception**和**辅助分类器InceptionAux**采用了模块打包的方式，这也体现出了GoogLeNet的巨大优势，**方便修改结构和进行二次开发**。代码语义可以查看注释，如有疑问欢迎留言！


### **train.py**

import os
import sys
import json

import torch
import torch.nn as nn
from torchvision import transforms, datasets
import torch.optim as optim
from tqdm import tqdm

from model import GoogLeNet

def main():
device = torch.device(“cuda:0” if torch.cuda.is_available() else “cpu”)
print(“using {} device.”.format(device))

data_transform = {
    "train": transforms.Compose([transforms.RandomResizedCrop(224),
                                 transforms.RandomHorizontalFlip(),
                                 transforms.ToTensor(),
                                 transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))]),
    "val": transforms.Compose([transforms.Resize((224, 224)),
                               transforms.ToTensor(),
                               transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))])}

data_root = os.path.abspath(os.path.join(os.getcwd(), "./"))  # get data root path
image_path = os.path.join(data_root, "data_set", "flower_data")  # flower data set path
assert os.path.exists(image_path), "{} path does not exist.".format(image_path)
train_dataset = datasets.ImageFolder(root=os.path.join(image_path, "train"),
                                     transform=data_transform["train"])
train_num = len(train_dataset)

# {'daisy':0, 'dandelion':1, 'roses':2, 'sunflower':3, 'tulips':4}
flower_list = train_dataset.class_to_idx
cla_dict = dict((val, key) for key, val in flower_list.items())
# write dict into json file
json_str = json.dumps(cla_dict, indent=4)
with open('class_indices.json', 'w') as json_file:
    json_file.write(json_str)

batch_size = 32
nw = min([os.cpu_count(), batch_size if batch_size > 1 else 0, 8])  # number of workers
print('Using {} dataloader workers every process'.format(nw))

train_loader = torch.utils.data.DataLoader(train_dataset,
                                           batch_size=batch_size, shuffle=True,
                                           num_workers=nw)

validate_dataset = datasets.ImageFolder(root=os.path.join(image_path, "val"),
                                        transform=data_transform["val"])
val_num = len(validate_dataset)
validate_loader = torch.utils.data.DataLoader(validate_dataset,
                                              batch_size=batch_size, shuffle=False,
                                              num_workers=nw)

print("using {} images for training, {} images for validation.".format(train_num,
                                                                       val_num))

# test_data_iter = iter(validate_loader)
# test_image, test_label = test_data_iter.next()

net = GoogLeNet(num_classes=5, aux_logits=True, init_weights=True)
# 如果要使用官方的预训练权重，注意是将权重载入官方的模型，不是我们自己实现的模型
# 官方的模型中使用了bn层以及改了一些参数，不能混用
# import torchvision
# net = torchvision.models.googlenet(num_classes=5)
# model_dict = net.state_dict()
# # 预训练权重下载地址: https://download.pytorch.org/models/googlenet-1378be20.pth
# pretrain_model = torch.load("googlenet.pth")
# del_list = ["aux1.fc2.weight", "aux1.fc2.bias",
#             "aux2.fc2.weight", "aux2.fc2.bias",
#             "fc.weight", "fc.bias"]
# pretrain_dict = {k: v for k, v in pretrain_model.items() if k not in del_list}
# model_dict.update(pretrain_dict)
# net.load_state_dict(model_dict)
net.to(device)
loss_function = nn.CrossEntropyLoss()
optimizer = optim.Adam(net.parameters(), lr=0.0003)

epochs = 30
best_acc = 0.0
save_path = './googleNet.pth'
train_steps = len(train_loader)
for epoch in range(epochs):
    # train
    net.train()
    running_loss = 0.0
    train_bar = tqdm(train_loader, file=sys.stdout)
    for step, data in enumerate(train_bar):
        images, labels = data
        optimizer.zero_grad()
        logits, aux_logits2, aux_logits1 = net(images.to(device))
        loss0 = loss_function(logits, labels.to(device))
        loss1 = loss_function(aux_logits1, labels.to(device))
        loss2 = loss_function(aux_logits2, labels.to(device))
        loss = loss0 + loss1 * 0.3 + loss2 * 0.3
        loss.backward()
        optimizer.step()

        # print statistics
        running_loss += loss.item()

        train_bar.desc = "train epoch[{}/{}] loss:{:.3f}".format(epoch + 1,
                                                                 epochs,
                                                                 loss)

    # validate
    net.eval()
    acc = 0.0  # accumulate accurate number / epoch
    with torch.no_grad():
        val_bar = tqdm(validate_loader, file=sys.stdout)
        for val_data in val_bar:
            val_images, val_labels = val_data
            outputs = net(val_images.to(device))  # eval model only have last output layer
            predict_y = torch.max(outputs, dim=1)[1]
            acc += torch.eq(predict_y, val_labels.to(device)).sum().item()

    val_accurate = acc / val_num
    print('[epoch %d] train_loss: %.3f  val_accuracy: %.3f' %
          (epoch + 1, running_loss / train_steps, val_accurate))

    if val_accurate > best_acc:
        best_acc = val_accurate
        torch.save(net.state_dict(), save_path)

print('Finished Training')

if name == ‘main’:
main()

        权重训练文件，本实验选取了较为**经典入门的花类识别**，同时方便与之前经典的神经网络模型的识别效果进行对比。


### predict.py

import os
import json

import torch
from PIL import Image
from torchvision import transforms
import matplotlib.pyplot as plt

from model import GoogLeNet

def main():
device = torch.device(“cuda:0” if torch.cuda.is_available() else “cpu”)

data_transform = transforms.Compose(
    [transforms.Resize((224, 224)),
     transforms.ToTensor(),
     transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))])

# load image
img_path = "./2.png"
assert os.path.exists(img_path), "file: '{}' dose not exist.".format(img_path)
img = Image.open(img_path)
plt.imshow(img)
# [N, C, H, W]
img = data_transform(img)
# expand batch dimension
img = torch.unsqueeze(img, dim=0)

# read class_indict
json_path = './class_indices.json'
assert os.path.exists(json_path), "file: '{}' dose not exist.".format(json_path)

with open(json_path, "r") as f:
    class_indict = json.load(f)

# create model
model = GoogLeNet(num_classes=5, aux_logits=False).to(device)

# load model weights
weights_path = "./googleNet.pth"
assert os.path.exists(weights_path), "file: '{}' dose not exist.".format(weights_path)
missing_keys, unexpected_keys = model.load_state_dict(torch.load(weights_path, map_location=device),
                                                      strict=False)

最后

自我介绍一下，小编13年上海交大毕业，曾经在小公司待过，也去过华为、OPPO等大厂，18年进入阿里一直到现在。

深知大多数Java工程师，想要提升技能，往往是自己摸索成长，自己不成体系的自学效果低效漫长且无助。

因此收集整理了一份《2024年嵌入式&物联网开发全套学习资料》，初衷也很简单，就是希望能够帮助到想自学提升又不知道该从何学起的朋友，同时减轻大家的负担。

既有适合小白学习的零基础资料，也有适合3年以上经验的小伙伴深入学习提升的进阶课程，基本涵盖了95%以上嵌入式&物联网开发知识点，真正体系化！

如果你觉得这些内容对你有帮助，需要这份全套学习资料的朋友可以戳我获取！！

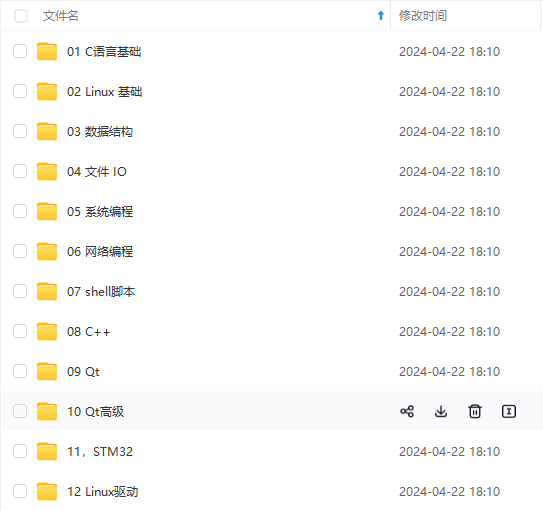

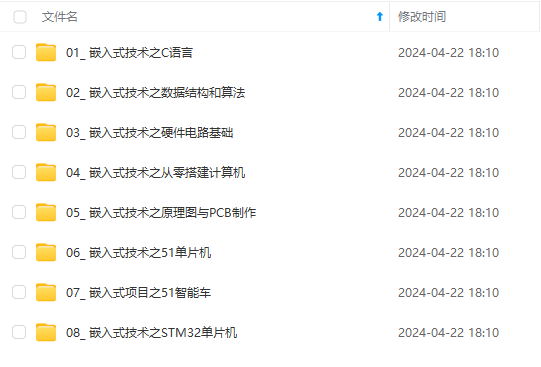

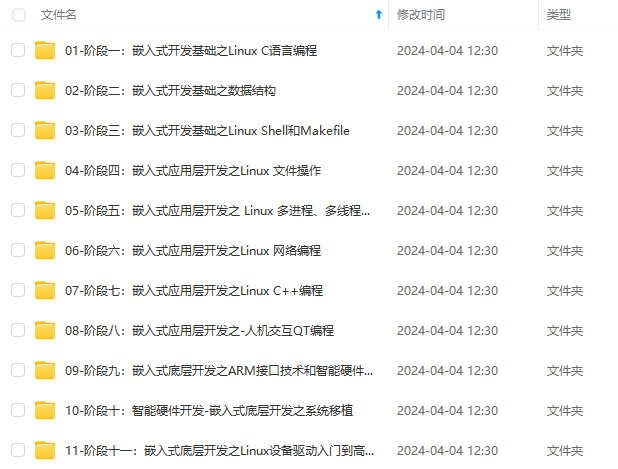

由于文件比较大，这里只是将部分目录大纲截图出来，每个节点里面都包含大厂面经、学习笔记、源码讲义、实战项目、讲解视频，并且后续会持续更新！！
