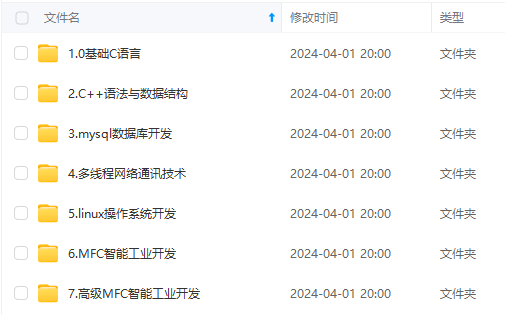

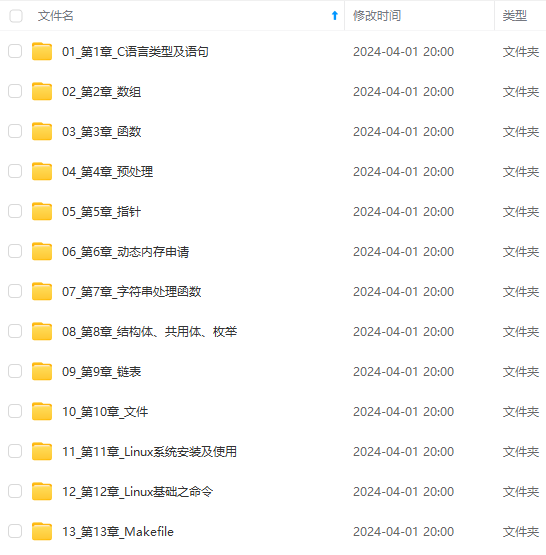

由于文件比较多,这里只是将部分目录截图出来,全套包含大厂面经、学习笔记、源码讲义、实战项目、大纲路线、讲解视频,并且后续会持续更新
真实验证这个好像有些问题,如果按这个顶点编写,最后离屏渲染出来的图形是反的。
黑色表现显示的内容矩形
红色坐标表示顶点坐标[一般单位为0.5]
黄色坐标表示正常纹理坐标,原点在左上角【一般单位为1】
蓝色坐标表示FBO的纹理坐标,原点为左下角【一般单位为1】
紫色的描述表示索引,012,132.三角形凑矩形
第二部分编写代码
主要是C++这边的代码;
因为工程完成了使用离屏渲染操作后还将结果显示了,所以这边是需要创建两个opengles的工程的CreateGLProgram。然后主要是围绕这两个工程来实现的。
m_ProgramObj普通工程:与之前纹理工程一致,需要绑定VAO,VBO以及创建绑定纹理,注意最后绘画的时候绑定离屏渲染的那个纹理进行显示。
m_FboProgramOb离屏渲染的工程:跟普通工程差不多,只是创建绑定纹理那里暂时不需要绑定数据。还有需要创建FBO帧缓冲这块。与普通工程有不同的片段着色器代码,这块离屏渲染可以做一些特殊操作,当前工程就是将图片灰度画。
1)GLUtil.h文件将创建着色器和创建工程接口抽象化
//
// Created by CreatWall_zhouwen on 2023/4/21.
//
#ifndef FORTHDRAWFBO_GLUTIL_H
#define FORTHDRAWFBO_GLUTIL_H
#include "Util.h"
#include <GLES3/gl3.h>
#define TAG "GLUTIL_H"
void CheckGLerror(GLuint shader, GLenum pname, GLint *params)
{
glGetShaderiv(shader, pname, params);
}
GLuint LoadShader(GLenum shaderType, const char *pSource)
{
LOGD("LoadShader Entern");
//创建对应类型的着色器
GLuint ShaderHandle = glCreateShader(shaderType);//创建shaderType类型的着色器
if (ShaderHandle)
{
//附加着色器源码
glShaderSource(ShaderHandle, 1, &pSource, NULL);//shader源码为pSource
//编译着色器
glCompileShader(ShaderHandle);
//获取编译结果是否成
GLint compiled = 0;
glGetShaderiv(ShaderHandle, GL_COMPILE_STATUS, &compiled);
if (!compiled){
glDeleteShader(ShaderHandle);
LOGD("glCompileShader ShaderHandle error");
return 0;
}
}
LOGD("LoadShader Leave");
return ShaderHandle;
}
GLuint CreateGLProgram(const char *pVertexShaderSource, const char *pFragShaderSource, GLuint &vertexShaderHandle, GLuint &fragShaderHandle)
{
LOGD("CreateProgram Entern");
GLuint program = 0;
GLint AttachStatus = GL_FALSE;
//创建顶点着色器
vertexShaderHandle = LoadShader(GL_VERTEX_SHADER, pVertexShaderSource);
if (!vertexShaderHandle) return program;
LOGD("vertexShaderHandle success");
//创建片段着色器
fragShaderHandle = LoadShader(GL_FRAGMENT_SHADER, pFragShaderSource);
if (!fragShaderHandle) return program;
LOGD("fragShaderHandle success");
//创建程序
program = glCreateProgram();
if (program)
{
AttachStatus = 0;
glAttachShader(program, vertexShaderHandle);
glGetShaderiv(vertexShaderHandle, GL_ATTACHED_SHADERS, &AttachStatus);
if(AttachStatus != 0 ){
LOGD("glAttachShader vertexShaderHandle error %d",AttachStatus);
return 0;
}
AttachStatus = 0;
glAttachShader(program, fragShaderHandle);
glGetShaderiv(fragShaderHandle, GL_ATTACHED_SHADERS, &AttachStatus);
if(AttachStatus != 0 ){
LOGD("glAttachShader fragShaderHandle error %d",AttachStatus);
return 0;
}
glLinkProgram(program);
GLint linkStatus = GL_FALSE;
glGetProgramiv(program, GL_LINK_STATUS, &linkStatus);
if (linkStatus != GL_TRUE){
LOGD("glLinkProgram error AttachStatus = %d", linkStatus);
glDeleteProgram(program);
program = 0;
return 0;
}
glDetachShader(program, vertexShaderHandle);
glDeleteShader(vertexShaderHandle);
vertexShaderHandle = 0;
glDetachShader(program, fragShaderHandle);
glDeleteShader(fragShaderHandle);
fragShaderHandle = 0;
LOGD("glCreateProgram success");
}
LOGD("CreateProgram Leave");
return program;
}
#endif //FORTHDRAWFBO_GLUTIL_H
2)离屏渲染操作类
FBOSample.h
//
// Created by CreatWall_zhouwen on 2023/4/21.
//
#ifndef FORTHDRAWFBO_FBOSAMPLE_H
#define FORTHDRAWFBO_FBOSAMPLE_H
#include <GLES3/gl3.h>
class FBOSample {
public:
FBOSample();
~FBOSample();
void CreateProgram(const char *ver, const char *frag, const char * fragfbo);//创建工程并初始化
void getTexturedata(unsigned char *data, int width, int height);//从NDK那边获取图片数据传过来
void OnSurfaceChanged(int width, int height);//获取屏幕大小
static FBOSample* GetInstance();
static void DestroyInstance();
void Draw();//绘画 就是执行离屏渲染再将离屏渲染的结果显示
private:
GLuint m_FboVertexShader;//FBO的顶点着色器和片段着色器
GLuint m_FboFragmentShader;
GLuint m_VertexShader;//普通渲染的顶点着色器和片段着色器
GLuint m_FragmentShader;
GLuint m_ProgramObj;//普通工程ID
GLuint m_FboProgramObj;//FBO工程ID
GLuint m_ImageTextureId;//图片数据的纹理ID
GLuint m_FboTextureId;//FBO绑定的空数据纹理ID
GLint m_SamplerLoc;//普通片段着色器中的采样器值的位置
GLint m_FboSamplerLoc;//FBO片段着色器中的采样器值的位置
GLuint m_FboId;//FBO的ID
unsigned char *texturedata;
int texturewidth, textureheight;
GLuint m_VaoIds[2];//存放顶点数据 0表示普通渲染的顶点缓冲区 1表示离屏渲染的顶点缓冲区
GLuint m_VboIds[4];//0表示顶点坐标缓冲区,1表示普通纹理坐标缓冲区,2表示离屏渲染纹理坐标缓冲区,3表示纹理索引坐标缓冲区
int srceenWidth, srceenHeight;//屏幕宽高
};
#endif //FORTHDRAWFBO_FBOSAMPLE_H
FBOSample.cpp
//
// Created by CreatWall_zhouwen on 2023/4/21.
//
#include "FBOSample.h"
#include "Util.h"
#include "GLUtil.h"
FBOSample* m_pContext = nullptr;
#define TAG "DRAWTEXTURE"
//顶点坐标
GLfloat vVertices[] = {
-1.0f, -1.0f, 0.0f,
1.0f, -1.0f, 0.0f,
-1.0f, 1.0f, 0.0f,
1.0f, 1.0f, 0.0f,
};
//正常纹理坐标
GLfloat vTexCoors[] = {
0.0f, 0.0f,
1.0f, 0.0f,
0.0f, 1.0f,
1.0f, 1.0f,
};
//fbo 纹理坐标与正常纹理方向不同 实践并不相反
GLfloat vFboTexCoors[] = {
0.0f, 0.0f,
1.0f, 0.0f,
0.0f, 1.0f,
1.0f, 1.0f,
};
GLushort indices[] = { 0, 1, 2, 1, 3, 2 };//三角形的索引数组
FBOSample::FBOSample() {
m_VaoIds[0] = GL_NONE;
m_VboIds[0] = GL_NONE;
m_ImageTextureId = GL_NONE;
m_FboTextureId = GL_NONE;
m_SamplerLoc = GL_NONE;
m_FboId = GL_NONE;
m_FboProgramObj = GL_NONE;
m_FboVertexShader = GL_NONE;
m_FboFragmentShader = GL_NONE;
m_FboSamplerLoc = GL_NONE;
}
FBOSample::~FBOSample() {
if (m_ProgramObj)
{
glDeleteProgram(m_ProgramObj);
}
if (m_FboProgramObj)
{
glDeleteProgram(m_FboProgramObj);
}
if (m_ImageTextureId)
{
glDeleteTextures(1, &m_ImageTextureId);
}
if (m_FboTextureId)
{
glDeleteTextures(1, &m_FboTextureId);
}
if (m_VboIds[0])
{
glDeleteBuffers(4, m_VboIds);
}
if (m_VaoIds[0])
{
glDeleteVertexArrays(2, m_VaoIds);
}
if (m_FboId)
{
glDeleteFramebuffers(1, &m_FboId);
}
}
void FBOSample::CreateProgram(const char *ver, const char *frag, const char * fragfbo) {
LOGD("CreateProgram Enter");
// 编译链接用于普通渲染的着色器程序
m_ProgramObj = CreateGLProgram(ver, frag, m_VertexShader, m_FragmentShader);
// 编译链接用于离屏渲染的着色器程序
m_FboProgramObj = CreateGLProgram(ver, fragfbo, m_FboVertexShader, m_FboFragmentShader);
if (m_ProgramObj == GL_NONE || m_FboProgramObj == GL_NONE)
{
LOGD("FBOSample::Init m_ProgramObj == GL_NONE");
return;
}
LOGD("CreateGLProgram Success");
//获取片段着色器中s_TextureMap的属性位置,编译后期指定是哪个纹理
m_SamplerLoc = glGetUniformLocation(m_ProgramObj, "s_TextureMap");
m_FboSamplerLoc = glGetUniformLocation(m_FboProgramObj, "s_TextureMap");
LOGD("glGetUniformLocation Success");
//生成VBO 加载顶点数据和索引数据
glGenBuffers(4, m_VboIds);
glBindBuffer(GL_ARRAY_BUFFER, m_VboIds[0]);
glBufferData(GL_ARRAY_BUFFER, sizeof(vVertices), vVertices, GL_STATIC_DRAW);
glBindBuffer(GL_ARRAY_BUFFER, m_VboIds[1]);
glBufferData(GL_ARRAY_BUFFER, sizeof(vTexCoors), vTexCoors, GL_STATIC_DRAW);
glBindBuffer(GL_ARRAY_BUFFER, m_VboIds[2]);
glBufferData(GL_ARRAY_BUFFER, sizeof(vFboTexCoors), vFboTexCoors, GL_STATIC_DRAW);
glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, m_VboIds[3]);//最后一个为纹理的索引缓冲数据
glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(indices), indices, GL_STATIC_DRAW);
LOGD("glGenBuffers Success");
// 生成 2 个 VAO顶点数据对象,一个用于普通渲染,另一个用于离屏渲染
glGenVertexArrays(2, m_VaoIds);
//初始化用于普通渲染
glBindVertexArray(m_VaoIds[0]);//绑定0顶点缓冲区 那么接下来的操作就是绑定0顶点缓冲区的初始化
glBindBuffer(GL_ARRAY_BUFFER, m_VboIds[0]);//绑定属性缓冲区0并设置顶点数据属性
glEnableVertexAttribArray(0);//0对应的顶点着色器的location
glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(GLfloat), (const void *)0);
glBindBuffer(GL_ARRAY_BUFFER, GL_NONE);
glBindBuffer(GL_ARRAY_BUFFER, m_VboIds[1]);//绑定属性缓冲区1并设置纹理坐标数据属性
glEnableVertexAttribArray(1);
glVertexAttribPointer(1, 2, GL_FLOAT, GL_FALSE, 2 * sizeof(GLfloat), (const void *)0);
glBindBuffer(GL_ARRAY_BUFFER, GL_NONE);
glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, m_VboIds[3]);//绑定属性缓冲区3并设置纹理索引属性
glBindVertexArray(GL_NONE);
LOGD("m_VaoIds[0] Success");
//初始化离屏渲染的VAO
glBindVertexArray(m_VaoIds[1]);
glBindBuffer(GL_ARRAY_BUFFER, m_VboIds[0]);
glEnableVertexAttribArray(0);
glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(GLfloat), (const void *)0);
glBindBuffer(GL_ARRAY_BUFFER, GL_NONE);
glBindBuffer(GL_ARRAY_BUFFER, m_VboIds[2]);
glEnableVertexAttribArray(1);
glVertexAttribPointer(1, 2, GL_FLOAT, GL_FALSE, 2 * sizeof(GLfloat), (const void *)0);
glBindBuffer(GL_ARRAY_BUFFER, GL_NONE);
glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, m_VboIds[3]);
glBindVertexArray(GL_NONE);
LOGD("m_VaoIds[1] Success");
//创建两个纹理,创建图片文件就是作为渲染操作的源数据,另外一个FBO的纹理就是FBO操作离屏渲染,就是将GPU处理结果放到FBO纹理存储
//创建并初始化图形纹理
glGenTextures(1, &m_ImageTextureId);
glBindTexture(GL_TEXTURE_2D, m_ImageTextureId);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);//重复纹理的填充方式
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR_MIPMAP_LINEAR);//缩小时线性插值
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);//放到就是线性
glTexImage2D(GL_TEXTURE_2D, 0, GL_RGB, texturewidth, textureheight, 0, GL_RGB, GL_UNSIGNED_BYTE, texturedata);
LOGD("CreateProgram %s", texturedata);
glGenerateMipmap(GL_TEXTURE_2D);//为当前绑定的纹理自动生成所有需要的多级渐远纹理
glBindTexture(GL_TEXTURE_2D, GL_NONE);
LOGD("m_ImageTextureId Success");
//创建离屏的纹理,不绑定数据值申请内存
glGenTextures(1, &m_FboTextureId);
glBindTexture(GL_TEXTURE_2D, m_FboTextureId);
glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);
glTexParameterf(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
glTexImage2D(GL_TEXTURE_2D, 0, GL_RGB, texturewidth, textureheight, 0, GL_RGB, GL_UNSIGNED_BYTE, nullptr);
glBindTexture(GL_TEXTURE_2D, GL_NONE);
LOGD("m_FboTextureId Success");
//创建并初始化FBO,帧缓冲
glGenFramebuffers(1, &m_FboId);
glBindFramebuffer(GL_FRAMEBUFFER, m_FboId);//绑定帧缓冲
glBindTexture(GL_TEXTURE_2D, m_FboTextureId);//激活这个m_FboTextureId纹理绑定GL_TEXTURE_2D
