基于 STM32 和 K210 的人脸识别智能门锁
一、项目背景
由于我们学校的宿舍采用老式门锁在日常生活中总会出现双手不便，钥匙忘带的情况，所以就想制作一个智能门锁，同时因为正在学习人脸识别，就决定制作一个人脸识别智能门锁。
二、项目功能需求
1.可以通过按键来增删查改成员的人脸信息，在LCD屏上显示MrX的绿字表示入录成功（X表示次数）
2.在人脸识别匹配过程中，如果采集的人脸信息与人脸库匹配成功，在LCD屏上显示MrX的绿字和绿框，通过WiFi模块，让从机控制舵机开门
3.也可以通过蓝牙与手机连接，远程开门
4.在有人时才能激活人脸识别（k210持续工作发热量大）
三、元件准备
1.舵机 2.stm32f103c8t6最小系统板 3 .k210带摄像头模块的系统板 4.esp8266的WiFi模块 5.红外感应模块 6.MOS开关模块 7.蓝牙模块 8.BOM表（附在PCB处）

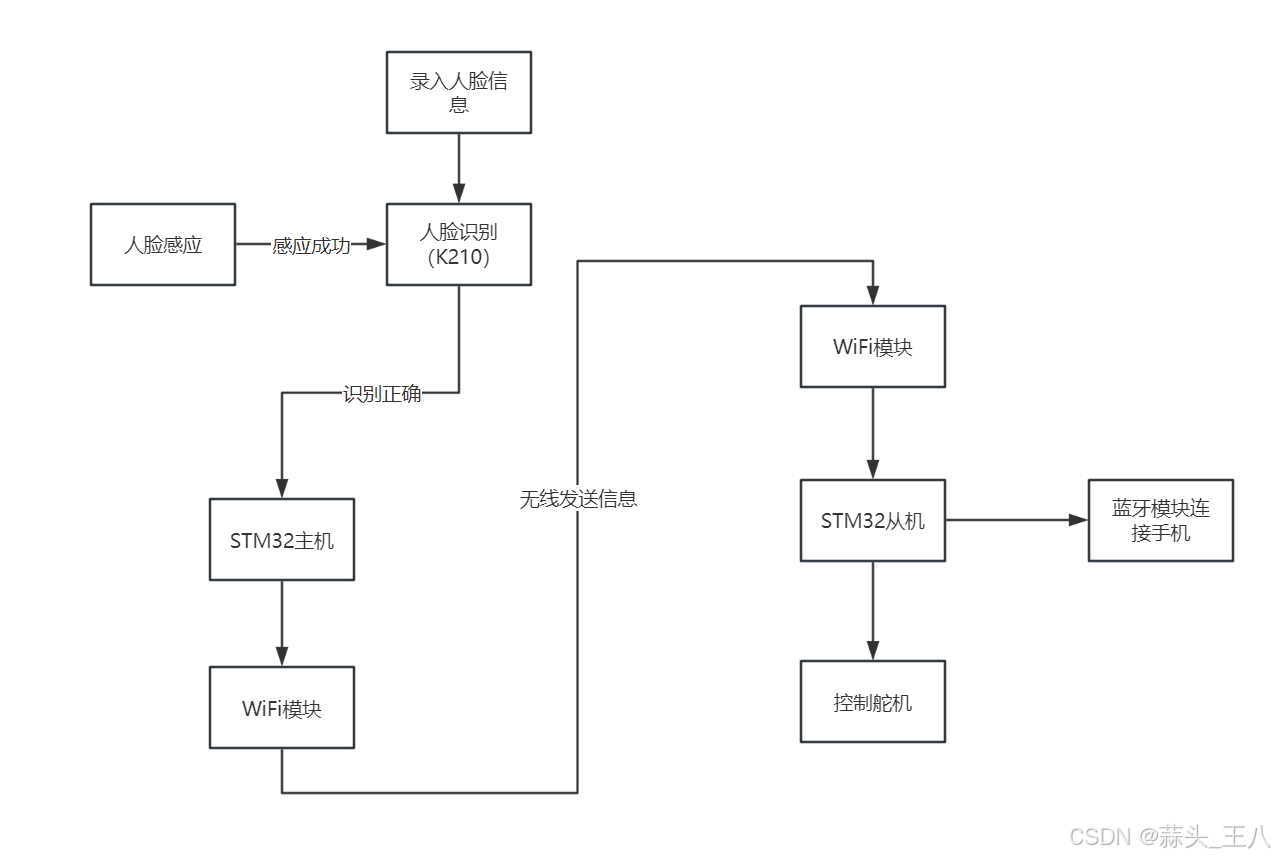

四、项目设计
网盘分享的文件：人脸识别智能门锁
链接: https://pan.baidu.com/s/1yLjpnFXMUTqAJlGDoeWhaQ?pwd=hrwn 提取码: hrwn

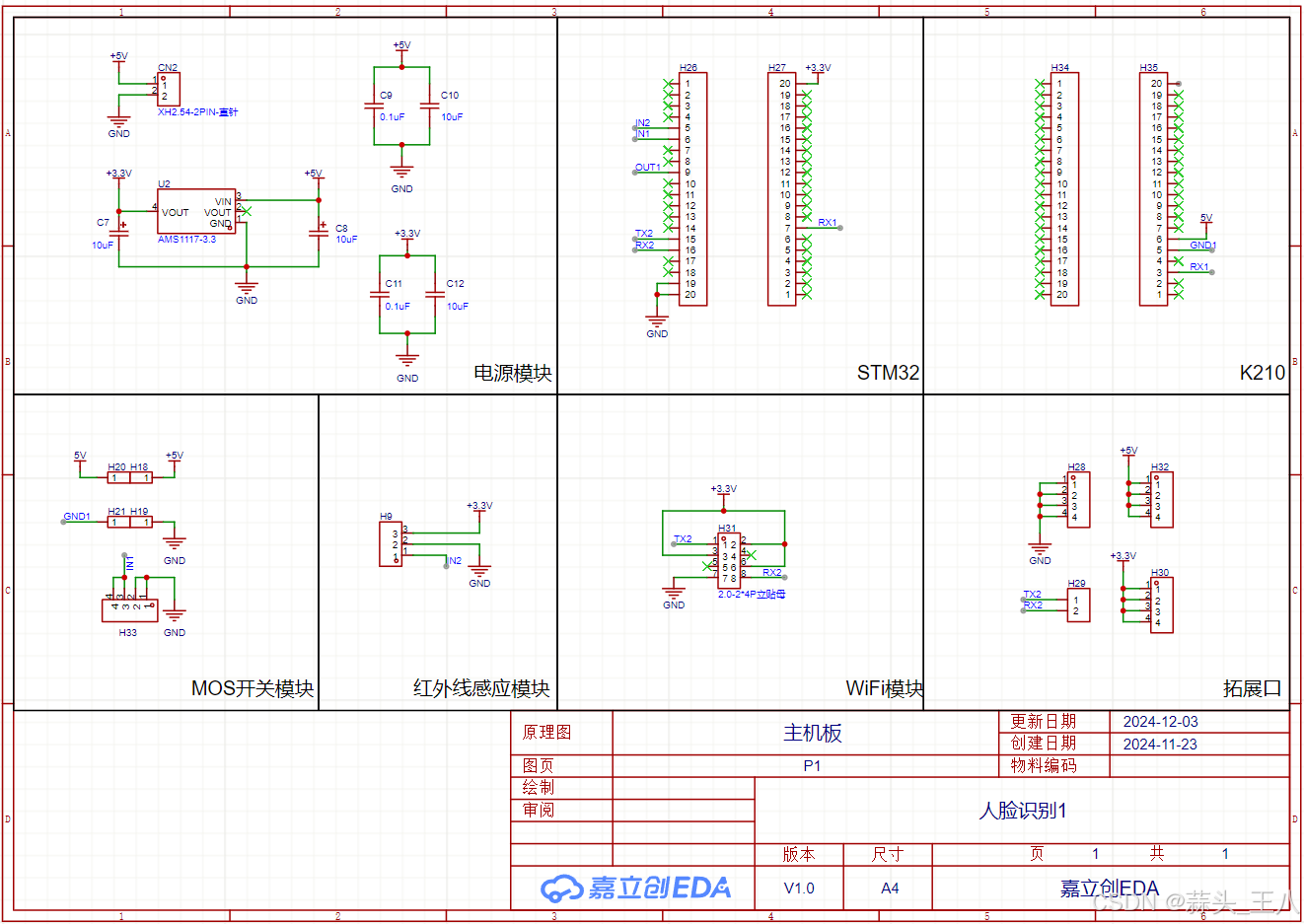

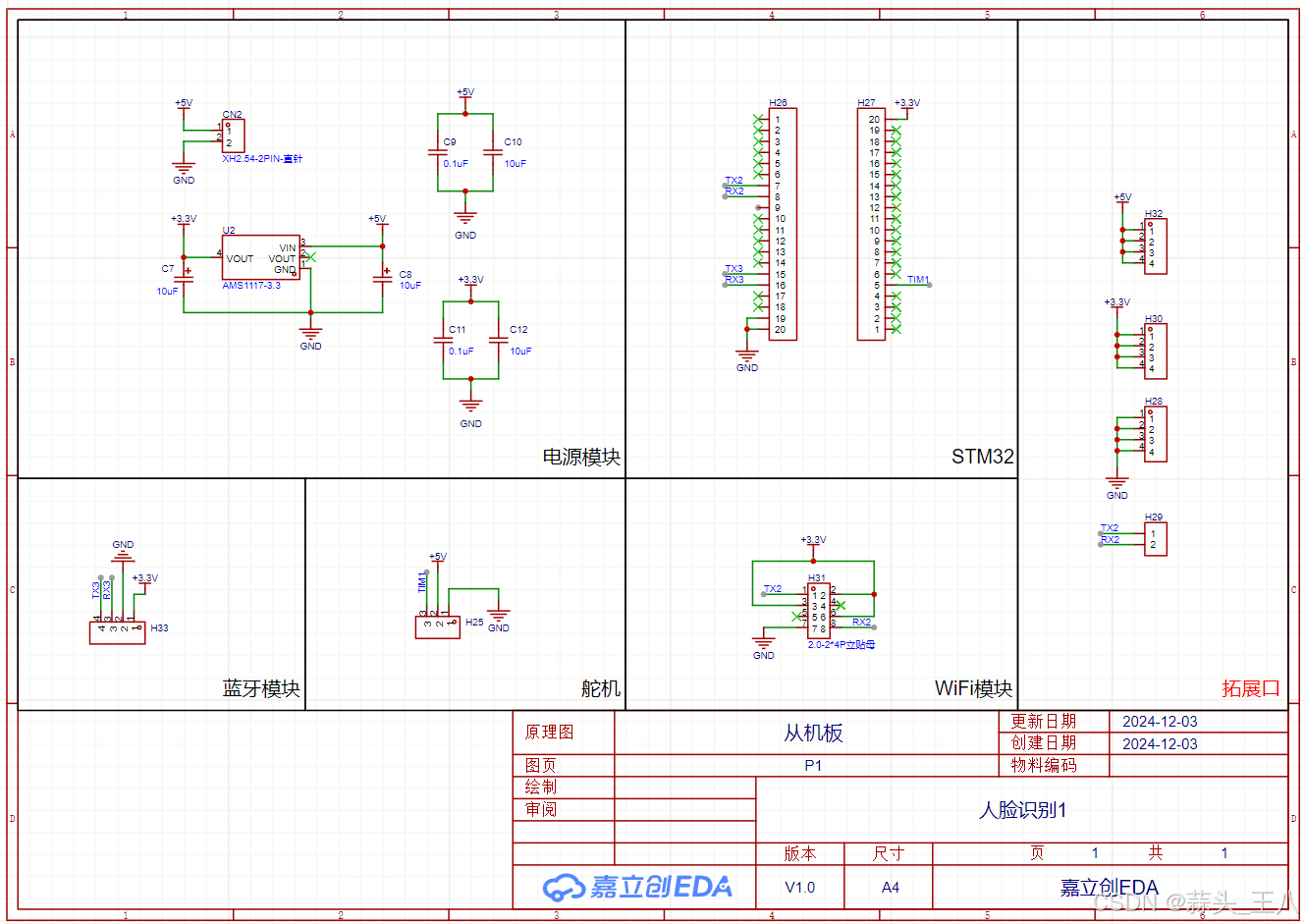

（一）原理图设计

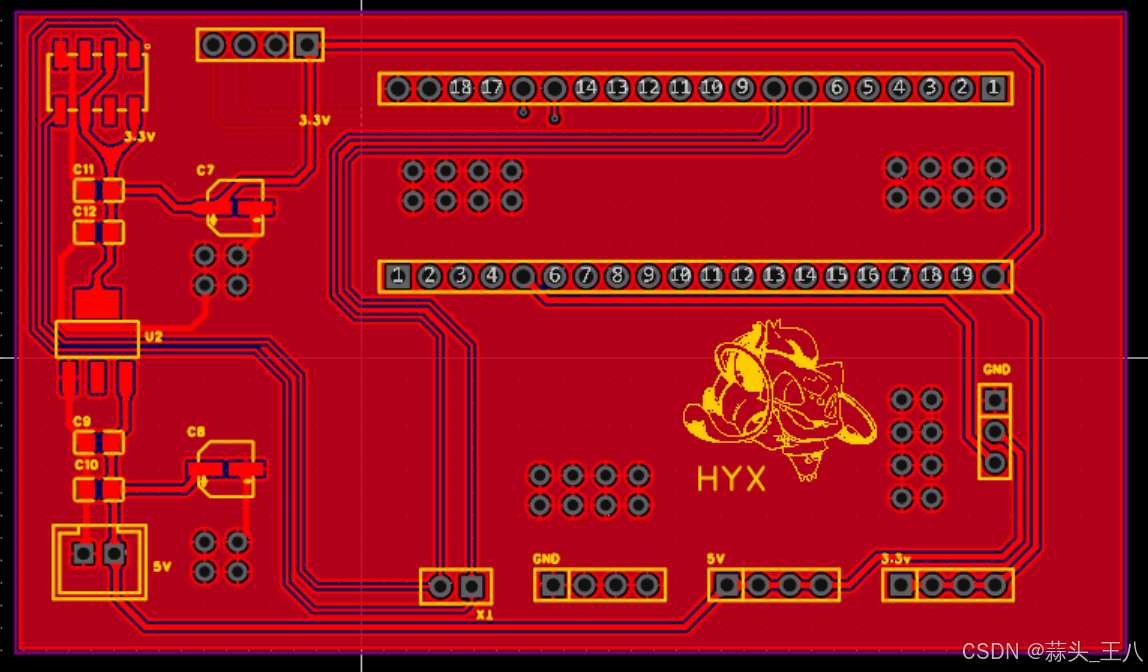

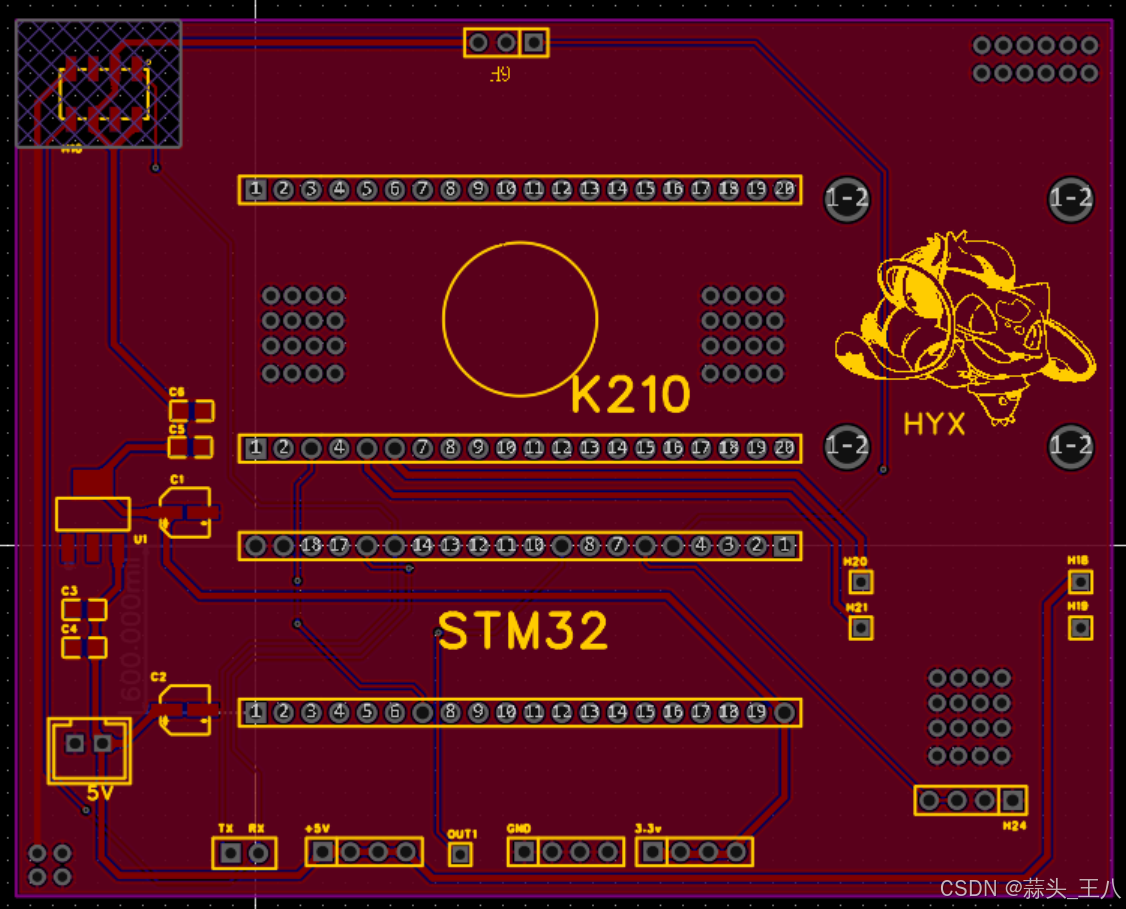

（二）PCB设计
（三）程序设计
由于代码过长只展示部分代码（STM32设计采用CubeMX）
1.主机（需要重定向c库函数printf到huart1）
/* USER CODE BEGIN Header */
/**
******************************************************************************
* @file : main.c
* @brief : Main program body
******************************************************************************
* @attention
*
* Copyright (c) 2024 STMicroelectronics.
* All rights reserved.
*
* This software is licensed under terms that can be found in the LICENSE file
* in the root directory of this software component.
* If no LICENSE file comes with this software, it is provided AS-IS.
*
******************************************************************************
*/
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "usart.h"
#include "gpio.h"
/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include <stdio.h>
#include <string.h>
#include "esp8266.h"
#include "usart.h"
/* USER CODE END Includes */
/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */
extern unsigned char a_esp8266_buf;
/* USER CODE END PTD */
/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* USER CODE END PD */
/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */
/* USER CODE END PM */
/* Private variables ---------------------------------------------------------*/
/* USER CODE BEGIN PV */
uint8_t RxBuf[10];
/* USER CODE END PV */
/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */
/* USER CODE END PFP */
/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
uint8_t rec_data;
uint8_t tx1_data[]="AT+CIPSEND=0,10\r\n";
uint8_t tx2_data[]="123\r\n";
uint8_t tx_data = 1;
uint8_t i = 0;
/* USER CODE END 0 */
/**
* @brief The application entry point.
* @retval int
*/
int main(void)
{
/* USER CODE BEGIN 1 */
/* USER CODE END 1 */
/* MCU Configuration--------------------------------------------------------*/
/* Reset of all peripherals, Initializes the Flash interface and the Systick. */
HAL_Init();
/* USER CODE BEGIN Init */
/* USER CODE END Init */
/* Configure the system clock */
SystemClock_Config();
/* USER CODE BEGIN SysInit */
/* USER CODE END SysInit */
/* Initialize all configured peripherals */
MX_GPIO_Init();
MX_USART1_UART_Init();
MX_USART2_UART_Init();
MX_USART3_UART_Init();
/* USER CODE BEGIN 2 */
//wifi模块初始化
HAL_UART_Receive_IT(&huart1,&rec_data,1);
printf("AT\r\n");
HAL_Delay(500);
printf("AT+CWMODE=2\r\n");
HAL_Delay(500);
printf("AT+RST\r\n");
HAL_Delay(3000);
printf("AT+CWSAP=\"esp8266\",\"12345678\",6,4\r\n");
HAL_Delay(500);
printf("AT+CIPMUX=1\r\n");
HAL_Delay(500);
printf("AT+CIPSERVER=1,333\r\n");
HAL_Delay(5000);
/* USER CODE END 2 */
/* Infinite loop */
/* USER CODE BEGIN WHILE */
//接收K210的数据
while (1)
{
if(HAL_UART_Receive(&huart1, RxBuf, sizeof(RxBuf), 1000) == HAL_OK && i == 1)
{ // 如果成功接收到数据
// 将接收到的数据原样发送回UART1，如果在1秒内没有发送完数据，函数将返回超时错误。
HAL_Delay(500);
HAL_UART_Transmit(&huart3, tx1_data, sizeof(tx1_data), 1000);
HAL_Delay(500);
HAL_UART_Transmit(&huart3, tx2_data, sizeof(tx2_data), 1000);
}
/* USER CODE END WHILE */
/* USER CODE BEGIN 3 */
//人脸感应
if(HAL_GPIO_ReadPin(GPIOA,GPIO_PIN_0)==GPIO_PIN_SET)
{
HAL_GPIO_WritePin(GPIOA,GPIO_PIN_1,GPIO_PIN_RESET);
i = 0;
}
else
{
HAL_GPIO_WritePin(GPIOA,GPIO_PIN_1,GPIO_PIN_SET);
HAL_Delay(1000);
i = 1;
}
}
/* USER CODE END 3 */
}
/**
* @brief System Clock Configuration
* @retval None
*/
void SystemClock_Config(void)
{
RCC_OscInitTypeDef RCC_OscInitStruct = {0};
RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};
/** Initializes the RCC Oscillators according to the specified parameters
* in the RCC_OscInitTypeDef structure.
*/
RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
RCC_OscInitStruct.HSEState = RCC_HSE_ON;
RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;
RCC_OscInitStruct.HSIState = RCC_HSI_ON;
RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL2;
if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
{
Error_Handler();
}
/** Initializes the CPU, AHB and APB buses clocks
*/
RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
|RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV1;
RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;
if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_0) != HAL_OK)
{
Error_Handler();
}
}
/* USER CODE BEGIN 4 */
/* USER CODE END 4 */
/**
* @brief This function is executed in case of error occurrence.
* @retval None
*/
void Error_Handler(void)
{
/* USER CODE BEGIN Error_Handler_Debug */
/* User can add his own implementation to report the HAL error return state */
__disable_irq();
while (1)
{
}
/* USER CODE END Error_Handler_Debug */
}
#ifdef USE_FULL_ASSERT
/**
* @brief Reports the name of the source file and the source line number
* where the assert_param error has occurred.
* @param file: pointer to the source file name
* @param line: assert_param error line source number
* @retval None
*/
void assert_failed(uint8_t *file, uint32_t line)
{
/* USER CODE BEGIN 6 */
/* User can add his own implementation to report the file name and line number,
ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
/* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */
2.从机（需要重定向c库函数printf到huart2）
/* USER CODE BEGIN Header */
/**
******************************************************************************
* @file : main.c
* @brief : Main program body
******************************************************************************
* @attention
*
* Copyright (c) 2024 STMicroelectronics.
* All rights reserved.
*
* This software is licensed under terms that can be found in the LICENSE file
* in the root directory of this software component.
* If no LICENSE file comes with this software, it is provided AS-IS.
*
******************************************************************************
*/
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "tim.h"
#include "usart.h"
#include "gpio.h"
/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include <stdio.h>
#include <string.h>
#include "usart.h"
/* USER CODE END Includes */
/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */
/* USER CODE END PTD */
/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* USER CODE END PD */
/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */
/* USER CODE END PM */
/* Private variables ---------------------------------------------------------*/
/* USER CODE BEGIN PV */
uint8_t RxBuf[10];
uint8_t RxBuf1[1];
/* USER CODE END PV */
/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */
/* USER CODE END PFP */
/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
uint8_t rec_data;
/* USER CODE END 0 */
/**
* @brief The application entry point.
* @retval int
*/
int main(void)
{
/* USER CODE BEGIN 1 */
/* USER CODE END 1 */
/* MCU Configuration--------------------------------------------------------*/
/* Reset of all peripherals, Initializes the Flash interface and the Systick. */
HAL_Init();
/* USER CODE BEGIN Init */
/* USER CODE END Init */
/* Configure the system clock */
SystemClock_Config();
/* USER CODE BEGIN SysInit */
/* USER CODE END SysInit */
/* Initialize all configured peripherals */
MX_GPIO_Init();
MX_TIM1_Init();
MX_USART2_UART_Init();
MX_USART3_UART_Init();
/* USER CODE BEGIN 2 */
//WiFi模块初始化
printf("AT\r\n");
HAL_Delay(500);
printf("AT+CWMODE=1\r\n");
HAL_Delay(500);
printf("AT+RST\r\n");
HAL_Delay(3000);
printf("AT+CIPMUX=0\r\n");
HAL_Delay(500);
printf("AT+CWJAP=\"esp8266\",\"12345678\"\r\n");
HAL_Delay(5000);
printf("AT+CIPSTART=\"TCP\",\"192.168.4.1\",333\r\n");
HAL_Delay(500);
HAL_TIM_PWM_Start(&htim1,TIM_CHANNEL_1); //打开定时器
/* USER CODE END 2 */
/* Infinite loop */
/* USER CODE BEGIN WHILE */
while (1)
{
/* USER CODE END WHILE */
/* USER CODE BEGIN 3 */
if(HAL_UART_Receive(&huart2, RxBuf, sizeof(RxBuf), 1000) == HAL_OK )
{ // 如果成功接收
// 将接收到的数据原样发送回UART1
HAL_Delay(500);
__HAL_TIM_SET_COMPARE(&htim1,TIM_CHANNEL_1,500);
HAL_Delay(1000);
__HAL_TIM_SET_COMPARE(&htim1,TIM_CHANNEL_1,2500);
}
if(HAL_UART_Receive(&huart3, RxBuf1, sizeof(RxBuf1), 1000) == HAL_OK )
{ // 如果成功接收
// 将接收到的数据原样发送回UART1
HAL_Delay(500);
__HAL_TIM_SET_COMPARE(&htim1,TIM_CHANNEL_1,500);
HAL_Delay(1000);
__HAL_TIM_SET_COMPARE(&htim1,TIM_CHANNEL_1,2500);
}
}
/* USER CODE END 3 */
}
/**
* @brief System Clock Configuration
* @retval None
*/
void SystemClock_Config(void)
{
RCC_OscInitTypeDef RCC_OscInitStruct = {0};
RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};
/** Initializes the RCC Oscillators according to the specified parameters
* in the RCC_OscInitTypeDef structure.
*/
RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
RCC_OscInitStruct.HSEState = RCC_HSE_ON;
RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;
RCC_OscInitStruct.HSIState = RCC_HSI_ON;
RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL9;
if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
{
Error_Handler();
}
/** Initializes the CPU, AHB and APB buses clocks
*/
RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
|RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;
if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
{
Error_Handler();
}
}
/* USER CODE BEGIN 4 */
/* USER CODE END 4 */
/**
* @brief This function is executed in case of error occurrence.
* @retval None
*/
void Error_Handler(void)
{
/* USER CODE BEGIN Error_Handler_Debug */
/* User can add his own implementation to report the HAL error return state */
__disable_irq();
while (1)
{
}
/* USER CODE END Error_Handler_Debug */
}
#ifdef USE_FULL_ASSERT
/**
* @brief Reports the name of the source file and the source line number
* where the assert_param error has occurred.
* @param file: pointer to the source file name
* @param line: assert_param error line source number
* @retval None
*/
void assert_failed(uint8_t *file, uint32_t line)
{
/* USER CODE BEGIN 6 */
/* User can add his own implementation to report the file name and line number,
ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
/* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */
3.K210采用了别人的断电储存方案（固件库的烧录可以去看其他博客）
import sensor,image,lcd # 导入相关库
from board import board_info # 导入开发板信息
import KPU as kpu # 导入KPU神经网络处理模块
import time
import os
from Maix import FPIOA,GPIO # 导入FPIOA和GPIO库
from fpioa_manager import fm # 导入fpioa_manager库
import ubinascii
import time
import utime
from machine import UART
io_led_red = 13
fm.register(io_led_red, fm.fpioa.GPIO0)
led_r=GPIO(GPIO.GPIO0, GPIO.OUT)
led_r.value(0)
io_uart1_tx = 24 #串口发送引脚
io_uart1_rx = 25 #串口接收引脚
fm.register(io_uart1_tx, fm.fpioa.UART1_TX, force=True)
fm.register(io_uart1_rx, fm.fpioa.UART1_RX, force=True)
uart_A = UART(UART.UART1, 115200, timeout=1000, read_buf_len=4096)
write_str = 'get dat\r\n'
# 按键配置
fm.register(board_info.BOOT_KEY, fm.fpioa.GPIOHS0) # 注册按键GPIO
key_gpio = GPIO(GPIO.GPIOHS0, GPIO.IN) # 初始化按键GPIO为输入
start_processing = False # 按键按下标志
BOUNCE_PROTECTION = 50 # 按键抖动保护时间（毫秒）
# 按键中断服务程序
def set_key_state(*_):
global start_processing #告诉函数start_processing是全局变量
start_processing = True # 设置按键按下标志为True
utime.sleep_ms(BOUNCE_PROTECTION)# 等待以消除按键抖动
key_gpio.irq(set_key_state, GPIO.IRQ_RISING, GPIO.WAKEUP_NOT_SUPPORT)# 设置按键中断
record_ftr=[] #空列表 用于存储当前196维特征
record_ftrs=[] #空列表 用于存储按键记录下人脸特征， 可以将特征以txt等文件形式保存到sd卡后，读取到此列表，即可实现人脸断电存储。
names = ['MR.1', 'MR.2', 'MR.3', 'Mr.4', 'Mr.5', 'Mr.6', 'Mr.7', 'Mr.8', 'Mr.9' , 'Mr.10'] # 人名标签，与上面列表特征值一一对应。
reco = ''
record = []
# 将特征保存到SD卡的函数
def save_feature_to_sd(feat):
with open('/sd/features.txt','a') as f:
record =ubinascii.b2a_base64(feat) #将特征编码为Base64
f.write(record)
st = ''
feature_file_exists = 0 # 文本文件存在标志
# 检查SD卡中是否存在features.txt文件
for v in os.ilistdir('/sd'): #进入sd卡查找
if v[0] == 'features.txt' and v[1] == 0x8000: #0x8000表示文件
feature_file_exists = 1 #找到标志位变1 说明文件存在
if(feature_file_exists):
print("start")
with open('/sd/features.txt','rb') as f:
s = f.readlines()#将这个文本以每一行的形式赋值为给s （因为一行代表一个人脸信息）
print(len(s))
for line in s: #迭代 依次将每一行（个）人脸特征添加到record_ftrs数组
#print(ubinascii.a2b_base64(line))
record_ftrs.append(bytearray(ubinascii.a2b_base64(line)))# 解码Base64并存储特征（二进制）
#下面做调试用
print(record_ftrs,names)#串行终端每次重启卡查看时候存入上次保存的人脸数据
print(len(record_ftrs))#几个人脸数据
print("end")
#不管是否已经运行已经加载过，先释放掉模型文件，因为程序一次只能加载5个模型，加上这次就有6个了
kpu.deinit(kpu.load("/sd/FeatureExtraction.smodel"))
kpu.deinit(kpu.load("/sd/FaceLandmarkDetection.smodel"))
kpu.deinit(kpu.load("/sd/FaceDetection.smodel"))
# 加载SD卡中的模型
task_fd = kpu.load("/sd/FaceDetection.smodel")
task_ld = kpu.load("/sd/FaceLandmarkDetection.smodel")
task_fe = kpu.load("/sd/FeatureExtraction.smodel")
clock = time.clock() # 初始化系统时钟，计算帧率
lcd.init() # 初始化lcd
sensor.reset() #初始化sensor 摄像头
sensor.set_pixformat(sensor.RGB565)
sensor.set_framesize(sensor.QVGA)
sensor.set_hmirror(1) #设置摄像头镜像
sensor.set_vflip(1) #设置摄像头翻转
lcd.rotation()
sensor.run(1) #使能摄像头
anchor = (1.889, 2.5245, 2.9465, 3.94056, 3.99987, 5.3658, 5.155437, 6.92275, 6.718375, 9.01025) #anchor for face detect 用于人脸检测的Anchor
dst_point = [(44,59),(84,59),(64,82),(47,105),(81,105)] #standard face key point position 标准正脸的5关键点坐标 分别为 左眼 右眼 鼻子 左嘴角 右嘴角
a = kpu.init_yolo2(task_fd, 0.5, 0.3, 5, anchor) #初始化人脸检测模型
img_lcd=image.Image() # 设置显示buf
img_face=image.Image(size=(128,128)) #设置 128 * 128 人脸图片buf
a=img_face.pix_to_ai() # 将图片转为kpu接受的格式
Face_recognition = 0
while(1): # 主循环
img = sensor.snapshot()#从摄像头获取一张图片
clock.tick() #记录时刻，用于计算帧率
code = kpu.run_yolo2(task_fd, img)# 运行人脸检测模型
if code:# 如果检测到人脸
for i in code:# 迭代坐标框
# 绘制人脸框并裁剪人脸区域
a = img.draw_rectangle(i.rect())# 运行人脸检测模型，获取人脸坐标位置
face_cut = img.cut(i.x(), i.y(), i.w(), i.h())# 裁剪人脸部分图片到 face_cut
face_cut_128 = face_cut.resize(128, 128)# 将裁出的人脸图片 缩放到128 * 128像素
a = face_cut_128.pix_to_ai()# 将猜出图片转换为kpu接受的格式
# 人脸五点关键点检测
fmap = kpu.forward(task_ld, face_cut_128)
plist = fmap[:]# 获取关键点预测结果
le = (i.x() + int(plist[0] * i.w() - 10), i.y() + int(plist[1] * i.h()))# 计算左眼位置， 这里在w方向-10 用来补偿模型转换带来的精度损失
re = (i.x() + int(plist[2] * i.w()), i.y() + int(plist[3] * i.h()))# 计算右眼位置
nose = (i.x() + int(plist[4] * i.w()), i.y() + int(plist[5] * i.h()))#计算鼻子位置
lm = (i.x() + int(plist[6] * i.w()), i.y() + int(plist[7] * i.h()))#计算左嘴角位置
rm = (i.x() + int(plist[8] * i.w()), i.y() + int(plist[9] * i.h()))#右嘴角位置
a = img.draw_circle(le[0], le[1], 4)
a = img.draw_circle(re[0], re[1], 4)
a = img.draw_circle(nose[0], nose[1], 4)
a = img.draw_circle(lm[0], lm[1], 4)
a = img.draw_circle(rm[0], rm[1], 4)# 在相应位置处画小圆圈
# 人脸对齐到标准位置
src_point = [le, re, nose, lm, rm]# 图片中 5 坐标的位置
T = image.get_affine_transform(src_point, dst_point)# 根据获得的5点坐标与标准正脸坐标获取仿射变换矩阵
a = image.warp_affine_ai(img, img_face, T)#对原始图片人脸图片进行仿射变换，变换为正脸图像
a = img_face.ai_to_pix() # 将正脸图像转为kpu格式
# a = img.draw_image(img_face, (128,0))
del (face_cut_128) # 释放裁剪人脸部分图片
# 计算人脸特征向量
fmap = kpu.forward(task_fe, img_face) # 计算正脸图片的196维特征值
feature = kpu.face_encode(fmap[:]) #获取计算结果
reg_flag = False
scores = [] # 存储特征比对分数
for j in range(len(record_ftrs)): #迭代已存特征值
score = kpu.face_compare(record_ftrs[j], feature) #计算当前人脸特征值与已存特征值的分数
scores.append(score) #添加分数总表
max_score = 0
index = 0
for k in range(len(scores)): #迭代所有比对分数，找到最大分数和索引值
if max_score < scores[k]:
max_score = scores[k]
index = k
if max_score > 85:# 如果最大分数大于85， 可以被认定为同一个人
Face_recognition = 1
a = img.draw_string(i.x(), i.y(), ("%s :%2.1f" % (
names[index], max_score)), color=(0, 255, 0), scale=2)
else:
a = img.draw_string(i.x(), i.y(), ("X :%2.1f" % (
max_score)), color=(255, 0, 0), scale=2)
if start_processing:#识别到按键按下
record_ftr = feature
record_ftrs.append(record_ftr)#将当前特征添加到已知特征列表
save_feature_to_sd(record_ftr) #存到SD卡
start_processing = False
break
a = img.draw_string(0,220,"face", color=(255,0,0),scale=2) #显示未知 与 分数
a = lcd.display(img) #刷屏显示
if Face_recognition == 1:
uart_A.write(write_str)

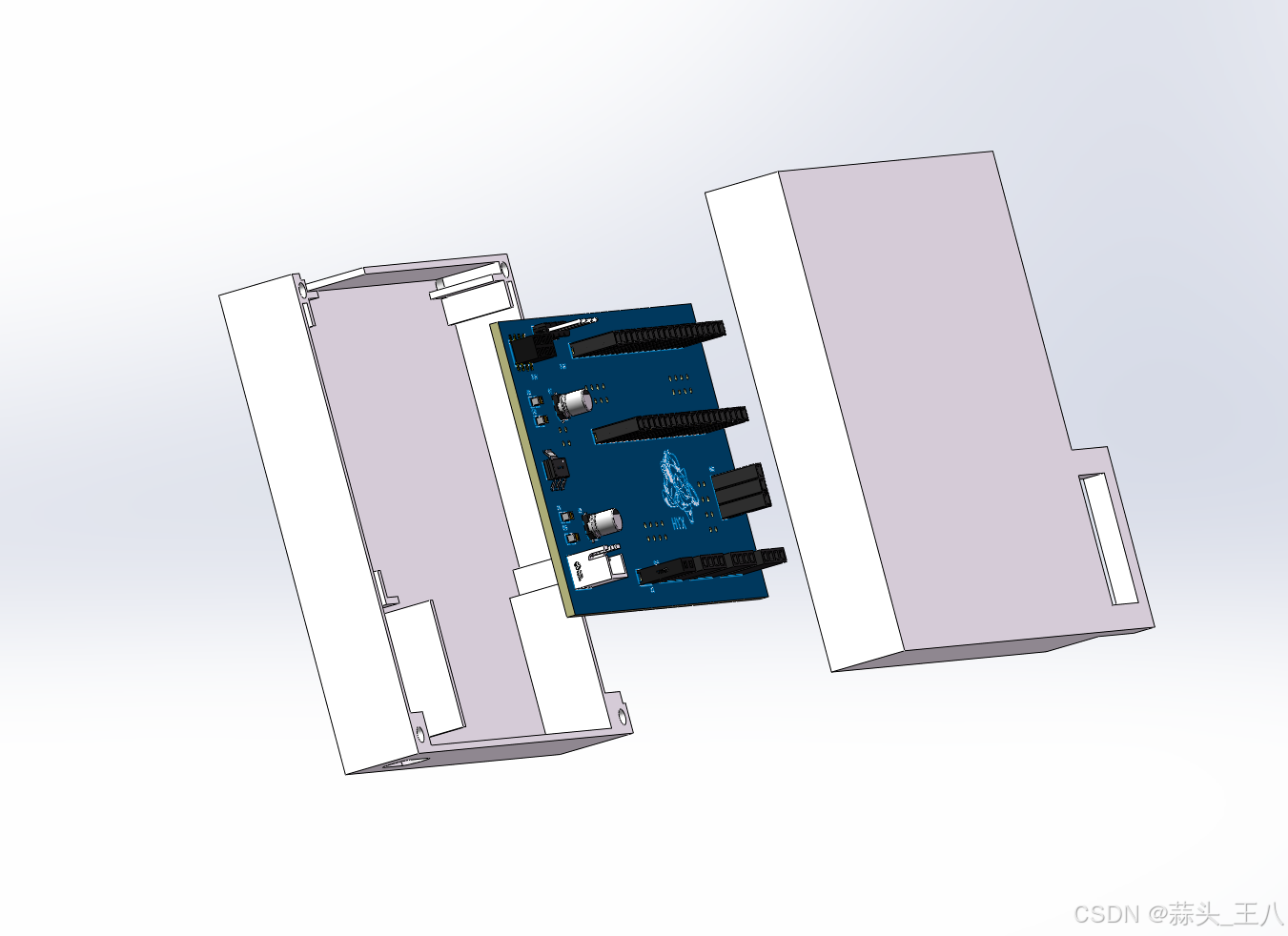

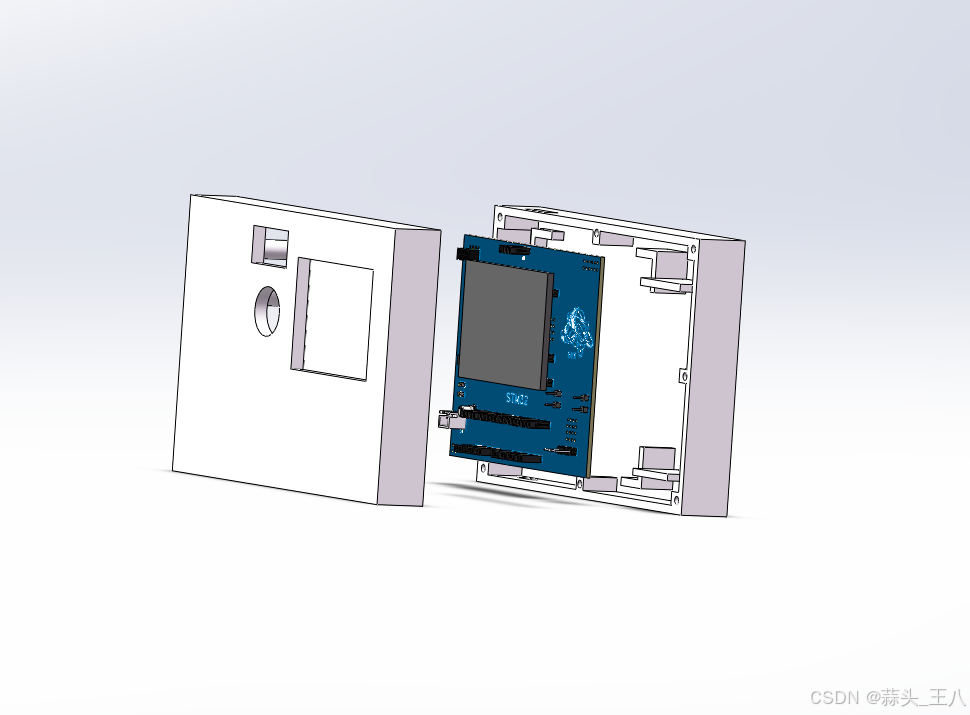

Face_recognition = 0（四）外壳设计
五、上机调试
目前该项目主要用于理论探讨学习，实际上机操作有诸多坑点，感兴趣的可以私聊我，目前的问题有功耗过高，从机与主机交互不够丝滑，舵机机械结构不适用于开门等等

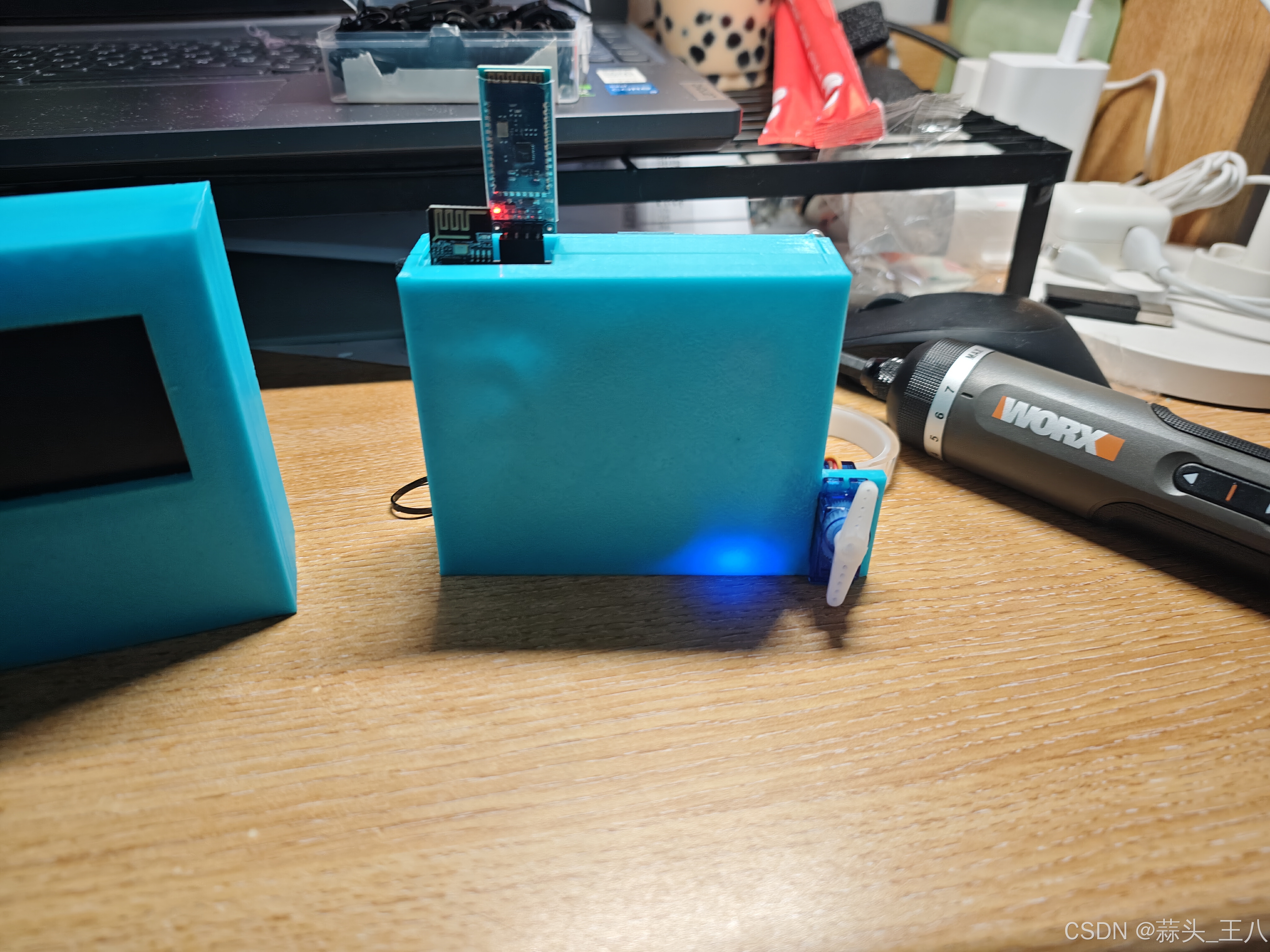

成品图与操作演示
基于 STM32 和 K210 的人脸识别智能门锁
资源
通过网盘分享的文件：人脸识别智能门锁
链接: https://pan.baidu.com/s/1yLjpnFXMUTqAJlGDoeWhaQ?pwd=hrwn 提取码: hrwn
--来自百度网盘超级会员v1的分享
扫一扫
3055
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
