前言

随着智慧化场景的普及，智能排队控制系统在商场、场馆等场景展现出重要价值。本教程基于STM32F103xx微控制器，结合红外传感、OLED显示、舵机控制等模块，开发一套可动态调控的智能通行控制系统。通过HAL库开发模式，读者不仅能掌握多传感器协同调度、状态机逻辑设计、定时器使用等实战技能，还能深入理解中断优先级管理和人机交互界面开发的工程化思维。本教程提供完整的硬件方案与代码实现，适合初学者积累实际项目经验。

一、项目要求

1.基础检测：红外传感器实时检测人员通过动作，OLED屏幕同步显示累计人数
2.通行控制：
每次允许连续通过5人，达到阈值后自动触发限流机制
限流期间：OLED屏幕以2Hz频率闪烁显示警告页，LED2蓝灯常亮，蜂鸣器鸣响提示状态，舵机旋转至阻挡角度180°。
限流期间OLED显示模板如下

// 警告页模板（2Hz闪烁）
┌──────────────────┐
│       !!!        │
│   ACCESS DENIED  │
│  [System Locked] │
└──────────────────┘

限流3秒后自动复位：复位后进入计数模式，舵机归位0°，有人员经过时蜂鸣器鸣响提示，LED1绿灯闪烁提示。OLED显示当前允许批次。
通行允许期间OLED显示模板如下

// 通行允许页模板（持续显示）
┌──────────────────┐
│ ➔ ALLOW PASSING  │
│   Batch: [2/5]   │
│   Status: READY  │
└──────────────────┘

可选扩展功能：支持通过按键/无线模块手动重置计数或者动态阈值调整等，这些留给读者自行探索。

二、硬件架构

模块	实现功能
STM32F103xx	多任务调度核心
红外传感器TCRT5000	检测人员通过动作
OLED显示屏（SSD1315驱动）	实时显示系统状态
有源蜂鸣器	状态提示:正常通行/限流报警
舵机SG90	通道控制：通行允许/限流阻挡
LED指示灯	双色指示系统状态

三、模块介绍

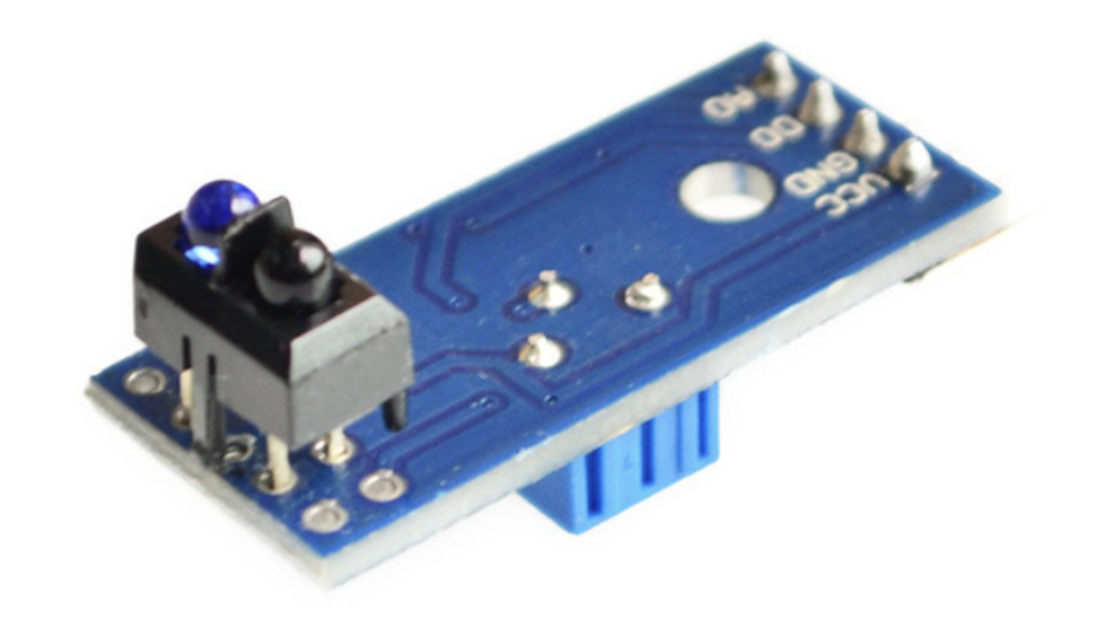

1.红外传感器TCRT5000

在这里插入图片描述
VCC接3.3V、GND接地，DO口数字信号输出，AO口模拟信号输出。
TCRT5000 传感器的红外发射二极管不断发射红外线，当发射出的红外线没有被反射回来或被反射回来但强度不够大时，红外接收管一直处于关断态，此时模块的输出端为高电平，指示二极管一直处于熄灭状态；被检测物体出现在检测范围内时，红外线被反射回来且强度足够大，红外接收管饱和，此时模块的输出端为低电平，指示二极管被点亮。

简单来说：当检测到障碍物或者有物体靠近时，传感器上的指示灯亮，D0输出低电平（下降沿）返回到单片机上。
我们可以通过外部中断下降沿触发模式来捕获这一“人员经过”这一事件。

2.OLED显示屏

在这里插入图片描述
OLED是有机发光二极管（Organic Electroluminescence Display， OLED）。由于同时具备自发光，不需背光源、对比度高、厚度薄、视角广、反应速度快、可用于挠曲性面板、使用温度范围广、构造及制程较简单等优异之特性，被认为是下一代的平面显示器新兴应用技术

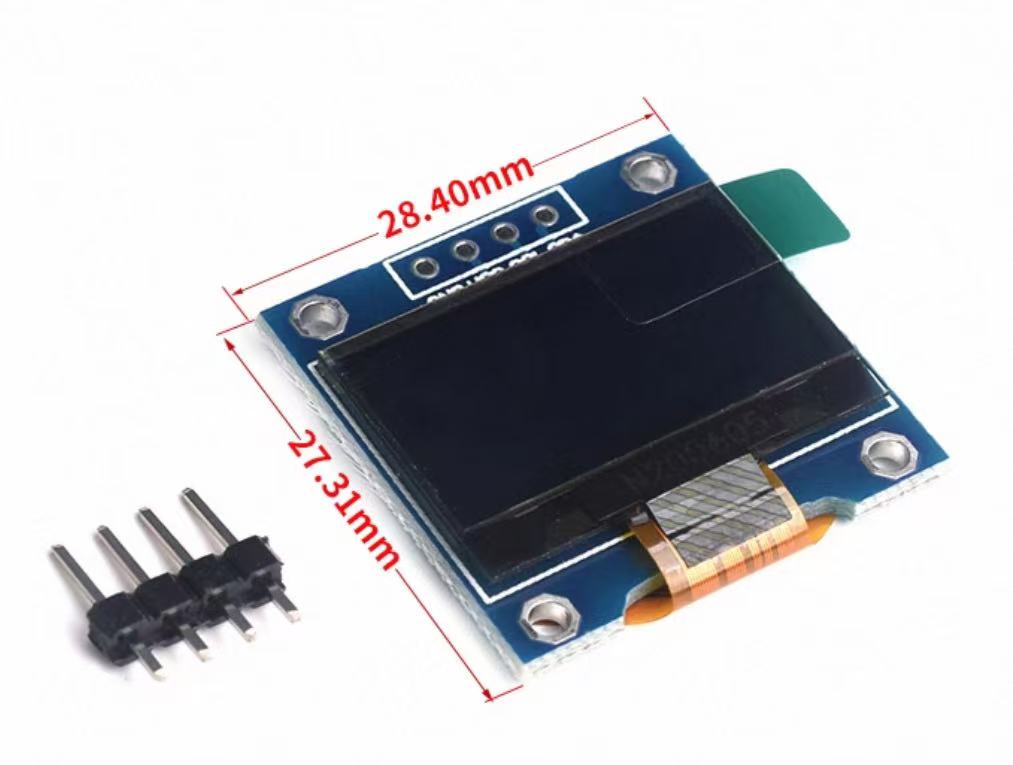

四针OLED引脚：VCC供给电压3~5V、SCL（I2C总线时钟线）SDA（I2C总线数据线）GND（电源地）
OLED通讯协议是IIC，硬件IIC和软件IIC都可以用来实现IIC通信

IIC 协议简介
IIC 是一种串行通信协议，由飞利浦公司开发。它使用两根线进行通信：SCL（时钟线）和 SDA（数据线）。IIC 总线上可以挂载多个设备，每个设备都有唯一的地址。在 STM32 与 0.96 寸 OLED 显示屏通信时，STM32 作为主设备，OLED 显示屏作为从设备。因为讲解协议本身篇幅太大这里就不赘述，详细可以参考这篇博文IIC通信协议详解

笔者用的OLED屏幕内部驱动芯片是SSD1315。驱动用硬件IIC配合OLED驱动库，用OLED驱动库最大的好处就是不用单独写硬件IIC的代码，使用比较方便。这里推荐波特律动出品的OLED驱动库

驱动库下载：SSD1306/SSD1315的OLED驱动库
推荐给大家这个网站，上面还有其他OLED屏幕内部驱动芯片的OLED驱动库，还有电机驱动库，也可以很方便地生成字模：波特律动取模助手

后文会详细介绍OLED显示界面的实现方法

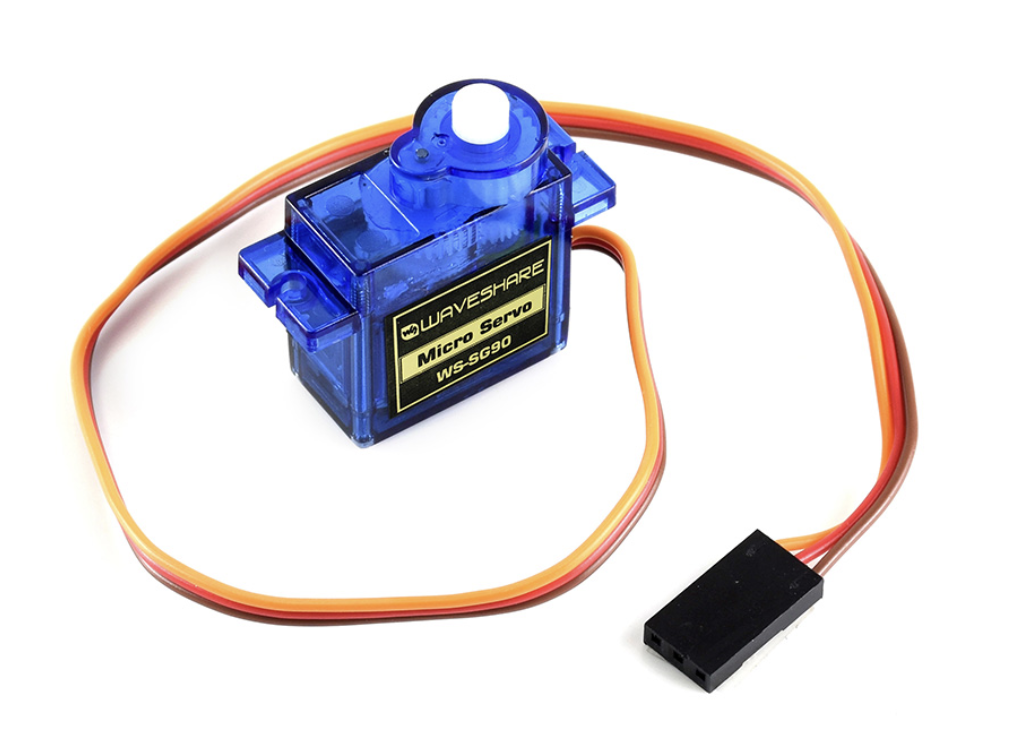

3.舵机SG90

在这里插入图片描述
SG90舵机通常有3根线
棕色线（GND）：接地
红色线（VCC）：接电源（4.8V-6V）一般接5V
橙色线（信号线）：接收PWM信号控制角度

SG90 舵机通过 20ms 周期的 PWM 信号控制，脉宽 0.5-2.5ms 对应舵盘 0°-180° 线性角度。输入特定脉宽时，输出轴稳定在对应角度，直至新信号输入才改变位置。内部基准电路生成 20ms 周期、1.5ms 脉宽的基准信号，比较器将输入 PWM 信号与基准对比，输出电机转动方向和速度的控制信号。

控制电路板接收 PWM 信号后驱动电机，经齿轮组减速传动至舵盘。输出轴与位置反馈电位计同轴连接，转动时联动电位计输出电压反馈信号至电路板，形成闭环调节：当实际角度与目标角度（由脉宽决定）存在偏差时，电路板调整电机转向和转速，直至舵盘精准停在目标位置，实现角度的稳定伺服控制。

脉冲宽度调制(PWM)，简称脉宽调制，是利用微处理器的数字输出来对模拟电路进行控制的一种非常有效的技术，广泛应用在从测量、通信到功率控制与变换的许多领域中。 PWM就是在合适的信号频率下，通过一个周期里改变占空比的方式来改变输出的有效电压。关于PWM的详细介绍请参考这篇博文：STM32_HAL库—PWM输出

控制sg90舵机角度就是控制PWM输出的占空比。sg90的控制一般需要一个20ms 左右的时基脉冲，脉冲的高电平部分一般在0.5ms~2.5ms。
在这里插入图片描述
结合项目要求，在阻挡状态下舵机旋转到180°，在20ms周期下高电平持续时间也就是2.5ms对应180度，相应占空比为12.5% 。
在计数状态下舵机旋转到0°放行，在20ms周期下高电平持续时间是0.5ms，相应占空比为2.5%。

4.有源蜂鸣器&LED指示灯

详情介绍可以自查资料，比较简单这里就不赘述了。
笔者用的有源蜂鸣器和LED公共端都接的VCC，所以都是低电平触发，可能有不一样的大家一定要看清楚去修改代码！！

四、接线说明(供参考)

模块名称	模块引脚	STM32引脚
红外传感器TCRT5000	VCC	3.3V
	GND	GND
	DO	PA5
OLED显示屏	VCC	3.3V
	GND	GND
	SCL	PB6
	SDA	PB7
有源蜂鸣器	VCC	3.3V
	GND	GND
	I/ O	PA3
舵机SG90	红色线（VCC）	5V
	棕色线（GND）	GND
	橙色线（信号线）	PA6
LED1（绿灯）	VCC	3.3V
	GND	PB0
LED2（蓝灯）	VCC	3.3V
	GND	PB1

五、STM32CubeMX配置

笔者用的芯片是STM32F103ZET6，其他型号配置方法都差不多，引脚配置可供参考

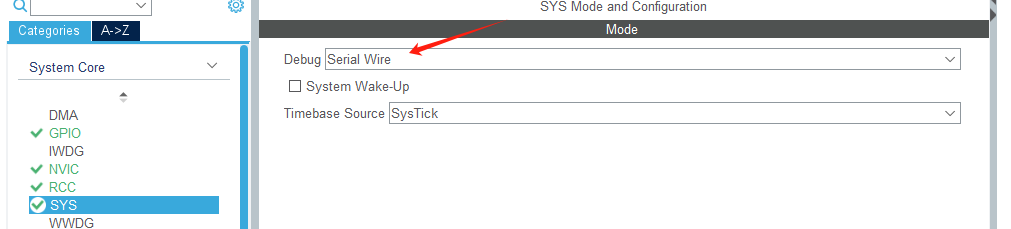

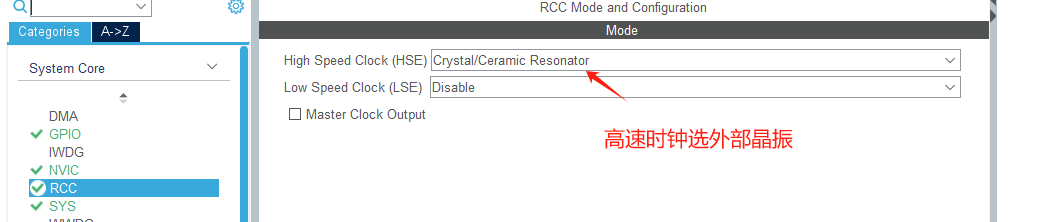

首先是设置时钟和调试
在这里插入图片描述

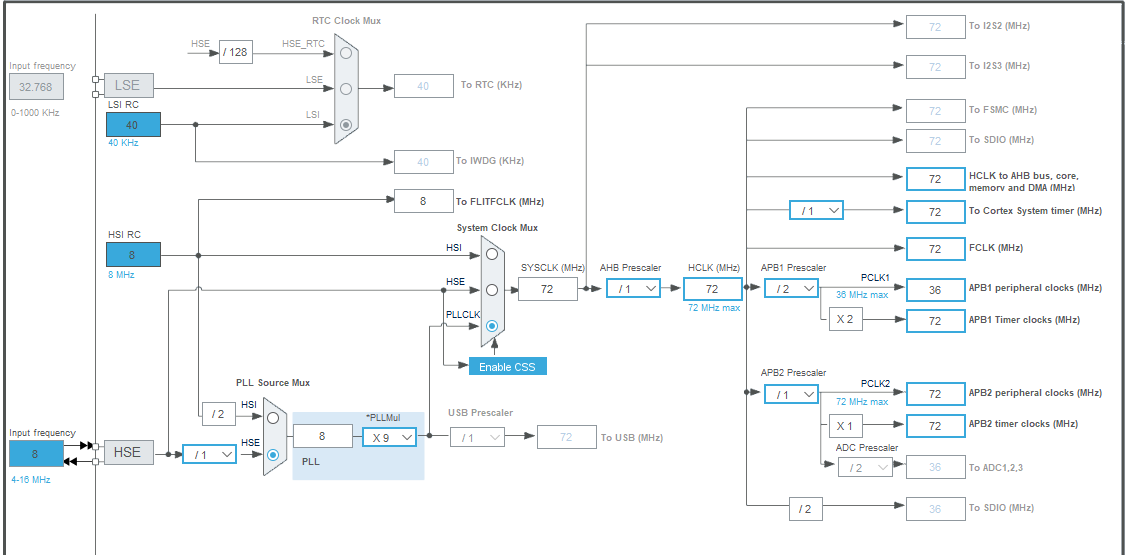

时钟树配置
在这里插入图片描述
全局引脚配置参考

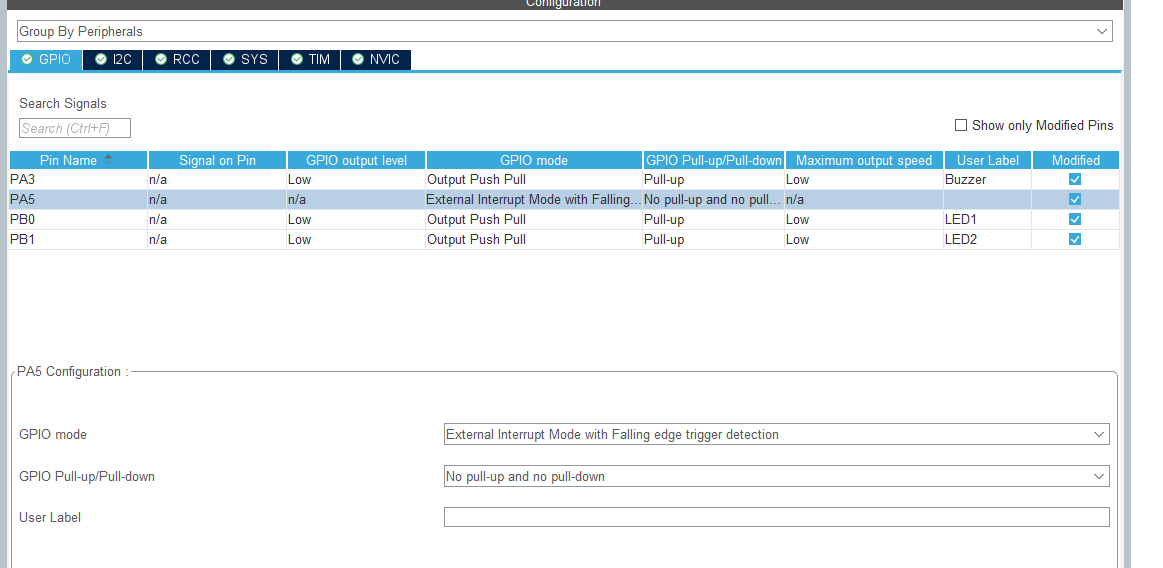

GPIO配置：PA3、PB0、PB1设置成推挽输出，上拉（因为都是低电平工作）
外部中断引脚：PA5设置下降沿触发模式，当有人经过输入下降沿给STM32通过外部中断能捕获这一事件

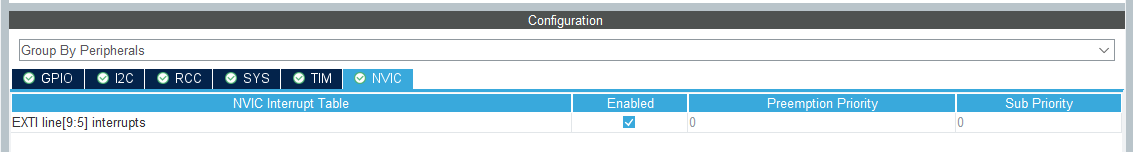

记得使能外部中断
在这里插入图片描述

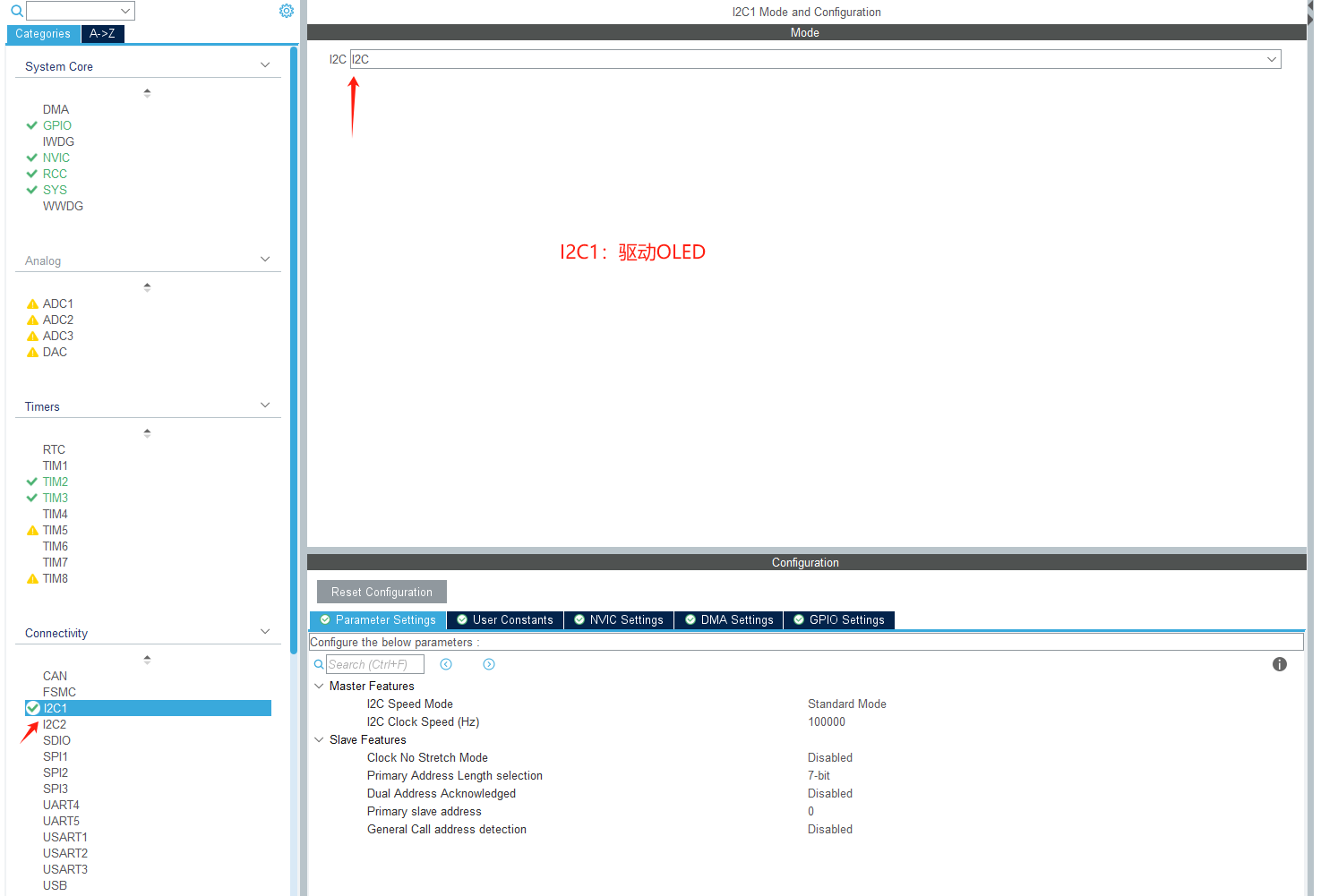

开启I2C1

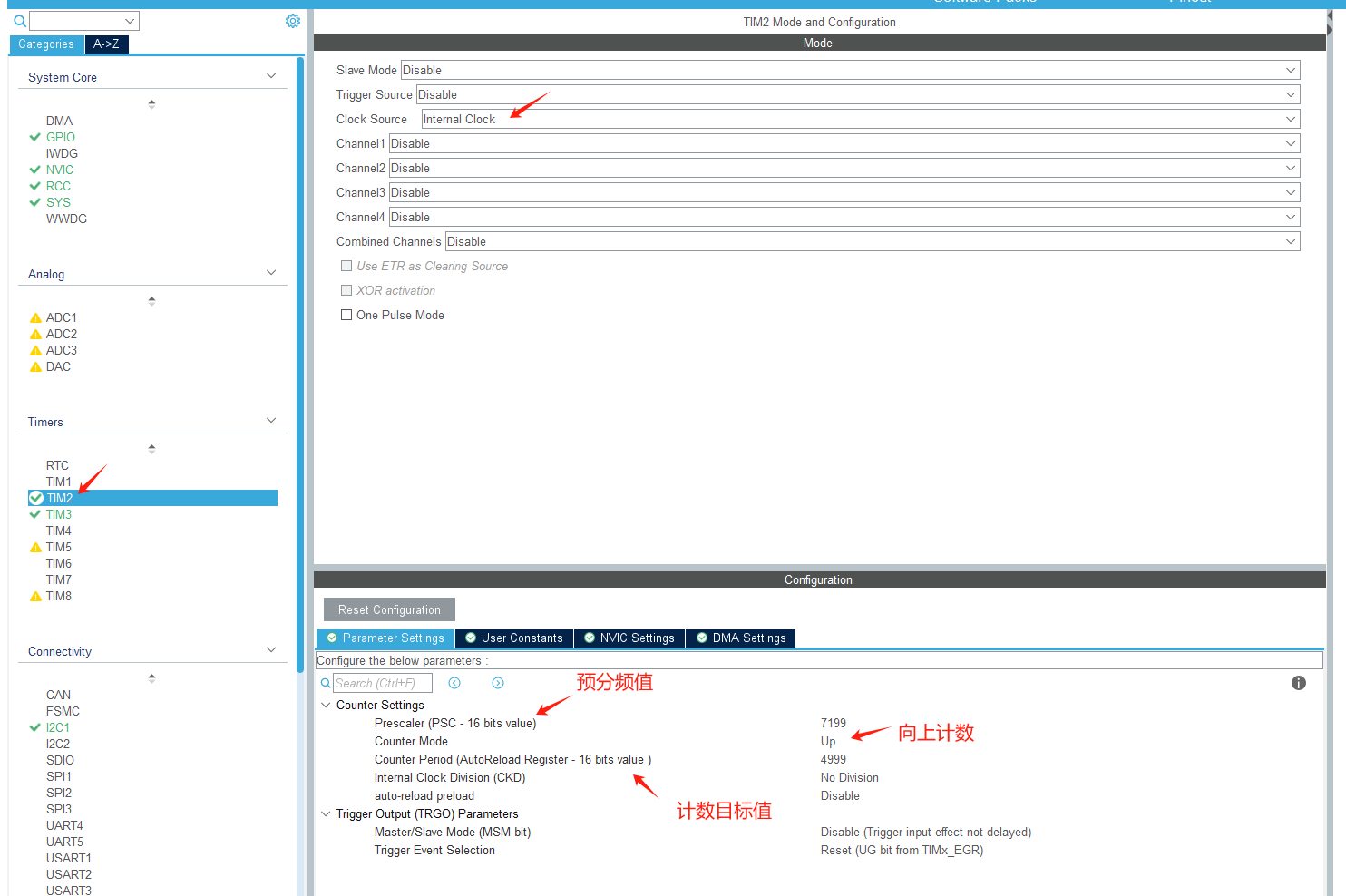

打开TIM2，时钟源选内部时钟，我们只用它做最基础的定时计数功能，为了实现定时0.5秒触发中断，配置如下：

系统时钟 = 72MHz # 单片机主频
预分频值 = 7199 # 分频系数
自动重载值 = 4999 # 计数目标值

1.降频操作
72MHz时钟 → 经过 (7199+1)分频 → 输出10kHz脉冲
72,000,000Hz ÷ (7199+1) = 10,000Hz→ 每脉冲间隔 = 0.0001秒 (0.1ms)

2.定时器从 0 开始向上计数 → 每次脉冲+1 → 直到达到4999
耗时计算：
5000次计数 × 0.0001秒 = 0.5秒
（注：计数0→4999共5000步）

3.自动重置
计数到4999后 → 硬件自动归零 → 开始下一轮0.5秒计时
在这里插入图片描述

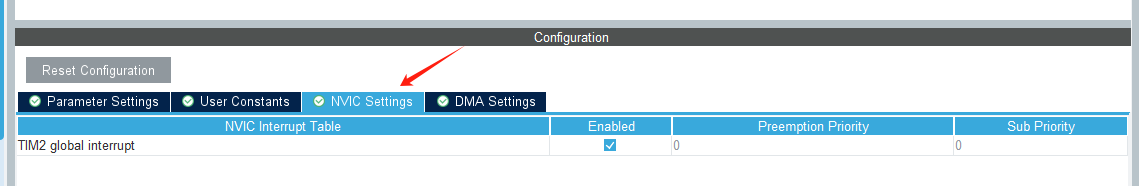

记得开启定时器全局中断

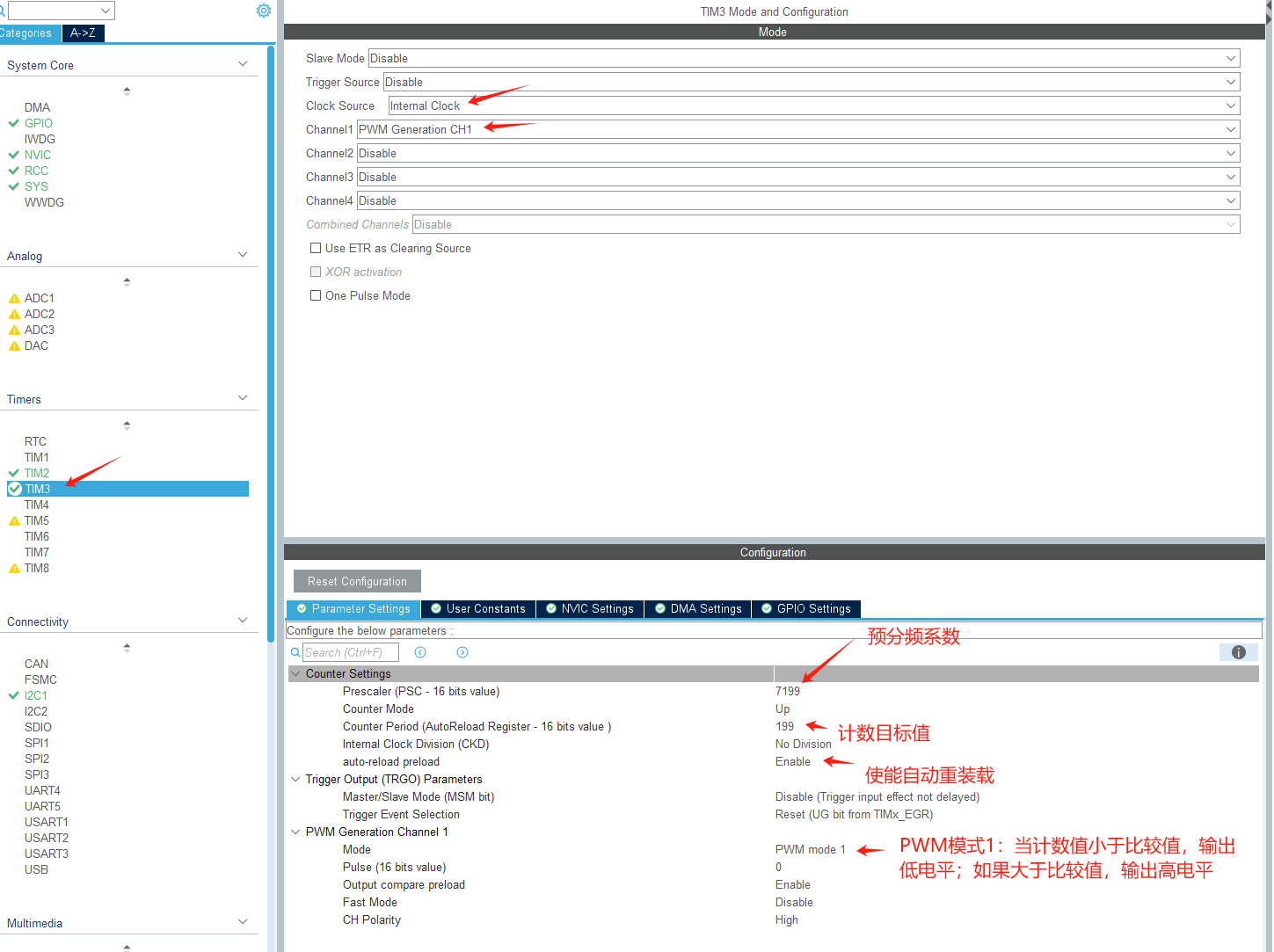

打开TIM3，时钟源选内部时钟，我们用它给舵机输出PWM波，配置如下：

系统时钟 = 72MHz # STM32主频
预分频值 = 7199 # 图中"Prescaler"值
自动重载值 = 199 # 图中"Counter Period"值
PWM模式 = PWM mode 1 # 通道1工作模式

PWM模式1:当计数值小于比较值，输出低电平;如果大于比较值，输出高电平
PWM模式2:当计数值小于比较值，输出高电平;如果大于比较值，输出低电平

1.时钟降频
72MHz → 经过 (7199+1)分频 → 输出10kHz时钟
72,000,000Hz ÷ 7200 = 10,000Hz→ 每个计数周期 = 0.0001秒 (0.1ms)

2.计数周期确定
定时器从0计数到自动重载值199（实际计数200次）

3.PWM周期公式：
(自动重载值 + 1) × 计数周期时间= (199 + 1) × 0.1ms= 200 × 0.1ms = 20ms
这样我们就生成了控制舵机的20ms 周期的 PWM 信号

4.占空比控制（图中比较值=0）
比较值（Pulse）决定高电平时间
当前值0 → 占空比 = 0/200 = 0%
例：若设脉冲值=100 → 占空比=50%（高电平10ms）
这里我们先设置默认为0，到后面写程序的时候再重新设置
在这里插入图片描述

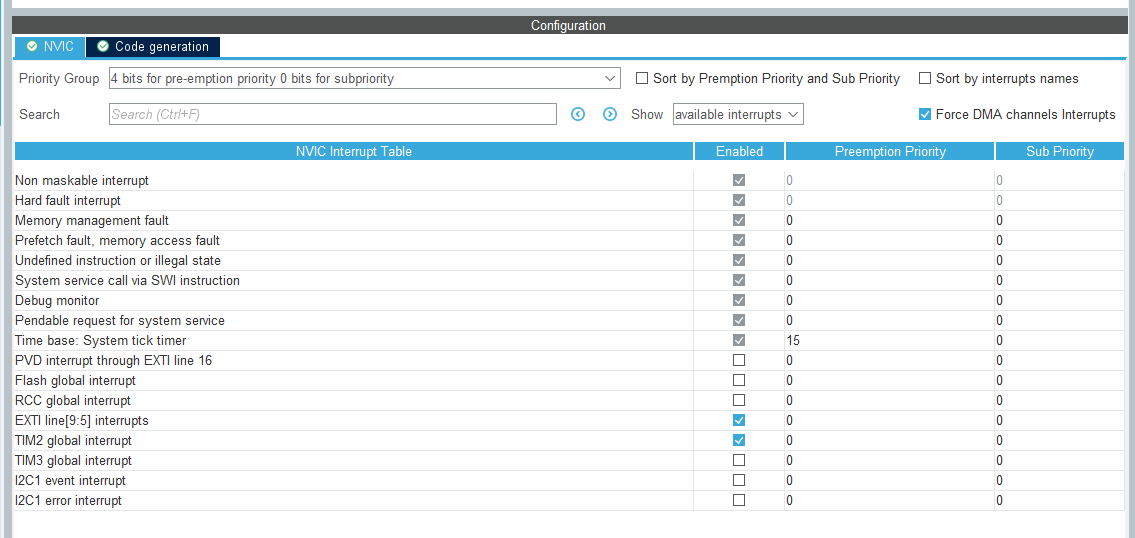

最后再检查一下NVIC里中断有没有使能，中断优先级无所谓

六、软件设计

记得把OLED的驱动库的oled.c、oled.h、font.c、font.h加入项目资源！然后在主函数里声明头文件！
没有下载驱动包也可以复制下面的代码oled.c、oled.h、font.c、font.h新建文件加入到工程
在主函数重写两个中断的中断回调函数，通过状态机选择系统的计数状态和限流状态
main.c

/* USER CODE BEGIN Header */
/**
 ******************************************************************************
 * @file           : main.c
 * @brief          : Main program body
 ******************************************************************************
 * @attention
 *
 * Copyright (c) 2025 STMicroelectronics.
 * All rights reserved.
 *
 * This software is licensed under terms that can be found in the LICENSE file
 * in the root directory of this software component.
 * If no LICENSE file comes with this software, it is provided AS-IS.
 *
 ******************************************************************************
 */
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "i2c.h"
#include "tim.h"
#include "gpio.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include "oled.h"
#include "font.h"
/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */

/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */

/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

/* USER CODE BEGIN PV */

uint8_t System_State = 0; // 系统计数人员状态
uint8_t Refresh_Flag = 0; // 中断刷新标志位
uint8_t Limit_flag = 0;   // 限流标志位

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */
void OLED_display(void)
{
  if (Limit_flag == 1) // 限流
  {
    OLED_NewFrame();
    OLED_PrintASCIIString(0, 5, " ------------------- ", &afont12x6, OLED_COLOR_NORMAL);
    OLED_PrintASCIIString(0, 20, "|        !!!        |", &afont12x6, OLED_COLOR_NORMAL);
    OLED_PrintASCIIString(0, 30, "|   ACCESS DENIED   |", &afont12x6, OLED_COLOR_NORMAL);
    OLED_PrintASCIIString(0, 40, "|  [System Locked]  |", &afont12x6, OLED_COLOR_NORMAL);
    OLED_PrintASCIIString(0, 55, " ------------------- ", &afont12x6, OLED_COLOR_NORMAL);
    OLED_ShowFrame();
  }
  else // 解除限流
  {
    if (System_State == 0)
    {
      OLED_NewFrame();
      OLED_PrintASCIIString(0, 5, " ------------------- ", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 20, "| -> ALLOW PASSING  |", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 30, "|    Batch: [0/5]   |", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 40, "|    Status: READY  |", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 55, " ------------------- ", &afont12x6, OLED_COLOR_NORMAL);
      OLED_ShowFrame();
    }
    else if (System_State == 1)
    {
      OLED_NewFrame();
      OLED_PrintASCIIString(0, 5, " ------------------- ", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 20, "| -> ALLOW PASSING  |", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 30, "|    Batch: [1/5]   |", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 40, "|    Status: READY  |", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 55, " ------------------- ", &afont12x6, OLED_COLOR_NORMAL);
      OLED_ShowFrame();
    }
    else if (System_State == 2)
    {
      OLED_NewFrame();
      OLED_PrintASCIIString(0, 5, " ------------------- ", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 20, "| -> ALLOW PASSING  |", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 30, "|    Batch: [2/5]   |", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 40, "|    Status: READY  |", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 55, " ------------------- ", &afont12x6, OLED_COLOR_NORMAL);
      OLED_ShowFrame();
    }
    else if (System_State == 3)
    {
      OLED_NewFrame();
      OLED_PrintASCIIString(0, 5, " ------------------- ", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 20, "| -> ALLOW PASSING  |", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 30, "|    Batch: [3/5]   |", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 40, "|    Status: READY  |", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 55, " ------------------- ", &afont12x6, OLED_COLOR_NORMAL);
      OLED_ShowFrame();
    }
    else if (System_State == 4)
    {
      OLED_NewFrame();
      OLED_PrintASCIIString(0, 5, " ------------------- ", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 20, "| -> ALLOW PASSING  |", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 30, "|    Batch: [4/5]   |", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 40, "|    Status: READY  |", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 55, " ------------------- ", &afont12x6, OLED_COLOR_NORMAL);
      OLED_ShowFrame();
    }
    else if (System_State == 5)
    {
      OLED_NewFrame();
      OLED_PrintASCIIString(0, 5, " ------------------- ", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 20, "| -> ALLOW PASSING  |", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 30, "|    Batch: [5/5]   |", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 40, "|    Status: READY  |", &afont12x6, OLED_COLOR_NORMAL);
      OLED_PrintASCIIString(0, 55, " ------------------- ", &afont12x6, OLED_COLOR_NORMAL);
      OLED_ShowFrame();
    }
  }
}

void HAL_GPIO_EXTI_Callback(uint16_t GPIO_Pin) // 检测信号中断
{
  if (GPIO_Pin == GPIO_PIN_5)
  {
    if (Limit_flag == 0) // 计数状态
    {
      Refresh_Flag = 1; // 提示人员经过
      System_State++;   // 状态加一
      if (System_State >= 5)
      {
        Limit_flag = 1;                // 进入限流状态
        Refresh_Flag = 0;              // 重置刷新标志
        HAL_TIM_Base_Start_IT(&htim2); // 启动定时器中断
      }
    }
  }
}

void HAL_TIM_PeriodElapsedCallback(TIM_HandleTypeDef *htim)
{
  static uint8_t count = 0;   // 计数变量
  if (htim->Instance == TIM2) // 计时0.5秒
  {
    count++;
    if (count == 6) // 计时3秒  停止限流
    {
      System_State = 0;             // 重置经过人员状态
      Limit_flag = 0;               // 解除限流状态
      count = 0;                    // 重置计数
      Refresh_Flag = 0;             // 重置刷新标志
      HAL_TIM_Base_Stop_IT(&htim2); // 停止定时器中断
    }
    else
    {
      if (Refresh_Flag == 0)
        Refresh_Flag = 1; // 设置刷新标志
      else
        Refresh_Flag = 0;            // 切换刷新标志
      HAL_TIM_Base_Start_IT(&htim2); // 启动定时器中断
    }
  }
}

/* USER CODE END 0 */

/**
 * @brief  The application entry point.
 * @retval int
 */
int main(void)
{

  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_I2C1_Init();
  MX_TIM2_Init();
  MX_TIM3_Init();
  /* USER CODE BEGIN 2 */
  HAL_GPIO_WritePin(Buzzer_GPIO_Port, Buzzer_Pin, GPIO_PIN_SET); // 关闭蜂鸣器
  HAL_GPIO_WritePin(LED1_GPIO_Port, LED1_Pin, GPIO_PIN_SET);     // LED1灭
  HAL_GPIO_WritePin(LED2_GPIO_Port, LED2_Pin, GPIO_PIN_SET);     // LED2灭
  HAL_Delay(100);
  OLED_Init();
  __HAL_TIM_SET_COMPARE(&htim3, TIM_CHANNEL_1, 5); // 设置PWM初始占空比
  HAL_TIM_PWM_Start(&htim3, TIM_CHANNEL_1);        // 启动PWM输出
  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {
    if (Limit_flag == 1) // 限流状态
    {
      if (Refresh_Flag == 1) // 刷新标志位
      {
        OLED_DisPlay_On();                                               // 开启OLED显示
        HAL_GPIO_WritePin(Buzzer_GPIO_Port, Buzzer_Pin, GPIO_PIN_RESET); // 蜂鸣器响
      }
      else
      {
        OLED_DisPlay_Off();                                            // 关闭OLED显示
        HAL_GPIO_WritePin(Buzzer_GPIO_Port, Buzzer_Pin, GPIO_PIN_SET); // 蜂鸣器不响
      }
      __HAL_TIM_SET_COMPARE(&htim3, TIM_CHANNEL_1, 25); // 设置PWM初始占空比舵机旋转180度
      OLED_display();
      HAL_GPIO_WritePin(LED1_GPIO_Port, LED2_Pin, GPIO_PIN_RESET); // LED2亮
      HAL_GPIO_WritePin(LED2_GPIO_Port, LED1_Pin, GPIO_PIN_SET);   // LED1灭
    }
    else // 计数状态
    {
      if (Refresh_Flag == 1) // 刷新标志位
      {
        HAL_GPIO_WritePin(Buzzer_GPIO_Port, Buzzer_Pin, GPIO_PIN_RESET); // 蜂鸣器响
        HAL_GPIO_WritePin(LED2_GPIO_Port, LED1_Pin, GPIO_PIN_RESET);     // LED1亮
        Refresh_Flag = 0;                                                // 重置刷新标志
      }
      __HAL_TIM_SET_COMPARE(&htim3, TIM_CHANNEL_1, 5); // 设置PWM初始占空比舵机旋转0度
      OLED_display();
      HAL_GPIO_WritePin(Buzzer_GPIO_Port, Buzzer_Pin, GPIO_PIN_SET); // 蜂鸣器不响
      HAL_GPIO_WritePin(LED1_GPIO_Port, LED1_Pin, GPIO_PIN_SET);     // LED1灭
      HAL_GPIO_WritePin(LED2_GPIO_Port, LED2_Pin, GPIO_PIN_SET);     // LED2灭
    }

    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}

/**
 * @brief System Clock Configuration
 * @retval None
 */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /** Initializes the RCC Oscillators according to the specified parameters
   * in the RCC_OscInitTypeDef structure.
   */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;
  RCC_OscInitStruct.HSEState = RCC_HSE_ON;
  RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;
  RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;
  RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL9;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }

  /** Initializes the CPU, AHB and APB buses clocks
   */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK | RCC_CLOCKTYPE_SYSCLK | RCC_CLOCKTYPE_PCLK1 | RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK)
  {
    Error_Handler();
  }
}

/* USER CODE BEGIN 4 */

/* USER CODE END 4 */

/**
 * @brief  This function is executed in case of error occurrence.
 * @retval None
 */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */
  __disable_irq();
  while (1)
  {
  }
  /* USER CODE END Error_Handler_Debug */
}

#ifdef USE_FULL_ASSERT
/**
 * @brief  Reports the name of the source file and the source line number
 *         where the assert_param error has occurred.
 * @param  file: pointer to the source file name
 * @param  line: assert_param error line source number
 * @retval None
 */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

oled.c

/**
 * @file oled.c
 * @brief 波特律动OLED驱动(SSD1306)
 * @anchor 波特律动(keysking 博哥在学习)
 * @version 1.0
 * @date 2023-08-19
 * @license MIT License
 *
 * @attention
 * 本驱动库针对波特律动·keysking的STM32教程学习套件进行开发
 * 在其他平台或驱动芯片上使用可能需要进行移植
 *
 * @note
 * 使用流程:
 * 1. STM32初始化IIC完成后调用OLED_Init()初始化OLED. 注意STM32启动比OLED上电快, 可等待20ms再初始化OLED
 * 2. 调用OLED_NewFrame()开始绘制新的一帧
 * 3. 调用OLED_DrawXXX()系列函数绘制图形到显存 调用OLED_Printxxx()系列函数绘制文本到显存
 * 4. 调用OLED_ShowFrame()将显存内容显示到OLED
 *
 * @note
 * 为保证中文显示正常 请将编译器的字符集设置为UTF-8
 *
 */
#include "oled.h"
#include "i2c.h"
#include <math.h>
#include <stdlib.h>

// OLED器件地址
#define OLED_ADDRESS 0x78

// OLED参数
#define OLED_PAGE 8            // OLED页数
#define OLED_ROW 8 * OLED_PAGE // OLED行数
#define OLED_COLUMN 128        // OLED列数

// 显存
uint8_t OLED_GRAM[OLED_PAGE][OLED_COLUMN];

// ========================== 底层通信函数 ==========================

/**
 * @brief 向OLED发送数据的函数
 * @param data 要发送的数据
 * @param len 要发送的数据长度
 * @return None
 * @note 此函数是移植本驱动时的重要函数 将本驱动库移植到其他平台时应根据实际情况修改此函数
 */
void OLED_Send(uint8_t *data, uint8_t len)
{
  HAL_I2C_Master_Transmit(&hi2c1, OLED_ADDRESS, data, len, HAL_MAX_DELAY);
}

/**
 * @brief 向OLED发送指令
 */
void OLED_SendCmd(uint8_t cmd)
{
  static uint8_t sendBuffer[2] = {0};
  sendBuffer[1] = cmd;
  OLED_Send(sendBuffer, 2);
}

// ========================== OLED驱动函数 ==========================

/**
 * @brief 初始化OLED (SSD1306)
 * @note 此函数是移植本驱动时的重要函数 将本驱动库移植到其他驱动芯片时应根据实际情况修改此函数
 */
void OLED_Init()
{
  OLED_SendCmd(0xAE); /*关闭显示 display off*/

  OLED_SendCmd(0x20);
  OLED_SendCmd(0x10);

  OLED_SendCmd(0xB0);

  OLED_SendCmd(0xC8);

  OLED_SendCmd(0x00);
  OLED_SendCmd(0x10);

  OLED_SendCmd(0x40);

  OLED_SendCmd(0x81);

  OLED_SendCmd(0xDF);
  OLED_SendCmd(0xA1);

  OLED_SendCmd(0xA6);
  OLED_SendCmd(0xA8);

  OLED_SendCmd(0x3F);

  OLED_SendCmd(0xA4);

  OLED_SendCmd(0xD3);
  OLED_SendCmd(0x00);

  OLED_SendCmd(0xD5);
  OLED_SendCmd(0xF0);

  OLED_SendCmd(0xD9);
  OLED_SendCmd(0x22);

  OLED_SendCmd(0xDA);
  OLED_SendCmd(0x12);

  OLED_SendCmd(0xDB);
  OLED_SendCmd(0x20);

  OLED_SendCmd(0x8D);
  OLED_SendCmd(0x14);

  OLED_NewFrame();
  OLED_ShowFrame();

  OLED_SendCmd(0xAF); /*开启显示 display ON*/
}

/**
 * @brief 开启OLED显示
 */
void OLED_DisPlay_On()
{
  OLED_SendCmd(0x8D); // 电荷泵使能
  OLED_SendCmd(0x14); // 开启电荷泵
  OLED_SendCmd(0xAF); // 点亮屏幕
}

/**
 * @brief 关闭OLED显示
 */
void OLED_DisPlay_Off()
{
  OLED_SendCmd(0x8D); // 电荷泵使能
  OLED_SendCmd(0x10); // 关闭电荷泵
  OLED_SendCmd(0xAE); // 关闭屏幕
}

/**
 * @brief 设置颜色模式 黑底白字或白底黑字
 * @param ColorMode 颜色模式COLOR_NORMAL/COLOR_REVERSED
 * @note 此函数直接设置屏幕的颜色模式
 */
void OLED_SetColorMode(OLED_ColorMode mode)
{
  if (mode == OLED_COLOR_NORMAL)
  {
    OLED_SendCmd(0xA6); // 正常显示
  }
  if (mode == OLED_COLOR_REVERSED)
  {
    OLED_SendCmd(0xA7); // 反色显示
  }
}

// ========================== 显存操作函数 ==========================

/**
 * @brief 清空显存 绘制新的一帧
 */
void OLED_NewFrame()
{
  memset(OLED_GRAM, 0, sizeof(OLED_GRAM));
}

/**
 * @brief 将当前显存显示到屏幕上
 * @note 此函数是移植本驱动时的重要函数 将本驱动库移植到其他驱动芯片时应根据实际情况修改此函数
 */
void OLED_ShowFrame()
{
  static uint8_t sendBuffer[OLED_COLUMN + 1];
  sendBuffer[0] = 0x40;
  for (uint8_t i = 0; i < OLED_PAGE; i++)
  {
    OLED_SendCmd(0xB0 + i); // 设置页地址
    OLED_SendCmd(0x00);     // 设置列地址低4位
    OLED_SendCmd(0x10);     // 设置列地址高4位
    memcpy(sendBuffer + 1, OLED_GRAM[i], OLED_COLUMN);
    OLED_Send(sendBuffer, OLED_COLUMN + 1);
  }
}

/**
 * @brief 设置一个像素点
 * @param x 横坐标
 * @param y 纵坐标
 * @param color 颜色
 */
void OLED_SetPixel(uint8_t x, uint8_t y, OLED_ColorMode color)
{
  if (x >= OLED_COLUMN || y >= OLED_ROW)
    return;
  if (!color)
  {
    OLED_GRAM[y / 8][x] |= 1 << (y % 8);
  }
  else
  {
    OLED_GRAM[y / 8][x] &= ~(1 << (y % 8));
  }
}

/**
 * @brief 设置显存中一字节数据的某几位
 * @param page 页地址
 * @param column 列地址
 * @param data 数据
 * @param start 起始位
 * @param end 结束位
 * @param color 颜色
 * @note 此函数将显存中的某一字节的第start位到第end位设置为与data相同
 * @note start和end的范围为0-7, start必须小于等于end
 * @note 此函数与OLED_SetByte_Fine的区别在于此函数只能设置显存中的某一真实字节
 */
void OLED_SetByte_Fine(uint8_t page, uint8_t column, uint8_t data, uint8_t start, uint8_t end, OLED_ColorMode color)
{
  static uint8_t temp;
  if (page >= OLED_PAGE || column >= OLED_COLUMN)
    return;
  if (color)
    data = ~data;

  temp = data | (0xff << (end + 1)) | (0xff >> (8 - start));
  OLED_GRAM[page][column] &= temp;
  temp = data & ~(0xff << (end + 1)) & ~(0xff >> (8 - start));
  OLED_GRAM[page][column] |= temp;
  // 使用OLED_SetPixel实现
  // for (uint8_t i = start; i <= end; i++) {
  //   OLED_SetPixel(column, page * 8 + i, !((data >> i) & 0x01));
  // }
}

/**
 * @brief 设置显存中的一字节数据
 * @param page 页地址
 * @param column 列地址
 * @param data 数据
 * @param color 颜色
 * @note 此函数将显存中的某一字节设置为data的值
 */
void OLED_SetByte(uint8_t page, uint8_t column, uint8_t data, OLED_ColorMode color)
{
  if (page >= OLED_PAGE || column >= OLED_COLUMN)
    return;
  if (color)
    data = ~data;
  OLED_GRAM[page][column] = data;
}

/**
 * @brief 设置显存中的一字节数据的某几位
 * @param x 横坐标
 * @param y 纵坐标
 * @param data 数据
 * @param len 位数
 * @param color 颜色
 * @note 此函数将显存中从(x,y)开始向下数len位设置为与data相同
 * @note len的范围为1-8
 * @note 此函数与OLED_SetByte_Fine的区别在于此函数的横坐标和纵坐标是以像素为单位的, 可能出现跨两个真实字节的情况(跨页)
 */
void OLED_SetBits_Fine(uint8_t x, uint8_t y, uint8_t data, uint8_t len, OLED_ColorMode color)
{
  uint8_t page = y / 8;
  uint8_t bit = y % 8;
  if (bit + len > 8)
  {
    OLED_SetByte_Fine(page, x, data << bit, bit, 7, color);
    OLED_SetByte_Fine(page + 1, x, data >> (8 - bit), 0, len + bit - 1 - 8, color);
  }
  else
  {
    OLED_SetByte_Fine(page, x, data << bit, bit, bit + len - 1, color);
  }
  // 使用OLED_SetPixel实现
  // for (uint8_t i = 0; i < len; i++) {
  //   OLED_SetPixel(x, y + i, !((data >> i) & 0x01));
  // }
}

/**
 * @brief 设置显存中一字节长度的数据
 * @param x 横坐标
 * @param y 纵坐标
 * @param data 数据
 * @param color 颜色
 * @note 此函数将显存中从(x,y)开始向下数8位设置为与data相同
 * @note 此函数与OLED_SetByte的区别在于此函数的横坐标和纵坐标是以像素为单位的, 可能出现跨两个真实字节的情况(跨页)
 */
void OLED_SetBits(uint8_t x, uint8_t y, uint8_t data, OLED_ColorMode color)
{
  uint8_t page = y / 8;
  uint8_t bit = y % 8;
  OLED_SetByte_Fine(page, x, data << bit, bit, 7, color);
  if (bit)
  {
    OLED_SetByte_Fine(page + 1, x, data >> (8 - bit), 0, bit - 1, color);
  }
}

/**
 * @brief 设置一块显存区域
 * @param x 起始横坐标
 * @param y 起始纵坐标
 * @param data 数据的起始地址
 * @param w 宽度
 * @param h 高度
 * @param color 颜色
 * @note 此函数将显存中从(x,y)开始的w*h个像素设置为data中的数据
 * @note data的数据应该采用列行式排列
 */
void OLED_SetBlock(uint8_t x, uint8_t y, const uint8_t *data, uint8_t w, uint8_t h, OLED_ColorMode color)
{
  uint8_t fullRow = h / 8; // 完整的行数
  uint8_t partBit = h % 8; // 不完整的字节中的有效位数
  for (uint8_t i = 0; i < w; i++)
  {
    for (uint8_t j = 0; j < fullRow; j++)
    {
      OLED_SetBits(x + i, y + j * 8, data[i + j * w], color);
    }
  }
  if (partBit)
  {
    uint16_t fullNum = w * fullRow; // 完整的字节数
    for (uint8_t i = 0; i < w; i++)
    {
      OLED_SetBits_Fine(x + i, y + (fullRow * 8), data[fullNum + i], partBit, color);
    }
  }
  // 使用OLED_SetPixel实现
  // for (uint8_t i = 0; i < w; i++) {
  //   for (uint8_t j = 0; j < h; j++) {
  //     for (uint8_t k = 0; k < 8; k++) {
  //       if (j * 8 + k >= h) break; // 防止越界(不完整的字节
  //       OLED_SetPixel(x + i, y + j * 8 + k, !((data[i + j * w] >> k) & 0x01));
  //     }
  //   }
  // }
}

// ========================== 图形绘制函数 ==========================
/**
 * @brief 绘制一条线段
 * @param x1 起始点横坐标
 * @param y1 起始点纵坐标
 * @param x2 终止点横坐标
 * @param y2 终止点纵坐标
 * @param color 颜色
 * @note 此函数使用Bresenham算法绘制线段
 */
void OLED_DrawLine(uint8_t x1, uint8_t y1, uint8_t x2, uint8_t y2, OLED_ColorMode color)
{
  static uint8_t temp = 0;
  if (x1 == x2)
  {
    if (y1 > y2)
    {
      temp = y1;
      y1 = y2;
      y2 = temp;
    }
    for (uint8_t y = y1; y <= y2; y++)
    {
      OLED_SetPixel(x1, y, color);
    }
  }
  else if (y1 == y2)
  {
    if (x1 > x2)
    {
      temp = x1;
      x1 = x2;
      x2 = temp;
    }
    for (uint8_t x = x1; x <= x2; x++)
    {
      OLED_SetPixel(x, y1, color);
    }
  }
  else
  {
    // Bresenham直线算法
    int16_t dx = x2 - x1;
    int16_t dy = y2 - y1;
    int16_t ux = ((dx > 0) << 1) - 1;
    int16_t uy = ((dy > 0) << 1) - 1;
    int16_t x = x1, y = y1, eps = 0;
    dx = abs(dx);
    dy = abs(dy);
    if (dx > dy)
    {
      for (x = x1; x != x2; x += ux)
      {
        OLED_SetPixel(x, y, color);
        eps += dy;
        if ((eps << 1) >= dx)
        {
          y += uy;
          eps -= dx;
        }
      }
    }
    else
    {
      for (y = y1; y != y2; y += uy)
      {
        OLED_SetPixel(x, y, color);
        eps += dx;
        if ((eps << 1) >= dy)
        {
          x += ux;
          eps -= dy;
        }
      }
    }
  }
}

/**
 * @brief 绘制一个矩形
 * @param x 起始点横坐标
 * @param y 起始点纵坐标
 * @param w 矩形宽度
 * @param h 矩形高度
 * @param color 颜色
 */
void OLED_DrawRectangle(uint8_t x, uint8_t y, uint8_t w, uint8_t h, OLED_ColorMode color)
{
  OLED_DrawLine(x, y, x + w, y, color);
  OLED_DrawLine(x, y + h, x + w, y + h, color);
  OLED_DrawLine(x, y, x, y + h, color);
  OLED_DrawLine(x + w, y, x + w, y + h, color);
}

/**
 * @brief 绘制一个填充矩形
 * @param x 起始点横坐标
 * @param y 起始点纵坐标
 * @param w 矩形宽度
 * @param h 矩形高度
 * @param color 颜色
 */
void OLED_DrawFilledRectangle(uint8_t x, uint8_t y, uint8_t w, uint8_t h, OLED_ColorMode color)
{
  for (uint8_t i = 0; i < h; i++)
  {
    OLED_DrawLine(x, y + i, x + w, y + i, color);
  }
}

/**
 * @brief 绘制一个三角形
 * @param x1 第一个点横坐标
 * @param y1 第一个点纵坐标
 * @param x2 第二个点横坐标
 * @param y2 第二个点纵坐标
 * @param x3 第三个点横坐标
 * @param y3 第三个点纵坐标
 * @param color 颜色
 */
void OLED_DrawTriangle(uint8_t x1, uint8_t y1, uint8_t x2, uint8_t y2, uint8_t x3, uint8_t y3, OLED_ColorMode color)
{
  OLED_DrawLine(x1, y1, x2, y2, color);
  OLED_DrawLine(x2, y2, x3, y3, color);
  OLED_DrawLine(x3, y3, x1, y1, color);
}

/**
 * @brief 绘制一个填充三角形
 * @param x1 第一个点横坐标
 * @param y1 第一个点纵坐标
 * @param x2 第二个点横坐标
 * @param y2 第二个点纵坐标
 * @param x3 第三个点横坐标
 * @param y3 第三个点纵坐标
 * @param color 颜色
 */
void OLED_DrawFilledTriangle(uint8_t x1, uint8_t y1, uint8_t x2, uint8_t y2, uint8_t x3, uint8_t y3, OLED_ColorMode color)
{
  uint8_t a = 0, b = 0, y = 0, last = 0;
  if (y1 > y2)
  {
    a = y2;
    b = y1;
  }
  else
  {
    a = y1;
    b = y2;
  }
  y = a;
  for (; y <= b; y++)
  {
    if (y <= y3)
    {
      OLED_DrawLine(x1 + (y - y1) * (x2 - x1) / (y2 - y1), y, x1 + (y - y1) * (x3 - x1) / (y3 - y1), y, color);
    }
    else
    {
      last = y - 1;
      break;
    }
  }
  for (; y <= b; y++)
  {
    OLED_DrawLine(x2 + (y - y2) * (x3 - x2) / (y3 - y2), y, x1 + (y - last) * (x3 - x1) / (y3 - last), y, color);
  }
}

/**
 * @brief 绘制一个圆
 * @param x 圆心横坐标
 * @param y 圆心纵坐标
 * @param r 圆半径
 * @param color 颜色
 * @note 此函数使用Bresenham算法绘制圆
 */
void OLED_DrawCircle(uint8_t x, uint8_t y, uint8_t r, OLED_ColorMode color)
{
  int16_t a = 0, b = r, di = 3 - (r << 1);
  while (a <= b)
  {
    OLED_SetPixel(x - b, y - a, color);
    OLED_SetPixel(x + b, y - a, color);
    OLED_SetPixel(x - a, y + b, color);
    OLED_SetPixel(x - b, y - a, color);
    OLED_SetPixel(x - a, y - b, color);
    OLED_SetPixel(x + b, y + a, color);
    OLED_SetPixel(x + a, y - b, color);
    OLED_SetPixel(x + a, y + b, color);
    OLED_SetPixel(x - b, y + a, color);
    a++;
    if (di < 0)
    {
      di += 4 * a + 6;
    }
    else
    {
      di += 10 + 4 * (a - b);
      b--;
    }
    OLED_SetPixel(x + a, y + b, color);
  }
}

/**
 * @brief 绘制一个填充圆
 * @param x 圆心横坐标
 * @param y 圆心纵坐标
 * @param r 圆半径
 * @param color 颜色
 * @note 此函数使用Bresenham算法绘制圆
 */
void OLED_DrawFilledCircle(uint8_t x, uint8_t y, uint8_t r, OLED_ColorMode color)
{
  int16_t a = 0, b = r, di = 3 - (r << 1);
  while (a <= b)
  {
    for (int16_t i = x - b; i <= x + b; i++)
    {
      OLED_SetPixel(i, y + a, color);
      OLED_SetPixel(i, y - a, color);
    }
    for (int16_t i = x - a; i <= x + a; i++)
    {
      OLED_SetPixel(i, y + b, color);
      OLED_SetPixel(i, y - b, color);
    }
    a++;
    if (di < 0)
    {
      di += 4 * a + 6;
    }
    else
    {
      di += 10 + 4 * (a - b);
      b--;
    }
  }
}

/**
 * @brief 绘制一个椭圆
 * @param x 椭圆中心横坐标
 * @param y 椭圆中心纵坐标
 * @param a 椭圆长轴
 * @param b 椭圆短轴
 */
void OLED_DrawEllipse(uint8_t x, uint8_t y, uint8_t a, uint8_t b, OLED_ColorMode color)
{
  int xpos = 0, ypos = b;
  int a2 = a * a, b2 = b * b;
  int d = b2 + a2 * (0.25 - b);
  while (a2 * ypos > b2 * xpos)
  {
    OLED_SetPixel(x + xpos, y + ypos, color);
    OLED_SetPixel(x - xpos, y + ypos, color);
    OLED_SetPixel(x + xpos, y - ypos, color);
    OLED_SetPixel(x - xpos, y - ypos, color);
    if (d < 0)
    {
      d = d + b2 * ((xpos << 1) + 3);
      xpos += 1;
    }
    else
    {
      d = d + b2 * ((xpos << 1) + 3) + a2 * (-(ypos << 1) + 2);
      xpos += 1, ypos -= 1;
    }
  }
  d = b2 * (xpos + 0.5) * (xpos + 0.5) + a2 * (ypos - 1) * (ypos - 1) - a2 * b2;
  while (ypos > 0)
  {
    OLED_SetPixel(x + xpos, y + ypos, color);
    OLED_SetPixel(x - xpos, y + ypos, color);
    OLED_SetPixel(x + xpos, y - ypos, color);
    OLED_SetPixel(x - xpos, y - ypos, color);
    if (d < 0)
    {
      d = d + b2 * ((xpos << 1) + 2) + a2 * (-(ypos << 1) + 3);
      xpos += 1, ypos -= 1;
    }
    else
    {
      d = d + a2 * (-(ypos << 1) + 3);
      ypos -= 1;
    }
  }
}

/**
 * @brief 绘制一张图片
 * @param x 起始点横坐标
 * @param y 起始点纵坐标
 * @param img 图片
 * @param color 颜色
 */
void OLED_DrawImage(uint8_t x, uint8_t y, const Image *img, OLED_ColorMode color)
{
  OLED_SetBlock(x, y, img->data, img->w, img->h, color);
}

// ================================ 文字绘制 ================================

/**
 * @brief 绘制一个ASCII字符
 * @param x 起始点横坐标
 * @param y 起始点纵坐标
 * @param ch 字符
 * @param font 字体
 * @param color 颜色
 */
void OLED_PrintASCIIChar(uint8_t x, uint8_t y, char ch, const ASCIIFont *font, OLED_ColorMode color)
{
  OLED_SetBlock(x, y, font->chars + (ch - ' ') * (((font->h + 7) / 8) * font->w), font->w, font->h, color);
}

/**
 * @brief 绘制一个ASCII字符串
 * @param x 起始点横坐标
 * @param y 起始点纵坐标
 * @param str 字符串
 * @param font 字体
 * @param color 颜色
 */
void OLED_PrintASCIIString(uint8_t x, uint8_t y, char *str, const ASCIIFont *font, OLED_ColorMode color)
{
  uint8_t x0 = x;
  while (*str)
  {
    OLED_PrintASCIIChar(x0, y, *str, font, color);
    x0 += font->w;
    str++;
  }
}

/**
 * @brief 获取UTF-8编码的字符长度
 */
uint8_t _OLED_GetUTF8Len(char *string)
{
  if ((string[0] & 0x80) == 0x00)
  {
    return 1;
  }
  else if ((string[0] & 0xE0) == 0xC0)
  {
    return 2;
  }
  else if ((string[0] & 0xF0) == 0xE0)
  {
    return 3;
  }
  else if ((string[0] & 0xF8) == 0xF0)
  {
    return 4;
  }
  return 0;
}

/**
 * @brief 绘制字符串
 * @param x 起始点横坐标
 * @param y 起始点纵坐标
 * @param str 字符串
 * @param font 字体
 * @param color 颜色
 *
 * @note 为保证字符串中的中文会被自动识别并绘制, 需:
 * 1. 编译器字符集设置为UTF-8
 * 2. 使用波特律动LED取模工具生成字模(https://led.baud-dance.com)
 */
/**
 * @brief 绘制字符串
 * @param x 起始点横坐标
 * @param y 起始点纵坐标
 * @param str 字符串
 * @param font 字体
 * @param color 颜色
 *
 * @note 为保证字符串中的中文会被自动识别并绘制, 需:
 * 1. 编译器字符集设置为UTF-8
 * 2. 使用波特律动LED取模工具生成字模(https://led.baud-dance.com)
 */
void OLED_PrintString(uint8_t x, uint8_t y, char *str, const Font *font, OLED_ColorMode color)
{
  uint16_t i = 0;                                       // 字符串索引
  uint8_t oneLen = (((font->h + 7) / 8) * font->w) + 4; // 一个字模占多少字节
  uint8_t found;                                        // 是否找到字模
  uint8_t utf8Len;                                      // UTF-8编码长度
  uint8_t *head;                                        // 字模头指针
  while (str[i])
  {
    found = 0;
    utf8Len = _OLED_GetUTF8Len(str + i);
    if (utf8Len == 0)
      break; // 有问题的UTF-8编码

    // 寻找字符  TODO 优化查找算法, 二分查找或者hash
    for (uint8_t j = 0; j < font->len; j++)
    {
      head = (uint8_t *)(font->chars) + (j * oneLen);
      if (memcmp(str + i, head, utf8Len) == 0)
      {
        OLED_SetBlock(x, y, head + 4, font->w, font->h, color);
        // 移动光标
        x += font->w;
        i += utf8Len;
        found = 1;
        break;
      }
    }

    // 若未找到字模,且为ASCII字符, 则缺省显示ASCII字符
    if (found == 0)
    {
      if (utf8Len == 1)
      {
        OLED_PrintASCIIChar(x, y, str[i], font->ascii, color);
        // 移动光标
        x += font->ascii->w;
        i += utf8Len;
      }
      else
      {
        OLED_PrintASCIIChar(x, y, ' ', font->ascii, color);
        x += font->ascii->w;
        i += utf8Len;
      }
    }
  }
}

oled.h

#ifndef __OLED_H__
#define __OLED_H__

#include "font.h"
#include "main.h"
#include "string.h"

typedef enum {
  OLED_COLOR_NORMAL = 0, // 正常模式 黑底白字
  OLED_COLOR_REVERSED    // 反色模式 白底黑字
} OLED_ColorMode;

void OLED_Init();
void OLED_DisPlay_On();
void OLED_DisPlay_Off();

void OLED_NewFrame();
void OLED_ShowFrame();
void OLED_SetPixel(uint8_t x, uint8_t y, OLED_ColorMode color);

void OLED_DrawLine(uint8_t x1, uint8_t y1, uint8_t x2, uint8_t y2, OLED_ColorMode color);
void OLED_DrawRectangle(uint8_t x, uint8_t y, uint8_t w, uint8_t h, OLED_ColorMode color);
void OLED_DrawFilledRectangle(uint8_t x, uint8_t y, uint8_t w, uint8_t h, OLED_ColorMode color);
void OLED_DrawTriangle(uint8_t x1, uint8_t y1, uint8_t x2, uint8_t y2, uint8_t x3, uint8_t y3, OLED_ColorMode color);
void OLED_DrawFilledTriangle(uint8_t x1, uint8_t y1, uint8_t x2, uint8_t y2, uint8_t x3, uint8_t y3, OLED_ColorMode color);
void OLED_DrawCircle(uint8_t x, uint8_t y, uint8_t r, OLED_ColorMode color);
void OLED_DrawFilledCircle(uint8_t x, uint8_t y, uint8_t r, OLED_ColorMode color);
void OLED_DrawEllipse(uint8_t x, uint8_t y, uint8_t a, uint8_t b, OLED_ColorMode color);
void OLED_DrawImage(uint8_t x, uint8_t y, const Image *img, OLED_ColorMode color);

void OLED_PrintASCIIChar(uint8_t x, uint8_t y, char ch, const ASCIIFont *font, OLED_ColorMode color);
void OLED_PrintASCIIString(uint8_t x, uint8_t y, char *str, const ASCIIFont *font, OLED_ColorMode color);
void OLED_PrintString(uint8_t x, uint8_t y, char *str, const Font *font, OLED_ColorMode color);
#endif // __OLED_H__

font.c

/**
 * @file font.c
 * @brief 字体库
 *
 * @attention
 * 本字体库与波特律动OLED驱动配套使用
 * 英文字库已包含
 * 中文字库请使用波特律动LED取模工具生成(https://led.baud-dance.com)
 * 图模也使用波特律动LED取模工具生成
 */
// clang-format off
#include "font.h"

// 8*6 ASCII
const unsigned char ascii_8x6[][6] = {
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, // space 空格
    {0x00, 0x00, 0x00, 0x2f, 0x00, 0x00}, // !
    {0x00, 0x00, 0x07, 0x00, 0x07, 0x00}, // "
    {0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14}, // #
    {0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12}, // $
    {0x00, 0x62, 0x64, 0x08, 0x13, 0x23}, // %
    {0x00, 0x36, 0x49, 0x55, 0x22, 0x50}, // &
    {0x00, 0x00, 0x05, 0x03, 0x00, 0x00}, // '
    {0x00, 0x00, 0x1c, 0x22, 0x41, 0x00}, // (
    {0x00, 0x00, 0x41, 0x22, 0x1c, 0x00}, // )
    {0x00, 0x14, 0x08, 0x3E, 0x08, 0x14}, // *
    {0x00, 0x08, 0x08, 0x3E, 0x08, 0x08}, // +
    {0x00, 0x00, 0x00, 0xA0, 0x60, 0x00}, // ,
    {0x00, 0x08, 0x08, 0x08, 0x08, 0x08}, // -
    {0x00, 0x00, 0x60, 0x60, 0x00, 0x00}, // .
    {0x00, 0x20, 0x10, 0x08, 0x04, 0x02}, // /
    {0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E}, // 0
    {0x00, 0x00, 0x42, 0x7F, 0x40, 0x00}, // 1
    {0x00, 0x42, 0x61, 0x51, 0x49, 0x46}, // 2
    {0x00, 0x21, 0x41, 0x45, 0x4B, 0x31}, // 3
    {0x00, 0x18, 0x14, 0x12, 0x7F, 0x10}, // 4
    {0x00, 0x27, 0x45, 0x45, 0x45, 0x39}, // 5
    {0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30}, // 6
    {0x00, 0x01, 0x71, 0x09, 0x05, 0x03}, // 7
    {0x00, 0x36, 0x49, 0x49, 0x49, 0x36}, // 8
    {0x00, 0x06, 0x49, 0x49, 0x29, 0x1E}, // 9
    {0x00, 0x00, 0x36, 0x36, 0x00, 0x00}, // :
    {0x00, 0x00, 0x56, 0x36, 0x00, 0x00}, // ;
    {0x00, 0x08, 0x14, 0x22, 0x41, 0x00}, // <
    {0x00, 0x14, 0x14, 0x14, 0x14, 0x14}, // =
    {0x00, 0x00, 0x41, 0x22, 0x14, 0x08}, // >
    {0x00, 0x02, 0x01, 0x51, 0x09, 0x06}, // ?
    {0x00, 0x32, 0x49, 0x59, 0x51, 0x3E}, // @
    {0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C}, // A
    {0x00, 0x7F, 0x49, 0x49, 0x49, 0x36}, // B
    {0x00, 0x3E, 0x41, 0x41, 0x41, 0x22}, // C
    {0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C}, // D
    {0x00, 0x7F, 0x49, 0x49, 0x49, 0x41}, // E
    {0x00, 0x7F, 0x09, 0x09, 0x09, 0x01}, // F
    {0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A}, // G
    {0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F}, // H
    {0x00, 0x00, 0x41, 0x7F, 0x41, 0x00}, // I
    {0x00, 0x20, 0x40, 0x41, 0x3F, 0x01}, // J
    {0x00, 0x7F, 0x08, 0x14, 0x22, 0x41}, // K
    {0x00, 0x7F, 0x40, 0x40, 0x40, 0x40}, // L
    {0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F}, // M
    {0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F}, // N
    {0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E}, // O
    {0x00, 0x7F, 0x09, 0x09, 0x09, 0x06}, // P
    {0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E}, // Q
    {0x00, 0x7F, 0x09, 0x19, 0x29, 0x46}, // R
    {0x00, 0x46, 0x49, 0x49, 0x49, 0x31}, // S
    {0x00, 0x01, 0x01, 0x7F, 0x01, 0x01}, // T
    {0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F}, // U
    {0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F}, // V
    {0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F}, // W
    {0x00, 0x63, 0x14, 0x08, 0x14, 0x63}, // X
    {0x00, 0x07, 0x08, 0x70, 0x08, 0x07}, // Y
    {0x00, 0x61, 0x51, 0x49, 0x45, 0x43}, // Z
    {0x00, 0x00, 0x7F, 0x41, 0x41, 0x00}, // [
    {0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55}, // 55
    {0x00, 0x00, 0x41, 0x41, 0x7F, 0x00}, // ]
    {0x00, 0x04, 0x02, 0x01, 0x02, 0x04}, // ^
    {0x00, 0x40, 0x40, 0x40, 0x40, 0x40}, // _
    {0x00, 0x00, 0x01, 0x02, 0x04, 0x00}, // '
    {0x00, 0x20, 0x54, 0x54, 0x54, 0x78}, // a
    {0x00, 0x7F, 0x48, 0x44, 0x44, 0x38}, // b
    {0x00, 0x38, 0x44, 0x44, 0x44, 0x20}, // c
    {0x00, 0x38, 0x44, 0x44, 0x48, 0x7F}, // d
    {0x00, 0x38, 0x54, 0x54, 0x54, 0x18}, // e
    {0x00, 0x08, 0x7E, 0x09, 0x01, 0x02}, // f
    {0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C}, // g
    {0x00, 0x7F, 0x08, 0x04, 0x04, 0x78}, // h
    {0x00, 0x00, 0x44, 0x7D, 0x40, 0x00}, // i
    {0x00, 0x40, 0x80, 0x84, 0x7D, 0x00}, // j
    {0x00, 0x7F, 0x10, 0x28, 0x44, 0x00}, // k
    {0x00, 0x00, 0x41, 0x7F, 0x40, 0x00}, // l
    {0x00, 0x7C, 0x04, 0x18, 0x04, 0x78}, // m
    {0x00, 0x7C, 0x08, 0x04, 0x04, 0x78}, // n
    {0x00, 0x38, 0x44, 0x44, 0x44, 0x38}, // o
    {0x00, 0xFC, 0x24, 0x24, 0x24, 0x18}, // p
    {0x00, 0x18, 0x24, 0x24, 0x18, 0xFC}, // q
    {0x00, 0x7C, 0x08, 0x04, 0x04, 0x08}, // r
    {0x00, 0x48, 0x54, 0x54, 0x54, 0x20}, // s
    {0x00, 0x04, 0x3F, 0x44, 0x40, 0x20}, // t
    {0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C}, // u
    {0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C}, // v
    {0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C}, // w
    {0x00, 0x44, 0x28, 0x10, 0x28, 0x44}, // x
    {0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C}, // y
    {0x00, 0x44, 0x64, 0x54, 0x4C, 0x44}, // z
    {0x14, 0x14, 0x14, 0x14, 0x14, 0x14}, // horiz lines
};

const ASCIIFont afont8x6 = {8, 6, (unsigned char *)ascii_8x6};

const unsigned char ascii_12x6[][12] = {
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*" ",0*/
    {0x00, 0x00, 0xFC, 0x00, 0x00, 0x00, 0x00, 0x00, 0x02, 0x00, 0x00, 0x00}, /*"!",1*/
    {0x00, 0x0C, 0x02, 0x0C, 0x02, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*""",2*/
    {0x90, 0xD0, 0xBC, 0xD0, 0xBC, 0x90, 0x00, 0x03, 0x00, 0x03, 0x00, 0x00}, /*"#",3*/
    {0x18, 0x24, 0xFE, 0x44, 0x8C, 0x00, 0x03, 0x02, 0x07, 0x02, 0x01, 0x00}, /*"$",4*/
    {0x18, 0x24, 0xD8, 0xB0, 0x4C, 0x80, 0x00, 0x03, 0x00, 0x01, 0x02, 0x01}, /*"%",5*/
    {0xC0, 0x38, 0xE4, 0x38, 0xE0, 0x00, 0x01, 0x02, 0x02, 0x01, 0x02, 0x02}, /*"&",6*/
    {0x08, 0x06, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"'",7*/
    {0x00, 0x00, 0x00, 0xF8, 0x04, 0x02, 0x00, 0x00, 0x00, 0x01, 0x02, 0x04}, /*"(",8*/
    {0x00, 0x02, 0x04, 0xF8, 0x00, 0x00, 0x00, 0x04, 0x02, 0x01, 0x00, 0x00}, /*")",9*/
    {0x90, 0x60, 0xF8, 0x60, 0x90, 0x00, 0x00, 0x00, 0x01, 0x00, 0x00, 0x00}, /*"*",10*/
    {0x20, 0x20, 0xFC, 0x20, 0x20, 0x00, 0x00, 0x00, 0x01, 0x00, 0x00, 0x00}, /*"+",11*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x08, 0x06, 0x00, 0x00, 0x00, 0x00}, /*",",12*/
    {0x20, 0x20, 0x20, 0x20, 0x20, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"-",13*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x02, 0x00, 0x00, 0x00, 0x00}, /*".",14*/
    {0x00, 0x80, 0x60, 0x1C, 0x02, 0x00, 0x04, 0x03, 0x00, 0x00, 0x00, 0x00}, /*"/",15*/
    {0xF8, 0x04, 0x04, 0x04, 0xF8, 0x00, 0x01, 0x02, 0x02, 0x02, 0x01, 0x00}, /*"0",16*/
    {0x00, 0x08, 0xFC, 0x00, 0x00, 0x00, 0x00, 0x02, 0x03, 0x02, 0x00, 0x00}, /*"1",17*/
    {0x18, 0x84, 0x44, 0x24, 0x18, 0x00, 0x03, 0x02, 0x02, 0x02, 0x02, 0x00}, /*"2",18*/
    {0x08, 0x04, 0x24, 0x24, 0xD8, 0x00, 0x01, 0x02, 0x02, 0x02, 0x01, 0x00}, /*"3",19*/
    {0x40, 0xB0, 0x88, 0xFC, 0x80, 0x00, 0x00, 0x00, 0x00, 0x03, 0x02, 0x00}, /*"4",20*/
    {0x3C, 0x24, 0x24, 0x24, 0xC4, 0x00, 0x01, 0x02, 0x02, 0x02, 0x01, 0x00}, /*"5",21*/
    {0xF8, 0x24, 0x24, 0x2C, 0xC0, 0x00, 0x01, 0x02, 0x02, 0x02, 0x01, 0x00}, /*"6",22*/
    {0x0C, 0x04, 0xE4, 0x1C, 0x04, 0x00, 0x00, 0x00, 0x03, 0x00, 0x00, 0x00}, /*"7",23*/
    {0xD8, 0x24, 0x24, 0x24, 0xD8, 0x00, 0x01, 0x02, 0x02, 0x02, 0x01, 0x00}, /*"8",24*/
    {0x38, 0x44, 0x44, 0x44, 0xF8, 0x00, 0x00, 0x03, 0x02, 0x02, 0x01, 0x00}, /*"9",25*/
    {0x00, 0x00, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x02, 0x00, 0x00, 0x00}, /*":",26*/
    {0x00, 0x00, 0x20, 0x00, 0x00, 0x00, 0x00, 0x00, 0x06, 0x00, 0x00, 0x00}, /*";",27*/
    {0x00, 0x20, 0x50, 0x88, 0x04, 0x02, 0x00, 0x00, 0x00, 0x00, 0x01, 0x02}, /*"<",28*/
    {0x90, 0x90, 0x90, 0x90, 0x90, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"=",29*/
    {0x00, 0x02, 0x04, 0x88, 0x50, 0x20, 0x00, 0x02, 0x01, 0x00, 0x00, 0x00}, /*">",30*/
    {0x18, 0x04, 0xC4, 0x24, 0x18, 0x00, 0x00, 0x00, 0x02, 0x00, 0x00, 0x00}, /*"?",31*/
    {0xF8, 0x04, 0xE4, 0x94, 0xF8, 0x00, 0x01, 0x02, 0x02, 0x02, 0x02, 0x00}, /*"@",32*/
    {0x00, 0xE0, 0x9C, 0xF0, 0x80, 0x00, 0x02, 0x03, 0x00, 0x00, 0x03, 0x02}, /*"A",33*/
    {0x04, 0xFC, 0x24, 0x24, 0xD8, 0x00, 0x02, 0x03, 0x02, 0x02, 0x01, 0x00}, /*"B",34*/
    {0xF8, 0x04, 0x04, 0x04, 0x0C, 0x00, 0x01, 0x02, 0x02, 0x02, 0x01, 0x00}, /*"C",35*/
    {0x04, 0xFC, 0x04, 0x04, 0xF8, 0x00, 0x02, 0x03, 0x02, 0x02, 0x01, 0x00}, /*"D",36*/
    {0x04, 0xFC, 0x24, 0x74, 0x0C, 0x00, 0x02, 0x03, 0x02, 0x02, 0x03, 0x00}, /*"E",37*/
    {0x04, 0xFC, 0x24, 0x74, 0x0C, 0x00, 0x02, 0x03, 0x02, 0x00, 0x00, 0x00}, /*"F",38*/
    {0xF0, 0x08, 0x04, 0x44, 0xCC, 0x40, 0x00, 0x01, 0x02, 0x02, 0x01, 0x00}, /*"G",39*/
    {0x04, 0xFC, 0x20, 0x20, 0xFC, 0x04, 0x02, 0x03, 0x00, 0x00, 0x03, 0x02}, /*"H",40*/
    {0x04, 0x04, 0xFC, 0x04, 0x04, 0x00, 0x02, 0x02, 0x03, 0x02, 0x02, 0x00}, /*"I",41*/
    {0x00, 0x04, 0x04, 0xFC, 0x04, 0x04, 0x06, 0x04, 0x04, 0x03, 0x00, 0x00}, /*"J",42*/
    {0x04, 0xFC, 0x24, 0xD0, 0x0C, 0x04, 0x02, 0x03, 0x02, 0x00, 0x03, 0x02}, /*"K",43*/
    {0x04, 0xFC, 0x04, 0x00, 0x00, 0x00, 0x02, 0x03, 0x02, 0x02, 0x02, 0x03}, /*"L",44*/
    {0xFC, 0x3C, 0xC0, 0x3C, 0xFC, 0x00, 0x03, 0x00, 0x03, 0x00, 0x03, 0x00}, /*"M",45*/
    {0x04, 0xFC, 0x30, 0xC4, 0xFC, 0x04, 0x02, 0x03, 0x02, 0x00, 0x03, 0x00}, /*"N",46*/
    {0xF8, 0x04, 0x04, 0x04, 0xF8, 0x00, 0x01, 0x02, 0x02, 0x02, 0x01, 0x00}, /*"O",47*/
    {0x04, 0xFC, 0x24, 0x24, 0x18, 0x00, 0x02, 0x03, 0x02, 0x00, 0x00, 0x00}, /*"P",48*/
    {0xF8, 0x84, 0x84, 0x04, 0xF8, 0x00, 0x01, 0x02, 0x02, 0x07, 0x05, 0x00}, /*"Q",49*/
    {0x04, 0xFC, 0x24, 0x64, 0x98, 0x00, 0x02, 0x03, 0x02, 0x00, 0x03, 0x02}, /*"R",50*/
    {0x18, 0x24, 0x24, 0x44, 0x8C, 0x00, 0x03, 0x02, 0x02, 0x02, 0x01, 0x00}, /*"S",51*/
    {0x0C, 0x04, 0xFC, 0x04, 0x0C, 0x00, 0x00, 0x02, 0x03, 0x02, 0x00, 0x00}, /*"T",52*/
    {0x04, 0xFC, 0x00, 0x00, 0xFC, 0x04, 0x00, 0x01, 0x02, 0x02, 0x01, 0x00}, /*"U",53*/
    {0x04, 0x7C, 0x80, 0xE0, 0x1C, 0x04, 0x00, 0x00, 0x03, 0x00, 0x00, 0x00}, /*"V",54*/
    {0x1C, 0xE0, 0x3C, 0xE0, 0x1C, 0x00, 0x00, 0x03, 0x00, 0x03, 0x00, 0x00}, /*"W",55*/
    {0x04, 0x9C, 0x60, 0x9C, 0x04, 0x00, 0x02, 0x03, 0x00, 0x03, 0x02, 0x00}, /*"X",56*/
    {0x04, 0x1C, 0xE0, 0x1C, 0x04, 0x00, 0x00, 0x02, 0x03, 0x02, 0x00, 0x00}, /*"Y",57*/
    {0x0C, 0x84, 0x64, 0x1C, 0x04, 0x00, 0x02, 0x03, 0x02, 0x02, 0x03, 0x00}, /*"Z",58*/
    {0x00, 0x00, 0xFE, 0x02, 0x02, 0x00, 0x00, 0x00, 0x07, 0x04, 0x04, 0x00}, /*"[",59*/
    {0x00, 0x0E, 0x30, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x02, 0x00}, /*"\",60*/
    {0x00, 0x02, 0x02, 0xFE, 0x00, 0x00, 0x00, 0x04, 0x04, 0x07, 0x00, 0x00}, /*"]",61*/
    {0x00, 0x04, 0x02, 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"^",62*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x08, 0x08, 0x08, 0x08, 0x08, 0x08}, /*"_",63*/
    {0x00, 0x00, 0x02, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"`",64*/
    {0x00, 0x40, 0xA0, 0xA0, 0xC0, 0x00, 0x00, 0x01, 0x02, 0x02, 0x03, 0x02}, /*"a",65*/
    {0x04, 0xFC, 0x20, 0x20, 0xC0, 0x00, 0x00, 0x03, 0x02, 0x02, 0x01, 0x00}, /*"b",66*/
    {0x00, 0xC0, 0x20, 0x20, 0x60, 0x00, 0x00, 0x01, 0x02, 0x02, 0x02, 0x00}, /*"c",67*/
    {0x00, 0xC0, 0x20, 0x24, 0xFC, 0x00, 0x00, 0x01, 0x02, 0x02, 0x03, 0x02}, /*"d",68*/
    {0x00, 0xC0, 0xA0, 0xA0, 0xC0, 0x00, 0x00, 0x01, 0x02, 0x02, 0x02, 0x00}, /*"e",69*/
    {0x00, 0x20, 0xF8, 0x24, 0x24, 0x04, 0x00, 0x02, 0x03, 0x02, 0x02, 0x00}, /*"f",70*/
    {0x00, 0x40, 0xA0, 0xA0, 0x60, 0x20, 0x00, 0x07, 0x0A, 0x0A, 0x0A, 0x04}, /*"g",71*/
    {0x04, 0xFC, 0x20, 0x20, 0xC0, 0x00, 0x02, 0x03, 0x02, 0x00, 0x03, 0x02}, /*"h",72*/
    {0x00, 0x20, 0xE4, 0x00, 0x00, 0x00, 0x00, 0x02, 0x03, 0x02, 0x00, 0x00}, /*"i",73*/
    {0x00, 0x00, 0x20, 0xE4, 0x00, 0x00, 0x08, 0x08, 0x08, 0x07, 0x00, 0x00}, /*"j",74*/
    {0x04, 0xFC, 0x80, 0xE0, 0x20, 0x20, 0x02, 0x03, 0x02, 0x00, 0x03, 0x02}, /*"k",75*/
    {0x04, 0x04, 0xFC, 0x00, 0x00, 0x00, 0x02, 0x02, 0x03, 0x02, 0x02, 0x00}, /*"l",76*/
    {0xE0, 0x20, 0xE0, 0x20, 0xC0, 0x00, 0x03, 0x00, 0x03, 0x00, 0x03, 0x00}, /*"m",77*/
    {0x20, 0xE0, 0x20, 0x20, 0xC0, 0x00, 0x02, 0x03, 0x02, 0x00, 0x03, 0x02}, /*"n",78*/
    {0x00, 0xC0, 0x20, 0x20, 0xC0, 0x00, 0x00, 0x01, 0x02, 0x02, 0x01, 0x00}, /*"o",79*/
    {0x20, 0xE0, 0x20, 0x20, 0xC0, 0x00, 0x08, 0x0F, 0x0A, 0x02, 0x01, 0x00}, /*"p",80*/
    {0x00, 0xC0, 0x20, 0x20, 0xE0, 0x00, 0x00, 0x01, 0x02, 0x0A, 0x0F, 0x08}, /*"q",81*/
    {0x20, 0xE0, 0x40, 0x20, 0x20, 0x00, 0x02, 0x03, 0x02, 0x00, 0x00, 0x00}, /*"r",82*/
    {0x00, 0x60, 0xA0, 0xA0, 0x20, 0x00, 0x00, 0x02, 0x02, 0x02, 0x03, 0x00}, /*"s",83*/
    {0x00, 0x20, 0xF8, 0x20, 0x00, 0x00, 0x00, 0x00, 0x01, 0x02, 0x02, 0x00}, /*"t",84*/
    {0x20, 0xE0, 0x00, 0x20, 0xE0, 0x00, 0x00, 0x01, 0x02, 0x02, 0x03, 0x02}, /*"u",85*/
    {0x20, 0xE0, 0x20, 0x80, 0x60, 0x20, 0x00, 0x00, 0x03, 0x01, 0x00, 0x00}, /*"v",86*/
    {0x60, 0x80, 0xE0, 0x80, 0x60, 0x00, 0x00, 0x03, 0x00, 0x03, 0x00, 0x00}, /*"w",87*/
    {0x20, 0x60, 0x80, 0x60, 0x20, 0x00, 0x02, 0x03, 0x00, 0x03, 0x02, 0x00}, /*"x",88*/
    {0x20, 0xE0, 0x20, 0x80, 0x60, 0x20, 0x08, 0x08, 0x07, 0x01, 0x00, 0x00}, /*"y",89*/
    {0x00, 0x20, 0xA0, 0x60, 0x20, 0x00, 0x00, 0x02, 0x03, 0x02, 0x02, 0x00}, /*"z",90*/
    {0x00, 0x00, 0x20, 0xDE, 0x02, 0x00, 0x00, 0x00, 0x00, 0x07, 0x04, 0x00}, /*"{",91*/
    {0x00, 0x00, 0x00, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0F, 0x00, 0x00}, /*"|",92*/
    {0x00, 0x02, 0xDE, 0x20, 0x00, 0x00, 0x00, 0x04, 0x07, 0x00, 0x00, 0x00}, /*"}",93*/
    {0x02, 0x01, 0x02, 0x04, 0x04, 0x02, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"~",94*/
};

const ASCIIFont afont12x6 = {12, 6, (unsigned char *)ascii_12x6};

const unsigned char ascii_16x8[][16] = {
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*" ",0*/
    {0x00, 0x00, 0x00, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x33, 0x30, 0x00, 0x00, 0x00}, /*"!",1*/
    {0x00, 0x10, 0x0C, 0x06, 0x10, 0x0C, 0x06, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*""",2*/
    {0x40, 0xC0, 0x78, 0x40, 0xC0, 0x78, 0x40, 0x00, 0x04, 0x3F, 0x04, 0x04, 0x3F, 0x04, 0x04, 0x00}, /*"#",3*/
    {0x00, 0x70, 0x88, 0xFC, 0x08, 0x30, 0x00, 0x00, 0x00, 0x18, 0x20, 0xFF, 0x21, 0x1E, 0x00, 0x00}, /*"$",4*/
    {0xF0, 0x08, 0xF0, 0x00, 0xE0, 0x18, 0x00, 0x00, 0x00, 0x21, 0x1C, 0x03, 0x1E, 0x21, 0x1E, 0x00}, /*"%",5*/
    {0x00, 0xF0, 0x08, 0x88, 0x70, 0x00, 0x00, 0x00, 0x1E, 0x21, 0x23, 0x24, 0x19, 0x27, 0x21, 0x10}, /*"&",6*/
    {0x10, 0x16, 0x0E, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"'",7*/
    {0x00, 0x00, 0x00, 0xE0, 0x18, 0x04, 0x02, 0x00, 0x00, 0x00, 0x00, 0x07, 0x18, 0x20, 0x40, 0x00}, /*"(",8*/
    {0x00, 0x02, 0x04, 0x18, 0xE0, 0x00, 0x00, 0x00, 0x00, 0x40, 0x20, 0x18, 0x07, 0x00, 0x00, 0x00}, /*")",9*/
    {0x40, 0x40, 0x80, 0xF0, 0x80, 0x40, 0x40, 0x00, 0x02, 0x02, 0x01, 0x0F, 0x01, 0x02, 0x02, 0x00}, /*"*",10*/
    {0x00, 0x00, 0x00, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x01, 0x01, 0x01, 0x1F, 0x01, 0x01, 0x01, 0x00}, /*"+",11*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0xB0, 0x70, 0x00, 0x00, 0x00, 0x00, 0x00}, /*",",12*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01}, /*"-",13*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x30, 0x30, 0x00, 0x00, 0x00, 0x00, 0x00}, /*".",14*/
    {0x00, 0x00, 0x00, 0x00, 0x80, 0x60, 0x18, 0x04, 0x00, 0x60, 0x18, 0x06, 0x01, 0x00, 0x00, 0x00}, /*"/",15*/
    {0x00, 0xE0, 0x10, 0x08, 0x08, 0x10, 0xE0, 0x00, 0x00, 0x0F, 0x10, 0x20, 0x20, 0x10, 0x0F, 0x00}, /*"0",16*/
    {0x00, 0x10, 0x10, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x20, 0x20, 0x3F, 0x20, 0x20, 0x00, 0x00}, /*"1",17*/
    {0x00, 0x70, 0x08, 0x08, 0x08, 0x88, 0x70, 0x00, 0x00, 0x30, 0x28, 0x24, 0x22, 0x21, 0x30, 0x00}, /*"2",18*/
    {0x00, 0x30, 0x08, 0x88, 0x88, 0x48, 0x30, 0x00, 0x00, 0x18, 0x20, 0x20, 0x20, 0x11, 0x0E, 0x00}, /*"3",19*/
    {0x00, 0x00, 0xC0, 0x20, 0x10, 0xF8, 0x00, 0x00, 0x00, 0x07, 0x04, 0x24, 0x24, 0x3F, 0x24, 0x00}, /*"4",20*/
    {0x00, 0xF8, 0x08, 0x88, 0x88, 0x08, 0x08, 0x00, 0x00, 0x19, 0x21, 0x20, 0x20, 0x11, 0x0E, 0x00}, /*"5",21*/
    {0x00, 0xE0, 0x10, 0x88, 0x88, 0x18, 0x00, 0x00, 0x00, 0x0F, 0x11, 0x20, 0x20, 0x11, 0x0E, 0x00}, /*"6",22*/
    {0x00, 0x38, 0x08, 0x08, 0xC8, 0x38, 0x08, 0x00, 0x00, 0x00, 0x00, 0x3F, 0x00, 0x00, 0x00, 0x00}, /*"7",23*/
    {0x00, 0x70, 0x88, 0x08, 0x08, 0x88, 0x70, 0x00, 0x00, 0x1C, 0x22, 0x21, 0x21, 0x22, 0x1C, 0x00}, /*"8",24*/
    {0x00, 0xE0, 0x10, 0x08, 0x08, 0x10, 0xE0, 0x00, 0x00, 0x00, 0x31, 0x22, 0x22, 0x11, 0x0F, 0x00}, /*"9",25*/
    {0x00, 0x00, 0x00, 0xC0, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x30, 0x30, 0x00, 0x00, 0x00}, /*":",26*/
    {0x00, 0x00, 0x00, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x60, 0x00, 0x00, 0x00, 0x00}, /*";",27*/
    {0x00, 0x00, 0x80, 0x40, 0x20, 0x10, 0x08, 0x00, 0x00, 0x01, 0x02, 0x04, 0x08, 0x10, 0x20, 0x00}, /*"<",28*/
    {0x40, 0x40, 0x40, 0x40, 0x40, 0x40, 0x40, 0x00, 0x04, 0x04, 0x04, 0x04, 0x04, 0x04, 0x04, 0x00}, /*"=",29*/
    {0x00, 0x08, 0x10, 0x20, 0x40, 0x80, 0x00, 0x00, 0x00, 0x20, 0x10, 0x08, 0x04, 0x02, 0x01, 0x00}, /*">",30*/
    {0x00, 0x70, 0x48, 0x08, 0x08, 0x08, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x30, 0x36, 0x01, 0x00, 0x00}, /*"?",31*/
    {0xC0, 0x30, 0xC8, 0x28, 0xE8, 0x10, 0xE0, 0x00, 0x07, 0x18, 0x27, 0x24, 0x23, 0x14, 0x0B, 0x00}, /*"@",32*/
    {0x00, 0x00, 0xC0, 0x38, 0xE0, 0x00, 0x00, 0x00, 0x20, 0x3C, 0x23, 0x02, 0x02, 0x27, 0x38, 0x20}, /*"A",33*/
    {0x08, 0xF8, 0x88, 0x88, 0x88, 0x70, 0x00, 0x00, 0x20, 0x3F, 0x20, 0x20, 0x20, 0x11, 0x0E, 0x00}, /*"B",34*/
    {0xC0, 0x30, 0x08, 0x08, 0x08, 0x08, 0x38, 0x00, 0x07, 0x18, 0x20, 0x20, 0x20, 0x10, 0x08, 0x00}, /*"C",35*/
    {0x08, 0xF8, 0x08, 0x08, 0x08, 0x10, 0xE0, 0x00, 0x20, 0x3F, 0x20, 0x20, 0x20, 0x10, 0x0F, 0x00}, /*"D",36*/
    {0x08, 0xF8, 0x88, 0x88, 0xE8, 0x08, 0x10, 0x00, 0x20, 0x3F, 0x20, 0x20, 0x23, 0x20, 0x18, 0x00}, /*"E",37*/
    {0x08, 0xF8, 0x88, 0x88, 0xE8, 0x08, 0x10, 0x00, 0x20, 0x3F, 0x20, 0x00, 0x03, 0x00, 0x00, 0x00}, /*"F",38*/
    {0xC0, 0x30, 0x08, 0x08, 0x08, 0x38, 0x00, 0x00, 0x07, 0x18, 0x20, 0x20, 0x22, 0x1E, 0x02, 0x00}, /*"G",39*/
    {0x08, 0xF8, 0x08, 0x00, 0x00, 0x08, 0xF8, 0x08, 0x20, 0x3F, 0x21, 0x01, 0x01, 0x21, 0x3F, 0x20}, /*"H",40*/
    {0x00, 0x08, 0x08, 0xF8, 0x08, 0x08, 0x00, 0x00, 0x00, 0x20, 0x20, 0x3F, 0x20, 0x20, 0x00, 0x00}, /*"I",41*/
    {0x00, 0x00, 0x08, 0x08, 0xF8, 0x08, 0x08, 0x00, 0xC0, 0x80, 0x80, 0x80, 0x7F, 0x00, 0x00, 0x00}, /*"J",42*/
    {0x08, 0xF8, 0x88, 0xC0, 0x28, 0x18, 0x08, 0x00, 0x20, 0x3F, 0x20, 0x01, 0x26, 0x38, 0x20, 0x00}, /*"K",43*/
    {0x08, 0xF8, 0x08, 0x00, 0x00, 0x00, 0x00, 0x00, 0x20, 0x3F, 0x20, 0x20, 0x20, 0x20, 0x30, 0x00}, /*"L",44*/
    {0x08, 0xF8, 0xF8, 0x00, 0xF8, 0xF8, 0x08, 0x00, 0x20, 0x3F, 0x00, 0x3F, 0x00, 0x3F, 0x20, 0x00}, /*"M",45*/
    {0x08, 0xF8, 0x30, 0xC0, 0x00, 0x08, 0xF8, 0x08, 0x20, 0x3F, 0x20, 0x00, 0x07, 0x18, 0x3F, 0x00}, /*"N",46*/
    {0xE0, 0x10, 0x08, 0x08, 0x08, 0x10, 0xE0, 0x00, 0x0F, 0x10, 0x20, 0x20, 0x20, 0x10, 0x0F, 0x00}, /*"O",47*/
    {0x08, 0xF8, 0x08, 0x08, 0x08, 0x08, 0xF0, 0x00, 0x20, 0x3F, 0x21, 0x01, 0x01, 0x01, 0x00, 0x00}, /*"P",48*/
    {0xE0, 0x10, 0x08, 0x08, 0x08, 0x10, 0xE0, 0x00, 0x0F, 0x18, 0x24, 0x24, 0x38, 0x50, 0x4F, 0x00}, /*"Q",49*/
    {0x08, 0xF8, 0x88, 0x88, 0x88, 0x88, 0x70, 0x00, 0x20, 0x3F, 0x20, 0x00, 0x03, 0x0C, 0x30, 0x20}, /*"R",50*/
    {0x00, 0x70, 0x88, 0x08, 0x08, 0x08, 0x38, 0x00, 0x00, 0x38, 0x20, 0x21, 0x21, 0x22, 0x1C, 0x00}, /*"S",51*/
    {0x18, 0x08, 0x08, 0xF8, 0x08, 0x08, 0x18, 0x00, 0x00, 0x00, 0x20, 0x3F, 0x20, 0x00, 0x00, 0x00}, /*"T",52*/
    {0x08, 0xF8, 0x08, 0x00, 0x00, 0x08, 0xF8, 0x08, 0x00, 0x1F, 0x20, 0x20, 0x20, 0x20, 0x1F, 0x00}, /*"U",53*/
    {0x08, 0x78, 0x88, 0x00, 0x00, 0xC8, 0x38, 0x08, 0x00, 0x00, 0x07, 0x38, 0x0E, 0x01, 0x00, 0x00}, /*"V",54*/
    {0xF8, 0x08, 0x00, 0xF8, 0x00, 0x08, 0xF8, 0x00, 0x03, 0x3C, 0x07, 0x00, 0x07, 0x3C, 0x03, 0x00}, /*"W",55*/
    {0x08, 0x18, 0x68, 0x80, 0x80, 0x68, 0x18, 0x08, 0x20, 0x30, 0x2C, 0x03, 0x03, 0x2C, 0x30, 0x20}, /*"X",56*/
    {0x08, 0x38, 0xC8, 0x00, 0xC8, 0x38, 0x08, 0x00, 0x00, 0x00, 0x20, 0x3F, 0x20, 0x00, 0x00, 0x00}, /*"Y",57*/
    {0x10, 0x08, 0x08, 0x08, 0xC8, 0x38, 0x08, 0x00, 0x20, 0x38, 0x26, 0x21, 0x20, 0x20, 0x18, 0x00}, /*"Z",58*/
    {0x00, 0x00, 0x00, 0xFE, 0x02, 0x02, 0x02, 0x00, 0x00, 0x00, 0x00, 0x7F, 0x40, 0x40, 0x40, 0x00}, /*"[",59*/
    {0x00, 0x0C, 0x30, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x06, 0x38, 0xC0, 0x00}, /*"\",60*/
    {0x00, 0x02, 0x02, 0x02, 0xFE, 0x00, 0x00, 0x00, 0x00, 0x40, 0x40, 0x40, 0x7F, 0x00, 0x00, 0x00}, /*"]",61*/
    {0x00, 0x00, 0x04, 0x02, 0x02, 0x02, 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"^",62*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80}, /*"_",63*/
    {0x00, 0x02, 0x02, 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"`",64*/
    {0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00, 0x00, 0x19, 0x24, 0x22, 0x22, 0x22, 0x3F, 0x20}, /*"a",65*/
    {0x08, 0xF8, 0x00, 0x80, 0x80, 0x00, 0x00, 0x00, 0x00, 0x3F, 0x11, 0x20, 0x20, 0x11, 0x0E, 0x00}, /*"b",66*/
    {0x00, 0x00, 0x00, 0x80, 0x80, 0x80, 0x00, 0x00, 0x00, 0x0E, 0x11, 0x20, 0x20, 0x20, 0x11, 0x00}, /*"c",67*/
    {0x00, 0x00, 0x00, 0x80, 0x80, 0x88, 0xF8, 0x00, 0x00, 0x0E, 0x11, 0x20, 0x20, 0x10, 0x3F, 0x20}, /*"d",68*/
    {0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00, 0x00, 0x1F, 0x22, 0x22, 0x22, 0x22, 0x13, 0x00}, /*"e",69*/
    {0x00, 0x80, 0x80, 0xF0, 0x88, 0x88, 0x88, 0x18, 0x00, 0x20, 0x20, 0x3F, 0x20, 0x20, 0x00, 0x00}, /*"f",70*/
    {0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00, 0x6B, 0x94, 0x94, 0x94, 0x93, 0x60, 0x00}, /*"g",71*/
    {0x08, 0xF8, 0x00, 0x80, 0x80, 0x80, 0x00, 0x00, 0x20, 0x3F, 0x21, 0x00, 0x00, 0x20, 0x3F, 0x20}, /*"h",72*/
    {0x00, 0x80, 0x98, 0x98, 0x00, 0x00, 0x00, 0x00, 0x00, 0x20, 0x20, 0x3F, 0x20, 0x20, 0x00, 0x00}, /*"i",73*/
    {0x00, 0x00, 0x00, 0x80, 0x98, 0x98, 0x00, 0x00, 0x00, 0xC0, 0x80, 0x80, 0x80, 0x7F, 0x00, 0x00}, /*"j",74*/
    {0x08, 0xF8, 0x00, 0x00, 0x80, 0x80, 0x80, 0x00, 0x20, 0x3F, 0x24, 0x02, 0x2D, 0x30, 0x20, 0x00}, /*"k",75*/
    {0x00, 0x08, 0x08, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x20, 0x20, 0x3F, 0x20, 0x20, 0x00, 0x00}, /*"l",76*/
    {0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x00, 0x20, 0x3F, 0x20, 0x00, 0x3F, 0x20, 0x00, 0x3F}, /*"m",77*/
    {0x80, 0x80, 0x00, 0x80, 0x80, 0x80, 0x00, 0x00, 0x20, 0x3F, 0x21, 0x00, 0x00, 0x20, 0x3F, 0x20}, /*"n",78*/
    {0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00, 0x00, 0x1F, 0x20, 0x20, 0x20, 0x20, 0x1F, 0x00}, /*"o",79*/
    {0x80, 0x80, 0x00, 0x80, 0x80, 0x00, 0x00, 0x00, 0x80, 0xFF, 0xA1, 0x20, 0x20, 0x11, 0x0E, 0x00}, /*"p",80*/
    {0x00, 0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00, 0x0E, 0x11, 0x20, 0x20, 0xA0, 0xFF, 0x80}, /*"q",81*/
    {0x80, 0x80, 0x80, 0x00, 0x80, 0x80, 0x80, 0x00, 0x20, 0x20, 0x3F, 0x21, 0x20, 0x00, 0x01, 0x00}, /*"r",82*/
    {0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00, 0x33, 0x24, 0x24, 0x24, 0x24, 0x19, 0x00}, /*"s",83*/
    {0x00, 0x80, 0x80, 0xE0, 0x80, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1F, 0x20, 0x20, 0x00, 0x00}, /*"t",84*/
    {0x80, 0x80, 0x00, 0x00, 0x00, 0x80, 0x80, 0x00, 0x00, 0x1F, 0x20, 0x20, 0x20, 0x10, 0x3F, 0x20}, /*"u",85*/
    {0x80, 0x80, 0x80, 0x00, 0x00, 0x80, 0x80, 0x80, 0x00, 0x01, 0x0E, 0x30, 0x08, 0x06, 0x01, 0x00}, /*"v",86*/
    {0x80, 0x80, 0x00, 0x80, 0x00, 0x80, 0x80, 0x80, 0x0F, 0x30, 0x0C, 0x03, 0x0C, 0x30, 0x0F, 0x00}, /*"w",87*/
    {0x00, 0x80, 0x80, 0x00, 0x80, 0x80, 0x80, 0x00, 0x00, 0x20, 0x31, 0x2E, 0x0E, 0x31, 0x20, 0x00}, /*"x",88*/
    {0x80, 0x80, 0x80, 0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x81, 0x8E, 0x70, 0x18, 0x06, 0x01, 0x00}, /*"y",89*/
    {0x00, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00, 0x21, 0x30, 0x2C, 0x22, 0x21, 0x30, 0x00}, /*"z",90*/
    {0x00, 0x00, 0x00, 0x00, 0x80, 0x7C, 0x02, 0x02, 0x00, 0x00, 0x00, 0x00, 0x00, 0x3F, 0x40, 0x40}, /*"{",91*/
    {0x00, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00, 0x00}, /*"|",92*/
    {0x00, 0x02, 0x02, 0x7C, 0x80, 0x00, 0x00, 0x00, 0x00, 0x40, 0x40, 0x3F, 0x00, 0x00, 0x00, 0x00}, /*"}",93*/
    {0x00, 0x06, 0x01, 0x01, 0x02, 0x02, 0x04, 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"~",94*/
};

const ASCIIFont afont16x8 = {16, 8, (unsigned char *)ascii_16x8};

const unsigned char ascii_24x12[][36] = {
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*" ",0*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0xF0, 0xF0, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x7F, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1C, 0x1C, 0x1C, 0x00, 0x00, 0x00, 0x00}, /*"!",1*/
    {0x00, 0x00, 0x80, 0x60, 0x30, 0x1C, 0x8C, 0x60, 0x30, 0x1C, 0x0C, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*""",2*/
    {0x00, 0x00, 0x00, 0xE0, 0x00, 0x00, 0x00, 0x00, 0x00, 0xE0, 0x00, 0x00, 0x00, 0x86, 0xE6, 0x9F, 0x86, 0x86, 0x86, 0x86, 0xE6, 0x9F, 0x86, 0x00, 0x00, 0x01, 0x1F, 0x01, 0x01, 0x01, 0x01, 0x01, 0x1F, 0x01, 0x01, 0x00}, /*"#",3*/
    {0x00, 0x00, 0x80, 0xC0, 0x60, 0x20, 0xF8, 0x20, 0xE0, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x03, 0x07, 0x0C, 0x18, 0xFF, 0x70, 0xE1, 0x81, 0x00, 0x00, 0x00, 0x00, 0x07, 0x0F, 0x10, 0x10, 0x7F, 0x10, 0x0F, 0x07, 0x00, 0x00}, /*"$",4*/
    {0x80, 0x60, 0x20, 0x60, 0x80, 0x00, 0x00, 0x00, 0xE0, 0x20, 0x00, 0x00, 0x0F, 0x30, 0x20, 0x30, 0x9F, 0x70, 0xDC, 0x37, 0x10, 0x30, 0xC0, 0x00, 0x00, 0x00, 0x10, 0x0E, 0x03, 0x00, 0x07, 0x18, 0x10, 0x18, 0x07, 0x00}, /*"%",5*/
    {0x00, 0x00, 0xC0, 0x20, 0x20, 0xE0, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0xE0, 0x1F, 0x38, 0xE8, 0x87, 0x03, 0xC4, 0x3C, 0x04, 0x00, 0x00, 0x07, 0x0F, 0x18, 0x10, 0x10, 0x0B, 0x07, 0x0D, 0x10, 0x10, 0x08, 0x00}, /*"&",6*/
    {0x00, 0x80, 0x8C, 0x4C, 0x38, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"'",7*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0xE0, 0x30, 0x08, 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFE, 0xFF, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x0F, 0x18, 0x20, 0x40, 0x00}, /*"(",8*/
    {0x00, 0x04, 0x08, 0x30, 0xE0, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xFF, 0xFE, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x40, 0x20, 0x18, 0x0F, 0x03, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*")",9*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x42, 0x66, 0x66, 0x3C, 0x18, 0xFF, 0x18, 0x3C, 0x66, 0x66, 0x42, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"*",10*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x10, 0x10, 0x10, 0xFF, 0x10, 0x10, 0x10, 0x10, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"+",11*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x8C, 0x4C, 0x38, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*",",12*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x10, 0x10, 0x10, 0x10, 0x10, 0x10, 0x10, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"-",13*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1C, 0x1C, 0x1C, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*".",14*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xE0, 0x38, 0x0C, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x70, 0x1C, 0x03, 0x00, 0x00, 0x00, 0x00, 0x00, 0x60, 0x38, 0x0E, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"/",15*/
    {0x00, 0x00, 0x80, 0xC0, 0x60, 0x20, 0x20, 0x60, 0xC0, 0x80, 0x00, 0x00, 0x00, 0xFE, 0xFF, 0x01, 0x00, 0x00, 0x00, 0x00, 0x01, 0xFF, 0xFE, 0x00, 0x00, 0x01, 0x07, 0x0E, 0x18, 0x10, 0x10, 0x18, 0x0E, 0x07, 0x01, 0x00}, /*"0",16*/
    {0x00, 0x00, 0x80, 0x80, 0x80, 0xC0, 0xE0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x00, 0x00}, /*"1",17*/
    {0x00, 0x80, 0x40, 0x20, 0x20, 0x20, 0x20, 0x60, 0xC0, 0x80, 0x00, 0x00, 0x00, 0x03, 0x03, 0x00, 0x80, 0x40, 0x20, 0x38, 0x1F, 0x07, 0x00, 0x00, 0x00, 0x1C, 0x1A, 0x19, 0x18, 0x18, 0x18, 0x18, 0x18, 0x1F, 0x00, 0x00}, /*"2",18*/
    {0x00, 0x80, 0xC0, 0x20, 0x20, 0x20, 0x60, 0xC0, 0x80, 0x00, 0x00, 0x00, 0x00, 0x03, 0x03, 0x00, 0x10, 0x10, 0x18, 0x2F, 0xE7, 0x80, 0x00, 0x00, 0x00, 0x07, 0x0F, 0x10, 0x10, 0x10, 0x10, 0x18, 0x0F, 0x07, 0x00, 0x00}, /*"3",19*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xC0, 0xE0, 0xF0, 0x00, 0x00, 0x00, 0x00, 0xC0, 0xB0, 0x88, 0x86, 0x81, 0x80, 0xFF, 0xFF, 0x80, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x00}, /*"4",20*/
    {0x00, 0x00, 0xE0, 0x60, 0x60, 0x60, 0x60, 0x60, 0x60, 0x60, 0x00, 0x00, 0x00, 0x00, 0x3F, 0x10, 0x08, 0x08, 0x08, 0x18, 0xF0, 0xE0, 0x00, 0x00, 0x00, 0x07, 0x0B, 0x10, 0x10, 0x10, 0x10, 0x1C, 0x0F, 0x03, 0x00, 0x00}, /*"5",21*/
    {0x00, 0x00, 0x80, 0xC0, 0x40, 0x20, 0x20, 0x20, 0xE0, 0xC0, 0x00, 0x00, 0x00, 0xFC, 0xFF, 0x21, 0x10, 0x08, 0x08, 0x08, 0x18, 0xF0, 0xE0, 0x00, 0x00, 0x01, 0x07, 0x0C, 0x18, 0x10, 0x10, 0x10, 0x08, 0x0F, 0x03, 0x00}, /*"6",22*/
    {0x00, 0x00, 0xC0, 0xE0, 0x60, 0x60, 0x60, 0x60, 0x60, 0xE0, 0x60, 0x00, 0x00, 0x00, 0x03, 0x00, 0x00, 0x00, 0xE0, 0x18, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1F, 0x1F, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"7",23*/
    {0x00, 0x80, 0xC0, 0x60, 0x20, 0x20, 0x20, 0x20, 0x60, 0xC0, 0x80, 0x00, 0x00, 0x87, 0xEF, 0x2C, 0x18, 0x18, 0x30, 0x30, 0x68, 0xCF, 0x83, 0x00, 0x00, 0x07, 0x0F, 0x08, 0x10, 0x10, 0x10, 0x10, 0x18, 0x0F, 0x07, 0x00}, /*"8",24*/
    {0x00, 0x00, 0xC0, 0xC0, 0x20, 0x20, 0x20, 0x20, 0xC0, 0x80, 0x00, 0x00, 0x00, 0x1F, 0x3F, 0x60, 0x40, 0x40, 0x40, 0x20, 0x10, 0xFF, 0xFE, 0x00, 0x00, 0x00, 0x0C, 0x1C, 0x10, 0x10, 0x10, 0x08, 0x0F, 0x03, 0x00, 0x00}, /*"9",25*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0E, 0x0E, 0x0E, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1C, 0x1C, 0x1C, 0x00, 0x00, 0x00, 0x00}, /*":",26*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0C, 0x0C, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x58, 0x38, 0x00, 0x00, 0x00, 0x00, 0x00}, /*";",27*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x40, 0x20, 0x10, 0x00, 0x00, 0x00, 0x10, 0x28, 0x44, 0x82, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x02, 0x04, 0x08, 0x10, 0x00}, /*"<",28*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x84, 0x84, 0x84, 0x84, 0x84, 0x84, 0x84, 0x84, 0x84, 0x84, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"=",29*/
    {0x00, 0x00, 0x10, 0x20, 0x40, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x82, 0x44, 0x28, 0x10, 0x00, 0x00, 0x00, 0x10, 0x08, 0x04, 0x02, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00}, /*">",30*/
    {0x00, 0xC0, 0x20, 0x20, 0x10, 0x10, 0x10, 0x10, 0x30, 0xE0, 0xC0, 0x00, 0x00, 0x03, 0x03, 0x00, 0x00, 0xF0, 0x10, 0x08, 0x0C, 0x07, 0x03, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1C, 0x1C, 0x1C, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"?",31*/
    {0x00, 0x00, 0x00, 0xC0, 0x40, 0x60, 0x20, 0x20, 0x20, 0x40, 0xC0, 0x00, 0x00, 0xFC, 0xFF, 0x01, 0xF0, 0x0E, 0x03, 0xC1, 0xFE, 0x03, 0x80, 0x7F, 0x00, 0x01, 0x07, 0x0E, 0x08, 0x11, 0x11, 0x10, 0x11, 0x09, 0x04, 0x02}, /*"@",32*/
    {0x00, 0x00, 0x00, 0x00, 0x80, 0xE0, 0xE0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x7C, 0x43, 0x40, 0x47, 0x7F, 0xF8, 0x80, 0x00, 0x00, 0x10, 0x18, 0x1F, 0x10, 0x00, 0x00, 0x00, 0x00, 0x13, 0x1F, 0x1C, 0x10}, /*"A",33*/
    {0x20, 0xE0, 0xE0, 0x20, 0x20, 0x20, 0x20, 0x60, 0xC0, 0x80, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x10, 0x10, 0x10, 0x10, 0x18, 0x2F, 0xE7, 0x80, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x10, 0x10, 0x18, 0x0F, 0x07, 0x00}, /*"B",34*/
    {0x00, 0x00, 0x80, 0xC0, 0x40, 0x20, 0x20, 0x20, 0x20, 0x60, 0xE0, 0x00, 0x00, 0xFC, 0xFF, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x00, 0x00, 0x01, 0x07, 0x0E, 0x18, 0x10, 0x10, 0x10, 0x08, 0x04, 0x03, 0x00}, /*"C",35*/
    {0x20, 0xE0, 0xE0, 0x20, 0x20, 0x20, 0x20, 0x40, 0xC0, 0x80, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xFF, 0xFE, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x18, 0x08, 0x0E, 0x07, 0x01, 0x00}, /*"D",36*/
    {0x20, 0xE0, 0xE0, 0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x60, 0x80, 0x00, 0x00, 0xFF, 0xFF, 0x10, 0x10, 0x10, 0x10, 0x7C, 0x00, 0x00, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x10, 0x10, 0x10, 0x18, 0x06, 0x00}, /*"E",37*/
    {0x20, 0xE0, 0xE0, 0x20, 0x20, 0x20, 0x20, 0x20, 0x60, 0x60, 0x80, 0x00, 0x00, 0xFF, 0xFF, 0x10, 0x10, 0x10, 0x10, 0x7C, 0x00, 0x00, 0x01, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"F",38*/
    {0x00, 0x00, 0x80, 0xC0, 0x60, 0x20, 0x20, 0x20, 0x40, 0xE0, 0x00, 0x00, 0x00, 0xFC, 0xFF, 0x01, 0x00, 0x00, 0x40, 0x40, 0xC0, 0xC1, 0x40, 0x40, 0x00, 0x01, 0x07, 0x0E, 0x18, 0x10, 0x10, 0x10, 0x0F, 0x0F, 0x00, 0x00}, /*"G",39*/
    {0x20, 0xE0, 0xE0, 0x20, 0x00, 0x00, 0x00, 0x00, 0x20, 0xE0, 0xE0, 0x20, 0x00, 0xFF, 0xFF, 0x10, 0x10, 0x10, 0x10, 0x10, 0x10, 0xFF, 0xFF, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00, 0x00, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x10}, /*"H",40*/
    {0x00, 0x00, 0x20, 0x20, 0x20, 0xE0, 0xE0, 0x20, 0x20, 0x20, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x00, 0x00}, /*"I",41*/
    {0x00, 0x00, 0x00, 0x00, 0x20, 0x20, 0x20, 0xE0, 0xE0, 0x20, 0x20, 0x20, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x60, 0xE0, 0x80, 0x80, 0x80, 0xC0, 0x7F, 0x3F, 0x00, 0x00, 0x00}, /*"J",42*/
    {0x20, 0xE0, 0xE0, 0x20, 0x00, 0x00, 0x20, 0xA0, 0x60, 0x20, 0x20, 0x00, 0x00, 0xFF, 0xFF, 0x30, 0x18, 0x7C, 0xE3, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00, 0x00, 0x01, 0x13, 0x1F, 0x1C, 0x18, 0x10}, /*"K",43*/
    {0x20, 0xE0, 0xE0, 0x20, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x10, 0x10, 0x10, 0x18, 0x06, 0x00}, /*"L",44*/
    {0x20, 0xE0, 0xE0, 0xE0, 0x00, 0x00, 0x00, 0x00, 0xE0, 0xE0, 0xE0, 0x20, 0x00, 0xFF, 0x01, 0x3F, 0xFE, 0xC0, 0xE0, 0x1E, 0x01, 0xFF, 0xFF, 0x00, 0x10, 0x1F, 0x10, 0x00, 0x03, 0x1F, 0x03, 0x00, 0x10, 0x1F, 0x1F, 0x10}, /*"M",45*/
    {0x20, 0xE0, 0xE0, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x20, 0xE0, 0x20, 0x00, 0xFF, 0x00, 0x03, 0x07, 0x1C, 0x78, 0xE0, 0x80, 0x00, 0xFF, 0x00, 0x10, 0x1F, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x0F, 0x1F, 0x00}, /*"N",46*/
    {0x00, 0x00, 0x80, 0xC0, 0x60, 0x20, 0x20, 0x60, 0xC0, 0x80, 0x00, 0x00, 0x00, 0xFE, 0xFF, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFE, 0x00, 0x00, 0x01, 0x07, 0x0E, 0x18, 0x10, 0x10, 0x18, 0x0C, 0x07, 0x01, 0x00}, /*"O",47*/
    {0x20, 0xE0, 0xE0, 0x20, 0x20, 0x20, 0x20, 0x20, 0x60, 0xC0, 0x80, 0x00, 0x00, 0xFF, 0xFF, 0x20, 0x20, 0x20, 0x20, 0x20, 0x30, 0x1F, 0x0F, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"P",48*/
    {0x00, 0x00, 0x80, 0xC0, 0x60, 0x20, 0x20, 0x60, 0xC0, 0x80, 0x00, 0x00, 0x00, 0xFE, 0xFF, 0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFE, 0x00, 0x00, 0x01, 0x07, 0x0E, 0x11, 0x11, 0x13, 0x3C, 0x7C, 0x67, 0x21, 0x00}, /*"Q",49*/
    {0x20, 0xE0, 0xE0, 0x20, 0x20, 0x20, 0x20, 0x20, 0x60, 0xC0, 0x80, 0x00, 0x00, 0xFF, 0xFF, 0x10, 0x10, 0x30, 0xF0, 0xD0, 0x08, 0x0F, 0x07, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00, 0x00, 0x00, 0x03, 0x0F, 0x1C, 0x10, 0x10}, /*"R",50*/
    {0x00, 0x80, 0xC0, 0x60, 0x20, 0x20, 0x20, 0x20, 0x40, 0x40, 0xE0, 0x00, 0x00, 0x07, 0x0F, 0x0C, 0x18, 0x18, 0x30, 0x30, 0x60, 0xE0, 0x81, 0x00, 0x00, 0x1F, 0x0C, 0x08, 0x10, 0x10, 0x10, 0x10, 0x18, 0x0F, 0x07, 0x00}, /*"S",51*/
    {0x80, 0x60, 0x20, 0x20, 0x20, 0xE0, 0xE0, 0x20, 0x20, 0x20, 0x60, 0x80, 0x01, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x01, 0x00, 0x00, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00, 0x00, 0x00, 0x00}, /*"T",52*/
    {0x20, 0xE0, 0xE0, 0x20, 0x00, 0x00, 0x00, 0x00, 0x00, 0x20, 0xE0, 0x20, 0x00, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00, 0x07, 0x0F, 0x18, 0x10, 0x10, 0x10, 0x10, 0x10, 0x08, 0x07, 0x00}, /*"U",53*/
    {0x20, 0x60, 0xE0, 0xE0, 0x20, 0x00, 0x00, 0x00, 0x20, 0xE0, 0x60, 0x20, 0x00, 0x00, 0x07, 0x7F, 0xF8, 0x80, 0x00, 0x80, 0x7C, 0x03, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0x1F, 0x1C, 0x07, 0x00, 0x00, 0x00, 0x00}, /*"V",54*/
    {0x20, 0xE0, 0xE0, 0x20, 0x00, 0xE0, 0xE0, 0x20, 0x00, 0x20, 0xE0, 0x20, 0x00, 0x07, 0xFF, 0xF8, 0xE0, 0x1F, 0xFF, 0xFC, 0xE0, 0x1F, 0x00, 0x00, 0x00, 0x00, 0x03, 0x1F, 0x03, 0x00, 0x01, 0x1F, 0x03, 0x00, 0x00, 0x00}, /*"W",55*/
    {0x00, 0x20, 0x60, 0xE0, 0xA0, 0x00, 0x00, 0x20, 0xE0, 0x60, 0x20, 0x00, 0x00, 0x00, 0x00, 0x03, 0x8F, 0x7C, 0xF8, 0xC6, 0x01, 0x00, 0x00, 0x00, 0x00, 0x10, 0x18, 0x1E, 0x13, 0x00, 0x01, 0x17, 0x1F, 0x18, 0x10, 0x00}, /*"X",56*/
    {0x20, 0x60, 0xE0, 0xE0, 0x20, 0x00, 0x00, 0x00, 0x20, 0xE0, 0x60, 0x20, 0x00, 0x00, 0x01, 0x07, 0x3E, 0xF8, 0xE0, 0x18, 0x07, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x00, 0x00, 0x00}, /*"Y",57*/
    {0x00, 0x80, 0x60, 0x20, 0x20, 0x20, 0x20, 0xA0, 0xE0, 0xE0, 0x20, 0x00, 0x00, 0x00, 0x00, 0x00, 0xC0, 0xF0, 0x3E, 0x0F, 0x03, 0x00, 0x00, 0x00, 0x00, 0x10, 0x1C, 0x1F, 0x17, 0x10, 0x10, 0x10, 0x10, 0x18, 0x06, 0x00}, /*"Z",58*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0xFC, 0x04, 0x04, 0x04, 0x04, 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x7F, 0x40, 0x40, 0x40, 0x40, 0x40, 0x00}, /*"[",59*/
    {0x00, 0x00, 0x10, 0xE0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x1C, 0x60, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x0C, 0x70, 0x80, 0x00}, /*"\",60*/
    {0x00, 0x00, 0x04, 0x04, 0x04, 0x04, 0x04, 0xFC, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x40, 0x40, 0x40, 0x40, 0x40, 0x7F, 0x00, 0x00, 0x00, 0x00}, /*"]",61*/
    {0x00, 0x00, 0x00, 0x10, 0x08, 0x0C, 0x04, 0x0C, 0x08, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"^",62*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80}, /*"_",63*/
    {0x00, 0x00, 0x00, 0x04, 0x04, 0x08, 0x08, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"`",64*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x98, 0xD8, 0x44, 0x64, 0x24, 0x24, 0xFC, 0xF8, 0x00, 0x00, 0x00, 0x0F, 0x1F, 0x18, 0x10, 0x10, 0x10, 0x08, 0x1F, 0x1F, 0x10, 0x18}, /*"a",65*/
    {0x00, 0x20, 0xE0, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x18, 0x08, 0x04, 0x04, 0x0C, 0xF8, 0xF0, 0x00, 0x00, 0x00, 0x1F, 0x0F, 0x18, 0x10, 0x10, 0x10, 0x18, 0x0F, 0x03, 0x00}, /*"b",66*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xE0, 0xF8, 0x18, 0x04, 0x04, 0x04, 0x3C, 0x38, 0x00, 0x00, 0x00, 0x00, 0x03, 0x0F, 0x0C, 0x10, 0x10, 0x10, 0x10, 0x08, 0x06, 0x00, 0x00}, /*"c",67*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x20, 0xE0, 0xF0, 0x00, 0x00, 0x00, 0xE0, 0xF8, 0x1C, 0x04, 0x04, 0x04, 0x08, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x03, 0x0F, 0x18, 0x10, 0x10, 0x10, 0x08, 0x1F, 0x0F, 0x08, 0x00}, /*"d",68*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xE0, 0xF8, 0x48, 0x44, 0x44, 0x44, 0x4C, 0x78, 0x70, 0x00, 0x00, 0x00, 0x03, 0x0F, 0x0C, 0x18, 0x10, 0x10, 0x10, 0x08, 0x04, 0x00}, /*"e",69*/
    {0x00, 0x00, 0x00, 0x00, 0x80, 0xC0, 0x60, 0x20, 0x20, 0xE0, 0xC0, 0x00, 0x00, 0x04, 0x04, 0x04, 0xFF, 0xFF, 0x04, 0x04, 0x04, 0x04, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x00, 0x00, 0x00}, /*"f",70*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x70, 0xF8, 0x8C, 0x04, 0x04, 0x8C, 0xF8, 0x74, 0x04, 0x0C, 0x00, 0x70, 0x76, 0xCF, 0x8D, 0x8D, 0x8D, 0x89, 0xC8, 0x78, 0x70, 0x00}, /*"g",71*/
    {0x00, 0x20, 0xE0, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x08, 0x04, 0x04, 0x04, 0xFC, 0xF8, 0x00, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00}, /*"h",72*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x60, 0x60, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0x04, 0x04, 0xFC, 0xFC, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x00, 0x00}, /*"i",73*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x60, 0x60, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0x04, 0x04, 0xFC, 0xFC, 0x00, 0x00, 0x00, 0x00, 0x00, 0xC0, 0xC0, 0x80, 0x80, 0xC0, 0x7F, 0x3F, 0x00, 0x00, 0x00}, /*"j",74*/
    {0x00, 0x20, 0xE0, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x80, 0xC0, 0xF4, 0x1C, 0x04, 0x04, 0x00, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x11, 0x00, 0x03, 0x1F, 0x1C, 0x10, 0x10, 0x00}, /*"k",75*/
    {0x00, 0x00, 0x20, 0x20, 0x20, 0xE0, 0xF0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x00, 0x00}, /*"l",76*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0xFC, 0xFC, 0x08, 0x04, 0xFC, 0xFC, 0x08, 0x04, 0xFC, 0xFC, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00, 0x1F, 0x1F, 0x10, 0x00, 0x1F, 0x1F, 0x10}, /*"m",77*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0xFC, 0xFC, 0x08, 0x08, 0x04, 0x04, 0xFC, 0xF8, 0x00, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00, 0x00, 0x10, 0x1F, 0x1F, 0x10, 0x00}, /*"n",78*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xE0, 0xF0, 0x18, 0x0C, 0x04, 0x04, 0x0C, 0x18, 0xF0, 0xE0, 0x00, 0x00, 0x03, 0x0F, 0x0C, 0x10, 0x10, 0x10, 0x10, 0x0C, 0x0F, 0x03, 0x00}, /*"o",79*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0xFC, 0xFC, 0x08, 0x04, 0x04, 0x04, 0x0C, 0xF8, 0xF0, 0x00, 0x00, 0x80, 0xFF, 0xFF, 0x88, 0x90, 0x10, 0x10, 0x1C, 0x0F, 0x03, 0x00}, /*"p",80*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xE0, 0xF8, 0x1C, 0x04, 0x04, 0x04, 0x08, 0xF8, 0xFC, 0x00, 0x00, 0x00, 0x03, 0x0F, 0x18, 0x10, 0x10, 0x90, 0x88, 0xFF, 0xFF, 0x80, 0x00}, /*"q",81*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0x04, 0x04, 0xFC, 0xFC, 0x10, 0x08, 0x04, 0x04, 0x0C, 0x0C, 0x00, 0x10, 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10, 0x00, 0x00, 0x00, 0x00}, /*"r",82*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x30, 0x78, 0xCC, 0xC4, 0x84, 0x84, 0x84, 0x0C, 0x1C, 0x00, 0x00, 0x00, 0x1E, 0x18, 0x10, 0x10, 0x10, 0x11, 0x19, 0x0F, 0x06, 0x00}, /*"s",83*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0x04, 0x04, 0xFF, 0xFF, 0x04, 0x04, 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0F, 0x1F, 0x10, 0x10, 0x10, 0x0C, 0x00, 0x00}, /*"t",84*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0xFC, 0xFE, 0x00, 0x00, 0x00, 0x04, 0xFC, 0xFE, 0x00, 0x00, 0x00, 0x00, 0x0F, 0x1F, 0x18, 0x10, 0x10, 0x08, 0x1F, 0x0F, 0x08, 0x00}, /*"u",85*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0x0C, 0x3C, 0xFC, 0xC4, 0x00, 0x00, 0xC4, 0x3C, 0x0C, 0x04, 0x00, 0x00, 0x00, 0x00, 0x01, 0x0F, 0x1E, 0x0E, 0x01, 0x00, 0x00, 0x00}, /*"v",86*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0x3C, 0xFC, 0xC4, 0x00, 0xE4, 0x7C, 0xFC, 0x84, 0x80, 0x7C, 0x04, 0x00, 0x00, 0x07, 0x1F, 0x07, 0x00, 0x00, 0x07, 0x1F, 0x07, 0x00, 0x00}, /*"w",87*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0x04, 0x1C, 0x7C, 0xE4, 0xC0, 0x34, 0x1C, 0x04, 0x04, 0x00, 0x00, 0x10, 0x10, 0x1C, 0x16, 0x01, 0x13, 0x1F, 0x1C, 0x18, 0x10, 0x00}, /*"x",88*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x04, 0x0C, 0x3C, 0xFC, 0xC4, 0x00, 0xC4, 0x3C, 0x04, 0x04, 0x00, 0x00, 0x00, 0xC0, 0x80, 0xC1, 0x37, 0x0E, 0x01, 0x00, 0x00, 0x00, 0x00}, /*"y",89*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1C, 0x04, 0x04, 0xC4, 0xF4, 0x7C, 0x1C, 0x04, 0x00, 0x00, 0x00, 0x00, 0x10, 0x1C, 0x1F, 0x17, 0x11, 0x10, 0x10, 0x18, 0x0E, 0x00}, /*"z",90*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xF8, 0x0C, 0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x28, 0xEF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x3F, 0x60, 0x40, 0x00, 0x00}, /*"{",91*/
    {0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"|",92*/
    {0x00, 0x00, 0x04, 0x0C, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xEF, 0x28, 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x40, 0x60, 0x3F, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00}, /*"}",93*/
    {0x00, 0x18, 0x06, 0x02, 0x02, 0x04, 0x08, 0x10, 0x20, 0x20, 0x30, 0x08, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00},
    /*"~",94*/                                                                                                                                                                                                                /*"~",94*/
};

const ASCIIFont afont24x12 = {24, 12, (unsigned char *)ascii_24x12};

const uint8_t zh16x16[][36] = {
/* 0 波 */ {0xe6,0xb3,0xa2,0x00,0x10,0x60,0x02,0x0c,0xc0,0x00,0xf8,0x88,0x88,0x88,0xff,0x88,0x88,0xa8,0x18,0x00,0x04,0x04,0x7c,0x03,0x80,0x60,0x1f,0x80,0x43,0x2c,0x10,0x28,0x46,0x81,0x80,0x00,},
/* 1 特 */ {0xe7,0x89,0xb9,0x00,0x40,0x3c,0x10,0xff,0x10,0x10,0x40,0x48,0x48,0x48,0x7f,0x48,0xc8,0x48,0x40,0x00,0x02,0x06,0x02,0xff,0x01,0x01,0x00,0x02,0x0a,0x12,0x42,0x82,0x7f,0x02,0x02,0x00,},
/* 2 律 */ {0xe5,0xbe,0x8b,0x00,0x00,0x10,0x88,0xc4,0x33,0x10,0x54,0x54,0x54,0xff,0x54,0x54,0x7c,0x10,0x10,0x00,0x02,0x01,0x00,0xff,0x00,0x10,0x12,0x12,0x12,0xff,0x12,0x12,0x12,0x10,0x00,0x00,},
/* 3 动 */ {0xe5,0x8a,0xa8,0x00,0x40,0x44,0xc4,0x44,0x44,0x44,0x40,0x10,0x10,0xff,0x10,0x10,0x10,0xf0,0x00,0x00,0x10,0x3c,0x13,0x10,0x14,0xb8,0x40,0x30,0x0e,0x01,0x40,0x80,0x40,0x3f,0x00,0x00,}
};
const Font font16x16 = {16, 16, (const uint8_t *)zh16x16, 4, &afont16x8};

const uint8_t bilibiliData[] = {
0x00, 0x00, 0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x86, 0x8f, 0x9f, 0xbf, 0xff, 0xfc, 0xf8, 0xf8, 0xe0, 0xe0, 0xc0, 0x80,
0x80, 0x80, 0x80, 0x80, 0xc0, 0xe0, 0xe0, 0xf8, 0xf8, 0xfc, 0xfe, 0xbf, 0x9f, 0x8f, 0x86, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00,
0x00, 0x00, 0x00, 0xf8, 0xfe, 0xff, 0xff, 0xff, 0xff, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f,
0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f,
0xff, 0xff, 0xff, 0xfe, 0xfc, 0xf8, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0xe0, 0xe0, 0xf0, 0xf0, 0xf0, 0xf0, 0xf8, 0xf8, 0xf8,
0xf8, 0xf8, 0xf8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xf8, 0xf8, 0xf8, 0xf8, 0xf8, 0xf8, 0xf0, 0xf0, 0xf0, 0xf0, 0xe0,
0x20, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0x00, 0x03, 0x01, 0x01, 0x01, 0x01,
0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x80, 0x00, 0x00, 0x80, 0xc0, 0xc0, 0x80, 0x00, 0x00, 0x80, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x01,
0x01, 0x03, 0x03, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x07, 0x07, 0x07, 0x07, 0x07, 0x03, 0x07, 0x07, 0x07, 0x07, 0x07, 0x03, 0x01, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x01, 0x07, 0x07, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f,
0x1f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f,
0x1f, 0x1f, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xff, 0x7f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x1f, 0x07, 0x07, 0x03,
};
const Image bilibiliImg = {51, 48, bilibiliData};

font.h

#ifndef __FONT_H
#define __FONT_H
#include "stdint.h"
#include "string.h"
typedef struct ASCIIFont {
  uint8_t h;
  uint8_t w;
  uint8_t *chars;
} ASCIIFont;

extern const ASCIIFont afont8x6;
extern const ASCIIFont afont12x6;
extern const ASCIIFont afont16x8;
extern const ASCIIFont afont24x12;

/**
 * @brief 字体结构体
 * @note  字库前4字节存储utf8编码 剩余字节存储字模数据
 * @note 字库数据可以使用波特律动LED取模助手生成(https://led.baud-dance.com)
 */
typedef struct Font {
  uint8_t h;              // 字高度
  uint8_t w;              // 字宽度
  const uint8_t *chars;   // 字库 字库前4字节存储utf8编码 剩余字节存储字模数据
  uint8_t len;            // 字库长度 超过256则请改为uint16_t
  const ASCIIFont *ascii; // 缺省ASCII字体 当字库中没有对应字符且需要显示ASCII字符时使用
} Font;

extern const Font font16x16;

/**
 * @brief 图片结构体
 * @note  图片数据可以使用波特律动LED取模助手生成(https://led.baud-dance.com)
 */
typedef struct Image {
  uint8_t w;           // 图片宽度
  uint8_t h;           // 图片高度
  const uint8_t *data; // 图片数据
} Image;

extern const Image bilibiliImg;

#endif // __FONT_H

七、成品展示

智能排队控制系统

总结

本项目基于STM32F103xx微控制器，结合红外传感器、OLED显示屏和舵机等硬件模块，构建了一套智能排队控制系统，实现了人员通过检测、动态计数（每批次5人）以及达到阈值后的自动限流机制（包括OLED警告页显示、声光报警和舵机阻挡180°）和3秒后自动复位的完整功能闭环。通过HAL库开发模式，读者可掌握多传感器协同调度、状态机设计及定时器PWM控制等嵌入式开发核心技能。鉴于系统设计的复杂性，建议开发者在实际应用中完善异常保护机制，增加可靠性测试环节，并通过按键/无线模块扩展阈值调整功能。欢迎广大开发者针对设计方案交流优化建议，共同提升系统的实用性和稳定性。
