DeepLabV3+模型训练电力设备红外分割_红外变电站分割数据集来进行分割任务

基于 电力系统红外分割数据集_变电站分割数据集
从配置数据集、加载预训练模型、训练模型、评估模型到加载训练好的模型进行推理

以下文字及代码仅供参考。

1. 数据准备

1.1 数据集结构

jiashe假设的数据集目录结构如下：

dataset/
├── images/
│   ├── train/
│   │   ├── img1.jpg
│   │   └── ...
│   └── val/
│       ├── img1.jpg
│       └── ...
└── annotations/
    ├── train/
    │   ├── img1.json
    │   └── ...
    └── val/
        ├── img1.json
        └── ...

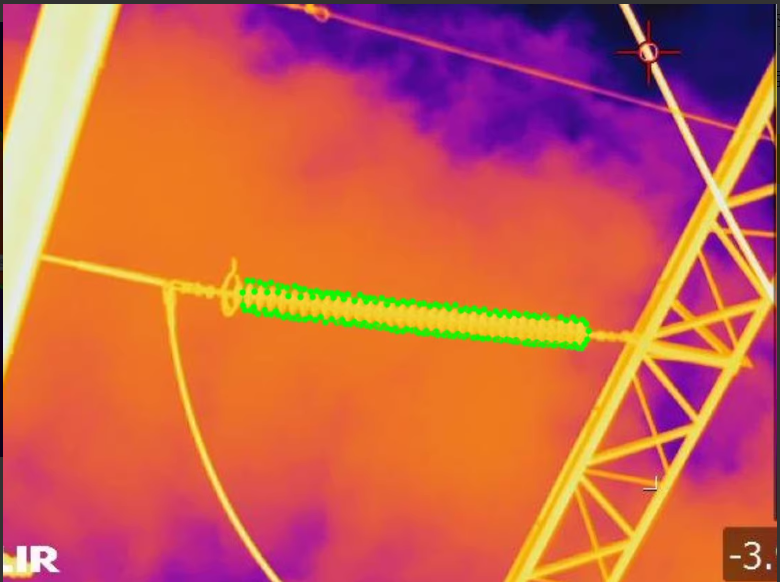

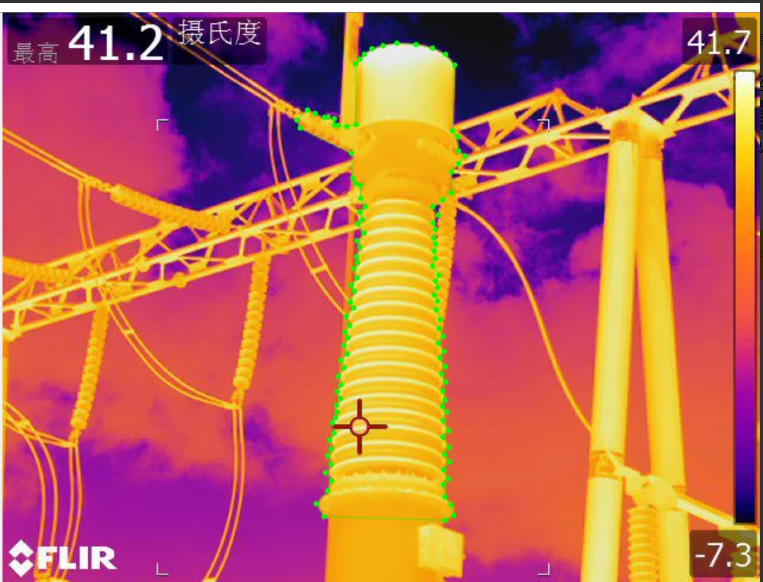

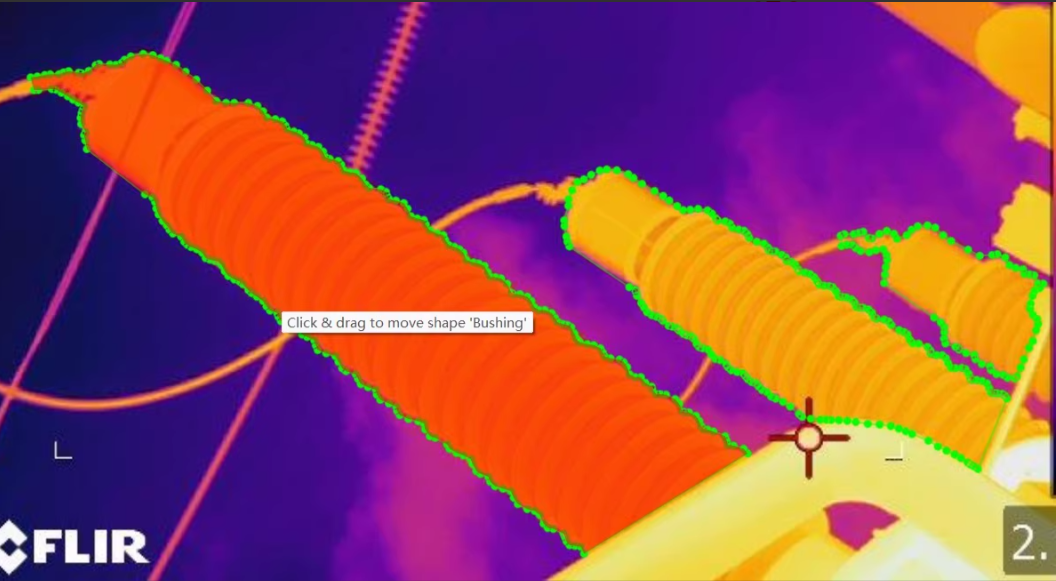

每个 JSON 文件包含图像的标注信息（如多边形分割掩码）。类别标签为：

• 避雷器 (Lightning Arrester)
• 绝缘子 (Insulator)
• 电流互感器 (Current Transformer)
• 套管 (Bushing)
• 电压互感器 (Voltage Transformer)

---

2. 安装依赖

确保安装了必要的库：

pip install torch torchvision opencv-python matplotlib pycocotools albumentations

---

3. 配置数据集

我们将使用 PyTorch 和 COCO 格式的标注文件。需要将 JSON 转换为 COCO 格式，或者直接使用自定义的数据加载器。

3.1 自定义数据加载器

import os
import json
import cv2
import numpy as np
from torch.utils.data import Dataset

class InfraredSegmentationDataset(Dataset):
    def __init__(self, image_dir, annotation_dir, transform=None):
        self.image_dir = image_dir
        self.annotation_dir = annotation_dir
        self.transform = transform
        self.image_files = os.listdir(image_dir)
        self.class_names = ["background", "Lightning Arrester", "Insulator", "Current Transformer", "Bushing", "Voltage Transformer"]

    def __len__(self):
        return len(self.image_files)

    def __getitem__(self, idx):
        image_name = self.image_files[idx]
        image_path = os.path.join(self.image_dir, image_name)
        annotation_path = os.path.join(self.annotation_dir, os.path.splitext(image_name)[0] + ".json")

        # 读取图像
        image = cv2.imread(image_path)
        image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)

        # 读取标注
        with open(annotation_path, 'r') as f:
            annotation = json.load(f)

        mask = np.zeros((image.shape[0], image.shape[1]), dtype=np.uint8)
        for obj in annotation['objects']:
            category_id = obj['category_id']
            polygon = np.array(obj['polygon'], dtype=np.int32)
            cv2.fillPoly(mask, [polygon], category_id)

        if self.transform:
            augmented = self.transform(image=image, mask=mask)
            image, mask = augmented['image'], augmented['mask']

        return image, mask

---

4. 模型选择与训练

我们选择 DeepLabV3+ 模型进行分割任务。

4.1 加载预训练模型

import torch
import torch.nn as nn
import torchvision.models.segmentation as segmentation_models

def load_model(num_classes):
    model = segmentation_models.deeplabv3_resnet50(pretrained=True)
    model.classifier[-1] = nn.Conv2d(256, num_classes, kernel_size=1)
    return model

4.2 训练代码

import torch.optim as optim
from torch.utils.data import DataLoader
from tqdm import tqdm

def train_model(model, train_loader, val_loader, num_epochs=20, lr=0.001, device='cuda'):
    optimizer = optim.Adam(model.parameters(), lr=lr)
    criterion = nn.CrossEntropyLoss()

    model.to(device)
    best_loss = float('inf')

    for epoch in range(num_epochs):
        model.train()
        train_loss = 0.0
        for images, masks in tqdm(train_loader):
            images, masks = images.to(device), masks.to(device)

            optimizer.zero_grad()
            outputs = model(images)['out']
            loss = criterion(outputs, masks)
            loss.backward()
            optimizer.step()

            train_loss += loss.item()

        print(f"Epoch [{epoch+1}/{num_epochs}], Loss: {train_loss/len(train_loader):.4f}")

        # 验证模型
        val_loss = evaluate_model(model, val_loader, criterion, device)
        print(f"Validation Loss: {val_loss:.4f}")

        # 保存最佳模型
        if val_loss < best_loss:
            best_loss = val_loss
            torch.save(model.state_dict(), "best_model.pth")
            print("Best model saved!")

def evaluate_model(model, val_loader, criterion, device):
    model.eval()
    total_loss = 0.0
    with torch.no_grad():
        for images, masks in val_loader:
            images, masks = images.to(device), masks.to(device)
            outputs = model(images)['out']
            loss = criterion(outputs, masks)
            total_loss += loss.item()
    return total_loss / len(val_loader)

---

5. 推理与可视化

5.1 加载训练好的模型

def load_trained_model(num_classes, model_path="best_model.pth"):
    model = load_model(num_classes)
    model.load_state_dict(torch.load(model_path))
    model.eval()
    return model

5.2 推理与显示结果

import matplotlib.pyplot as plt

def visualize_segmentation(image, mask, predicted_mask):
    fig, axes = plt.subplots(1, 3, figsize=(15, 5))
    axes[0].imshow(image)
    axes[0].set_title("Original Image")
    axes[0].axis("off")

    axes[1].imshow(mask, cmap="jet")
    axes[1].set_title("Ground Truth Mask")
    axes[1].axis("off")

    axes[2].imshow(predicted_mask, cmap="jet")
    axes[2].set_title("Predicted Mask")
    axes[2].axis("off")

    plt.show()

def inference(model, image_path, transform=None, device='cuda'):
    image = cv2.imread(image_path)
    image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)

    if transform:
        augmented = transform(image=image)
        image = augmented['image']

    image_tensor = torch.unsqueeze(image, 0).to(device)
    model.to(device)
    model.eval()

    with torch.no_grad():
        output = model(image_tensor)['out'][0]
        predicted_mask = torch.argmax(output, dim=0).cpu().numpy()

    visualize_segmentation(image, None, predicted_mask)

---

6. 主程序

from albumentations import Compose, Resize, Normalize

if __name__ == "__main__":
    # 数据增强
    transform = Compose([
        Resize(512, 512),
        Normalize(mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225))
    ])

    # 数据集与数据加载器
    train_dataset = InfraredSegmentationDataset(
        image_dir="dataset/images/train",
        annotation_dir="dataset/annotations/train",
        transform=transform
    )
    val_dataset = InfraredSegmentationDataset(
        image_dir="dataset/images/val",
        annotation_dir="dataset/annotations/val",
        transform=transform
    )

    train_loader = DataLoader(train_dataset, batch_size=8, shuffle=True)
    val_loader = DataLoader(val_dataset, batch_size=8, shuffle=False)

    # 加载模型并训练
    model = load_model(num_classes=6)  # 5 类别 + 背景
    train_model(model, train_loader, val_loader, num_epochs=20)

    # 推理
    trained_model = load_trained_model(num_classes=6)
    inference(trained_model, "dataset/images/test/sample.jpg", transform=transform)

---

7. 功能总结

1. 数据预处理：将红外分割数据集转换为 COCO 格式，或使用自定义数据加载器。
2. 模型训练：使用 DeepLabV3+ 进行训练，并保存最佳模型。
3. 推理与可视化：加载训练好的模型，对测试图像进行分割并显示结果。
