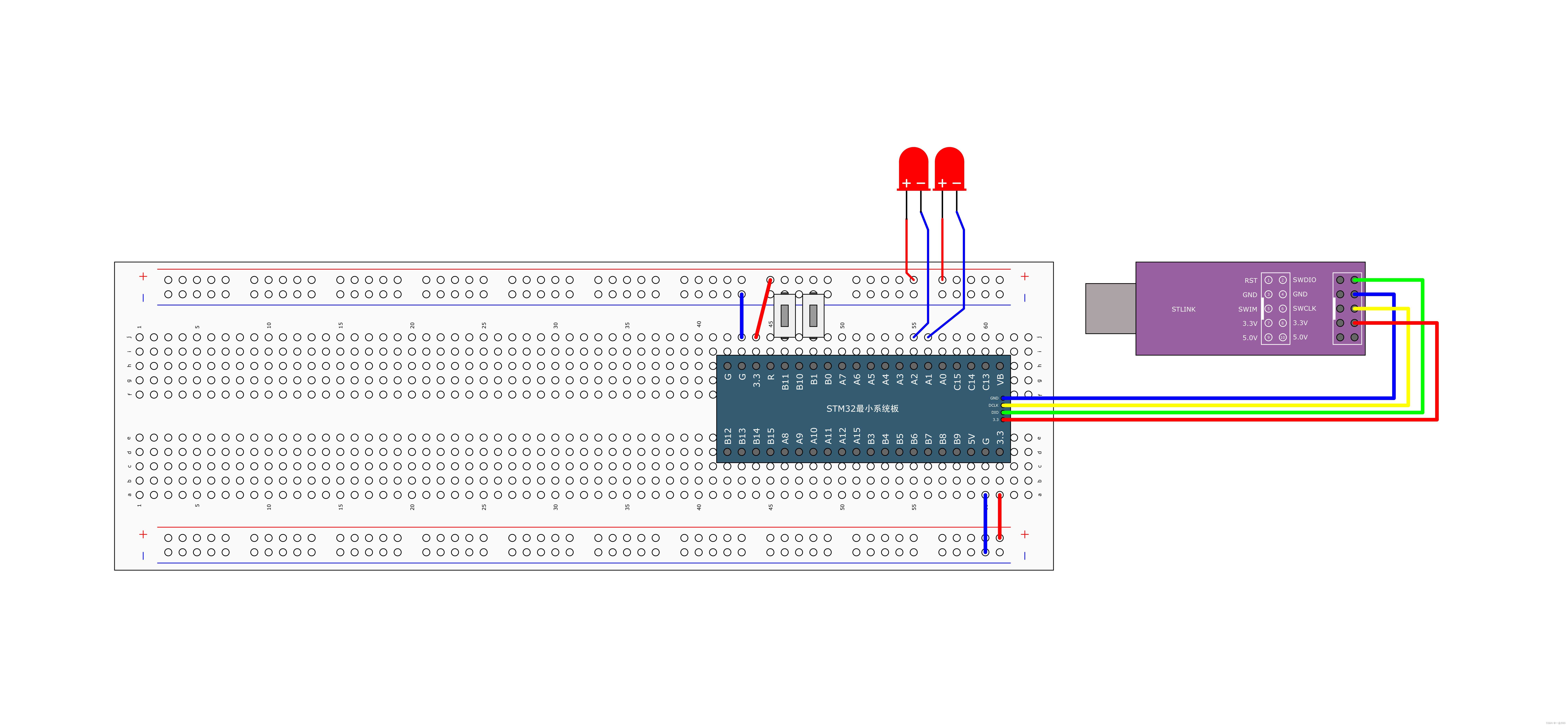

线上接线图,用的是面包板和最小系统板:
这次的实验是用左边的按钮控制左边LED的亮灭,右边的按钮控制右边LED的亮灭,可以看到LED负极接到的是单片机的引脚,因此在初始化引脚时要选择低电平有驱动能力的模式,我们选择推挽输出模式。再看按钮,如图我们希望按钮按下时是低电平,松开时是高电平,那我们在初始化他们引脚的时候就要给他们配置成上拉输入模式,这样在按钮松开时默认为高电平,按下时接地,变成低电平。
LED初始化:
#include "stm32f10x.h" // Device header
void LED_Init()
{
RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA,ENABLE);
GPIO_InitTypeDef GPIO_LED_InitStructure;
GPIO_LED_InitStructure.GPIO_Mode=GPIO_Mode_Out_PP;
GPIO_LED_InitStructure.GPIO_Pin=GPIO_Pin_2|GPIO_Pin_1;
GPIO_LED_InitStructure.GPIO_Speed=GPIO_Speed_50MHz;
GPIO_Init(GPIOA,&GPIO_LED_InitStructure);
}
void LED1_Turn()
{
if(GPIO_ReadOutputDataBit(GPIOA,GPIO_Pin_2)==0)
GPIO_SetBits(GPIOA,GPIO_Pin_2);
else
GPIO_ResetBits(GPIOA,GPIO_Pin_2);
}
void LED2_Turn()
{
if(GPIO_ReadOutputDataBit(GPIOA,GPIO_Pin_1)==0)
GPIO_SetBits(GPIOA,GPIO_Pin_1);
else
GPIO_ResetBits(GPIOA,GPIO_Pin_1);
}
按钮初始化:
#include "stm32f10x.h" // Device header
#include "Delay.h"
void Key_Init()
{
RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOB,ENABLE);
GPIO_InitTypeDef GPIO_Key_InitStructure;
GPIO_Key_InitStructure.GPIO_Mode=GPIO_Mode_IPU;
GPIO_Key_InitStructure.GPIO_Pin=GPIO_Pin_1|GPIO_Pin_11;
GPIO_Key_InitStructure.GPIO_Speed=GPIO_Speed_50MHz;
GPIO_Init(GPIOB,&GPIO_Key_InitStructure);
}
uint8_t Get_Key1Num()
{
uint8_t KeyNum=0;
if(GPIO_ReadInputDataBit(GPIOB,GPIO_Pin_11)==0)
{
Delay_ms(20);
while(GPIO_ReadInputDataBit(GPIOB,GPIO_Pin_11)==0);
Delay_ms(20);
KeyNum=1;
}
return KeyNum;
}
uint8_t Get_Key2Num()
{
uint8_t KeyNum=0;
if(GPIO_ReadInputDataBit(GPIOB,GPIO_Pin_1)==0)
{
Delay_ms(20);
while(GPIO_ReadInputDataBit(GPIOB,GPIO_Pin_1)==0);
Delay_ms(20);
KeyNum=1;
}
return KeyNum;
}
按钮初始化时按下按钮会有抖动,我们需要Delay()函数消抖,这个函数直接拿就行:
#include "stm32f10x.h"
/**
* @brief 微秒级延时
* @param xus 延时时长,范围:0~233015
* @retval 无
*/
void Delay_us(uint32_t xus)
{
SysTick->LOAD = 72 * xus; //设置定时器重装值
SysTick->VAL = 0x00; //清空当前计数值
SysTick->CTRL = 0x00000005; //设置时钟源为HCLK,启动定时器
while(!(SysTick->CTRL & 0x00010000)); //等待计数到0
SysTick->CTRL = 0x00000004; //关闭定时器
}
/**
* @brief 毫秒级延时
* @param xms 延时时长,范围:0~4294967295
* @retval 无
*/
void Delay_ms(uint32_t xms)
{
while(xms--)
{
Delay_us(1000);
}
}
/**
* @brief 秒级延时
* @param xs 延时时长,范围:0~4294967295
* @retval 无
*/
void Delay_s(uint32_t xs)
{
while(xs--)
{
Delay_ms(1000);
}
}
都初始化完毕就剩下主函数部分了主函数有个while()循环,我们可以在循环前将按钮和LED初始化,在循环函数内不断返回Get_Key1Num()和Get_Key2Num()的返回值,分别用两个变量接受,用不同的接受到的值控制LED亮灭。
#include "stm32f10x.h" // Device header
#include "Delay.h"
#include "LED.H"
#include "Key.h"
uint8_t Key1,Key2;
int main()
{
Key_Init();
LED_Init();
while(1)
{
Key1=Get_Key1Num();
Key2=Get_Key2Num();
if(Key1==1)
{
LED1_Turn();
}
if(Key2==1)
{
LED2_Turn();
}
}
}
记得再对以上的.c文件创建对应的头文件哟!
那么以上就是按键点亮LED了,以上内容经供参考,如果有更好的想法也可以去试试。
