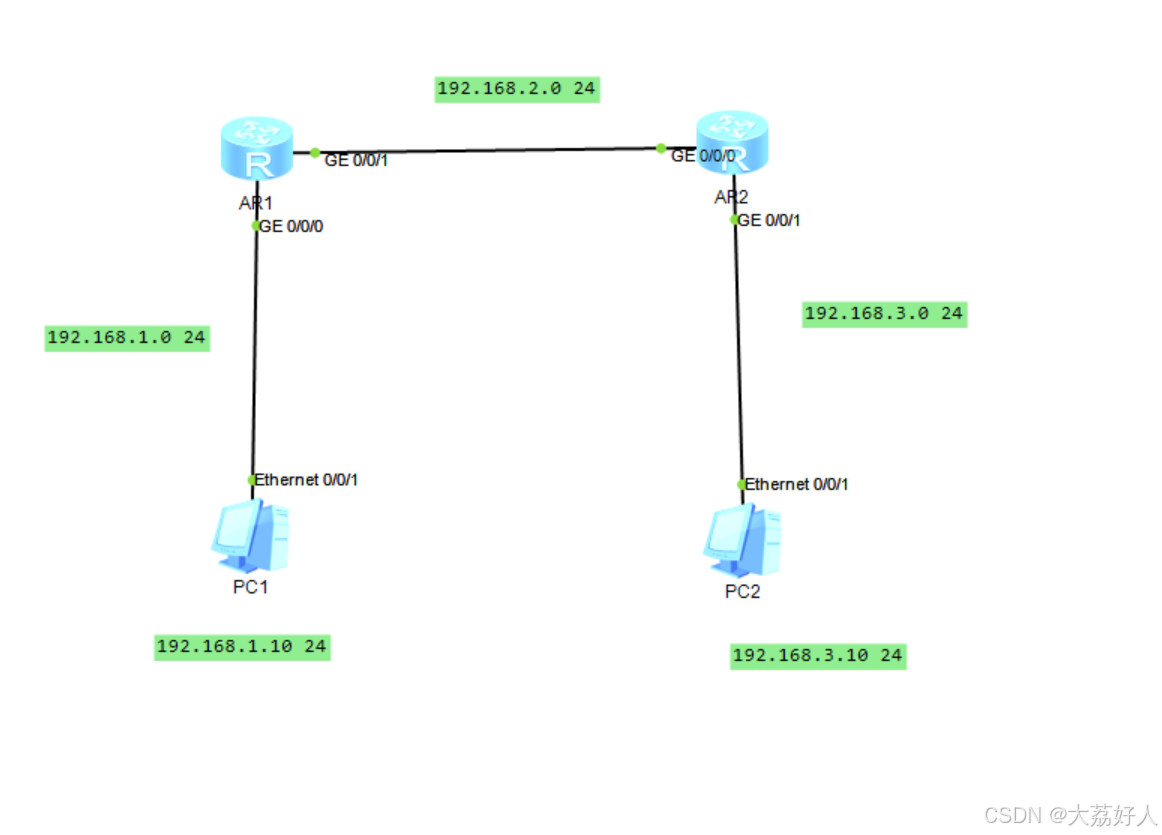

一.搭建拓扑图

二.实验前的准备以及RIP的基本配置

1.网关的配置

AR1

<Huawei>
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sys shutiao1
[shutiao1]int g0/0/0
[shutiao1-GigabitEthernet0/0/0]ip ad
[shutiao1-GigabitEthernet0/0/0]ip address 192.168.1.1 24
[shutiao1-GigabitEthernet0/0/0]
Dec 25 2024 19:58:32-08:00 shutiao1 %%01IFNET/4/LINK_STATE(l)[0]:The line protoc
ol IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[shutiao1-GigabitEthernet0/0/0]q
[shutiao1]int g0/0/1
[shutiao1-GigabitEthernet0/0/1]ipad
[shutiao1-GigabitEthernet0/0/1]ip ad
[shutiao1-GigabitEthernet0/0/1]ip address 192.168.2.1 24
Dec 25 2024 19:59:02-08:00 shutiao1 %%01IFNET/4/LINK_STATE(l)[1]:The line protoc
ol IP on the interface GigabitEthernet0/0/1 has entered the UP state.
[shutiao1-GigabitEthernet0/0/1]q

不要忘记改名哦，养成一个好习惯

AR2

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
<Huawei>sys shutiao2
[shutiao2]int g0/0/0
[shutiao2-GigabitEthernet0/0/0]ip ad
[shutiao2-GigabitEthernet0/0/0]ip address 192.168.2.2 24
Dec 25 2024 19:59:22-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol
 IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[shutiao2-GigabitEthernet0/0/0]q
[shutiao2]int g0/0/1
[shutiao2-GigabitEthernet0/0/1]ip ad
[shutiao2-GigabitEthernet0/0/1]ip address 192.168.3.1 24
Dec 25 2024 19:59:37-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[1]:The line protocol
 IP on the interface GigabitEthernet0/0/1 has entered the UP state.
[shutiao2-GigabitEthernet0/0/1]q

2.RIP的基本配置

AR1

[shutiao1]ri
[shutiao1]rip 1
[shutiao1-rip-1]ver
[shutiao1-rip-1]version 2
[shutiao1-rip-1]ne
[shutiao1-rip-1]network 192.168.1.0
[shutiao1-rip-1]net
[shutiao1-rip-1]network 192.168.2.0
[shutiao1-rip-1]q

1.最好使用version2(2比1相对好一点)

2.相邻的直连网段都要宣告一遍

AR2

[shutiao2]rip
[shutiao2]rip 1
[shutiao2-rip-1]ver
[shutiao2-rip-1]version 2
[shutiao2-rip-1]net
[shutiao2-rip-1]network 192.168.2.0
[shutiao2-rip-1]net
[shutiao2-rip-1]network 192.168.3.0
[shutiao2-rip-1]q

也是与AR2直连的网段都要宣告

三.检验实验成果

AR1

[shutiao1]ping 192.168.2.2
  PING 192.168.2.2: 56  data bytes, press CTRL_C to break
    Reply from 192.168.2.2: bytes=56 Sequence=1 ttl=255 time=40 ms
    Reply from 192.168.2.2: bytes=56 Sequence=2 ttl=255 time=20 ms
    Reply from 192.168.2.2: bytes=56 Sequence=3 ttl=255 time=20 ms
    Reply from 192.168.2.2: bytes=56 Sequence=4 ttl=255 time=20 ms
    Reply from 192.168.2.2: bytes=56 Sequence=5 ttl=255 time=20 ms

  --- 192.168.2.2 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 20/24/40 ms

[shutiao1]ping 192.168.3.1
  PING 192.168.3.1: 56  data bytes, press CTRL_C to break
    Reply from 192.168.3.1: bytes=56 Sequence=1 ttl=255 time=20 ms
    Reply from 192.168.3.1: bytes=56 Sequence=2 ttl=255 time=30 ms
    Reply from 192.168.3.1: bytes=56 Sequence=3 ttl=255 time=30 ms
    Reply from 192.168.3.1: bytes=56 Sequence=4 ttl=255 time=20 ms
    Reply from 192.168.3.1: bytes=56 Sequence=5 ttl=255 time=20 ms

  --- 192.168.3.1 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 20/24/30 ms

AR2

[shutiao2]ping 192.168.1.1
  PING 192.168.1.1: 56  data bytes, press CTRL_C to break
    Reply from 192.168.1.1: bytes=56 Sequence=1 ttl=255 time=20 ms
    Reply from 192.168.1.1: bytes=56 Sequence=2 ttl=255 time=20 ms
    Reply from 192.168.1.1: bytes=56 Sequence=3 ttl=255 time=10 ms
    Reply from 192.168.1.1: bytes=56 Sequence=4 ttl=255 time=20 ms
    Reply from 192.168.1.1: bytes=56 Sequence=5 ttl=255 time=40 ms

  --- 192.168.1.1 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 10/22/40 ms

[shutiao2]ping 192.168.2.1
  PING 192.168.2.1: 56  data bytes, press CTRL_C to break
    Reply from 192.168.2.1: bytes=56 Sequence=1 ttl=255 time=20 ms
    Reply from 192.168.2.1: bytes=56 Sequence=2 ttl=255 time=10 ms
    Reply from 192.168.2.1: bytes=56 Sequence=3 ttl=255 time=20 ms
    Reply from 192.168.2.1: bytes=56 Sequence=4 ttl=255 time=20 ms
    Reply from 192.168.2.1: bytes=56 Sequence=5 ttl=255 time=30 ms

  --- 192.168.2.1 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 10/20/30 ms

PC1

PC>ping 192.168.3.10

Ping 192.168.3.10: 32 data bytes, Press Ctrl_C to break
From 192.168.3.10: bytes=32 seq=1 ttl=126 time=16 ms
From 192.168.3.10: bytes=32 seq=2 ttl=126 time=15 ms
From 192.168.3.10: bytes=32 seq=3 ttl=126 time=31 ms
From 192.168.3.10: bytes=32 seq=4 ttl=126 time=16 ms
From 192.168.3.10: bytes=32 seq=5 ttl=126 time=16 ms

--- 192.168.3.10 ping statistics ---
  5 packet(s) transmitted
  5 packet(s) received
  0.00% packet loss
  round-trip min/avg/max = 15/18/31 ms

PC2

PC>ping 192.168.1.10

Ping 192.168.1.10: 32 data bytes, Press Ctrl_C to break
From 192.168.1.10: bytes=32 seq=1 ttl=126 time=15 ms
From 192.168.1.10: bytes=32 seq=2 ttl=126 time=16 ms
From 192.168.1.10: bytes=32 seq=3 ttl=126 time=31 ms
From 192.168.1.10: bytes=32 seq=4 ttl=126 time=16 ms
From 192.168.1.10: bytes=32 seq=5 ttl=126 time=15 ms

--- 192.168.1.10 ping statistics ---
  5 packet(s) transmitted
  5 packet(s) received
  0.00% packet loss
  round-trip min/avg/max = 15/18/31 ms

到这里RIP的基本配置你就已经掌握啦！

学无止境！！！
