本文介绍在处理VOC数据集时如何正确解析和处理difficult属性，包括使用Python进行XML文件读取和转换的方法，确保标注数据的完整性和准确性。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

示例

<--有difficult-->
</object>
<object>
	<name>person</name>
	<pose>Unspecified</pose>
	<truncated>0</truncated>
	<difficult>1</difficult>
	<bndbox>
		<xmin>336</xmin>
		<ymin>71</ymin>
		<xmax>424</xmax>
		<ymax>159</ymax>
	</bndbox>
</object>

<--无difficult-->
<item>
<name>person</name>
	<bndbox>
				<xmin>201</xmin>
				<ymin>163</ymin>
				<xmax>314</xmax>
				<ymax>292</ymax>
	</bndbox>
</item>

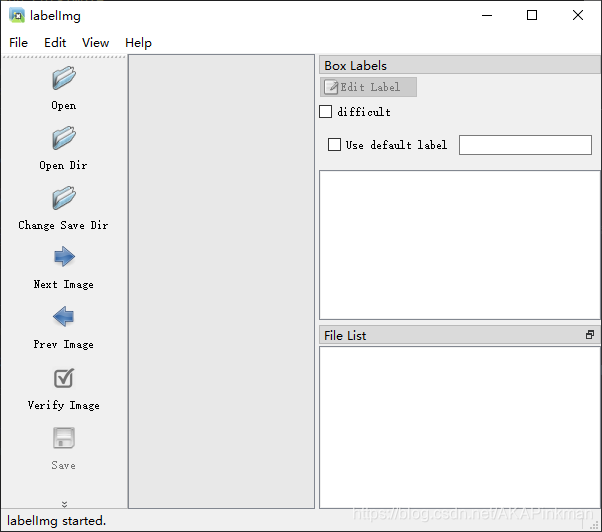

在标记voc数据集时我们需要注意到difficult选项，如果数据集中没有difficult选项则可以做如下处理

import xml.etree.ElementTree as ET
from os import getcwd

sets=[('2007', 'train'), ('2007', 'val'), ('2007', 'test')]

classes = ["hat","person"]


def convert_annotation(year, image_id, list_file):
    in_file = open('VOCdevkit/VOC%s/Annotations/%s.xml'%(year, image_id),encoding='utf-8')
    tree=ET.parse(in_file)
    root = tree.getroot()
    a=1
    i=a

    for obj in root.iter('item'):
        #difficult = obj.find('').text
        cls = obj.find('name').text
        #if cls not in classes or int(difficult)==1:
            #continue
        cls_id = classes.index(cls)
        xmlbox = obj.find('bndbox')
        b = (int(xmlbox.find('xmin').text), int(xmlbox.find('ymin').text), int(xmlbox.find('xmax').text), int(xmlbox.find('ymax').text))
        #print(image_id)
        list_file.write(" " + ",".join([str(a) for a in b]) + ',' + str(cls_id))

    for obj in root.iter('object'):#找xml文档里的object
        try:
            difficult = obj.find('difficult').text#找object对里的difficult对  在不同格式里可能找不到
            cls = obj.find('name').text
            if cls not in classes or int(difficult)==1:
                continue
            cls_id = classes.index(cls)
            xmlbox = obj.find('bndbox')
            #print(image_id)
            b = (int(xmlbox.find('xmin').text), int(xmlbox.find('ymin').text), int(xmlbox.find('xmax').text), int(xmlbox.find('ymax').text))
            list_file.write(" " + ",".join([str(a) for a in b]) + ',' + str(cls_id))

        except Exception:
            print(i,end="")

wd = getcwd()

for year, image_set in sets:
    image_ids = open('VOCdevkit/VOC%s/ImageSets/Main/%s.txt'%(year, image_set),encoding='utf-8').read().strip().split()
    list_file = open('%s_%s.txt'%(year, image_set), 'w',encoding='utf-8')
    for image_id in image_ids:
        list_file.write('%s/VOCdevkit/VOC%s/JPEGImages/%s.jpg'%(wd, year, image_id))
        convert_annotation(year, image_id, list_file)
        list_file.write('\n')
    list_file.close()
