Extend函数： Simulink递归延申接口方法
PortArrRecur函数： Simulink递归接口排布
classdef PortExtend < matlab.apps.AppBase
% Properties that correspond to app components
properties (Access = public)
UIFigure matlab.ui.Figure
Message matlab.ui.control.TextArea
Input matlab.ui.control.EditField
Output matlab.ui.control.EditField
Label_5 matlab.ui.control.Label
ArrMethod matlab.ui.control.DropDown
Label_4 matlab.ui.control.Label
VA_Param matlab.ui.control.EditField
Label_3 matlab.ui.control.Label
GetPath matlab.ui.control.Button
Label_2 matlab.ui.control.Label
ExtendButton matlab.ui.control.Button
DropDown matlab.ui.control.DropDown
Label matlab.ui.control.Label
end
properties (Access = private)
curPorts;
Type;
Dist;
Depth;
Path;
VsIndex;
ArrangeMethod;
Incount;
Outcount;
VSFlag;
end
methods (Access = private)
function VsIndex = Check(~,Path)
index = strfind(Path,'/');
index = [index length(Path)];
VsIndex = 0;
for i = length(index):-1 : 2
if (strcmp(get_param(Path(1:index(i)),'Variant'),'on'))
VsIndex = i;
break
end
end
end
end
% Callbacks that handle component events
methods (Access = private)
% Code that executes after component creation
function startupFcn(app)
warning('off');
app.Input.Editable = 'off';
app.Output.Editable = 'off';
app.ExtendButton.Enable = 'off';
app.VA_Param.Editable = 'off';
app.ArrangeMethod = app.ArrMethod.Value;
app.VsIndex = 0;
app.VSFlag = false;
end
% Button pushed function: GetPath
function GetPathPushed(app, event)
%各个窗口的初始化
app.Input.Editable = 'off';
app.Output.Editable = 'off';
app.Input.Value = '';
app.Output.Value = '';
app.VA_Param.Editable = 'off';
app.VA_Param.Value = '';
app.VsIndex = 0;
app.Message.Value = '';
Inport = find_system(gcs,'FindAll','on','SearchDepth',1,'selected','on','BlockType','Inport');
Outport = find_system(gcs,'FindAll','on','SearchDepth',1,'selected','on','BlockType','Outport');
Ports = [Inport;Outport];
if isempty(Ports)
return;
end
app.Type = get(Ports,'BlockType');
app.curPorts = Ports;
app.Path = get(Ports(1),'Parent');
levels = strsplit(app.Path,'/');
levels = levels(2:end);
lcnt = 1;
for i = 1 : length(levels)
levels{i} = [num2str(lcnt),':',levels{i}];
lcnt = lcnt + 1;
end
app.DropDown.Items = levels;
app.Depth = length(levels);
app.DropDown.ItemsData = 1:app.Depth;
app.Dist = app.Depth - app.DropDown.Value + 1;
app.ExtendButton.Enable = 'on';
OutSigs = '';
app.Incount = 0;
app.Outcount = 0;
for p = 1 : length(Ports)
if length(Ports) == 1
curPortType = app.Type;
else
curPortType = app.Type{p};
end
if strcmp(curPortType,'Inport')
app.Input.Editable = 'on';
app.Incount = app.Incount + 1;
else
Ins = get(app.curPorts(p),'InputSignalNames');
Ins = Ins{1};
if isempty(Ins)
lineH = get(app.curPorts(p),'LineHandles');
Ins = get(get(lineH.Inport,'SrcPortHandle'),'PropagatedSignals');
end
if contains(Ins,'<')
Outputname = Ins(2:end-1);
else
Outputname = Ins;
end
if strcmp(Outputname,'') || isempty(Outputname)
app.Message.Value = '输出信号先接线';
app.ExtendButton.Enable = 'off';
return;
end
OutSigs = [OutSigs,Outputname,';'];
app.Outcount = app.Outcount + 1;
end
end
if ~isempty(OutSigs)
app.Output.Value = OutSigs(1:end - 1);
app.VsIndex = Check(app,app.Path);
if app.DropDown.Value <= app.VsIndex
app.VA_Param.Editable = 'on';
app.Message.Value = ['路径中有变体子系统，输入变体输出信号名',newline, ...
'若未指定名称则使用当前线上名称'];
app.VSFlag = true;
end
else
app.Output.Value = '';
end
end
% Button pushed function: ExtendButton
function ExtendButtonButtonPushed(app, event)
app.Message.Value = '';
InSigs = strtrim(strsplit(app.Input.Value,';','CollapseDelimiters',false));
OutSigs = strtrim(strsplit(app.Output.Value,';','CollapseDelimiters',false));
VSSigs = strtrim(strsplit(app.VA_Param.Value,';','CollapseDelimiters',false));
if length(VSSigs) == 1 && isempty(VSSigs{1}) && app.VSFlag
VSSigs = OutSigs;
app.VA_Param.Value = strjoin(VSSigs,';');
end
if ~isempty(app.Input.Value)
if length(InSigs) < app.Incount
app.Message.Value = ['输入信号和接口数量不匹配，缺少',...
num2str(app.Incount - length(InSigs)),'个'];
return
elseif length(InSigs) > app.Incount
app.Message.Value = ['输入信号和接口数量不匹配，多余',...
num2str(length(InSigs) - app.Incount),'个'];
return
end
end
if ~isempty(app.VA_Param.Value)
if app.VSFlag && length(VSSigs) ~= app.Outcount
if length(VSSigs) < app.Outcount
app.Message.Value = ['变体信号名和Outport接口数量不匹配，缺少',...
num2str(app.Outcount - length(VSSigs)),'个'];
elseif length(VSSigs) > app.Outcount
app.Message.Value = ['变体信号名和Outport接口数量不匹配，多余',...
num2str(length(VSSigs) - app.Outcount),'个'];
end
return
end
end
Iidx = 1;
Oidx = 1;
for i = 1 : length(app.curPorts)
if length(app.curPorts) == 1
curPortType = app.Type;
else
curPortType = app.Type{i};
end
if strcmp(curPortType,'Inport')
PortName = InSigs{Iidx};
RealName = PortName;
isIn = true;
Iidx = Iidx + 1;
else
PortName = OutSigs{Oidx};
if ~app.VSFlag
RealName = OutSigs{Oidx};
elseif isempty(VSSigs{Oidx})
VSSigs{Oidx} = OutSigs{Oidx};
RealName = OutSigs{Oidx};
app.VA_Param.Value = strjoin(VSSigs,';');
else
RealName = VSSigs{Oidx};
end
isIn = false;
Oidx = Oidx + 1;
end
set(app.curPorts(i),'Name',PortName);
app.Message.Value = Extend(app.curPorts(i),app.Dist,PortName,isIn,RealName);
end
path = [app.Path,'/'];
index = strfind(path,'/');
for idx = length(index) : -1 : length(index) - app.Dist + 1
SubHandle = getSimulinkBlockHandle(path(1 : index(idx)));
switch app.ArrangeMethod
case '1'
PortArrRecur(SubHandle,200,200);
case '2'
PortArrNorm(SubHandle,200,200);
end
end
end
% Value changed function: DropDown
function DropDownValueChanged(app, event)
app.Message.Value = '';
app.VA_Param.Value = '';
app.Dist = app.Depth - app.DropDown.Value + 1;
app.VA_Param.Editable = 'off';
if app.DropDown.Value <= app.VsIndex
app.VA_Param.Editable = 'on';
app.Message.Value = ['路径中有变体子系统，输入变体输出信号名',newline, ...
'若未指定名称则使用当前线上名称'];
app.VSFlag = true;
end
end
% Value changed function: ArrMethod
function ArrMethodValueChanged(app, event)
app.ArrangeMethod = app.ArrMethod.Value;
end
end
% Component initialization
methods (Access = private)
% Create UIFigure and components

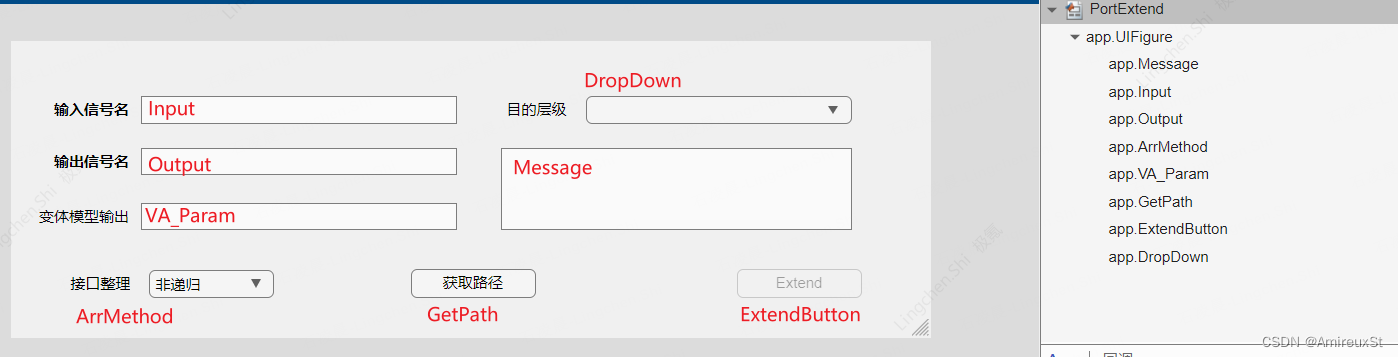

function createComponents(app)
% Create UIFigure and hide until all components are created
app.UIFigure = uifigure('Visible', 'off');
app.UIFigure.Position = [100 100 736 237];
app.UIFigure.Name = 'MATLAB App';
% Create Label
app.Label = uilabel(app.UIFigure);
app.Label.HorizontalAlignment = 'right';
app.Label.Position = [393 172 53 22];
app.Label.Text = '目的层级';
% Create DropDown
app.DropDown = uidropdown(app.UIFigure);
app.DropDown.Items = {};
app.DropDown.ValueChangedFcn = createCallbackFcn(app, @DropDownValueChanged, true);
app.DropDown.Position = [461 172 213 22];
app.DropDown.Value = {};
% Create ExtendButton
app.ExtendButton = uibutton(app.UIFigure, 'push');
app.ExtendButton.ButtonPushedFcn = createCallbackFcn(app, @ExtendButtonButtonPushed, true);
app.ExtendButton.Enable = 'off';
app.ExtendButton.Position = [582 33 100 23];
app.ExtendButton.Text = 'Extend';
% Create Label_2
app.Label_2 = uilabel(app.UIFigure);
app.Label_2.HorizontalAlignment = 'right';
app.Label_2.FontWeight = 'bold';
app.Label_2.Position = [31 172 65 22];
app.Label_2.Text = '输入信号名';
% Create GetPath
app.GetPath = uibutton(app.UIFigure, 'push');
app.GetPath.ButtonPushedFcn = createCallbackFcn(app, @GetPathPushed, true);
app.GetPath.Position = [321 33 100 23];
app.GetPath.Text = '获取路径';
% Create Label_3
app.Label_3 = uilabel(app.UIFigure);
app.Label_3.HorizontalAlignment = 'right';
app.Label_3.Position = [19 87 77 22];
app.Label_3.Text = '变体模型输出';
% Create VA_Param
app.VA_Param = uieditfield(app.UIFigure, 'text');
app.VA_Param.Editable = 'off';
app.VA_Param.Position = [105 87 253 22];
% Create Label_4
app.Label_4 = uilabel(app.UIFigure);
app.Label_4.HorizontalAlignment = 'right';
app.Label_4.Position = [44 33 53 22];
app.Label_4.Text = '接口整理';
% Create ArrMethod
app.ArrMethod = uidropdown(app.UIFigure);
app.ArrMethod.Items = {'递归', '非递归'};
app.ArrMethod.ItemsData = {'1', '2'};
app.ArrMethod.ValueChangedFcn = createCallbackFcn(app, @ArrMethodValueChanged, true);
app.ArrMethod.Position = [112 33 100 22];
app.ArrMethod.Value = '2';
% Create Label_5
app.Label_5 = uilabel(app.UIFigure);
app.Label_5.HorizontalAlignment = 'right';
app.Label_5.FontWeight = 'bold';
app.Label_5.Position = [31 131 65 22];
app.Label_5.Text = '输出信号名';
% Create Output
app.Output = uieditfield(app.UIFigure, 'text');
app.Output.Editable = 'off';
app.Output.Position = [105 131 253 22];
% Create Input
app.Input = uieditfield(app.UIFigure, 'text');
app.Input.Editable = 'off';
app.Input.Position = [105 172 253 22];
% Create Message
app.Message = uitextarea(app.UIFigure);
app.Message.Editable = 'off';
app.Message.FontSize = 13;
app.Message.FontWeight = 'bold';
app.Message.Position = [393 87 281 66];
% Show the figure after all components are created
app.UIFigure.Visible = 'on';
end
end
% App creation and deletion
methods (Access = public)
% Construct app
function app = PortExtend
% Create UIFigure and components
createComponents(app)
% Register the app with App Designer
registerApp(app, app.UIFigure)
% Execute the startup function
runStartupFcn(app, @startupFcn)
if nargout == 0
clear app
end
end
% Code that executes before app deletion
function delete(app)
% Delete UIFigure when app is deleted
delete(app.UIFigure)
end
end
end
