彩色补偿

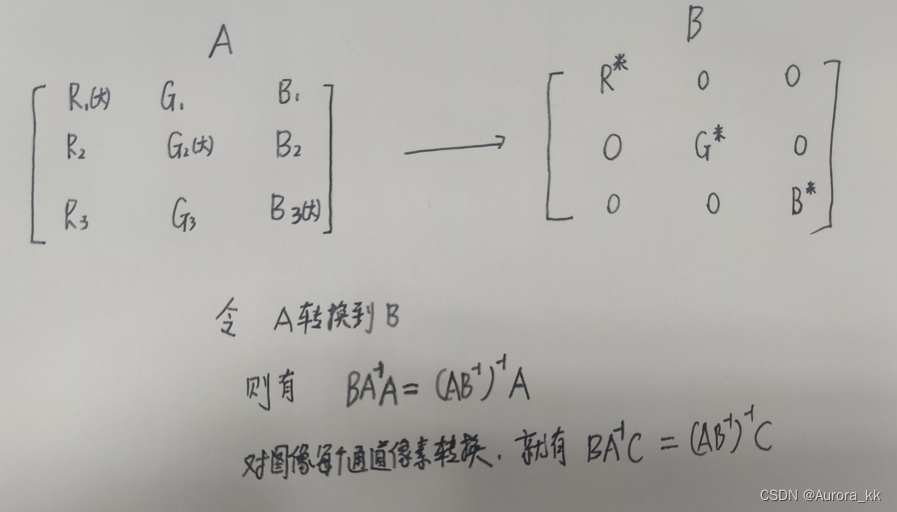

彩色补偿的作用就是通过不同的颜色通道提取不同的目标物，网上的matlab函数代码如下（注意：有个小错误）
在这里插入图片描述

function S = compensate(im)
[m,n,p]=size(im);
[h1,k1]=min(255-im(:,:,1)+im(:,:,2)+im(:,:,3));
[j1,minx]=min(h1);
i1=k1(j1);%提取图像中最接近红色的点，其在im中的坐标为i1,j1
r1=im(i1,j1,1);
g1=im(i1,j1,2);
b1=im(i1,j1,3);
R=0.30*r1+0.59*g1+0.11*b1;

[h2,k2]=min(255-im(:,:,2)+im(:,:,1)+im(:,:,3));
[j2,minx]=min(h2);
i2=k2(j2);%提取图像中最接近绿色的点，其在im中的坐标为i2,j2
r2=im(i2,j2,1);
g2=im(i2,j2,2);
b2=im(i2,j2,3);
G=0.30*r2+0.59*g2+0.11*b2;

[h3,k3]=min(255-im(:,:,3)+im(:,:,1)+im(:,:,2));
[j3,minx]=min(h3);
i3=k3(j3);%提取图像中最接近蓝色的点，其在im中的坐标为i3,j3
r3=im(i3,j3,1);
g3=im(i3,j3,2);
b3=im(i3,j3,3);
B=0.30*r3+0.59*g3+0.11*b3;

A1=[r1 r2 r3
     g1 g2 g3
     b1 b2 b3];
A2=[R 0 0
     0 G 0
     0 0 B];
C=A1*inv(A2);

for i=1:m
    for j=1:n
        imR=im(i,j,1);
        imG=im(i,j,2);
        imB=im(i,j,3);
        temp=inv(C)*[imR;imG;imB];
        S(i,j,1)=temp(1);
        S(i,j,2)=temp(2);
        S(i,j,3)=temp(3);
    end
end
S=uint8(S);
end

Matlab中[Y,U]=min(A)：当A是矩阵时，返回行向量Y和U，Y向量记录A的每列的最小值，U向量记录每列最小值的行号；当A是行或列向量时，Y记录的是A中的最小值，U记录的是索引位置。
所以，上述第四行代码[j1,minx]=min(h1)中，j1为最小值，而minx为列索引，后面的同理，则应该改为：

function S = compensate(im)
[m,n,p]=size(im);
[h1,k1]=min(255-im(:,:,1)+im(:,:,2)+im(:,:,3));
[minx,j1]=min(h1);
i1=k1(j1);%提取图像中最接近红色的点，其在im中的坐标为i1,j1
r1=im(i1,j1,1);
g1=im(i1,j1,2);
b1=im(i1,j1,3);
R=0.30*r1+0.59*g1+0.11*b1;

[h2,k2]=min(255-im(:,:,2)+im(:,:,1)+im(:,:,3));
[minx,j2]=min(h2);
i2=k2(j2);%提取图像中最接近绿色的点，其在im中的坐标为i2,j2
r2=im(i2,j2,1);
g2=im(i2,j2,2);
b2=im(i2,j2,3);
G=0.30*r2+0.59*g2+0.11*b2;

[h3,k3]=min(255-im(:,:,3)+im(:,:,1)+im(:,:,2));
[minx,j3]=min(h3);
i3=k3(j3);%提取图像中最接近蓝色的点，其在im中的坐标为i3,j3
r3=im(i3,j3,1);
g3=im(i3,j3,2);
b3=im(i3,j3,3);
B=0.30*r3+0.59*g3+0.11*b3;

A1=[r1 r2 r3
     g1 g2 g3
     b1 b2 b3];
A2=[R 0 0
     0 G 0
     0 0 B];
C=A1*inv(A2);

for i=1:m
    for j=1:n
        imR=im(i,j,1);
        imG=im(i,j,2);
        imB=im(i,j,3);
        temp=inv(C)*[imR;imG;imB];
        S(i,j,1)=temp(1);
        S(i,j,2)=temp(2);
        S(i,j,3)=temp(3);
    end
end
S=uint8(S);
end

或者

[m,n,p]=size(im);
[h1,k1]=min(255-im(:,:,1)+im(:,:,2)+im(:,:,3));
[j1,minx]=min(h1);
 i1=k1(minx);%提取图像中最接近红色的点，其在im中的坐标为i1,minx
 r1=im(i1,minx,1);
 g1=im(i1,minx,2);
 b1=im(i1,minx,3);
R=0.30*r1+0.59*g1+0.11*b1;

[h2,k2]=min(255-im(:,:,2)+im(:,:,1)+im(:,:,3));
[j2,minx1]=min(h2);
 i2=k2(minx1);%提取图像中最接近绿色的点，其在im中的坐标为i2,minx
 r2=im(i2,minx1,1);
 g2=im(i2,minx1,2);
 b2=im(i2,minx1,3);
G=0.30*r2+0.59*g2+0.11*b2;

[h3,k3]=min(255-im(:,:,3)+im(:,:,1)+im(:,:,2));
[j3,minx2]=min(h3);
 i3=k3(minx2);%提取图像中最接近蓝色的点，其在im中的坐标为i3,minx
 r3=im(i3,minx2,1);
 g3=im(i3,minx2,2);
 b3=im(i3,minx2,3);
B=0.30*r3+0.59*g3+0.11*b3;

A1=[r1 r2 r3
    g1 g2 g3
    b1 b2 b3];
A2=[R 0 0
    0 G 0
    0 0 B];
C=A1*inv(A2);

for i=1:m
    for j=1:n

          imR=im(i,j,1);
          imG=im(i,j,2);
          imB=im(i,j,3);
          temp=inv(C)*[imR;imG;imB];
          S(i,j,1)=temp(1);
          S(i,j,2)=temp(2);
          S(i,j,3)=temp(3);
    end
end
S=uint8(S);
