读论文系列：The TNO Multiband Image Data Collection
1️⃣ 资料
- 说明：非常老牌的红外可见光融合数据集，值得一看
- 官方仓库：https://figshare.com/articles/dataset/TNO_Image_Fusion_Dataset/1008029
- 大佬笔记：https://blog.csdn.net/qq_43249953/article/details/139769505
2️⃣ 文章翻译
摘要
Despite of the ongoing interest in the fusion of multi-band images for surveillance applications and a steady stream of publications in this area, there is only a very small number of static registered multi-band test images (and a total lack of dynamic image sequences) publicly available for the development and evaluation of image fusion algorithms. To fill this gap, the TNO Multiband Image Collection provides intensified visual (390–700 nm), nearinfrared (700–1000 nm), and longwave infrared (8–12 μm) nighttime imagery of different military and surveillance scenarios, showing different objects and targets (e.g., people, vehicles) in a range of different (e.g., rural, urban) backgrounds. The dataset will be useful for the development of static and dynamic image fusion algorithms, color fusion algorithms, multispectral target detection and recognition algorithms, and dim target detection algorithms.
尽管人们对用于监控应用的多波段图像融合持续感兴趣，并且该领域的出版物源源不断，但只有极少数静态注册的多波段测试图像（完全缺乏动态图像序列）可供公开用于图像融合算法的开发和评估。为了填补这一空白，TNO多波段图像集提供了不同军事和监视场景的增强视觉（390-700nm）、近红外（700-1000nm）和长波红外（8-12μm）夜间图像，显示了不同背景（如农村、城市）中的不同物体和目标（如人、车辆）。该数据集将有助于开发静态和动态图像融合算法、颜色融合算法、多光谱目标检测和识别算法以及弱目标检测算法。
Specifications Table 规格表
| 标题 | 内容 |
|---|---|
| Subject area | Digital image processing - Image fusion |
| Type of data | Visual, near-infrared (NIR) and longwave infrared (LWIR) digital images representing different nighttime military and surveillance scenarios. |
| How data was acquired | The images were acquired with different multiband camera systems. 这些图像是用不同的多波段相机系统采集的。 |
| Data format | BMP, TIF, MP4 |
| Experimental factors | The images have been geometrically warped and registered so that corresponding image pairs have pixelwise correspondence. 图像已经过几何扭曲和配准，使得相应的图像对具有像素对应关系。 |
| Experimental features | The imagery was collected in (semi-)darkness during several outdoor field trials in both rural and urban areas. 这些图像是在农村和城市地区的几次户外田间试验中在（半）黑暗中收集的。 |
| Data source location | The imagery was collected at different sites in the Netherlands. 这些图像是在荷兰的不同地点收集的。 |
| Data accessibility | https://doi.org/10.6084/m9.figshare.c.3860689.v1 |
| [1] | A. Toet, J.K. IJspeert, A.M. Waxman, M. Aguilar, Fusion of visible and thermal imagery improves situational awareness, Displays 18 (2) (1997) 85–95. http://dx.doi.org/10.1016/S0141-9382(97)00014-0. |
| [2] | A. Toet, Detection of dim point targets in cluttered maritime backgrounds through multisensor image fusion, in: W. R. Watkins, D. Clement, W.R. Reynolds (Eds.), Targets and Backgrounds: Characterization and Representation VIII, The International Society for Optical Engineering, Bellingham, WA, http://dx.doi.org/10.1117/12.478798. |
| [3] | A. Toet, M.A. Hogervorst, A.R. Pinkus, The TRICLOBS dynamic multi-band image data set for the development and evaluation of image fusion methods, PLoS One 11 (12) (2016) e0165016. http://dx.doi.org/10.1371/journal.pone.0165016. |
Value of the Data 数据的价值
The dataset will be useful for the development of
- static and dynamic image fusion algorithms, 静态和动态图像融合算法
- color fusion algorithms, 颜色融合算法
- multispectral target detection and recognition algorithms, 多光谱目标检测和识别算法
- dim target detection algorithms. 弱小目标检测算法
Data 数据
The TNO Multiband Image Collection currently consists of three individual image sets:
- The TNO Image Fusion Dataset
- The Kayak Image Fusion Sequence (parts I and II)
- The TRICLOBS Dynamic Multiband Image Dataset
The TNO Image Fusion Dataset [1] contains intensified visual (390–700 nm), near-infrared (7001000 nm), and longwave infrared (8–12 μm) nighttime imagery of different military and surveillance scenarios, showing different objects and targets (e.g., people, vehicles) in different (e.g., rural, urban) backgrounds.
TNO图像融合数据集[1]包含不同军事和监视场景的增强视觉（390-700nm）、近红外（7001000nm）和长波红外（8-12μm）夜间图像，显示了不同背景（如农村、城市）中的不同物体和目标（如人、车辆）。
The multimodal Kayak Image Fusion Sequence [2] contains registered visual, near-infrared and longwave infrared image sequences showing three approaching kayaks in a cluttered maritime background. Because of the variation in distance the targets (kayaks) vary from dim point targets to easily distinguishable objects.
多模式皮划艇图像融合序列[2]包含注册的视觉、近红外和长波红外图像序列，显示了三艘正在接近的皮划艇在杂乱的海上背景中。由于距离的变化，目标（皮划艇）从暗淡的点目标到易于区分的物体各不相同。
The TRICLOBS Dynamic Multiband Image Dataset [3] contains registered visual (400–700 nm), near-infrared (NIR, 700–1000 nm) and longwave infrared (LWIR, 8–14 μm) motion sequences of dynamic surveillance scenarios in an urban environment. To enable the development or realistic color remapping procedures, the dataset also contains color photographs of each of the three scenes. This dataset was collected during several field trials at three different locations and contains 16 motion sequences representing different military and civilian surveillance scenarios.
TRICLOBS动态多波段图像数据集[3]包含城市环境中动态监控场景的注册视觉（400-700nm）、近红外（NIR，700-1000nm）和长波红外（LWIR，8-14μm）运动序列。为了实现开发或逼真的颜色重映射过程，数据集还包含三个场景中每个场景的彩色照片。该数据集是在三个不同地点的几次现场试验中收集的，包含代表不同军事和民用监视场景的16个运动序列。
All three datasets include publications describing the registration conditions and the used camera systems in full detail. The data collection will be incrementally extended with new imagery when this becomes available. The images in this data collection can freely be used for research purposes, and may be used in publications without prior notice, provided this paper is properly referenced.
所有三个数据集都包括详细描述注册条件和使用的相机系统的出版物。当新的图像可用时，数据收集将逐步扩展。本数据集中的图像可自由用于研究目的，并可在不事先通知的情况下用于出版物，前提是正确引用本文。
Experimental design, materials, and methods
The original sensor signals were warped and subsampled to achieve pixelwise image registration.
原始传感器信号被扭曲和二次采样，以实现像素图像配准。
3️⃣ 我的笔记

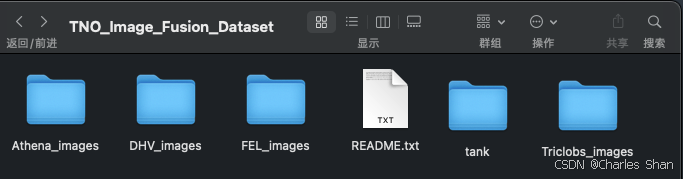

目录结构
我感觉有必要分别列举一下目录结构。因为其一是TNO 中包含了三个数据集，内容混乱，其二是本身图片并不多，一一列举是实际的。
可见，并不是 TNO、Kayak、TRICLOBS 三个文件夹，而是一堆杂乱的结构。
TRICLOOBS
TRICLOBS子数据集对应着 Triclobs_images文件夹。
(base) kimshan@MacBook-Pro Triclobs_images % ls
Balls Marne_06 Reek
Bosnia Marne_07 Veluwe
Farm Marne_09 Vlasakkers
House Marne_11 barbed_wire_1
Kaptein_01 Marne_15 barbed_wire_2
Kaptein_1123 Marne_24 houses_with_3_men
Kaptein_1654 Movie_01 jeep_in_smoke
Kaptein_19 Movie_12 pancake_house
Marne_01 Movie_14 soldier_behind_smoke
Marne_02 Movie_18 soldiers_with_jeep
Marne_03 Movie_24 square_with_houses
Marne_04 REFRENCES
总结一下，
| 场景 | 可见光 | 近红外 | 远红外 | 其他 |
|---|---|---|---|---|
| Balls 屋外的黑色铁球 | VIS.bmp | NIR.bmp | photo.bmp | |
| barbed_wire_1 人跑过铁丝网 | R_Vis.tif | G_NIR.tif | B_LWIR.tif | RGB.tif |
| barbed_wire_2 人跑过铁丝网 | a_VIS-MarnehNew _24RGB_1110.tif | b_NIR-MarnehNew _24RGB_1110.tif | c_LWIR-MarnehNew _24RGB_1110.tif | |
| Bosnia 草地上的房子 | VIS_R.bmp | NIR_G.bmp | LWIR_B.bmp | daylight_image.bmp |
| Farm 草地上的房子 | Farm_Vis.bmp | Farm_II.bmp | Farm_IR.bmp | photo.bmp |
| House 灯热影响红外 | VIS.bmp | NIR.bmp | photo.bmp | |
| houses_with_3_men 房子和三个人 | VIS.bmp | NIR.bmp | LWIR.bmp | |
| jeep_in_smoke 雾中的吉普 | VIS_R.bmp | NIR_G.bmp | LWIR_B.bmp | |
| Kaptein_01 黑夜中的门 | Vis01.bmp | NIR01.bmp | IR01.bmp | photo.bmp |
| Kaptein_19 黑夜中的帐篷 | Vis19.bmp | NIR19.bmp | IR19.bmp | photo.bmp |
| Kaptein_1123 黑夜中的门和人 | Kaptein_ 1123_Vis.bmp | Kaptein_ 1123_II.bmp | Kaptein_ 1123_IR.bmp | photo.bmp |
| Kaptein_1654 黑夜中的帐篷和人 | Kaptein_ 1654_Vis.bmp | Kaptein_ 1654_II.bmp | Kaptein_ 1654_IR.bmp | Kaptein_1654_ ref_with_man.bmp, Kaptein_ 1654_REF.bmp |
| Marne_01 白天的房子 | Marne_01_Vis.bmp | Marne_01_II.bmp | Marne_01_IR.bmp | Marne_01_REF.bmp |
| Marne_02 白天的房子 | Marne_02_Vis.bmp | Marne_02_II.bmp | Marne_02_IR.bmp | Marne_02_REF.bmp |
| Marne_03 白天的房子 | Marne_03_Vis.bmp | Marne_03_II.bmp | Marne_03_IR.bmp | Marne_03_REF.bmp |
| Marne_04 著名的吉普 | Marne_04_Vis.bmp | Marne_04_II.bmp | Marne_04_IR.bmp | Marne_04_REF.bmp |
| Marne_06 白天的房子 | Marne_06_Vis.bmp | Marne_06_II.bmp | Marne_06_IR.bmp | Marne_06_REF.bmp |
| Marne_07 白天的房子 | Marne_07_Vis.bmp | Marne_07_II.bmp | Marne_07_IR.bmp | Marne_07_REF.bmp |
| Marne_08 白天的房子 | Marne_08_Vis.bmp | Marne_08_II.bmp | Marne_08_IR.bmp | Marne_08_REF.bmp |
| Marne_09 白天的房子 | Marne_09_Vis.bmp | Marne_09_II.bmp | Marne_09_IR.bmp | Marne_09_REF.bmp |
| Marne_11 白天的房子 | Marne_11_Vis.bmp | Marne_11_II.bmp | Marne_11_IR.bmp | |
| Marne_15 白天的房子 | Marne_15_Vis.bmp | Marne_15_II.bmp | Marne_15_IR.bmp | |
| Marne_24 铁丝和奔跑的人 | Marne_15_Vis.bmp | Marne_15_II.bmp | Marne_15_IR.bmp | |
| Movie_01 白天的街道 | Movie_01_Vis.bmp | Movie_01_II.bmp | Movie_01_IR.bmp | Movie_01_REF.bmp |
| Movie_12 房子 | Movie_12_Vis.bmp | Movie_12_II.bmp | Movie_12_IR.bmp | Movie_12_REF.bmp |
| Movie_14 房子和人 | Movie_14_Vis.bmp | Movie_14_II.bmp | Movie_14_IR.bmp | Movie_14_REF.bmp |
| Movie_18 房子和人和车 | Movie_18_Vis.bmp | Movie_18_II.bmp | Movie_18_IR.bmp | Movie_18_REF.bmp |
| Movie_24 | 房子 | Movie_24_Vis.bmp | Movie_24_II.bmp | Movie_24_IR.bmp |
| pancake_house 白天的街道 | VIS.tif | NIR.tif | photo.tif | |
| Reek 白天的房子 | Reek_Vis.bmp | Reek_II.bmp | Reek_IR.bmp | Reek_REF.bmp |
| soldier_behind_smoke 雾中的士兵 | VIS-MarnehNew_ 15RGB_603.tif | NIR-MarnehNew_ 15RGB_603.tif | LWIR-MarnehNew_ 15RGB_603.tif | RGB-MarnehNew_ 15RGB_603.tif |
| soldiers_with_jeep 士兵和吉普 | Jeep_Vis.bmp | Jeep_II.bmp | Jeep_IR.bmp | |
| square_with_houses 房子和方框 | VIS.bmp | NIR.bmp | LWIR.bmp | |
| Veluwe 望远镜中的房子 | VIS.bmp | NIR.bmp | photo.bmp | |
| Vlasakkers 房子 | VIS.tif | NIR.tif | photo.tif |
TNO
在Athena_imagesz合格文件夹中的REFRENCES里边，有这样的 pdf：Report_TNO-DV-2007-A329.pdf。所以我认为这个文件夹里边都是 TNO 下的TNO的。
(base) kimshan@MacBook-Pro Athena_images % ls
2_men_in_front_of_house helicopter
APC_1 lake
APC_2 man_in_doorway
APC_3 soldier_behind_smoke_1
APC_4 soldier_behind_smoke_2
REFRENCES soldier_behind_smoke_3
airplane_in_trees soldier_in_trench_1
bunker soldier_in_trench_2
heather
还是整理一下：
| 场景 | 可见光 | 近红外 | 远红外 | 其他 |
|---|---|---|---|---|
| 2_men_in_front _of_house 房子和两个人 | VIS_meting003_r.bmp | IR_meting003_g.bmp | meting003_rg.bmp | |
| airplane_in_trees 树中的飞机 | vis.bmp | ir.bmp | ||
| APC_1/view_1 装甲车 | VIS_fk_06_005.bmp | IR_fk_06_005.bmp | fk_06_005_rg.bmp | |
| APC_1/view_2 装甲车和人 | VIS_fk_ref_01_005.bmp | IR_fk_ref_01_005.bmp | fk_ref_01_005_rg.bmp | |
| APC_1/view_3 装甲车 | VIS_fk_ref_02_005.bmp | IR_fk_ref_02_005.bmp | fk_ref_02_005_rg.bmp | |
| APC_2/view_1 装甲车 | 1_fk_ge_03_005.bmp | 2_fk_ge_03_005.bmp | fk_ge_03_005_rg.bmp | |
| APC_2/view_2 装甲车 | 1_fk_ge_04_005.bmp | 2_fk_ge_04_005.bmp | fk_ge_04_005_rg.bmp | |
| APC_2/view_3 装甲车 | 1_fk_ge_06_005.bmp | 2_fk_ge_06_005.bmp | fk_ge_06_005_rg.bmp | |
| APC_3view_1 装甲车 | VIS_fk_bar_06_005.bmp | IR_fk_bar_06_005.bmp | fk_bar_06_005_rg.bmp | |
| APC_3view_2 装甲车 | VIS_fk_bar_01_005.bmp | IR_fk_bar_01_005.bmp | fk_bar_01_005_rg.bmp | |
| APC_3view_3 装甲车 | VIS_fk_bar_05_005.bmp | IR_fk_bar_05_005.bmp | fk_bar_05_005_rg.bmp | |
| APC_4 装甲车 | VIS_fennek01_005.bmp | IR_fennek01_005.bmp | fennek01_005_rg.bmp | |
| bunker 树中建筑 | bunker_r.bmp | IR_bunker_g.bmp | VIS_bunker-rg.bmp | |
| heather 树中道路 | VIS_hei_vis_r.bmp | IR_hei_vis_g.bmp | hei_vis-rg.bmp | |
| helicopter 直升机 | VIS_helib_011.bmp | IR_helib_011.bmp | helib_011_rg.bmp | |
| lake 湖 | VIS_lake_r.bmp | IR_lake_g.bmp | lake_rg.bmp | |
| man_in_doorway 男人在门口 | VIS_maninhuis_r.bmp | IR_maninhuis_g.bmp | maninhuis_rg.bmp | |
| soldier_behind_smoke_1 烟中狙击手 | VIS_meting012-1200_r.bmp | IR_meting012-1200_g.bmp | meting012-1200_rg.bmp | |
| soldier_behind_smoke_2 烟中狙击手 | VIS_meting012-1500_r.bmp | IR_meting012-1500_g.bmp | meting012-1500_rg.bmp | |
| soldier_behind_smoke_3 烟中狙击手 | VIS_meting012-1700_r.bmp | IR_meting012-1700_g.bmp | meting012-1700_rg.bmp | |
| soldier_in_trench_1 桥里的男人 | VIS_meting016_r.bmp | IR_meting016_g.bmp | meting016_rg.bmp | |
| soldier_in_trench_2 桥里的男人 | VIS_meting055_r.bmp | IR_meting055_g.bmp | meting055_rg.bmp |
Kayak
那我就认为剩下的都属于Kayak子集。那这就又很杂乱了。我还是分两部分：
- 第一部分是Kayak的特色，一些序列，
- 第二部分是剩下的杂项。
第一部分
- Introduction
- Intensified visual images have the extensions VIS and/or R
- Near Infrared images have the extensions NIR and/or G
- Thermal images have the extensions IR , RAD and/or B
- DHV images are false color (R,G,0) images corresponding to (VIS,NIR,0)
- Datasets
- DHV_images/Fire_sequence
- FEL_images/Duine_sequence
- FEL_images/Nato_camp_sequence
- FEL_images/Tree_sequence
总结
| 名称 | 介绍 | VIS | DHV | Thermal/RAD |
|---|---|---|---|---|
| DHV_images/Fire_sequence/Part1 | 烟火 | DHV2.bmp ~ HDV29.bmp | RAD2.bmp ~ RAD29.bmp | |
| DHV_images/Fire_sequence/Part2 | 烟火 | DHVheli0.bmp ~ DHVheli16.bmp | RADheli0.bmp ~ RADheli16.bmp | |
| DHV_images/Fire_sequence/Part3 | 烟火 | DHVheli20.bmp ~ DHVheli80.bmp | RADheli20.bmp ~ RADheli80.bmp | |
| FEL_images/Duine_sequence | 路上人 | 7400v.bmp ~ 7422v.bmp | 7400i.bmp ~ 7422i.bmp | |
| FEL_images/Nato_camp_sequence | 路上人 | 1800v.bmp ~ 1831v.bmp | 1800i.bmp ~ 1831i.bmp | |
| FEL_images/Tree_sequence | 林中人 | 4900v.bmp ~ 4918i.bmp | 4900i.bmp ~ 4918i.bmp |
第二部分
| 场景与路径 | 可见光 | 近红外 | 远红外 | 其他 |
|---|---|---|---|---|
| tank 著名的坦克 | Vis.tif | LWIR.tif | ||
| DHV_images/bench 河边人 | VIS_37dhvR.bmp | NIR_37dhvG.bmp | IR_37rad.bmp | |
| DHV_images/sandpath 林中人 | VIS_18dhvR.bmp | NIR_18dhvG.bmp | IR_18rad.bmp | |
| DHV_images/wall 墙 | VIS_163dhvR.BMP | NIR_163dhvG.BMP | IR_163rad.bmp |
我的总结
- TNO其实是一个散装的数据集，里边包含了三个小数据集。
- TNO/TNO，TNO/TRICLOOBS 以及 TNO/Kayak 的一部分，结构比较简单，就是可见光，近红外，远红外，照片或者 fask color 组成。其中会有缺省的内容。
- TNO/Kayak的另一部分都是连续视频的截图，包含了好几个序列。这里边的“烟火”序列，他的可见光和近红外分别组成了 R 通道和 G 通道的 fake color 图片，需要再解析一下。
- TNO 数据集中文件的命名很随意，有的是 VIS，IR 这样的，其他大部分也加入了场景描述以及序列 id，并且文件夹嵌套混乱，通过程序自动读入比较困难，需要手工挑选图片。
模仿torchvision风格的 dateset
下面是我写的 dataset
- 它可以直接支持指定位置自动下载，省的大家去自己从网上下载了。
- 我把所有的图片都写进程序了，如果有哪个图片不想要，你就把对应的 valid 改成 False，省的大家筛选图片容易把数据集弄乱。
- 这个 TNO包含零散的图像对和图像序列，调用的时候可以通过
mode参数来指定需要什么。（我已经在文档字符串里边写好说明了） - 这个 TNO 数据集的红外有中波和远红外两种，调用的时候可以通过
img_type参数指定需要什么，我也写在文档字符串了。 - 这个dataset 我写了两天，也通过了测试，如果大家想直接借鉴，希望可以别把我的 github 链接删掉👍，直接把下边的文件保存成你的文件就行。
- 2025.2.25更新一下：直接下载的数据集有一些有问题的图片，比如 ir 用 RGB 保存了，或者一些图片尺寸不对。我已经修改了 download 函数，对这些图片处理。
- 2025.2.25，本次还新增的功能：为了应对 matlab 的一些算法。写了一个“导出”函数（
export），把 TNO 复杂的文件夹里边的图片“展开”，这样方便 matlab的算法去融合或者去计算指标。
首先是 dataset 文件
# https://github.com/CharlesShan-hub/clib/blob/master/src/clib/datasets/collection/tno.py
from typing import Callable, Optional, Union
from torchvision.datasets.vision import VisionDataset
from torchvision.datasets.utils import download_and_extract_archive
from pathlib import Path
from PIL import Image
__all__ = ['TNO']
class TNO(VisionDataset):
""" TNO dataset for image fusion.
The TNO dataset is a collection of LWIR, NIR, and visible images for image fusion tasks.
It includes both paired and sequential images for different scenarios.
Details: https://figshare.com/articles/dataset/TNO_Image_Fusion_Dataset/1008029
Args:
root (str): Root directory of the dataset where ``TNO_Image_Fusion_Dataset`` exists.
transform (callable, optional): E.g, ``transforms.ToTensor``
download (bool, optional): If true, downloads the dataset from the internet and
puts it in root directory. If dataset is already downloaded, it is not
downloaded again.
mode (str, optional): Mode of the dataset to use. It can be 'both', 'pairs', or 'sequence'.
'both' includes both pairs and sequence data, 'pairs' includes only paired data,
and 'sequence' includes only sequential data.
img_type (str, optional): Image type to use. It can be 'both', 'lwir', or 'nir'.
'both' includes LWIR and NIR images, 'lwir' includes only LWIR images,
and 'nir' includes only NIR images.
"""
file = {
'pairs':{
'tank':{
'lwir': 'tank/LWIR.tif',
'vis': 'tank/Vis.tif',
'valid': True
},
'2_men_in_front_of_house':{
'lwir': 'Athena_images/2_men_in_front_of_house/IR_meting003_g.bmp',
'vis': 'Athena_images/2_men_in_front_of_house/VIS_meting003_r.bmp',
'valid': True
},
'airplane_in_trees':{
'lwir': 'Athena_images/airplane_in_trees/ir.bmp',
'vis': 'Athena_images/airplane_in_trees/vis.bmp',
'valid': True
},
'APC_1_1':{
'lwir': 'Athena_images/APC_1/view_1/IR_fk_06_005.bmp',
'vis': 'Athena_images/APC_1/view_1/VIS_fk_06_005.bmp',
'valid': True
},
'APC_1_2':{
'lwir': 'Athena_images/APC_1/view_2/IR_fk_ref_01_005.bmp',
'vis': 'Athena_images/APC_1/view_2/VIS_fk_ref_01_005.bmp',
'valid': True
},
'APC_1_3':{
'lwir': 'Athena_images/APC_1/view_3/IR_fk_ref_02_005.bmp',
'vis': 'Athena_images/APC_1/view_3/VIS_fk_ref_02_005.bmp',
'valid': True
},
'APC_2_1':{
'lwir': 'Athena_images/APC_2/view_1/2_fk_ge_03_005.bmp',
'vis': 'Athena_images/APC_2/view_1/1_fk_ge_03_005.bmp',
'valid': True
},
'APC_2_2':{
'lwir': 'Athena_images/APC_2/view_2/2_fk_ge_04_005.bmp',
'vis': 'Athena_images/APC_2/view_2/1_fk_ge_04_005.bmp',
'valid': True
},
'APC_2_3':{
'lwir': 'Athena_images/APC_2/view_3/2_fk_ge_06_005.bmp',
'vis': 'Athena_images/APC_2/view_3/1_fk_ge_06_005.bmp',
'valid': True
},
'APC_3_1':{
'lwir': 'Athena_images/APC_3/view_1/IR_fk_bar_06_005.bmp',
'vis': 'Athena_images/APC_3/view_1/VIS_fk_bar_06_005.bmp',
'valid': True
},
'APC_3_2':{
'lwir': 'Athena_images/APC_3/view_2/IR_fk_NL_01_005.bmp',
'vis': 'Athena_images/APC_3/view_2/VIS_fk_NL_01_005.bmp',
'valid': True
},
'APC_3_3':{
'lwir': 'Athena_images/APC_3/view_3/IR_fk_NL_05_005.bmp',
'vis': 'Athena_images/APC_3/view_3/VIS_fk_NL_05_005.bmp',
'valid': True
},
'APC_4':{
'lwir': 'Athena_images/APC_4/IR_fennek01_005.bmp',
'vis': 'Athena_images/APC_4/VIS_fennek01_005.bmp',
'valid': True
},
'bunker':{
'lwir': 'Athena_images/bunker/IR_bunker_g.bmp',
'vis': 'Athena_images/bunker/bunker_r.bmp',
'valid': True
},
'heather':{
'lwir': 'Athena_images/heather/IR_hei_vis_g.bmp',
'vis': 'Athena_images/heather/VIS_hei_vis_r.bmp',
'valid': True
},
'helicopter':{
'lwir': 'Athena_images/helicopter/IR_helib_011.bmp',
'vis': 'Athena_images/helicopter/VIS_helib_011.bmp',
'valid': True
},
'lake':{
'lwir': 'Athena_images/lake/IR_lake_g.bmp',
'vis': 'Athena_images/lake/VIS_lake_r.bmp',
'valid': True
},
'man_in_doorway':{
'lwir': 'Athena_images/man_in_doorway/IR_maninhuis_g.bmp',
'vis': 'Athena_images/man_in_doorway/VIS_maninhuis_r.bmp',
'valid': True
},
'soldier_behind_smoke_1':{
'lwir': 'Athena_images/soldier_behind_smoke_1/IR_meting012-1200_g.bmp',
'vis': 'Athena_images/soldier_behind_smoke_1/VIS_meting012-1200_r.bmp',
'valid': True
},
'soldier_behind_smoke_2':{
'lwir': 'Athena_images/soldier_behind_smoke_2/IR_meting012-1500_g.bmp',
'vis': 'Athena_images/soldier_behind_smoke_2/VIS_meting012-1500_r.bmp',
'valid': True
},
'soldier_behind_smoke_3':{
'lwir': 'Athena_images/soldier_behind_smoke_3/IR_meting012-1700_g.bmp',
'vis': 'Athena_images/soldier_behind_smoke_3/VIS_meting012-1700_r.bmp',
'valid': True
},
'soldier_in_trench_1':{
'lwir': 'Athena_images/soldier_in_trench_1/IR_meting016_g.bmp',
'vis': 'Athena_images/soldier_in_trench_1/VIS_meting016_r.bmp',
'valid': True
},
'soldier_in_trench_2':{
'lwir': 'Athena_images/soldier_in_trench_2/IR_meting055_g.bmp',
'vis': 'Athena_images/soldier_in_trench_2/VIS_meting055_r.bmp',
'valid': True
},
'Balls':{
'nir': 'Triclobs_images/Balls/NIR.bmp',
'vis': 'Triclobs_images/Balls/VIS.bmp',
'valid': True
},
'barbed_wire_1':{
'nir': 'Triclobs_images/barbed_wire_1/G_NIR.tif',
'lwir': 'Triclobs_images/barbed_wire_1/B_LWIR.tif',
'vis': 'Triclobs_images/barbed_wire_1/R_Vis.tif',
'valid': True
},
'barbed_wire_2':{
'nir': 'Triclobs_images/barbed_wire_2/b_NIR-MarnehNew_24RGB_1110.tif',
'lwir': 'Triclobs_images/barbed_wire_2/c_LWIR-MarnehNew_24RGB_1110.tif',
'vis': 'Triclobs_images/barbed_wire_2/a_VIS-MarnehNew_24RGB_1110.tif',
'valid': True
},
'Bosnia':{
'nir': 'Triclobs_images/Bosnia/NIR_G.bmp',
'lwir': 'Triclobs_images/Bosnia/LWIR_B.bmp',
'vis': 'Triclobs_images/Bosnia/VIS_R.bmp',
'valid': True
},
'Farm':{
'nir': 'Triclobs_images/Farm/Farm_II.bmp',
'lwir': 'Triclobs_images/Farm/Farm_IR.bmp',
'vis': 'Triclobs_images/Farm/Farm_Vis.bmp',
'valid': True
},
'House':{
'nir': 'Triclobs_images/House/NIR.bmp',
'vis': 'Triclobs_images/House/VIS.bmp',
'valid': True
},
'houses_with_3_men':{
'nir': 'Triclobs_images/houses_with_3_men/NIR.bmp',
'lwir': 'Triclobs_images/houses_with_3_men/LWIR.bmp',
'vis': 'Triclobs_images/houses_with_3_men/VIS.bmp',
'valid': True
},
'jeep_in_smoke':{
'nir': 'Triclobs_images/jeep_in_smoke/NIR_G.bmp',
'lwir': 'Triclobs_images/jeep_in_smoke/LWIR_B.bmp',
'vis': 'Triclobs_images/jeep_in_smoke/VIS_R.bmp',
'valid': True
},
'Kaptein_01':{
'nir': 'Triclobs_images/Kaptein_01/NIR01.bmp',
'lwir': 'Triclobs_images/Kaptein_01/IR01.bmp',
'vis': 'Triclobs_images/Kaptein_01/Vis01.bmp',
'valid': True
},
'Kaptein_19':{
'nir': 'Triclobs_images/Kaptein_19/NIR19.bmp',
'lwir': 'Triclobs_images/Kaptein_19/IR19.bmp',
'vis': 'Triclobs_images/Kaptein_19/Vis19.bmp',
'valid': True
},
'Kaptein_1123':{
'nir': 'Triclobs_images/Kaptein_1123/Kaptein_1123_II.bmp',
'lwir': 'Triclobs_images/Kaptein_1123/Kaptein_1123_IR.bmp',
'vis': 'Triclobs_images/Kaptein_1123/Kaptein_1123_Vis.bmp',
'valid': True
},
'Kaptein_1654':{
'nir': 'Triclobs_images/Kaptein_1654/Kaptein_1654_II.bmp',
'lwir': 'Triclobs_images/Kaptein_1654/Kaptein_1654_IR.bmp',
'vis': 'Triclobs_images/Kaptein_1654/Kaptein_1654_Vis.bmp',
'valid': True
},
'Marne_01':{
'nir': 'Triclobs_images/Marne_01/Marne_01_II.bmp',
'lwir': 'Triclobs_images/Marne_01/Marne_01_IR.bmp',
'vis': 'Triclobs_images/Marne_01/Marne_01_Vis.bmp',
'valid': True
},
'Marne_02':{
'nir': 'Triclobs_images/Marne_02/Marne_02_II.bmp',
'lwir': 'Triclobs_images/Marne_02/Marne_02_IR.bmp',
'vis': 'Triclobs_images/Marne_02/Marne_02_Vis.bmp',
'valid': True
},
'Marne_03':{
'nir': 'Triclobs_images/Marne_03/Marne_03_II.bmp',
'lwir': 'Triclobs_images/Marne_03/Marne_03_IR.bmp',
'vis': 'Triclobs_images/Marne_03/Marne_03_Vis.bmp',
'valid': True
},
'Marne_04':{
'nir': 'Triclobs_images/Marne_04/Marne_04_II.bmp',
'lwir': 'Triclobs_images/Marne_04/Marne_04_IR.bmp',
'vis': 'Triclobs_images/Marne_04/Marne_04_Vis.bmp',
'valid': True
},
'Marne_06':{
'nir': 'Triclobs_images/Marne_06/Marne_06_II.bmp',
'lwir': 'Triclobs_images/Marne_06/Marne_06_IR.bmp',
'vis': 'Triclobs_images/Marne_06/Marne_06_Vis.bmp',
'valid': True
},
'Marne_07':{
'nir': 'Triclobs_images/Marne_07/Marne_07_II.bmp',
'lwir': 'Triclobs_images/Marne_07/Marne_07_IR.bmp',
'vis': 'Triclobs_images/Marne_07/Marne_07_Vis.bmp',
'valid': True
},
'Marne_09':{
'nir': 'Triclobs_images/Marne_09/Marne_09_II.bmp',
'lwir': 'Triclobs_images/Marne_09/Marne_09_IR.bmp',
'vis': 'Triclobs_images/Marne_09/Marne_09_Vis.bmp',
'valid': True
},
'Marne_11':{
'nir': 'Triclobs_images/Marne_11/Marne_11_II.bmp',
'lwir': 'Triclobs_images/Marne_11/Marne_11_IR.bmp',
'vis': 'Triclobs_images/Marne_11/Marne_11_Vis.bmp',
'valid': True
},
'Marne_15':{
'nir': 'Triclobs_images/Marne_15/Marne_15_II.bmp',
'lwir': 'Triclobs_images/Marne_15/Marne_15_IR.bmp',
'vis': 'Triclobs_images/Marne_15/Marne_15_Vis.bmp',
'valid': True
},
'Marne_24':{
'nir': 'Triclobs_images/Marne_24/Marne_24_II.bmp',
'lwir': 'Triclobs_images/Marne_24/Marne_24_IR.bmp',
'vis': 'Triclobs_images/Marne_24/Marne_24_Vis.bmp',
'valid': True
},
'Movie_01':{
'nir': 'Triclobs_images/Movie_01/Movie_01_II.bmp',
'lwir': 'Triclobs_images/Movie_01/Movie_01_IR.bmp',
'vis': 'Triclobs_images/Movie_01/Movie_01_Vis.bmp',
'valid': True
},
'Movie_12':{
'nir': 'Triclobs_images/Movie_12/Movie_12_II.bmp',
'lwir': 'Triclobs_images/Movie_12/Movie_12_IR.bmp',
'vis': 'Triclobs_images/Movie_12/Movie_12_Vis.bmp',
'valid': True
},
'Movie_14':{
'nir': 'Triclobs_images/Movie_14/Movie_14_II.bmp',
'lwir': 'Triclobs_images/Movie_14/Movie_14_IR.bmp',
'vis': 'Triclobs_images/Movie_14/Movie_14_Vis.bmp',
'valid': True
},
'Movie_18':{
'nir': 'Triclobs_images/Movie_18/Movie_18_II.bmp',
'lwir': 'Triclobs_images/Movie_18/Movie_18_IR.bmp',
'vis': 'Triclobs_images/Movie_18/Movie_18_Vis.bmp',
'valid': True
},
'Movie_24':{
'nir': 'Triclobs_images/Movie_24/Movie_24_II.bmp',
'lwir': 'Triclobs_images/Movie_24/Movie_24_IR.bmp',
'vis': 'Triclobs_images/Movie_24/Movie_24_Vis.bmp',
'valid': True
},
'pancake_house':{
'nir': 'Triclobs_images/pancake_house/NIR.tif',
'vis': 'Triclobs_images/pancake_house/VIS.tif',
'valid': True
},
'Reek':{
'nir': 'Triclobs_images/Reek/Reek_II.bmp',
'lwir': 'Triclobs_images/Reek/Reek_IR.bmp',
'vis': 'Triclobs_images/Reek/Reek_Vis.bmp',
'valid': True
},
'soldier_behind_smoke':{
'nir': 'Triclobs_images/soldier_behind_smoke/NIR-MarnehNew_15RGB_603.tif',
'lwir': 'Triclobs_images/soldier_behind_smoke/LWIR-MarnehNew_15RGB_603.tif',
'vis': 'Triclobs_images/soldier_behind_smoke/VIS-MarnehNew_15RGB_603.tif',
'valid': True
},
'soldiers_with_jeep':{
'nir': 'Triclobs_images/soldiers_with_jeep/Jeep_II.bmp',
'lwir': 'Triclobs_images/soldiers_with_jeep/Jeep_IR.bmp',
'vis': 'Triclobs_images/soldiers_with_jeep/Jeep_Vis.bmp',
'valid': True
},
'square_with_houses':{
'nir': 'Triclobs_images/square_with_houses/NIR.bmp',
'lwir': 'Triclobs_images/square_with_houses/LWIR.bmp',
'vis': 'Triclobs_images/square_with_houses/VIS.bmp',
'valid': True
},
'Veluwe':{
'nir': 'Triclobs_images/Veluwe/NIR.bmp',
'vis': 'Triclobs_images/Veluwe/VIS.bmp',
'valid': True
},
'Vlasakkers':{
'nir': 'Triclobs_images/Vlasakkers/NIR.tif',
'vis': 'Triclobs_images/Vlasakkers/VIS.tif',
'valid': True
},
'bench':{
'nir': 'DHV_images/bench/NIR_37dhvG.bmp',
'lwir': 'DHV_images/bench/IR_37rad.bmp',
'vis': 'DHV_images/bench/VIS_37dhvR.bmp',
'valid': True
},
'sandpath':{
'nir': 'DHV_images/sandpath/NIR_18dhvG.bmp',
'lwir': 'DHV_images/sandpath/IR_18rad.bmp',
'vis': 'DHV_images/sandpath/VIS_18dhvR.bmp',
'valid': True
},
'wall':{
'nir': 'DHV_images/wall/NIR_163dhvG.BMP',
'lwir': 'DHV_images/wall/IR_163rad.bmp',
'vis': 'DHV_images/wall/VIS_163dhvR.BMP',
'valid': True
},
},
'sequence':{
'Fire1':{
'lwir': {
'base': 'DHV_images/Fire_sequence/part_1/thermal',
'content': [
'RAD2.bmp', 'RAD3.bmp', 'RAD4.bmp', 'RAD5.bmp',
'RAD6.bmp', 'RAD7.bmp', 'RAD8.bmp', 'RAD9.bmp',
'RAD10.bmp', 'RAD11.bmp', 'RAD12.bmp', 'RAD13.bmp',
'RAD14.bmp', 'RAD15.bmp', 'RAD16.bmp', 'RAD17.bmp',
'RAD18.bmp', 'RAD19.bmp', 'RAD20.bmp', 'RAD21.bmp',
'RAD22.bmp', 'RAD23.bmp', 'RAD24.bmp', 'RAD25.bmp',
'RAD26.bmp', 'RAD27.bmp', 'RAD28.bmp', 'RAD29.bmp'
]
},
'vis': {
'base': 'DHV_images/Fire_sequence/part_1/dhv',
'content': [
'DHV2.bmp', 'DHV3.bmp', 'DHV4.bmp', 'DHV5.bmp',
'DHV6.bmp', 'DHV7.bmp', 'DHV8.bmp', 'DHV9.bmp',
'DHV10.bmp', 'DHV11.bmp', 'DHV12.bmp', 'DHV13.bmp',
'DHV14.bmp', 'DHV15.bmp', 'DHV16.bmp', 'DHV17.bmp',
'DHV18.bmp', 'DHV19.bmp', 'DHV20.bmp', 'DHV21.bmp',
'DHV22.bmp', 'DHV23.bmp', 'DHV24.bmp', 'DHV25.bmp',
'DHV26.bmp', 'DHV27.bmp', 'DHV28.bmp', 'DHV29.bmp'
]
},
'valid': True
},
'Fire2':{
'lwir': {
'base': 'DHV_images/Fire_sequence/part_2/rad',
'content': [
'RADheli0.bmp','RADheli1.bmp','RADheli2.bmp','RADheli3.bmp','RADheli4.bmp',
'RADheli5.bmp','RADheli6.bmp','RADheli7.bmp','RADheli8.bmp',
'RADheli9.bmp','RADheli10.bmp','RADheli11.bmp','RADheli12.bmp',
'RADheli13.bmp','RADheli14.bmp','RADheli15.bmp','RADheli16.bmp'
]
},
'vis': {
'base': 'DHV_images/Fire_sequence/part_2/dhv',
'content': [
'DHVheli0.bmp','DHVheli1.bmp','DHVheli2.bmp','DHVheli3.bmp','DHVheli4.bmp',
'DHVheli5.bmp','DHVheli6.bmp','DHVheli7.bmp','DHVheli8.bmp',
'DHVheli9.bmp','DHVheli10.bmp','DHVheli11.bmp','DHVheli12.bmp',
'DHVheli13.bmp','DHVheli14.bmp','DHVheli15.bmp','DHVheli16.bmp'
]
},
'valid': True
},
'Fire3':{
'lwir': {
'base': 'DHV_images/Fire_sequence/part_3/rad',
'content': [
'RADheli20.bmp','RADheli21.bmp','RADheli22.bmp','RADheli23.bmp','RADheli24.bmp',
'RADheli25.bmp','RADheli26.bmp','RADheli27.bmp','RADheli28.bmp','RADheli29.bmp',
'RADheli30.bmp','RADheli31.bmp','RADheli32.bmp','RADheli33.bmp','RADheli34.bmp',
'RADheli35.bmp','RADheli36.bmp','RADheli37.bmp','RADheli38.bmp','RADheli39.bmp',
'RADheli40.bmp','RADheli41.bmp','RADheli42.bmp','RADheli43.bmp','RADheli44.bmp',
'RADheli45.bmp','RADheli46.bmp','RADheli47.bmp','RADheli48.bmp','RADheli49.bmp',
'RADheli50.bmp','RADheli51.bmp','RADheli52.bmp','RADheli53.bmp','RADheli54.bmp',
'RADheli55.bmp','RADheli56.bmp','RADheli57.bmp','RADheli58.bmp','RADheli59.bmp',
'RADheli60.bmp','RADheli61.bmp','RADheli62.bmp','RADheli63.bmp','RADheli64.bmp',
'RADheli65.bmp','RADheli66.bmp','RADheli67.bmp','RADheli68.bmp','RADheli69.bmp',
'RADheli70.bmp','RADheli71.bmp','RADheli72.bmp','RADheli73.bmp','RADheli74.bmp',
'RADheli75.bmp','RADheli76.bmp','RADheli77.bmp','RADheli78.bmp','RADheli79.bmp',
'RADheli80.bmp'
]
},
'vis': {
'base': 'DHV_images/Fire_sequence/part_3/dhv',
'content': [
'DHVheli20.bmp','DHVheli21.bmp','DHVheli22.bmp','DHVheli23.bmp','DHVheli24.bmp',
'DHVheli25.bmp','DHVheli26.bmp','DHVheli27.bmp','DHVheli28.bmp','DHVheli29.bmp',
'DHVheli30.bmp','DHVheli31.bmp','DHVheli32.bmp','DHVheli33.bmp','DHVheli34.bmp',
'DHVheli35.bmp','DHVheli36.bmp','DHVheli37.bmp','DHVheli38.bmp','DHVheli39.bmp',
'DHVheli40.bmp','DHVheli41.bmp','DHVheli42.bmp','DHVheli43.bmp','DHVheli44.bmp',
'DHVheli45.bmp','DHVheli46.bmp','DHVheli47.bmp','DHVheli48.bmp','DHVheli49.bmp',
'DHVheli50.bmp','DHVheli51.bmp','DHVheli52.bmp','DHVheli53.bmp','DHVheli54.bmp',
'DHVheli55.bmp','DHVheli56.bmp','DHVheli57.bmp','DHVheli58.bmp','DHVheli59.bmp',
'DHVheli60.bmp','DHVheli61.bmp','DHVheli62.bmp','DHVheli63.bmp','DHVheli64.bmp',
'DHVheli65.bmp','DHVheli66.bmp','DHVheli67.bmp','DHVheli68.bmp','DHVheli69.bmp',
'DHVheli70.bmp','DHVheli71.bmp','DHVheli72.bmp','DHVheli73.bmp','DHVheli74.bmp',
'DHVheli75.bmp','DHVheli76.bmp','DHVheli77.bmp','DHVheli78.bmp','DHVheli79.bmp',
'DHVheli80.bmp'
]
},
'valid': True
},
'Duine':{
'lwir': {
'base': 'FEL_images/Duine_sequence/thermal',
'content': [
'7400i.bmp','7401i.bmp','7402i.bmp','7403i.bmp','7404i.bmp',
'7405i.bmp','7406i.bmp','7407i.bmp','7408i.bmp','7409i.bmp',
'7410i.bmp','7411i.bmp','7412i.bmp','7413i.bmp','7414i.bmp',
'7415i.bmp','7416i.bmp','7417i.bmp','7418i.bmp','7419i.bmp',
'7420i.bmp','7421i.bmp','7422i.bmp'
]
},
'vis': {
'base': 'FEL_images/Duine_sequence/visual',
'content': [
'7400v.bmp','7401v.bmp','7402v.bmp','7403v.bmp','7404v.bmp',
'7405v.bmp','7406v.bmp','7407v.bmp','7408v.bmp','7409v.bmp',
'7410v.bmp','7411v.bmp','7412v.bmp','7413v.bmp','7414v.bmp',
'7415v.bmp','7416v.bmp','7417v.bmp','7418v.bmp','7419v.bmp',
'7420v.bmp','7421v.bmp','7422v.bmp'
]
},
'valid': True
},
'Nato_camp':{
'lwir': {
'base': 'FEL_images/Nato_camp_sequence/thermal',
'content': [
'1800i.bmp','1801i.bmp','1802i.bmp','1803i.bmp','1804i.bmp',
'1805i.bmp','1806i.bmp','1807i.bmp','1808i.bmp','1809i.bmp',
'1810i.bmp','1811i.bmp','1812i.bmp','1813i.bmp','1814i.bmp',
'1815i.bmp','1816i.bmp','1817i.bmp','1818i.bmp','1819i.bmp',
'1820i.bmp','1821i.bmp','1822i.bmp','1823i.bmp','1824i.bmp',
'1825i.bmp','1826i.bmp','1827i.bmp','1828i.bmp','1829i.bmp',
'1830i.bmp','1831i.bmp',
]
},
'vis': {
'base': 'FEL_images/Nato_camp_sequence/visual',
'content': [
'1800v.bmp','1801v.bmp','1802v.bmp','1803v.bmp','1804v.bmp',
'1805v.bmp','1806v.bmp','1807v.bmp','1808v.bmp','1809v.bmp',
'1810v.bmp','1811v.bmp','1812v.bmp','1813v.bmp','1814v.bmp',
'1815v.bmp','1816v.bmp','1817v.bmp','1818v.bmp','1819v.bmp',
'1820v.bmp','1821v.bmp','1822v.bmp','1823v.bmp','1824v.bmp',
'1825v.bmp','1826v.bmp','1827v.bmp','1828v.bmp','1829v.bmp',
'1830v.bmp','1831v.bmp',
]
},
'valid': True
},
'Tree':{
'lwir': {
'base': 'FEL_images/Tree_sequence/thermal',
'content': [
'4900i.bmp','4901i.bmp','4902i.bmp','4903i.bmp','4904i.bmp',
'4905i.bmp','4906i.bmp','4907i.bmp','4908i.bmp','4909i.bmp',
'4910i.bmp','4911i.bmp','4912i.bmp','4913i.bmp','4914i.bmp',
'4915i.bmp','4916i.bmp','4917i.bmp','4918i.bmp'
]
},
'vis': {
'base': 'FEL_images/Tree_sequence/visual',
'content': [
'4900v.bmp','4901v.bmp','4902v.bmp','4903v.bmp','4904v.bmp',
'4905v.bmp','4906v.bmp','4907v.bmp','4908v.bmp','4909v.bmp',
'4910v.bmp','4911v.bmp','4912v.bmp','4913v.bmp','4914v.bmp',
'4915v.bmp','4916v.bmp','4917v.bmp','4918v.bmp'
]
},
'valid': True
}
}
}
url = "https://figshare.com/ndownloader/files/1475454"
md5 = "1ab9ce3b84dd3e5894630c13abd20953"
def __init__(
self,
root: Union[str, Path],
transform: Optional[Callable] = None,
download: bool = True,
mode: Optional[str] = ['both', 'pairs', 'sequence'][0],
img_type: Optional[str] = ['both', 'lwir', 'nir'][1],
fusion: bool = False,
fusion_path: Union[Path, str] = '',
fused_extension: Optional[str] = 'png',
export_root: Optional[Union[str,Path]] = None,
exported: bool = False,
export_lwir_dir: str = 'lwir',
export_nir_dir: str = 'nir',
export_vis_dir: str = 'vis',
dataloader: bool = True,
) -> None:
super().__init__(root, transform=transform)
self.folder = 'TNO_Image_Fusion_Dataset'
self._base_folder = Path(self.root) / "tno"
assert mode in ['both', 'pairs', 'sequence']
self.mode = mode
assert img_type in ['both', 'lwir', 'nir']
self.img_type = img_type
self.fusion = fusion
self.fusion_path = fusion_path
self.fused_extension = fused_extension
if self.fusion:
assert self.fusion_path != ''
self.fusion_path = Path(self.fusion_path)
self.dataloader = dataloader
if export_root is None:
self.export_root = Path(self.root) / 'tno' / 'tno'
else:
self.export_root = Path(export_root)
self.export_lwir_dir = export_lwir_dir
self.export_nir_dir = export_nir_dir
self.export_vis_dir = export_vis_dir
self.exported = exported
if self.exported:
self.build_exported()
else:
self.build_origin()
if download:
self.download()
def _load_image(self, path):
img = Image.open(path).convert("L")
return self.transform(img) if self.transform else img
def __getitem__(self, idx: int):
res = {'vis': self._load_image(self.data[idx]['vis'])}
if not self.dataloader:
res.update({'vis_path': self.data[idx]['vis']})
if 'lwir' in self.data[idx]:
if not self.dataloader:
res.update({'lwir_path': self.data[idx]['lwir']})
res.update({'lwir': self._load_image(self.data[idx]['lwir'])})
if 'nir' in self.data[idx]:
if not self.dataloader:
res.update({'nir_path': self.data[idx]['nir']})
res.update({'nir': self._load_image(self.data[idx]['nir'])})
if self.fusion:
if not self.dataloader:
res.update({'fused_path': Path(self.fusion_path) / f"{self.data[idx]['vis'].stem}.{self.fused_extension}"})
res.update({'fused': self._load_image(Path(self.fusion_path) / f"{self.data[idx]['vis'].stem}.{self.fused_extension}")})
return res
def __len__(self):
return len(self.data)
def build_exported(self):
self.data = []
vis_list = [i.name for i in (self.export_root / self.export_vis_dir).iterdir()]
lwir_list = [i.name for i in (self.export_root / self.export_lwir_dir).iterdir()]
nir_list = [i.name for i in (self.export_root / self.export_nir_dir).iterdir()]
if self.img_type == 'lwir':
for i in lwir_list:
assert i in vis_list
self.data.append({
'lwir': self.export_root / self.export_lwir_dir / i,
'vis': self.export_root / self.export_vis_dir / i,
})
if self.img_type == 'nir':
for i in nir_list:
assert i in vis_list
self.data.append({
'nir': self.export_root / self.export_nir_dir / i,
'vis': self.export_root / self.export_vis_dir / i,
})
if self.img_type == 'both':
for i in nir_list:
if i not in lwir_list:
continue
assert i in vis_list
self.data.append({
'lwir': self.export_root / self.export_lwir_dir / i,
'nir': self.export_root / self.export_nir_dir / i,
'vis': self.export_root / self.export_vis_dir / i,
})
def build_origin(self):
self.data = []
if self.mode in ['both', 'pairs']:
for _,v in self.file['pairs'].items():
if v['valid'] == False:
continue
if self.img_type == 'lwir':
if 'lwir' not in v:
continue
self.data.append({
'lwir': self._base_folder / self.folder / v['lwir'],
'vis': self._base_folder / self.folder / v['vis']
})
if self.img_type == 'nir':
if 'nir' not in v:
continue
self.data.append({
'nir': self._base_folder / self.folder / v['nir'],
'vis': self._base_folder / self.folder / v['vis']
})
if self.img_type == 'both':
if ('lwir' not in v) or ('nir' not in v) :
continue
self.data.append({
'lwir': self._base_folder / self.folder / v['lwir'],
'nir': self._base_folder / self.folder / v['nir'],
'vis': self._base_folder / self.folder / v['vis']
})
if self.mode in ['both', 'sequence']:
for _,v in self.file['sequence'].items():
if v['valid'] == False:
continue
if self.img_type == 'lwir':
if 'lwir' not in v:
continue
for i,j in zip(v['lwir']['content'], v['vis']['content']):
self.data.append({
'lwir': self._base_folder / self.folder / v['lwir']['base'] / i,
'vis': self._base_folder / self.folder / v['vis']['base'] / j
})
if self.img_type == 'nir':
if 'nir' not in v:
continue
for i,j in zip(v['nir']['content'], v['vis']['content']):
self.data.append({
'nir': self._base_folder / self.folder / v['nir']['base'] / i,
'vis': self._base_folder / self.folder / v['vis']['base'] / j
})
if self.img_type == 'both':
if ('lwir' not in v) or ('nir' not in v) :
continue
for i,j,k in zip(v['lwir']['content'], v['nir']['content'], v['vis']['content']):
self.data.append({
'lwir': self._base_folder / self.folder / v['lwir']['base'] / i,
'nir': self._base_folder / self.folder / v['nir']['base'] / j,
'vis': self._base_folder / self.folder / v['vis']['base'] / k
})
def _scale_bad_image(self,bad_scale_img_dir):
bad_scale_img = Image.open(bad_scale_img_dir)
width, height = bad_scale_img.size
cropped_image = bad_scale_img.crop((0, 10, width, height))
cropped_image.save(bad_scale_img_dir)
def _resize_bad_image(self,bad_size_img_dir):
bad_img = Image.open(bad_size_img_dir)
resized_image = bad_img.resize((640,480), resample=1) # Resampling.LANCZOS
resized_image.save(bad_size_img_dir)
def _rgb_to_gray(self,bad_color_image_dir):
bad_img = Image.open(bad_color_image_dir)
gray_image = bad_img.convert('L')
gray_image.save(bad_color_image_dir)
def download(self):
valid = True
for d in self.data:
for _,v in d.items():
if not v.exists():
valid = False
if valid == False:
download_and_extract_archive(
url=self.url,
download_root=self._base_folder,
extract_root=self._base_folder,
filename="tno_temp.zip",
md5=self.md5,
remove_finished=False
)
self._scale_bad_image(self._base_folder / self.folder / 'Triclobs_images' / 'Marne_15' / 'Marne_15_IR.bmp')
self._scale_bad_image(self._base_folder / self.folder / 'Triclobs_images' / 'Marne_15' / 'Marne_15_II.bmp')
self._resize_bad_image(self._base_folder / self.folder / 'Triclobs_images' / 'Movie_24' / 'Movie_24_IR.bmp')
self._rgb_to_gray(self._base_folder / self.folder / 'DHV_images' / 'bench' / 'IR_37rad.bmp')
self._rgb_to_gray(self._base_folder / self.folder / 'DHV_images' / 'wall' / 'IR_163rad.bmp')
if (self._base_folder / 'tno').exists() == False:
(self._base_folder / 'tno').mkdir() # export default dir
def export(self, dest_dir = None):
'''
Export TNO dataset to a folder for operation with matlab.
MATLAB Usage Example:
# %% Read JSON config file
# filename = 'config.json';
# fileID = fopen(filename, 'r', 'n', 'utf8');
# jsonData = fread(fileID, inf, 'uint8');
# jsonData = char(jsonData');
# fclose(fileID);
#
# %% Parse JSON data
# config = jsondecode(jsonData);
# disp(config);
#
# %% Access specific fields
# visJson = config.vis_json;
# nirJson = config.nir_json;
# lwirJson = config.lwir_json;
# visNirPairs = config.vis_nir_pairs;
# visLwirPairs = config.vis_lwir_pairs;
# visNirLwirPairs = config.vis_nir_lwir_pairs;
#
# %% Example: Access vis_json content
# disp(visJson);
'''
assert self.exported == False
# make dir
if dest_dir is None:
dest_dir = Path(self.root) / 'tno' / 'tno'
dest_dir = Path(dest_dir)
assert dest_dir.exists()
dest_vis_dir = dest_dir / self.export_vis_dir
dest_lwir_dir = dest_dir / self.export_lwir_dir
dest_nir_dir = dest_dir / self.export_nir_dir
if dest_vis_dir.exists() == False:
dest_vis_dir.mkdir()
if dest_lwir_dir.exists() == False:
dest_lwir_dir.mkdir()
if dest_nir_dir.exists() == False:
dest_nir_dir.mkdir()
export_list = []
index_counter = 1
# pair images
for _,v in self.file['pairs'].items():
d = {
'id': index_counter,
'vis': self._base_folder / self.folder / v['vis']
}
if 'lwir' in v:
d['lwir'] = self._base_folder / self.folder / v['lwir']
if 'nir' in v:
d['nir'] = self._base_folder / self.folder / v['nir']
export_list.append(d)
index_counter = index_counter + 1
# sequence images
for _,v in self.file['sequence'].items(): # all sequence are lwir and vis
for i,j in zip(v['lwir']['content'], v['vis']['content']):
export_list.append({
'id': index_counter,
'lwir': self._base_folder / self.folder / v['lwir']['base'] / i,
'vis': self._base_folder / self.folder / v['vis']['base'] / j
})
index_counter = index_counter + 1
# copy images
import shutil
for d in export_list:
shutil.copy(d['vis'],dest_vis_dir / f'{d['id']}.{d['vis'].name.split(".")[-1].lower()}')
if 'nir' in d:
shutil.copy(d['nir'],dest_nir_dir / f'{d['id']}.{d['nir'].name.split(".")[-1].lower()}')
if 'lwir' in d:
shutil.copy(d['lwir'],dest_lwir_dir / f'{d['id']}.{d['lwir'].name.split(".")[-1].lower()}')
# save config file
import json
vis_json = {} # Mapping vis id to origin path
nir_json = {} # Mapping nir id to origin path
lwir_json = {} # Mapping lwir id to origin path
vis_nir = [] # id of vis and nir pairs
vis_lwir = [] # id of vis and lwir pairs
vis_nir_lwir = [] # id of vis nir and lwir pairs
for d in export_list:
vis_json[str(d['id'])] = str(d['vis'])
if 'nir' in d:
nir_json[str(d['id'])] = str(d['nir'])
if 'lwir' in d:
lwir_json[str(d['id'])] = str(d['lwir'])
if 'nir' in d and 'lwir' in d:
vis_nir_lwir.append(d['id'])
if 'nir' in d:
vis_nir.append(d['id'])
if 'lwir' in d:
vis_lwir.append(d['id'])
config_data = {
"vis": vis_json,
"nir": nir_json,
"lwir": lwir_json,
"vis_nir_pairs": vis_nir,
"vis_lwir_pairs": vis_lwir,
"vis_nir_lwir_pairs": vis_nir_lwir
}
dest_config_dir = dest_dir / "config.json"
with open(dest_config_dir, 'w') as json_file:
json.dump(config_data, json_file, indent=4)
然后是我写的使用案例
import click
from pathlib import Path
from cslib.datasets.fusion import TNO
def demo_auto_download(root_dir):
TNO(root = root_dir,download = True)
def demo_wave_length(root_dir):
dataset_nir_lwir = TNO(root_dir, img_type = 'both')
dataset_nir = TNO(root_dir, img_type = 'nir')
dataset_lwir = TNO(root_dir, img_type = 'lwir') # Default
print(f"Length of the 'nir_lwir' dataset: {len(dataset_nir_lwir)}") # 32
print(f"Length of the 'nir' dataset: {len(dataset_nir)}") # 37
print(f"Length of the 'lwir' dataset: {len(dataset_lwir)}") # 235
def demo_set(root_dir):
dataset_both = TNO(root_dir, img_type = 'lwir',mode = 'both') # Default
dataset_seq = TNO(root_dir, img_type = 'lwir',mode ='sequence')
dataset_pairs = TNO(root_dir, img_type = 'lwir',mode = 'pairs')
print(f"Length of the 'both' dataset: {len(dataset_both)}") # 235
print(f"Length of the'sequence' dataset: {len(dataset_seq)}") # 180
print(f"Length of the 'pairs' dataset: {len(dataset_pairs)}") # 55
def demo_export(root_dir):
dataset_both_lwir_nir = TNO(
root_dir,
export_lwir_dir = 'lwir', # default
export_nir_dir = 'nir', # default
export_vis_dir = 'vis', # default
)
dataset_both_lwir_nir.export(Path(root_dir)/'tno'/'export')
def demo_dataloader(root_dir):
# Dataloader Mode (Default)
dataset_both_lwir_nir = TNO(root_dir, img_type = 'both',mode = 'both')
for key in dataset_both_lwir_nir[0]:
print(f"{key}: {type(dataset_both_lwir_nir[0][key])}")
# vis: <class 'PIL.Image.Image'>
# lwir: <class 'PIL.Image.Image'>
# nir: <class 'PIL.Image.Image'>
# Without Dataloader Mode
dataset_both_lwir_nir = TNO(root_dir, img_type = 'both',mode = 'both', dataloader = False)
for key in dataset_both_lwir_nir[0]:
print(f"{key}: {type(dataset_both_lwir_nir[0][key])}")
# vis: <class 'PIL.Image.Image'>
# vis_path: <class 'pathlib.PosixPath'>
# lwir_path: <class 'pathlib.PosixPath'>
# lwir: <class 'PIL.Image.Image'>
# nir_path: <class 'pathlib.PosixPath'>
# nir: <class 'PIL.Image.Image'>
def demo_load_exported(root_dir):
dataset = TNO(
root_dir,
dataloader = False, # To show this is from exported directory
export_lwir_dir = 'lwir', # default
export_nir_dir = 'nir', # default
export_vis_dir = 'vis', # default
exported = True,
export_root = Path(root_dir)/'tno'/'export',
)
for key in dataset[0]:
print(f"{key}: {dataset[0][key]}")
# vis: <PIL.Image.Image image mode=L size=461x381 at 0x16A332B40>
# vis_path: /Volumes/Charles/data/vision/torchvision/tno/export/vis/127.bmp
# lwir_path: /Volumes/Charles/data/vision/torchvision/tno/export/lwir/127.bmp
# lwir: <PIL.Image.Image image mode=L size=461x381 at 0x169E30350>
def demo_fusion(root_dir):
# You need to manually input the fusion images first
dataset_fuse = TNO(
root_dir,
export_lwir_dir = 'lwir', # default
export_nir_dir = 'nir', # default
export_vis_dir = 'vis', # default
export_root = Path(root_dir)/'tno'/'export',
exported = True,
fusion_path = Path(root_dir)/'tno'/'export'/'fused'/'fusiongan',
fused_extension = 'png', # Default
fusion = True,
)
for key in dataset_fuse[0]:
print(f"{key}: {type(dataset_fuse[0][key])}")
# vis: <class 'PIL.Image.Image'>
# lwir: <class 'PIL.Image.Image'>
# fused: <class 'PIL.Image.Image'>
@click.command()
@click.option('--root_dir', type=click.Path(exists=True), default='/Volumes/Charles/data/vision/torchvision', help='Path to torchvision root directory')
def main(root_dir):
''' Auto Download '''
# demo_auto_download(root_dir) # Download the dataset if it does not exist in the root directory
''' Load Different Wavelength Images'''
# demo_wave_length(root_dir) # nir | lwir | both
''' Load Different Sets '''
# demo_set(root_dir) # both | sequence | pairs
''' Dataloader Mode '''
# demo_dataloader(root_dir) # show image path or not
''' Export '''
# demo_export(root_dir)
''' Load from exported '''
# demo_load_exported(root_dir)
''' Fusion Mode (For computing Metrics) '''
# demo_fusion(root_dir) # Can only load from exported path
if __name__ == '__main__':
main()
扫一扫
255
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
