SpringCloud学习-part54 sentinel流控之链路

定义

链路流控模式指的是，当从某个接口过来的资源达到限流条件时，开启限流。它的功能有点类似于针对来源配置项，区别在于：针对来源是针对上级微服务，而链路流控是针对上级接口，也就是说它的粒度更细。

测试用service

@Service
public class OrderServiceImpl implements OrderService {
    @Override
    @SentinelResource(value="getOrder",blockHandler = "handleException")
    public CommonResult getOrder() {
        return new CommonResult(0, String.valueOf(new Random().nextInt()));
    }

    public CommonResult handleException(BlockException  ex){
        return new CommonResult(-1,
                ex.getClass().getCanonicalName() + "\t服务不可用");
    }
}

补充Controller

    @Resource
    private OrderService orderService;

    @GetMapping("/test1")
    public CommonResult test1(){
        return  orderService.getOrder();
    }

    @GetMapping("/test2")
    public CommonResult test2(){
        return orderService.getOrder();
    }

禁止收敛URL入口处的context

从1.6.3 版本开始，Sentinel Web fifilter默认收敛所有URL的入口context，因此链路限流不生效。

1.7.0 版本开始（对应SCA的2.1.1.RELEASE)，官方在CommonFilter 引入了

WEB_CONTEXT_UNIFY 参数，用于控制是否收敛context。将其配置为 false 即可根据不同的URL 进行链路限流。

SCA 2.1.1.RELEASE之后的版本,可以通过配置spring.cloud.sentinel.web-context-unify=false即可关闭收敛我们当前使用的版本是SpringCloud Alibaba 2.1.0.RELEASE，无法实现链路限流。

目前官方还未发布SCA 2.1.2.RELEASE，所以我们只能使用2.1.1.RELEASE，需要写代码的形式实现

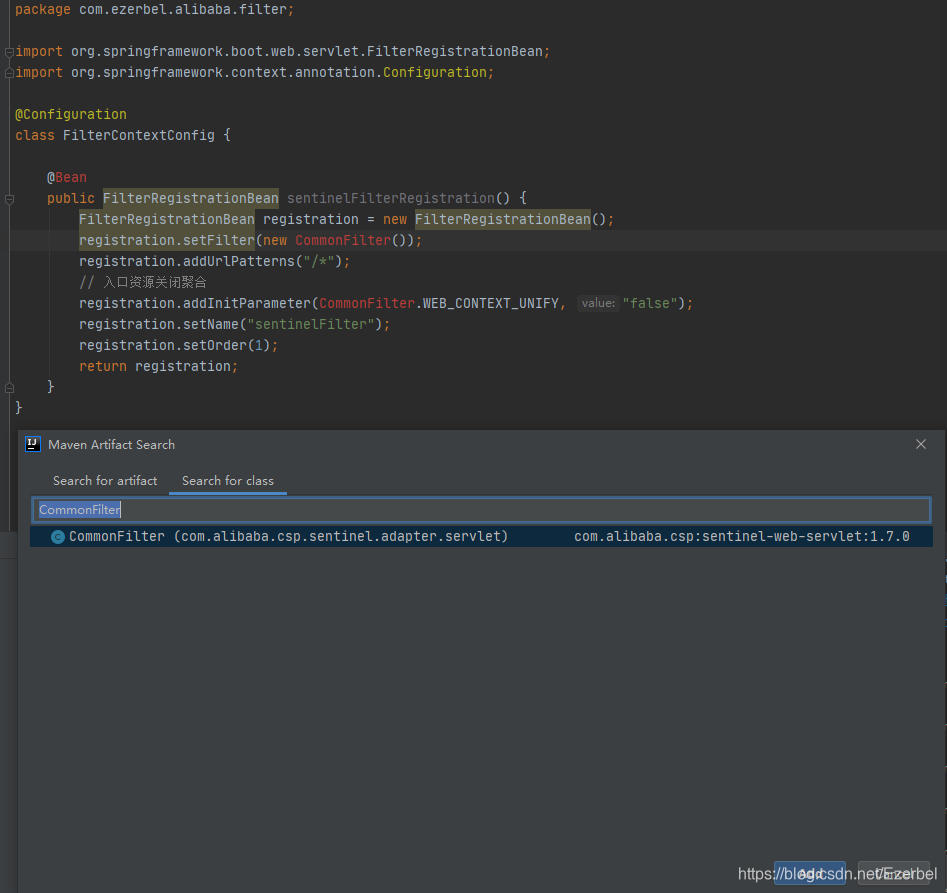

增加config

@Configuration
class FilterContextConfig {

    @Bean
    public FilterRegistrationBean sentinelFilterRegistration() {
        FilterRegistrationBean registration = new FilterRegistrationBean();
        registration.setFilter(new CommonFilter());
        registration.addUrlPatterns("/*");
        // 入口资源关闭聚合
        registration.addInitParameter(CommonFilter.WEB_CONTEXT_UNIFY, "false");
        registration.setName("sentinelFilter");
        registration.setOrder(1);
        return registration;
    }
}

配置文件修改

关闭sentinel的CommonFilter实例化

spring:
	cloud:
		sentinel:
			filter:
				enabled: false

配置限流规则

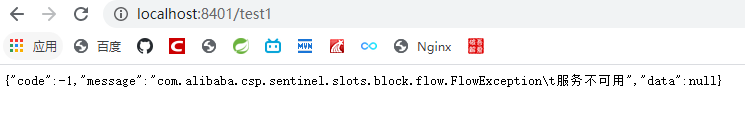

测试

当QPS超过1时，test1访问被限流，test2则完全不受影响

2.1.1以后的禁止入口收敛的方式

import com.alibaba.csp.sentinel.adapter.servlet.CommonFilter;
import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class FilterContextConfig {

    /**
     * @NOTE 在spring-cloud-alibaba v2.1.1.RELEASE及前，sentinel1.7.0及后，关闭URL PATH聚合需要通过该方式，spring-cloud-alibaba v2.1.1.RELEASE后，可以通过配置关闭：spring.cloud.sentinel.web-context-unify=false
     * 手动注入Sentinel的过滤器，关闭Sentinel注入CommonFilter实例，修改配置文件中的 spring.cloud.sentinel.filter.enabled=false
     * 入口资源聚合问题：https://github.com/alibaba/Sentinel/issues/1024 或 https://github.com/alibaba/Sentinel/issues/1213
     * 入口资源聚合问题解决：https://github.com/alibaba/Sentinel/pull/1111
     */
    @Bean
    public FilterRegistrationBean sentinelFilterRegistration() {
        FilterRegistrationBean registration = new FilterRegistrationBean();
        registration.setFilter(new CommonFilter());
        registration.addUrlPatterns("/*");
        // 入口资源关闭聚合
        registration.addInitParameter(CommonFilter.WEB_CONTEXT_UNIFY, "false");
        registration.setName("sentinelFilter");
        registration.setOrder(1);
        return registration;
    }

}

添加CommonFilter相关依赖

 <dependency>
     <groupId>com.alibaba.csp</groupId>
     <artifactId>sentinel-web-servlet</artifactId>
     <version>1.7.0</version>
 </dependency>

可以查看CommonFilter

package com.alibaba.csp.sentinel.adapter.servlet;

import java.io.IOException;

import javax.servlet.Filter;
import javax.servlet.FilterChain;
import javax.servlet.FilterConfig;
import javax.servlet.ServletException;
import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.alibaba.csp.sentinel.Entry;
import com.alibaba.csp.sentinel.EntryType;
import com.alibaba.csp.sentinel.ResourceTypeConstants;
import com.alibaba.csp.sentinel.SphU;
import com.alibaba.csp.sentinel.Tracer;
import com.alibaba.csp.sentinel.adapter.servlet.callback.RequestOriginParser;
import com.alibaba.csp.sentinel.adapter.servlet.callback.UrlCleaner;
import com.alibaba.csp.sentinel.adapter.servlet.callback.WebCallbackManager;
import com.alibaba.csp.sentinel.adapter.servlet.config.WebServletConfig;
import com.alibaba.csp.sentinel.adapter.servlet.util.FilterUtil;
import com.alibaba.csp.sentinel.context.ContextUtil;
import com.alibaba.csp.sentinel.slots.block.BlockException;
import com.alibaba.csp.sentinel.util.StringUtil;

/**
 * Servlet filter that integrates with Sentinel.
 *
 * @author youji.zj
 * @author Eric Zhao
 * @author zhaoyuguang
 */
public class CommonFilter implements Filter {

    /**
     * Specify whether the URL resource name should contain the HTTP method prefix (e.g. {@code POST:}).
     */
    public static final String HTTP_METHOD_SPECIFY = "HTTP_METHOD_SPECIFY";
    /**
     * If enabled, use the URL path as the context name, or else use the default
     * {@link WebServletConfig#WEB_SERVLET_CONTEXT_NAME}. Please pay attention to the number of context (EntranceNode),
     * which may affect the memory footprint.
     *
     * @since 1.7.0
     */
    public static final String WEB_CONTEXT_UNIFY = "WEB_CONTEXT_UNIFY";

    private final static String COLON = ":";

    private boolean httpMethodSpecify = false;
    private boolean webContextUnify = true;

    @Override
    public void init(FilterConfig filterConfig) {
        httpMethodSpecify = Boolean.parseBoolean(filterConfig.getInitParameter(HTTP_METHOD_SPECIFY));
        if (filterConfig.getInitParameter(WEB_CONTEXT_UNIFY) != null) {
            webContextUnify = Boolean.parseBoolean(filterConfig.getInitParameter(WEB_CONTEXT_UNIFY));
        }
    }

    @Override
    public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
            throws IOException, ServletException {
        HttpServletRequest sRequest = (HttpServletRequest) request;
        Entry urlEntry = null;

        try {
            String target = FilterUtil.filterTarget(sRequest);
            // Clean and unify the URL.
            // For REST APIs, you have to clean the URL (e.g. `/foo/1` and `/foo/2` -> `/foo/:id`), or
            // the amount of context and resources will exceed the threshold.
            UrlCleaner urlCleaner = WebCallbackManager.getUrlCleaner();
            if (urlCleaner != null) {
                target = urlCleaner.clean(target);
            }

            // If you intend to exclude some URLs, you can convert the URLs to the empty string ""
            // in the UrlCleaner implementation.
            if (!StringUtil.isEmpty(target)) {
                // Parse the request origin using registered origin parser.
                String origin = parseOrigin(sRequest);
                String contextName = webContextUnify ? WebServletConfig.WEB_SERVLET_CONTEXT_NAME : target;
                ContextUtil.enter(contextName, origin);

                if (httpMethodSpecify) {
                    // Add HTTP method prefix if necessary.
                    String pathWithHttpMethod = sRequest.getMethod().toUpperCase() + COLON + target;
                    urlEntry = SphU.entry(pathWithHttpMethod, ResourceTypeConstants.COMMON_WEB, EntryType.IN);
                } else {
                    urlEntry = SphU.entry(target, ResourceTypeConstants.COMMON_WEB, EntryType.IN);
                }
            }
            chain.doFilter(request, response);
        } catch (BlockException e) {
            HttpServletResponse sResponse = (HttpServletResponse) response;
            // Return the block page, or redirect to another URL.
            WebCallbackManager.getUrlBlockHandler().blocked(sRequest, sResponse, e);
        } catch (IOException | ServletException | RuntimeException e2) {
            Tracer.traceEntry(e2, urlEntry);
            throw e2;
        } finally {
            if (urlEntry != null) {
                urlEntry.exit();
            }
            ContextUtil.exit();
        }
    }

    private String parseOrigin(HttpServletRequest request) {
        RequestOriginParser originParser = WebCallbackManager.getRequestOriginParser();
        String origin = EMPTY_ORIGIN;
        if (originParser != null) {
            origin = originParser.parseOrigin(request);
            if (StringUtil.isEmpty(origin)) {
                return EMPTY_ORIGIN;
            }
        }
        return origin;
    }

    @Override
    public void destroy() {

    }

    private static final String EMPTY_ORIGIN = "";
}
