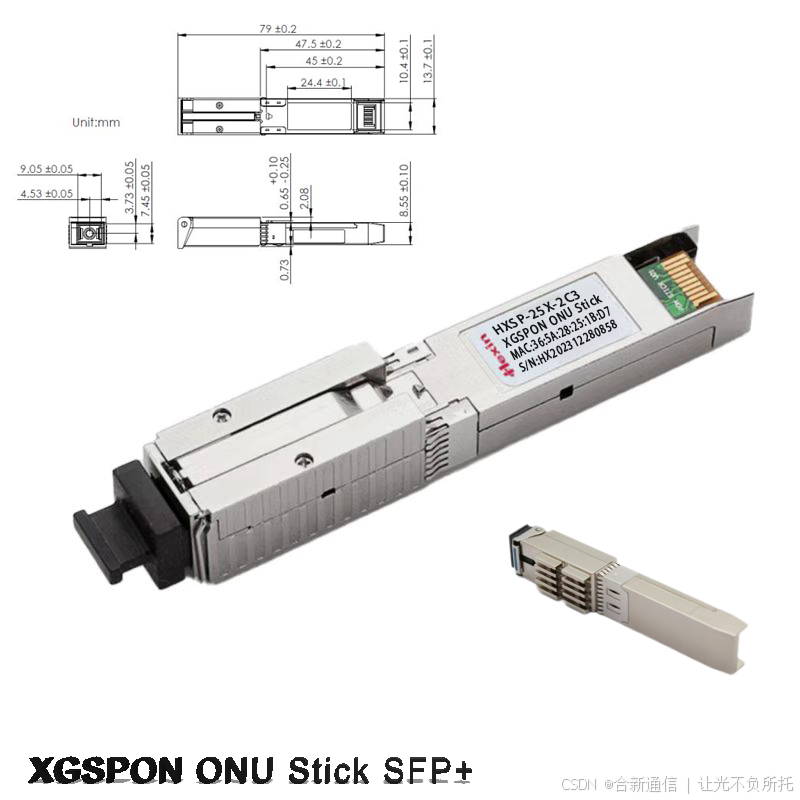

合新通信 | 10G XGSPON ONU Stick With MAC SFP+

合新通信@Hexin Communications XGSPON ONU Stick 提供标准的SFP+封装，可以轻松替换现有的SFP+模块，可以完美替代SFU光猫，SSH和Web管理，兼容各大品牌的设备.

Features：

& Singlefiberbi-directional data links symmetric TX 9.953 Gb/s / RX 9.953 Gb/s with MAC function

& SFP+ package with SC/APC receptacle

& Single 3.3 V power supply

& Hot-pluggable capability High power 1270nm DML DFB LD and high sensitivity 1577nm APD

& Support 20 km transmission distance with SMF

& CML compatible data input/output interface

& Low power dissipation < 2.5 W

& Low EMI and excellent ESD protection

& Digital diagnostic monitor interface

& RoHS-6 compliance

& Case temperature range: Commercial: 0 °C to 70 °C or -45℃ to 85℃

& Support of GPON/XGS-PON/NGPON2 standards

& 256 GEM/XGEM ports, 64 T-CONTs or 16 LLIDs

& Carrier Grade QoS Engine

& Advanced loopback and diagnostic capabilities

& Supports Synchronous Ethernet (SyncE)

Applications ：

& Residential home gateway

& Network switch/router, VDSL MDU, and G.fast DPU

& Mobile backhaul

Standard ：

Complies with ITU-T G.987.2 Complies with ITU-T G.9807.1, G.9807.2 ITU-T G.988 OMCI L2 MAC Bridge (Up to 64 L2 bridges) G.8275/Y.1369/IEEE 1588v2 IEEE 802.1ag and ITU-TY.1731 Ethernet OAM delay & loss measurement hardware suppor

更多详情，可来电咨询：sales@hexintech.com.cn;

www.hexintech.com.cn
