Python Unet ++ :医学图像分割,医学细胞分割,Unet医学图像处理,语义分割

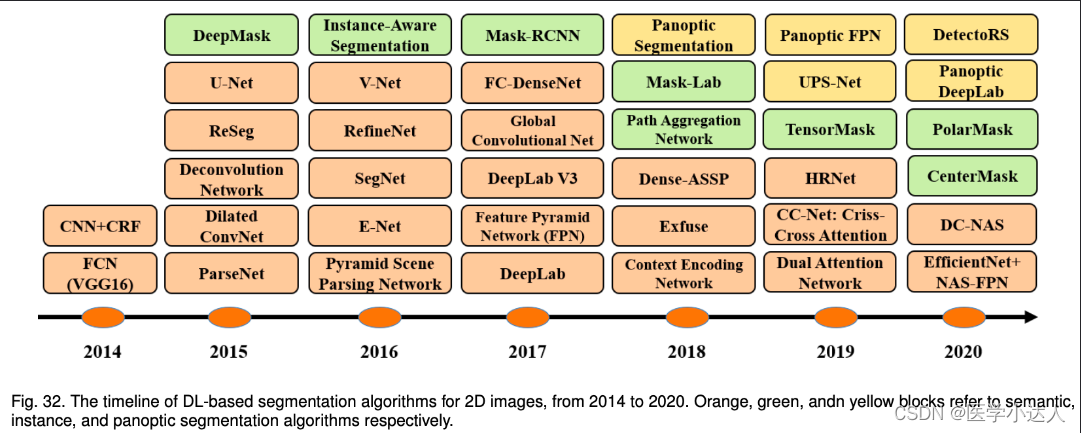

一,语义分割:分割领域前几年的发展

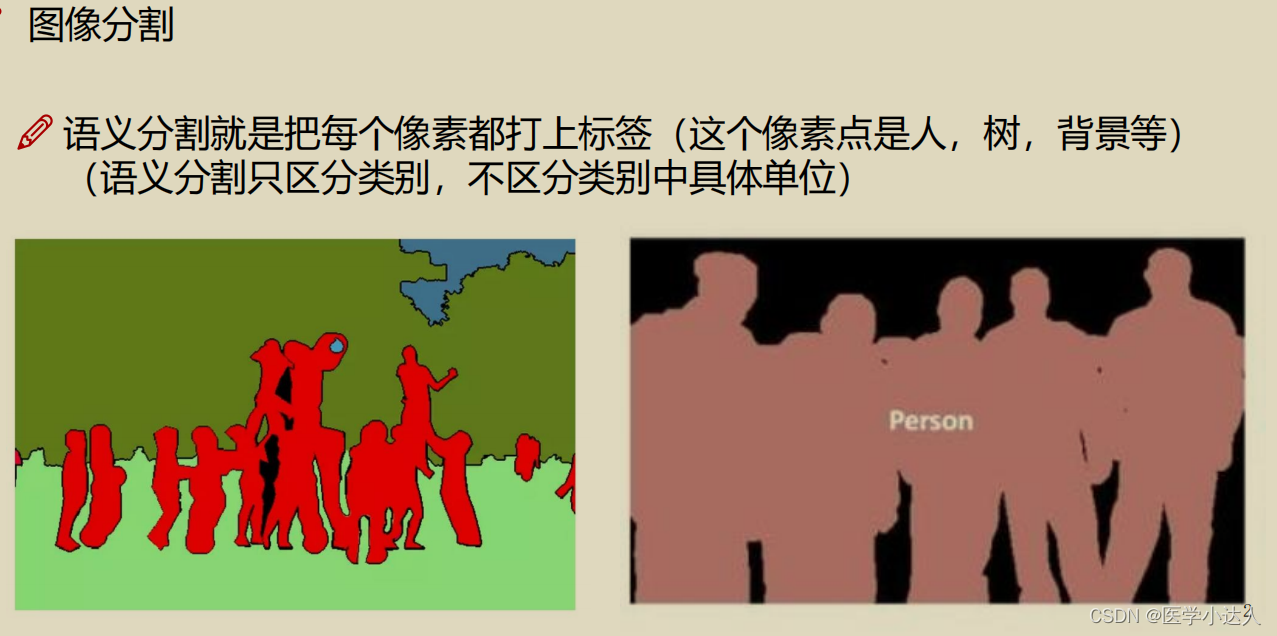

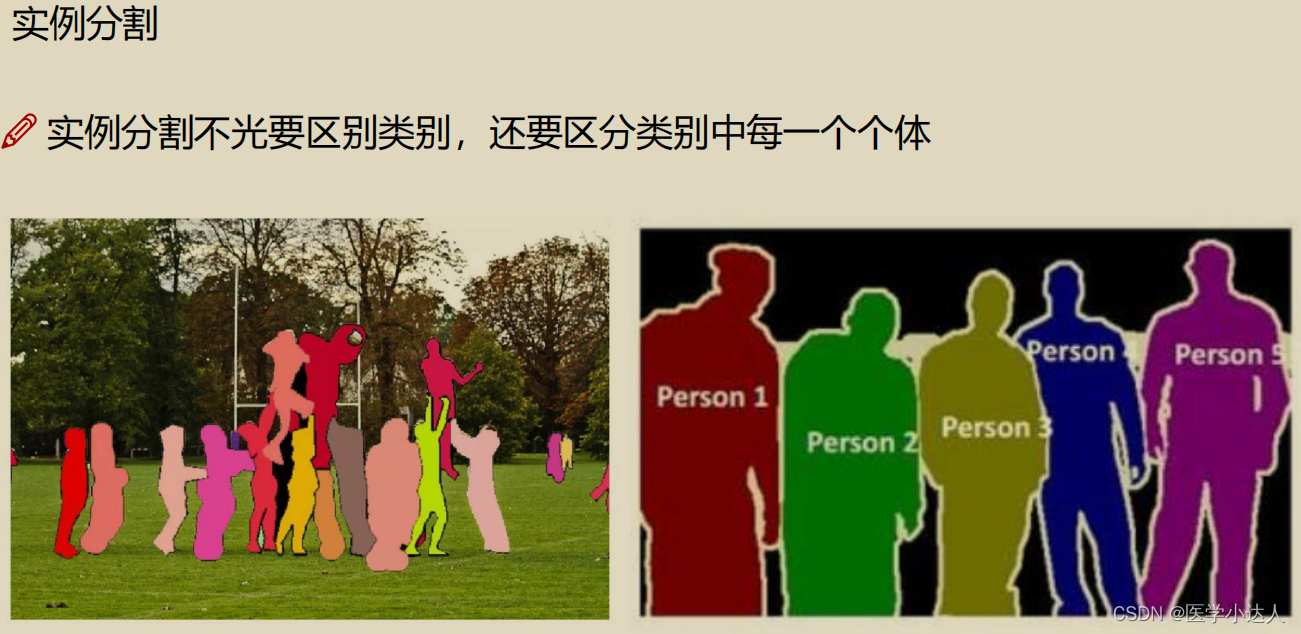

图像分割是机器视觉任务的一个重要基础任务,在图像分析、自动驾驶、视频监控等方面都有很重要的作用。图像分割可以被看成一个分类任务,需要给每个像素进行分类,所以就比图像分类任务更加复杂。此处主要介绍 Deep Learning-based 相关方法。

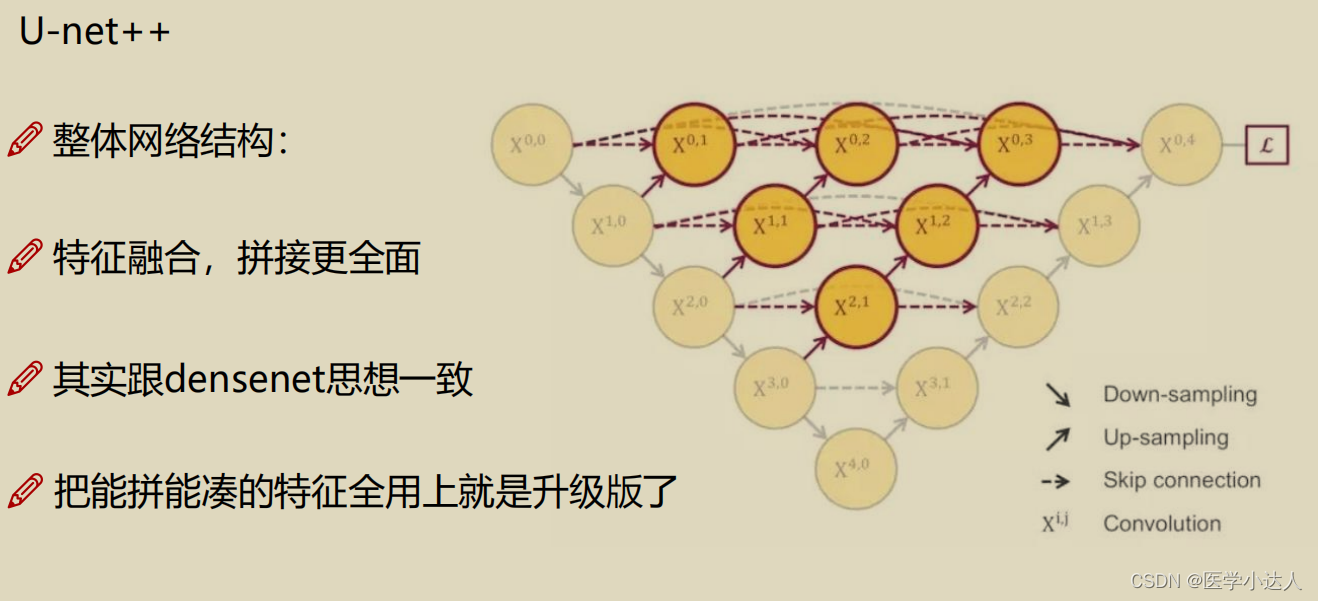

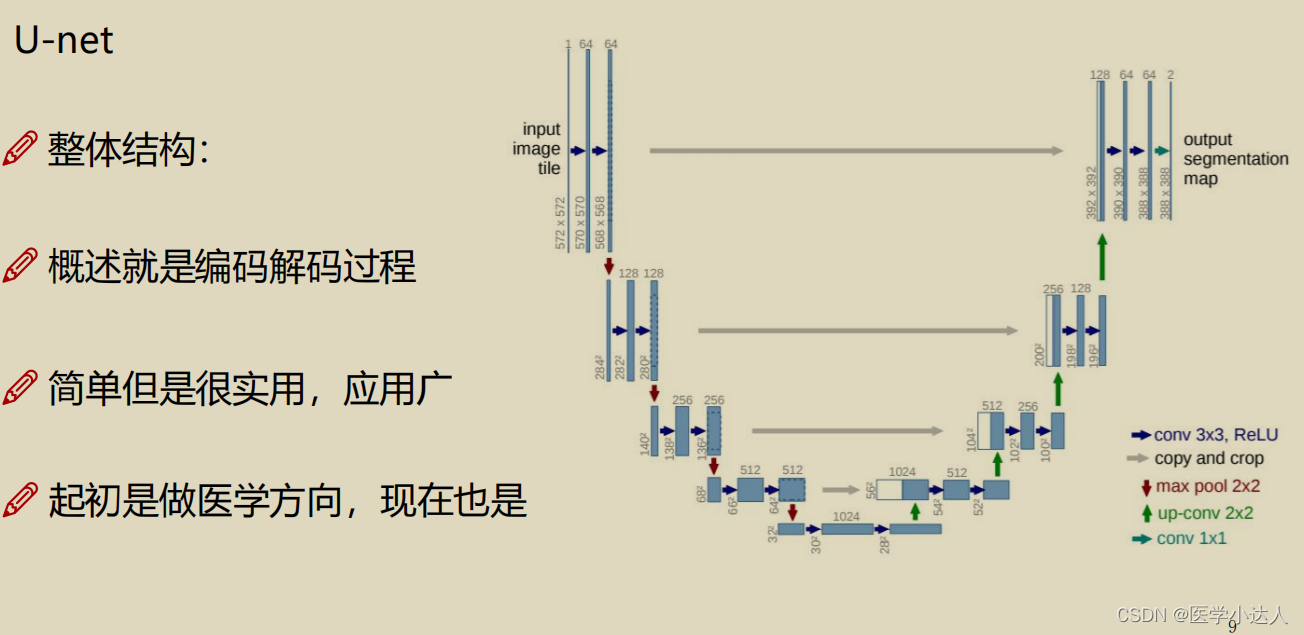

 主要介绍unet和unet++



二,数据介绍---医学细胞分割任务

原数据:

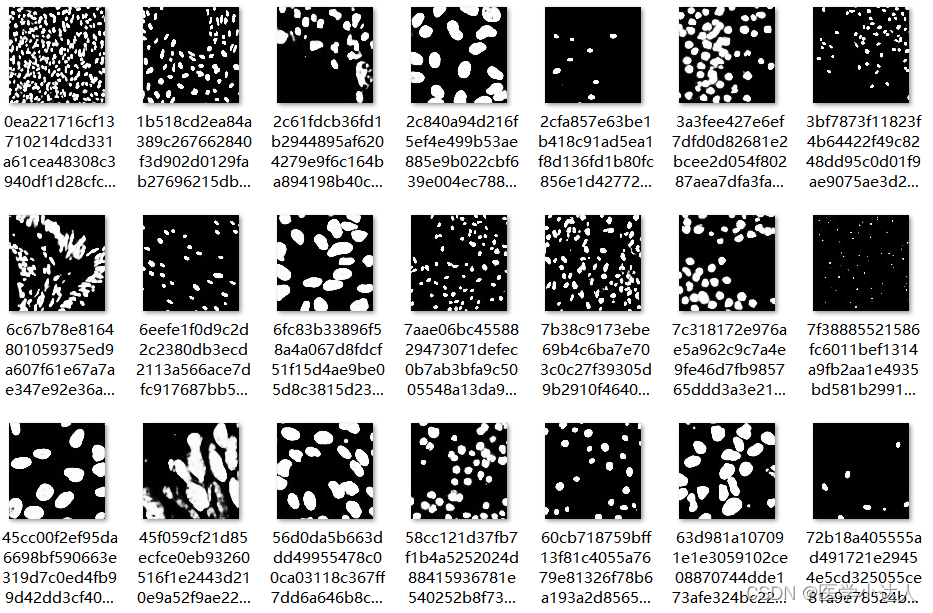

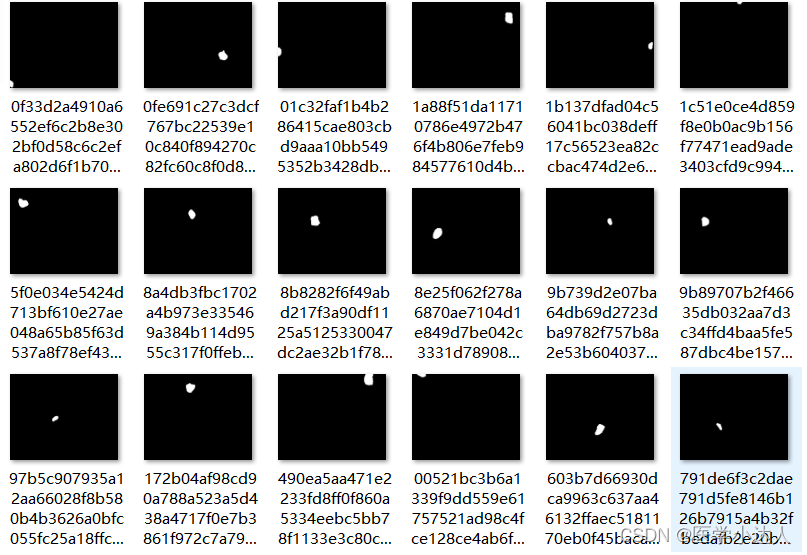

标签数据:



 三,代码部分

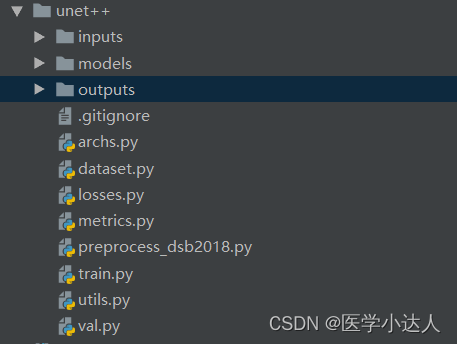

模型包含以下文件:

archs.py为模型的主体部分:

import torch
from torch import nn

__all__ = ['UNet', 'NestedUNet']


class VGGBlock(nn.Module):
    def __init__(self, in_channels, middle_channels, out_channels):
        super().__init__()
        self.relu = nn.ReLU(inplace=True)
        self.conv1 = nn.Conv2d(in_channels, middle_channels, 3, padding=1)
        self.bn1 = nn.BatchNorm2d(middle_channels)
        self.conv2 = nn.Conv2d(middle_channels, out_channels, 3, padding=1)
        self.bn2 = nn.BatchNorm2d(out_channels)

    def forward(self, x):
        out = self.conv1(x)
        out = self.bn1(out)
        out = self.relu(out)

        out = self.conv2(out)
        out = self.bn2(out)
        out = self.relu(out)

        return out

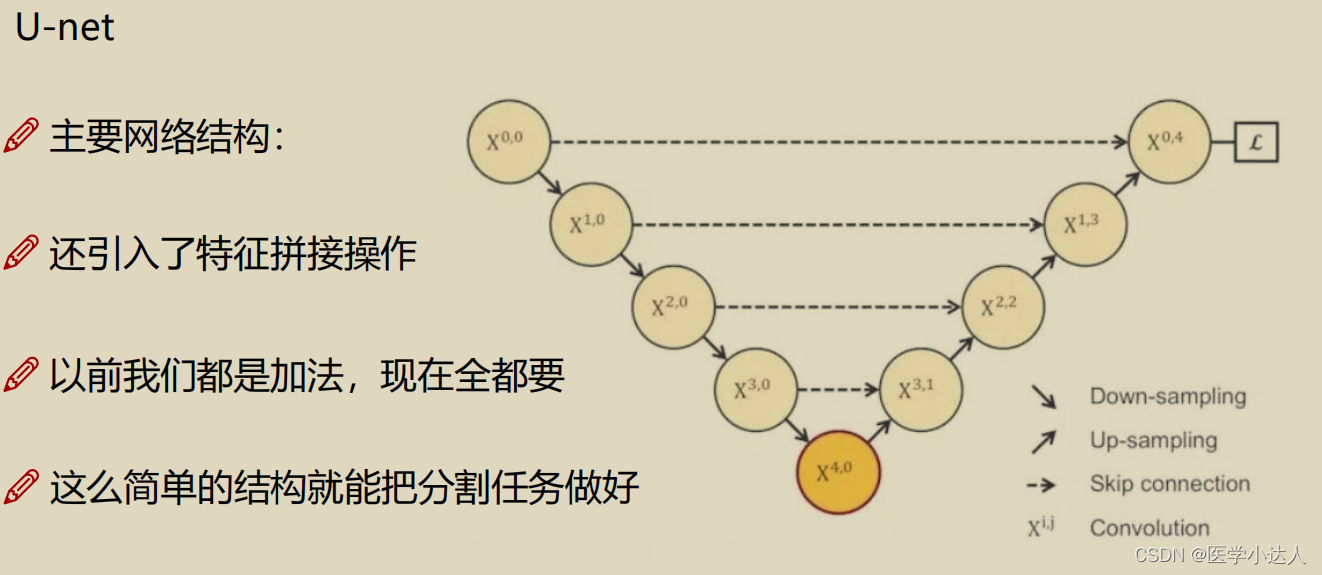

class UNet(nn.Module):
    def __init__(self, num_classes, input_channels=3, **kwargs):
        super().__init__()

        nb_filter = [32, 64, 128, 256, 512]

        self.pool = nn.MaxPool2d(2, 2)
        self.up = nn.Upsample(scale_factor=2, mode='bilinear', align_corners=True)#scale_factor:放大的倍数  插值

        self.conv0_0 = VGGBlock(input_channels, nb_filter[0], nb_filter[0])
        self.conv1_0 = VGGBlock(nb_filter[0], nb_filter[1], nb_filter[1])
        self.conv2_0 = VGGBlock(nb_filter[1], nb_filter[2], nb_filter[2])
        self.conv3_0 = VGGBlock(nb_filter[2], nb_filter[3], nb_filter[3])
        self.conv4_0 = VGGBlock(nb_filter[3], nb_filter[4], nb_filter[4])

        self.conv3_1 = VGGBlock(nb_filter[3]+nb_filter[4], nb_filter[3], nb_filter[3])
        self.conv2_2 = VGGBlock(nb_filter[2]+nb_filter[3], nb_filter[2], nb_filter[2])
        self.conv1_3 = VGGBlock(nb_filter[1]+nb_filter[2], nb_filter[1], nb_filter[1])
        self.conv0_4 = VGGBlock(nb_filter[0]+nb_filter[1], nb_filter[0], nb_filter[0])

        self.final = nn.Conv2d(nb_filter[0], num_classes, kernel_size=1)


    def forward(self, input):
        x0_0 = self.conv0_0(input)
        x1_0 = self.conv1_0(self.pool(x0_0))
        x2_0 = self.conv2_0(self.pool(x1_0))
        x3_0 = self.conv3_0(self.pool(x2_0))
        x4_0 = self.conv4_0(self.pool(x3_0))

        x3_1 = self.conv3_1(torch.cat([x3_0, self.up(x4_0)], 1))
        x2_2 = self.conv2_2(torch.cat([x2_0, self.up(x3_1)], 1))
        x1_3 = self.conv1_3(torch.cat([x1_0, self.up(x2_2)], 1))
        x0_4 = self.conv0_4(torch.cat([x0_0, self.up(x1_3)], 1))

        output = self.final(x0_4)
        return output

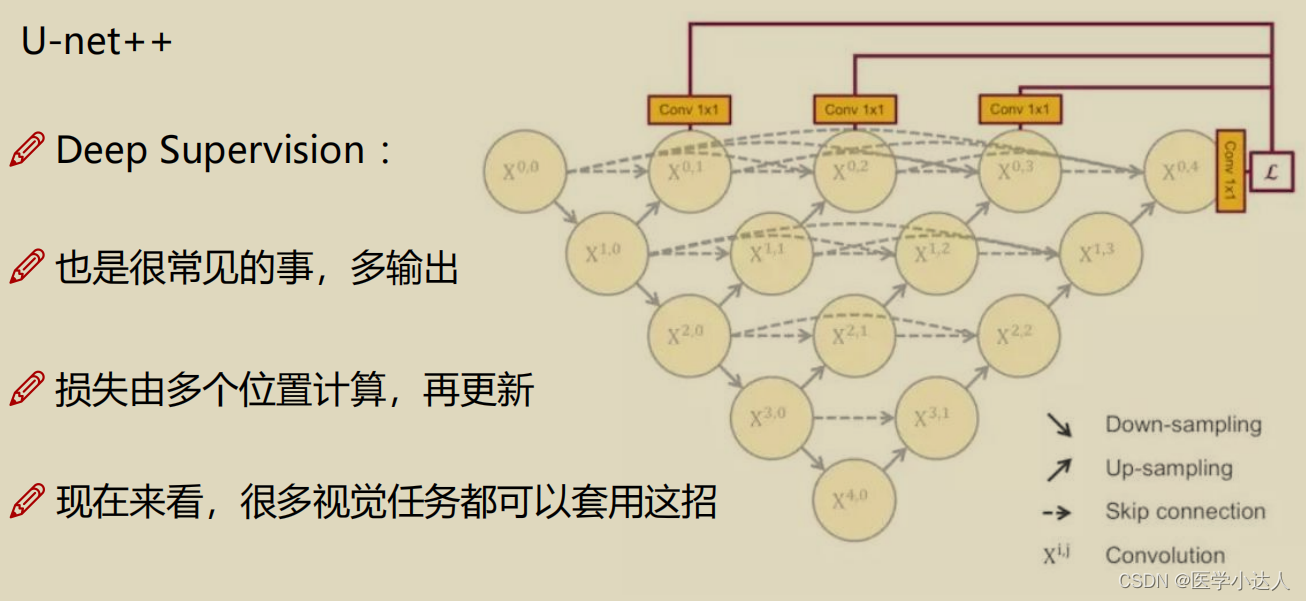

class NestedUNet(nn.Module):
    def __init__(self, num_classes, input_channels=3, deep_supervision=False, **kwargs):
        super().__init__()

        nb_filter = [32, 64, 128, 256, 512]

        self.deep_supervision = deep_supervision

        self.pool = nn.MaxPool2d(2, 2)
        self.up = nn.Upsample(scale_factor=2, mode='bilinear', align_corners=True)

        self.conv0_0 = VGGBlock(input_channels, nb_filter[0], nb_filter[0])
        self.conv1_0 = VGGBlock(nb_filter[0], nb_filter[1], nb_filter[1])
        self.conv2_0 = VGGBlock(nb_filter[1], nb_filter[2], nb_filter[2])
        self.conv3_0 = VGGBlock(nb_filter[2], nb_filter[3], nb_filter[3])
        self.conv4_0 = VGGBlock(nb_filter[3], nb_filter[4], nb_filter[4])

        self.conv0_1 = VGGBlock(nb_filter[0]+nb_filter[1], nb_filter[0], nb_filter[0])
        self.conv1_1 = VGGBlock(nb_filter[1]+nb_filter[2], nb_filter[1], nb_filter[1])
        self.conv2_1 = VGGBlock(nb_filter[2]+nb_filter[3], nb_filter[2], nb_filter[2])
        self.conv3_1 = VGGBlock(nb_filter[3]+nb_filter[4], nb_filter[3], nb_filter[3])

        self.conv0_2 = VGGBlock(nb_filter[0]*2+nb_filter[1], nb_filter[0], nb_filter[0])
        self.conv1_2 = VGGBlock(nb_filter[1]*2+nb_filter[2], nb_filter[1], nb_filter[1])
        self.conv2_2 = VGGBlock(nb_filter[2]*2+nb_filter[3], nb_filter[2], nb_filter[2])

        self.conv0_3 = VGGBlock(nb_filter[0]*3+nb_filter[1], nb_filter[0], nb_filter[0])
        self.conv1_3 = VGGBlock(nb_filter[1]*3+nb_filter[2], nb_filter[1], nb_filter[1])

        self.conv0_4 = VGGBlock(nb_filter[0]*4+nb_filter[1], nb_filter[0], nb_filter[0])

        if self.deep_supervision:
            self.final1 = nn.Conv2d(nb_filter[0], num_classes, kernel_size=1)
            self.final2 = nn.Conv2d(nb_filter[0], num_classes, kernel_size=1)
            self.final3 = nn.Conv2d(nb_filter[0], num_classes, kernel_size=1)
            self.final4 = nn.Conv2d(nb_filter[0], num_classes, kernel_size=1)
        else:
            self.final = nn.Conv2d(nb_filter[0], num_classes, kernel_size=1)


    def forward(self, input):
        print('input:',input.shape)
        x0_0 = self.conv0_0(input)
        print('x0_0:',x0_0.shape)
        x1_0 = self.conv1_0(self.pool(x0_0))
        print('x1_0:',x1_0.shape)
        x0_1 = self.conv0_1(torch.cat([x0_0, self.up(x1_0)], 1))
        print('x0_1:',x0_1.shape)

        x2_0 = self.conv2_0(self.pool(x1_0))
        print('x2_0:',x2_0.shape)
        x1_1 = self.conv1_1(torch.cat([x1_0, self.up(x2_0)], 1))
        print('x1_1:',x1_1.shape)
        x0_2 = self.conv0_2(torch.cat([x0_0, x0_1, self.up(x1_1)], 1))
        print('x0_2:',x0_2.shape)

        x3_0 = self.conv3_0(self.pool(x2_0))
        print('x3_0:',x3_0.shape)
        x2_1 = self.conv2_1(torch.cat([x2_0, self.up(x3_0)], 1))
        print('x2_1:',x2_1.shape)
        x1_2 = self.conv1_2(torch.cat([x1_0, x1_1, self.up(x2_1)], 1))
        print('x1_2:',x1_2.shape)
        x0_3 = self.conv0_3(torch.cat([x0_0, x0_1, x0_2, self.up(x1_2)], 1))
        print('x0_3:',x0_3.shape)
        x4_0 = self.conv4_0(self.pool(x3_0))
        print('x4_0:',x4_0.shape)
        x3_1 = self.conv3_1(torch.cat([x3_0, self.up(x4_0)], 1))
        print('x3_1:',x3_1.shape)
        x2_2 = self.conv2_2(torch.cat([x2_0, x2_1, self.up(x3_1)], 1))
        print('x2_2:',x2_2.shape)
        x1_3 = self.conv1_3(torch.cat([x1_0, x1_1, x1_2, self.up(x2_2)], 1))
        print('x1_3:',x1_3.shape)
        x0_4 = self.conv0_4(torch.cat([x0_0, x0_1, x0_2, x0_3, self.up(x1_3)], 1))
        print('x0_4:',x0_4.shape)

        if self.deep_supervision:
            output1 = self.final1(x0_1)
            output2 = self.final2(x0_2)
            output3 = self.final3(x0_3)
            output4 = self.final4(x0_4)
            return [output1, output2, output3, output4]

        else:
            output = self.final(x0_4)
            return output

dataset.py为数据的预处理部分

import os

import cv2
import numpy as np
import torch
import torch.utils.data


class Dataset(torch.utils.data.Dataset):
    def __init__(self, img_ids, img_dir, mask_dir, img_ext, mask_ext, num_classes, transform=None):
        """
        Args:
            img_ids (list): Image ids.
            img_dir: Image file directory.
            mask_dir: Mask file directory.
            img_ext (str): Image file extension.
            mask_ext (str): Mask file extension.
            num_classes (int): Number of classes.
            transform (Compose, optional): Compose transforms of albumentations. Defaults to None.

        Note:
            Make sure to put the files as the following structure:
            <dataset name>
            ├── images
            |   ├── 0a7e06.jpg
            │   ├── 0aab0a.jpg
            │   ├── 0b1761.jpg
            │   ├── ...
            |
            └── masks
                ├── 0
                |   ├── 0a7e06.png
                |   ├── 0aab0a.png
                |   ├── 0b1761.png
                |   ├── ...
                |
                ├── 1
                |   ├── 0a7e06.png
                |   ├── 0aab0a.png
                |   ├── 0b1761.png
                |   ├── ...
                ...
        """
        self.img_ids = img_ids
        self.img_dir = img_dir
        self.mask_dir = mask_dir
        self.img_ext = img_ext
        self.mask_ext = mask_ext
        self.num_classes = num_classes
        self.transform = transform

    def __len__(self):
        return len(self.img_ids)

    def __getitem__(self, idx):
        img_id = self.img_ids[idx]

        img = cv2.imread(os.path.join(self.img_dir, img_id + self.img_ext))

        mask = []
        for i in range(self.num_classes):
            mask.append(cv2.imread(os.path.join(self.mask_dir, str(i),
                        img_id + self.mask_ext), cv2.IMREAD_GRAYSCALE)[..., None])
        mask = np.dstack(mask)

        if self.transform is not None:
            augmented = self.transform(image=img, mask=mask)#这个包比较方便,能把mask也一并做掉
            img = augmented['image']#参考https://github.com/albumentations-team/albumentations
            mask = augmented['mask']

        img = img.astype('float32') / 255
        img = img.transpose(2, 0, 1)
        mask = mask.astype('float32') / 255
        mask = mask.transpose(2, 0, 1)

        return img, mask, {'img_id': img_id}

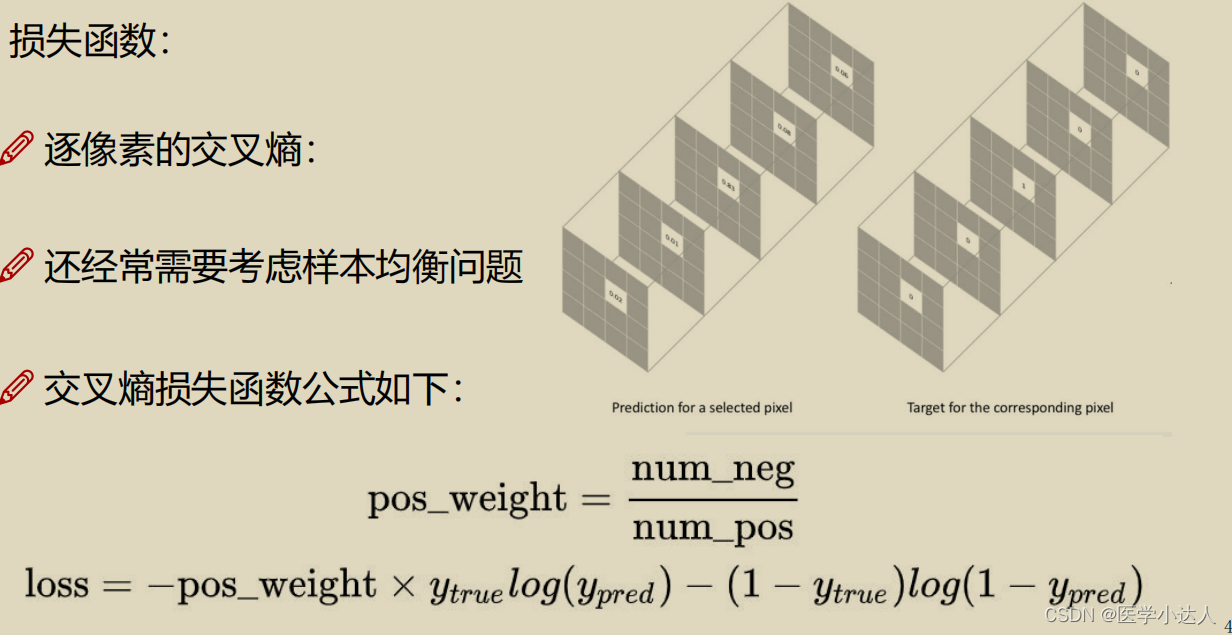

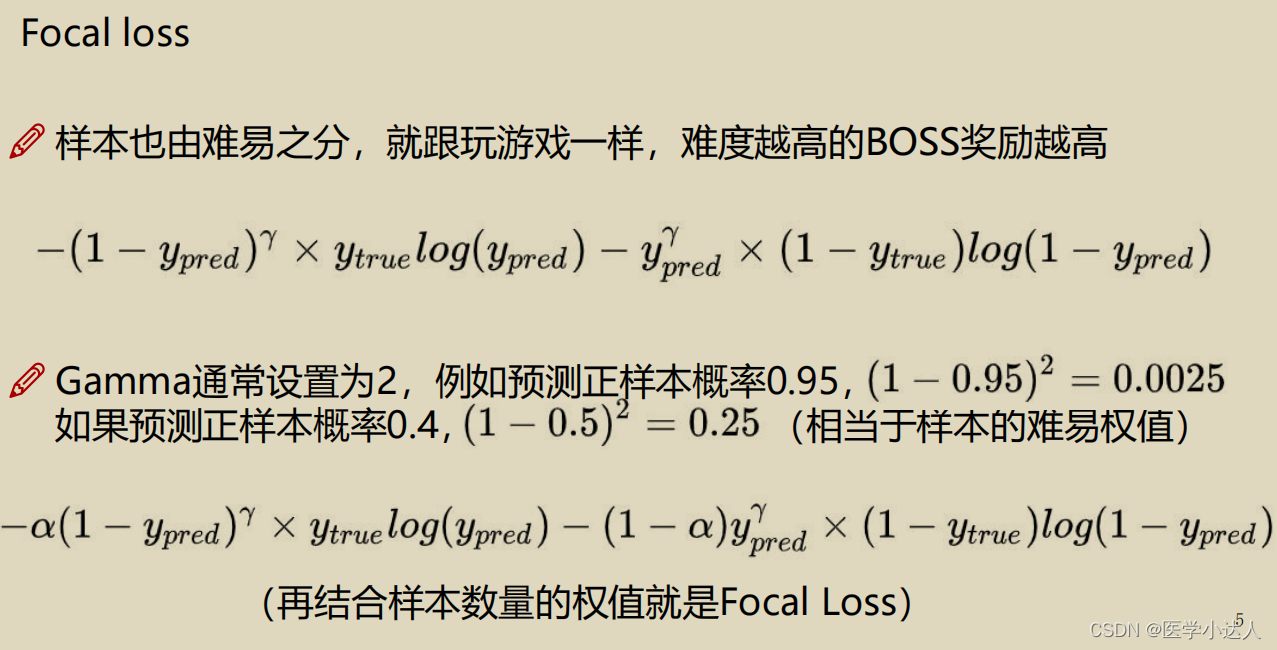

losses.py

import torch
import torch.nn as nn
import torch.nn.functional as F

try:
    from LovaszSoftmax.pytorch.lovasz_losses import lovasz_hinge
except ImportError:
    pass

__all__ = ['BCEDiceLoss', 'LovaszHingeLoss']


class BCEDiceLoss(nn.Module):
    def __init__(self):
        super().__init__()

    def forward(self, input, target):
        bce = F.binary_cross_entropy_with_logits(input, target)
        smooth = 1e-5
        input = torch.sigmoid(input)
        num = target.size(0)
        input = input.view(num, -1)
        target = target.view(num, -1)
        intersection = (input * target)
        dice = (2. * intersection.sum(1) + smooth) / (input.sum(1) + target.sum(1) + smooth)
        dice = 1 - dice.sum() / num
        return 0.5 * bce + dice


class LovaszHingeLoss(nn.Module):
    def __init__(self):
        super().__init__()

    def forward(self, input, target):
        input = input.squeeze(1)
        target = target.squeeze(1)
        loss = lovasz_hinge(input, target, per_image=True)

        return loss

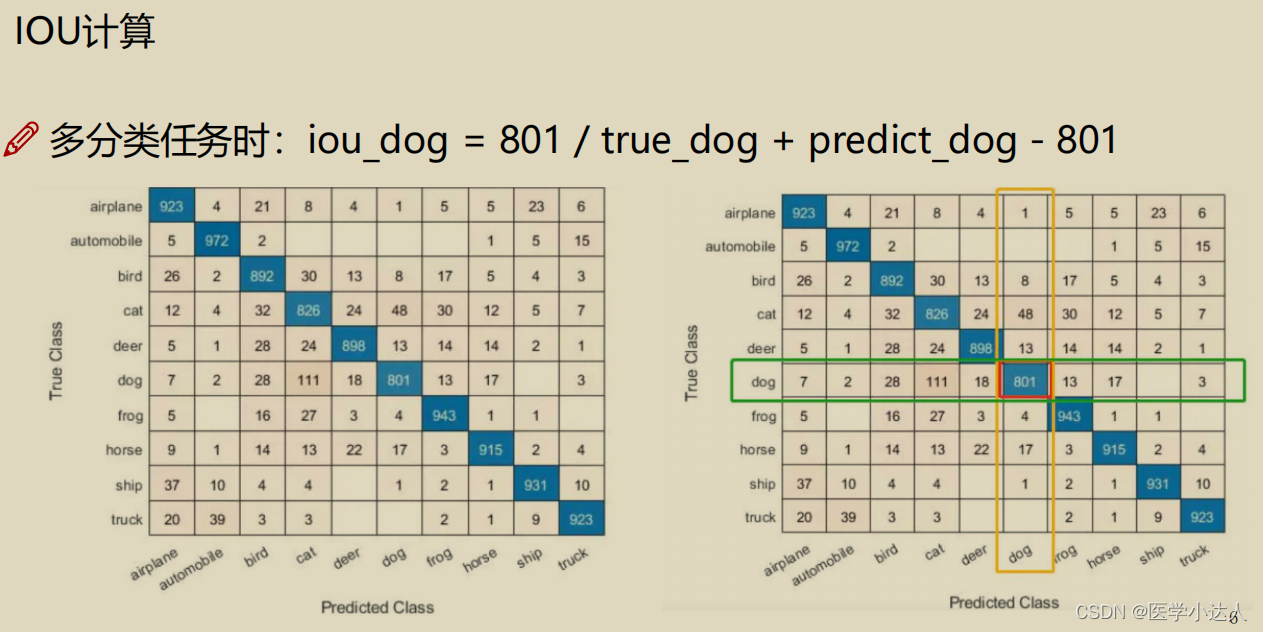

metrics.py 模型效果评价指标

import numpy as np
import torch
import torch.nn.functional as F


def iou_score(output, target):
    smooth = 1e-5

    if torch.is_tensor(output):
        output = torch.sigmoid(output).data.cpu().numpy()
    if torch.is_tensor(target):
        target = target.data.cpu().numpy()
    output_ = output > 0.5
    target_ = target > 0.5
    intersection = (output_ & target_).sum()
    union = (output_ | target_).sum()

    return (intersection + smooth) / (union + smooth)


def dice_coef(output, target):
    smooth = 1e-5

    output = torch.sigmoid(output).view(-1).data.cpu().numpy()
    target = target.view(-1).data.cpu().numpy()
    intersection = (output * target).sum()

    return (2. * intersection + smooth) / \
        (output.sum() + target.sum() + smooth)

preprocess.py 数据标签的合并处理,将同一张图的多个标签数据合并为一张

import os
from glob import glob

import cv2
import numpy as np
from tqdm import tqdm


def main():
    img_size = 96

    paths = glob('inputs/stage1_train/*')

    os.makedirs('inputs/dsb2018_%d/images' % img_size, exist_ok=True)
    os.makedirs('inputs/dsb2018_%d/masks/0' % img_size, exist_ok=True)

    for i in tqdm(range(len(paths))):
        path = paths[i]
        img = cv2.imread(os.path.join(path, 'images',
                         os.path.basename(path) + '.png'))
        mask = np.zeros((img.shape[0], img.shape[1]))
        for mask_path in glob(os.path.join(path, 'masks', '*')):
            mask_ = cv2.imread(mask_path, cv2.IMREAD_GRAYSCALE) > 127
            mask[mask_] = 1
        if len(img.shape) == 2:
            img = np.tile(img[..., None], (1, 1, 3))
        if img.shape[2] == 4:
            img = img[..., :3]
        img = cv2.resize(img, (img_size, img_size))
        mask = cv2.resize(mask, (img_size, img_size))
        cv2.imwrite(os.path.join('inputs/dsb2018_%d/images' % img_size,
                    os.path.basename(path) + '.png'), img)
        cv2.imwrite(os.path.join('inputs/dsb2018_%d/masks/0' % img_size,
                    os.path.basename(path) + '.png'), (mask * 255).astype('uint8'))


if __name__ == '__main__':
    main()

 utils.py 其它设置

import argparse


def str2bool(v):
    if v.lower() in ['true', 1]:
        return True
    elif v.lower() in ['false', 0]:
        return False
    else:
        raise argparse.ArgumentTypeError('Boolean value expected.')


def count_params(model):
    return sum(p.numel() for p in model.parameters() if p.requires_grad)


class AverageMeter(object):
    """Computes and stores the average and current value"""

    def __init__(self):
        self.reset()

    def reset(self):
        self.val = 0
        self.avg = 0
        self.sum = 0
        self.count = 0

    def update(self, val, n=1):
        self.val = val
        self.sum += val * n
        self.count += n
        self.avg = self.sum / self.count

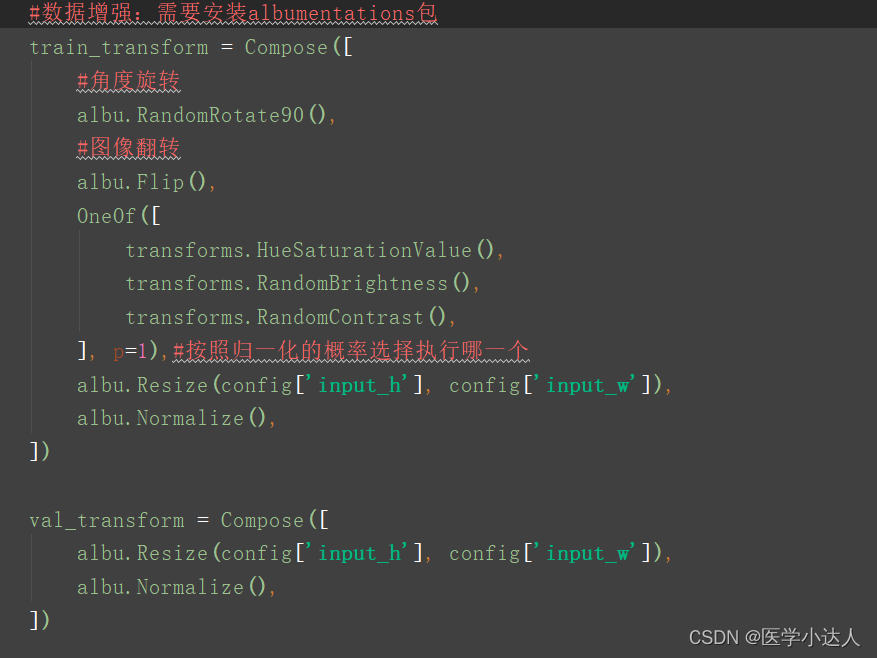

train.py 模型训练

import argparse
import os
from collections import OrderedDict
from glob import glob

import pandas as pd
import torch
import torch.backends.cudnn as cudnn
import torch.nn as nn
import torch.optim as optim
import yaml
import albumentations as albu
from albumentations.augmentations import transforms
from albumentations.core.composition import Compose, OneOf
from sklearn.model_selection import train_test_split
from torch.optim import lr_scheduler
from tqdm import tqdm

import archs
import losses
from dataset import Dataset
from metrics import iou_score
from utils import AverageMeter, str2bool

ARCH_NAMES = archs.__all__
LOSS_NAMES = losses.__all__
LOSS_NAMES.append('BCEWithLogitsLoss')

"""

指定参数:
--dataset dsb2018_96
--arch NestedUNet

"""

def parse_args():
    parser = argparse.ArgumentParser()

    parser.add_argument('--name', default=None,
                        help='model name: (default: arch+timestamp)')
    parser.add_argument('--epochs', default=100, type=int, metavar='N',
                        help='number of total epochs to run')
    parser.add_argument('-b', '--batch_size', default=8, type=int,
                        metavar='N', help='mini-batch size (default: 16)')

    # model
    parser.add_argument('--arch', '-a', metavar='ARCH', default='NestedUNet',
                        choices=ARCH_NAMES,
                        help='model architecture: ' +
                        ' | '.join(ARCH_NAMES) +
                        ' (default: NestedUNet)')
    parser.add_argument('--deep_supervision', default=False, type=str2bool)
    parser.add_argument('--input_channels', default=3, type=int,
                        help='input channels')
    parser.add_argument('--num_classes', default=1, type=int,
                        help='number of classes')
    parser.add_argument('--input_w', default=96, type=int,
                        help='image width')
    parser.add_argument('--input_h', default=96, type=int,
                        help='image height')

    # loss
    parser.add_argument('--loss', default='BCEDiceLoss',
                        choices=LOSS_NAMES,
                        help='loss: ' +
                        ' | '.join(LOSS_NAMES) +
                        ' (default: BCEDiceLoss)')

    # dataset
    parser.add_argument('--dataset', default='dsb2018_96',
                        help='dataset name')
    parser.add_argument('--img_ext', default='.png',
                        help='image file extension')
    parser.add_argument('--mask_ext', default='.png',
                        help='mask file extension')

    # optimizer
    parser.add_argument('--optimizer', default='SGD',
                        choices=['Adam', 'SGD'],
                        help='loss: ' +
                        ' | '.join(['Adam', 'SGD']) +
                        ' (default: Adam)')
    parser.add_argument('--lr', '--learning_rate', default=1e-3, type=float,
                        metavar='LR', help='initial learning rate')
    parser.add_argument('--momentum', default=0.9, type=float,
                        help='momentum')
    parser.add_argument('--weight_decay', default=1e-4, type=float,
                        help='weight decay')
    parser.add_argument('--nesterov', default=False, type=str2bool,
                        help='nesterov')

    # scheduler
    parser.add_argument('--scheduler', default='CosineAnnealingLR',
                        choices=['CosineAnnealingLR', 'ReduceLROnPlateau', 'MultiStepLR', 'ConstantLR'])
    parser.add_argument('--min_lr', default=1e-5, type=float,
                        help='minimum learning rate')
    parser.add_argument('--factor', default=0.1, type=float)
    parser.add_argument('--patience', default=2, type=int)
    parser.add_argument('--milestones', default='1,2', type=str)
    parser.add_argument('--gamma', default=2/3, type=float)
    parser.add_argument('--early_stopping', default=-1, type=int,
                        metavar='N', help='early stopping (default: -1)')

    parser.add_argument('--num_workers', default=0, type=int)

    config = parser.parse_args()

    return config


def train(config, train_loader, model, criterion, optimizer):
    avg_meters = {'loss': AverageMeter(),
                  'iou': AverageMeter()}

    model.train()

    pbar = tqdm(total=len(train_loader))
    for input, target, _ in train_loader:
        input = input.cuda()
        target = target.cuda()

        # compute output
        if config['deep_supervision']:
            outputs = model(input)
            loss = 0
            for output in outputs:
                loss += criterion(output, target)
            loss /= len(outputs)
            iou = iou_score(outputs[-1], target)
        else:
            output = model(input)
            loss = criterion(output, target)
            iou = iou_score(output, target)

        # compute gradient and do optimizing step
        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

        avg_meters['loss'].update(loss.item(), input.size(0))
        avg_meters['iou'].update(iou, input.size(0))

        postfix = OrderedDict([
            ('loss', avg_meters['loss'].avg),
            ('iou', avg_meters['iou'].avg),
        ])
        pbar.set_postfix(postfix)
        pbar.update(1)
    pbar.close()

    return OrderedDict([('loss', avg_meters['loss'].avg),
                        ('iou', avg_meters['iou'].avg)])


def validate(config, val_loader, model, criterion):
    avg_meters = {'loss': AverageMeter(),
                  'iou': AverageMeter()}

    # switch to evaluate mode
    model.eval()

    with torch.no_grad():
        pbar = tqdm(total=len(val_loader))
        for input, target, _ in val_loader:
            input = input.cuda()
            target = target.cuda()

            # compute output
            if config['deep_supervision']:
                outputs = model(input)
                loss = 0
                for output in outputs:
                    loss += criterion(output, target)
                loss /= len(outputs)
                iou = iou_score(outputs[-1], target)
            else:
                output = model(input)
                loss = criterion(output, target)
                iou = iou_score(output, target)

            avg_meters['loss'].update(loss.item(), input.size(0))
            avg_meters['iou'].update(iou, input.size(0))

            postfix = OrderedDict([
                ('loss', avg_meters['loss'].avg),
                ('iou', avg_meters['iou'].avg),
            ])
            pbar.set_postfix(postfix)
            pbar.update(1)
        pbar.close()

    return OrderedDict([('loss', avg_meters['loss'].avg),
                        ('iou', avg_meters['iou'].avg)])


def main():
    config = vars(parse_args())

    if config['name'] is None:
        if config['deep_supervision']:
            config['name'] = '%s_%s_wDS' % (config['dataset'], config['arch'])
        else:
            config['name'] = '%s_%s_woDS' % (config['dataset'], config['arch'])
    os.makedirs('models/%s' % config['name'], exist_ok=True)

    print('-' * 20)
    for key in config:
        print('%s: %s' % (key, config[key]))
    print('-' * 20)

    with open('models/%s/config.yml' % config['name'], 'w') as f:
        yaml.dump(config, f)

    # define loss function (criterion)
    if config['loss'] == 'BCEWithLogitsLoss':
        criterion = nn.BCEWithLogitsLoss().cuda()#WithLogits 就是先将输出结果经过sigmoid再交叉熵
    else:
        criterion = losses.__dict__[config['loss']]().cuda()

    cudnn.benchmark = True

    # create model
    print("=> creating model %s" % config['arch'])
    model = archs.__dict__[config['arch']](config['num_classes'],
                                           config['input_channels'],
                                           config['deep_supervision'])

    model = model.cuda()

    params = filter(lambda p: p.requires_grad, model.parameters())
    if config['optimizer'] == 'Adam':
        optimizer = optim.Adam(
            params, lr=config['lr'], weight_decay=config['weight_decay'])
    elif config['optimizer'] == 'SGD':
        optimizer = optim.SGD(params, lr=config['lr'], momentum=config['momentum'],
                              nesterov=config['nesterov'], weight_decay=config['weight_decay'])
    else:
        raise NotImplementedError

    if config['scheduler'] == 'CosineAnnealingLR':
        scheduler = lr_scheduler.CosineAnnealingLR(
            optimizer, T_max=config['epochs'], eta_min=config['min_lr'])
    elif config['scheduler'] == 'ReduceLROnPlateau':
        scheduler = lr_scheduler.ReduceLROnPlateau(optimizer, factor=config['factor'], patience=config['patience'],
                                                   verbose=1, min_lr=config['min_lr'])
    elif config['scheduler'] == 'MultiStepLR':
        scheduler = lr_scheduler.MultiStepLR(optimizer, milestones=[int(e) for e in config['milestones'].split(',')], gamma=config['gamma'])
    elif config['scheduler'] == 'ConstantLR':
        scheduler = None
    else:
        raise NotImplementedError

    # Data loading code
    img_ids = glob(os.path.join('inputs', config['dataset'], 'images', '*' + config['img_ext']))
    img_ids = [os.path.splitext(os.path.basename(p))[0] for p in img_ids]

    train_img_ids, val_img_ids = train_test_split(img_ids, test_size=0.2, random_state=41)
    #数据增强:需要安装albumentations包
    train_transform = Compose([
        #角度旋转
        albu.RandomRotate90(),
        #图像翻转
        albu.Flip(),
        OneOf([
            transforms.HueSaturationValue(),
            transforms.RandomBrightness(),
            transforms.RandomContrast(),
        ], p=1),#按照归一化的概率选择执行哪一个
        albu.Resize(config['input_h'], config['input_w']),
        albu.Normalize(),
    ])

    val_transform = Compose([
        albu.Resize(config['input_h'], config['input_w']),
        albu.Normalize(),
    ])

    train_dataset = Dataset(
        img_ids=train_img_ids,
        img_dir=os.path.join('inputs', config['dataset'], 'images'),
        mask_dir=os.path.join('inputs', config['dataset'], 'masks'),
        img_ext=config['img_ext'],
        mask_ext=config['mask_ext'],
        num_classes=config['num_classes'],
        transform=train_transform)
    val_dataset = Dataset(
        img_ids=val_img_ids,
        img_dir=os.path.join('inputs', config['dataset'], 'images'),
        mask_dir=os.path.join('inputs', config['dataset'], 'masks'),
        img_ext=config['img_ext'],
        mask_ext=config['mask_ext'],
        num_classes=config['num_classes'],
        transform=val_transform)

    train_loader = torch.utils.data.DataLoader(
        train_dataset,
        batch_size=config['batch_size'],
        shuffle=True,
        num_workers=config['num_workers'],
        drop_last=True)#不能整除的batch是否就不要了
    val_loader = torch.utils.data.DataLoader(
        val_dataset,
        batch_size=config['batch_size'],
        shuffle=False,
        num_workers=config['num_workers'],
        drop_last=False)

    log = OrderedDict([
        ('epoch', []),
        ('lr', []),
        ('loss', []),
        ('iou', []),
        ('val_loss', []),
        ('val_iou', []),
    ])

    best_iou = 0
    trigger = 0
    for epoch in range(config['epochs']):
        print('Epoch [%d/%d]' % (epoch, config['epochs']))

        # train for one epoch
        train_log = train(config, train_loader, model, criterion, optimizer)
        # evaluate on validation set
        val_log = validate(config, val_loader, model, criterion)

        if config['scheduler'] == 'CosineAnnealingLR':
            scheduler.step()
        elif config['scheduler'] == 'ReduceLROnPlateau':
            scheduler.step(val_log['loss'])

        print('loss %.4f - iou %.4f - val_loss %.4f - val_iou %.4f'
              % (train_log['loss'], train_log['iou'], val_log['loss'], val_log['iou']))

        log['epoch'].append(epoch)
        log['lr'].append(config['lr'])
        log['loss'].append(train_log['loss'])
        log['iou'].append(train_log['iou'])
        log['val_loss'].append(val_log['loss'])
        log['val_iou'].append(val_log['iou'])

        pd.DataFrame(log).to_csv('models/%s/log.csv' %
                                 config['name'], index=False)

        trigger += 1

        if val_log['iou'] > best_iou:
            torch.save(model.state_dict(), 'models/%s/model.pth' %
                       config['name'])
            best_iou = val_log['iou']
            print("=> saved best model")
            trigger = 0

        # early stopping
        if config['early_stopping'] >= 0 and trigger >= config['early_stopping']:
            print("=> early stopping")
            break

        torch.cuda.empty_cache()


if __name__ == '__main__':
    main()

四,模型结果:

 五:注意事项以及常见问题

安装增加模块albumentations,主要为数据增强模块,方便快捷

pip install albumentations

常见问题:

AttributeError: module ‘cv2’ has no attribute ‘gapi_wip_gst_GStreamerPipeline’

解决:opencv-python-headless和opencv-python的版本对应即可

pip install opencv-python-headless==4.2.0.32 -i https://pypi.tuna.tsinghua.edu.cn/simple

问题2

AttributeError: module ‘albumentations.augmentations.transforms’ has no attribute ‘RandomRotate90’

解决:直接导入import albumentations as albu



【优质项目推荐】 1、品质保证:项目代码均经过严格测试,确保功能稳定且运行ok。您可以放心下载并立即投入使用,若遇到任何问题,随时欢迎您的反馈与交流。 2、适用广泛:无论您是计算机相关专业(如计算机科学、信息安全、数据科学、人工智能、通信、物联网、自动化、电子信息等)的在校学生、专业老师,还是企业员工,都适用。 3、多用途价值:该项目不仅具有很高的学习借鉴价值,对于初学者来说,是入门进阶的绝佳选择;当然也可以直接用于 毕业设计、课程设计、期末大作业或项目初期立项演示等。 3、开放创新:如果您有一定基础,且热爱探索钻研,那该项目代码更是您发挥创意、实现新功能的起点。可以基于此代码进行修改、扩展,创造出属于自己的独特应用。 欢迎下载使用优质资源,欢迎交流学习,欢迎借鉴引用,共同探索编程的无穷魅力! 利用Unet网络对cell进行分割 数据处理 ```markdown /data --imgs/ --cell1.png --masks/ --cell1_mask.png - 将tif格式的原始图像转为jpg格式 - 将转后的jpg图像进行滑动截取, 截取后的图像大小为256x256 - 将截取后的灰度图和mask按照名称进行匹配,并放到对应的imgs和masks文件下 - 图像和mask保存要求 1. 将imgs和masks保存在同一路径./data下 2. imgs文件夹下保存原始的灰度图像(如图像名称为img1.png 3. masks文件夹下保存每张原始图像对应的mask二值图像(如mask对应的名称为img1_mask.png) ``` ## 模型构建 - UNet - NestedUNet ## 数据增强 ```markdown train_transform = Compose([ albu.RandomRotate90(), transforms.Flip(), transforms.RandomContrast(), albu.Resize(config['input_h'], config['input_w'])]) 对输入图像进行随机旋转,翻转,随机裁切, 并同一缩放到指定尺寸. ``` ## 模型训练 - UNet train ```bash python train.py --arch UNet --batch-size 4 --dataset data --epochs 5 ``` ```markdown arch: net structure batch-size: batch size dataset: file path of imgs and masks epochs: training epoch ``` - NestedUNet ```bash python train.py --arch NestedUNet --deep_supervision True --batch-size 4 --dataset data --epochs 5 ``` ## 预测 - slice predict ```bash python slicePredict.py --model_name UNet --model_weight checkpoints\UNet.pth --input D:\dataset\BGI_EXAM\test_set\172.jpg --output data/output/test_result_172.jpg ``` ```markdown model_name: Net structure name of model model_weight: Specify the file in which the model is stored input: image path of prediction output: save path of predicted result ``` - dirct predict ```bash python predict.py --model_name UNet --model_weight checkpoints\UNet.pth --input D:\dataset\BGI_EXAM\test_set\172.jpg --output data/output/test_result_172.jpg ```
评论 6
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

医学小达人

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付:¥1
获取中
扫码支付

您的余额不足,请更换扫码支付或充值

打赏作者

实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
