立创ESP32开发板+2.8寸TFT电容触摸屏[ST7789+GT911]+PlatformIO
配置
硬件：立创ESP32S3R8N8开发板 + 2.8寸TFT显示屏(ST7789) + 电容触摸(GT911)
软件：Visual Studio Code + PlatformIO
视频：B 站演示视频
新建工程
-

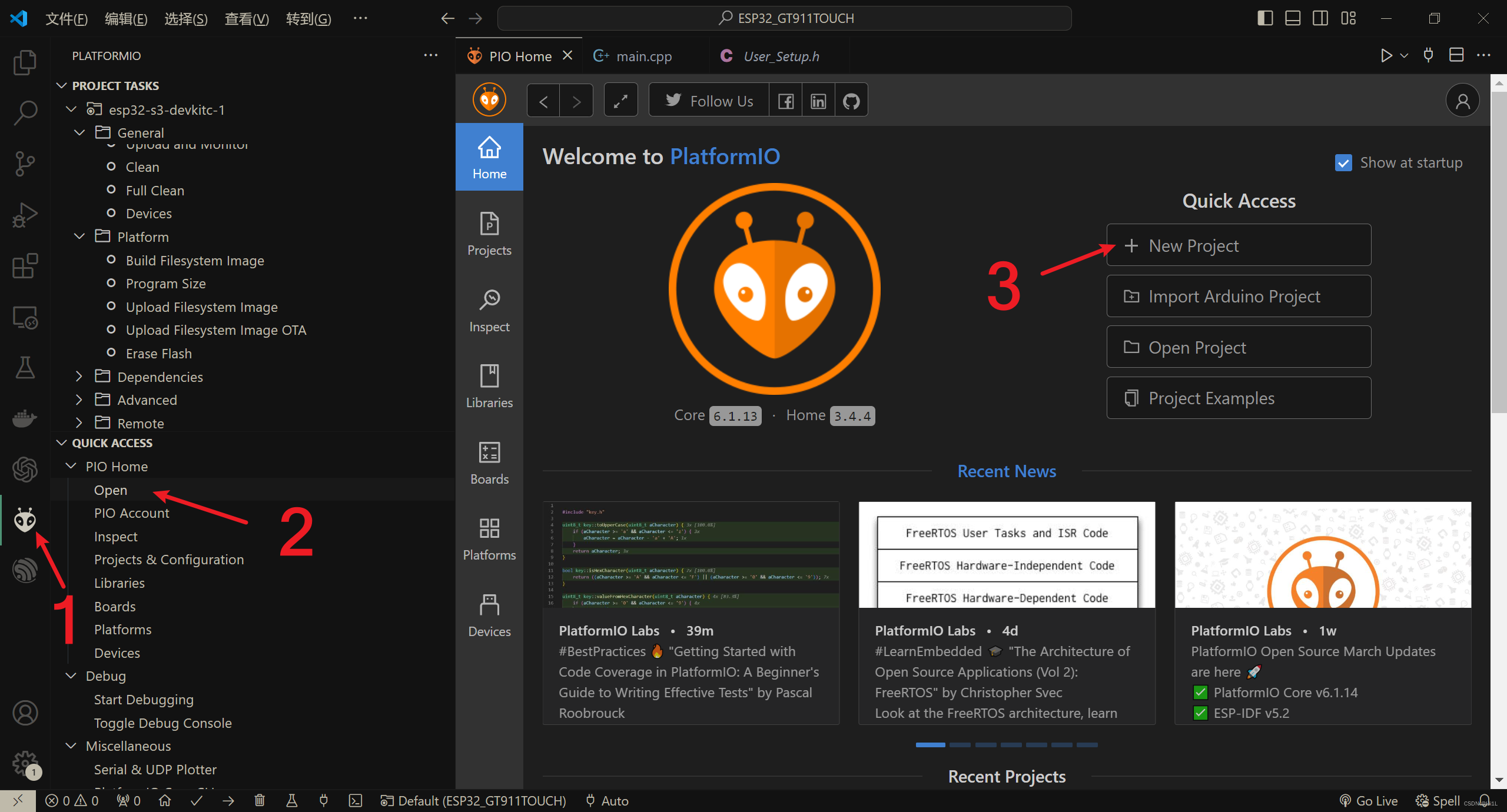

点击侧边
PlatformIO插件，新建工程
-

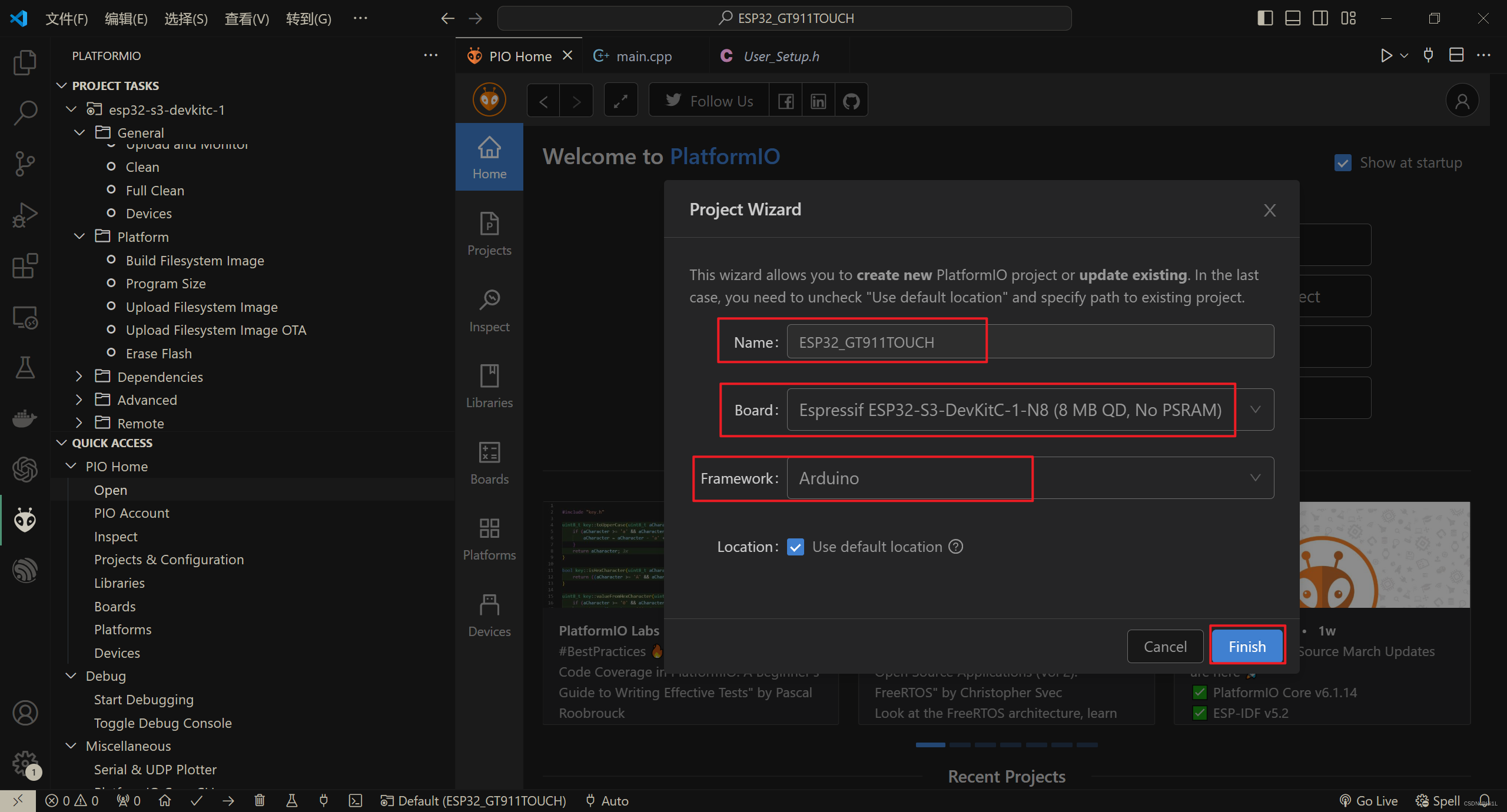

依次设置工程名，开发板，框架
屏幕测试
添加TFT_eSPI
-

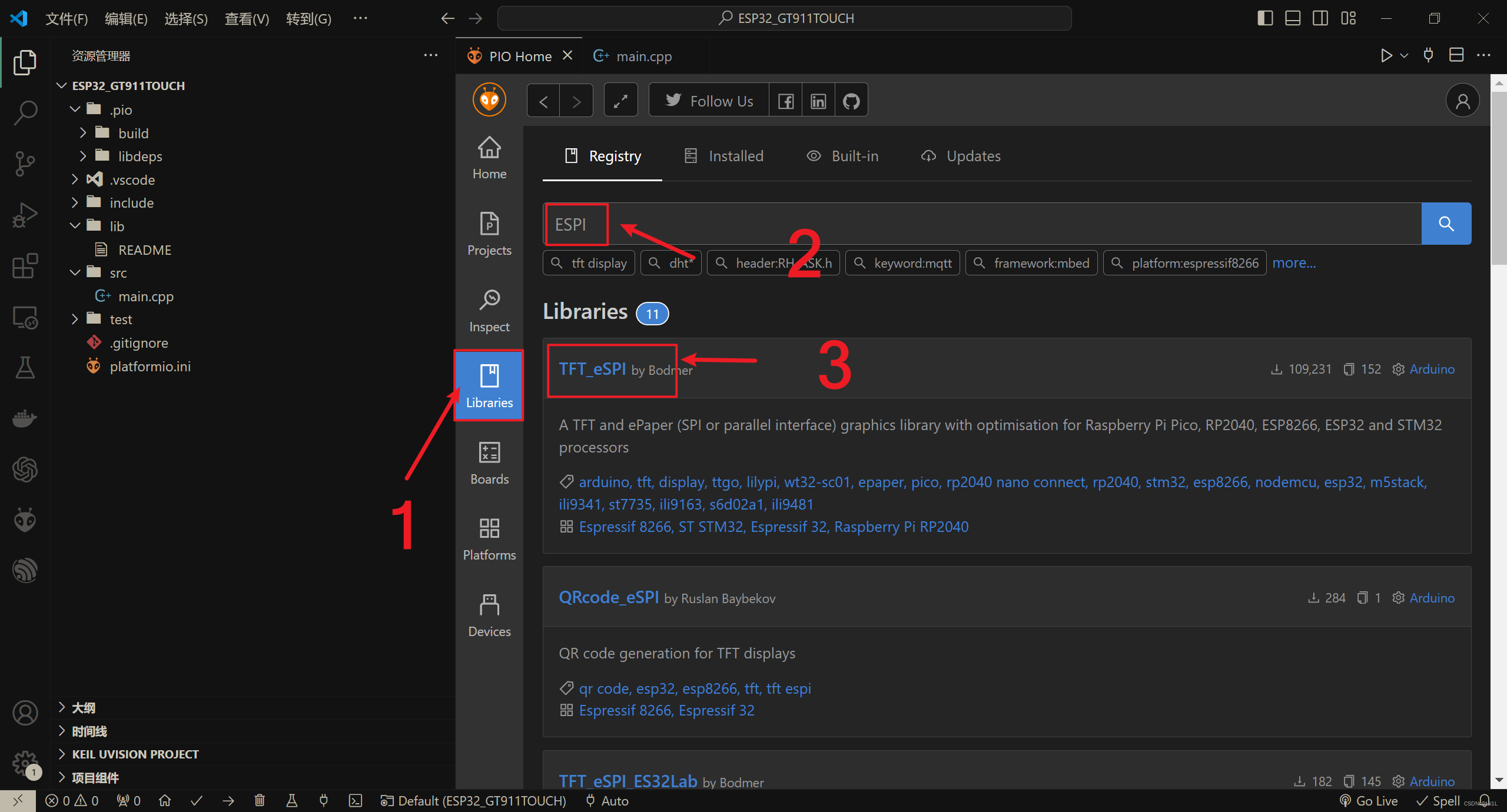

添加屏幕驱动库
TFT_eSPI，按如下图顺序
-

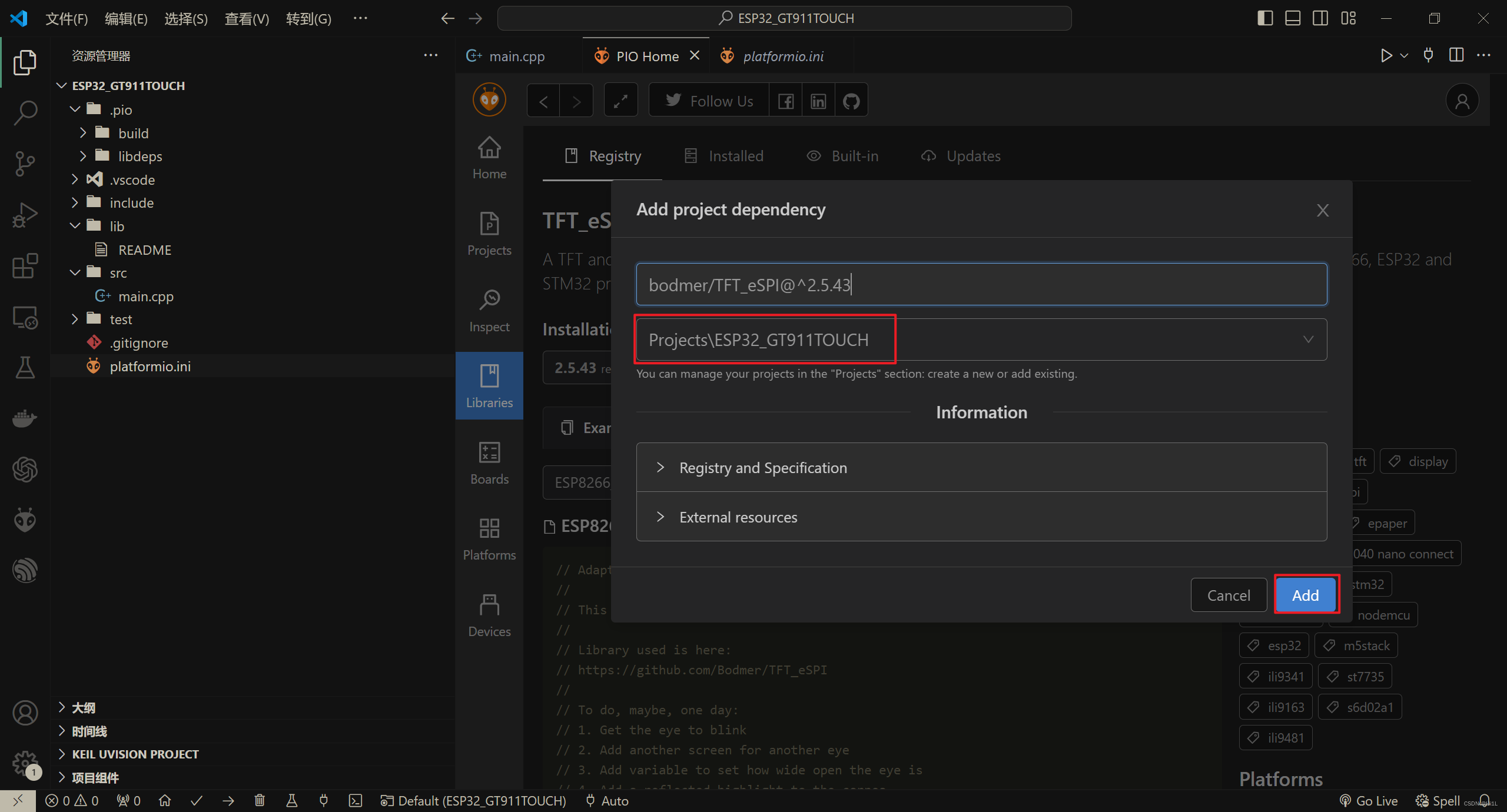

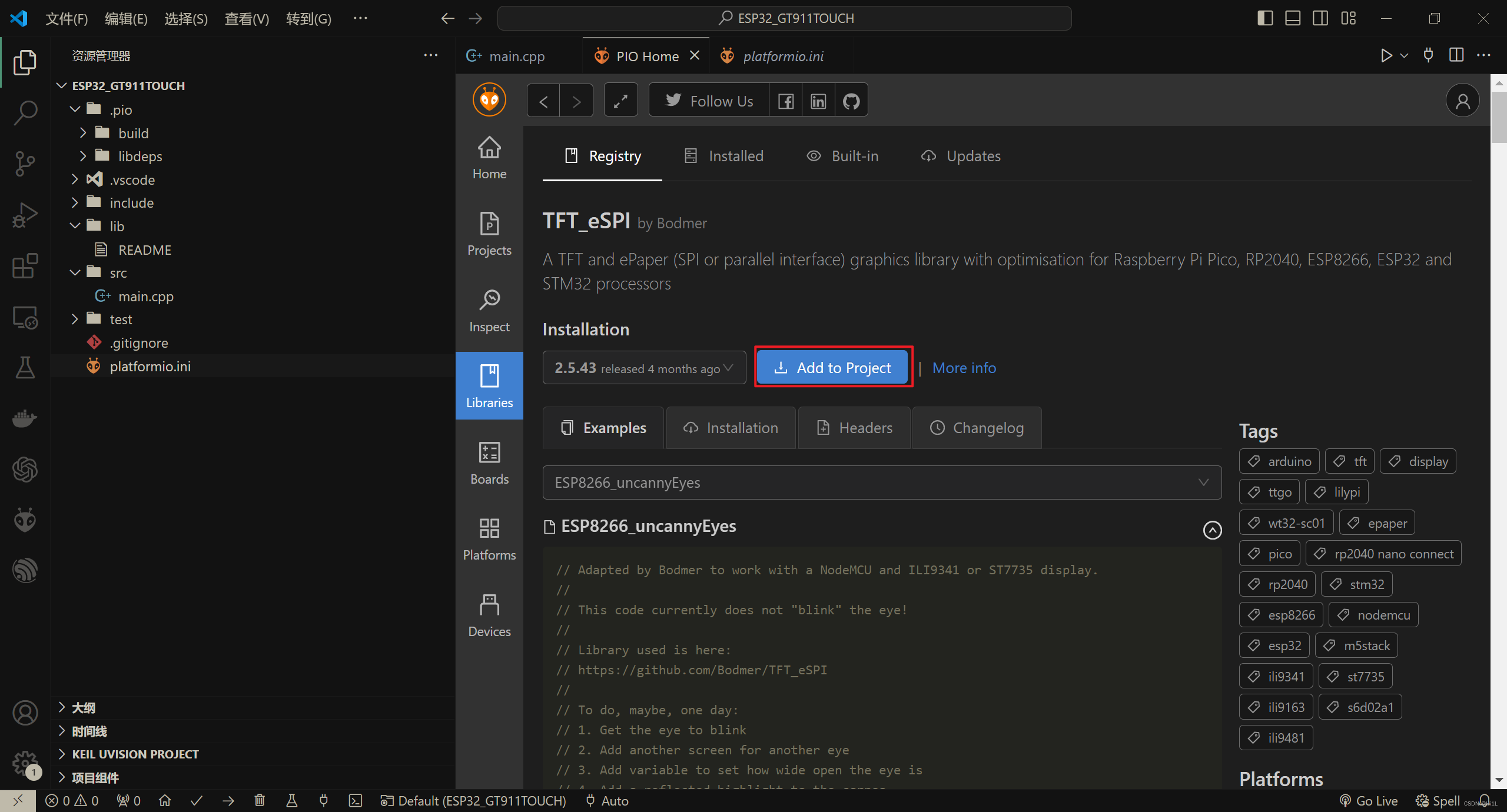

添加TFT_eSPI到工程
-

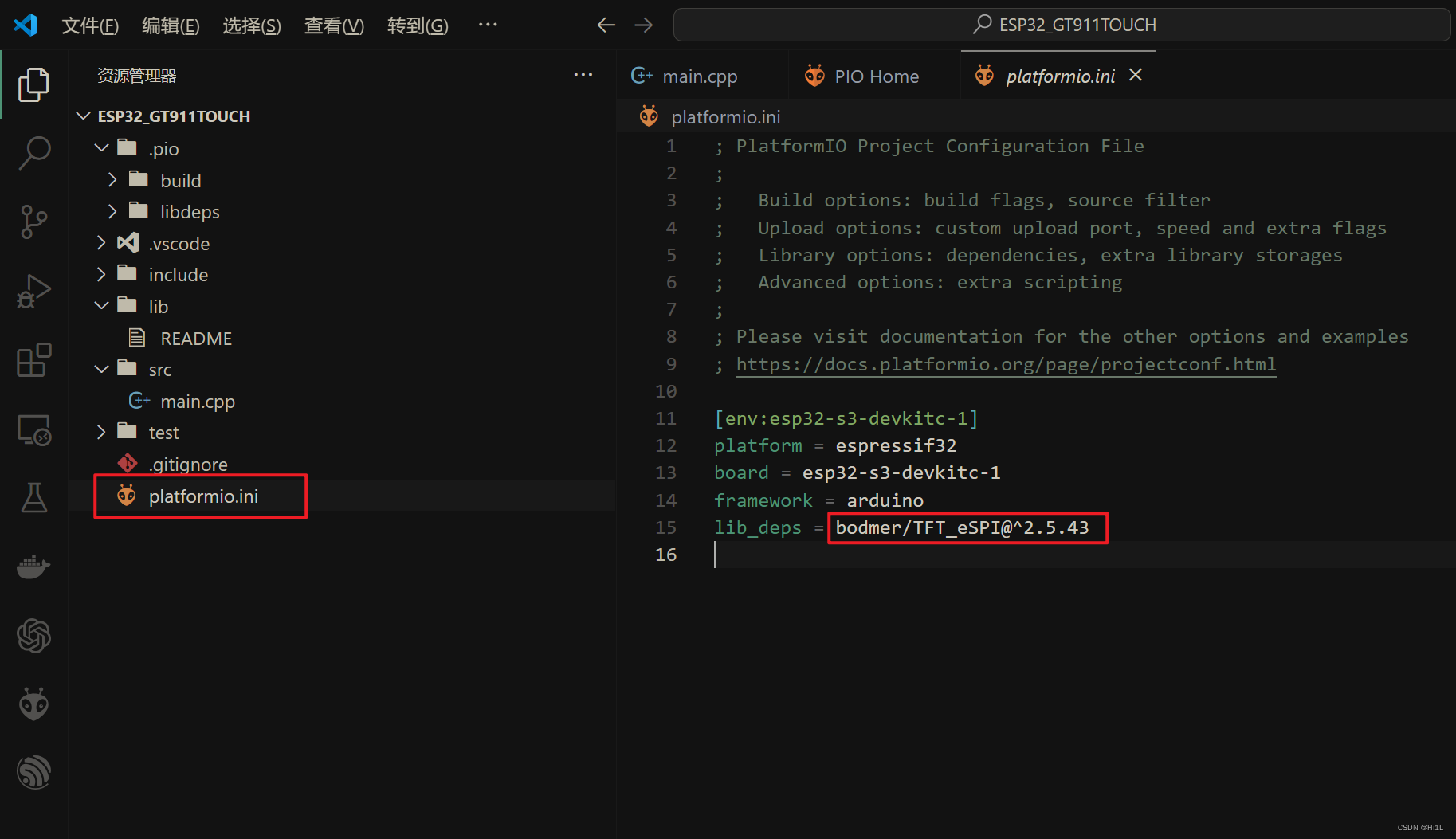

打开配置文件，可以看到已成功添加库
修改TFT_eSPI
-

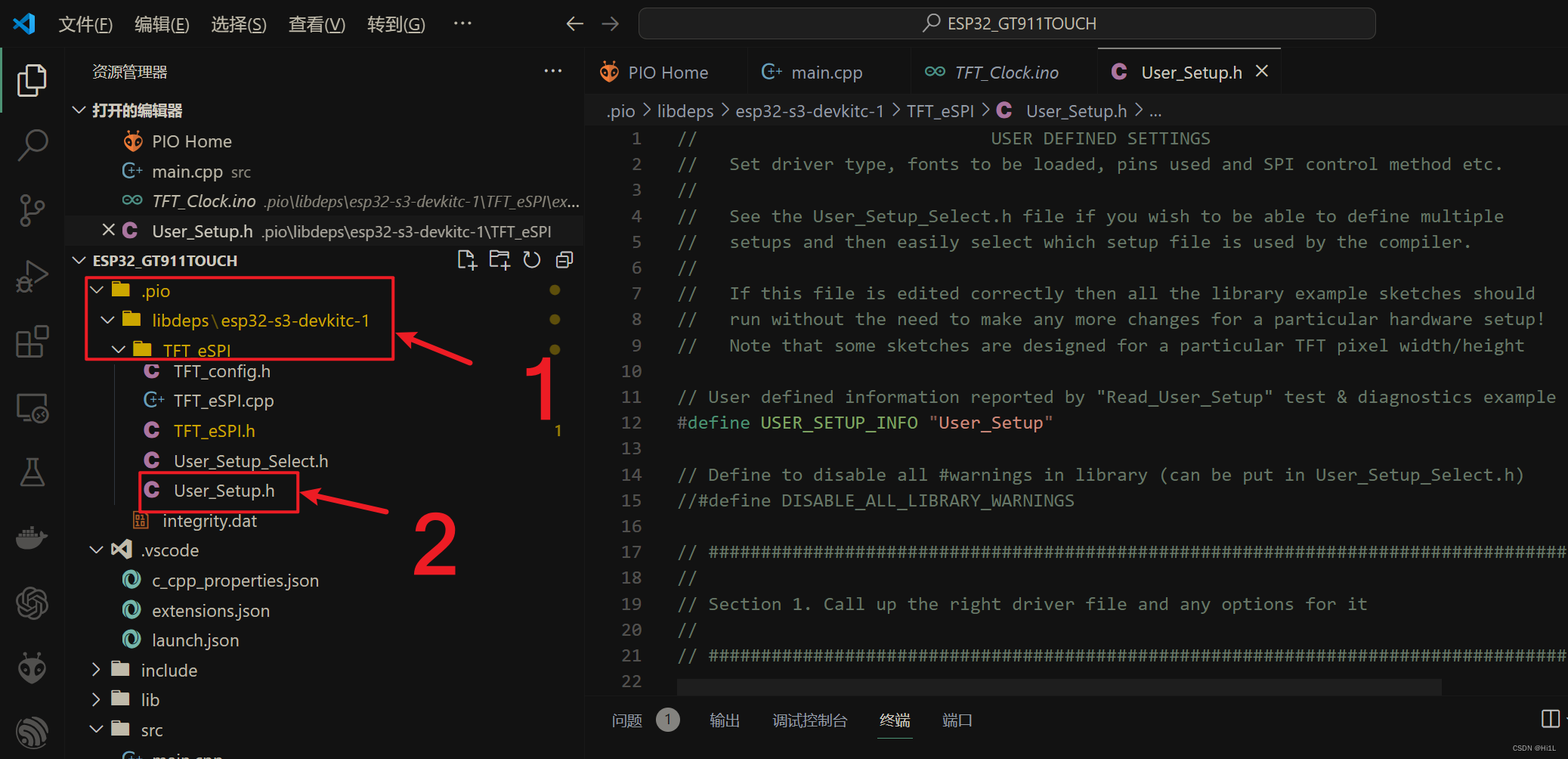

打开
.pio\libdeps\esp32-s3-devkitc-1\TFT_eSPI\User_Setup.h文件
-
根据屏幕驱动芯片解注释
// Only define one driver, the other ones must be commented out
// #define ILI9341_DRIVER // Generic driver for common displays
//#define ILI9341_2_DRIVER // Alternative ILI9341 driver, see https://github.com/Bodmer/TFT_eSPI/issues/1172
//#define ST7735_DRIVER // Define additional parameters below for this display
//#define ILI9163_DRIVER // Define additional parameters below for this display
//#define S6D02A1_DRIVER
//#define RPI_ILI9486_DRIVER // 20MHz maximum SPI
//#define HX8357D_DRIVER
//#define ILI9481_DRIVER
//#define ILI9486_DRIVER
//#define ILI9488_DRIVER // WARNING: Do not connect ILI9488 display SDO to MISO if other devices share the SPI bus (TFT SDO does NOT tristate when CS is high)
#define ST7789_DRIVER // Full configuration option, define additional parameters below for this display
//#define ST7789_2_DRIVER // Minimal configuration option, define additional parameters below for this display
//#define R61581_DRIVER
//#define RM68140_DRIVER
//#define ST7796_DRIVER
//#define SSD1351_DRIVER
//#define SSD1963_480_DRIVER
//#define SSD1963_800_DRIVER
//#define SSD1963_800ALT_DRIVER
//#define ILI9225_DRIVER
//#define GC9A01_DRIVER
- 根据屏幕大小设置宽高
// For ST7789, ST7735, ILI9163 and GC9A01 ONLY, define the pixel width and height in portrait orientation
// #define TFT_WIDTH 80
// #define TFT_WIDTH 128
// #define TFT_WIDTH 172 // ST7789 172 x 320
// #define TFT_WIDTH 170 // ST7789 170 x 320
#define TFT_WIDTH 240 // ST7789 240 x 240 and 240 x 320
// #define TFT_HEIGHT 160
// #define TFT_HEIGHT 128
// #define TFT_HEIGHT 240 // ST7789 240 x 240
#define TFT_HEIGHT 320 // ST7789 240 x 320
// #define TFT_HEIGHT 240 // GC9A01 240 x 240
- 根据连线设置引脚
// ###### EDIT THE PIN NUMBERS IN THE LINES FOLLOWING TO SUIT YOUR ESP32 SETUP ######
// For ESP32 Dev board (only tested with ILI9341 display)
// The hardware SPI can be mapped to any pins
//#define TFT_MISO 19
#define TFT_MOSI 17
#define TFT_SCLK 18
#define TFT_CS 15 // Chip select control pin
#define TFT_DC 16 // Data Command control pin
//#define TFT_RST 4 // Reset pin (could connect to RST pin)
#define TFT_RST -1 // Set TFT_RST to -1 if display RESET is connected to ESP32 board RST
修改main.cpp
在屏幕上从上到下分别显示红绿蓝三色，以及白色文字，用来测试屏幕颜色显示是否正常。
#include <Arduino.h>
#include <SPI.h>
#include <TFT_eSPI.h> // Hardware-specific library
#define TFT_GREY 0x5AEB
TFT_eSPI tft = TFT_eSPI(); // Invoke custom library
void setup() {
tft.init();
tft.setRotation(0);
tft.fillScreen(TFT_GREY);
tft.setTextColor(TFT_WHITE, TFT_GREY); // Adding a background colour erases previous text automatically
tft.fillRect(0,0,240,50,TFT_RED);
tft.fillRect(0,50,240,50,TFT_GREEN);
tft.fillRect(0,100,240,50,TFT_BLUE);
tft.drawCentreString("Time flies",120,260,4);
}
void loop() {
// put your main code here, to run repeatedly:
}
下载调试
-

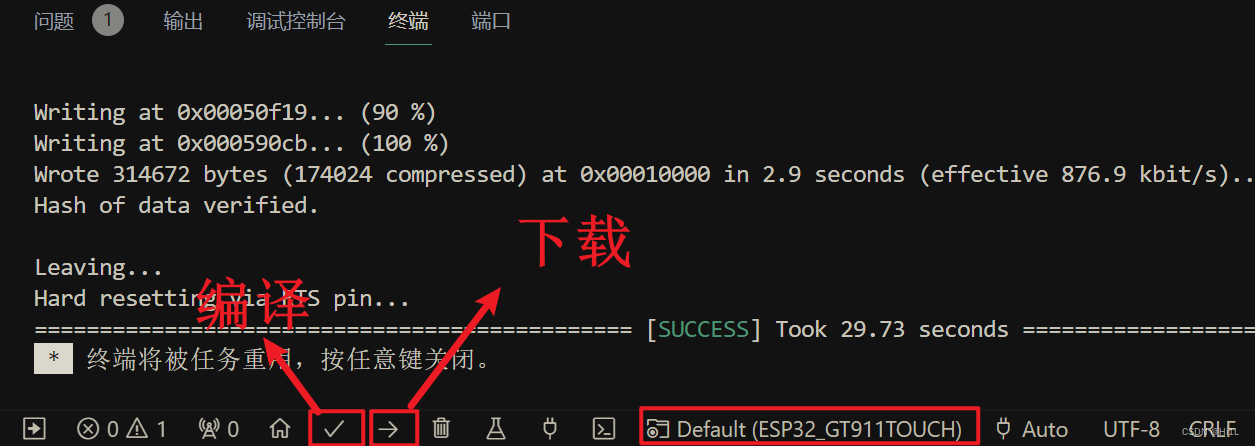

编译下载
-
根据屏幕显示情况修改
User_Setup.h文件
如果颜色反转(白色显示为黑色)，如下图所示，则取消下一个注释，尝试两个选项，其中一个选项应该纠正反转。
// If colours are inverted (white shows as black) then uncomment one of the next
// 2 lines try both options, one of the options should correct the inversion.
// #define TFT_INVERSION_ON
#define TFT_INVERSION_OFF

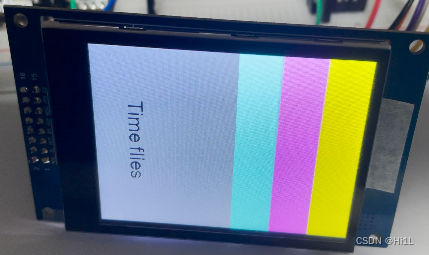

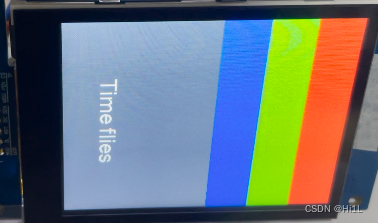

修改后，如下图所示，白色正常显示，但是RGB顺序存在问题
仅对于ST7735, ST7789和ILI9341，如果显示器上的蓝色和红色交换，则定义颜色顺序，一次尝试一个选项来找到显示的正确颜色顺序
// For ST7735, ST7789 and ILI9341 ONLY, define the colour order IF the blue and red are swapped on your display
// Try ONE option at a time to find the correct colour order for your display
// #define TFT_RGB_ORDER TFT_RGB // Colour order Red-Green-Blue
#define TFT_RGB_ORDER TFT_BGR // Colour order Blue-Green-Red

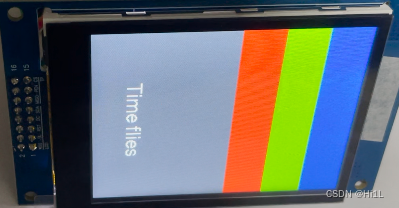

修改后，如下图所示，RGB顺序正常
LVGL测试

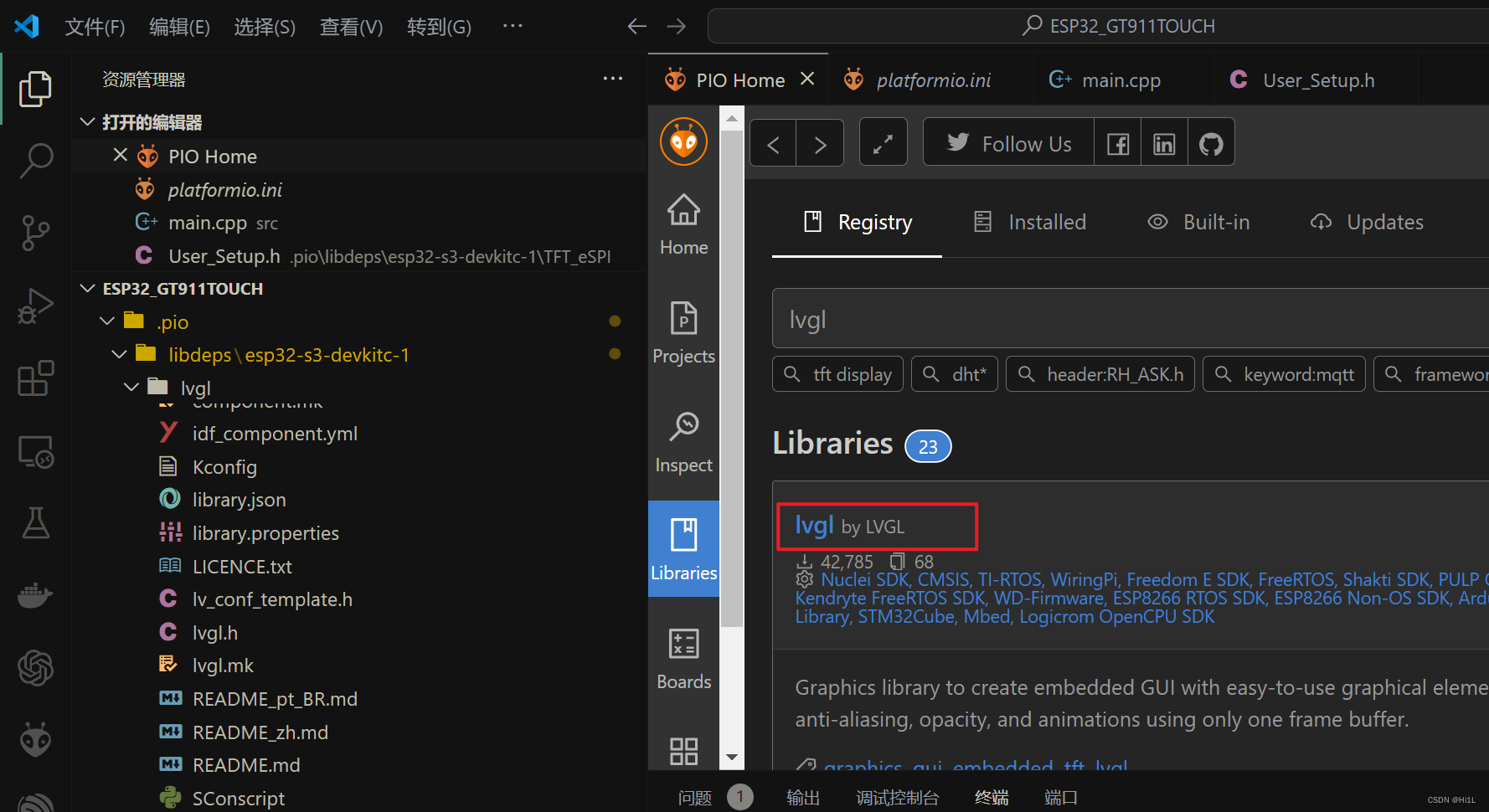

添加LVGL
-

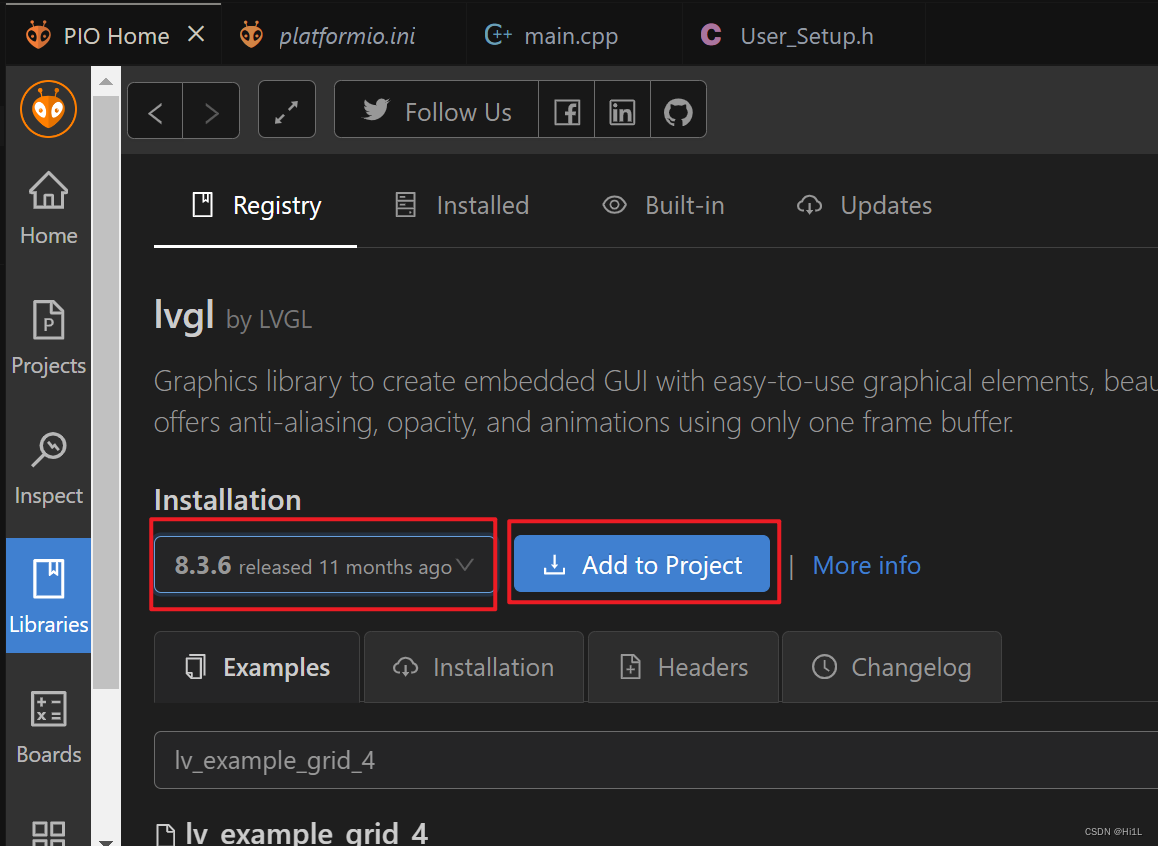

根据实际情况，选择lvgl版本
-

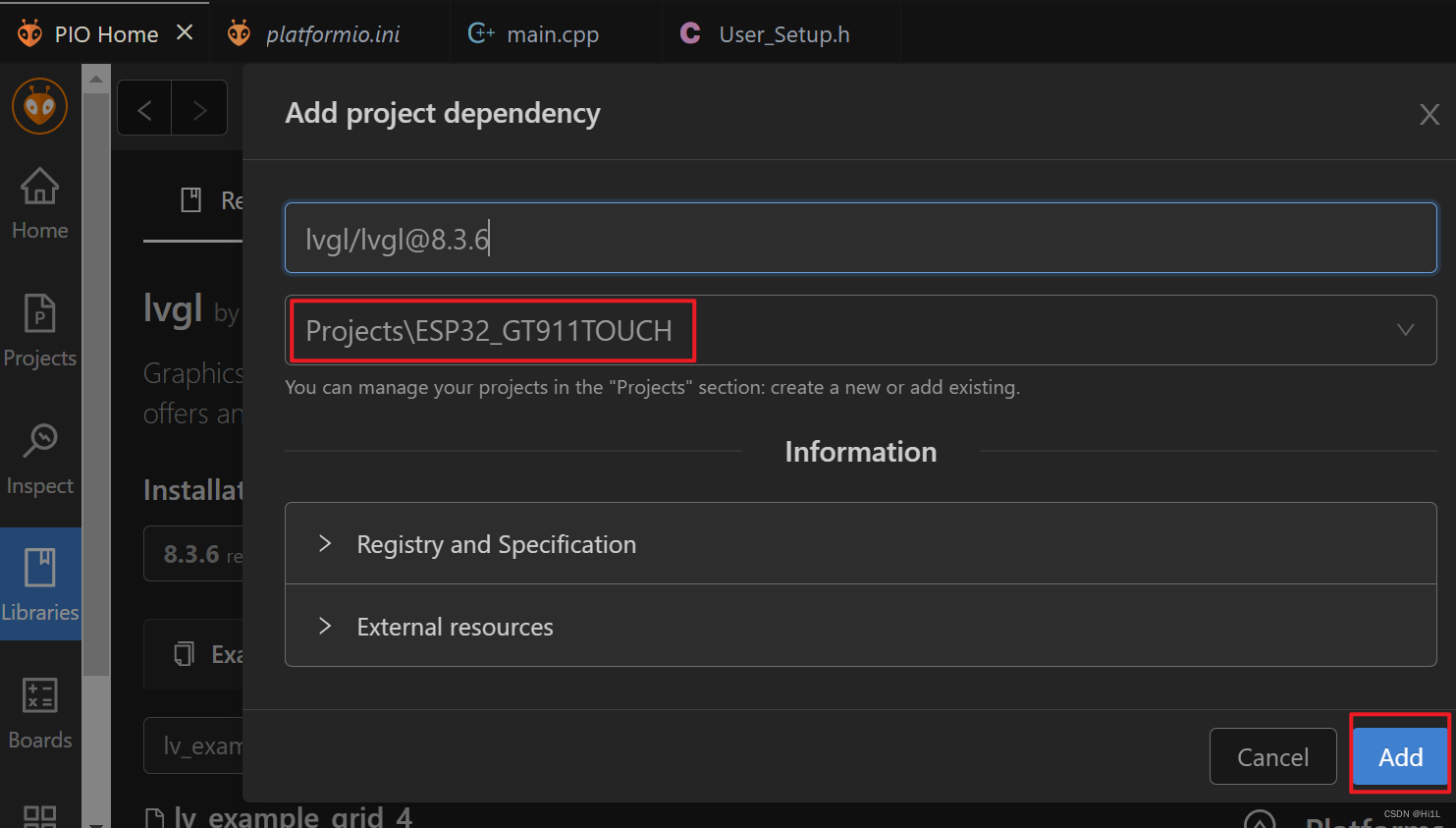

添加lvgl到工程
修改LVGL
-
打开

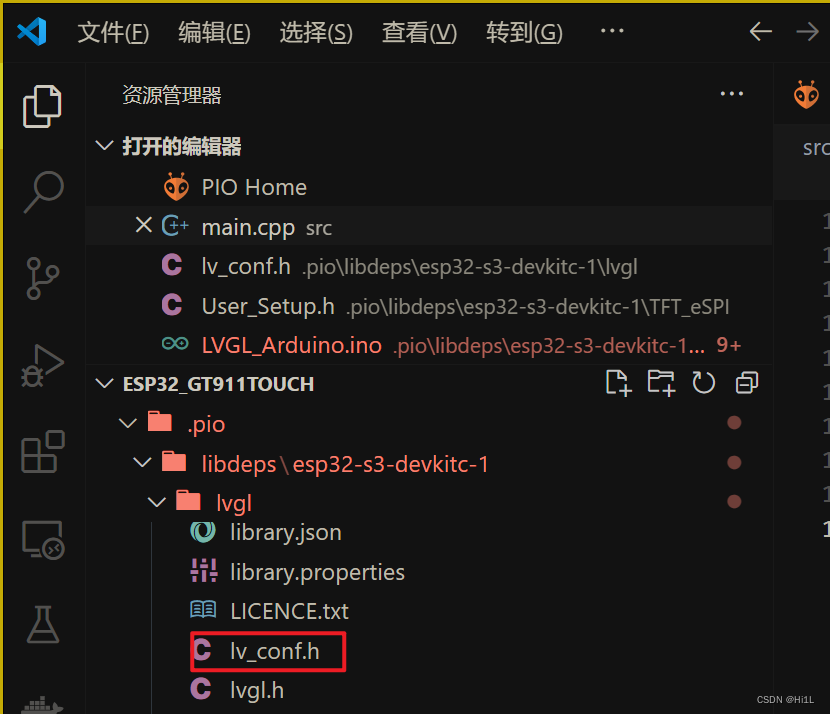

.pio\libdeps\esp32-s3-devkitc-1\lvgl\lv_conf_template.h文件将此文件重命名为
lv_conf.h
-
使能lvgl
/* clang-format off */
#if 1 /*Set it to "1" to enable content*/
#ifndef LV_CONF_H
#define LV_CONF_H
- 设置周期
默认显示刷新周期。LVG将重新绘制改变的区域与这个周期时间
输入设备读取周期毫秒
/*Default display refresh period. LVG will redraw changed areas with this period time*/
#define LV_DISP_DEF_REFR_PERIOD 1 /*[ms]*/
/*Input device read period in milliseconds*/
#define LV_INDEV_DEF_READ_PERIOD 1 /*[ms]*/
- 心跳使能
/*Use a custom tick source that tells the elapsed time in milliseconds.
*It removes the need to manually update the tick with `lv_tick_inc()`)*/
#define LV_TICK_CUSTOM 1
#if LV_TICK_CUSTOM
- 使能测试案例
/*Show some widget. It might be required to increase `LV_MEM_SIZE` */
#define LV_USE_DEMO_WIDGETS 1
#if LV_USE_DEMO_WIDGETS
#define LV_DEMO_WIDGETS_SLIDESHOW 0
#endif
-
更改文件路径
将
.pio\libdeps\esp32-s3-devkitc-1\lvgl\demos文件夹移动至.pio\libdeps\esp32-s3-devkitc-1\lvgl\src\demos -
修改main.cpp
将
.pio\libdeps\esp32-s3-devkitc-1\lvgl\examples\arduino\LVGL_Arduino\LVGL_Arduino.ino文件内容复制- 设置头文件
#include <Arduino.h> #include <SPI.h> #include <lvgl.h> #include <TFT_eSPI.h> // Hardware-specific library #include "demos/lv_demos.h"- 设置宽高
static const uint16_t screenWidth = 320; static const uint16_t screenHeight = 240;- 修改类型
lv_disp_t修改为lv_disp_drv_tlv_indev_t修改为lv_indev_drv_t- 注释掉触摸部分
修改完成
最终main.cpp文件内容如下
#include <Arduino.h>
#include <SPI.h>
#include <lvgl.h>
#include <TFT_eSPI.h> // Hardware-specific library
#include "demos/lv_demos.h"
/*Change to your screen resolution*/
static const uint16_t screenWidth = 320;
static const uint16_t screenHeight = 240;
static lv_disp_draw_buf_t draw_buf;
static lv_color_t buf[ screenWidth * 10 ];
TFT_eSPI tft = TFT_eSPI(screenWidth, screenHeight); /* TFT instance */
/* Display flushing */
void my_disp_flush( lv_disp_drv_t *disp, const lv_area_t *area, lv_color_t *color_p )
{
uint32_t w = ( area->x2 - area->x1 + 1 );
uint32_t h = ( area->y2 - area->y1 + 1 );
tft.startWrite();
tft.setAddrWindow( area->x1, area->y1, w, h );
tft.pushColors( ( uint16_t * )&color_p->full, w * h, true );
tft.endWrite();
lv_disp_flush_ready( disp );
}
/*Read the touchpad*/
// void my_touchpad_read( lv_indev_drv_t * indev_driver, lv_indev_data_t * data )
// {
// uint16_t touchX, touchY;
// bool touched = tft.getTouch( &touchX, &touchY, 600 );
// if( !touched )
// {
// data->state = LV_INDEV_STATE_REL;
// }
// else
// {
// data->state = LV_INDEV_STATE_PR;
// /*Set the coordinates*/
// data->point.x = touchX;
// data->point.y = touchY;
// Serial.print( "Data x " );
// Serial.println( touchX );
// Serial.print( "Data y " );
// Serial.println( touchY );
// }
// }
void setup()
{
Serial.begin( 115200 ); /* prepare for possible serial debug */
String LVGL_Arduino = "Hello Arduino! ";
LVGL_Arduino += String('V') + lv_version_major() + "." + lv_version_minor() + "." + lv_version_patch();
Serial.println( LVGL_Arduino );
Serial.println( "I am LVGL_Arduino" );
lv_init();
tft.begin(); /* TFT init */
tft.setRotation( 3 ); /* Landscape orientation, flipped */
/*Set the touchscreen calibration data,
the actual data for your display can be acquired using
the Generic -> Touch_calibrate example from the TFT_eSPI library*/
uint16_t calData[5] = { 275, 3620, 264, 3532, 1 };
// tft.setTouch( calData );
lv_disp_draw_buf_init( &draw_buf, buf, NULL, screenWidth * 10 );
/*Initialize the display*/
static lv_disp_drv_t disp_drv;
lv_disp_drv_init( &disp_drv );
/*Change the following line to your display resolution*/
disp_drv.hor_res = screenWidth;
disp_drv.ver_res = screenHeight;
disp_drv.flush_cb = my_disp_flush;
disp_drv.draw_buf = &draw_buf;
lv_disp_drv_register( &disp_drv );
/*Initialize the (dummy) input device driver*/
static lv_indev_drv_t indev_drv;
lv_indev_drv_init( &indev_drv );
indev_drv.type = LV_INDEV_TYPE_POINTER;
// indev_drv.read_cb = my_touchpad_read;
lv_indev_drv_register( &indev_drv );
#if 0
/* Create simple label */
lv_obj_t *label = lv_label_create( lv_scr_act() );
lv_label_set_text( label, LVGL_Arduino.c_str() );
lv_obj_align( label, LV_ALIGN_CENTER, 0, 0 );
#else
lv_demo_widgets(); // OK
#endif
Serial.println( "Setup done" );
}
void loop()
{
lv_timer_handler(); /* let the GUI do its work */
delay( 5 );
}
编译下载

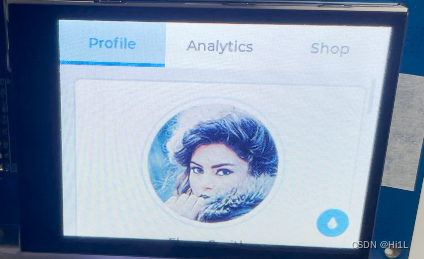

显示效果如下图
触摸测试

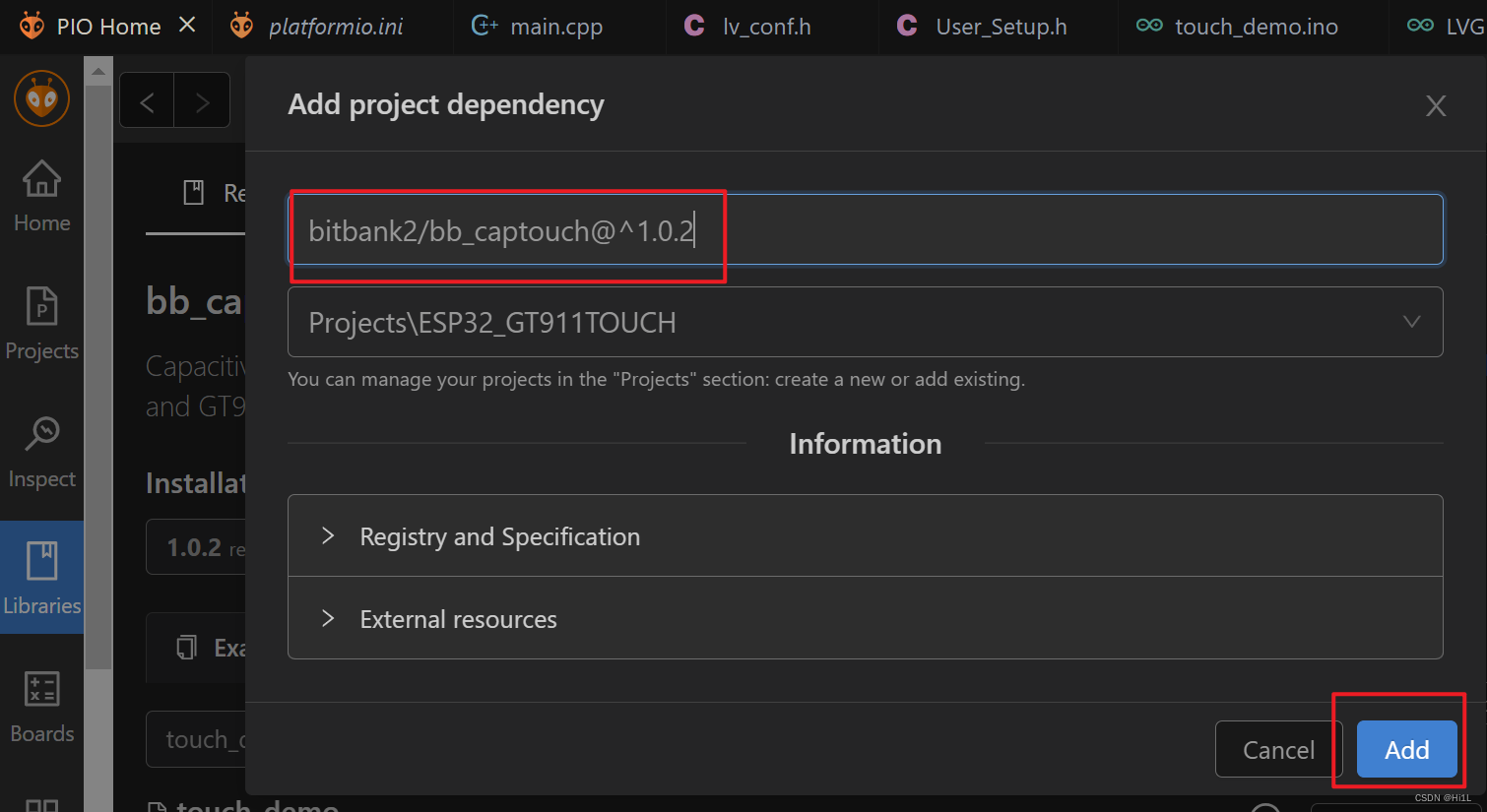

添加bb_captouch
修改main.cpp
-
添加头文件
#include <bb_captouch.h> -
设置触摸芯片引脚
// These defines are for a low cost ESP32 LCD board with the GT911 touch controller #define TOUCH_SDA 4 #define TOUCH_SCL 2 #define TOUCH_INT 3 #define TOUCH_RST 1 -
设置参数
BBCapTouch bbct; const char *szNames[] = {"Unknown", "FT6x36", "GT911", "CST820"}; -
初始化
bbct.init(TOUCH_SDA, TOUCH_SCL, TOUCH_RST, TOUCH_INT); -
修改

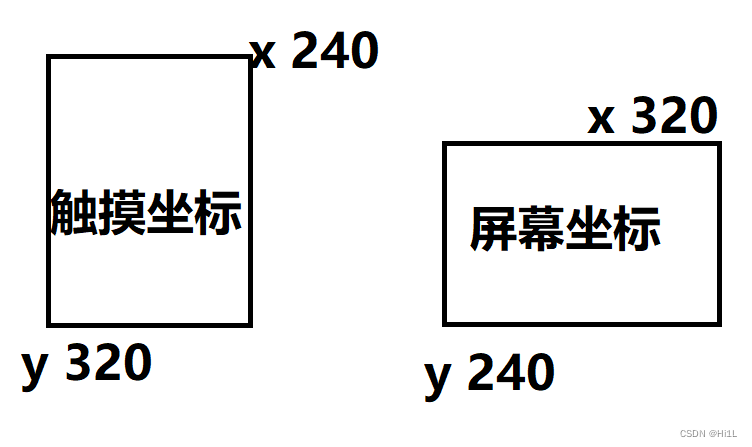

my_touchpad_read函数这里的x,y坐标需要根据实际情况修改
/*Read the touchpad*/ void my_touchpad_read( lv_indev_drv_t * indev_driver, lv_indev_data_t * data ) { TOUCHINFO ti; if(bbct.getSamples(&ti)) { data->state = LV_INDEV_STATE_PR; /*Set the coordinates*/ data->point.x = screenWidth - ti.y[0]; data->point.y = ti.x[0]; Serial.print( "Data x " ); Serial.println( screenWidth - ti.y[0] ); Serial.print( "Data y " ); Serial.println( ti.x[0] ); } else { data->state = LV_INDEV_STATE_REL; } }
修改完成
最终main.cpp文件内容如下
#include <Arduino.h>
#include <SPI.h>
#include <lvgl.h>
#include <TFT_eSPI.h> // Hardware-specific library
#include "demos/lv_demos.h"
#include <bb_captouch.h>
// These defines are for a low cost ESP32 LCD board with the GT911 touch controller
#define TOUCH_SDA 4
#define TOUCH_SCL 2
#define TOUCH_INT 3
#define TOUCH_RST 1
BBCapTouch bbct;
const char *szNames[] = {"Unknown", "FT6x36", "GT911", "CST820"};
/*Change to your screen resolution*/
static const uint16_t screenWidth = 320;
static const uint16_t screenHeight = 240;
static lv_disp_draw_buf_t draw_buf;
static lv_color_t buf[ screenWidth * 10 ];
TFT_eSPI tft = TFT_eSPI(screenWidth, screenHeight); /* TFT instance */
/* Display flushing */
void my_disp_flush( lv_disp_drv_t *disp, const lv_area_t *area, lv_color_t *color_p )
{
uint32_t w = ( area->x2 - area->x1 + 1 );
uint32_t h = ( area->y2 - area->y1 + 1 );
tft.startWrite();
tft.setAddrWindow( area->x1, area->y1, w, h );
tft.pushColors( ( uint16_t * )&color_p->full, w * h, true );
tft.endWrite();
lv_disp_flush_ready( disp );
}
/*Read the touchpad*/
void my_touchpad_read( lv_indev_drv_t * indev_driver, lv_indev_data_t * data )
{
// uint16_t touchX, touchY;
TOUCHINFO ti;
if(bbct.getSamples(&ti))
{
data->state = LV_INDEV_STATE_PR;
/*Set the coordinates*/
data->point.x = screenWidth - ti.y[0];
data->point.y = ti.x[0];
Serial.print( "Data x " );
Serial.println( screenWidth - ti.y[0] );
Serial.print( "Data y " );
Serial.println( ti.x[0] );
}
else
{
data->state = LV_INDEV_STATE_REL;
}
}
void setup()
{
Serial.begin( 115200 ); /* prepare for possible serial debug */
String LVGL_Arduino = "Hello Arduino! ";
LVGL_Arduino += String('V') + lv_version_major() + "." + lv_version_minor() + "." + lv_version_patch();
Serial.println( LVGL_Arduino );
Serial.println( "I am LVGL_Arduino" );
lv_init();
tft.begin(); /* TFT init */
tft.setRotation( 3 ); /* Landscape orientation, flipped */
bbct.init(TOUCH_SDA, TOUCH_SCL, TOUCH_RST, TOUCH_INT);
int iType = bbct.sensorType();
Serial.printf("Sensor type = %s\n", szNames[iType]);
lv_disp_draw_buf_init( &draw_buf, buf, NULL, screenWidth * 10 );
/*Initialize the display*/
static lv_disp_drv_t disp_drv;
lv_disp_drv_init( &disp_drv );
/*Change the following line to your display resolution*/
disp_drv.hor_res = screenWidth;
disp_drv.ver_res = screenHeight;
disp_drv.flush_cb = my_disp_flush;
disp_drv.draw_buf = &draw_buf;
lv_disp_drv_register( &disp_drv );
/*Initialize the (dummy) input device driver*/
static lv_indev_drv_t indev_drv;
lv_indev_drv_init( &indev_drv );
indev_drv.type = LV_INDEV_TYPE_POINTER;
indev_drv.read_cb = my_touchpad_read;
lv_indev_drv_register( &indev_drv );
#if 0
/* Create simple label */
lv_obj_t *label = lv_label_create( lv_scr_act() );
lv_label_set_text( label, LVGL_Arduino.c_str() );
lv_obj_align( label, LV_ALIGN_CENTER, 0, 0 );
#else
// uncomment one of these demos
lv_demo_widgets(); // OK
#endif
Serial.println( "Setup done" );
}
void loop()
{
lv_timer_handler(); /* let the GUI do its work */
delay( 5 );
}
编译下载

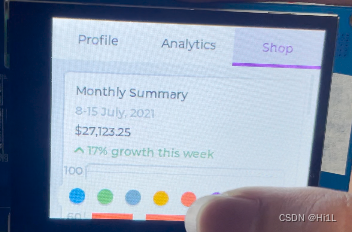

触摸显示效果如下图所示
1855
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
