windows device manager diff(设备管理器内容变化后的比较)

文章目录

前言

打开设备管理器, 插入了一个USB设备, 想在设备管理器中看看, 多了哪些设备.

人工识别, 眼睛都看花了, 感到好无助.

去找了一个网上大神写好的工程(codeproject上的DevMgr-SRC.zip, 一个简版的设备管理器), 准备添加一个导出按钮, 将当前检测结果导出成文本.

在设备插入前后, 分别导出文本列表. 然后用BC4比较, 就知道USB插入后, 设备的变化了.

花了1天, 将这个功能升级完了.

这个实现(设备管理器导出内容的比较)有2个用处:

  • 本机插入设备前后的设备管理器中的设备比较
  • 同型号或相同配置计算机之间的设备比较

实验

网上大神的工程原始url

https://www.codeproject.com/script/Articles/Download.aspx?file=/KB/cpp/DevMgr/DevMgr-SRC.zip&rp=https://www.codeproject.com/

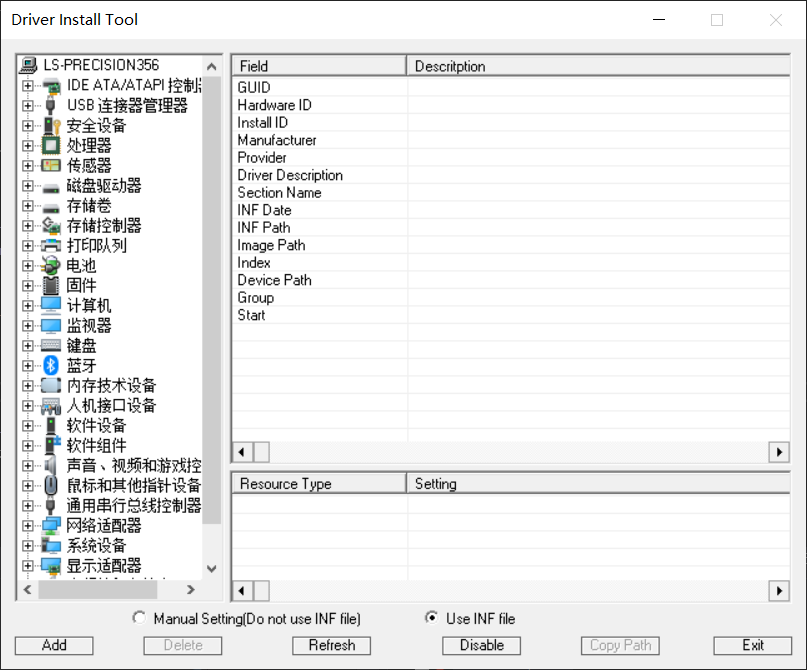

原始效果

请添加图片描述

这就是个设备管理器啊.

和win10自带的设备管理器比较了一下, 基本一致.

实验环境

win10专业工作站版 21H2(19044.1806)

Microsoft Visual Studio Enterprise 2019 版本 16.11.16

实验

原始工程是vc6写的.

手头只有vs2022. 试了一下, vs2022不支持.dsw工程.

装了vs2019企业版, 可以打开.dsw工程, 转换完, 直接能编译运行.

去掉警告

编译选项改成/Zi

请添加图片描述

禁掉警告C4477, C4996

请添加图片描述

启用函数级链接

请添加图片描述

不用最小生成

请添加图片描述

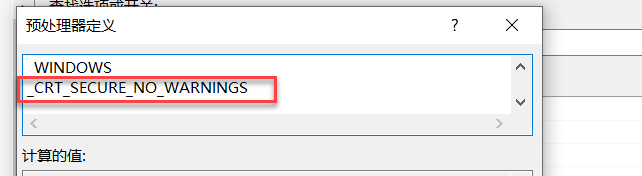

不要CRT函数警告

请添加图片描述

一般低版本vs工程(e.g. VC6)转成高版本vs工程(e.g. VS2017, VS2019), 就这些编译选项要修改.

修改完编译选项, 编译出来0错误, 0警告.

已启动重新生成…
1>------ 已启动全部重新生成: 项目: DevMgr, 配置: Debug Win32 ------
1>DevMgr.c
1>GetTypeInfo.c
1>Setup.c
1>SysSetup.c
1>Util.c
1>WDMSetup.c
1>正在生成代码...
1>DevMgr.vcxproj -> D:\my_dev\my_local_git_prj\soft\windows_device_manager_diff\src\DevMgr_SRC_SP1\Debug\DevMgr.exe
========== 全部重新生成: 成功 1 个，失败 0 个，跳过 0 个 ==========

修正原始工程bug

bug1

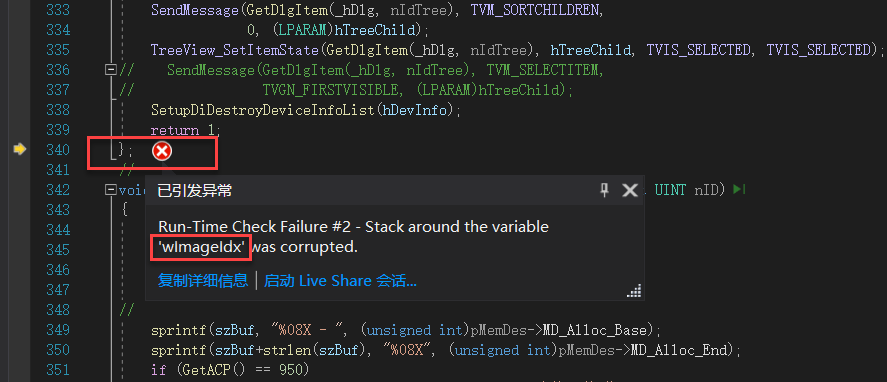

程序跑起来后, 在 char EnumWDMDriver(const UINT nIdTree, const UINT nIdBmp) 尾巴处, 要返回的地方报异常如下:

请添加图片描述

看报错, 知道是和变量wImageIdx有关.

在EnumWDMDriver()查找 wImageIdx 参考点, 看了一下, 变量类型定义错了.

原始定义是short int , 但是API要求的都是int.

修正后如下:

    while (1)
    {
        if (SetupDiEnumDeviceInfo(hDevInfo,
                                  wIndex,
                                  &spDevInfoData))
        {
            char  szBuf[MAX_PATH] = {0};

            // short wImageIdx = 0;
            int wImageIdx       = 0; // to fix : when this function return, reprot exception : Run-Time Check Failure #2 - Stack around the variable 'wImageIdx' was corrupted.
            short wItem           = 0;

重新编译运行, 异常消失.

bug2

SP_DRVINFO_DETAIL_DATA 变量的长度使用了硬编码, 导致栈溢出.

从这个 bug能看出, 在工程中使用可能会被第三方改掉的常数, 是陋习.

e.g. 一个第三方SDK的结构size, 人家以后有权修改啊. 非要操作第三方的结构size, 要使用sizeof(结构类型名称), 不要直接使用当前类型的数字size.

修正如下

        while (1)
        {
            spDrvInfoData.cbSize = sizeof(SP_DRVINFO_DATA);
            if (SetupDiEnumDriverInfo(hDevInfo,
                                      &spDevInfoData,
                                      SPDIT_COMPATDRIVER,
                                      wIdx++,
                                      &spDrvInfoData))
            {
                // char szBuf[2048] = {0};
                // int temp = sizeof(spDrvInfoDetail); // 796

                // memcpy(&spDrvInfoDetail, szBuf, sizeof(SP_DRVINFO_DETAIL_DATA));
                memset(&spDrvInfoDetail, 0, sizeof(SP_DRVINFO_DETAIL_DATA));

测试原始工程

正常用了用, 改过之后, 原始工程没报异常了, 正常使用.

开始修改原始工程

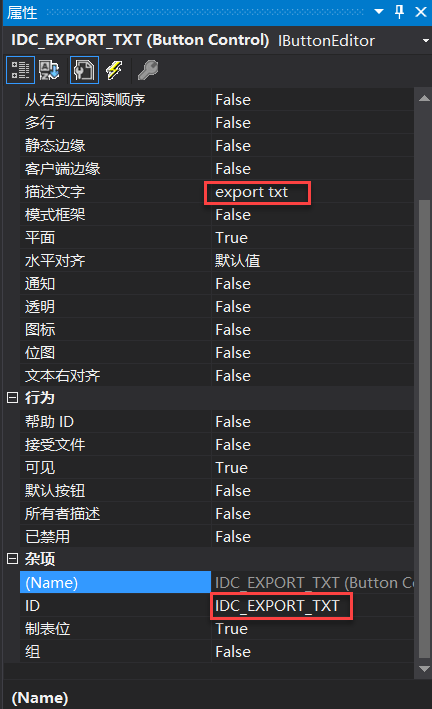

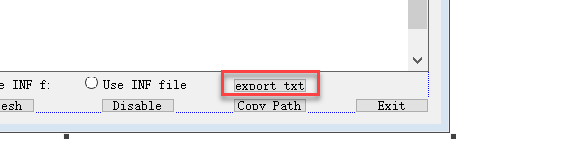

准备加个按钮, 将手工点击左边设备数显示的右边的设备内容导出为文本, 用于BC4比较设备插入前后的不同.

请添加图片描述

请添加图片描述

按钮消息处理

 case IDC_EXPORT_TXT:
                {
                    cb_export_txt(hDlg, uMsg, wParam, lParam);
                };
                break;

//
                case IDC_COPYPATHBTN:
                {
                    HGLOBAL hMem            = 0L;

INT_PTR CALLBACK cb_export_txt(HWND hDlg, UINT uMsg,
    WPARAM wParam, LPARAM lParam)
{
    // cb_export_txt(hDlg, uMsg, wParam, lParam);
    return 0;
}

现在的任务, 就是实现cb_export_txt()

写好的cb_export_txt()和相关实现

就用git比较修改前后的代码, 直接贴在这了.


INT_PTR CALLBACK cb_export_txt(HWND hDlg, UINT uMsg,
    WPARAM wParam, LPARAM lParam)
{
    int iCnt = 0;

    iCnt = getAllDeviceCnt(); // 192
    enumTreeCtrl(IDC_TREE1);
    MessageBox(hDlg, "export finished!", "info", MB_ICONINFORMATION);
    return 0;
}

HTREEITEM fn_get_tree_root_node(HWND hTreeView, const UINT nIdTree)
{
    HTREEITEM hNode = NULL;
    TVITEM    tvItem = { 0 };
    char      szText[256] = { 0 };
    int nNodeCnt = 0;

    nNodeCnt = (int)SendMessage(hTreeView, TVM_GETCOUNT, 0, 0); // 220

    hNode = (HTREEITEM)SendMessage(hTreeView,
        TVM_GETNEXTITEM,
        TVGN_ROOT, // TVGN_ROOT or TVGN_CHILD, not be TVGN_NEXT
        (LPARAM)NULL
    );

    if (NULL != hNode)
    {
        tvItem.mask = TVIF_TEXT | TVIF_HANDLE;
        tvItem.pszText = szText;
        tvItem.cchTextMax = sizeof(szText) - 1;
        RtlZeroMemory(szText, sizeof(szText));

        tvItem.hItem = hNode; // !
        SendMessage(hTreeView, TVM_GETITEM, 0, (LPARAM)&tvItem); // param1 must be hTreeView
        if (*szText)
        {
            // watch szText
            // LS-PRECISION356
        };
    }


    return hNode;
}

#define OUTPUT_FILE_NAME "device_manager_export.txt"

void fn_get_tree_Level_3_node(HWND hTreeView, HTREEITEM hNodeL1, const char* psz_NodeL1_name, HTREEITEM hNodeL2, const char* psz_NodeL2_name)
{
    FILE* pFile = NULL;
    char szBuf[4096] = { '\0' };

    pFile = fopen(OUTPUT_FILE_NAME, "a");
    if (NULL != pFile)
    {
        memset(szBuf, 0, sizeof(szBuf));
        sprintf(szBuf, "%s : %s\r\n", psz_NodeL1_name, psz_NodeL2_name);
        fwrite(szBuf, sizeof(char), strlen(szBuf), pFile);

        fclose(pFile);
    }
}

void fn_get_tree_Level_2_node(HWND hTreeView, HTREEITEM hNodeL1, const char* psz_NodeL1_name)
{
    HTREEITEM hNode = NULL;
    TVITEM    tvItem = { 0 };
    char      szText[256] = { 0 };
    int nNodeCnt = 0;
    BOOL bFirtLoop = TRUE;

    // psz_NodeL1_name like below
    // 安全设备
    // 处理器
    do {
        hNode = (HTREEITEM)SendMessage(hTreeView,
            TVM_GETNEXTITEM,
            bFirtLoop ? TVGN_CHILD : TVGN_NEXT,
            bFirtLoop ? (LPARAM)hNodeL1 : (LPARAM)hNode
        );

        bFirtLoop = FALSE;

        if (NULL != hNode)
        {
            tvItem.mask = TVIF_TEXT | TVIF_HANDLE;
            tvItem.pszText = szText;
            tvItem.cchTextMax = sizeof(szText) - 1;
            RtlZeroMemory(szText, sizeof(szText));

            tvItem.hItem = hNode; // !
            SendMessage(hTreeView, TVM_GETITEM, 0, (LPARAM)&tvItem);
            if (*szText)
            {
                // watch szText

            };

            nNodeCnt++;
            if (nNodeCnt >= 2)
            {
                nNodeCnt = nNodeCnt;
            }

            fn_get_tree_Level_3_node(hTreeView, hNodeL1, psz_NodeL1_name, hNode, szText);

            continue;
        }

        break;
    } while (TRUE);
}

void fn_get_tree_Level_1_node(HWND hTreeView, HTREEITEM hRoot)
{
    HTREEITEM hNode = NULL;
    TVITEM    tvItem = { 0 };
    char      szText[256] = { 0 };
    int nNodeCnt = 0;
    BOOL bFirtLoop = TRUE;


    do {
        hNode = (HTREEITEM)SendMessage(hTreeView,
            TVM_GETNEXTITEM,
            bFirtLoop ? TVGN_CHILD : TVGN_NEXT,
            bFirtLoop ? (LPARAM)hRoot : (LPARAM)hNode
        );

        bFirtLoop = FALSE;

        if (NULL != hNode)
        {
            tvItem.mask = TVIF_TEXT | TVIF_HANDLE;
            tvItem.pszText = szText;
            tvItem.cchTextMax = sizeof(szText) - 1;
            RtlZeroMemory(szText, sizeof(szText));

            tvItem.hItem = hNode; // !
            SendMessage(hTreeView, TVM_GETITEM, 0, (LPARAM)&tvItem);
            if (*szText)
            {
                // watch szText
                // IDE ATA/ATAPI 控制器
                // USB 连接器管理器
                // 安全设备
                // 处理器

            };

            fn_get_tree_Level_2_node(hTreeView, hNode, szText);

            continue;
        }

        break;
    } while (TRUE);
}

void enumTreeCtrl(const UINT nIdTree)
{
    HWND                   hTreeView = GetDlgItem(_hDlg, nIdTree);
    HTREEITEM hRoot = 0L;
    HTREEITEM hChildItem = 0L;
    HTREEITEM hParentItem = NULL;
    char      szText[128] = { 0 };
    TVITEM    tvItem = { 0 };
    int       iLoop = 0;
    int       nNodeAllCnt = 0;
    //
    tvItem.mask = TVIF_TEXT | TVIF_HANDLE;
    tvItem.pszText = szText;
    tvItem.cchTextMax = sizeof(char) * 127;
    // nNodeAllCnt = (int)SendMessage(hTreeView, TVM_GETCOUNT, 0, 0);
    RtlZeroMemory(szText, sizeof(char) * 128);

    hRoot = fn_get_tree_root_node(hTreeView, nIdTree);
    if (NULL != hRoot)
    {
        fn_get_tree_Level_1_node(hTreeView, hRoot);
    }


    /*

    hParentItem = hRoot;
    for (iLoop = 0; iLoop < nNodeAllCnt; iLoop++)
    {
        hChildItem = (HTREEITEM)SendMessage(hTreeView,
            TVM_GETNEXTITEM,
            TVGN_NEXT,
            (LPARAM)hParentItem
        );

        if (0 == iLoop)
        {

        }
        else {
            hChildItem = (HTREEITEM)SendMessage(hTreeView,
                TVM_GETNEXTITEM,
                TVGN_NEXT,
                (LPARAM)hParentItem
            );

            if (NULL == hChildItem)
            {
                hChildItem = (HTREEITEM)SendMessage(hTreeView,
                    TVM_GETNEXTITEM,
                    TVGN_CHILD,
                    (LPARAM)hParentItem
                );
            }
        }

        tvItem.hItem = hChildItem;
        SendMessage(hTreeView, TVM_GETITEM, 0, (LPARAM)&tvItem);
        if (*szText)
        {
            // watch szText
        };
        hParentItem = hChildItem;
    };
    */
}

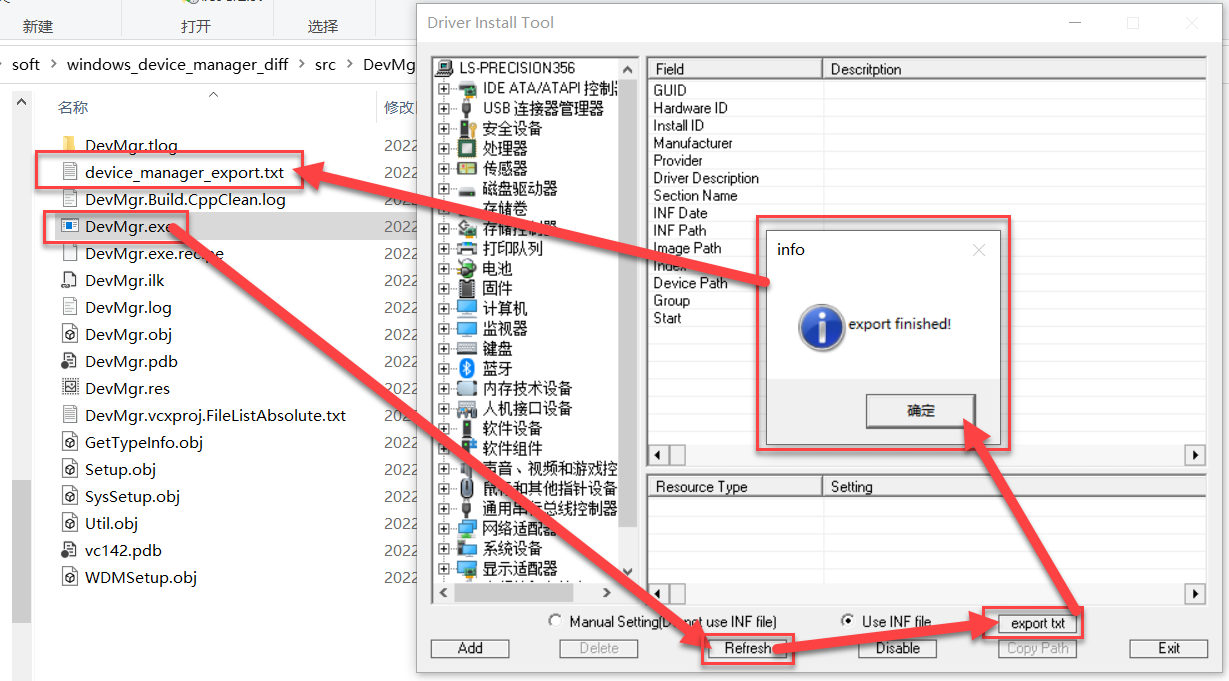

运行效果

请添加图片描述

设备管理器内容变化后的比较

设备插入前, 导出一份device_manager_export.txt, 改名为 device_manager_export_before.txt

设备插入后, 导出一份device_manager_export.txt, 改名为 device_manager_export_after.txt

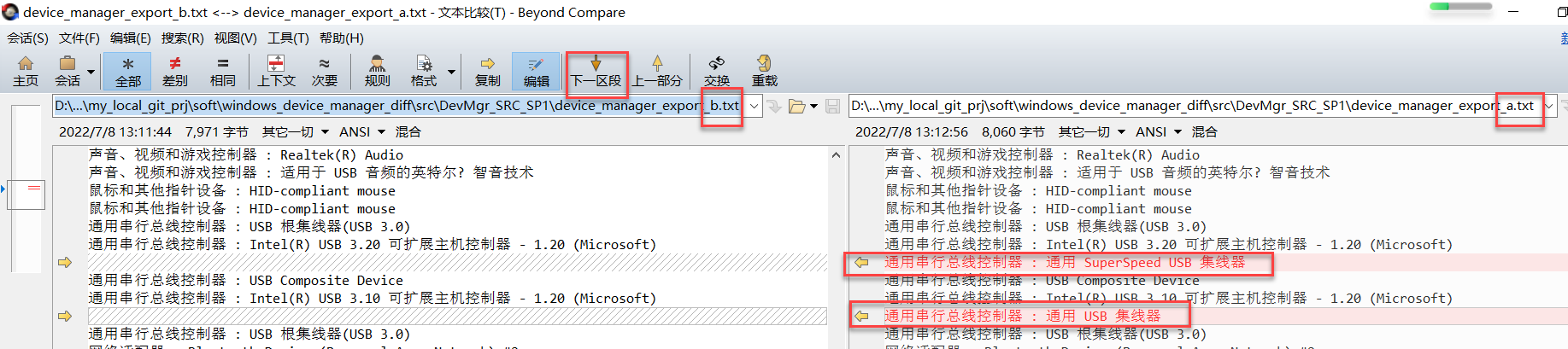

打开BC4, 建立文本比较的工程, 将2个文本都拖进去, 点击跳到区别的按钮, 就可以看到差别了.

请添加图片描述

比如, 我插入了一个1拖4的USB扩展坞, 在导出列表进行比较时, 就能看到插入设备后, 多了2个设备(USB集线器和USB高速集线器)

修改后的工程下载点

本来想传到码云, 奈何不方便. 码云光审核就要2个工作日.

github就不奢望了, 能偶尔顺利迁出大神的工程就满意了.

当前就只有传到csdn的下载区方便一些(随时可以上传, 审核时间短), 而且稳定安全. csdn如果非要加下载积分, 就随他了. 虽然吃相挺难看的(将用户上传的免费资源, 当作收费的资源来挣钱).

十全十美的事情不存在的, 总有一些瑕疵(bug数量多少而已), 就像人生也不可能完美一样, 总有缺憾, 自己能接受就好.

工程下载点 : prj_windows_device_manager_diff_2022_0708_1453.zip

备注

有同学说下载资源失效了，那是因为俺不想跟CSDN玩了，CSDN吃相是真难看啊。
参见CSDN - 从CSDN下载自己上传的资源要下载码, 自己无法下载

就当CSDN是个纯博客网站, 写个纯文字笔记还是挺舒服的。

备注

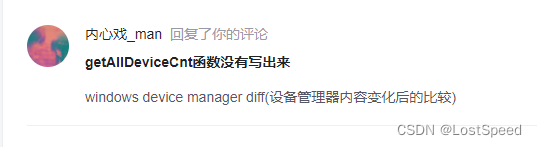

CSDN的同学说笔记中没有getAllDeviceCn()的实现
在这里插入图片描述

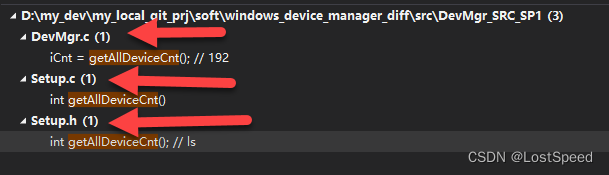

将工程找出来，将getAllDeviceCn()所在的.cpp贴出来，供这位同学参考。
在这里插入图片描述

Setup.h

#ifndef __ICE_SETUP_H
#define __ICE_SETUP_H
//
#ifdef __cplusplus
extern "C" {
#endif
//
#pragma once
//
#include "devmgr.h"
#include <cfgmgr32.h>
#include <newdev.h>
#include <setupapi.h>
#include <shlobj.h>
#include "gettypeinfo.h"
#include "util.h"
//
#pragma comment(lib, "setupapi.lib")
#pragma comment(lib, "newdev.lib")
#pragma comment(lib, "shell32.lib")
//
typedef struct _tagDEVICE_ORDER
{
    char szDevName[LINE_LEN];
    struct _tagDEVICE_ORDER *pNext;
} DEVICE_ORDER, *PDEVICE_ORDER;
//
typedef struct _tagDEVLIST
{
    GUID               guid;
    short              wOrder;
    short              wIndex;
    char               szInstallID[LINE_LEN];
    char               szName[MAX_PATH];
    char               szPath[MAX_PATH];
    struct _tagDEVLIST *pNext;
}DEVICE_LIST, *PDEVICE_LIST;
//
void InitialImageData();
void ListImageDataInitial(const UINT);
char EnumWDMDriver(const UINT, const UINT);
void GetDriverDetialInfo(HTREEITEM, const UINT, const char *, const int, const int);
void GetDeviceInstanceID(HDEVINFO, SP_DEVINFO_DATA*, char*);
void GetDeviceInterfaceInfo(HDEVINFO, SP_DEVINFO_DATA, char*);
void GetOtherInfo(GUID, const short, const UINT, const UINT);
void FindSpecResource(const DEVINST, const DWORD, const short, const UINT);
//
HTREEITEM MakeRootTree();
//
char InitialDeviceOrder();
DEVICE_ORDER* AllocNewDeviceOrderNode();
char AddNewDeviceOrderNode(const char*);
short FindDeviceOrder(const char*);
int getAllDeviceCnt(); // ls
void enumTreeCtrl(const UINT nIdTree); // ls
void FreeAllDeviceOrderNode();
//
char InitialDeviceList();
DEVICE_LIST* AllocNewDeviceNode();
char AddNewDeviceNode(const GUID, const char*, const char*,
                      const char*, const int, const short);
char FindDeviceName(const char*, const UINT, const UINT);
void GetDeviceDetailInfo(DEVICE_LIST*);
void DisplayDriverDetailInfo(HTREEITEM, const UINT,
                             const char*, const int, const int);
void FreeAllocDeviceNode();
//
void GetMemoryResource(MEM_DES*, const ULONG, const UINT);
void GetIOResource(IO_DES*, const ULONG, const UINT);
void GetDMAResource(DMA_DES*, const ULONG, const UINT);
void GetIRQResource(IRQ_DES*, const ULONG, const UINT);
//
void GetMoreInformation(HDEVINFO, SP_DEVINFO_DATA, const UINT);
//
#ifdef __cplusplus
}
#endif
//
#endif

Setup.c

//
// (w)ritten by Chuan-Liang Teng 2006, mailto:clteng@ms6.hinet.net
//
#include "setup.h"
#include "resource.h"
//
SP_CLASSIMAGELIST_DATA _spImageData = {0};
//
extern HINSTANCE _hInst;
extern HWND      _hDlg;
//
DEVICE_LIST  *_pHead      = 0L;
DEVICE_ORDER *_pOrderHead = 0L;
//
char InitialDeviceOrder()
{
    _pOrderHead = AllocNewDeviceOrderNode();
    return (_pOrderHead) ? 1 : 0;
};
//
DEVICE_ORDER* AllocNewDeviceOrderNode()
{
    DEVICE_ORDER* pNew = (DEVICE_ORDER*)LocalAlloc(LPTR, sizeof(DEVICE_ORDER));
//
    if (!pNew)
    {
        ShowErrorMsg(_hDlg, GetLastError(), "LocalAlloc");
        return 0;
    };
    RtlZeroMemory(pNew->szDevName, sizeof(char)*LINE_LEN);
    pNew->pNext = 0L;
    return pNew;
};
//
char AddNewDeviceOrderNode(const char* szDevName)
{
    DEVICE_ORDER* pAdd = AllocNewDeviceOrderNode();
//
    if (!pAdd)
        return 0;
    memcpy(pAdd->szDevName, szDevName, strlen(szDevName));
    pAdd->pNext = _pOrderHead->pNext;
    _pOrderHead->pNext = pAdd;
    return 1;
};
//
short FindDeviceOrder(const char* szName)
{
    DEVICE_ORDER *pList = _pOrderHead->pNext;
    short        wOrder = 0;
//
    while (pList)
    {
        if (!strcmp(pList->szDevName, szName))
            wOrder++;
        pList = pList->pNext;
    };
    return wOrder;
};

int getAllDeviceCnt()
{
    DEVICE_ORDER* pList = _pOrderHead->pNext;
    short        wOrder = 0;
    //
    while (pList)
    {
        wOrder++; // watch pList->szDevName
        pList = pList->pNext;
    };
    return wOrder;
}
//
void FreeAllDeviceOrderNode()
{
    DEVICE_ORDER *pDel = _pOrderHead->pNext;
    DEVICE_ORDER *pTmp = 0L;
//
    while (pDel->pNext)
    {
        pTmp = pDel;
        pDel = pDel->pNext;
        LocalFree(pTmp);
    };
    LocalFree(_pOrderHead);
    _pOrderHead = 0L;
};
//
char InitialDeviceList()
{
    _pHead = AllocNewDeviceNode();
    return (_pHead) ? 1 : 0;
};
//
DEVICE_LIST* AllocNewDeviceNode()
{
    DEVICE_LIST* pNew = (DEVICE_LIST*)LocalAlloc(LPTR, sizeof(DEVICE_LIST));
//
    if (!pNew)
    {
        ShowErrorMsg(_hDlg, GetLastError(), "LocalAlloc");
        return 0;
    };
    RtlZeroMemory(&pNew->guid, sizeof(GUID));
    RtlZeroMemory(pNew->szInstallID, sizeof(char)*LINE_LEN);
    RtlZeroMemory(pNew->szName, sizeof(char)*MAX_PATH);
    RtlZeroMemory(pNew->szPath, sizeof(char)*MAX_PATH);
    pNew->wOrder = -1;
    pNew->wIndex = -1;
    pNew->pNext = 0L;
    return pNew;
};
//
char AddNewDeviceNode(const GUID guid,
                      const char* szName,
                      const char* szInstallID,
                      const char* szPath,
                      const int wIndex,
                      const short wOrder)
{
    DEVICE_LIST* pAdd = AllocNewDeviceNode();
//
    if (!pAdd)
        return 0;
    memcpy(&pAdd->guid, &guid, sizeof(GUID));
    memcpy(pAdd->szInstallID, szInstallID, strlen(szInstallID));
    memcpy(pAdd->szName, szName, strlen(szName));
    memcpy(pAdd->szPath, szPath, strlen(szPath));
    pAdd->wIndex = wIndex;
    pAdd->wOrder = wOrder;
    pAdd->pNext = _pHead->pNext;
    _pHead->pNext = pAdd;
    return 1;
};
//
char FindDeviceName(const char* szName, const UINT nIDList1,
                    const UINT nIDList2)
{
    DEVICE_LIST *pList = _pHead->pNext;
//
    while (pList)
    {
        if (!strcmp(pList->szName, szName))
        {
            GetOtherInfo(pList->guid, pList->wOrder, nIDList1, nIDList2);
            GetDeviceDetailInfo(pList);
            return 1;
        };
        pList = pList->pNext;
    };
    return 0;
};
//
void FreeAllocDeviceNode()
{
    DEVICE_LIST *pDel = _pHead->pNext;
    DEVICE_LIST *pTmp = 0L;
//
    while (pDel->pNext)
    {
        pTmp = pDel;
        pDel = pDel->pNext;
        LocalFree(pTmp);
    };
    LocalFree(_pHead);
    _pHead = 0L;
};
//
void GetDeviceDetailInfo(DEVICE_LIST* pList)
{
    char       szBuf[MAX_PATH] = {0};
    HWND       hList           = GetDlgItem(_hDlg, IDC_LIST1);
//
    ConvertGUIDToString(pList->guid, szBuf);
    ListViewInsertItemText(hList, 0, 1, szBuf);
    ListViewInsertItemText(hList, 2, 1, pList->szInstallID);
    sprintf(szBuf, "%d", pList->wIndex);
    ListViewInsertItemText(hList, 10, 1, szBuf);
    ListViewInsertItemText(hList, 11, 1, pList->szPath);
};
//
void InitialImageData()
{
    HIMAGELIST hImageListView  = 0L;
//
    SetupDiDestroyClassImageList(&_spImageData);
    RtlZeroMemory(&_spImageData, sizeof(SP_CLASSIMAGELIST_DATA));
    _spImageData.cbSize = sizeof(SP_CLASSIMAGELIST_DATA);
    SetupDiGetClassImageList(&_spImageData);
};
//
void DisplayDriverDetailInfo(HTREEITEM hTreeChild, const UINT nID,
                             const char *szBuf, const int iImageIdx, const int iSelectImage)
{
    TVINSERTSTRUCT tvStruct = {0};
    HWND           hTree    = GetDlgItem(_hDlg, nID);
//
    tvStruct.hParent      = hTreeChild;
    tvStruct.hInsertAfter = TVI_LAST;
    tvStruct.item.mask    = TVIF_IMAGE | TVIF_TEXT | TVIF_SELECTEDIMAGE | TVIF_HANDLE;
    tvStruct.item.mask   |= TVIF_PARAM;
    tvStruct.item.lParam  = 1;
    tvStruct.item.pszText = (char*)szBuf;
    tvStruct.item.iImage  = iImageIdx;
    tvStruct.item.iSelectedImage = iImageIdx;
    SendMessage(hTree, TVM_INSERTITEM, 0, (LPARAM)&tvStruct);
};
//
void GetDeviceInstanceID(HDEVINFO hDevInfo,
                         SP_DEVINFO_DATA* pspDevInfoData,
                         char *szInstanceID)
{
    if (!SetupDiGetDeviceInstanceId(hDevInfo,
                                    pspDevInfoData,
                                    szInstanceID,
                                    LINE_LEN,
                                    0))
        ShowErrorMsg(_hDlg, GetLastError(), "SetupDiBuildDriverInfoList");
};


//
char EnumWDMDriver(const UINT nIdTree, const UINT nIdBmp)
{
    HDEVINFO        hDevInfo         = 0L;
    SP_DEVINFO_DATA spDevInfoData    = {0};
    short           wIndex           = 0;
    HTREEITEM       hTreeChild       = 0L;
//
    hTreeChild = MakeDeviceRootTree(_spImageData, nIdTree, nIdBmp);
    if (!hTreeChild)
        return 0;
//
    hDevInfo = SetupDiGetClassDevs(0L, 0L, _hDlg, DIGCF_PRESENT |
                                   DIGCF_ALLCLASSES | DIGCF_PROFILE);
    if (hDevInfo == (void*)-1)
    {
        ShowErrorMsg(_hDlg, GetLastError(), "SetupDiGetClassDevs");
        return 0;
    };
//
    wIndex = 0;
    spDevInfoData.cbSize = sizeof(SP_DEVINFO_DATA);
    SendMessage(GetDlgItem(_hDlg, nIdTree), TVM_SETIMAGELIST,
                TVSIL_NORMAL, (LPARAM)_spImageData.ImageList);
//
    while (1)
    {
        if (SetupDiEnumDeviceInfo(hDevInfo,
                                  wIndex,
                                  &spDevInfoData))
        {
            char  szBuf[MAX_PATH] = {0};

            // short wImageIdx = 0;
            int wImageIdx       = 0; // to fix : when this function return, reprot exception : Run-Time Check Failure #2 - Stack around the variable 'wImageIdx' was corrupted.
            short wItem           = 0;
//
            if (!SetupDiGetDeviceRegistryProperty(hDevInfo,
                                                  &spDevInfoData,
                                                  SPDRP_CLASS, //SPDRP_DEVICEDESC,
                                                  0L,
                                                  (PBYTE)szBuf,
                                                  2048,
                                                  0))
            {
                wIndex++;
                continue;
            };
//
            if (SetupDiGetClassImageIndex(&_spImageData,
                                          &spDevInfoData.ClassGuid,
                                          (int*)&wImageIdx))
            {
                TVINSERTSTRUCT         tvStruct        = {0};
                HWND                   hTree           = GetDlgItem(_hDlg, nIdTree);
                char                   szName[64]      = {0};
                char                   szID[LINE_LEN]  = {0};
                char                   szPath[MAX_PATH] = {0};
                HTREEITEM              hItem;
                DWORD                  dwRequireSize;
                short                  wOrder;
//
                if (!SetupDiGetClassDescription(&spDevInfoData.ClassGuid,
                                                szBuf,
                                                MAX_PATH,
                                                &dwRequireSize))
                {
                    wIndex++;
                    continue;
                };
                wOrder = FindDeviceOrder(szBuf);
                if (!AddNewDeviceOrderNode(szBuf))
                {
                    wIndex++;
                    continue;
                };
                hItem = TreeViewFindChild(hTree, hTreeChild, szBuf);
                if (!hItem)
                {
                    tvStruct.hParent      = hTreeChild;
                    tvStruct.hInsertAfter = TVI_LAST;
                    tvStruct.item.mask    = TVIF_IMAGE | TVIF_TEXT | TVIF_SELECTEDIMAGE;
                    tvStruct.item.mask   |= TVIF_PARAM;
                    tvStruct.item.lParam  = 1;
                    tvStruct.item.pszText = szBuf;
                    tvStruct.item.iImage  = wImageIdx;
                    tvStruct.item.iSelectedImage = wImageIdx;
                    hItem = (HTREEITEM)SendMessage(hTree, TVM_INSERTITEM, 0, (LPARAM)&tvStruct);
                    wOrder = 0;
                };
                GetDeviceInstanceID(hDevInfo, &spDevInfoData, szID);
                GetDeviceInterfaceInfo(hDevInfo, spDevInfoData, szPath);
//
                if (SetupDiGetDeviceRegistryProperty(hDevInfo,
                                                     &spDevInfoData,
                                                     SPDRP_FRIENDLYNAME,
                                                     0L,
                                                     (PBYTE)szName,
                                                     63,
                                                     0))
                {
                    DisplayDriverDetailInfo(hItem, nIdTree, szName, wImageIdx, wImageIdx);
                    AddNewDeviceNode(spDevInfoData.ClassGuid, szName, szID, szPath, wIndex, wOrder);
                }
                else if (SetupDiGetDeviceRegistryProperty(hDevInfo,
                                                     &spDevInfoData,
                                                     SPDRP_DEVICEDESC,
                                                     0L,
                                                     (PBYTE)szName,
                                                     63,
                                                     0))
                {
                    DisplayDriverDetailInfo(hItem, nIdTree, szName, wImageIdx, wImageIdx);
                    AddNewDeviceNode(spDevInfoData.ClassGuid, szName, szID, szPath, wIndex, wOrder);
//                    if (!GetFirmwareEnvironmentVariable(szName, (LPCSTR)&spDevInfoData.ClassGuid, szBuf, 127))
//                        ShowErrorMsg(_hDlg, GetLastError(), "GetFirmwareEnvironmentVariable");
                };
            };
//            SetupDiDestroyDriverInfoList(hDevInfo, &spDevInfoData, SPDIT_COMPATDRIVER);
        }
        else
            break;
        wIndex++;
    };
    SendMessage(GetDlgItem(_hDlg, nIdTree), TVM_EXPAND,
                TVE_EXPAND, (LPARAM)hTreeChild);
    SendMessage(GetDlgItem(_hDlg, nIdTree), TVM_SORTCHILDREN,
                0, (LPARAM)hTreeChild);
    TreeView_SetItemState(GetDlgItem(_hDlg, nIdTree), hTreeChild, TVIS_SELECTED, TVIS_SELECTED);
//    SendMessage(GetDlgItem(_hDlg, nIdTree), TVM_SELECTITEM,
//                TVGN_FIRSTVISIBLE, (LPARAM)hTreeChild);
    SetupDiDestroyDeviceInfoList(hDevInfo);
    return 1;
};
//
void GetMemoryResource(MEM_DES* pMemDes, const ULONG ulSize, const UINT nID)
{
    char  szBuf[128] = {0};
    HWND  hListView  = GetDlgItem(_hDlg, nID);
    short wLoop      = 0;
    short wCnt       = ListViewGetItemCount(hListView);
//
    sprintf(szBuf, "%08X - ", (unsigned int)pMemDes->MD_Alloc_Base);
    sprintf(szBuf+strlen(szBuf), "%08X", (unsigned int)pMemDes->MD_Alloc_End);
    if (GetACP() == 950)
        ListViewInsertItemText(hListView, wCnt, 0, "癘拘砰絛瞅");
    else
        ListViewInsertItemText(hListView, wCnt, 0, "Memory Range");
    ListViewInsertItemText(hListView, wCnt, 1, szBuf);
//
    if (pMemDes->MD_Count)
    {
        for (wLoop = 0; wLoop < (short)(ulSize -
                               (LONG)(sizeof(MEM_DES) / pMemDes->MD_Type)); wLoop++)
        {
            MEM_RANGE *pMemRange = (MEM_RANGE*)(pMemDes + 1);// + pMemDes->MD_Type);
            if (pMemRange->MR_Min != 0 && pMemRange->MR_Max != 0 &&
                (pMemRange->MR_Min < pMemRange->MR_Max))
            {
                sprintf(szBuf, "%08X - ", (unsigned int)pMemRange->MR_Min);
                sprintf(szBuf+strlen(szBuf), "%08X", (unsigned int)pMemRange->MR_Max);
                if (GetACP() == 950)
                    ListViewInsertItemText(hListView, wCnt+wLoop+1, 0, "癘拘砰絛瞅");
                else
                    ListViewInsertItemText(hListView, wCnt+wLoop+1, 0, "Memory Range");
                ListViewInsertItemText(hListView, wCnt+wLoop+1, 1, szBuf);
            };
        };
    };
};
//
void GetIOResource(IO_DES *pIODes, const ULONG ulSize, const UINT nID)
{
    char  szBuf[128] = {0};
    HWND  hListView  = GetDlgItem(_hDlg, nID);
    short wLoop      = 0;
    short wCnt       = ListViewGetItemCount(hListView);
//
    sprintf(szBuf, "%04X - ", (unsigned int)pIODes->IOD_Alloc_Base);
    sprintf(szBuf+strlen(szBuf), "%04X", (unsigned int)pIODes->IOD_Alloc_End);
//
    if (GetACP() == 950)
        ListViewInsertItemText(hListView, wCnt, 0, "块/块絛瞅");
    else
        ListViewInsertItemText(hListView, wCnt, 0, "IO Range");
    ListViewInsertItemText(hListView, wCnt, 1, szBuf);
//
    if (pIODes->IOD_Count)
    {
        for (wLoop = 0; wLoop < (short)(ulSize -
                            (ULONG)(sizeof(IO_DES) / pIODes->IOD_Type)); wLoop++)
        {
            IO_RANGE *pIORange = (IO_RANGE*)(pIODes + 1); // + (wLoop * pIODes->IOD_Type));
            if (pIORange->IOR_Min != 0 && pIORange->IOR_Max != 0 &&
                (pIORange->IOR_Min < pIORange->IOR_Max))
            {
                sprintf(szBuf, "%04X - ", (unsigned int)pIORange->IOR_Min);
                sprintf(szBuf+strlen(szBuf), "%04X", (unsigned int)pIORange->IOR_Max);
                if (GetACP() == 950)
                    ListViewInsertItemText(hListView, wCnt+wLoop+1, 0, "块/块絛瞅");
                else
                    ListViewInsertItemText(hListView, wCnt, 0, "IO Range");
                ListViewInsertItemText(hListView, wCnt+wLoop+1, 1, szBuf);
            };
        };
    };
};
//
void GetDMAResource(DMA_DES* pDMADes, const ULONG ulSize, const UINT nID)
{
    char  szBuf[128] = {0};
    HWND  hListView  = GetDlgItem(_hDlg, nID);
    short wLoop      = 0;
    short wCnt       = ListViewGetItemCount(hListView);
//
    sprintf(szBuf, "%02d", pDMADes->DD_Alloc_Chan);
    ListViewInsertItemText(hListView, wCnt, 0, "DMA");
    ListViewInsertItemText(hListView, wCnt, 1, szBuf);
//
    if (pDMADes->DD_Count)
    {
        for (wLoop = 0; wLoop < (short)(ulSize -
                            (ULONG)(sizeof(DMA_DES) / pDMADes->DD_Type)); wLoop++)
        {
            DMA_RANGE *pDMARange = (DMA_RANGE*)(pDMADes + 1); // + (wLoop * pIODes->IOD_Type));
            if (pDMARange->DR_Min != 0 && pDMARange->DR_Max != 0 &&
                (pDMARange->DR_Min < pDMARange->DR_Max))
            {
                sprintf(szBuf, "%02d - ", pDMARange->DR_Min);
                sprintf(szBuf+strlen(szBuf), "%02d", pDMARange->DR_Max);
                ListViewInsertItemText(hListView, wCnt+wLoop+1, 0, "DMA");
                ListViewInsertItemText(hListView, wCnt+wLoop+1, 1, szBuf);
            };
        };
    };
};
//
void GetIRQResource(IRQ_DES* pIRQDes, const ULONG ulSize, const UINT nID)
{
    char  szBuf[128] = {0};
    HWND  hListView  = GetDlgItem(_hDlg, nID);
    short wLoop      = 0;
    short wCnt       = ListViewGetItemCount(hListView);
//
    sprintf(szBuf, "%02d", pIRQDes->IRQD_Alloc_Num);
    ListViewInsertItemText(hListView, wCnt, 0, "IRQ");
    ListViewInsertItemText(hListView, wCnt, 1, szBuf);
//
    if (pIRQDes->IRQD_Count)
    {
        for (wLoop = 0; wLoop < (short)(ulSize -
                            (ULONG)(sizeof(IRQ_DES) / pIRQDes->IRQD_Type)); wLoop++)
        {
            IRQ_RANGE *pIRQRange = (IRQ_RANGE*)(pIRQDes + 1); // + (wLoop * pIODes->IOD_Type));
            if (pIRQRange->IRQR_Min != 0 && pIRQRange->IRQR_Max != 0 &&
                (pIRQRange->IRQR_Min < pIRQRange->IRQR_Max))
            {
                sprintf(szBuf, "%02d - ", pIRQRange->IRQR_Min);
                sprintf(szBuf+strlen(szBuf), "%02d", pIRQRange->IRQR_Max);
                ListViewInsertItemText(hListView, wCnt+wLoop+1, 0, "IRQ");
                ListViewInsertItemText(hListView, wCnt+wLoop+1, 1, szBuf);
            };
        };
    };
};
//
void FindSpecResource(const DEVINST DevInst, const DWORD dwResType,
                      const short wOrder, const UINT nID)
{
    char  *pBuf  = 0L;
    short wHeaderSize;
    ULONG ulSize;
//
    CONFIGRET cmRet;
    LOG_CONF  firstLogConf;
    LOG_CONF  nextLogConf;
    RES_DES   rdPrevResDes;
//
    switch(dwResType)
    {
        case ResType_Mem:
            wHeaderSize = sizeof(MEM_DES);
        break;
//
        case ResType_IO:
            wHeaderSize = sizeof(IO_DES);
        break;
//
        case ResType_DMA:
            wHeaderSize = sizeof(DMA_DES);
        break;
//
        case ResType_IRQ:
            wHeaderSize = sizeof(IRQ_DES);
        break;
    };
//
    cmRet = CM_Get_First_Log_Conf(&firstLogConf, DevInst, ALLOC_LOG_CONF);
    if (cmRet != CR_SUCCESS)
    {
        cmRet = CM_Get_First_Log_Conf(&firstLogConf, DevInst, BOOT_LOG_CONF);
        if (cmRet != CR_SUCCESS)
            return;
    };
//
    cmRet = CM_Get_Next_Res_Des(&nextLogConf,
                                firstLogConf,
                                dwResType,
                                0L,
                                0L);
    if (cmRet != CR_SUCCESS)
    {
        CM_Free_Res_Des_Handle(firstLogConf);
        return;
    };
//
    while (1)
    {
//
        ulSize = 0;
        cmRet = CM_Get_Res_Des_Data_Size(&ulSize, nextLogConf, 0L);
        if (cmRet != CR_SUCCESS)
        {
            CM_Free_Res_Des_Handle(nextLogConf);
            break;
        };
//
        pBuf = (char*)LocalAlloc(LPTR, 2048);
        if (!pBuf)
        {
            ShowErrorMsg(_hDlg, GetLastError(), "LocalAlloc");
            CM_Free_Res_Des_Handle(nextLogConf);
            break;
        };
//
        cmRet = CM_Get_Res_Des_Data(nextLogConf, pBuf, ulSize, 0L);
        if (cmRet != CR_SUCCESS)
        {
            CM_Free_Res_Des_Handle(nextLogConf);
            LocalFree(pBuf);
            break;
        };
//
        switch(dwResType)
        {
            case ResType_Mem:
                GetMemoryResource((MEM_DES*)pBuf, ulSize, nID);
            break;
//
            case ResType_IO:
                GetIOResource((IO_DES*)pBuf, ulSize, nID);
            break;
//
            case ResType_DMA:
                GetDMAResource((DMA_DES*)pBuf, ulSize, nID);
            break;
//
            case ResType_IRQ:
                GetIRQResource((IRQ_DES*)pBuf, ulSize, nID);
            break;
        };
        rdPrevResDes = 0;
        cmRet = CM_Get_Next_Res_Des(&rdPrevResDes,
                                    nextLogConf,
                                    dwResType,
                                    0L,
                                    0L);
        LocalFree(pBuf);
        if (cmRet != CR_SUCCESS)
           break;
        else
        {
            CM_Free_Res_Des_Handle(nextLogConf);
            nextLogConf = rdPrevResDes;
        };
    };
    CM_Free_Res_Des_Handle(nextLogConf);
};
//
void GetOtherInfo(GUID guid, const short wOrder,
          const UINT nIDList1, const UINT nIDList2)
{
    HDEVINFO         hDevInfo      = 0L;
    SP_DEVINFO_DATA  spDevInfoData = {0};
//
    hDevInfo = SetupDiGetClassDevs(&guid, 0L, _hDlg, DIGCF_PRESENT);
    if (hDevInfo == (void*)-1)
    {
        ShowErrorMsg(_hDlg, GetLastError(), "SetupDiGetClassDevs");
        return;
    };
//
//    wIndex = 0;
    spDevInfoData.cbSize = sizeof(SP_DEVINFO_DATA);
    if (SetupDiEnumDeviceInfo(hDevInfo,
                              wOrder,
                              &spDevInfoData))
    {
        SP_DRVINFO_DATA        spDrvInfoData      = {0};
        SP_DRVINFO_DETAIL_DATA spDrvInfoDetail    = {0};
        char                   szHardware[128]    = {0};
        HWND                   hList              = GetDlgItem(_hDlg, nIDList1);
        DWORD                  dwRequireSize;
        short                  wIdx;
//
        GetMoreInformation(hDevInfo, spDevInfoData, nIDList1);
        // Show Resource Information
        for (wIdx = ResType_Mem; wIdx <= ResType_IRQ; wIdx++)
            FindSpecResource(spDevInfoData.DevInst,
                             wIdx, wOrder, nIDList2);
//
        if (!SetupDiBuildDriverInfoList(hDevInfo,
                                        &spDevInfoData,
                                        SPDIT_COMPATDRIVER))
            ShowErrorMsg(_hDlg, GetLastError(), "SetupDiBuildDriverInfoList");
        wIdx = 0;
        while (1)
        {
            spDrvInfoData.cbSize = sizeof(SP_DRVINFO_DATA);
            if (SetupDiEnumDriverInfo(hDevInfo,
                                      &spDevInfoData,
                                      SPDIT_COMPATDRIVER,
                                      wIdx++,
                                      &spDrvInfoData))
            {
                // char szBuf[2048] = {0};
                // int temp = sizeof(spDrvInfoDetail); // 796

                // memcpy(&spDrvInfoDetail, szBuf, sizeof(SP_DRVINFO_DETAIL_DATA));
                memset(&spDrvInfoDetail, 0, sizeof(SP_DRVINFO_DETAIL_DATA));
                spDrvInfoDetail.cbSize = sizeof(SP_DRVINFO_DETAIL_DATA);
                dwRequireSize = 0;
                if (SetupDiGetDriverInfoDetail(hDevInfo,
                                               &spDevInfoData,
                                               &spDrvInfoData,
                                               &spDrvInfoDetail,
                                                sizeof(SP_DRVINFO_DETAIL_DATA),
                                               &dwRequireSize))
                {
                    SYSTEMTIME sysTime   = {0};
                    char       szTmp[64] = {0};
//
                    memcpy(szHardware, spDrvInfoDetail.HardwareID,
                           strlen(spDrvInfoDetail.HardwareID));
                    ListViewInsertItemText(hList, 1, 1, szHardware);
                    ListViewInsertItemText(hList, 3, 1, spDrvInfoData.MfgName);
                    ListViewInsertItemText(hList, 4, 1, spDrvInfoData.ProviderName);
                    ListViewInsertItemText(hList, 5, 1, spDrvInfoData.Description);
                    FileTimeToSystemTime(&spDrvInfoData.DriverDate, &sysTime);
                    sprintf(szTmp, "%02d/%02d/%04d", sysTime.wMonth,
                             sysTime.wDay, sysTime.wYear);
                    ListViewInsertItemText(hList, 7, 1, szTmp);
                    ListViewInsertItemText(hList, 6, 1, spDrvInfoDetail.SectionName);
                    ListViewInsertItemText(hList, 8, 1, spDrvInfoDetail.InfFileName);
                }
                else
                    RtlZeroMemory(szHardware, sizeof(char)*128);
            }
            else
            {
                DWORD dwError = GetLastError();
//
                if (dwError != ERROR_NO_MORE_ITEMS)
                    ShowErrorMsg(_hDlg, dwError, "SetupDiEnumDriverInfo");
                break;
            };
            SetupDiDestroyDriverInfoList(hDevInfo, &spDevInfoData, SPDIT_COMPATDRIVER);
        };
        SetupDiDestroyDeviceInfoList(hDevInfo);
    };
};
//
void GetDeviceInterfaceInfo(HDEVINFO hDevInfo, SP_DEVINFO_DATA spDevInfoData,
                            char *szPath)
{
    SP_DEVICE_INTERFACE_DATA spDevInterfaceData = {0};
//
    spDevInterfaceData.cbSize = sizeof(SP_DEVICE_INTERFACE_DATA);
    if (!SetupDiCreateDeviceInterface(hDevInfo,
                                      &spDevInfoData,
                                      &spDevInfoData.ClassGuid,
                                      0L,
                                      0L,
                                      &spDevInterfaceData))
        ShowErrorMsg(_hDlg, GetLastError(), "SetupDiBuildDriverInfoList");
    else
    {
        SP_DEVICE_INTERFACE_DETAIL_DATA *pspDevInterfaceDetail = 0L;
        DWORD                           dwRequire              = 0L;
//
        if (!SetupDiGetDeviceInterfaceDetail(hDevInfo,
                                             &spDevInterfaceData,
                                             0L,
                                             0,
                                             &dwRequire,
                                             0L))
        {
            DWORD dwError = GetLastError();
//
            if (dwError != ERROR_INSUFFICIENT_BUFFER)
            {
                ShowErrorMsg(_hDlg, dwError, "SetupDiBuildDriverInfoList");
                return;
            };
        };
//
        pspDevInterfaceDetail = (SP_DEVICE_INTERFACE_DETAIL_DATA*)LocalAlloc(LPTR,
                                    sizeof(SP_DEVICE_INTERFACE_DETAIL_DATA)*dwRequire);
        pspDevInterfaceDetail->cbSize = sizeof(SP_DEVICE_INTERFACE_DETAIL_DATA);
        if (!SetupDiGetDeviceInterfaceDetail(hDevInfo,
                                             &spDevInterfaceData,
                                             pspDevInterfaceDetail,
                                             dwRequire,
                                             &dwRequire,
                                             0L))
        {
            DWORD dwError = GetLastError();
//
            if (dwError != ERROR_INSUFFICIENT_BUFFER)
                ShowErrorMsg(_hDlg, dwError, "SetupDiBuildDriverInfoList");
        }
        else
        {
            memcpy(szPath, pspDevInterfaceDetail->DevicePath,
                   strlen(pspDevInterfaceDetail->DevicePath));
//            switch(spDevInterfaceData.
        };
//
        if (pspDevInterfaceDetail)
            LocalFree(pspDevInterfaceDetail);
    };
};

DevMgr.h

#ifndef __ICE_DEVMGR_H
#define __ICE_DEVMGR_H
//
#ifdef __cplusplus
extern "C" {
#endif
//
#pragma once
//
#include <windows.h>
#include <dbt.h>
#include <stdio.h>
#include "util.h"
#include "setup.h"
#include "wdmsetup.h"
#include "syssetup.h"
#include "resource.h"
//
INT_PTR CALLBACK MainDialog(HWND, UINT, WPARAM, LPARAM);
INT_PTR CALLBACK InstallDialog(HWND, UINT, WPARAM, LPARAM);
//
void DisableRadioBtn(HWND, const char);
void GetInstallOption(HWND, short*, short*);
char OpenINFFile(const char, char*);
void SetCharSet(const UINT, const UINT);
void DeleteINFFile(const char*);
BOOL EnablePrivilege(LPCTSTR);
//
INT_PTR CALLBACK cb_export_txt(HWND hDlg, UINT uMsg,
    WPARAM wParam, LPARAM lParam);

#ifdef __cplusplus
}
#endif
//
#endif

DevMgr.c

//
// (w)ritten by Chuan-Liang Teng 2006, mailto:clteng@ms6.hinet.net
//
#include "devmgr.h"
//
HINSTANCE _hInst = 0L;
HWND      _hDlg  = 0L;
//
BOOL EnablePrivilege(LPCTSTR PrviName)
{
    HANDLE           hToken = 0L;
    TOKEN_PRIVILEGES Newtp;
    BOOL             bRtn = FALSE;
//
    OpenProcessToken(GetCurrentProcess(), TOKEN_ADJUST_PRIVILEGES, &hToken);
    if (LookupPrivilegeValue(NULL,PrviName, &Newtp.Privileges[0].Luid))
    {
        Newtp.Privileges[0].Attributes = SE_PRIVILEGE_ENABLED;
        Newtp.PrivilegeCount = 1;
        if (AdjustTokenPrivileges(hToken, FALSE, &Newtp, sizeof(Newtp), NULL, NULL))
            bRtn = TRUE;
    };
//
    CloseHandle(hToken);
//
    return bRtn;
};
char OpenINFFile(const char bType, char *pszName)
{
    char         szFile[MAX_PATH] = {0};
    char         szTitle[64]      = {0L};
    OPENFILENAME openFile         = {0L};
//
    openFile.lStructSize    = sizeof(OPENFILENAME);
    openFile.hwndOwner      = _hDlg;
    openFile.hInstance      = _hInst;
    if (bType)
        openFile.lpstrFilter    = "INF File(*.inf)\0*.inf\0";
    else
        openFile.lpstrFilter    = "System File(*.sys)\0*.sys\0";
    openFile.lpstrFile      = szFile;
    openFile.lpstrTitle     = szTitle;
    openFile.nMaxFileTitle  = 64;
    openFile.nMaxFile       = MAX_PATH;
    openFile.Flags          = OFN_FILEMUSTEXIST | OFN_EXPLORER;
    openFile.Flags         |= OFN_HIDEREADONLY; //  | OFN_ENABLETEMPLATE;
    if (GetOpenFileName(&openFile))
    {
        strcpy(pszName, szFile);
        return 1;
    };
    return 0;
};
//
void SetCharSet(const UINT nIDList1, const UINT nIDList2)
{
    HWND hListView1 = GetDlgItem(_hDlg, nIDList1);
    HWND hListView2 = GetDlgItem(_hDlg, nIDList2);
//
    if (GetACP() == 950)
    {
        ListViewInsertColumnText(hListView1, 0, 0, "逆(Field)", 0);
        ListViewInsertColumnText(hListView1, 1, 0, "弧(Descritption)", 1);
        ListViewInsertItemText(hListView1, 0, 0, "GUID");
        ListViewInsertItemText(hListView1, 1, 0, "祑砰醚絏");
        ListViewInsertItemText(hListView1, 2, 0, "杆醚絏");
        ListViewInsertItemText(hListView1, 3, 0, "紅坝");
        ListViewInsertItemText(hListView1, 4, 0, "ㄑ莱");
        ListViewInsertItemText(hListView1, 5, 0, "弧");
        ListViewInsertItemText(hListView1, 6, 0, "跋琿嘿");
        ListViewInsertItemText(hListView1, 7, 0, "INF ら戳");
        ListViewInsertItemText(hListView1, 8, 0, "INF 隔畖");
        ListViewInsertItemText(hListView1, 9, 0, "祘Α隔畖");
        ListViewInsertItemText(hListView1, 10, 0, "ま");
        ListViewInsertItemText(hListView1, 11, 0, "砞称隔畖");
        ListViewInsertItemText(hListView1, 12, 0, "竤舱");
        ListViewInsertItemText(hListView1, 13, 0, "币笆よΑ");
//
        ListViewInsertColumnText(hListView2, 0, 0, "戈方篈", 0);
        ListViewInsertColumnText(hListView2, 1, 0, "砞﹚", 1);
    }
    else
    {
        ListViewInsertColumnText(hListView1, 0, 0, "Field", 0);
        ListViewInsertColumnText(hListView1, 1, 0, "Descritption", 1);
        ListViewInsertItemText(hListView1, 0, 0, "GUID");
        ListViewInsertItemText(hListView1, 1, 0, "Hardware ID");
        ListViewInsertItemText(hListView1, 2, 0, "Install ID");
        ListViewInsertItemText(hListView1, 3, 0, "Manufacturer");
        ListViewInsertItemText(hListView1, 4, 0, "Provider");
        ListViewInsertItemText(hListView1, 5, 0, "Driver Description");
        ListViewInsertItemText(hListView1, 6, 0, "Section Name");
        ListViewInsertItemText(hListView1, 7, 0, "INF Date");
        ListViewInsertItemText(hListView1, 8, 0, "INF Path");
        ListViewInsertItemText(hListView1, 9, 0, "Image Path");
        ListViewInsertItemText(hListView1, 10, 0, "Index");
        ListViewInsertItemText(hListView1, 11, 0, "Device Path");
        ListViewInsertItemText(hListView1, 12, 0, "Group");
        ListViewInsertItemText(hListView1, 13, 0, "Start");
//
        ListViewInsertColumnText(hListView2, 0, 0, "Resource Type", 0);
        ListViewInsertColumnText(hListView2, 1, 0, "Setting", 1);
    };
};
//
void DisableRadioBtn(HWND hDlg, const char bEnable)
{
    short wLoop;
//
    for (wLoop = IDC_PARAMOPT1; wLoop <= IDC_PARAMOPT9; wLoop++)
         EnableWindow(GetDlgItem(hDlg, wLoop), bEnable);
    SendMessage(GetDlgItem(hDlg, IDC_PARAMOPT3), BM_SETCHECK, BST_CHECKED, 0);
    SendMessage(GetDlgItem(hDlg, IDC_PARAMOPT8), BM_SETCHECK, BST_CHECKED, 0);
};
//
void GetInstallOption(HWND hDlg, short *wError, short *wStart)
{
    HWND  hOption = 0L;
    short wLoop;
//
    for (wLoop = IDC_PARAMOPT1; wLoop <= IDC_PARAMOPT4; wLoop++)
    {
        hOption = GetDlgItem(hDlg, wLoop);
        if (SendMessage(hOption, BM_GETCHECK, 0, 0) == BST_CHECKED)
        {
            switch(wLoop)
            {
                case IDC_PARAMOPT1:
                    *wError = SERVICE_ERROR_CRITICAL;
                break;
//
                case IDC_PARAMOPT2:
                    *wError = SERVICE_ERROR_IGNORE;
                break;
//
                case IDC_PARAMOPT3:
                    *wError = SERVICE_ERROR_NORMAL;
                break;
//
                case IDC_PARAMOPT4:
                    *wError = SERVICE_ERROR_SEVERE;
                break;
//
            };
            break;
        };
    };
    if (wLoop > IDC_PARAMOPT4)
        *wError = -1;
    for (wLoop = IDC_PARAMOPT5; wLoop <= IDC_PARAMOPT9; wLoop++)
    {
        hOption = GetDlgItem(hDlg, wLoop);
        if (SendMessage(hOption, BM_GETCHECK, 0, 0) == BST_CHECKED)
        {
            switch(wLoop)
            {
                case IDC_PARAMOPT5:
                    *wStart = SERVICE_BOOT_START;
                break;
//
                case IDC_PARAMOPT6:
                    *wStart = SERVICE_SYSTEM_START;
                break;
//
                case IDC_PARAMOPT7:
                    *wStart = SERVICE_AUTO_START;
                break;
//
                case IDC_PARAMOPT8:
                    *wStart = SERVICE_DEMAND_START;
                break;
//
                case IDC_PARAMOPT9:
                    *wStart = SERVICE_DISABLED;
                break;
            };
            break;
        };
    };
    if (wLoop > IDC_PARAMOPT9)
        *wStart = -1;
};
//
INT_PTR CALLBACK InstallDialog(HWND hDlg, UINT uMsg,
                               WPARAM wParam, LPARAM lParam)
{
    static FILE *pf             = 0L;
    static char szINF[MAX_PATH] = {0};
    static char bType;
//
    switch(uMsg)
    {
        case WM_INITDIALOG:
        {
            DisableCloseBox(hDlg);
            DisableRadioBtn(hDlg, 0);
            bType = (!lParam) ? 0 : 1;
            EnableWindow(GetDlgItem(hDlg, IDC_INSTALLBTN), 0);
            EnableWindow(GetDlgItem(hDlg, IDC_RESETBTN), 0);
            EnableWindow(GetDlgItem(hDlg, IDC_DRVNAMETXT), 0);
            EnableWindow(GetDlgItem(hDlg, IDC_ENABLEDRVBTN), 0);
            SetFocus(GetDlgItem(hDlg, IDC_OPENINFBTN));
        };
        break;
//
        case WM_COMMAND:
        {
            switch(LOWORD(wParam))
            {
                case IDC_OPENINFBTN:
                {
                    if (pf)
                        fclose(pf);
                    InitialGlobalVar();
                    pf = 0L;
                    if (!OpenINFFile(bType, szINF))
                        break;
                    SendMessage(GetDlgItem(hDlg, IDC_INFLBL), WM_SETTEXT,
                                0, (LPARAM)szINF);
                    pf = fopen(szINF, "r");
                    if (!pf)
                    {
                        sprintf(szINF, "Erro Open File!Code:%d", errno);
                        MessageBox(hDlg, szINF, "ERROR", MB_ICONSTOP);
                        break;
                    };
                    EnableWindow(GetDlgItem(hDlg, IDC_INSTALLBTN), 1);
                    EnableWindow(GetDlgItem(hDlg, IDC_RESETBTN), 1);
                    if (!bType)
                    {
                        DisableRadioBtn(hDlg, 1);
                        EnableWindow(GetDlgItem(hDlg, IDC_DRVNAMETXT), 1);
                        SetFocus(GetDlgItem(hDlg, IDC_DRVNAMETXT));
                    };
                };
                break;
//
                case IDC_INSTALLBTN:
                {
                    if (bType)
                    {
                        if (pf)
                            GetINFData(pf);
                        EnableWindow(GetDlgItem(hDlg, IDC_INSTALLBTN), 0);
                        EnableWindow(GetDlgItem(hDlg, IDC_RESETBTN), 0);
                        if (!StartInstallWDMDriver(szINF))
                        {
                            EnableWindow(GetDlgItem(hDlg, IDC_INSTALLBTN), 0);
                            EnableWindow(GetDlgItem(hDlg, IDC_RESETBTN), 0);
                            SetFocus(GetDlgItem(hDlg, IDC_OPENINFBTN));
                        }
                        else
                        {
                            EnableWindow(GetDlgItem(hDlg, IDC_INSTALLBTN), 1);
                            EnableWindow(GetDlgItem(hDlg, IDC_RESETBTN), 1);
                        };
                    }
                    else
                    {
                        short wError;
                        short wStart;
                        char  szDevName[64] = {0};
                        char szName[MAX_PATH] = {"\\\\.\\\0"};
//
                        GetInstallOption(hDlg, &wError, &wStart);
                        if (!wError || !wStart)
                            break;
                        SendMessage(GetDlgItem(hDlg, IDC_DRVNAMETXT), WM_GETTEXT,
                                    sizeof(char)*63, (LPARAM)szDevName);
                        if (!*szDevName)
                        {
                            RtlZeroMemory(szINF, sizeof(char)*MAX_PATH);
                            if (pf)
                                fclose(pf);
                            pf = 0L;
                            SendMessage(GetDlgItem(hDlg, IDC_INFLBL), WM_SETTEXT,
                                        0, 0L);
                            EnableWindow(GetDlgItem(hDlg, IDC_DRVNAMETXT), 0);
                            for (wStart = IDC_PARAMOPT1; wStart <= IDC_PARAMOPT9; wStart++)
                                 SendMessage(GetDlgItem(hDlg, wStart), BM_SETCHECK, BST_UNCHECKED, 0);
                            SetFocus(GetDlgItem(hDlg, IDC_OPENINFBTN));
                        }
                        else
                        {
                            strcat(szName, szDevName);
                            StartDriver(wError, wStart, szINF, szDevName);
                        };
                    };
                };
                break;
//
                case IDC_RESETBTN:
                {
                    short wLoop;
//
                    if (pf)
                        fclose(pf);
                    pf = 0L;
                    SendMessage(GetDlgItem(hDlg, IDC_INFLBL), WM_SETTEXT,
                                0, (LPARAM)"");
                    RtlZeroMemory(szINF, sizeof(char)*MAX_PATH);
                    SetFocus(GetDlgItem(hDlg, IDC_OPENINFBTN));
                    for (wLoop = IDC_PARAMOPT1; wLoop <= IDC_PARAMOPT9; wLoop++)
                        SendMessage(GetDlgItem(hDlg, wLoop), BM_SETCHECK, BST_UNCHECKED, 0);
                };
                break;
//
                case IDC_IEXIT:
                {
                    EndDialog(hDlg, 0);
                };
                break;
            };
        };
        break;
    };
    return 0;
};
//
void DeleteINFFile(const char *szINF)
{
    WIN32_FIND_DATA w32Data = {0};
    HANDLE          hFind   = 0L;
    char            szName[MAX_PATH] = {0};
    char            szDel[MAX_PATH] = {0};
//
    strcpy(szName, szINF);
    strcat(szName, ".*");
//
    hFind = FindFirstFile(szName, &w32Data);
    if (hFind != INVALID_HANDLE_VALUE)
    {
        do
        {
            _splitpath(szINF, szDel, szName, 0L, 0L);
            strcat(szDel, szName);
            strcat(szDel, w32Data.cFileName);
            _unlink(szDel);
        } while (FindNextFile(hFind, &w32Data));
    };
};



//
INT_PTR CALLBACK MainDialog(HWND hDlg, UINT uMsg,
                            WPARAM wParam, LPARAM lParam)
{
    static CRITICAL_SECTION criticalSection = {0};
//
    switch(uMsg)
    {
        case WM_INITDIALOG:
        {
            HWND hListView = GetDlgItem(hDlg, IDC_LIST1);
//
            _hDlg = hDlg;
            WaitCursor(1);
            EnablePrivilege(SE_DEBUG_NAME);
            EnablePrivilege(SE_LOAD_DRIVER_NAME);
            DisableCloseBox(hDlg);
            if (!InitialDeviceList() || !InitialDeviceOrder())
                EndDialog(hDlg, 0);
            ListViewSetExtStyle(GetDlgItem(hDlg, IDC_LIST1), 0);
            ListViewSetExtStyle(GetDlgItem(hDlg, IDC_LIST2), 0);
            SetCharSet(IDC_LIST1, IDC_LIST2);
            TreeViewRemoveAllNodes(hDlg, IDC_TREE1);
            InitialImageData();
            EnumWDMDriver(IDC_TREE1, IDB_MYCOMP);
            SendMessage(GetDlgItem(hDlg, IDC_RADIO2), BM_SETCHECK, BST_CHECKED, 0);
            EnableWindow(GetDlgItem(hDlg, IDC_DELBTN), 0);
            EnableWindow(GetDlgItem(hDlg, IDC_COPYPATHBTN), 0);
            WaitCursor(0);
            InitializeCriticalSection(&criticalSection);
        };
        break;
//
        case WM_COMMAND:
        {
            switch(LOWORD(wParam))
            {
                case IDC_ADDBTN:
                {
                    short wLegacy = 0;
//
                    if (SendMessage(GetDlgItem(hDlg, IDC_RADIO2),
                                    BM_GETCHECK, 0, 0) == BST_CHECKED)
                        wLegacy = 1;
                    if (DialogBoxParam(_hInst, MAKEINTRESOURCE(IDD_DIALOG2),
                                        hDlg, InstallDialog, wLegacy) == -1)
                        ShowErrorMsg(hDlg, GetLastError(), "DialogBox");
                };
                break;
//
                case IDC_DELBTN:
                {
                    char  szHardware[64]   = {0};
                    char  szPath[MAX_PATH] = {0};
                    short wIndex;
//
                    ListViewGetSpecItem(GetDlgItem(hDlg, IDC_LIST1), 10, 1, szHardware);
                    wIndex = atoi(szHardware);
                    RtlZeroMemory(szHardware, sizeof(char)*64);
                    ListViewGetSpecItem(GetDlgItem(hDlg, IDC_LIST1), 1, 1, szHardware);
                    ListViewGetSpecItem(GetDlgItem(hDlg, IDC_LIST1), 8, 1, szPath);
                    UninstallWDMDriver(wIndex, szHardware);
                    {
                        char *p              = strchr(szPath, '.');
                        char szTmp[MAX_PATH] = {0};
                        memcpy(szTmp, szPath, p-szPath);
                        DeleteINFFile(szTmp);
                    };
                    ListViewGetSpecItem(GetDlgItem(hDlg, IDC_LIST1), 9, 1, szPath);
                    _unlink(szPath);
                    EnableWindow(GetDlgItem(hDlg, IDC_DELBTN), 0);
                    EnableWindow(GetDlgItem(hDlg, IDC_COPYPATHBTN), 0);
                };
                break;
//
                case IDC_REFBTN:
                {
                    SendMessage(hDlg, WM_DEVICECHANGE, 0, 0);
                };
                break;

                case IDC_EXPORT_TXT:
                {
                    cb_export_txt(hDlg, uMsg, wParam, lParam);
                };
                break;

//
                case IDC_COPYPATHBTN:
                {
                    HGLOBAL hMem            = 0L;
                    char    *p              = 0L;
                    char    szBuf[MAX_PATH] = {0};
//
                    if (!IsClipboardFormatAvailable(CF_TEXT))
                        break;
                    if (!OpenClipboard(hDlg))
                    {
                        ShowErrorMsg(hDlg, GetLastError(), "OpenClipboard");
                        break;
                    };
                    EmptyClipboard();
                    ListViewGetSpecItem(GetDlgItem(hDlg, IDC_LIST1), 11, 1, szBuf);
                    if (!*szBuf)
                        break;
                    hMem = LocalAlloc(LMEM_MOVEABLE, sizeof(char)*strlen(szBuf)+1);
                    if (!hMem)
                    {
                        ShowErrorMsg(hDlg, GetLastError(), "LocalAlloc");
                        break;
                    };
                    p = LocalLock(hMem);
                    memcpy(p, szBuf, strlen(szBuf));
                    p[strlen(szBuf)] = 0;
                    LocalUnlock(hMem);
                    SetClipboardData(CF_TEXT, p);
                    LocalFree(hMem);
                    CloseClipboard();
                };
                break;
//
                case IDC_EXIT:
                    FreeAllocDeviceNode();
                    FreeAllDeviceOrderNode();
                    DeleteCriticalSection(&criticalSection);
                    EndDialog(hDlg, 0);
                break;
            };
            break;
//
        };
        break;
//
        case WM_DEVICECHANGE:
        {
            EnterCriticalSection(&criticalSection);
            WaitCursor(1);
            FreeAllocDeviceNode();
            FreeAllDeviceOrderNode();
            if (!InitialDeviceList() || !InitialDeviceOrder())
                EndDialog(hDlg, 0);
            ListViewRemoveAllItems(GetDlgItem(hDlg, IDC_LIST1));
            ListViewRemoveAllItems(GetDlgItem(hDlg, IDC_LIST2));
            SetCharSet(IDC_LIST1, IDC_LIST2);
            TreeViewRemoveAllNodes(hDlg, IDC_TREE1);
            InitialImageData();
            EnumWDMDriver(IDC_TREE1, IDB_MYCOMP);
            WaitCursor(0);
            LeaveCriticalSection(&criticalSection);
        };
        break;
//
        case WM_NOTIFY:
        {
            NMHDR *pnmh = (NMHDR*)lParam;
//
            switch(pnmh->idFrom)
            {
                case IDC_LIST1:
                {
                    if (pnmh->code == NM_CLICK)
                    {
                        char  szBuf[MAX_PATH] = {0};
                        HWND  hList           = GetDlgItem(hDlg, IDC_LIST1);
//
                        if (ListViewGetItemSelect(hList) == 10 ||
                            ListViewGetItemSelect(hList) == 11)
                        {
                            ListViewGetSpecItem(hList, 10, 1, szBuf);
                            if (*szBuf)
                                EnableWindow(GetDlgItem(hDlg, IDC_DELBTN), 1);
                            ListViewGetSpecItem(hList, 11, 1, szBuf);
                            if (*szBuf)
                                EnableWindow(GetDlgItem(hDlg, IDC_COPYPATHBTN), 1);
                        }
                        else
                        {
                            EnableWindow(GetDlgItem(hDlg, IDC_DELBTN), 0);
                            EnableWindow(GetDlgItem(hDlg, IDC_COPYPATHBTN), 0);
                        };
                    };
                };
                break;
//
                case IDC_TREE1:
                {
                    if (pnmh->code == TVN_SELCHANGED)
                    {
                        TVITEM     tvItem = {0};
                        NMTREEVIEW *pnmhTree = (NMTREEVIEW*)lParam;
//
                        TreeViewGetSelectText(GetDlgItem(hDlg, IDC_TREE1),
                                              (NMHDR*)lParam, &tvItem);
                        if (tvItem.pszText)
                        {
                            char szData[LINE_LEN] = {0};
//
                            memcpy(szData, tvItem.pszText, strlen(tvItem.pszText));
                            ListViewRemoveAllItems(GetDlgItem(_hDlg, IDC_LIST1));
                            ListViewRemoveAllItems(GetDlgItem(_hDlg, IDC_LIST2));
                            SetCharSet(IDC_LIST1, IDC_LIST2);
                            FindDeviceName(szData, IDC_LIST1, IDC_LIST2);
                        };
                    };
                };
                break;
            };
        };
        break;
    };
    return 0;
};
//
int APIENTRY WinMain(HINSTANCE hInst, HINSTANCE hPrevInst,
                     LPSTR lpCmdLine, int nShowCmd)
{
    InitCommonControls();
    _hInst = hInst;
    if (DialogBoxParam(hInst, MAKEINTRESOURCE(IDD_DIALOG1),
                       0L, MainDialog, 0L) == -1)
        ShowErrorMsg(0L, GetLastError(), "DialogBoxParam");
    ExitProcess(0);
    return 0;
};

INT_PTR CALLBACK cb_export_txt(HWND hDlg, UINT uMsg,
    WPARAM wParam, LPARAM lParam)
{
    int iCnt = 0;

    iCnt = getAllDeviceCnt(); // 192
    enumTreeCtrl(IDC_TREE1);
    MessageBox(hDlg, "export finished!", "info", MB_ICONINFORMATION);
    return 0;
}

HTREEITEM fn_get_tree_root_node(HWND hTreeView, const UINT nIdTree)
{
    HTREEITEM hNode = NULL;
    TVITEM    tvItem = { 0 };
    char      szText[256] = { 0 };
    int nNodeCnt = 0;

    nNodeCnt = (int)SendMessage(hTreeView, TVM_GETCOUNT, 0, 0); // 220

    hNode = (HTREEITEM)SendMessage(hTreeView,
        TVM_GETNEXTITEM,
        TVGN_ROOT, // TVGN_ROOT or TVGN_CHILD, not be TVGN_NEXT
        (LPARAM)NULL
    );

    if (NULL != hNode)
    {
        tvItem.mask = TVIF_TEXT | TVIF_HANDLE;
        tvItem.pszText = szText;
        tvItem.cchTextMax = sizeof(szText) - 1;
        RtlZeroMemory(szText, sizeof(szText));

        tvItem.hItem = hNode; // !
        SendMessage(hTreeView, TVM_GETITEM, 0, (LPARAM)&tvItem); // param1 must be hTreeView
        if (*szText)
        {
            // watch szText
            // LS-PRECISION356
        };
    }


    return hNode;
}

#define OUTPUT_FILE_NAME "device_manager_export.txt"

void fn_get_tree_Level_3_node(HWND hTreeView, HTREEITEM hNodeL1, const char* psz_NodeL1_name, HTREEITEM hNodeL2, const char* psz_NodeL2_name)
{
    FILE* pFile = NULL;
    char szBuf[4096] = { '\0' };

    pFile = fopen(OUTPUT_FILE_NAME, "a");
    if (NULL != pFile)
    {
        memset(szBuf, 0, sizeof(szBuf));
        sprintf(szBuf, "%s : %s\r\n", psz_NodeL1_name, psz_NodeL2_name);
        fwrite(szBuf, sizeof(char), strlen(szBuf), pFile);

        fclose(pFile);
    }
}

void fn_get_tree_Level_2_node(HWND hTreeView, HTREEITEM hNodeL1, const char* psz_NodeL1_name)
{
    HTREEITEM hNode = NULL;
    TVITEM    tvItem = { 0 };
    char      szText[256] = { 0 };
    int nNodeCnt = 0;
    BOOL bFirtLoop = TRUE;

    // psz_NodeL1_name like below
    // 安全设备
    // 处理器
    do {
        hNode = (HTREEITEM)SendMessage(hTreeView,
            TVM_GETNEXTITEM,
            bFirtLoop ? TVGN_CHILD : TVGN_NEXT,
            bFirtLoop ? (LPARAM)hNodeL1 : (LPARAM)hNode
        );

        bFirtLoop = FALSE;

        if (NULL != hNode)
        {
            tvItem.mask = TVIF_TEXT | TVIF_HANDLE;
            tvItem.pszText = szText;
            tvItem.cchTextMax = sizeof(szText) - 1;
            RtlZeroMemory(szText, sizeof(szText));

            tvItem.hItem = hNode; // !
            SendMessage(hTreeView, TVM_GETITEM, 0, (LPARAM)&tvItem);
            if (*szText)
            {
                // watch szText

            };

            nNodeCnt++;
            if (nNodeCnt >= 2)
            {
                nNodeCnt = nNodeCnt;
            }

            fn_get_tree_Level_3_node(hTreeView, hNodeL1, psz_NodeL1_name, hNode, szText);

            continue;
        }

        break;
    } while (TRUE);
}

void fn_get_tree_Level_1_node(HWND hTreeView, HTREEITEM hRoot)
{
    HTREEITEM hNode = NULL;
    TVITEM    tvItem = { 0 };
    char      szText[256] = { 0 };
    int nNodeCnt = 0;
    BOOL bFirtLoop = TRUE;


    do {
        hNode = (HTREEITEM)SendMessage(hTreeView,
            TVM_GETNEXTITEM,
            bFirtLoop ? TVGN_CHILD : TVGN_NEXT,
            bFirtLoop ? (LPARAM)hRoot : (LPARAM)hNode
        );

        bFirtLoop = FALSE;

        if (NULL != hNode)
        {
            tvItem.mask = TVIF_TEXT | TVIF_HANDLE;
            tvItem.pszText = szText;
            tvItem.cchTextMax = sizeof(szText) - 1;
            RtlZeroMemory(szText, sizeof(szText));

            tvItem.hItem = hNode; // !
            SendMessage(hTreeView, TVM_GETITEM, 0, (LPARAM)&tvItem);
            if (*szText)
            {
                // watch szText
                // IDE ATA/ATAPI 控制器
                // USB 连接器管理器
                // 安全设备
                // 处理器

            };

            fn_get_tree_Level_2_node(hTreeView, hNode, szText);

            continue;
        }

        break;
    } while (TRUE);
}

void enumTreeCtrl(const UINT nIdTree)
{
    HWND                   hTreeView = GetDlgItem(_hDlg, nIdTree);
    HTREEITEM hRoot = 0L;
    HTREEITEM hChildItem = 0L;
    HTREEITEM hParentItem = NULL;
    char      szText[128] = { 0 };
    TVITEM    tvItem = { 0 };
    int       iLoop = 0;
    int       nNodeAllCnt = 0;
    //
    tvItem.mask = TVIF_TEXT | TVIF_HANDLE;
    tvItem.pszText = szText;
    tvItem.cchTextMax = sizeof(char) * 127;
    // nNodeAllCnt = (int)SendMessage(hTreeView, TVM_GETCOUNT, 0, 0);
    RtlZeroMemory(szText, sizeof(char) * 128);

    hRoot = fn_get_tree_root_node(hTreeView, nIdTree);
    if (NULL != hRoot)
    {
        fn_get_tree_Level_1_node(hTreeView, hRoot);
    }


    /*

    hParentItem = hRoot;
    for (iLoop = 0; iLoop < nNodeAllCnt; iLoop++)
    {
        hChildItem = (HTREEITEM)SendMessage(hTreeView,
            TVM_GETNEXTITEM,
            TVGN_NEXT,
            (LPARAM)hParentItem
        );

        if (0 == iLoop)
        {

        }
        else {
            hChildItem = (HTREEITEM)SendMessage(hTreeView,
                TVM_GETNEXTITEM,
                TVGN_NEXT,
                (LPARAM)hParentItem
            );

            if (NULL == hChildItem)
            {
                hChildItem = (HTREEITEM)SendMessage(hTreeView,
                    TVM_GETNEXTITEM,
                    TVGN_CHILD,
                    (LPARAM)hParentItem
                );
            }
        }

        tvItem.hItem = hChildItem;
        SendMessage(hTreeView, TVM_GETITEM, 0, (LPARAM)&tvItem);
        if (*szText)
        {
            // watch szText
        };
        hParentItem = hChildItem;
    };
    */
}

END

LostSpeed
关注
【webrtc】Windows平台WebRTC编译-VS2022 - 官方m98分支
突围
03-05 1903
参考之前的dep_tools记录 一些webrtc的网站 native-code 官方构建指南 启用代理很关键，windows用set linux是export 过程 先安装dep_tools Microsoft Windows [版本 10.0.22000.493] (c) Microsoft Corporation。保留所有权利。 C:\Users\zhangbin>gclient fatal: unable to access 'https://chromium.goo..
Android 7.0 ActivityManagerService(2) 启动Activity的过程：一
热门推荐
ZhangJian的博客
12-01 1万+
从这一篇博客开始，我们将阅读AMS启动一个Activity的代码流程。 自己对Activity的启动过程也不是很了解，这里就初步做一个代码阅读笔记，为以后的迭代打下一个基础。
windows设备管理器_如何打开Windows设备管理器？
cunjiu9486的博客
10-06 6079
windows设备管理器Windows Device Manager is used to list hardware and software devices in the current system. Device Manager also used to check drivers, firmware, and configuration of the devices. In this t...
DeviceManager的使用
最新发布
DestinySUT的博客
09-07 1950
了解DeviceManager的使用
Windows设备管理和文件系统
linyingzhan的专栏
12-06 1482
附加1：什么是Windows I/O系统？ Windows I/O系统问应用程序和操作系统服务提供了一个操作设备的抽象层，它由若干个运行在核心态的系统服务组成 1:Windows 的设备管理系统由哪几部分构成？ 六个部分： I/O管理器：Windows I/O系统的核心，提供支持Windows设备驱动程序的系统结构。 即插即用管理器：与I/O管理器以及总线管理驱动一起，侦测硬件设备的加入和移出，
我遇到的在VS2019中使用Android设备管理器创建模拟器点击启动后提示 系统映像不完整,无法启动 问题的解决办法
mail_cm的专栏
06-23 7459
我在按照文档使用 Android Device Manager 管理虚拟设备 - Xamarin | Microsoft Docs创建了一个模拟器，然后点击启动的时候一直提示 “系统映像不完整,无法启动”，然后我点击了“从内核日志开始” 里面有两个文件，一个是error ,一个是output 打开error文件，里面提示： ...
推荐一款强大的webOS TV设备管理工具：Device/DevMode Manager
gitblog_00022的博客
05-18 849
推荐一款强大的webOS TV设备管理工具：Device/DevMode Manager 项目地址:https://gitcode.com/gh_mirrors/de/dev-manager-desktop 项目简介 在智能家居时代，LG的webOS电视以其易用性和强大的功能深受用户喜爱。而对开发者而言，能够便捷地进行开发和调试则是关键所在。这就是Device/DevMode Manager fo...
windows device manager diff(设备管理器内容变化后的比较)__对应的附件工程
06-20
windows device manager diff(设备管理器内容变化后的比较)__对应的附件工程.____在codeproject大神的工程上升级, 可以导出设备管理器的内容列表, 用于比对设备插入前后, 设备管理器内容的差别.zip
prj_windows_device_manager_diff
08-13
prj_windows_device_manager_diff是一个项目，旨在比较Windows设备管理器中不同部分之间的差异。 Windows设备管理器是Windows操作系统中的一个重要工具，用于管理计算机的硬件设备。它提供了一个用户友好的界面，...
OpenHarmony鸿蒙南向开发案例：【智能燃气检测设备】
2301_76813281的博客
04-19 1807
鸿蒙是完全具备无与伦比的机遇和潜力的；预计到年底将有 5,000 款的应用完成原生鸿蒙开发，这么多的应用需要开发，也就意味着需要有更多的鸿蒙人才。鸿蒙开发工程师也将会迎来爆发式的增长，学习鸿蒙势在必行！
如何用程序实现“rescan windows device manager"
Sagittarius_Warrior的博客
04-28 2681
本文主要介绍两种”检测硬件设备“的方法，即”rescan windows device manager“。 一、调Windows DDK的API实现         先用CM_Locate_DevNode得到设备管理树的根结点，然后用CM_Reenumerate_DevNode以这个根结点为参数刷新它就搞定！在MSDN里面可以查到这两个函数的用法,相关的知识里面也有。（该方法转自点击打开链接，
获取设备管理器的信息 - VC
flyingleo1981的专栏
12-08 6635
有些时候需要先获取设备管理器里面的硬件信息，才能执行对应的操作，简单的鼓捣了一下，贴出来共享。 具体有两个方法，大致来说差不多，流程一样 ，懒得整理了，直接贴出来原始体。 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
VC60串口枚举实例：设备管理器扫描方法、读取注册表方法、CreateFile方法
hyhsandy1803的博客
11-23 616
介绍三种方法获取串口列表，直接上代码，可以通过链接下载到调通的程序，0积分下载。这里只是举个例子，可以结合以上1和2方法，提升效率，又能获取完整。第一种方法可以获取到完整的串口名称，方便用户识别选择。第二种方法只能识别到COMx。
VC++之MFC从零开始实现windows系统任务管理器(一、windows任务管理器界面的制作)
u014627020的博客
12-26 2019
VC++之MFC从零开始实现windows系统任务管理器(一、windows任务管理器界面的制作) 通过本例程从零开始实现一个基于windows的任务管理器。 软件工具：VisualStudio2017 编程语言：VC++ 文章目录 VC++之MFC从零开始实现windows系统任务管理器(一、windows任务管理器界面的制作)前言一、创建工程二、运行工程1.引入库2.读入数据总结 前言 首先，我们先 提示：以下是本篇文章正文内容，下面案例可供参考 .
如何在VC中刷新设备管理器
Lassewang的成长历程
01-21 5667
 #include "stdafx.h"#include /* * where use the typedef keyword, you can use the originality instead such as use DWORD instead of DEVINST */typedef DWORD  DEVINST;typedef DEVINST *PDEVINST;typedef
C#实现windows设备管理器的“卸载设备”和“扫描检测硬件改动”，解决Realsense无法连接的问题。
gaooolianggg的专栏
11-11 3014
在我近期的一个项目中，我使用了C#调用Realsense去实现了一些三维的测量功能。但Realsense的连接稳定性好像有一些问题。我遇到了以下几种： 1.设备会断连，软件中重新初始化一次设备对象就可以继续使用； 2. 设备断联后重新初始化能够初始化成功，但无法采集到图像，此种情况我通过自动重启软件解决掉了 3. 最麻烦的问题，有时候设备断联后无法再次连接了，不管是使用我自己的软件或者是RealsenseViewer，都无法再次连接到这台...
windows设备管理器
10-19 1124
设备管理器文件通常位置为 C:\windows\system32\devmgmt.msc 单击“开始”－“运行” 输入“devmgmt.msc”即可运行“设备管理器” 可以从别的机器上将该文件拷贝一个过来即可。
VC++实现启用与停用设备
jiangdf的专栏
08-20 6852
前些日子在研究USB设备，就顺便研究了一些如何在应用程序实现USB设备的启用与停用，然后稍微深入，于是有了本文。想要实现类似设备管理器的功能，其实也不是很难，无非就是调用一些API函数，就像本文描述的，采用的API函数就是SetupDi系列的函数。不过这类函数有很多，具体的请参见MSDN，而实现设备启用、停用仅需要用到的就只有5个函数：       SetupDiGetClassDevs
window 如何枚举设备并禁用该设备和启用该设备？如何注册设备热拔插消息通知？...
weixin_30369041的博客
04-09 799
目前实现的功能： 1.设备枚举 2.设置设备禁用和启用 3.注册设备热拔插消息通知 4.获取设备 vid pid 数值 需要链接的库 SetupAPI.lib DeviceManager 类如下： DeviceManager.h #include <string> #include <vector> #include <setupapi.h> #include...
评论 3
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
