创建菜单时自动出现的“--”及其弹窗处理办法
原始代码:
# 创建菜单项目
def create_menu_bar(self):
menu_bar = Menu(self)
# 添加菜单项目
file_menu = Menu(menu_bar)
menu_bar.add_cascade(label='文件', menu=file_menu)
self['menu'] = menu_bar

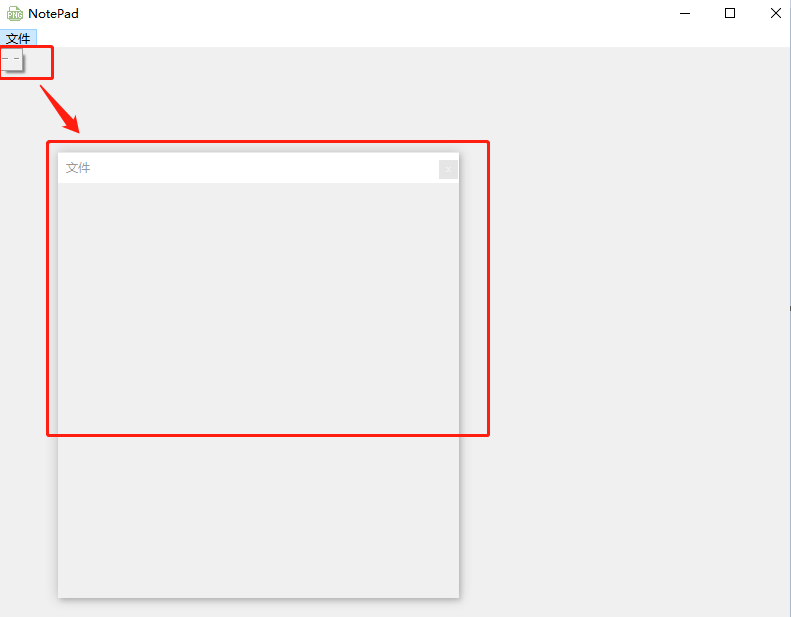

弹窗效果如下图:
解决办法:
# 创建菜单项目
def create_menu_bar(self):
menu_bar = Menu(self)
# 添加菜单项目
file_menu = Menu(menu_bar, tearoff=0) # 添加tearoff=0
menu_bar.add_cascade(label='文件', menu=file_menu)
self['menu'] = menu_bar

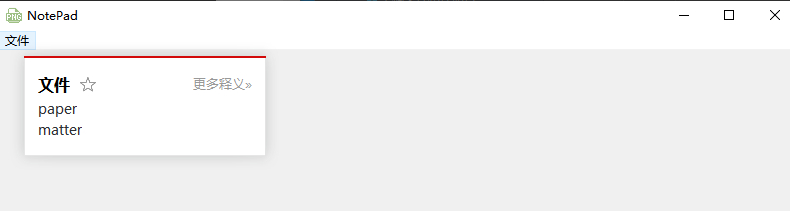

解决后效果图:
notpad项目源码(图标需自己添加):
from tkinter import *
from tkinter import filedialog, messagebox
from tkinter.ttk import Scrollbar, Checkbutton, Label, Button
import os
import sys
class NotePad(Tk):
icons = ["new_file", "open_file", "save", "cut", "copy", "paste", "undo", "redo", "find_text"]
# icons = [0, 1, 2, 3, 4, 5, 6, 7, 8]
theme_color = {"Default": "#000000.#FFFFFF",
"Olive Green": "#D1E7E0.#5B8340",
"Night Mode": "#FFFFFF.#000000",
}
icon_res = []
N_path = os.path.abspath('.')
# 初始化操作
def __init__(self):
super().__init__()
self.file_name = None
self.set_window()
self.create_menu_bar()
self.create_tool_bar()
self.create_body()
self.create_pop_menu()
# 设置窗口界面
def set_window(self, path=N_path):
self.title("01NotePad")
max_width, max_height = self.maxsize()
align_center = "800x600+%d+%d" % ((max_width - 800) / 2, (max_height - 600) / 2)
self.geometry(align_center)
self.iconbitmap(path + '\\img\\alipay.png')
# 创建菜单项目
def create_menu_bar(self):
menu_bar = Menu(self)
# 添加菜单项目
file_menu = Menu(menu_bar, tearoff=0) # 设置tearoff=0
file_menu.add_command(label='新建', accelerator="Crtl+N", command=self.new_file)
file_menu.add_command(label='打开', accelerator="Crtl+O", command=self.open_file)
file_menu.add_command(label='保存', accelerator="Crtl+S", command=self.save_file)
file_menu.add_command(label='另存为', accelerator="Shift+Crtl+S", command=self.save_as)
file_menu.add_separator()
file_menu.add_command(label='退出', accelerator="Alt+F4", command=self.exit_notpad)
menu_bar.add_cascade(label='文件', menu=file_menu)
editor_menu = Menu(menu_bar, tearoff=0)
editor_menu.add_command(label='撤销', accelerator="Crtl+Z", command=lambda: self.handle_menu_action('撤销'))
editor_menu.add_command(label='恢复', accelerator="Crtl+Y", command=lambda: self.handle_menu_action('恢复'))
editor_menu.add_separator() # 分割线
editor_menu.add_command(label='剪切', accelerator="Crtl+X", command=lambda: self.handle_menu_action('剪切'))
editor_menu.add_command(label='复制', accelerator="Crtl+C", command=lambda: self.handle_menu_action('复制'))
editor_menu.add_command(label='粘贴', accelerator="Crtl+V", command=lambda: self.handle_menu_action('粘贴'))
editor_menu.add_separator()
editor_menu.add_command(label='查找', accelerator="Crtl+F", command=self.find_text_dialog)
editor_menu.add_separator()
editor_menu.add_command(label='全选', accelerator="Crtl+A", command=self.select_all)
menu_bar.add_cascade(label='编辑', menu=editor_menu)
view_menu = Menu(menu_bar, tearoff=0)
# 显示行号
self.is_show_line_num = IntVar()
self.is_show_line_num.set(1) # 设置初始状态:1代表开启功能,0代表关闭,默认开启
view_menu.add_checkbutton(label='显示行号', onvalue=1, offvalue=0, variable=self.is_show_line_num,
command=self.update_line_num)
# 高亮当前行
self.is_heighlight_line = IntVar()
self.is_heighlight_line.set(1)
view_menu.add_checkbutton(label='高亮当前行', onvalue=1, offvalue=0, variable=self.is_heighlight_line,
command=self.toggle_highlight)
# 主题
themes_memu = Menu(menu_bar, tearoff=0)
# 后续实现
# themes_memu.add_command(label='主题1', command='')
# themes_memu.add_command(label='主题2', command='')
self.theme_choice = StringVar()
self.theme_choice.set("Default")
for k in sorted(self.theme_color):
themes_memu.add_radiobutton(label=k, variable=self.theme_choice, command=self.change_theme)
view_menu.add_cascade(label='主题', menu=themes_memu)
menu_bar.add_cascade(label='视图', menu=view_menu)
about_menu = Menu(menu_bar, tearoff=0)
about_menu.add_command(label='关于', command=lambda: self.show_messagebox("关于"))
about_menu.add_command(label='帮助', command=lambda: self.show_messagebox("帮助"))
menu_bar.add_cascade(label='关于', menu=about_menu)
self['menu'] = menu_bar
# 创建工具栏
def create_tool_bar(self, path=N_path):
tool_bar = Frame(self, height=25, background="#FFFFFF")
# 填充X轴
tool_bar.pack(fill='x')
for icon in self.icons:
# tool_icon = PhotoImage(file=r"C:\Users\Trustech\Desktop\01\img\%s.gif" % (icon,))
tool_icon = PhotoImage(file=path + "\\img\\%s.png" % (icon,))
tool_btn = Button(tool_bar, image=tool_icon, command=self.tool_bar_action(icon)).pack(side="left")
# 要将tool_icon添加到icon_res
self.icon_res.append(tool_icon)
# 界面操作的主体
def create_body(self):
# 左边行号,中间是文本编辑区,右边是滚动条
# 行号区域
self.line_number_bar = Text(self, width=4, padx=3, takefocus=0, border=0, background="#F0E68C", state="disable")
self.line_number_bar.pack(side='left', fill='y')
# 文本编辑区
# wrap 如何换行, word表示按照单词自动换行;undo True表示开启撤销功能
self.context_text = Text(self, wrap="word", undo=True)
# 热键绑定
self.context_text.bind("<Control-o>", self.open_file)
self.context_text.bind("<Control-O>", self.open_file)
self.context_text.bind("<Control-s>", self.save_file)
self.context_text.bind("<Control-S>", self.save_file)
self.context_text.bind("<Control-n>", self.new_file)
self.context_text.bind("<Control-N>", self.new_file)
self.context_text.bind("<Any-KeyPress>", lambda e: self.update_line_num())
self.context_text.pack(fill='both', expand="yes")
# 设置文本输入区
self.context_text.tag_config("active_line", background="#EEEEE0")
# 滚动条
scroll_bar = Scrollbar(self.context_text)
scroll_bar['command'] = self.context_text.yview
self.context_text["yscrollcommand"] = scroll_bar.set
scroll_bar.pack(side="right", fill="y")
# 打开文件
def open_file(self, event=None):
# 打开文件并进行类型设置
input_file = filedialog.askopenfilename(filetypes=[("所有文件", "*.*"), ("文本文档", "*.txt")])
if input_file:
self.title("{}***01NotePad".format(os.path.basename(input_file)))
self.file_name = input_file
self.context_text.delete(1.0, END)
with open(input_file, 'r') as _file:
self.context_text.insert(1.0, _file.read())
# 文件的保存
def write_to_file(self, file_name):
try:
content = self.context_text.get(1.0, END)
with open(file_name, 'w') as _file:
_file.write(content)
self.title("{}---01NotePad".format(os.path.basename(file_name)))
except IOError:
messagebox.showerror("错误", "文件保存失败!")
def save_file(self, event=None):
if not self.file_name:
self.save_as()
else:
self.write_to_file(self.file_name)
# 新建
def new_file(self, event=None):
self.title("新建---01NotePad")
self.context_text.delete(1.0, END)
self.file_name = None
# 另存为
def save_as(self):
input_file = filedialog.askopenfilename(filetypes=[("所有文件", "*.*"), ("文本文档", "*.txt")])
if input_file:
self.file_name = input_file
self.write_to_file(self.file_name)
# 退出
def exit_notpad(self):
if messagebox.askokcancel("退出", "确定退出吗?"):
self.destroy()
# 右键菜单【弹出菜单】
def create_pop_menu(self):
pop_menu = Menu(self.context_text, tearoff=0)
for item1, item2 in zip(['剪切', '复制', '粘贴', '撤销', '恢复'], ['cut', 'copy', 'paste', 'undo', 'redo']):
pop_menu.add_command(label=item1, compound='left', command=self.tool_bar_action(item2))
pop_menu.add_separator()
pop_menu.add_command(label='全选', command=self.select_all)
# 绑定
self.context_text.bind("<Button-3>", lambda event: pop_menu.tk_popup(event.x_root, event.y_root))
# 右键菜单的处理
def handle_menu_action(self, action_type):
if action_type == '撤销':
self.context_text.event_generate("<<Undo>>")
elif action_type == '恢复':
self.context_text.event_generate("<<Redo>>")
elif action_type == '剪切':
self.context_text.event_generate("<<Cut>>")
elif action_type == '复制':
self.context_text.event_generate("<<Copy>>")
elif action_type == '粘贴':
self.context_text.event_generate("<<Paste>>")
# 防止事件传递
return "break"
# 工具栏命令处理
def tool_bar_action(self, action_type):
def handle():
if action_type == 'open_file':
self.open_file()
elif action_type == 'save':
self.save_file()
elif action_type == 'new_file':
self.new_file()
elif action_type == 'cut':
self.handle_menu_action("剪切")
elif action_type == 'copy':
self.handle_menu_action("复制")
elif action_type == 'undo':
self.handle_menu_action("撤销")
elif action_type == 'paste':
self.handle_menu_action("粘贴")
elif action_type == 'redo':
self.handle_menu_action("恢复")
# handle返回处理
return handle
# 全选
def select_all(self):
self.context_text.tag_add('sel', 1.0, END)
return "break"
# 行号处理
def update_line_num(self):
if self.is_show_line_num.get():
# 获取所有行
row, col = self.context_text.index(END).split('.')
# 列举每行的行号
line_num_content = "\n".join([str(i) for i in range(1, int(row))])
self.line_number_bar.config(state="normal")
self.line_number_bar.delete(1.0, END)
self.line_number_bar.insert(1.0, line_num_content)
self.line_number_bar.config(state="disable")
else:
self.line_number_bar.config(state="normal")
self.line_number_bar.delete(1.0, END)
self.line_number_bar.config(state="disable")
# 高亮当前行
def toggle_highlight(self):
if self.is_heighlight_line.get():
self.context_text.tag_remove('active_line', 1.0, END)
# 设置高亮
self.context_text.tag_add("active_line", "insert linestart", "insert lineend+1c")
# 通过轮询递归的方式进行处理
self.context_text.after(200, self.toggle_highlight)
else:
self.context_text.tag_remove("active_line", 1.0, END)
# 设置查找对话框
def find_text_dialog(self):
search_dialog = Toplevel(self)
search_dialog.title("查找文本")
max_width, max_height = self.maxsize()
align_center = "340x80+%d+%d" % ((max_width - 340) / 2, (max_height - 80) / 2)
search_dialog.geometry(align_center)
search_dialog.resizable(False, False)
Label(search_dialog, text='查找全部').grid(row=0, column=0, sticky='e')
search_text = Entry(search_dialog, width=25)
search_text.grid(row=0, column=1, padx=2, pady=2, sticky="we")
search_text.focus_set()
# 忽略大小写
ignore_case_value = IntVar()
Checkbutton(search_dialog, text='忽略大小写', variable=ignore_case_value).grid(row=1, column=1, padx=2, pady=2,
sticky='e')
Button(search_dialog, text='查找',
command=lambda: self.search_result(search_text.get(), ignore_case_value.get(), search_dialog,
search_text)).grid(row=0, column=2, padx=2, pady=2, sticky="w" + "e")
def close_search_dialog():
self.context_text.tag_remove('match', 1.0, END)
search_dialog.destroy()
search_dialog.protocol("WM_DELETE_WINDOW", close_search_dialog)
return "break"
# 查找的方法
def search_result(self, key, ignore_case, search_dialog, search_box):
self.context_text.tag_remove('match', 1.0, END)
matches_found = 0
if key:
start_pos = 1.0
while True:
start_pos = self.context_text.search(key, start_pos, nocase=ignore_case, stopindex=END)
if not start_pos:
break
end_pos = "{}+{}c".format(start_pos, len(key))
self.context_text.tag_add('match', start_pos, end_pos)
matches_found += 1
start_pos = end_pos
self.context_text.tag_config('match', foreground='red', background='red')
search_box.focus_set()
search_dialog.title("发现了%d个匹配的" % matches_found)
# 主题切换
def change_theme(self):
selected_theme = self.theme_choice.get()
fg_bg = self.theme_color.get(selected_theme)
print(fg_bg)
fg_color, bg_color = fg_bg.split('.')
self.context_text.config(bg=bg_color, fg=fg_color)
# 关于菜单
def show_messagebox(self, type):
if type == '帮助':
messagebox.showinfo("帮助", "这是帮助文档", icon='question')
else:
messagebox.showinfo("关于", "这是一个简单的记事本程序")
if __name__ == '__main__':
app = NotePad()
app.mainloop()
