Functional Dependencies
-
X ->Y is an assertion about a relation R that whenever two tuples of R agree on all the attributes of X, then they must also agree on all attributes in set Y.
Say “X ->Y holds in R.”
Convention: …, X, Y, Z represent sets of attributes; A, B, C,… represent single attributes.
Convention: no set formers in sets of attributes, just ABC, rather than {A,B,C }.
Splitting Right Sides of FD’s
- X->A1A2…An holds for R exactly when each of X->A1 , X->A2 ,…, X->An hold for R.
Example: A->BC is equivalent to A->B and A->C.
- There is no splitting rule for left sides.
We’ll generally express FD’s with singleton right sides（通常将函数依赖标识为右侧单一属性形式）
Example: FD’s
Drinkers(name, addr, beersLiked, manf, favBeer)
-
Reasonable FD’s to assert:
name -> addr favBeer
-
Note this FD is the same as name -> addr and name -> favBeer.
beersLiked -> manf
Keys of Relations
-
K is a superkey for relation R if K functionally determines all of R.（超键，能函数的决定关系中的所有属性）
-
K is a key for R if K is a superkey, but no proper subset of K is a superkey（最小的超键）
Example: Superkey
- Drinkers(name, addr, beersLiked, manf, favBeer) {name, beersLiked} is a superkey because together these attributes determine all the other attributes.
name -> addr favBeer
beersLiked -> manf
Example: Key（候选键）
-
{name, beersLiked} is a key because neither {name} nor {beersLiked} is a superkey.
name doesn’t -> manf
beersLiked doesn’t -> addr.
-
There are no other keys, but lots of superkeys. Any superset of {name, beersLiked}（任何包含name、beersLiked都是超键）
Where Do Keys Come From?
-
Just assert a key K. The only FD’s are K -> A for all attributes A.
-
Assert FD’s and deduce the keys by systematic exploration（声明函数依赖，然后通过系统的分析推导出键值）
Inferring FD’s
- We are given FD’s X1 -> A1 , X2 -> A2 ,…, Xn -> An , and we want to know whether an FD Y ->B must hold in any relation that satisfies the given FD’s.
Example: If A -> B and B -> C hold, surely A -> C holds, even if we don’t say so.
- Important for design of good relation schemas（对于良好关系的设计至关重要）
Closure Test（闭包检测）
- An easier way to test is to compute the closure of Y, denoted Y +
Basis: Y + = Y（初始化闭包）
Induction: Look for an FD’s left side X that is a subset of the current Y +
If the FD is X -> A, add A to Y +

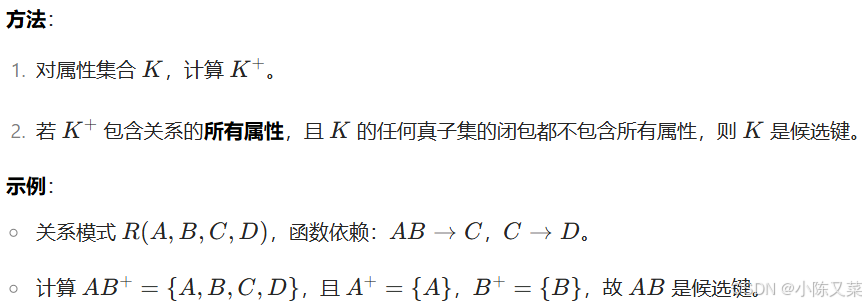

使用闭包检测还可以用来寻找候选键：
Finding All Implied FD’s（检查隐式的函数依赖）
- Motivation: “normalization（规范）” the process where we break a relation schema into two or more schemas.
Example: ABCD with FD’s AB ->C, C ->D, and D ->A.
Decompose into ABC, AD. What FD’s hold in ABC ?
Not only AB ->C, but also C ->A !
Basic Idea
- Start with given FD’s and find all FD’s that follow from the given FD’s.
Nontrivial = right side not contained in the left.
- Restrict to those FD’s that involve only attributes of the projected schema
Simple, Exponential Algorithm
- For each set of attributes X, compute X +
- Add X ->A for all A in X + - X
- However, drop XY ->A whenever we discover X ->A. （Because XY ->A follows from X ->A in any projection）
- Finally, use only FD’s involving projected attributes
A Few Tricks
- No need to compute the closure of the empty set or of the set of all attributes.
- If we find X = all attributes, so is the closure of any superset of X（如X是所有属性集，那么X任意超集的闭包也包含所有属性）
Example: Projecting FD’s
ABC with FD’s A ->B and B ->C.
Project onto AC.
-
A +=ABC ; yields A ->B, A ->C.
We do not need to compute AB + or AC +
-
B +=BC ; yields B ->C.
-
C +=C ; yields nothing.
-
BC +=BC ; yields nothing
Resulting FD’s: A ->B, A ->C, and B ->C.
Projection onto AC : A ->C.
Only FD that involves a subset of {A,C }.
Decomposition into BCNF
Given: relation R with FD’s F.
-
Look among the given FD’s for a BCNF violation X ->Y.
If any FD following from F violates BCNF, then there will surely be an FD in F itself that violates BCNF.
-
Compute X + .
Not all attributes, or else X is a superkey.
- Decompose R Using X -> Y
-
Replace R by relations with schemas:
R1 = X +.
R2 = R – (X + – X ).
- Project given FD’s F onto the two new relations.
Example: BCNF Decomposition
Drinkers(name, addr, beersLiked, manf, favBeer)
F = name->addr, name -> favBeer, beersLiked->manf
-
Pick BCNF violation name->addr.
-
Close the left side: {name} + = {name, addr, favBeer}.
Decomposed relations:
Drinkers1(name, addr, favBeer)
Drinkers2(name, beersLiked, manf)
-
Thus, {name} is the only key and Drinkers1 is in BCNF.
For Drinkers2(name, beersLiked, manf), the only FD is beersLiked->manf,and
the only key is {name, beersLiked}.
-
Violation of BCNF.
-
beersLiked+ = {beersLiked, manf},
so we decompose Drinkers2 into:
Drinkers3(beersLiked, manf)
Drinkers4(name, beersLiked)
-
The resulting decomposition of Drinkers :
Drinkers1(name, addr, favBeer)
Drinkers3(beersLiked, manf)
Drinkers4(name, beersLiked)
Third Normal Form -- Motivation
-
There is one structure of FD’s that causes trouble when we decompose. AB ->C and C ->B.
Example: A = street address, B = city, C = zip code.
There are two keys, {A,B } and {A,C }.
C ->B is a BCNF violation, so we must decompose into AC, BC.
We Cannot Enforce FD’s（无法强制实施函数依赖，函数依赖的丢失）
-

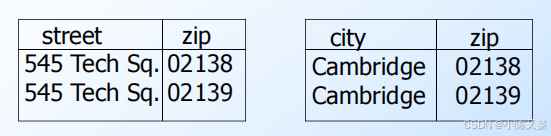

The problem is that if we use AC and BC as our database schema, we cannot enforce the FD AB ->C by checking
-

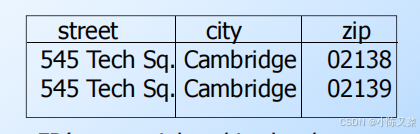

Example with A = street, B = city, and C = zip
3NF Let’s Us Avoid This Problem
-
Normal Form (3NF) modifies the BCNF condition so we do not have to decompose in this problem situation.
-
An attribute is prime if it is a member of any key.
X ->A violates 3NF if and only if X is not a superkey, and also A is not prime.（当且仅当X不是超键且A不是主属性）
What 3NF and BCNF Give You
There are two important properties of a decomposition:
-
Lossless Join : it should be possible to project the original relations onto the decomposed schema, and then reconstruct the original.
-
Dependency Preservation : it should be possible to check in the projected relations whether all the given FD’s are satisfied.
- We can get (1) with a BCNF decomposition.
- We can get both (1) and (2) with a 3NF decomposition.
- But we can’t always get (1) and (2) with a BCNF decomposition.
2NF
R is in 2NF if every nonprime attribute A in R is fully functionally dependent on every key of R
（任何一个非主属性必定完全函数依赖与候选键）
Full Functional Dependency
-
Y is 'fully functionally dependent' on X if it is dependent on all of X, not on any part of X.
X ->Y not on any part X’ of X, X ’ ->Y
Full Functional Dependency A FD X→Y is a full functional dependency
if the removal of any attribute from X means the dependency does not hold any more.
