【人工智能项目】U-Net实战ISBI细胞分割

一、实验配置及其参数

本实验采用的软硬件实验环境如表所示：
在这里插入图片描述

在Ubuntu操作系统下，采用基于Tensorflow的Keras的深度学习框架，对ISBI细胞分割数据集进行训练和测试。

采用keras的深度学习框架，keras是一个专为简单的神经网络组装而设计的Python库，具有大量预先包装的网络类型，包括二维和三维风格的卷积网络、短期和长期的网络以及更广泛的一般网络。使用keras构建网络是直接的，keras在其Api设计中使用的语义是面向层次的，网络组建相对直观，所以本次选用Keras人工智能框架，其专注于用户友好，模块化和可扩展性。

二、数据集

本次数据集来自ISBI挑战的数据集http://brainiac2.mit.edu/isbi_challenge/。
数据集为30张训练图，30张对应的标签。30张测试图片，图片均为.tif格式文件。其具体效果如下所示：
在这里插入图片描述

三、源码架构

Unet

data
- membrane
  - train:包含训练集的图片以及标签
  - test：包含测试集的图片以及标签
logs：日志信息，用于tensorboard可视化展示
trainUnet.ipynb:训练以及测试过程
data.py：读取数据封装的函数
model.py：unet网络函数
unet.membrane.hdf5：训练得到的权重信息

UNet介绍

本次使用U-Net作为医疗影像分割的模型。下面主要介绍一下U-Net作为图像分割算法的优势。

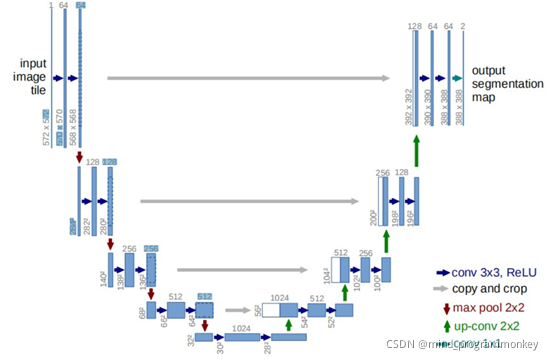

U-Net架构包括一个捕获上下文信息的收缩路径和一个支持精确本地化的对称扩展路径。U-Net证明了这样一个网络使用非常小的图像可以进行端到端的训练，并在生物分割挑战赛中取得了比以前最好的方法。

在这里插入图片描述
（1）收缩路径由2个3 * 3的卷积组成，每个卷积后面跟的是RELU激活函数和一个进行下采样的2 * 2较大池化运算。
（2）扩张阶段包括一个特征通道的上采样。后面跟得上是2 * 2的转置卷积，它能够将特征通道数目减半，同时加大特征图。
（3）最后一层是1 * 1卷积，用这种卷积来组成的特征向量映射到需要的类别数量上。
具体而言来讲：

a.U-Net建立在FCN的网络架构上，作者修改并扩大了这个网络框架，使其能够使用很少的训练图像就能得到很精确的分割结果。
- b.添加上采样阶段，并且添加了很多的特征通道，允许更多的原图像纹理的信息在高分辨率的layers中进行传播
- c.U-Net没有FC层，且全程使用valid来进行卷积，这样的话可以保证分割的结果都是基于没有缺失的上下文特征得到的，因此输入输出的图像尺寸不太一样（但在keras上代码做的都是same convolution），对于图像很大的输入，可以使用overlap-strategy来进行无缝的图像输出.
d.为了预测输入图像的边缘部分，通过镜像输入图像来外推丢失的上下文，实则输入大图像也是可以的，但是这个侧率基于GPU内存不够的情况下所提出的。
e.细胞分割的另外一个难点在于将相同类别且互相接触的细胞分开，因此提出weighted loss，也就是赋予相互接触的两个细胞之间的background标签更高的权重。

其创新点总结为：

1.U-Net简单地将编码器的特征图拼接至每个阶段解码器对的上采样特征图，从而形成一个梯形结构。
2.通过跳跃拼接连接的架构，在每个阶段都允许解码器学习在编码器中丢失的相关特征。
3.上采样采用转置卷积

data.py

负责读取数据

from __future__ import print_function
from keras.preprocessing.image import ImageDataGenerator
import numpy as np
import os
import glob
import skimage.io as io
import skimage.transform as trans

Sky = [128,128,128]
Building = [128,0,0]
Pole = [192,192,128]
Road = [128,64,128]
Pavement = [60,40,222]
Tree = [128,128,0]
SignSymbol = [192,128,128]
Fence = [64,64,128]
Car = [64,0,128]
Pedestrian = [64,64,0]
Bicyclist = [0,128,192]
Unlabelled = [0,0,0]

COLOR_DICT = np.array([Sky, Building, Pole, Road, Pavement,
                          Tree, SignSymbol, Fence, Car, Pedestrian, Bicyclist, Unlabelled])


def adjustData(img,mask,flag_multi_class,num_class):
    if(flag_multi_class):
        img = img / 255
        mask = mask[:,:,:,0] if(len(mask.shape) == 4) else mask[:,:,0]
        new_mask = np.zeros(mask.shape + (num_class,))
        for i in range(num_class):
            #for one pixel in the image, find the class in mask and convert it into one-hot vector
            #index = np.where(mask == i)
            #index_mask = (index[0],index[1],index[2],np.zeros(len(index[0]),dtype = np.int64) + i) if (len(mask.shape) == 4) else (index[0],index[1],np.zeros(len(index[0]),dtype = np.int64) + i)
            #new_mask[index_mask] = 1
            new_mask[mask == i,i] = 1
        new_mask = np.reshape(new_mask,(new_mask.shape[0],new_mask.shape[1]*new_mask.shape[2],new_mask.shape[3])) if flag_multi_class else np.reshape(new_mask,(new_mask.shape[0]*new_mask.shape[1],new_mask.shape[2]))
        mask = new_mask
    elif(np.max(img) > 1):
        img = img / 255
        mask = mask /255
        mask[mask > 0.5] = 1
        mask[mask <= 0.5] = 0
    return (img,mask)



def trainGenerator(batch_size,train_path,image_folder,mask_folder,aug_dict,image_color_mode = "grayscale",
                    mask_color_mode = "grayscale",image_save_prefix  = "image",mask_save_prefix  = "mask",
                    flag_multi_class = False,num_class = 2,save_to_dir = None,target_size = (256,256),seed = 1):
    '''
    can generate image and mask at the same time
    use the same seed for image_datagen and mask_datagen to ensure the transformation for image and mask is the same
    if you want to visualize the results of generator, set save_to_dir = "your path"
    '''
    image_datagen = ImageDataGenerator(**aug_dict)
    mask_datagen = ImageDataGenerator(**aug_dict)
    image_generator = image_datagen.flow_from_directory(
        train_path,
        classes = [image_folder],
        class_mode = None,
        color_mode = image_color_mode,
        target_size = target_size,
        batch_size = batch_size,
        save_to_dir = save_to_dir,
        save_prefix  = image_save_prefix,
        seed = seed)
    mask_generator = mask_datagen.flow_from_directory(
        train_path,
        classes = [mask_folder],
        class_mode = None,
        color_mode = mask_color_mode,
        target_size = target_size,
        batch_size = batch_size,
        save_to_dir = save_to_dir,
        save_prefix  = mask_save_prefix,
        seed = seed)
    train_generator = zip(image_generator, mask_generator)
    for (img,mask) in train_generator:
        img,mask = adjustData(img,mask,flag_multi_class,num_class)
        yield (img,mask)



def testGenerator(test_path,num_image = 30,target_size = (256,256),flag_multi_class = False,as_gray = True):
    for i in range(num_image):
        img = io.imread(os.path.join(test_path,"%d.png"%i),as_gray = as_gray)
        img = img / 255
        img = trans.resize(img,target_size)
        img = np.reshape(img,img.shape+(1,)) if (not flag_multi_class) else img
        img = np.reshape(img,(1,)+img.shape)
        yield img


def geneTrainNpy(image_path,mask_path,flag_multi_class = False,num_class = 2,image_prefix = "image",mask_prefix = "mask",image_as_gray = True,mask_as_gray = True):
    image_name_arr = glob.glob(os.path.join(image_path,"%s*.png"%image_prefix))
    image_arr = []
    mask_arr = []
    for index,item in enumerate(image_name_arr):
        img = io.imread(item,as_gray = image_as_gray)
        img = np.reshape(img,img.shape + (1,)) if image_as_gray else img
        mask = io.imread(item.replace(image_path,mask_path).replace(image_prefix,mask_prefix),as_gray = mask_as_gray)
        mask = np.reshape(mask,mask.shape + (1,)) if mask_as_gray else mask
        img,mask = adjustData(img,mask,flag_multi_class,num_class)
        image_arr.append(img)
        mask_arr.append(mask)
    image_arr = np.array(image_arr)
    mask_arr = np.array(mask_arr)
    return image_arr,mask_arr


def labelVisualize(num_class,color_dict,img):
    img = img[:,:,0] if len(img.shape) == 3 else img
    img_out = np.zeros(img.shape + (3,))
    for i in range(num_class):
        img_out[img == i,:] = color_dict[i]
    return img_out / 255



def saveResult(save_path,npyfile,flag_multi_class = False,num_class = 2):
    for i,item in enumerate(npyfile):
        img = labelVisualize(num_class,COLOR_DICT,item) if flag_multi_class else item[:,:,0]
        io.imsave(os.path.join(save_path,"%d_predict.png"%i),img)

model.py

定义模型架构

import numpy as np
import os
import skimage.io as io
import skimage.transform as trans
import numpy as np
from keras.models import *
from keras.layers import *
from keras.optimizers import *
from keras.callbacks import ModelCheckpoint, LearningRateScheduler
from keras import backend as keras


def unet(pretrained_weights = None,input_size = (256,256,1)):
    inputs = Input(input_size)
    conv1 = Conv2D(64, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(inputs)
    conv1 = Conv2D(64, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv1)
    pool1 = MaxPooling2D(pool_size=(2, 2))(conv1)
    conv2 = Conv2D(128, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(pool1)
    conv2 = Conv2D(128, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv2)
    pool2 = MaxPooling2D(pool_size=(2, 2))(conv2)
    conv3 = Conv2D(256, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(pool2)
    conv3 = Conv2D(256, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv3)
    pool3 = MaxPooling2D(pool_size=(2, 2))(conv3)
    conv4 = Conv2D(512, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(pool3)
    conv4 = Conv2D(512, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv4)
    drop4 = Dropout(0.5)(conv4)
    pool4 = MaxPooling2D(pool_size=(2, 2))(drop4)

    conv5 = Conv2D(1024, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(pool4)
    conv5 = Conv2D(1024, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv5)
    drop5 = Dropout(0.5)(conv5)

    up6 = Conv2D(512, 2, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(UpSampling2D(size = (2,2))(drop5))
    merge6 = concatenate([drop4,up6], axis = 3)
    conv6 = Conv2D(512, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(merge6)
    conv6 = Conv2D(512, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv6)

    up7 = Conv2D(256, 2, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(UpSampling2D(size = (2,2))(conv6))
    merge7 = concatenate([conv3,up7], axis = 3)
    conv7 = Conv2D(256, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(merge7)
    conv7 = Conv2D(256, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv7)

    up8 = Conv2D(128, 2, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(UpSampling2D(size = (2,2))(conv7))
    merge8 = concatenate([conv2,up8], axis = 3)
    conv8 = Conv2D(128, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(merge8)
    conv8 = Conv2D(128, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv8)

    up9 = Conv2D(64, 2, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(UpSampling2D(size = (2,2))(conv8))
    merge9 = concatenate([conv1,up9], axis = 3)
    conv9 = Conv2D(64, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(merge9)
    conv9 = Conv2D(64, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv9)
    conv9 = Conv2D(2, 3, activation = 'relu', padding = 'same', kernel_initializer = 'he_normal')(conv9)
    conv10 = Conv2D(1, 1, activation = 'sigmoid')(conv9)

    model = Model(input = inputs, output = conv10)

    model.compile(optimizer = Adam(lr = 1e-4), loss = 'binary_crossentropy', metrics = ['accuracy'])

    #model.summary()

    if(pretrained_weights):
    	model.load_weights(pretrained_weights)

    return model

trainUNet

from keras.callbacks import EarlyStopping
from keras.callbacks import ModelCheckpoint
from keras.callbacks import ReduceLROnPlateau
from keras.callbacks import TensorBoard

data_gen_args = dict(rotation_range=0.2,
                    width_shift_range=0.05,
                    height_shift_range=0.05,
                    shear_range=0.05,
                    zoom_range=0.05,
                    horizontal_flip=True,
                    fill_mode='nearest')
myGene = trainGenerator(2,'data/membrane/train','image','label',data_gen_args,save_to_dir = None)

model = unet()

model_checkpoint = ModelCheckpoint('unet_membrane.hdf5', monitor='loss',verbose=1, save_best_only=True)
early_stopping = EarlyStopping(monitor="val_loss",
                                                     patience=5,
                                                     verbose=1,
                                                     mode="min")
reduce_lr = ReduceLROnPlateau(monitor="val_loss",
                                                      factor=0.5,
                                                      patience=2,
                                                      verbose=1,
                                                      mode="min")
tbCallBack = TensorBoard(log_dir="./logs")

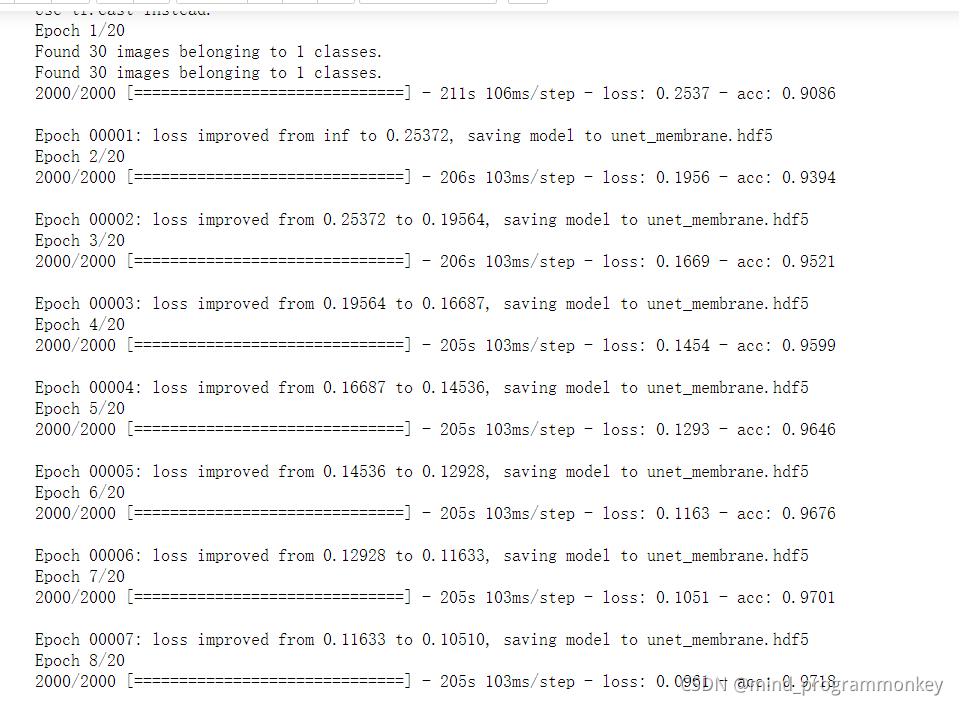

history = model.fit_generator(myGene,steps_per_epoch=2000,epochs=20,callbacks=[model_checkpoint,early_stopping,reduce_lr,tbCallBack])

在这里插入图片描述

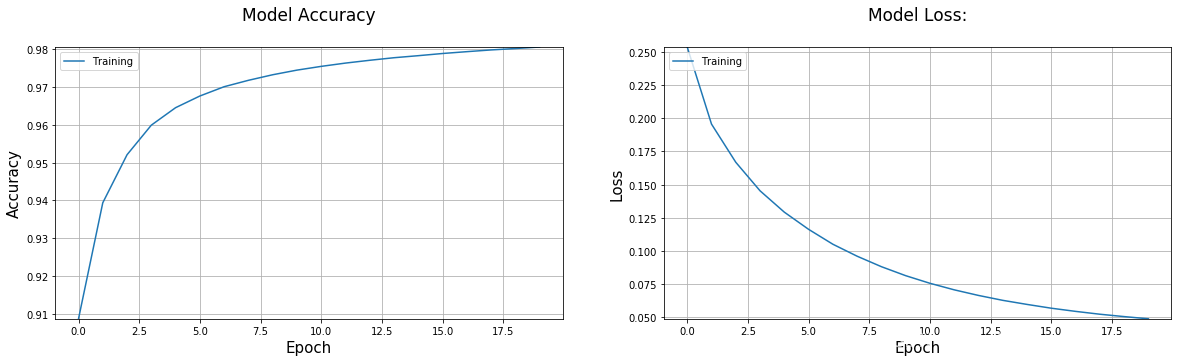

训练过程的曲线图

# 画曲线
import matplotlib.pyplot as plt
%matplotlib inline

def plot_performance(history=None,figure_directory=None,ylim_pad=[0,0]):
    xlabel="Epoch"
    legends=["Training"]

    plt.figure(figsize=(20,5))

    y1=history.history["acc"]

    min_y=min(min(y1),min(y1))-ylim_pad[0]
    max_y=max(max(y1),max(y1))+ylim_pad[0]

    plt.subplot(121)

    plt.plot(y1)

    plt.title("Model Accuracy\n",fontsize=17)
    plt.xlabel(xlabel,fontsize=15)
    plt.ylabel("Accuracy",fontsize=15)
    plt.ylim(min_y,max_y)
    plt.legend(legends,loc="upper left")
    plt.grid()

    y1=history.history["loss"]

    min_y=min(min(y1),min(y1))-ylim_pad[1]
    max_y=max(max(y1),max(y1))+ylim_pad[1]

    plt.subplot(122)
    plt.plot(y1)

    plt.title("Model Loss:\n",fontsize=17)
    plt.xlabel(xlabel,fontsize=15)
    plt.ylabel("Loss",fontsize=15)
    plt.ylim(min_y,max_y)
    plt.legend(legends,loc="upper left")
    plt.grid()
    plt.show()

plot_performance(history)

在这里插入图片描述

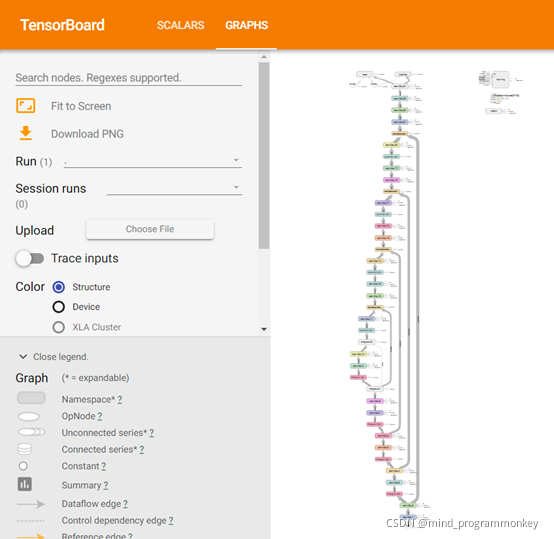

Tensorbaord可视化模型
在这里插入图片描述

四、测试过程

testGene = testGenerator("data/membrane/test")
model = unet()
model.load_weights("unet_membrane.hdf5")
results = model.predict_generator(testGene,30,verbose=1)
saveResult("data/membrane/test",results)

测试结果展示
在这里插入图片描述

小结

本次在Ubuntu操作系统下，采用基于Tensorflow的Keras的深度学习框架，对ISBI细胞分割数据集进行训练和测试。

在模型训练过程中，用到U-Net的深度卷积神经网络结构，设定好模型的参数，进行20轮的训练，并用到了keras框架中的一些trick，如modelcheckpoint,early_stropping,reduce_lr,tensorboard_callback等。这些tricks使得模型更易于收敛，且将最好的权重信息保存了出来。

为了验证U-NET模型的鲁棒性，并在测试集上进行了测试，生成了预测的标签图片。

总之，本次通过对u-net医学图像分割的研究流程分析，提出了一套完整的
卷积神经网络医学图像分割流程。其次，本文构建的模型具有普适性，可以稍加改进应用于不同的数据集。此外，本次构建模型考虑了计算资源和时间成本，所以选择了U-Net这个模型。综合以上几点，本次实验使我对医学图像分割有了一定程度的了解。
