问题描述

国际象棋的棋盘为 $m\times n$ 的方格棋盘，现将“马”放在任意指定的方格中，按照“马”走棋的规则（与中国象棋规则一样，马走“日”字）将“马”进行移动。要求每个方格只能进入一次，最终使得“马”走遍棋盘 $m\times n$ 个方格，回到起点。
编写代码，实现马周游操作，用数字给出“马”移动的路径并格式化输出。

参考资料：
Parberry I . An Efficient Algorithm for the Knight’s Tour Problem[J]. Discrete Applied Mathematics, 1997, 73(3):251-260.
Cull, P.; De Curtins, J. (1978). “Knight’s Tour Revisited” . Fibonacci Quarterly. 16: 276–285.

解题思路

分治法的核心思想，就是“分而治之”。因此分治求解该问题的基本方法就是

将大棋盘分成小棋盘；
小棋盘直接给出答案；
小棋盘拼接成大棋盘。

$\lvert m-n\rvert\le2$ 条件下的解

首先易证明对于 $m \times n$ 尺寸的棋盘，若 $m \times n$ 为奇，则该棋盘上不存在马的周游回路。例如，若给棋盘每格涂上两种颜色中的一种，所有相邻两格颜色不同，则马的每一步都将从一种颜色的格子跳入另一种颜色的格子。奇数总格数的棋盘需要奇数步才能够遍历完，那么出发时的格子颜色与最后一步到达的格子颜色必定不同，由此证明该棋盘上马的周游无法形成回路。
首先定义结构化概念：如果马的周游路线包括下图所示的几步，则称其为结构化的。
structured circuit
直接给出几个基本棋盘的结构化回路：

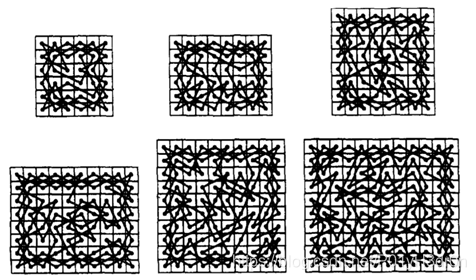

6x6——10x12

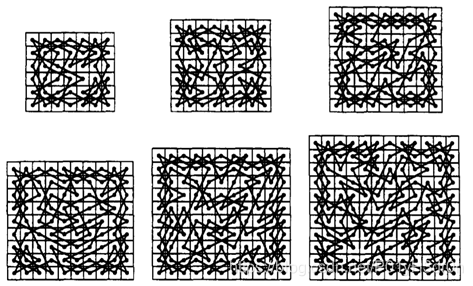

6x7——11x12
从左到右、从上到下分别是 $6\times6, 6\times8, 8\times8, 8\times10, 10\times10, 10\times12, 6\times7, 7\times8, 8\times9, 9\times10, 10\times11, 11\times12$ 的棋盘的回路。

当棋盘大小 $m, n \geq 12$ 且 $∣ m - n ∣ \leq 2$ 时，棋盘可拆分成 $4 k$ 个结构化的基本棋盘，每相邻的四个棋盘上的回路都可按下图步骤所示合并：断开A、B、C、D，连接E、F、G、H。

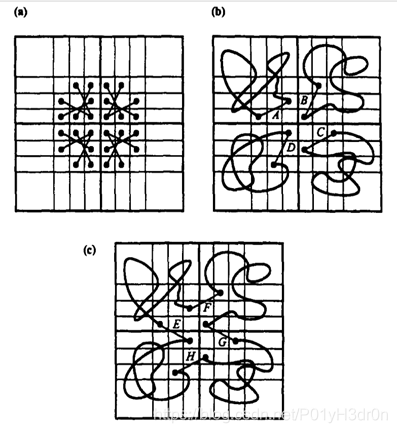

combining method
设该算法时间复杂度为 $T (n)$ ，其递归方程为 $T(n)=\begin{cases}O(1)&\text{n<12}\\4T(n/2)+O(1) &\text{n}\ge\text{12}\end{cases}$ 。解得 $T(n)=O(n^2)$ 。

编程细节要点为

如何存储棋盘
如何把棋盘正确分割为基本棋盘
如何将基本棋盘的路线正确填入原棋盘

完整代码如下

#include<cstdio>
#include<string.h>
int direct[8][2]={{1,2},{-1,2},{-2,1},{-2,-1},{-1,-2},{1,-2},{2,-1},{2,1}};					//马的八个移动方向
int ChessBoard[500][500][2];
const int B6_6[6][6][2]={																	//基本结构化棋盘，数字代表移动方向在direct中的下标，每格有两个移动方向
	{{0,7},{7,6},{0,5},{5,0},{7,5},{6,5}},
	{{1,0},{6,1},{1,4},{1,7},{6,4},{4,5}},
	{{2,7},{3,0},{4,3},{1,0},{7,2},{6,3}},
	{{7,2},{6,7},{5,0},{4,2},{3,7},{4,6}},
	{{0,1},{3,0},{0,5},{0,5},{4,2},{5,3}},
	{{1,2},{1,3},{3,4},{4,1},{2,4},{3,4}}
},
B6_7[6][7][2]={
	{{0,7},{0,6},{0,5},{0,5},{0,6},{7,6},{6,5}},
	{{1,0},{1,6},{6,4},{6,4},{1,4},{5,4},{5,4}},
	{{2,7},{3,0},{4,0},{2,1},{2,1},{7,2},{6,3}},
	{{2,7},{6,2},{5,2},{4,6},{4,5},{7,6},{6,5}},
	{{0,1},{3,0},{1,5},{5,0},{1,0},{5,2},{5,3}},
	{{1,2},{3,1},{2,4},{4,1},{2,1},{4,2},{4,3}}
},
B6_8[6][8][2]={
	{{0,7},{0,6},{5,0},{5,0},{0,6},{6,0},{5,7},{5,6}},
	{{0,1},{6,1},{6,4},{0,4},{4,1},{4,1},{7,4},{4,5}},
	{{2,7},{3,0},{7,4},{2,7},{7,2},{1,4},{2,7},{3,6}},
	{{7,2},{6,2},{5,6},{4,6},{6,5},{6,7},{5,7},{6,3}},
	{{0,1},{3,0},{1,5},{0,3},{3,1},{0,3},{2,5},{3,5}},
	{{1,2},{2,3},{2,4},{4,2},{1,2},{1,4},{3,2},{3,4}}
},
B7_8[7][8][2]={
	{{0,7},{6,7},{5,0},{0,5},{6,7},{0,7},{5,7},{6,5}},
	{{0,1},{1,7},{0,4},{5,7},{4,1},{1,4},{7,5},{6,4}},
	{{7,2},{3,1},{3,4},{6,2},{1,4},{3,5},{3,2},{3,5}},
	{{7,0},{6,0},{3,6},{1,7},{3,6},{1,0},{5,2},{6,3}},
	{{7,0},{6,3},{4,2},{4,7},{6,1},{7,0},{6,7},{4,6}},
	{{0,2},{2,3},{4,5},{2,5},{3,5},{0,5},{5,2},{4,5}},
	{{1,2},{1,3},{1,4},{1,2},{3,1},{1,2},{2,3},{3,4}}
},
B8_8[8][8][2]={
	{{0,7},{7,6},{5,7},{0,5},{7,5},{5,0},{7,5},{6,5}},
	{{7,1},{1,6},{1,4},{6,1},{1,6},{1,4},{7,6},{4,5}},
	{{2,7},{3,6},{5,3},{3,7},{7,0},{1,3},{7,2},{6,3}},
	{{2,1},{7,3},{7,2},{2,0},{5,6},{2,0},{4,7},{6,3}},
	{{2,7},{3,6},{5,1},{0,7},{3,6},{4,3},{7,2},{4,3}},
	{{7,1},{7,6},{0,3},{2,3},{0,7},{7,4},{7,2},{3,6}},
	{{2,0},{3,0},{5,0},{2,5},{3,4},{5,0},{5,4},{5,3}},
	{{2,1},{1,3},{4,3},{4,1},{4,1},{3,1},{2,3},{4,3}}
},
B8_9[8][9][2]={
	{{0,7},{0,6},{5,0},{0,5},{0,6},{0,5},{5,0},{7,5},{6,5}},
	{{0,1},{1,6},{5,4},{1,4},{4,1},{1,4},{1,4},{7,4},{4,5}},
	{{2,1},{3,0},{6,4},{2,0},{7,5},{5,6},{1,6},{6,2},{5,3}},
	{{2,7},{0,7},{1,5},{4,1},{5,6},{4,5},{0,1},{6,7},{6,3}},
	{{1,7},{6,2},{5,1},{1,4},{2,0},{2,3},{6,2},{7,5},{6,4}},
	{{7,1},{3,6},{3,0},{2,6},{6,7},{1,5},{4,2},{7,2},{3,6}},
	{{0,2},{3,0},{5,0},{1,5},{4,0},{0,2},{5,0},{5,2},{5,3}},
	{{2,1},{1,3},{2,4},{4,2},{4,1},{3,1},{4,1},{2,4},{4,3}}
},
B8_10[8][10][2]={
	{{0,7},{0,6},{5,0},{0,5},{0,5},{6,5},{5,0},{0,5},{7,5},{6,5}},
	{{0,1},{1,6},{1,4},{1,4},{4,1},{1,4},{1,4},{1,0},{4,7},{6,4}},
	{{2,0},{3,6},{6,4},{6,5},{0,2},{0,6},{7,5},{6,7},{7,2},{4,3}},
	{{2,7},{1,7},{4,7},{6,0},{1,7},{7,5},{0,4},{5,4},{7,2},{3,5}},
	{{2,7},{6,2},{5,2},{1,7},{2,0},{4,1},{5,2},{1,3},{3,4},{6,3}},
	{{7,1},{3,6},{3,2},{3,6},{7,1},{3,5},{4,3},{0,7},{5,7},{6,3}},
	{{0,2},{3,0},{5,0},{1,5},{3,0},{5,0},{5,1},{0,5},{5,2},{5,4}},
	{{2,1},{1,3},{2,4},{4,1},{4,1},{1,3},{4,1},{4,1},{3,2},{3,4}}
},
B9_10[9][10][2]={
	{{0,7},{7,6},{5,0},{0,5},{7,0},{6,0},{5,0},{0,5},{7,6},{5,6}},
	{{7,1},{1,6},{7,4},{6,0},{4,1},{1,4},{4,7},{4,1},{4,7},{5,4}},
	{{2,7},{3,6},{5,3},{0,6},{6,2},{4,3},{0,5},{2,1},{2,5},{6,3}},
	{{2,1},{6,3},{0,2},{0,3},{1,7},{7,4},{1,5},{3,0},{5,4},{3,6}},
	{{2,0},{3,7},{2,0},{5,2},{1,4},{5,4},{5,1},{5,6},{7,2},{4,5}},
	{{7,2},{6,1},{4,0},{0,1},{4,1},{3,1},{5,3},{1,5},{2,7},{6,5}},
	{{7,0},{6,7},{3,7},{0,7},{4,1},{1,4},{2,5},{1,5},{6,7},{6,3}},
	{{0,2},{0,3},{4,5},{0,5},{1,0},{1,4},{5,0},{0,5},{5,2},{3,5}},
	{{1,2},{1,3},{3,4},{3,4},{3,1},{1,4},{4,1},{1,2},{4,2},{3,4}}
},
B10_10[10][10][2]={
	{{0,7},{0,6},{7,5},{6,0},{0,5},{6,5},{7,5},{5,0},{7,5},{6,5}},
	{{1,0},{6,0},{1,4},{1,4},{1,7},{4,1},{1,4},{1,0},{7,6},{4,6}},
	{{2,0},{3,6},{4,2},{4,3},{0,2},{5,6},{7,6},{6,3},{7,2},{4,3}},
	{{0,2},{7,6},{4,6},{7,1},{7,0},{3,0},{0,4},{2,6},{2,7},{6,3}},
	{{2,7},{0,7},{5,4},{7,0},{2,6},{2,7},{4,2},{4,3},{6,4},{6,3}},
	{{2,1},{2,6},{5,3},{7,4},{5,3},{4,3},{2,6},{6,5},{6,2},{3,5}},
	{{7,1},{3,6},{3,1},{2,5},{7,3},{1,5},{3,5},{1,2},{7,2},{6,5}},
	{{2,7},{1,6},{6,7},{1,5},{1,3},{2,5},{6,2},{1,2},{7,6},{6,5}},
	{{2,0},{1,3},{5,0},{1,0},{5,0},{5,3},{5,0},{1,0},{5,2},{5,3}},
	{{2,1},{3,2},{4,1},{3,1},{4,1},{4,2},{4,1},{2,1},{4,2},{4,3}}
},
B10_11[10][11][2]={
	{{0,7},{6,0},{0,5},{6,0},{7,5},{5,0},{0,6},{5,6},{0,7},{5,7},{6,5}},
	{{1,7},{6,0},{1,4},{4,1},{6,4},{4,1},{0,5},{4,1},{1,4},{6,5},{6,4}},
	{{0,2},{3,6},{0,2},{4,7},{1,6},{2,3},{2,6},{1,7},{5,4},{3,2},{3,6}},
	{{7,2},{3,6},{5,4},{6,2},{7,4},{5,0},{5,1},{5,6},{6,2},{6,2},{5,6}},
	{{2,1},{7,6},{7,6},{2,1},{3,1},{2,1},{7,6},{4,5},{3,1},{2,7},{6,5}},
	{{2,0},{6,3},{6,2},{0,6},{6,0},{1,3},{2,5},{6,2},{1,2},{2,5},{5,6}},
	{{2,7},{2,6},{4,3},{7,3},{1,0},{2,4},{4,5},{1,3},{7,1},{7,2},{3,6}},
	{{7,2},{6,2},{2,0},{6,2},{1,5},{6,7},{4,2},{6,7},{6,5},{2,7},{5,6}},
	{{2,0},{3,0},{1,5},{0,5},{4,3},{5,0},{1,5},{0,5},{0,1},{2,3},{5,3}},
	{{1,2},{1,3},{4,2},{4,1},{1,2},{1,4},{3,2},{4,2},{3,1},{2,4},{3,4}}
},
B10_12[10][12][2]={
	{{0,7},{0,6},{6,5},{0,5},{7,6},{0,5},{7,5},{0,5},{0,6},{0,5},{7,6},{6,5}},
	{{1,7},{1,6},{5,4},{1,4},{1,6},{1,4},{6,5},{1,4},{7,6},{1,4},{7,4},{6,4}},
	{{2,1},{3,2},{5,6},{2,6},{1,0},{5,3},{6,7},{2,3},{5,7},{2,0},{7,2},{6,3}},
	{{2,1},{3,6},{7,0},{2,1},{5,0},{5,2},{4,1},{2,5},{5,7},{6,3},{7,2},{4,3}},
	{{0,7},{2,6},{2,1},{7,1},{4,0},{1,2},{4,1},{3,5},{0,6},{3,5},{7,2},{6,3}},
	{{2,0},{0,7},{5,4},{6,3},{0,6},{1,6},{4,5},{1,6},{7,2},{3,6},{5,4},{6,3}},
	{{2,1},{3,6},{4,5},{7,4},{1,3},{0,6},{5,4},{2,0},{5,1},{0,7},{7,2},{6,3}},
	{{1,7},{7,6},{3,2},{2,5},{2,1},{6,7},{2,1},{7,4},{2,5},{4,3},{7,2},{6,4}},
	{{2,0},{1,0},{5,0},{5,0},{2,3},{5,0},{1,0},{5,0},{5,0},{5,0},{3,2},{5,3}},
	{{2,1},{3,1},{4,3},{4,1},{4,2},{4,1},{3,1},{4,1},{4,3},{4,1},{4,2},{4,3}}
},
B11_12[11][12][2]={
	{{0,7},{6,7},{5,0},{6,5},{7,5},{6,5},{5,0},{7,0},{5,6},{7,0},{5,7},{5,6}},
	{{7,1},{1,6},{1,4},{1,0},{4,1},{6,5},{6,1},{0,6},{4,1},{4,1},{7,5},{4,6}},
	{{7,2},{3,0},{3,2},{1,7},{0,2},{4,3},{6,7},{2,7},{1,3},{5,4},{2,3},{3,6}},
	{{2,7},{6,3},{0,7},{4,0},{7,2},{6,2},{2,4},{6,1},{0,5},{6,7},{2,7},{5,3}},
	{{7,0},{6,3},{7,6},{5,6},{3,4},{4,2},{1,6},{3,5},{3,5},{7,1},{2,4},{5,6}},
	{{7,2},{3,1},{4,0},{3,7},{6,2},{1,3},{1,2},{6,7},{5,2},{0,1},{3,5},{3,6}},
	{{0,2},{2,3},{2,7},{0,3},{4,5},{2,6},{5,1},{0,5},{1,6},{6,5},{2,3},{6,4}},
	{{0,7},{0,3},{1,4},{5,2},{3,1},{1,4},{5,2},{1,7},{3,5},{5,4},{2,7},{6,5}},
	{{7,0},{6,1},{5,4},{3,4},{2,1},{7,6},{1,5},{2,1},{6,2},{1,7},{7,2},{6,5}},
	{{0,1},{3,0},{4,5},{0,5},{1,5},{5,0},{5,0},{0,5},{3,5},{1,0},{5,2},{3,5}},
	{{1,2},{1,3},{1,4},{4,1},{2,1},{1,4},{1,3},{4,2},{4,1},{1,4},{3,2},{4,3}}
};
void DivideConquer(int x1,int y1,int x2,int y2);
void FillBoard(int *board,int x1,int y1,int x2,int y2,bool flag);
void CombineBoard(int x1,int y1,int x2,int y2);
int main()
{
	int m,n;
	printf("请输入棋盘大小m,n(|m-n|<=2):\n");
	scanf("%d%d",&m,&n);
	if (m*n%2||(m<6||n<6)) printf("该棋盘不存在骑士巡游回路\n");
	else if (n-m>2||m-n>2) printf("棋盘大小有误\n");
	else
	{
		int circuit[500][500],step=1,i,j,x,y;												//circuit记录每格的步序数
		printf("请输入马的起点坐标：");
		scanf("%d%d",&x,&y);
		if (x<=0||x>=m||y<=0||y>=n)	printf("非法的坐标\n");
		else
		{
			DivideConquer(0,0,m-1,n-1);
			memset(circuit,0,sizeof(circuit));
			i=--x;
			j=--y;
			do
			{
				circuit[i][j]=step++;															//模拟马走棋盘的过程
				int a=i,b=j;
				i+=direct[ChessBoard[a][b][0]][0];
				j+=direct[ChessBoard[a][b][0]][1];
				if (circuit[i][j]>1){
					i=a+direct[ChessBoard[a][b][1]][0];
					j=b+direct[ChessBoard[a][b][1]][1];
				}
			}while(i!=x||j!=y);
			printf("骑士巡游路线如下\n");
			for (int p=0;p<m;p++)
			{
				for (int q=0;q<n;q++)
					printf("%d\t",circuit[p][q]);
				printf("\n");
			}
		}
	}
	return 0;
}
void DivideConquer(int x1,int y1,int x2,int y2)
{
	//分治法主要函数
	int h=x2-x1+1,w=y2-y1+1,dw=w/4*2+w%2,dh=h/4*2+h%2;		//dw,dh分别是棋盘宽和高的一半，且保证了至少有一个是偶数，使得分治时不会出现无解的棋盘
	bool flag=false;
	if (w<h)
	{
		flag=true;
		int t=w;w=h;h=t;		//将棋盘翻转并标记，使得基本棋盘的内容能正确填入
	}
	if (h==6&&w==6) FillBoard((int*)B6_6,x1,y1,x2,y2,flag);		//填充基本棋盘
	if (h==6&&w==7) FillBoard((int*)B6_7,x1,y1,x2,y2,flag);
	if (h==6&&w==8) FillBoard((int*)B6_8,x1,y1,x2,y2,flag);
	if (h==7&&w==8) FillBoard((int*)B7_8,x1,y1,x2,y2,flag);
	if (h==8&&w==8) FillBoard((int*)B8_8,x1,y1,x2,y2,flag);
	if (h==8&&w==9) FillBoard((int*)B8_9,x1,y1,x2,y2,flag);
	if (h==8&&w==10) FillBoard((int*)B8_10,x1,y1,x2,y2,flag);
	if (h==9&&w==10) FillBoard((int*)B9_10,x1,y1,x2,y2,flag);
	if (h==10&&w==10) FillBoard((int*)B10_10,x1,y1,x2,y2,flag);
	if (h==10&&w==11) FillBoard((int*)B10_11,x1,y1,x2,y2,flag);
	if (h==10&&w==12) FillBoard((int*)B10_12,x1,y1,x2,y2,flag);
	if (h==11&&w==12) FillBoard((int*)B11_12,x1,y1,x2,y2,flag);
	if (h>11&&w>11)
	{
		DivideConquer(x1,y1,x1+dh-1,y1+dw-1);	//递归实现分治
		DivideConquer(x1+dh,y1,x2,y1+dw-1);
		DivideConquer(x1,y1+dw,x1+dh-1,y2);
		DivideConquer(x1+dh,y1+dw,x2,y2);
		CombineBoard(x1,y1,x2,y2);				//合并棋盘
	}
}
void FillBoard(int *board,int x1,int y1,int x2,int y2,bool flag)
{
	//实现基本棋盘的填充。flag为棋盘翻转标志
	int h=x2-x1+1,w=y2-y1+1;
	if (flag)
		for (int i=x1;i<=x2;i++)
			for (int j=y1;j<=y2;j++)
			{
				ChessBoard[i][j][0]=7-board[(i-x1+(j-y1)*h)*2];			//7-board，是利用了direct中互为转置的方向下标之和为7的细节
				ChessBoard[i][j][1]=7-board[(i-x1+(j-y1)*h)*2+1];
			}
	else
		for (int i=x1;i<=x2;i++)
			for (int j=y1;j<=y2;j++)
			{
				ChessBoard[i][j][0]=board[((i-x1)*w+j-y1)*2];
				ChessBoard[i][j][1]=board[((i-x1)*w+j-y1)*2+1];
			}
}
void CombineBoard(int x1,int y1,int x2,int y2)
{
	//合并棋盘，时间复杂度为O(1)
	int dw=(y2-y1+1)/4*2+(y2-y1+1)%2,dh=(x2-x1+1)/4*2+(x2-x1+1)%2;
	if (ChessBoard[x1+dh][y1+dw-1][0]==6) ChessBoard[x1+dh][y1+dw-1][0]=4;
	else ChessBoard[x1+dh][y1+dw-1][1]=4;
	if (ChessBoard[x1+dh+2][y1+dw-2][0]==2) ChessBoard[x1+dh+2][y1+dw-2][0]=1;
	else ChessBoard[x1+dh+2][y1+dw-2][1]=1;
	if (ChessBoard[x1+dh+1][y1+dw][0]==1) ChessBoard[x1+dh+1][y1+dw][0]=5;
	else ChessBoard[x1+dh+1][y1+dw][1]=5;
	if (ChessBoard[x1+dh][y1+dw+2][0]==5) ChessBoard[x1+dh][y1+dw+2][0]=4;
	else ChessBoard[x1+dh][y1+dw+2][1]=4;
	if (ChessBoard[x1+dh-1][y1+dw][0]==2) ChessBoard[x1+dh-1][y1+dw][0]=0;
	else ChessBoard[x1+dh-1][y1+dw][1]=0;
	if (ChessBoard[x1+dh-3][y1+dw+1][0]==6) ChessBoard[x1+dh-3][y1+dw+1][0]=5;
	else ChessBoard[x1+dh-3][y1+dw+1][1]=5;
	if (ChessBoard[x1+dh-2][y1+dw-1][0]==5) ChessBoard[x1+dh-2][y1+dw-1][0]=1;
	else ChessBoard[x1+dh-2][y1+dw-1][1]=1;
	if (ChessBoard[x1+dh-1][y1+dw-3][0]==1) ChessBoard[x1+dh-1][y1+dw-3][0]=0;
	else ChessBoard[x1+dh-1][y1+dw-3][1]=0;
}

$m 、 n$ 任意情况下的解

具体请参考第二篇文献"Knight’s Tour Revisited"。大致思路是，直接给出一系列基本棋盘的曼哈顿回路和曼哈顿链，其中曼哈顿链都满足从棋盘某个角出发在另一角结束。如此就可将大棋盘拆分成若干小棋盘（不一定均分），然后将各小棋盘中的曼哈顿链和曼哈顿回路联接成一个大回路，即得解。除此外，该文章作者还证明了骑士巡游问题有解的必要条件是
