基于STM32单片机HAL库硬件I2C读写LTC2943

已于 2024-10-15 08:08:55 修改
阅读量745 收藏 4
点赞数 2
CC 4.0 BY-SA版权
分类专栏： 单片机开发笔记 文章标签： 单片机 stm32 硬件I2C LTC2943
于 2024-10-14 13:53:32 首次发布
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.csdn.net/PoroKing/article/details/142914708

单片机： STM32L476
库： HAL库
通讯： 硬件I2C，直接用STM32CubeMX生成
目标： 实现读写LTC2943库仑计芯片，采集温度、库伦、电压、电流等。

硬件参考电路
在这里插入图片描述

ws_drive_ltc2943.h
驱动程序

/*! @file
    @ingroup LTC2943
    Header for LTC2943: Multicell Battery Gas Gauge with Temperature, Voltage and Current Measurement
*/

#ifndef WS_DRIVE_LTC2943_H
#define WS_DRIVE_LTC2943_H

#include "stm32l4xx_hal.h"

/*! @name LTC2943 I2C Address
@{ */

#define LTC2943_I2C_ADDRESS 0xC8
#define LTC2943_I2C_ALERT_RESPONSE  0x0C

//! @}

#define I2C_READ_BIT    0x01
#define I2C_WRITE_BIT   0x00
#define WITH_ACK  0  //!<  Use with i2c_read(WITH_ACK) to read with an acknowledge
#define WITH_NACK 1
/*!
| Name                                              | Value |
| :------------------------------------------------ | :---: |
| LTC2943_STATUS_REG                                | 0x00  |
| LTC2943_CONTROL_REG                               | 0x01  |
| LTC2943_ACCUM_CHARGE_MSB_REG                      | 0x02  |
| LTC2943_ACCUM_CHARGE_LSB_REG                      | 0x03  |
| LTC2943_CHARGE_THRESH_HIGH_MSB_REG                | 0x04  |
| LTC2943_CHARGE_THRESH_HIGH_LSB_REG                | 0x05  |
| LTC2943_CHARGE_THRESH_LOW_MSB_REG                 | 0x06  |
| LTC2943_CHARGE_THRESH_LOW_LSB_REG                 | 0x07  |
| LTC2943_VOLTAGE_MSB_REG                           | 0x08  |
| LTC2943_VOLTAGE_LSB_REG                           | 0x09  |
| LTC2943_VOLTAGE_THRESH_HIGH_MSB_REG               | 0x0A  |
| LTC2943_VOLTAGE_THRESH_HIGH_LSB_REG               | 0x0B  |
| LTC2943_VOLTAGE_THRESH_LOW_MSB_REG                | 0x0C  |
| LTC2943_VOLTAGE_THRESH_LOW_LSB_REG                | 0x0D  |
| LTC2943_CURRENT_MSB_REG                           | 0x0E  |
| LTC2943_CURRENT_LSB_REG                           | 0x0F  |
| LTC2943_CURRENT_THRESH_HIGH_MSB_REG               | 0x10  |
| LTC2943_CURRENT_THRESH_HIGH_LSB_REG               | 0x11  |
| LTC2943_CURRENT_THRESH_LOW_MSB_REG                | 0x12  |
| LTC2943_CURRENT_THRESH_LOW_LSB_REG                | 0x13  |
| LTC2943_TEMPERATURE_MSB_REG                       | 0x14  |
| LTC2943_TEMPERATURE_LSB_REG                       | 0x15  |
| LTC2943_TEMPERATURE_THRESH_HIGH_REG               | 0x16  |
| LTC2943_TEMPERATURE_THRESH_LOW_REG                | 0x17  |
*/

/*! @name Registers
@{ */
// Registers
#define LTC2943_STATUS_REG                          0x00
#define LTC2943_CONTROL_REG                         0x01
#define LTC2943_ACCUM_CHARGE_MSB_REG                0x02
#define LTC2943_ACCUM_CHARGE_LSB_REG                0x03
#define LTC2943_CHARGE_THRESH_HIGH_MSB_REG          0x04
#define LTC2943_CHARGE_THRESH_HIGH_LSB_REG          0x05
#define LTC2943_CHARGE_THRESH_LOW_MSB_REG           0x06
#define LTC2943_CHARGE_THRESH_LOW_LSB_REG           0x07
#define LTC2943_VOLTAGE_MSB_REG                     0x08
#define LTC2943_VOLTAGE_LSB_REG                     0x09
#define LTC2943_VOLTAGE_THRESH_HIGH_MSB_REG         0x0A
#define LTC2943_VOLTAGE_THRESH_HIGH_LSB_REG         0x0B
#define LTC2943_VOLTAGE_THRESH_LOW_MSB_REG          0x0C
#define LTC2943_VOLTAGE_THRESH_LOW_LSB_REG          0x0D
#define LTC2943_CURRENT_MSB_REG                     0x0E
#define LTC2943_CURRENT_LSB_REG                     0x0F
#define LTC2943_CURRENT_THRESH_HIGH_MSB_REG         0x10
#define LTC2943_CURRENT_THRESH_HIGH_LSB_REG         0x11
#define LTC2943_CURRENT_THRESH_LOW_MSB_REG          0x12
#define LTC2943_CURRENT_THRESH_LOW_LSB_REG          0x13
#define LTC2943_TEMPERATURE_MSB_REG                 0x14
#define LTC2943_TEMPERATURE_LSB_REG                 0x15
#define LTC2943_TEMPERATURE_THRESH_HIGH_REG         0x16
#define LTC2943_TEMPERATURE_THRESH_LOW_REG          0x17
//! @}

/*!
| Command Codes                                 | Value     |
| :-------------------------------------------- | :-------: |
| LTC2943_AUTOMATIC_MODE                        | 0xC0      |
| LTC2943_SCAN_MODE                             | 0x80      |
| LTC2943_MANUAL_MODE                           | 0x40      |
| LTC2943_SLEEP_MODE                            | 0x00      |
| LTC2943_PRESCALAR_M_1                         | 0x00      |
| LTC2943_PRESCALAR_M_4                         | 0x08      |
| LTC2943_PRESCALAR_M_16                        | 0x10      |
| LTC2943_PRESCALAR_M_64                        | 0x18      |
| LTC2943_PRESCALAR_M_256                       | 0x20      |
| LTC2943_PRESCALAR_M_1024                      | 0x28      |
| LTC2943_PRESCALAR_M_4096                      | 0x30      |
| LTC2943_PRESCALAR_M_4096_2                    | 0x31      |
| LTC2943_ALERT_MODE                            | 0x04      |
| LTC2943_CHARGE_COMPLETE_MODE                  | 0x02      |
| LTC2943_DISABLE_ALCC_PIN                      | 0x00      |
| LTC2943_SHUTDOWN_MODE                         | 0x01      |
*/

/*! @name Command Codes
@{ */
// Command Codes
#define LTC2943_AUTOMATIC_MODE                  0xC0
#define LTC2943_SCAN_MODE                       0x80
#define LTC2943_MANUAL_MODE                     0x40
#define LTC2943_SLEEP_MODE                      0x00

#define LTC2943_PRESCALAR_M_1                   0x00
#define LTC2943_PRESCALAR_M_4                   0x08
#define LTC2943_PRESCALAR_M_16                  0x10
#define LTC2943_PRESCALAR_M_64                  0x18
#define LTC2943_PRESCALAR_M_256                 0x20
#define LTC2943_PRESCALAR_M_1024                0x28
#define LTC2943_PRESCALAR_M_4096                0x30
#define LTC2943_PRESCALAR_M_4096_2              0x31

#define LTC2943_ALERT_MODE                      0x04
#define LTC2943_CHARGE_COMPLETE_MODE            0x02

#define LTC2943_DISABLE_ALCC_PIN                0x00
#define LTC2943_SHUTDOWN_MODE                   0x01

//! @}

/*!
| Conversion Constants                              |  Value   |
| :------------------------------------------------ | :------: |
| LTC2943_CHARGE_lsb                                | 0.34  mAh|
| LTC2943_VOLTAGE_lsb                               | 1.44   mV|
| LTC2943_CURRENT_lsb                               |  29.3  uV|
| LTC2943_TEMPERATURE_lsb                           | 0.25    C|
| LTC2943_FULLSCALE_VOLTAGE                         |  23.6   V|
| LTC2943_FULLSCALE_CURRENT                         |  60    mV|
| LTC2943_FULLSCALE_TEMPERATURE                     | 510     K|

*/
/*! @name Conversion Constants
@{ */

//! @}

//! @}
void LTC2943_Init(void);

//! Write an 8-bit code to the LTC2943.
//! @return The function returns the state of the acknowledge bit after the I2C address write. 0=acknowledge, 1=no acknowledge.
int8_t LTC2943_write(uint8_t i2c_address, //!< Register address for the LTC2943
                     uint8_t adc_command, //!< The "command byte" for the LTC2943
                     uint8_t code         //!< Value that will be written to the register.
										);

//! Write a 16-bit code to the LTC2943.
//! @return The function returns the state of the acknowledge bit after the I2C address write. 0=acknowledge, 1=no acknowledge.
int8_t LTC2943_write_16_bits(uint8_t i2c_address, //!< Register address for the LTC2943
                             uint8_t adc_command, //!< The "command byte" for the LTC2943
                             uint16_t code        //!< Value that will be written to the register.
                            );


//! Reads an 8-bit adc_code from LTC2943
//! @return The function returns the state of the acknowledge bit after the I2C address write. 0=acknowledge, 1=no acknowledge.
int8_t LTC2943_read(uint8_t i2c_address, //!< Register address for the LTC2943
                    uint8_t adc_command, //!< The "command byte" for the LTC2943
                    uint8_t *adc_code    //!< Value that will be read from the register.
                   );

//! Reads a 16-bit adc_code from LTC2943
//! @return The function returns the state of the acknowledge bit after the I2C address write. 0=acknowledge, 1=no acknowledge.
int8_t LTC2943_read_16_bits(uint8_t i2c_address, //!< Register address for the LTC2943
                            uint8_t adc_command, //!< The "command byte" for the LTC2943
                            uint16_t *adc_code   //!< Value that will be read from the register.
                           );


//! Calculate the LTC2943 charge in Coulombs
//! @return Returns the Coulombs of charge in the ACR register.
float LTC2943_code_to_coulombs(uint16_t adc_code,        //!< The RAW ADC value
                               float resistor,         //!< The sense resistor value
                               uint16_t prescalar      //!< The prescalar value
                              );

//! Calculate the LTC2943 charge in mAh
//! @return Returns the Coulombs of charge in the ACR register.
float LTC2943_code_to_mAh(uint16_t adc_code,            //!< The RAW ADC value
                          float resistor,       //!< The sense resistor value
                          uint16_t prescalar    //!< The prescalar value
                         );

//! Calculate the LTC2943 SENSE+ voltage
//! @return Returns the SENSE+ Voltage in Volts
float LTC2943_code_to_voltage(uint16_t adc_code              //!< The RAW ADC value
                             );

//! Calculate the LTC2943 current with a sense resistor
//! @return Returns the current through the sense resisor
float LTC2943_code_to_current(uint16_t adc_code,                //!< The RAW ADC value
                              float resistor                   //!< The sense resistor value
                             );

//! Calculate the LTC2943 temperature
//! @return Returns the temperature in Kelvin
float LTC2943_code_to_kelvin_temperature(uint16_t adc_code           //!< The RAW ADC value
                                        );

//! Calculate the LTC2943 temperature
//! @return Returns the temperature in Celcius
float LTC2943_code_to_celcius_temperature(uint16_t adc_code          //!< The RAW ADC value
                                         );

#endif  // LTC2943_H

ws_drive_ltc2943.c
驱动程序

#include "ws_drive_ltc2943.h"
#include "i2c.h"

//! @defgroup LTC2943 LTC2943: Multicell Battery Gas Gauge with Temperature, Voltage and Current Measurement

/*! @file
   @ingroup LTC2943
   Library for LTC2943 Multicell Battery Gas Gauge with Temperature, Voltage and Current Measurement
*/

const float LTC2943_CHARGE_lsb = 0.34E-3;
const float LTC2943_VOLTAGE_lsb = 1.44E-3;
const float LTC2943_CURRENT_lsb = 29.3E-6;
const float LTC2943_TEMPERATURE_lsb = 0.25;
const float LTC2943_FULLSCALE_VOLTAGE = 23.6;
const float LTC2943_FULLSCALE_CURRENT = 60E-3;
const float LTC2943_FULLSCALE_TEMPERATURE = 510;

// Write an 8-bit code to the LTC2943.
int8_t LTC2943_write(uint8_t i2c_address, uint8_t adc_command, uint8_t code)
// The function returns the state of the acknowledge bit after the I2C address write. 0=acknowledge, 1=no acknowledge.
{
	HAL_I2C_Mem_Write(&hi2c1, i2c_address, adc_command, I2C_MEMADD_SIZE_8BIT, (uint8_t *)&code, 1, 0x100);
  return 0;
}

// Write a 16-bit code to the LTC2943.
int8_t LTC2943_write_16_bits(uint8_t i2c_address, uint8_t adc_command, uint16_t code)
// The function returns the state of the acknowledge bit after the I2C address write. 0=acknowledge, 1=no acknowledge.
{
	HAL_I2C_Mem_Write(&hi2c1, i2c_address, adc_command, I2C_MEMADD_SIZE_8BIT, (uint8_t *)&code, 2, 0x100);
  return 0;
}

// Reads an 8-bit adc_code from LTC2943
int8_t LTC2943_read(uint8_t i2c_address, uint8_t adc_command, uint8_t *adc_code)
// The function returns the state of the acknowledge bit after the I2C address write. 0=acknowledge, 1=no acknowledge.
{
	HAL_I2C_Mem_Read(&hi2c1, i2c_address, adc_command, I2C_MEMADD_SIZE_8BIT, adc_code, 1, 0x100);
  return 0;
}

// Reads a 16-bit adc_code from LTC2943
int8_t LTC2943_read_16_bits(uint8_t i2c_address, uint8_t adc_command, uint16_t *adc_code)
// The function returns the state of the acknowledge bit after the I2C address write. 0=acknowledge, 1=no acknowledge.
{
	HAL_I2C_Mem_Read(&hi2c1, i2c_address, adc_command, I2C_MEMADD_SIZE_8BIT, (uint8_t *)adc_code, 2, 0x100);
  return 0;
}

float LTC2943_code_to_coulombs(uint16_t adc_code, float resistor, uint16_t prescalar)
// The function converts the 16-bit RAW adc_code to Coulombs
{
  float coulomb_charge;
  coulomb_charge =  1000*(float)(adc_code*LTC2943_CHARGE_lsb*prescalar*50E-3)/(resistor*4096);
  coulomb_charge = coulomb_charge*3.6f;
  return(coulomb_charge);
}

float LTC2943_code_to_mAh(uint16_t adc_code, float resistor, uint16_t prescalar )
// The function converts the 16-bit RAW adc_code to mAh
{
  float mAh_charge;
  mAh_charge = 100*(float)(adc_code*LTC2943_CHARGE_lsb*prescalar*50E-3)/(resistor*4096);
  return(mAh_charge);
}

float LTC2943_code_to_voltage(uint16_t adc_code)
// The function converts the 16-bit RAW adc_code to Volts
{
  float voltage;
  voltage = ((float)adc_code/(65535))*LTC2943_FULLSCALE_VOLTAGE;
  return(voltage);
}

float LTC2943_code_to_current(uint16_t adc_code, float resistor)
// The function converts the 16-bit RAW adc_code to Amperes
{
  float current;
  current = (((float)adc_code-32767)/(32767))*((float)(LTC2943_FULLSCALE_CURRENT)/resistor);
  return(current);
}

float LTC2943_code_to_kelvin_temperature(uint16_t adc_code)
// The function converts the 16-bit RAW adc_code to Kelvin
{
  float temperature;
  temperature = adc_code*((float)(LTC2943_FULLSCALE_TEMPERATURE)/65535);
  return(temperature);
}

float LTC2943_code_to_celcius_temperature(uint16_t adc_code)
// The function converts the 16-bit RAW adc_code to Celcius
{
  float temperature;
  temperature = adc_code*((float)(LTC2943_FULLSCALE_TEMPERATURE)/65535) - 273.15;
  return(temperature);
}

ws_app_power.c
调用驱动程序，读写转换参数

#include "ws_drive_ltc2943.h"

const float resistor = .050;
int8_t ack = 0;                               //! I2C acknowledge indicator
static uint8_t mAh_or_Coulombs = 0;
static uint8_t celcius_or_kelvin = 0;
static uint16_t prescalar_mode = LTC2943_PRESCALAR_M_4096;
static uint16_t prescalarValue = 4096;
static uint16_t alcc_mode = LTC2943_ALERT_MODE;
float charge = 0, current = 0, voltage = 0, temperature = 0;

void read_power_data(void)
{
	menu_1_automatic_mode(mAh_or_Coulombs, celcius_or_kelvin, prescalar_mode, prescalarValue, alcc_mode);
}


int8_t menu_1_automatic_mode(int8_t mAh_or_Coulombs, int8_t celcius_or_kelvin, uint16_t prescalar_mode, uint16_t prescalarValue, uint16_t alcc_modes)
{
    int8_t LTC2943_mode, ii;
    int8_t ack = 0;
    LTC2943_mode = LTC2943_AUTOMATIC_MODE | prescalar_mode | alcc_modes ;
    ack |= LTC2943_write(LTC2943_I2C_ADDRESS, LTC2943_CONTROL_REG, LTC2943_mode); //! Writes the set mode to the LTC2943 control register

    uint8_t status_code = 0;
    uint16_t charge_code = 0, current_code = 0, voltage_code = 0, temperature_code = 0;
	uint16_t charge_l2b = 0, current_l2b = 0, voltage_l2b = 0, temperature_l2b = 0;

    ack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS, LTC2943_ACCUM_CHARGE_MSB_REG, &charge_code);    //! Read MSB and LSB Accumulated Charge Registers for 16 bit charge code
    ack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS, LTC2943_VOLTAGE_MSB_REG, &voltage_code);        //! Read MSB and LSB Voltage Registers for 16 bit voltage code
    ack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS, LTC2943_CURRENT_MSB_REG, &current_code);        //! Read MSB and LSB Current Registers for 16 bit current code
    ack |= LTC2943_read(LTC2943_I2C_ADDRESS, LTC2943_STATUS_REG, &status_code);
	ack |= LTC2943_read_16_bits(LTC2943_I2C_ADDRESS, LTC2943_TEMPERATURE_MSB_REG, &temperature_code);

	charge_l2b = (((charge_code & 0x00ff) << 8) | ((charge_code & 0xff00) >> 8));
	current_l2b = (((current_code & 0x00ff) << 8) | ((current_code & 0xff00) >> 8));
	voltage_l2b = (((voltage_code & 0x00ff) << 8) | ((voltage_code & 0xff00) >> 8));
	temperature_l2b = (((temperature_code & 0x00ff) << 8) | ((temperature_code & 0xff00) >> 8));

    charge = LTC2943_code_to_mAh(charge_l2b, resistor, prescalarValue);      //! Convert charge code to mAh if mAh units are desired.
    current = LTC2943_code_to_current(current_l2b, resistor);                //! Convert current code to Amperes
    voltage = LTC2943_code_to_voltage(voltage_l2b);                          //! Convert voltage code to Volts
	temperature = LTC2943_code_to_celcius_temperature(temperature_l2b);

    return ack;
}

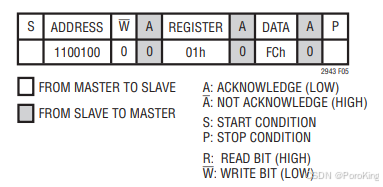

注意：LTC2943地址为0xC8
在这里插入图片描述

基于STM32L4XX、HAL库的LTC2943CDD 电量监测计驱动程序设计
zhusl6688的博客
04-17 137
/ 转换为8位地址。#define LTC2943_I2C_ADDRESS 0x64 // 默认I2C地址(7位地址)printf("累计电荷: %.2f mAh\r\n", charge * 1000);printf("电流: %.2f mA\r\n", current * 1000);printf("温度: %.1f °C\r\n", temperature);printf("电压: %.2f V\r\n", voltage);printf("LTC2943初始化失败\r\n");
STM32 IIC电量计LTC2944
baidu_34971492的博客
01-31 2757
LTC2944是一款电池电量计，设计用于端电压为3.6V至60V的多节电池。它测量电池充电和放电、电池电压、电流和自身温度。精密模拟库仑计数器通过电池正极端子与负载或充电器之间的检测电阻器对电流进行积分。电池电压、电池电流和硅温度由内部ADC测量。
USB可编程 LTC2943 电源监视器设计（demo代码）-电路方案
04-21
USB可编程 LTC2943 电源监视器描述: 该LTC2943 电源监视器设计主要应用在电压电压，电流和电荷监测监控方面。LTC2943是一种电池电量计量芯片，专为与3.6V至20V的端子电压的多芯电池配合使用。它测量电池的充电和放电，电池电压，电流和自身的温度。精密模拟库仑计数器通过电池正极和负载或充电器之间的检测电阻集成电流。使用内部12位ADC测量电池电压，电池电流和硅温度。 LTC2943 电源监视器实物展示: USB可用于编程，LTC2943需要外部电源才能工作。板的尺寸为5 x 5厘米。Board与Arduino兼容，与Arduino UNO bootloader兼容。它可以在Arduino IDE中通过USB端口进行编程。PCB 3D截图: 附件内容截图:
LTC2943电量计芯片数据读取
qq_41561171的博客
03-09 3837
最近调试了一款电量计芯片，LTC2943。关于其数据读取过程，进行如下分析，这部分不太了解的朋友可以参考，都是个人的一些理解，有不到位的地方欢迎指出。 首先看到，芯片手册中关于寄存器的定义和描述如下： 本文主要用到的是02h和08h这两个寄存器，02寄存器中存储的是电荷量，08寄存器中存储的是电压值。 电量支持应该是使用给这两个寄存器，手册中所说的C、D寄存器。但是在手册中没有看出这两个寄存器有什么区别，驱动中也是只使用了MSB这个。 获取寄存器数据的函数返回值就是读取到的数据。 这个是驱动中获取
LTC2943充电管理芯片源程序电路设计图
12-31
资料包含LTC2943编程源代码，与STM32连接原理图和PCB案例，本人亲测成功。官网提供例程有许多bug，本人已修改。具有测温度、电压、电流。1A以内锂电池电流检测。低功耗非常适合小电流检测方案中。
库仑器芯片 LTC2943 调试日记
weixin_41231299的博客
09-18 3938
工作开始之前，时间催得很急，没怎么看数据手册就开干，板子回来后调试出现问题。 1.不接充电器时IIC通讯正常，一接充电器充电，通讯断开。 原因是没在测量引脚1脚加 1UF 电容。 外置测量电阻选型 电阻电容挨近放 驱动软件最好配成这两个 效果图 ...
LTC2990:线性四通道I2C电压、电流和温度监视器驱动器资源文件
gitblog_06720的博客
04-20 325
LTC2990:线性四通道I2C电压、电流和温度监视器驱动器资源文件 去发现同类优质开源项目:https://gitcode.com/ 介绍 本项目提供了一个用于与线性（现为Analog Devices）LTC 2990 Quad I2C电压、电流和温度监控器通信的驱动器。该资源文件详细描述了如何从LTC2990 IC访问和获取寄存器数据。 功能特点 支持四通道电压、电流和温度监控 预先配置为模...
STM32DS3231硬件I2C读写，基于HAL库
12-22
本资源为基于STM32单片机与DS3231实时时钟模块的完整项目代码，适合初学者学习如何使用I²C接口与外设模块进行通讯。项目通过STM32主控实现对DS3231的时间读取和设置功能，电脑屏幕上串口助手实时显示日期、时间。...
基于STM32F03　HAL库的硬件SPI读写ADC－LTC1867.rar
11-12
在本项目中，我们主要探讨的是如何利用STM32F103微控制器的HAL库进行硬件SPI通信，与LTC1867这款16位ADC（模拟数字转换器）进行数据交互。STM32F103是STMicroelectronics公司生产的一款基于ARM Cortex-M3内核的微...
STM32F103单片机HAL库例程-I2C接口读写AT24C02外部EEPROM存储芯片.rar
03-22
2、代码使用KEIL HAL库开发，当前在STM32F103运行，如果是STM32F103其他型号芯片，依然适用，请自行更改KEIL芯片型号以及FLASH容量即可。 3、软件下载时，请注意keil选择项是jlink还是stlink。 4、技术v：349014857;...
STM32 HAL库 硬件I2C对MPU6050的使用
11-02
在这个主题中，我们将深入探讨如何使用STM32 HAL库来操作硬件I2C接口，以与MPU6050六轴陀螺仪和加速度计通信，并实现DMP（数字运动处理器）功能。 MPU6050是一款集成的惯性测量单元，包含三轴陀螺仪和三轴加速度计...
STM32F1读写LTC2944工程 并通过串口MODBUD协议上传
04-22
STM32F1读写LTC2944工程， 并通过串口 采用MODBUD协议上传
LTC2944.rar
09-03
基于STM32F103RCT6的LTC2944库仑计程序，程序简单简介，串口打印出电压，电流以及电量，本人是用来制作100W快充充电宝的数显，经测试电压电流显示准确。库仑计需要具体微调。
STM32F103单片机HAL库例程-内置FLASH的读写保护与解除.rar
03-22
2、代码使用KEIL HAL库开发，当前在STM32F103运行，如果是STM32F103其他型号芯片，依然适用，请自行更改KEIL芯片型号以及FLASH容量即可。 3、软件下载时，请注意keil选择项是jlink还是stlink。 4、技术v：349014857;...
STM32F1 硬件I2C驱动DAC(LTC2605)
m0_37827405的博客
12-19 1374
#include "i2c_drive_mcp.h" #define I2C_Speed     100000 #define Master_Address 0x0A  //全部通道 static void I2C_GPIO_Config(void) {     GPIO_InitTypeDef  GPIO_InitStructure;          /*Enable the Clock...
LTC2990线性四通道I2C电压电流和温度监视器驱动器资源文件：精准监控，轻松集成
最新发布
gitblog_06713的博客
05-10 340
LTC2990线性四通道I2C电压电流和温度监视器驱动器资源文件：精准监控，轻松集成 去发现同类优质开源项目:https://gitcode.com/ 项目介绍 在当今电子系统中，对电压、电流以及温度的实时监控是确保系统稳定运行的关键环节。LTC2990线性四通道I2C电压、电流和温度监视器驱动器资源文件提供了一个高效、可靠的解决方案。本项目旨在帮助开发者轻松地与Analog Devices（原L...
STM32F1 模拟I2C驱动DAC(LTC2605)程序
m0_37827405的博客
12-20 2309
由于在电路设计上将SCL、SDA线拉太长导致硬件I2C时常出问题，所以考虑用模拟I2C解决，这里参考别人的代码然后自己应用到24位DAC(LTC2605)上，已移植成功。 (1).simulate_i2c.c #include "stm32f10x.h" #include "simulate_i2c.h"   #define HIGH 1 #define LOW 0   #define TRU...
IIC读写
热门推荐
weixin_40997830的博客
05-15 1万+
IIC通信中读的过程比较复杂，在从slave读出数据前，你必须先要告诉它哪个内部寄存器是你想要读取的，因此必须先对其进行写入(dummy write)： 发送起始位； 发送slave地址+write bit set； 发送内部寄存器地址； 重新发送起始位，即restart； 重新发送slave地址+read bit set； 读取数据 主机接收器在接收到最后一个字节后，也不会发出ACK信号。于是，...
27 IIC（五）i2c体系结构
二手水滴的博客
05-23 235
1. I2C体系结构组成 在linux中i2c驱动由三部分组成：i2c-core(i2c核心)、i2c总线驱动、i2c设备驱动 结合上图描述可知 应用态访问内核态可以使用特定的I2C driver，也可以使用通用的i2c_dev i2c_dev.c文件内部实现的是基本的通用的i2c驱动程序。它对外只提供基本的i2c操作，相当于把部分驱动操作放到了应用层去实现 i2c设备驱动通过i2c...
STM32F4 HAL库硬件I2C通信实例详解
### STM32F4硬件I2C通信（使用HAL库）知识点详细解读 #### 1. STM32F4系列微控制器简介 STM32F4系列微控制器属于STMicroelectronics（意法半导体）公司生产的高性能ARM Cortex-M4核心微控制器。该系列芯片以高速和...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
