Android Studio NDK环境搭建

1. FFmpeg下载

http://ftp.osuosl.org/pub/blfs/conglomeration/ffmpeg/?C=N;O=D

2. FFmpeg编译

cd ffmpeg-3.4

新建脚本build_android.sh

准备好：android-ndk-r14b

./build_android.sh

#!/bin/bash
echo "进入编译ffmpeg脚本"
#NDK=/root/ff/android-ndk-r14b
NDK=/home/hmi/work/ffmpeg_android/android-ndk-r14b
#5.0  编译的平台
PLATFORM=$NDK/platforms/android-21/arch-arm
#交叉编译工具链  arm体系
TOOLCHAIN=$NDK/toolchains/arm-linux-androideabi-4.9/prebuilt/linux-x86_64
#cpu的输出类型
CPU=armv7-a
#输出路径
PREFIX=./android/$CPU
function buildFF
{
    echo "开始编译ffmpeg"
    ./configure \
    --prefix=$PREFIX \
    --target-os=android \
    --cross-prefix=$TOOLCHAIN/bin/arm-linux-androideabi- \
    --arch=arm \
    --cpu=$CPU  \
    --sysroot=$PLATFORM \
    --extra-cflags="$CFLAG" \
    --cc=$TOOLCHAIN/bin/arm-linux-androideabi-gcc \
    --nm=$TOOLCHAIN/bin/arm-linux-androideabi-nm \
    --enable-shared \
    --enable-runtime-cpudetect \
    --enable-gpl \
    --enable-small \
    --enable-cross-compile \
    --disable-debug \
    --disable-static \
    --disable-doc \
    --disable-ffmpeg \
    --disable-ffplay \
    --disable-ffprobe \
    --disable-ffserver \
    --disable-postproc \
    --disable-avdevice \
    --disable-symver \
    --disable-stripping \
    $ADD
    make -j16
    make install
    echo "编译结束！"
}
###########################################################
echo "编译支持neon和硬解码"
CPU=armv7-a
PREFIX=./android/armv7-a-neon-hard
CFLAG="-I$PLATFORM/usr/include -fPIC -DANDROID -mfpu=neon -mfloat-abi=softfp "
ADD="--enable-asm \
    --enable-neon \
    --enable-jni \
    --enable-mediacodec \
    --enable-decoder=h264_mediacodec \
    --enable-hwaccel=h264_mediacodec "
buildFF

###########################################################
echo "编译不支持neon和硬解码"
CPU=armv7-a
PREFIX=./android/$CPU
CFLAG="-I$PLATFORM/usr/include -fPIC -DANDROID -mfpu=vfp -mfloat-abi=softfp "
ADD=
buildFF

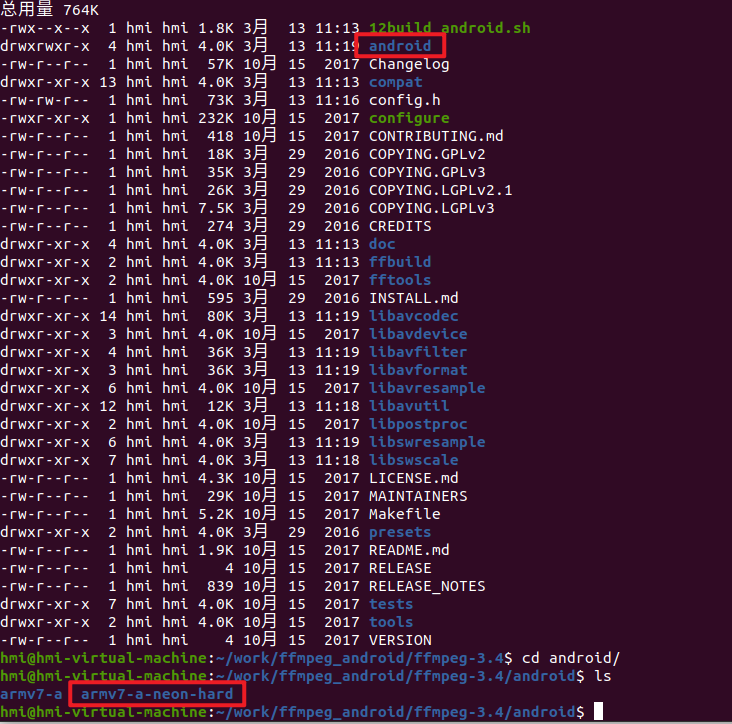

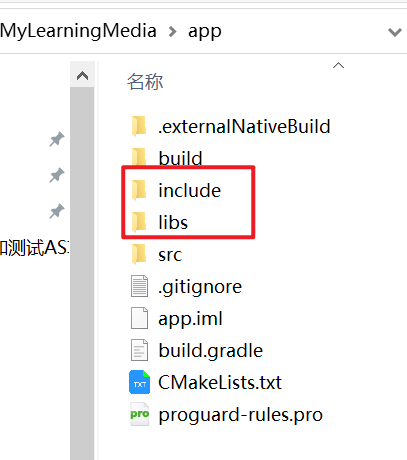

3. 编译完成后复制头文件和库

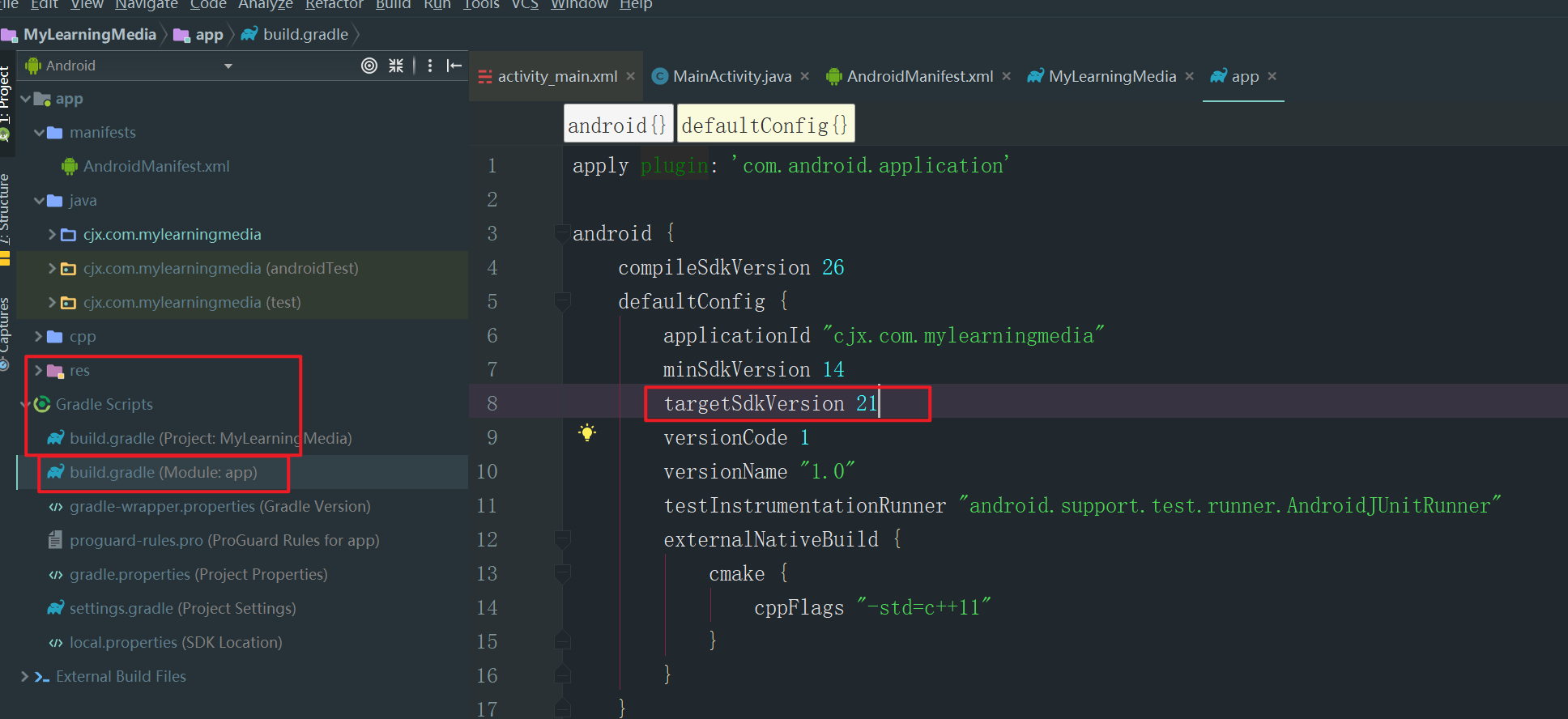

4. 设置app/build.gradle

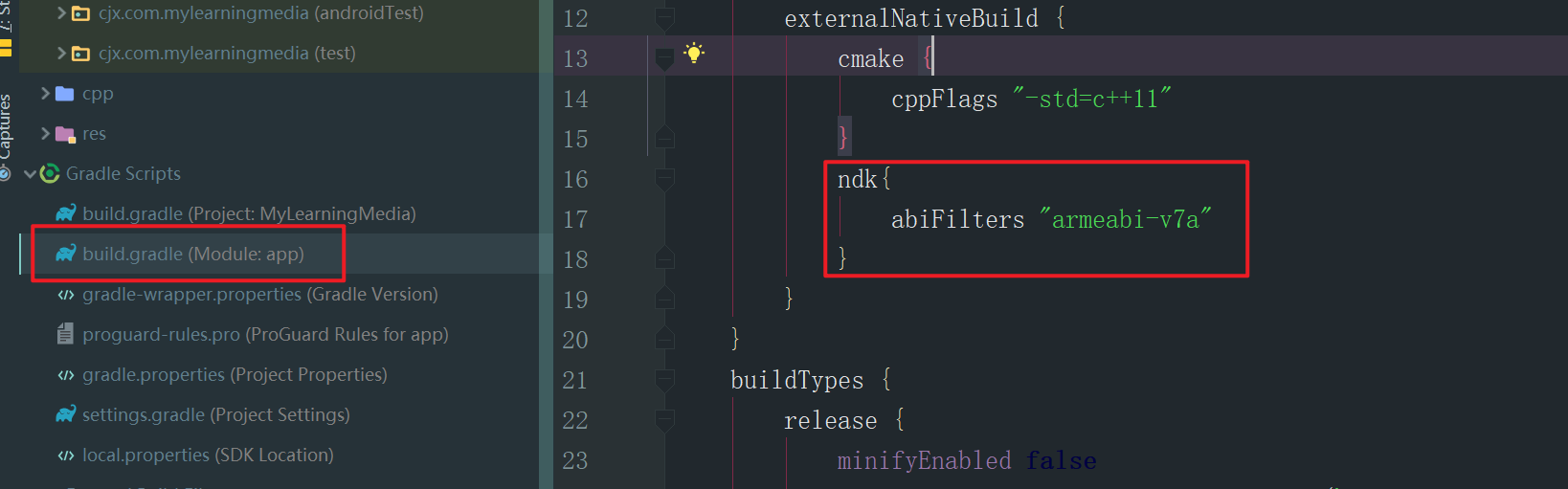

5. NDK配置

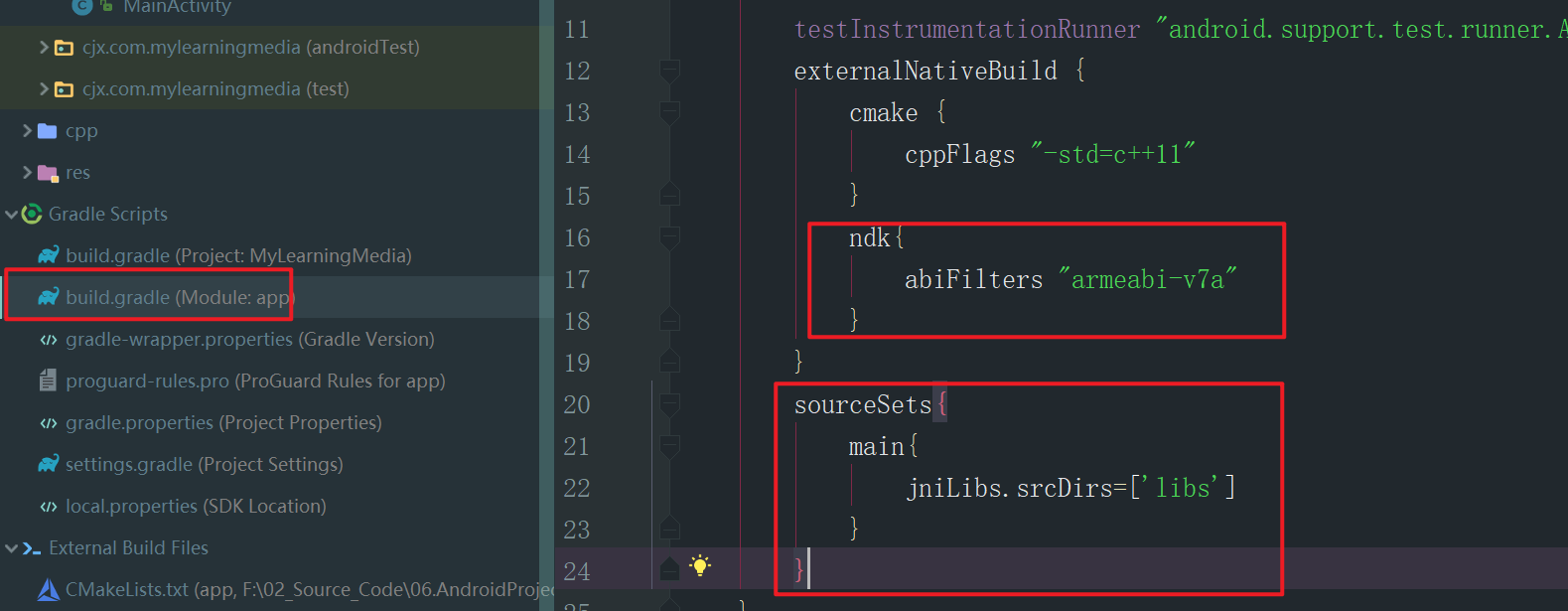

6. libs配置否则运行就会停止

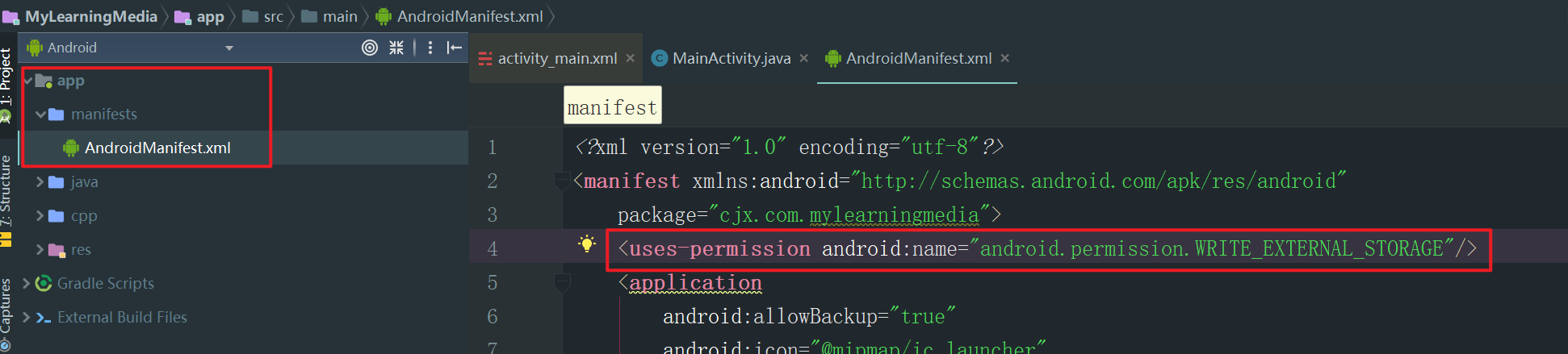

7. 添加sd卡的读取权限

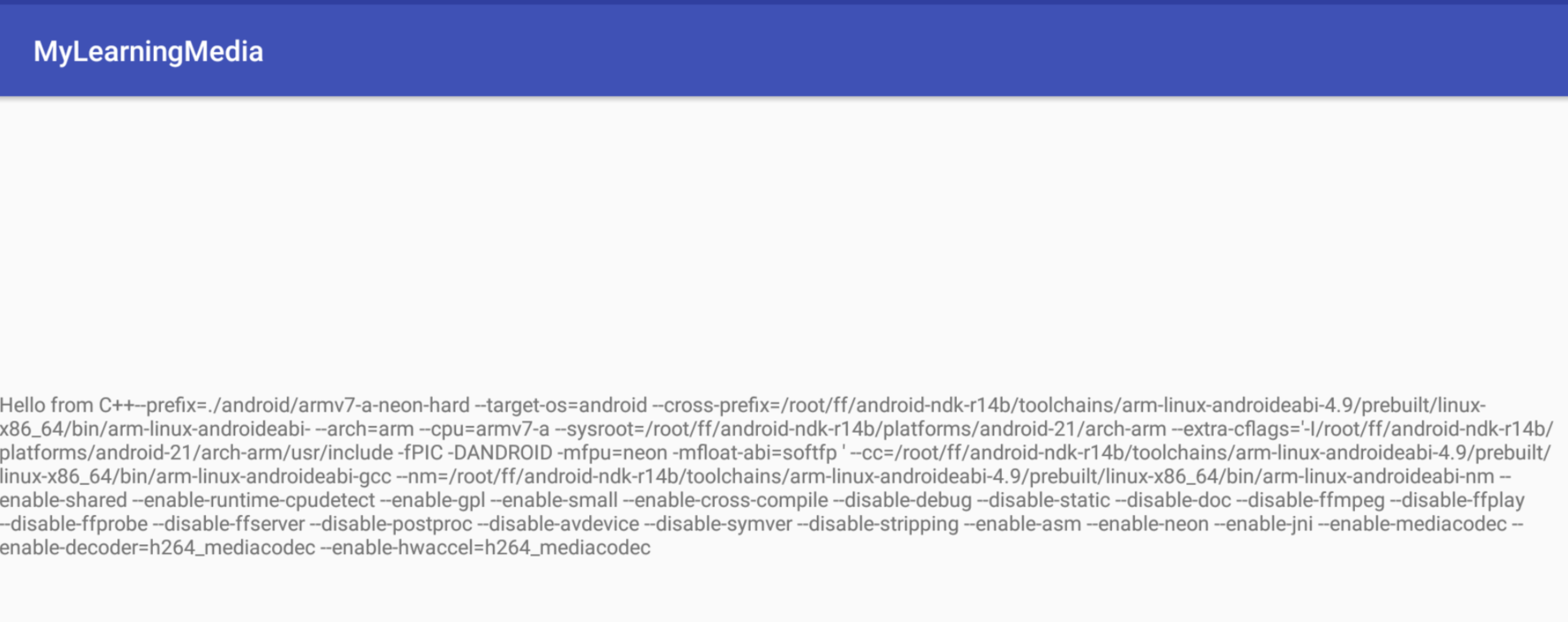

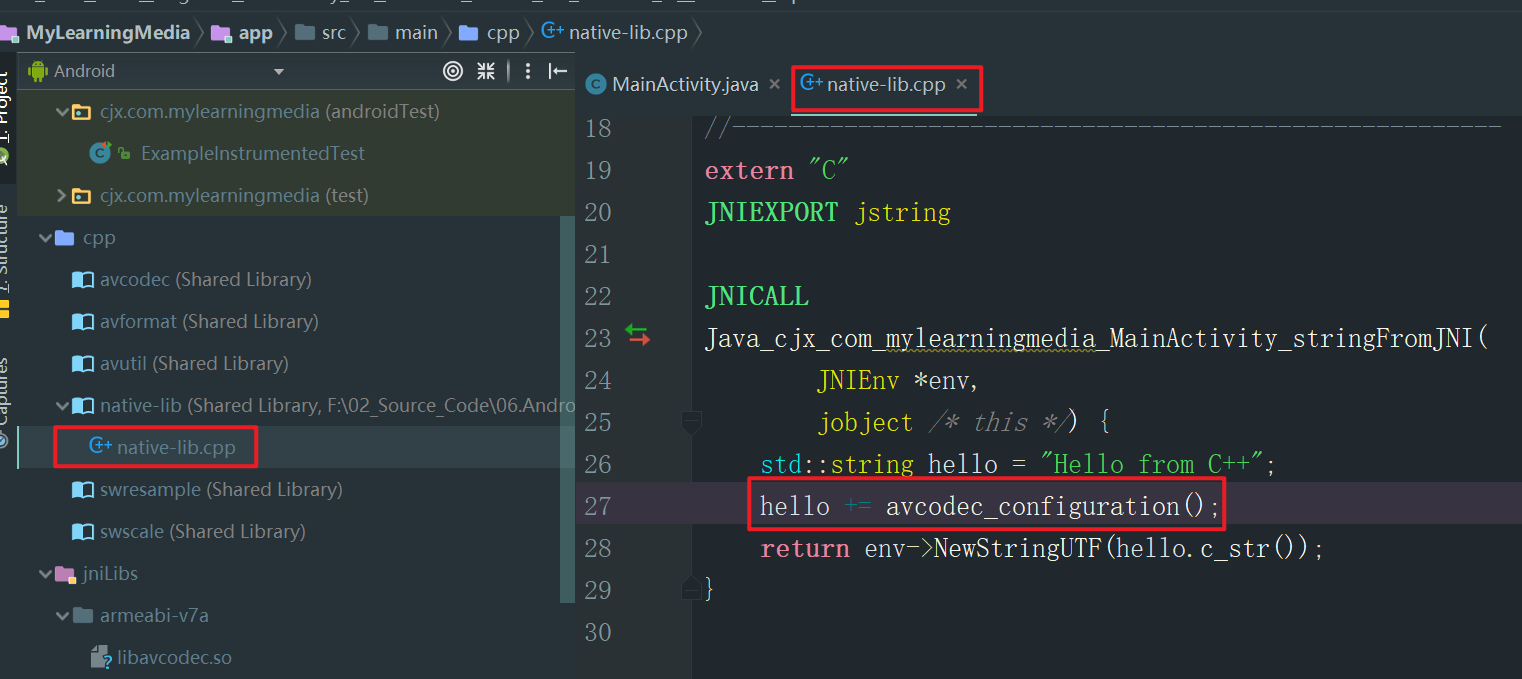

8. 测试是否成功
