HBase集群部署（完全分布式）及部署过程遇到问题浅析解决

环境

• OS: Ubuntu 16.04 LTS
• Java: open-jdk1.8.0_111（需要1.7+）
• Hadoop: hadoop-2.7.3
• Zookeeper: zookeeper-3.4.9
• Hbase: hbase-1.2.4

---

集群规划

IP	HostName	Master	RegionServer
10.100.3.88	Master	yes	no
10.100.3.89	Slave1	no	yes
10.100.3.90	Slave2	no	yes

下载解压

从官网下载HBase最新的stable版本，hbase-1.2.4-bin.tar.gz，是支持Hadoop-2.7.1+版本的
解压：

tar zxf hbase-1.2.4-bin.tar.gz -C /你的hbase路径

配置HBase

1）配置HBase环境变量

export HBASE_HOME=/xxx/hbase
export PATH=$PATH:$HBASE_HOME:$PATH

使环境变量生效：

source ~/.bashrc
source /etc/profile

2）编辑hbase-env.sh文件（在hbase/conf目录中），添加JAVA_HOME：

#set jdk environment
export JAVA_HOME=/usr/lib/jvm/java-8-openjdk-amd64

3）编辑conf/hbase-site.xml文件：

<configuration>
        <property>
                <name>hbase.rootdir</name>
                <value>hdfs://Master:9000/hbase</value>
        </property>
        <property>
                <name>hbase.cluster.distributed</name>
                <value>true</value>
        </property>
        <property>
                <name>hbase.zookeeper.quorum</name>
                <value>Master,Slave1,Slave2</value>
        </property>
        <property>
                <name>hbase.zookeeper.property.dataDir</name>
                <value>/opt/zookeeper/data</value>
        </property>
</configuration>

注：第一个属性指定本机hbase的存储目录，必须与hadoop集群的core-site.xml配置一致；第二个属性指定hbase的运行模式是完全分布式；第三个属性指定Zookeeper管理的机器；第四个属性是数据存放的路径，如果是用本机zookeeper（非HBase内置zookeeper）则需要与zookeeper配置中zoo.cfg中的dataDir一致！

4）配置conf/regionservers：

Slave1
Slave2

regionservers文件列出运行hbase的机器（即HRegionServer），此处只配两个从节点，主节点Master做HMaster用

5）所有文件配置完之后，copy到从节点Slave1和Slave2

scp -r hbase xxx@Slave1:~
scp -r hbase xxx@Slave2:~

运行HBase

在Master上运行：

start-all.sh    #启动Hadoop、YARN集群，由于HBase集群依赖于HDFS，所以必须先启动HDFS

在各节点运行：

$ZOOKEEPER_HOME/bin/zkServer.sh start  #启动zookeeper

在Master节点运行：

$HBASE_HOME/bin/start-hbase.sh #启动HBase集群

此时！系统报错：

Master: mkdir: cannot create directory ‘/opt/hbase/logs’: Permission denied
Slave2: starting zookeeper, logging to /opt/hbase/logs/hbase-jhcomn-zookeeper-Slave2.out
Master: starting zookeeper, logging to /opt/hbase/logs/hbase-jhcomn-zookeeper-Master.out
Master: /opt/hbase/bin/hbase-daemon.sh: line 189: /opt/hbase/logs/hbase-jhcomn-zookeeper-Master.out: No such file or directory
Master: head: cannot open '/opt/hbase/logs/hbase-jhcomn-zookeeper-Master.out' for reading: No such file or directory
Slave1: starting zookeeper, logging to /opt/hbase/logs/hbase-jhcomn-zookeeper-Slave1.out
mkdir: cannot create directory ‘/opt/hbase/logs’: Permission denied
starting master, logging to /opt/hbase/logs/hbase-jhcomn-master-Master.out
/opt/hbase/bin/hbase-daemon.sh: line 189: /opt/hbase/logs/hbase-jhcomn-master-Master.out: No such file or directory
head: cannot open '/opt/hbase/logs/hbase-jhcomn-master-Master.out' for reading: No such file or directory
Slave2: starting regionserver, logging to /opt/hbase/logs/hbase-jhcomn-regionserver-Slave2.out
Slave2: OpenJDK 64-Bit Server VM warning: ignoring option PermSize=128m; support was removed in 8.0
Slave2: OpenJDK 64-Bit Server VM warning: ignoring option MaxPermSize=128m; support was removed in 8.0
Slave1: starting regionserver, logging to /opt/hbase/logs/hbase-jhcomn-regionserver-Slave1.out
Slave1: OpenJDK 64-Bit Server VM warning: ignoring option PermSize=128m; support was removed in 8.0
Slave1: OpenJDK 64-Bit Server VM warning: ignoring option MaxPermSize=128m; support was removed in 8.0

看系统提示，发现有两个错误：

1）/opt/hbase 权限不足：原本该文件夹及其子文件所有者是root:root（解决方法：修改文件夹所有者及用户组“sudo chown -R xxx:xxx /opt/hbase”）

2）查看Slave节点log：

"hbase-jhcomn-zookeeper-Slave1.out" 16L, 1178C                                                                                                        1,1           All
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/hbase/lib/slf4j-log4j12-1.7.5.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/hadoop/share/hadoop/common/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
java.net.BindException: Address already in use
        at sun.nio.ch.Net.bind0(Native Method)
        at sun.nio.ch.Net.bind(Net.java:433)
        at sun.nio.ch.Net.bind(Net.java:425)
        at sun.nio.ch.ServerSocketChannelImpl.bind(ServerSocketChannelImpl.java:223)
        at sun.nio.ch.ServerSocketAdaptor.bind(ServerSocketAdaptor.java:74)
        at sun.nio.ch.ServerSocketAdaptor.bind(ServerSocketAdaptor.java:67)
        at org.apache.zookeeper.server.NIOServerCnxnFactory.configure(NIOServerCnxnFactory.java:95)
        at org.apache.zookeeper.server.quorum.QuorumPeerMain.runFromConfig(QuorumPeerMain.java:130)
        at org.apache.hadoop.hbase.zookeeper.HQuorumPeer.runZKServer(HQuorumPeer.java:89)
        at org.apache.hadoop.hbase.zookeeper.HQuorumPeer.main(HQuorumPeer.java:79)

发现第二个错误原因在于：zookeeper端口被占用！因为HBase启动会启动内置的zookeeper，而一开始我们已经启动自己本机的zookeeper集群，所以HBase内置的zookeeper启动自然失败

解决方法：使用本机zookeeper集群管理HBase，不使用HBase内置zookeeper，只需修改每个节点下HBASE_HOME/conf/hbase-env.sh：

# Tell HBase whether it should manage it's own instance of Zookeeper or not.
# export HBASE_MANAGES_ZK=true
export HBASE_MANAGES_ZK=false

将内置zookeeper设置为false

最后，重新运行hbase

xxx@Master:/opt/hbase$ ./bin/start-hbase.sh
starting master, logging to /opt/hbase/logs/hbase-jhcomn-master-Master.out
OpenJDK 64-Bit Server VM warning: ignoring option PermSize=128m; support was removed in 8.0
OpenJDK 64-Bit Server VM warning: ignoring option MaxPermSize=128m; support was removed in 8.0
Slave2: starting regionserver, logging to /opt/hbase/logs/hbase-jhcomn-regionserver-Slave2.out
Slave2: OpenJDK 64-Bit Server VM warning: ignoring option PermSize=128m; support was removed in 8.0
Slave2: OpenJDK 64-Bit Server VM warning: ignoring option MaxPermSize=128m; support was removed in 8.0
Slave1: starting regionserver, logging to /opt/hbase/logs/hbase-jhcomn-regionserver-Slave1.out
Slave1: OpenJDK 64-Bit Server VM warning: ignoring option PermSize=128m; support was removed in 8.0
Slave1: OpenJDK 64-Bit Server VM warning: ignoring option MaxPermSize=128m; support was removed in 8.0

通过jps查看下：
Master节点：

2545 QuorumPeerMain
1746 NameNode
2164 ResourceManager
2486 JobHistoryServer
3512 HMaster
3753 Jps
1978 SecondaryNameNode

Slave节点：

2688 Jps
1857 QuorumPeerMain
1699 NodeManager
1557 DataNode

验证HBase是否成功安装

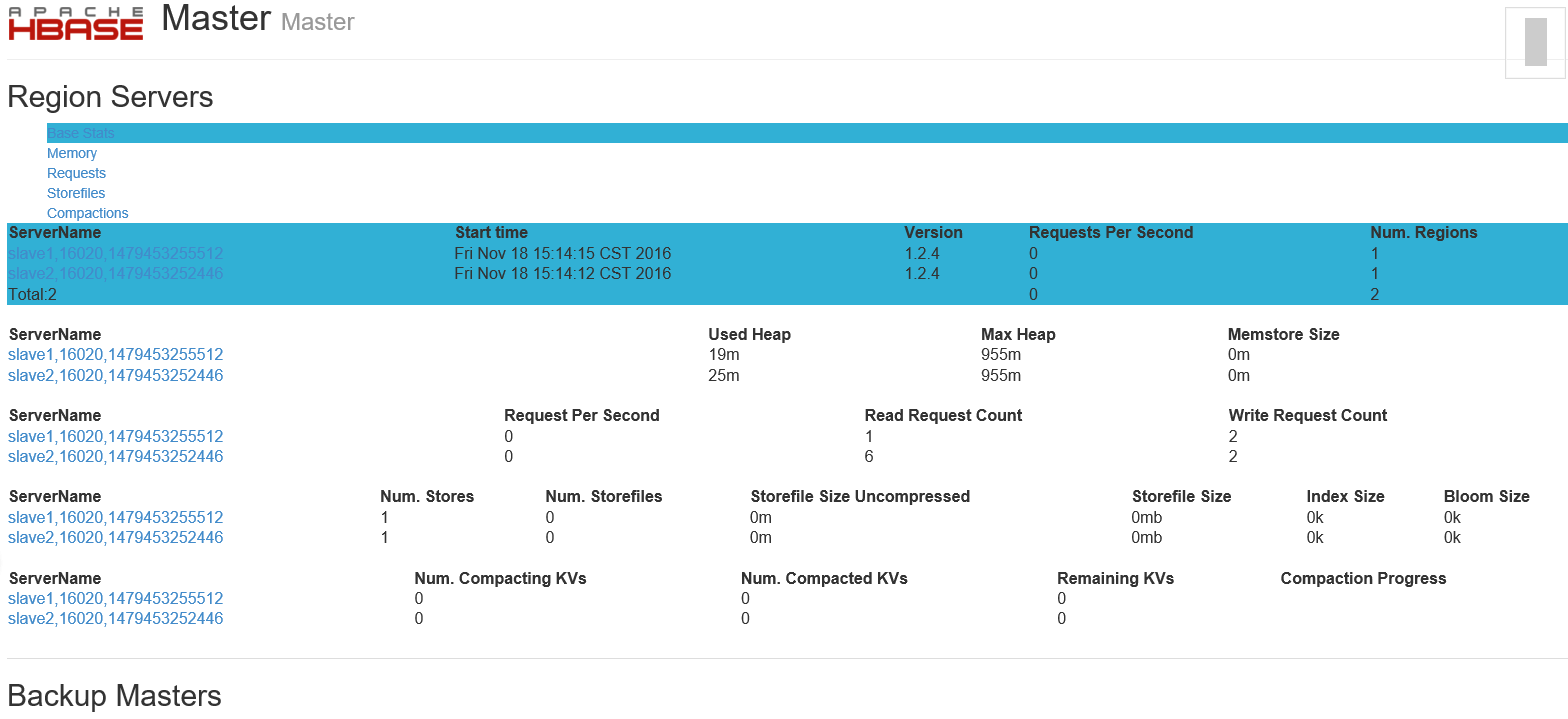

在浏览器访问主节点16010端口（即http://10.100.3.88:16010），可以查看HBase Web UI
