GPUImage3 整个框架 理解

昨天 做完视频的 旋转 缩放 平移 正交投影后 花了一天的时间 简单的看了下GPUImage3的整个框架 想看看能自己结合GUPImage3的思路 想出一个套更加 合理的多级渲染协议 所以就简单的 过了一遍GPUImage3的基础源码 总结如下

字写的不好看 有读者的话 就凑合一下吧 只是自己做笔记当备忘录的

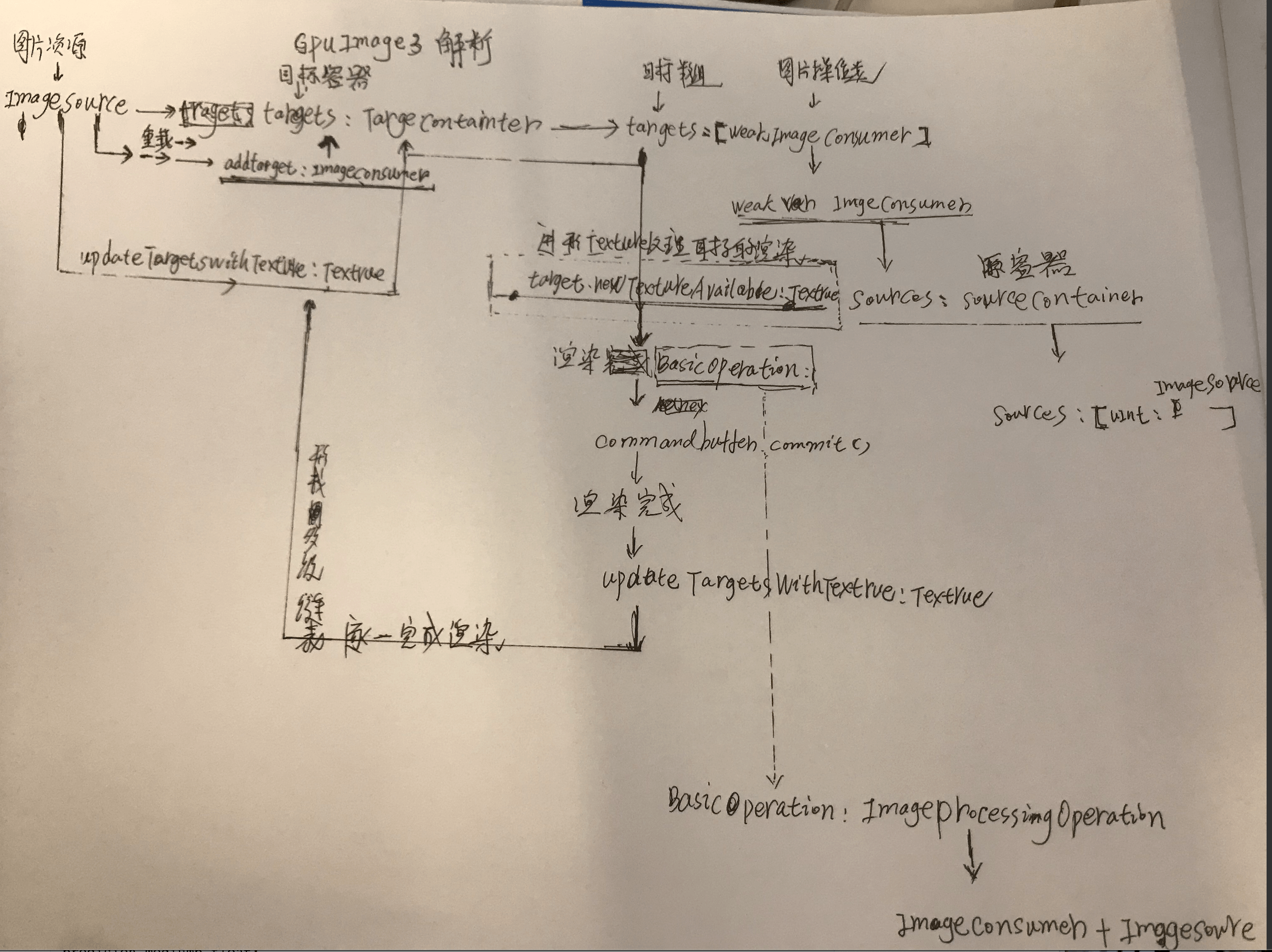

下面是主要的几个类 和 协议

1. ImageSource

public extension ImageSource {
    func addTarget(_ target:ImageConsumer, atTargetIndex:UInt? = nil) {
        if let targetIndex = atTargetIndex {
            target.setSource(self, atIndex:targetIndex)
            targets.append(target, indexAtTarget:targetIndex)
            transmitPreviousImage(to:target, atIndex:targetIndex)
        } else if let indexAtTarget = target.addSource(self) {
            targets.append(target, indexAtTarget:indexAtTarget)
            transmitPreviousImage(to:target, atIndex:indexAtTarget)
        } else {
            debugPrint("Warning: tried to add target beyond target's input capacity")
        }
    }

    func removeAllTargets() {
        for (target, index) in targets {
            target.removeSourceAtIndex(index)
        }
        targets.removeAll()
    }

    func updateTargetsWithTexture(_ texture:Texture) {
//        if targets.count == 0 { // Deal with the case where no targets are attached by immediately returning framebuffer to cache
//            framebuffer.lock()
//            framebuffer.unlock()
//        } else {
//            // Lock first for each output, to guarantee proper ordering on multi-output operations
//            for _ in targets {
//                framebuffer.lock()
//            }
//        }
        for (target, index) in targets {
            target.newTextureAvailable(texture, fromSourceIndex:index)
        }
    }
}

需要注意的是：

public protocol ImageSource {
    var targets:TargetContainer { get }
    func transmitPreviousImage(to target:ImageConsumer, atIndex:UInt)
}

2. ImageConsumer

public protocol ImageConsumer:AnyObject {
    var maximumInputs:UInt { get }
    var sources:SourceContainer { get }

    func newTextureAvailable(_ texture:Texture, fromSourceIndex:UInt)
}

3. TargetContainer

class WeakImageConsumer {
    weak var value:ImageConsumer?
    let indexAtTarget:UInt
    init (value:ImageConsumer, indexAtTarget:UInt) {
        self.indexAtTarget = indexAtTarget
        self.value = value
    }
}

var targets = [WeakImageConsumer]()

public class TargetContainer:Sequence {
    var targets = [WeakImageConsumer]()
    var count:Int { get {return targets.count}}
    let dispatchQueue = DispatchQueue(label:"com.sunsetlakesoftware.GPUImage.targetContainerQueue", attributes: [])

    public init() {
    }

    public func append(_ target:ImageConsumer, indexAtTarget:UInt) {
        // TODO: Don't allow the addition of a target more than once
        dispatchQueue.async{
            self.targets.append(WeakImageConsumer(value:target, indexAtTarget:indexAtTarget))
        }
    }

    public func makeIterator() -> AnyIterator<(ImageConsumer, UInt)> {
        var index = 0

        return AnyIterator { () -> (ImageConsumer, UInt)? in
            return self.dispatchQueue.sync{
                if (index >= self.targets.count) {
                    return nil
                }

                while (self.targets[index].value == nil) {
                    self.targets.remove(at:index)
                    if (index >= self.targets.count) {
                        return nil
                    }
                }

                index += 1
                return (self.targets[index - 1].value!, self.targets[index - 1].indexAtTarget)
           }
        }
    }

    public func removeAll() {
        dispatchQueue.async{
            self.targets.removeAll()
        }
    }
}

4. SourceContainer

public class SourceContainer {
    var sources:[UInt:ImageSource] = [:]

    public init() {
    }

    public func append(_ source:ImageSource, maximumInputs:UInt) -> UInt? {
        var currentIndex:UInt = 0
        while currentIndex < maximumInputs {
            if (sources[currentIndex] == nil) {
                sources[currentIndex] = source
                return currentIndex
            }
            currentIndex += 1
        }

        return nil
    }

    public func insert(_ source:ImageSource, atIndex:UInt, maximumInputs:UInt) -> UInt {
        guard (atIndex < maximumInputs) else { fatalError("ERROR: Attempted to set a source beyond the maximum number of inputs on this operation") }
        sources[atIndex] = source
        return atIndex
    }

    public func removeAtIndex(_ index:UInt) {
        sources[index] = nil
    }
}

5. BasicOperation

public protocol ImageProcessingOperation: ImageConsumer, ImageSource
{

}


open class BasicOperation: ImageProcessingOperation {

    public let maximumInputs: UInt
    public let targets = TargetContainer()
    public let sources = SourceContainer()

    public var activatePassthroughOnNextFrame: Bool = false
    public var uniformSettings:ShaderUniformSettings
    public var useMetalPerformanceShaders: Bool = false {
        didSet {
            if !sharedMetalRenderingDevice.metalPerformanceShadersAreSupported {
                print("Warning: Metal Performance Shaders are not supported on this device")
                useMetalPerformanceShaders = false
            }
        }
    }

    let renderPipelineState: MTLRenderPipelineState
    let operationName: String
    var inputTextures = [UInt:Texture]()
    let textureInputSemaphore = DispatchSemaphore(value:1)
    var useNormalizedTextureCoordinates = true
    var metalPerformanceShaderPathway: ((MTLCommandBuffer, [UInt:Texture], Texture) -> ())?

    public init(vertexFunctionName: String? = nil, fragmentFunctionName: String, numberOfInputs: UInt = 1, operationName: String = #file) {
        self.maximumInputs = numberOfInputs
        self.operationName = operationName

        let concreteVertexFunctionName = vertexFunctionName ?? defaultVertexFunctionNameForInputs(numberOfInputs)
        let (pipelineState, lookupTable) = generateRenderPipelineState(device:sharedMetalRenderingDevice, vertexFunctionName:concreteVertexFunctionName, fragmentFunctionName:fragmentFunctionName, operationName:operationName)
        self.renderPipelineState = pipelineState
        self.uniformSettings = ShaderUniformSettings(uniformLookupTable:lookupTable)
    }

    public func transmitPreviousImage(to target: ImageConsumer, atIndex: UInt) {
        // TODO: Finish implementation later
    }

    public func newTextureAvailable(_ texture: Texture, fromSourceIndex: UInt) {
        let _ = textureInputSemaphore.wait(timeout:DispatchTime.distantFuture)
        defer {
            textureInputSemaphore.signal()
        }

        inputTextures[fromSourceIndex] = texture

        if (UInt(inputTextures.count) >= maximumInputs) || activatePassthroughOnNextFrame {
            let outputWidth:Int
            let outputHeight:Int

            let firstInputTexture = inputTextures[0]!
            if firstInputTexture.orientation.rotationNeeded(for:.portrait).flipsDimensions() {
                outputWidth = firstInputTexture.texture.height
                outputHeight = firstInputTexture.texture.width
            } else {
                outputWidth = firstInputTexture.texture.width
                outputHeight = firstInputTexture.texture.height
            }

            if uniformSettings.usesAspectRatio {
                let outputRotation = firstInputTexture.orientation.rotationNeeded(for:.portrait)
                uniformSettings["aspectRatio"] = firstInputTexture.aspectRatio(for: outputRotation)
            }

            guard let commandBuffer = sharedMetalRenderingDevice.commandQueue.makeCommandBuffer() else {return}

            let outputTexture = Texture(device:sharedMetalRenderingDevice.device, orientation: .portrait, width: outputWidth, height: outputHeight, timingStyle: firstInputTexture.timingStyle)

            guard (!activatePassthroughOnNextFrame) else { // Use this to allow a bootstrap of cyclical processing, like with a low pass filter
                activatePassthroughOnNextFrame = false
                // TODO: Render rotated passthrough image here

                removeTransientInputs()
                textureInputSemaphore.signal()
                updateTargetsWithTexture(outputTexture)
                let _ = textureInputSemaphore.wait(timeout:DispatchTime.distantFuture)

                return
            }

            if let alternateRenderingFunction = metalPerformanceShaderPathway, useMetalPerformanceShaders {
                var rotatedInputTextures: [UInt:Texture]
                if (firstInputTexture.orientation.rotationNeeded(for:.portrait) != .noRotation) {
                    let rotationOutputTexture = Texture(device:sharedMetalRenderingDevice.device, orientation: .portrait, width: outputWidth, height: outputHeight)
                    guard let rotationCommandBuffer = sharedMetalRenderingDevice.commandQueue.makeCommandBuffer() else {return}
                    rotationCommandBuffer.renderQuad(pipelineState: sharedMetalRenderingDevice.passthroughRenderState, uniformSettings: uniformSettings, inputTextures: inputTextures, useNormalizedTextureCoordinates: useNormalizedTextureCoordinates, outputTexture: rotationOutputTexture)
                    rotationCommandBuffer.commit()
                    rotatedInputTextures = inputTextures
                    rotatedInputTextures[0] = rotationOutputTexture
                } else {
                    rotatedInputTextures = inputTextures
                }
                alternateRenderingFunction(commandBuffer, rotatedInputTextures, outputTexture)
            } else {
                internalRenderFunction(commandBuffer: commandBuffer, outputTexture: outputTexture)
            }
            commandBuffer.commit()

            removeTransientInputs()
            textureInputSemaphore.signal()
            updateTargetsWithTexture(outputTexture)
            let _ = textureInputSemaphore.wait(timeout:DispatchTime.distantFuture)
        }
    }


6. 操作符 重载

@discardableResult public func --><T:ImageConsumer>(source:ImageSource, destination:T) -> T {
    source.addTarget(destination)
    return destination
}
