迷你路由方案香蕉派BPI-R3 Mini MT7986A支持5G应用板载WIFI/BT

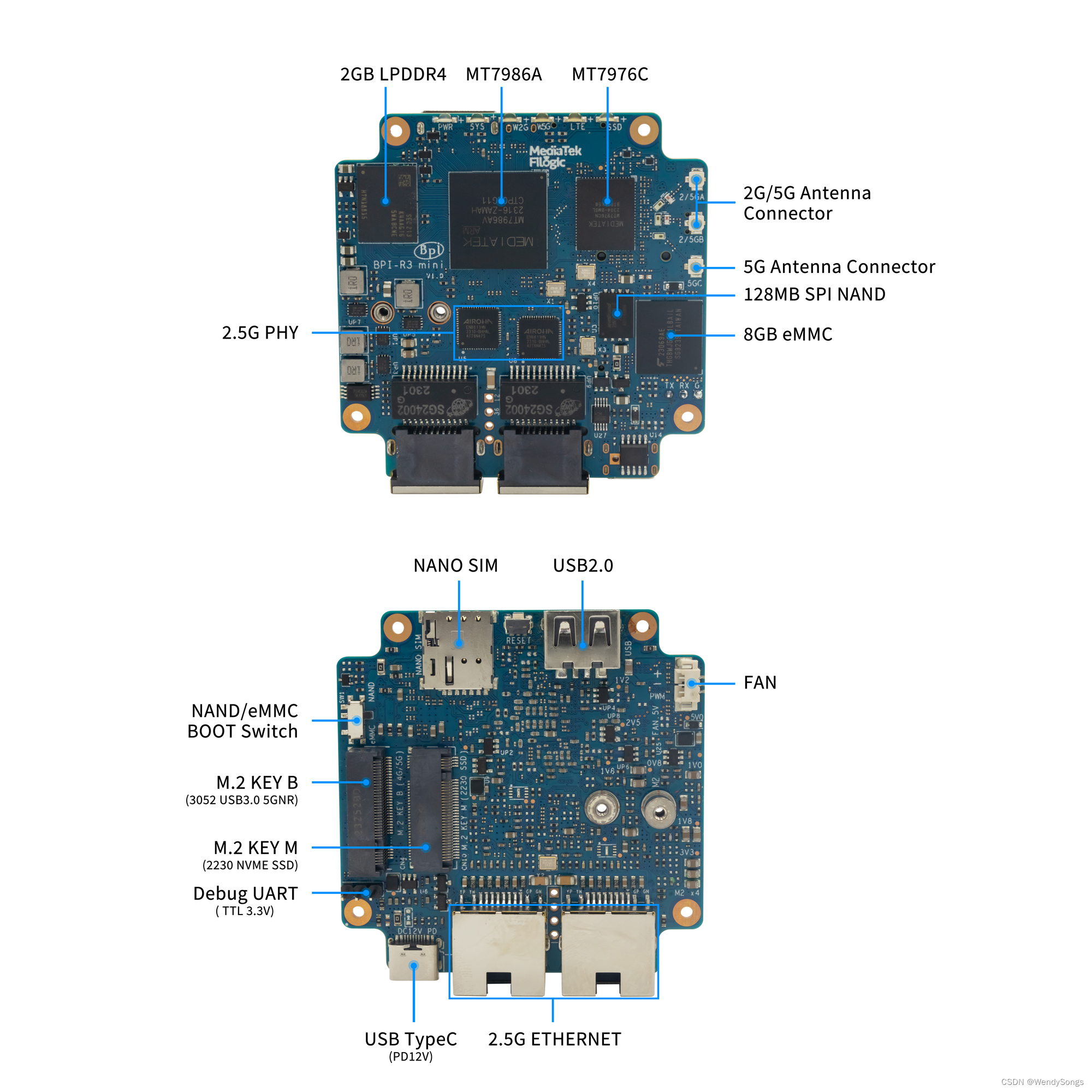

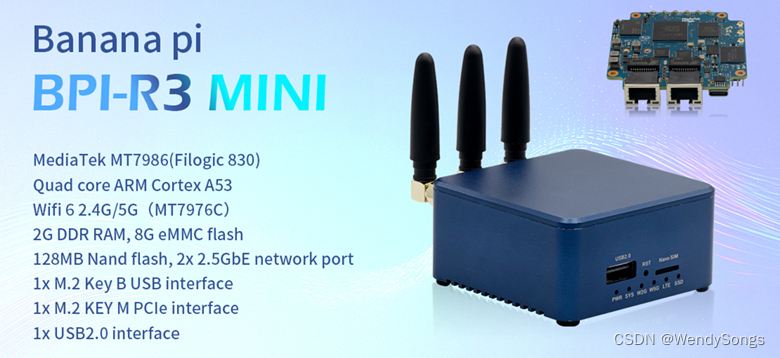

Banana Pi BPI-R3 Mini Router board with MediaTek MT7986A(Filogic 830) quad core ARM A53 chip design , 2G DDR RAM , 8G eMMC flash onboard. It is a very high performance open source router development board, support Wi-Fi6 2.4G/5G with MT7976C, support 2x 2.5GbE ethernet port.

Key Features

• MediaTek MT7986A(Filogic 830) Quad core ARM Cortex A53

• Wifi 6 2.4G/5G（MT7976C）

• 2G DDR RAM

• 8G eMMC flash

• 128MB Nand flash

• 2x 2.5GbE network port

• 1x M.2 Key B USB interface

• 1x M.2 KEY M PCIe interface

• 1x USB2.0 interface

Application direction

• Internet service Router

• Wireless Router

• Wireless Repeater

• Home security Gateway

• Home Automation

• Nas device

• Soft router

• Network and communication applications
