点集的最小覆盖圆求解

最小覆盖圆问题就是给定一个由n个点组成的点集，寻找一个半径最小的圆，将整个点集包围。求解的方法由很多，例如点增量法和三角形增量法。

参考解析几何--最小圆覆盖_牛客博客

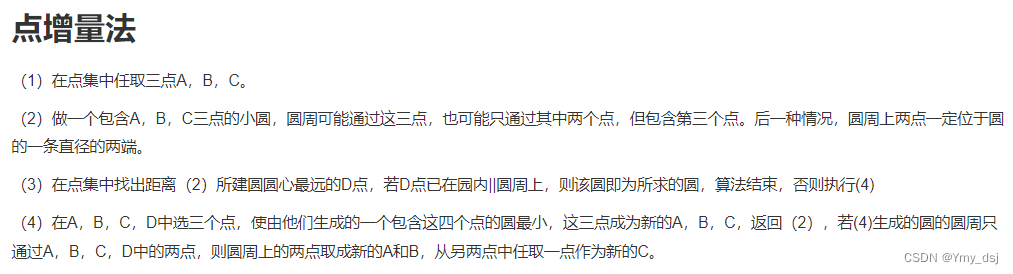

点增量法的步骤如下：

下面针对点增量法，用python进行一步一步实现。

首先，先定义点（point）和距离（distance）

class point:
    def __init__(self, x, y):
        self.x = x
        self.y = y


def distance(A, B):
    return math.sqrt((A.x - B.x)**2 + (A.y - B.y)**2)

一、三点的最小覆盖圆

三点的最小覆盖圆既可能是三点的外接圆，也可能是以其中两个点连线为直径的圆。

三角形外接圆

针对三点组成的三角形，求取其半径及圆心坐标。

def circumcircle(A, B, C):
    # 防止出现三个点位于一条直线上的情况
    eps = 0.000000000000000000001

    a = distance(A, B)
    b = distance(B, C)
    c = distance(C, A)

    r = (a*b*c) / math.sqrt((a+b+c) * (-a+b+c) * (a-b+c) * (a+b-c) + eps)

    # 计算外心坐标
    a1 = 2*(A.x - B.x)
    b1 = 2*(A.y - B.y)
    a2 = 2*(B.x - C.x)
    b2 = 2*(B.y - C.y)
    c1 = A.x**2 - B.x**2 + A.y**2 - B.y**2
    c2 = B.x**2 - C.x**2 + B.y**2 - C.y**2

    x = (b2*c1 - b1*c2) / (a1*b2 - a2*b1 + eps)
    y = (-a2*c1 + a1*c2) / (a1*b2 - a2*b1 + eps)
    circum_point = point(x, y)

    results = [r, circum_point]

    return results

以其中两个点连线为直径的覆盖圆

以两点连线为直径的圆作为覆盖圆的充要条件是，第三个点在该圆内。否则，这个圆就不能作为覆盖圆，就无需与三点的外接圆进行比较是否是最小覆盖圆。

def twoPointCircle(A, B, C):
    """

    :param A: 点1
    :param B: 点2
    :param C: 直线AB外一点C
    :return: 如果点C在以AB为直径的圆内，则返回半径和圆心，否则返回-1
    """
    centerPoint = point((A.x+B.x)/2, (A.y+B.y)/2)
    r = distance(A, B) / 2

    d = distance(C, centerPoint)

    if d <= r:
        results = [r, centerPoint]
    else:
        results = [-1, centerPoint]

    return results

求取三点的最小覆盖圆

比较外接圆和以其中两个点连线为直径的覆盖圆的半径，取最小半径的作为最小覆盖圆。

# 找三点中最小覆盖圆
def minCircle(A, B, C):
    # 外接圆
    circum_results = circumcircle(A, B, C)

    # 以其中两点为直径的圆
    AB_results = twoPointCircle(A, B, C)
    BC_results = twoPointCircle(B, C, A)
    CA_results = twoPointCircle(C, A, B)

    circleOfTwoPoint = [AB_results, BC_results, CA_results]

    min_r = circum_results[0]
    min_circle_point = circum_results[1]

    for result in circleOfTwoPoint:
        if result[0] == -1:
            continue
        else:
            if result[0] < min_r:
                min_r = result[0]
                min_circle_point = result[1]

    return min_r, min_circle_point

二、四个点的最小覆盖圆

在求取了ABC三点的最小覆盖圆以后，若 点集 中距离该最小覆盖圆圆心最远的点D不在圆内，那么根据步骤（4），需要在这四个点中找到其中三个点的最小覆盖圆，使其包含这四个点，且半径最小。

寻找点集中距离ABC三点最小覆盖圆的点D

暴力搜索

def findLongestPoint(pointSet, centralPoint):
    d = 0
    longestPoint = None

    for p in pointSet:
        d_p = distance(p, centralPoint)
        if d_p >= d:
            longestPoint = p
            d = d_p

    return longestPoint

判断点D是否在ABC三点的最小覆盖圆中

def isInMinCircle(A, B, C, D):
    min_r, min_circle_point = minCircle(A, B, C)

    d = distance(D, min_circle_point)

    if d > min_r:
        results = [0, min_r, A, B, C]
    else:
        results = [1, min_r, A, B, C]

    return results

在ABCD四点中寻找新的ABC三点，生成四点最小覆盖圆

def findNewThreePoint(A, B, C, D):
    ABD_results = isInMinCircle(A, B, D, C)
    ACD_results = isInMinCircle(A, C, D, B)
    BCD_results = isInMinCircle(B, C, D, A)

    results = [ABD_results, ACD_results, BCD_results]

    # 较大的数值
    min_r = 100000000

    for result in results:
        if result[0] == 0:
            continue
        else:
            if result[1] <= min_r:
                A = result[2]
                B = result[3]
                C = result[4]

    return A, B, C

三、实验验证

点集

使用包含二十个点的点集对算法进行验证，寻找其最小覆盖圆。

画图

def plt_circle(pointSet, min_circle_point, min_r, isCircum=False):
    # 所有点
    positionPointSet = np.array(
       [[-7.590, 0.796],
        [-7.601, 0.796],
        [-7.603, 0.797],
        [-7.592, 0.796],
        [-7.591, 0.788],
        [-7.592, 0.794],
        [-7.587, 0.794],
        [-7.587, 0.789],
        [-7.590, 0.792],
        [-7.588, 0.798],
        [-7.596, 0.794],
        [-7.606, 0.797],
        [-7.607, 0.795],
        [-7.609, 0.797],
        [-7.610, 0.798],
        [-7.610, 0.790],
        [-7.607, 0.791],
        [-7.610, 0.797],
        [-7.605, 0.796],
        [-7.604, 0.791]]
    )
    pointSets = []
    for p in positionPoint:
        pointSets.append(point(p[0], p[1]))
    # 画出所有的点
    plt.plot(positionPointSet[:, 0], positionPointSet[:, 1], "go", label="point set")

    # 最远点
    D = findLongestPoint(pointSets, min_circle_point)
    plt.plot(D.x, D.y, "ys", label="most far point")

    # 画三点
    positionPoints = []
    for p in pointSet:
        positionPoints.append([p.x, p.y])

    positionPoints = np.array(positionPoints)

    plt.plot(positionPoints[:, 0], positionPoints[:, 1], "r*", label="calcu points")

    # 画圆心
    plt.plot(min_circle_point.x, min_circle_point.y, "kx", label="min circle central point")

    # 画圆
    theta = np.arange(-math.pi, math.pi, 2*math.pi/1000)
    x_circle = [min_circle_point.x + min_r * math.cos(t) for t in theta]
    y_circle = [min_circle_point.y + min_r * math.sin(t) for t in theta]
    plt.plot(x_circle, y_circle, label="min circle")

    if isCircum:
        result = circumcircle(pointSet[0], pointSet[1], pointSet[2])
        x_circumcircle = [result[1].x + result[0] * math.cos(t) for t in theta]
        y_circumcircle = [result[1].y + result[0] * math.sin(t) for t in theta]
        plt.plot(x_circumcircle, y_circumcircle, label="circumcircle")

    plt.legend()
    plt.axis("equal")
    plt.grid()
    plt.show()

测试代码

if __name__ == "__main__":
    eps = 0.0000001
    pointSet = []
    positionPoint = np.array(
       [[-7.590, 0.796],
        [-7.601, 0.796],
        [-7.603, 0.797],
        [-7.592, 0.796],
        [-7.591, 0.788],
        [-7.592, 0.794],
        [-7.587, 0.794],
        [-7.587, 0.789],
        [-7.590, 0.792],
        [-7.588, 0.798],
        [-7.596, 0.794],
        [-7.606, 0.797],
        [-7.607, 0.795],
        [-7.609, 0.797],
        [-7.610, 0.798],
        [-7.610, 0.790],
        [-7.607, 0.791],
        [-7.610, 0.797],
        [-7.605, 0.796],
        [-7.604, 0.791]]
    )

    for p in positionPoint:
        pointSet.append(point(p[0], p[1]))

    A = pointSet[0]
    B = pointSet[1]
    C = pointSet[2]

    min_r, min_circle_point = minCircle(A, B, C)

    plt_circle([A, B, C], min_circle_point, min_r, isCircum=True)

    D = findLongestPoint(pointSet, min_circle_point)

    while distance(D, min_circle_point) - min_r > eps:
        A, B, C = findNewThreePoint(A, B, C, D)
        min_r, min_circle_point = minCircle(A, B, C)
        plt_circle([A, B, C], min_circle_point, min_r, isCircum=True)

        D = findLongestPoint(pointSet, min_circle_point)

    print(min_r)
    print("X: {0} | Y: {1}".format(min_circle_point.x, min_circle_point.y))

结果

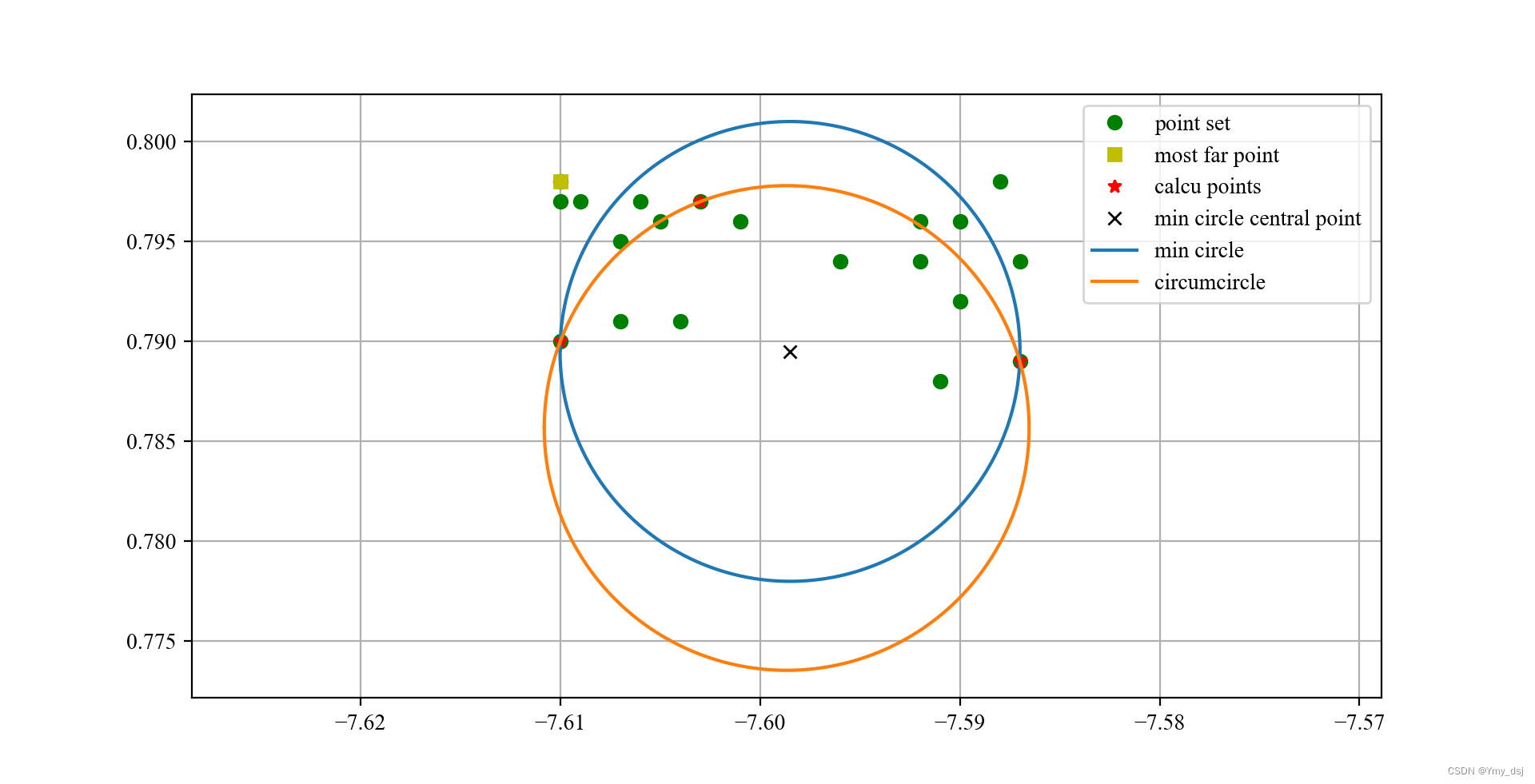

第一次迭代结果

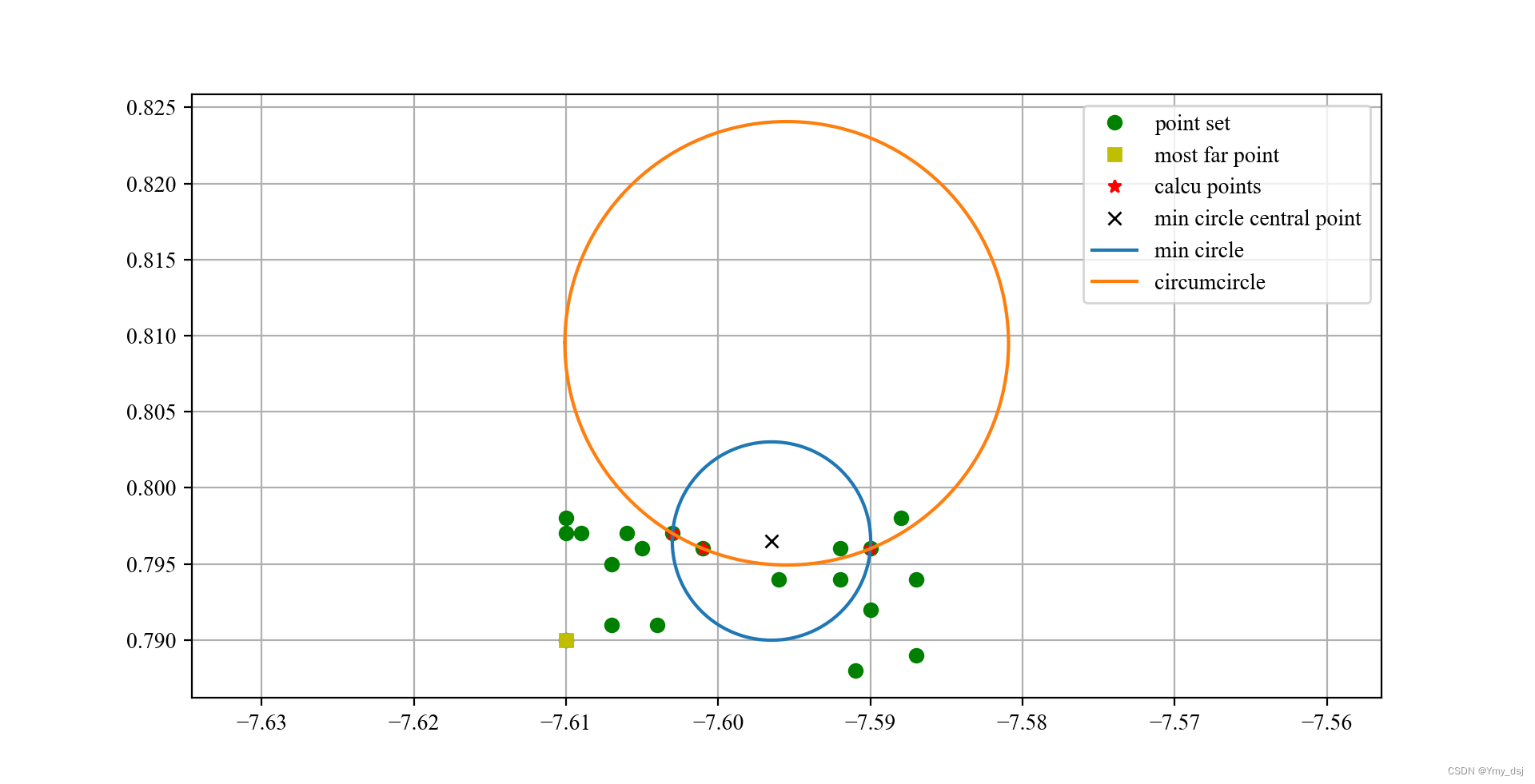

 第二次迭代结果

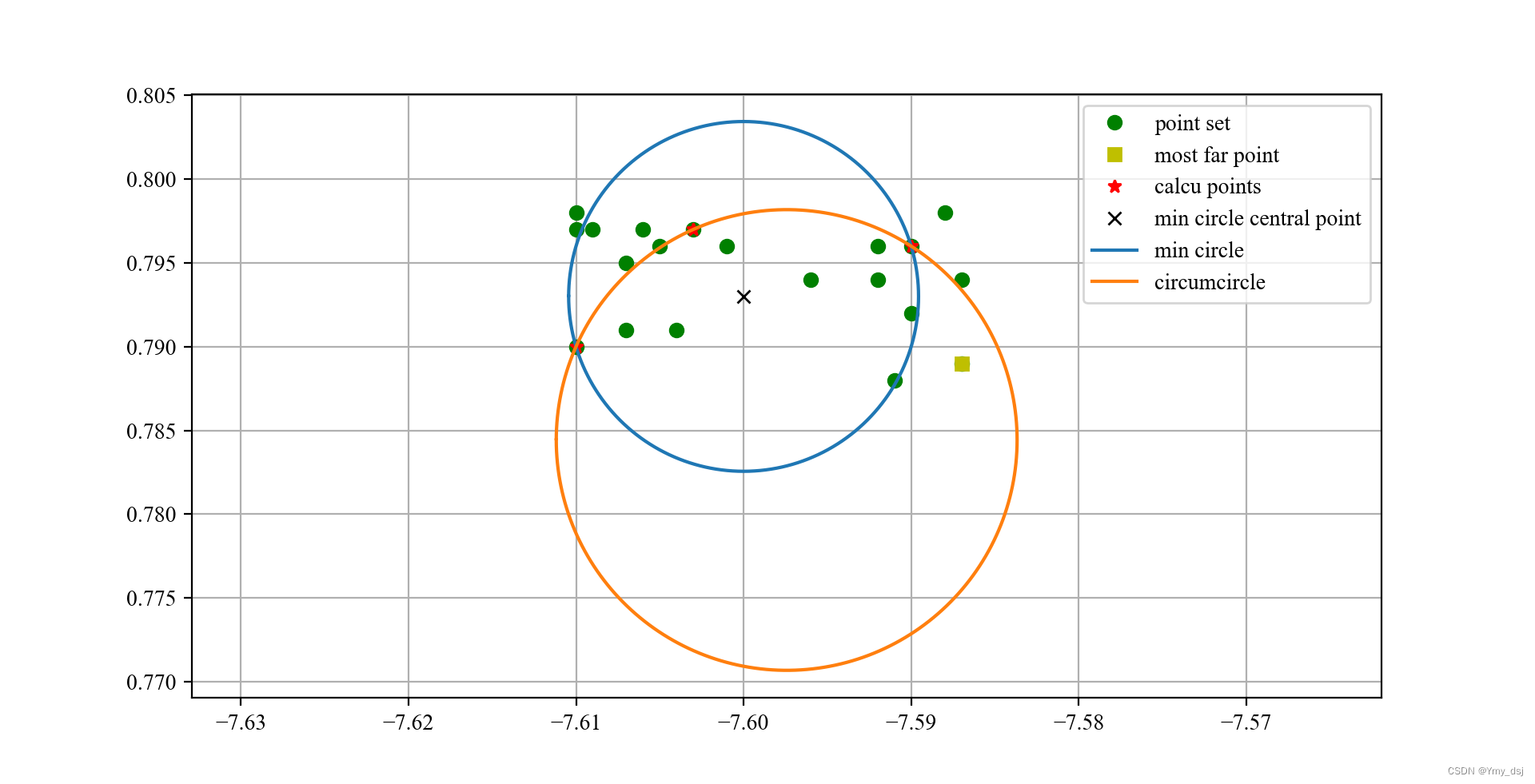

 第三次迭代结果

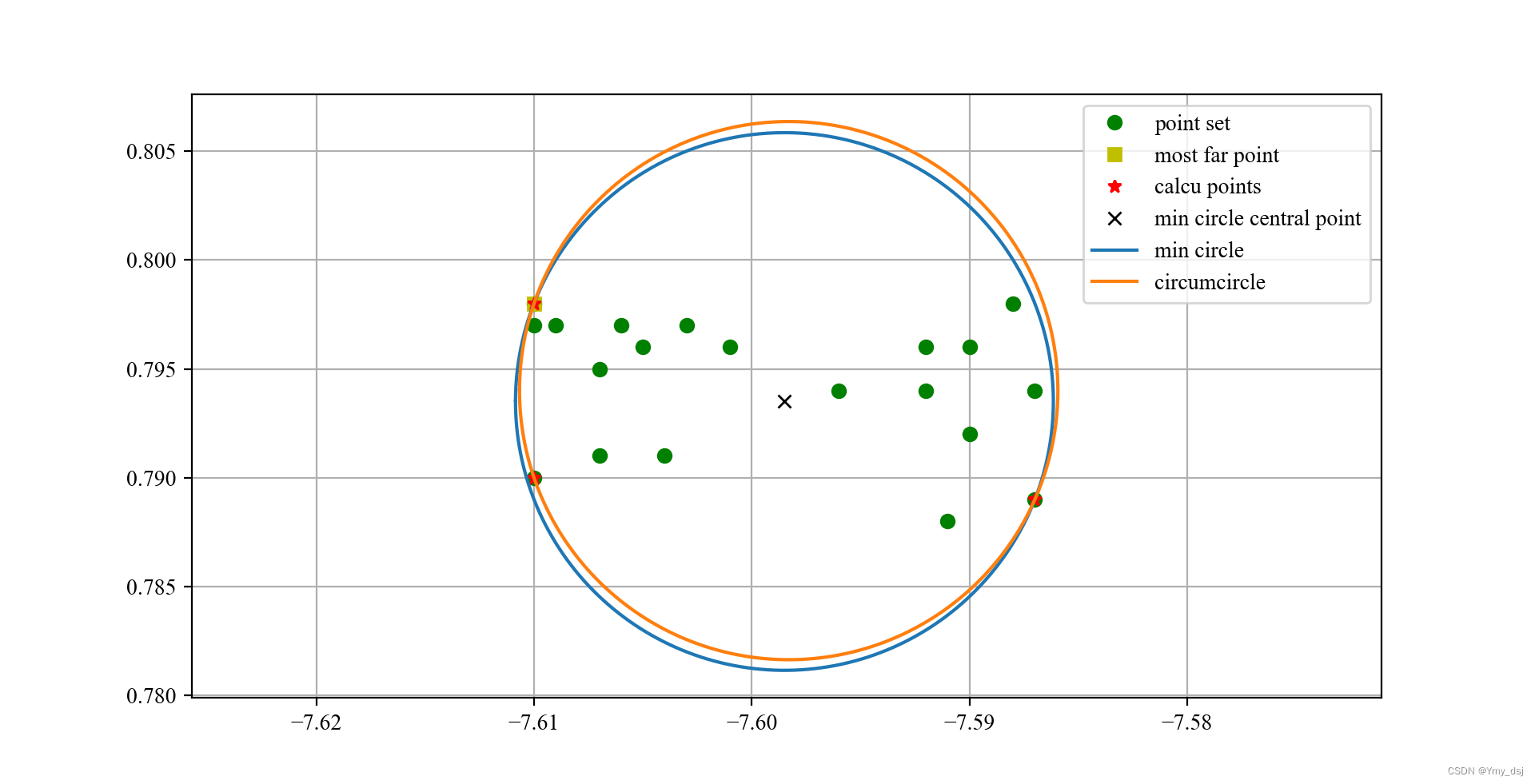

第四次迭代结果

 经过四次迭代之后，找到了点集的最小覆盖圆，输出半径和圆心结果。

0.012349089035228739
X: -7.5985 | Y: 0.7935000000000001
