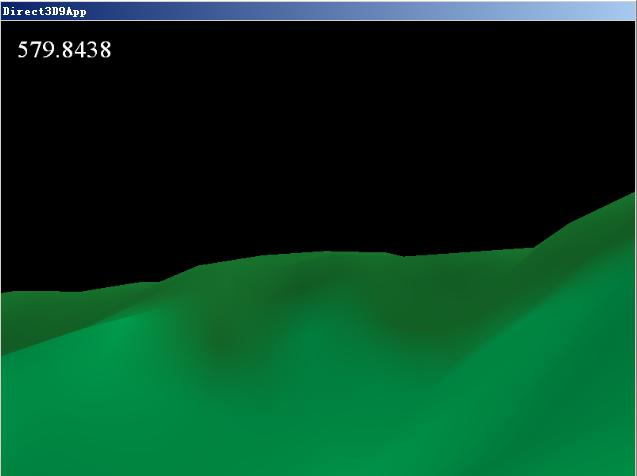

我们今天来看一下,DirectX3D中的地形绘制基础。地形网格其实就是一系列三角形栅格,但是方格中的每个顶点都被赋予了一个高度值(即高度或海拔),这样该方格就可通过方格对应高度的平滑过渡来模拟自然地形中山脉到山谷的变化。当然,我们还需要对地形网格应用一些细致的纹理来表现沙滩,绿草如茵的丘陵和雪山。
了解如何生成地形的高度信息,以实现自然地形中有山脉到山谷的平滑过渡。
理解如何生成地形的顶点和面片数据。
了解如何对地形映射纹理以及如何进行光照处理。
了解如何将摄像机安置在地形中,以模拟观察这在该地形中的行走和奔跑。
我们用高度图来描述地形中的丘陵和山谷。高度图其实就是一个数组,该数组的每个元素都指定了地形方格中某一特定顶点的高度值。(另外一种实现方式可能用该数组中的每个元素来指定每个三角形栅格的高度)通常,我们将高度图视为一个矩阵,这样高度图中的元素就与地形栅格中的顶点一一对应了。
我们先来看camera.h的代码:
#ifndef __cameraH__
#define __cameraH__
#include <d3dx9.h>
class Camera
{
public:
enum CameraType { LANDOBJECT, AIRCRAFT };
Camera();
Camera(CameraType cameraType);
~Camera();
void strafe(float units); // left/right
void fly(float units); // up/down
void walk(float units); // forward/backward
void pitch(float angle); // rotate on right vector
void yaw(float angle); // rotate on up vector
void roll(float angle); // rotate on look vector
void getViewMatrix(D3DXMATRIX* V);
void setCameraType(CameraType cameraType);
void getPosition(D3DXVECTOR3* pos);
void setPosition(D3DXVECTOR3* pos);
void getRight(D3DXVECTOR3* right);
void getUp(D3DXVECTOR3* up);
void getLook(D3DXVECTOR3* look);
private:
CameraType _cameraType;
D3DXVECTOR3 _right;
D3DXVECTOR3 _up;
D3DXVECTOR3 _look;
D3DXVECTOR3 _pos;
};
#endif // __cameraH__
再来看camera.cpp的代码:
//
//
// File: camera.cpp
//
// Author: Frank Luna (C) All Rights Reserved
//
// System: AMD Athlon 1800+ XP, 512 DDR, Geforce 3, Windows XP, MSVC++ 7.0
//
// Desc: Defines a camera's position and orientation.
//
//
#include "camera.h"
/*
这里我们增加了一个Camera类的设计,首先使用了4个摄像机向量,右向量,上向量,观察向量以及位置向量来定义摄像机相对于
世界坐标系的位置和朝向。这些向量实质上为相对世界坐标系描述的摄像机定义了一个局部坐标系。由于右向量,上向量和观察向量定义了
摄像机在世界坐标系中的朝向,有时我们也将这三个向量统称为方向向量。方向向量必须是标准正交的。如果一个向量
集中的向量都彼此正交,并且均为1,则称该向量是标准正交的。前面,我们提到,标准正交矩阵的一个重要性质是其逆矩阵与其转置矩阵相等。
用上述4个向量来描述摄像机,我们可对摄像机实施6种变换:
绕向量right的旋转(俯仰,pitch)
绕向量up的旋转(偏航,yaw)
绕向量look的旋转(滚动,roll)
沿向量right方向的扫视(strafe)
沿向量up方向的升降(fly)
沿向量look的平动。
*/
/*
平移的实现:
将摄像机的位置向量平移到原点可通过将其与向量-p做向量加法轻松实现,因为p-p=0.
旋转:
要想使摄像机各向量与世界坐标系各轴重合的工作量大一些,我们需要一个3x3的旋转矩阵A以使向量right,up和look分别与世界坐标系的
x,y,z轴重合。
绕任意轴的旋转:
实现摄像机的旋转方法时,我们应使能够绕任意轴进行旋转,D3DX库提供了如下函数恰好具备该功能。
D3DXMATRIX *D3DXMatrixRotationAxis(
D3DXMATRIX *pOut,
CONST D3DXVECTOR *pV,
FLOAT Angle
);
例如,若我们想绕由向量(0.707f,0.707f,0.0f)所确定的轴旋转π/2,可这样做:
D3DXMATRIX R;
D3DXVECTOR3 axis(0.707f,0.707f,0.0f)
D3DXMatrixRotationAxis(&R,&axis,D3DX_PI/2);
*/
Camera::Camera()
{
_cameraType = AIRCRAFT;
_pos = D3DXVECTOR3(0.0f, 0.0f, 0.0f);
_right = D3DXVECTOR3(1.0f, 0.0f, 0.0f);
_up = D3DXVECTOR3(0.0f, 1.0f, 0.0f);
_look = D3DXVECTOR3(0.0f, 0.0f, 1.0f);
}
Camera::Camera(CameraType cameraType)
{
_cameraType = cameraType;
_pos = D3DXVECTOR3(0.0f, 0.0f, 0.0f);
_right = D3DXVECTOR3(1.0f, 0.0f, 0.0f);
_up = D3DXVECTOR3(0.0f, 1.0f, 0.0f);
_look = D3DXVECTOR3(0.0f, 0.0f, 1.0f);
}
Camera::~Camera()
{
}
void Camera::getPosition(D3DXVECTOR3* pos)
{
*pos = _pos;
}
void Camera::setPosition(D3DXVECTOR3* pos)
{
_pos = *pos;
}
void Camera::getRight(D3DXVECTOR3* right)
{
*right = _right;
}
void Camera::getUp(D3DXVECTOR3* up)
{
*up = _up;
}
void Camera::getLook(D3DXVECTOR3* look)
{
*look = _look;
}
void Camera::walk(float units)
{
// move only on xz plane for land object
if( _cameraType == LANDOBJECT )
_pos += D3DXVECTOR3(_look.x, 0.0f, _look.z) * units;
if( _cameraType == AIRCRAFT )
_pos += _look * units;
}
void Camera::strafe(float units)
{
// move only on xz plane for land object
if( _cameraType == LANDOBJECT )
_pos += D3DXVECTOR3(_right.x, 0.0f, _right.z) * units;
if( _cameraType == AIRCRAFT )
_pos += _right * units;
}
void Camera::fly(float units)
{
// move only on y-axis for land object
if( _cameraType == LANDOBJECT )
_pos.y += units;
if( _cameraType == AIRCRAFT )
_pos += _up * units;
}
void Camera::pitch(float angle)
{
D3DXMATRIX T;
D3DXMatrixRotationAxis(&T, &_right, angle);
// rotate _up and _look around _right vector
D3DXVec3TransformCoord(&_up,&_up, &T);
D3DXVec3TransformCoord(&_look,&_look, &T);
}
void Camera::yaw(float angle)
{
D3DXMATRIX T;
// rotate around world y (0, 1, 0) always for land object
if( _cameraType == LANDOBJECT )
D3DXMatrixRotationY(&T, angle);
// rotate around own up vector for aircraft
if( _cameraType == AIRCRAFT )
D3DXMatrixRotationAxis(&T, &_up, angle);
// rotate _right and _look around _up or y-axis
D3DXVec3TransformCoord(&_right,&_right, &T);
D3DXVec3TransformCoord(&_look,&_look, &T);
}
void Camera::roll(float angle)
{
// only roll for aircraft type
if( _cameraType == AIRCRAFT )
{
D3DXMATRIX T;
D3DXMatrixRotationAxis(&T, &_look, angle);
// rotate _up and _right around _look vector
D3DXVec3TransformCoord(&_right,&_right, &T);
D3DXVec3TransformCoord(&_up,&_up, &T);
}
}
void Camera::getViewMatrix(D3DXMATRIX* V)
{
// Keep camera's axes orthogonal to eachother
D3DXVec3Normalize(&_look, &_look);
D3DXVec3Cross(&_up, &_look, &_right);
D3DXVec3Normalize(&_up, &_up);
D3DXVec3Cross(&_right, &_up, &_look);
D3DXVec3Normalize(&_right, &_right);
// Build the view matrix:
float x = -D3DXVec3Dot(&_right, &_pos);
float y = -D3DXVec3Dot(&_up, &_pos);
float z = -D3DXVec3Dot(&_look, &_pos);
(*V)(0,0) = _right.x; (*V)(0, 1) = _up.x; (*V)(0, 2) = _look.x; (*V)(0, 3) = 0.0f;
(*V)(1,0) = _right.y; (*V)(1, 1) = _up.y; (*V)(1, 2) = _look.y; (*V)(1, 3) = 0.0f;
(*V)(2,0) = _right.z; (*V)(2, 1) = _up.z; (*V)(2, 2) = _look.z; (*V)(2, 3) = 0.0f;
(*V)(3,0) = x; (*V)(3, 1) = y; (*V)(3, 2) = z; (*V)(3, 3) = 1.0f;
}
void Camera::setCameraType(CameraType cameraType)
{
_cameraType = cameraType;
}
再来看d3dfont.h的代码:
//-----------------------------------------------------------------------------
// File: D3DFont.h
//
// Desc: Texture-based font class
//
// Copyright (c) 1999-2001 Microsoft Corporation. All rights reserved.
//-----------------------------------------------------------------------------
#ifndef D3DFONT_H
#define D3DFONT_H
#include <tchar.h>
#include <D3D9.h>
// Font creation flags
#define D3DFONT_BOLD 0x0001
#define D3DFONT_ITALIC 0x0002
#define D3DFONT_ZENABLE 0x0004
// Font rendering flags
#define D3DFONT_CENTERED_X 0x0001
#define D3DFONT_CENTERED_Y 0x0002
#define D3DFONT_TWOSIDED 0x0004
#define D3DFONT_FILTERED 0x0008
//-----------------------------------------------------------------------------
// Name: class CD3DFont
// Desc: Texture-based font class for doing text in a 3D scene.
//-----------------------------------------------------------------------------
class CD3DFont
{
TCHAR m_strFontName[80]; // Font properties
DWORD m_dwFontHeight;
DWORD m_dwFontFlags;
LPDIRECT3DDEVICE9 m_pd3dDevice; // A D3DDevice used for rendering
LPDIRECT3DTEXTURE9 m_pTexture; // The d3d texture for this font
LPDIRECT3DVERTEXBUFFER9 m_pVB; // VertexBuffer for rendering text
DWORD m_dwTexWidth; // Texture dimensions
DWORD m_dwTexHeight;
FLOAT m_fTextScale;
FLOAT m_fTexCoords[128-32][4];
DWORD m_dwSpacing; // Character pixel spacing per side
// Stateblocks for setting and restoring render states
LPDIRECT3DSTATEBLOCK9 m_pStateBlockSaved;
LPDIRECT3DSTATEBLOCK9 m_pStateBlockDrawText;
public:
// 2D and 3D text drawing functions
HRESULT DrawText( FLOAT x, FLOAT y, DWORD dwColor,
const TCHAR* strText, DWORD dwFlags=0L );
HRESULT DrawTextScaled( FLOAT x, FLOAT y, FLOAT z,
FLOAT fXScale, FLOAT fYScale, DWORD dwColor,
const TCHAR* strText, DWORD dwFlags=0L );
HRESULT Render3DText( const TCHAR* strText, DWORD dwFlags=0L );
// Function to get extent of text
HRESULT GetTextExtent( const TCHAR* strText, SIZE* pSize );
// Initializing and destroying device-dependent objects
HRESULT InitDeviceObjects( LPDIRECT3DDEVICE9 pd3dDevice );
HRESULT RestoreDeviceObjects();
HRESULT InvalidateDeviceObjects();
HRESULT DeleteDeviceObjects();
// Constructor / destructor
CD3DFont( const TCHAR* strFontName, DWORD dwHeight, DWORD dwFlags=0L );
~CD3DFont();
};
#endif
再来看d3dfont.cpp的代码:
//-----------------------------------------------------------------------------
// File: D3DFont.cpp
//
// Desc: Texture-based font class
//
// Copyright (c) 1999-2001 Microsoft Corporation. All rights reserved.
//-----------------------------------------------------------------------------
#define STRICT
#include <stdio.h>
#include <tchar.h>
#include <D3DX9.h>
#include "D3DFont.h"
#include "D3DUtil.h"
#include "DXUtil.h"
//-----------------------------------------------------------------------------
// Custom vertex types for rendering text
//-----------------------------------------------------------------------------
#define MAX_NUM_VERTICES 50*6
struct FONT2DVERTEX { D3DXVECTOR4 p; DWORD color; FLOAT tu, tv; };
struct FONT3DVERTEX { D3DXVECTOR3 p; D3DXVECTOR3 n; FLOAT tu, tv; };
#define D3DFVF_FONT2DVERTEX (D3DFVF_XYZRHW|D3DFVF_DIFFUSE|D3DFVF_TEX1)
#define D3DFVF_FONT3DVERTEX (D3DFVF_XYZ|D3DFVF_NORMAL|D3DFVF_TEX1)
inline FONT2DVERTEX InitFont2DVertex( const D3DXVECTOR4& p, D3DCOLOR color,
FLOAT tu, FLOAT tv )
{
FONT2DVERTEX v; v.p = p; v.color = color; v.tu = tu; v.tv = tv;
return v;
}
inline FONT3DVERTEX InitFont3DVertex( const D3DXVECTOR3& p, const D3DXVECTOR3& n,
FLOAT tu, FLOAT tv )
{
FONT3DVERTEX v; v.p = p; v.n = n; v.tu = tu; v.tv = tv;
return v;
}
//-----------------------------------------------------------------------------
// Name: CD3DFont()
// Desc: Font class constructor
//-----------------------------------------------------------------------------
CD3DFont::CD3DFont( const TCHAR* strFontName, DWORD dwHeight, DWORD dwFlags )
{
_tcsncpy( m_strFontName, strFontName, sizeof(m_strFontName) / sizeof(TCHAR) );
m_strFontName[sizeof(m_strFontName) / sizeof(TCHAR) - 1] = _T('\0');
m_dwFontHeight = dwHeight;
m_dwFontFlags = dwFlags;
m_dwSpacing = 0;
m_pd3dDevice = NULL;
m_pTexture = NULL;
m_pVB = NULL;
m_pStateBlockSaved = NULL;
m_pStateBlockDrawText = NULL;
}
//-----------------------------------------------------------------------------
// Name: ~CD3DFont()
// Desc: Font class destructor
//-----------------------------------------------------------------------------
CD3DFont::~CD3DFont()
{
InvalidateDeviceObjects();
DeleteDeviceObjects();
}
//-----------------------------------------------------------------------------
// Name: InitDeviceObjects()
// Desc: Initializes device-dependent objects, including the vertex buffer used
// for rendering text and the texture map which stores the font image.
//-----------------------------------------------------------------------------
HRESULT CD3DFont::InitDeviceObjects( LPDIRECT3DDEVICE9 pd3dDevice )
{
HRESULT hr;
// Keep a local copy of the device
m_pd3dDevice = pd3dDevice;
// Establish the font and texture size
m_fTextScale = 1.0f; // Draw fonts into texture without scaling
// Large fonts need larger textures
if( m_dwFontHeight > 60 )
m_dwTexWidth = m_dwTexHeight = 2048;
else if( m_dwFontHeight > 30 )
m_dwTexWidth = m_dwTexHeight = 1024;
else if( m_dwFontHeight > 15 )
m_dwTexWidth = m_dwTexHeight = 512;
else
m_dwTexWidth = m_dwTexHeight = 256;
// If requested texture is too big, use a smaller texture and smaller font,
// and scale up when rendering.
D3DCAPS9 d3dCaps;
m_pd3dDevice->GetDeviceCaps( &d3dCaps );
if( m_dwTexWidth > d3dCaps.MaxTextureWidth )
{
m_fTextScale = (FLOAT)d3dCaps.MaxTextureWidth / (FLOAT)m_dwTexWidth;
m_dwTexWidth = m_dwTexHeight = d3dCaps.MaxTextureWidth;
}
// Create a new texture for the font
hr = m_pd3dDevice->CreateTexture( m_dwTexWidth, m_dwTexHeight, 1,
0, D3DFMT_A4R4G4B4,
D3DPOOL_MANAGED, &m_pTexture, NULL );
if( FAILED(hr) )
return hr;
// Prepare to create a bitmap
DWORD* pBitmapBits;
BITMAPINFO bmi;
ZeroMemory( &bmi.bmiHeader, sizeof(BITMAPINFOHEADER) );
bmi.bmiHeader.biSize = sizeof(BITMAPINFOHEADER);
bmi.bmiHeader.biWidth = (int)m_dwTexWidth;
bmi.bmiHeader.biHeight = -(int)m_dwTexHeight;
bmi.bmiHeader.biPlanes = 1;
bmi.bmiHeader.biCompression = BI_RGB;
bmi.bmiHeader.biBitCount = 32;
// Create a DC and a bitmap for the font
HDC hDC = CreateCompatibleDC( NULL );
HBITMAP hbmBitmap = CreateDIBSection( hDC, &bmi, DIB_RGB_COLORS,
(void**)&pBitmapBits, NULL, 0 );
SetMapMode( hDC, MM_TEXT );
// Create a font. By specifying ANTIALIASED_QUALITY, we might get an
// antialiased font, but this is not guaranteed.
INT nHeight = -MulDiv( m_dwFontHeight,
(INT)(GetDeviceCaps(hDC, LOGPIXELSY) * m_fTextScale), 72 );
DWORD dwBold = (m_dwFontFlags&D3DFONT_BOLD) ? FW_BOLD : FW_NORMAL;
DWORD dwItalic = (m_dwFontFlags&D3DFONT_ITALIC) ? TRUE : FALSE;
HFONT hFont = CreateFont( nHeight, 0, 0, 0, dwBold, dwItalic,
FALSE, FALSE, DEFAULT_CHARSET, OUT_DEFAULT_PRECIS,
CLIP_DEFAULT_PRECIS, ANTIALIASED_QUALITY,
VARIABLE_PITCH, m_strFontName );
if( NULL==hFont )
return E_FAIL;
HGDIOBJ hbmOld = SelectObject( hDC, hbmBitmap );
HGDIOBJ hFontOld = SelectObject( hDC, hFont );
// Set text properties
SetTextColor( hDC, RGB(255,255,255) );
SetBkColor( hDC, 0x00000000 );
SetTextAlign( hDC, TA_TOP );
// Loop through all printable character and output them to the bitmap..
// Meanwhile, keep track of the corresponding tex coords for each character.
DWORD x = 0;
DWORD y = 0;
TCHAR str[2] = _T("x");
SIZE size;
// Calculate the spacing between characters based on line height
GetTextExtentPoint32( hDC, TEXT(" "), 1, &size );
x = m_dwSpacing = (DWORD) ceil(size.cy * 0.3f);
for( TCHAR c=32; c<127; c++ )
{
str[0] = c;
GetTextExtentPoint32( hDC, str, 1, &size );
if( (DWORD)(x + size.cx + m_dwSpacing) > m_dwTexWidth )
{
x = m_dwSpacing;
y += size.cy+1;
}
ExtTextOut( hDC, x+0, y+0, ETO_OPAQUE, NULL, str, 1, NULL );
m_fTexCoords[c-32][0] = ((FLOAT)(x + 0 - m_dwSpacing))/m_dwTexWidth;
m_fTexCoords[c-32][1] = ((FLOAT)(y + 0 + 0 ))/m_dwTexHeight;
m_fTexCoords[c-32][2] = ((FLOAT)(x + size.cx + m_dwSpacing))/m_dwTexWidth;
m_fTexCoords[c-32][3] = ((FLOAT)(y + size.cy + 0 ))/m_dwTexHeight;
x += size.cx + (2 * m_dwSpacing);
}
// Lock the surface and write the alpha values for the set pixels
D3DLOCKED_RECT d3dlr;
m_pTexture->LockRect( 0, &d3dlr, 0, 0 );
BYTE* pDstRow = (BYTE*)d3dlr.pBits;
WORD* pDst16;
BYTE bAlpha; // 4-bit measure of pixel intensity
for( y=0; y < m_dwTexHeight; y++ )
{
pDst16 = (WORD*)pDstRow;
for( x=0; x < m_dwTexWidth; x++ )
{
bAlpha = (BYTE)((pBitmapBits[m_dwTexWidth*y + x] & 0xff) >> 4);
if (bAlpha > 0)
{
*pDst16++ = (WORD) ((bAlpha << 12) | 0x0fff);
}
else
{
*pDst16++ = 0x0000;
}
}
pDstRow += d3dlr.Pitch;
}
// Done updating texture, so clean up used objects
m_pTexture->UnlockRect(0);
SelectObject( hDC, hbmOld );
SelectObject( hDC, hFontOld );
DeleteObject( hbmBitmap );
DeleteObject( hFont );
DeleteDC( hDC );
return S_OK;
}
//-----------------------------------------------------------------------------
// Name: RestoreDeviceObjects()
// Desc:
//-----------------------------------------------------------------------------
HRESULT CD3DFont::RestoreDeviceObjects()
{
HRESULT hr;
// Create vertex buffer for the letters
int vertexSize = max( sizeof(FONT2DVERTEX), sizeof(FONT3DVERTEX ) );
if( FAILED( hr = m_pd3dDevice->CreateVertexBuffer( MAX_NUM_VERTICES * vertexSize,
D3DUSAGE_WRITEONLY | D3DUSAGE_DYNAMIC, 0,
D3DPOOL_DEFAULT, &m_pVB, NULL ) ) )
{
return hr;
}
// Create the state blocks for rendering text
for( UINT which=0; which<2; which++ )
{
m_pd3dDevice->BeginStateBlock();
m_pd3dDevice->SetTexture( 0, m_pTexture );
if ( D3DFONT_ZENABLE & m_dwFontFlags )
m_pd3dDevice->SetRenderState( D3DRS_ZENABLE, TRUE );
else
m_pd3dDevice->SetRenderState( D3DRS_ZENABLE, FALSE );
m_pd3dDevice->SetRenderState( D3DRS_ALPHABLENDENABLE, TRUE );
m_pd3dDevice->SetRenderState( D3DRS_SRCBLEND, D3DBLEND_SRCALPHA );
m_pd3dDevice->SetRenderState( D3DRS_DESTBLEND, D3DBLEND_INVSRCALPHA );
m_pd3dDevice->SetRenderState( D3DRS_ALPHATESTENABLE, TRUE );
m_pd3dDevice->SetRenderState( D3DRS_ALPHAREF, 0x08 );
m_pd3dDevice->SetRenderState( D3DRS_ALPHAFUNC, D3DCMP_GREATEREQUAL );
m_pd3dDevice->SetRenderState( D3DRS_FILLMODE, D3DFILL_SOLID );
m_pd3dDevice->SetRenderState( D3DRS_CULLMODE, D3DCULL_CCW );
m_pd3dDevice->SetRenderState( D3DRS_STENCILENABLE, FALSE );
m_pd3dDevice->SetRenderState( D3DRS_CLIPPING, TRUE );
m_pd3dDevice->SetRenderState( D3DRS_CLIPPLANEENABLE, FALSE );
m_pd3dDevice->SetRenderState( D3DRS_VERTEXBLEND, D3DVBF_DISABLE );
m_pd3dDevice->SetRenderState( D3DRS_INDEXEDVERTEXBLENDENABLE, FALSE );
m_pd3dDevice->SetRenderState( D3DRS_FOGENABLE, FALSE );
m_pd3dDevice->SetRenderState( D3DRS_COLORWRITEENABLE,
D3DCOLORWRITEENABLE_RED | D3DCOLORWRITEENABLE_GREEN |
D3DCOLORWRITEENABLE_BLUE | D3DCOLORWRITEENABLE_ALPHA );
m_pd3dDevice->SetTextureStageState( 0, D3DTSS_COLOROP, D3DTOP_MODULATE );
m_pd3dDevice->SetTextureStageState( 0, D3DTSS_COLORARG1, D3DTA_TEXTURE );
m_pd3dDevice->SetTextureStageState( 0, D3DTSS_COLORARG2, D3DTA_DIFFUSE );
m_pd3dDevice->SetTextureStageState( 0, D3DTSS_ALPHAOP, D3DTOP_MODULATE );
m_pd3dDevice->SetTextureStageState( 0, D3DTSS_ALPHAARG1, D3DTA_TEXTURE );
m_pd3dDevice->SetTextureStageState( 0, D3DTSS_ALPHAARG2, D3DTA_DIFFUSE );
m_pd3dDevice->SetTextureStageState( 0, D3DTSS_TEXCOORDINDEX, 0 );
m_pd3dDevice->SetTextureStageState( 0, D3DTSS_TEXTURETRANSFORMFLAGS, D3DTTFF_DISABLE );
m_pd3dDevice->SetTextureStageState( 1, D3DTSS_COLOROP, D3DTOP_DISABLE );
m_pd3dDevice->SetTextureStageState( 1, D3DTSS_ALPHAOP, D3DTOP_DISABLE );
m_pd3dDevice->SetSamplerState( 0, D3DSAMP_MINFILTER, D3DTEXF_POINT );
m_pd3dDevice->SetSamplerState( 0, D3DSAMP_MAGFILTER, D3DTEXF_POINT );
m_pd3dDevice->SetSamplerState( 0, D3DSAMP_MIPFILTER, D3DTEXF_NONE );
if( which==0 )
m_pd3dDevice->EndStateBlock( &m_pStateBlockSaved );
else
m_pd3dDevice->EndStateBlock( &m_pStateBlockDrawText );
}
return S_OK;
}
//-----------------------------------------------------------------------------
// Name: InvalidateDeviceObjects()
// Desc: Destroys all device-dependent objects
//-----------------------------------------------------------------------------
HRESULT CD3DFont::InvalidateDeviceObjects()
{
SAFE_RELEASE( m_pVB );
SAFE_RELEASE( m_pStateBlockSaved );
SAFE_RELEASE( m_pStateBlockDrawText );
return S_OK;
}
//-----------------------------------------------------------------------------
// Name: DeleteDeviceObjects()
// Desc: Destroys all device-dependent objects
//-----------------------------------------------------------------------------
HRESULT CD3DFont::DeleteDeviceObjects()
{
SAFE_RELEASE( m_pTexture );
m_pd3dDevice = NULL;
return S_OK;
}
//-----------------------------------------------------------------------------
// Name: GetTextExtent()
// Desc: Get the dimensions of a text string
//-----------------------------------------------------------------------------
HRESULT CD3DFont::GetTextExtent( const TCHAR* strText, SIZE* pSize )
{
if( NULL==strText || NULL==pSize )
return E_FAIL;
FLOAT fRowWidth = 0.0f;
FLOAT fRowHeight = (m_fTexCoords[0][3]-m_fTexCoords[0][1])*m_dwTexHeight;
FLOAT fWidth = 0.0f;
FLOAT fHeight = fRowHeight;
while( *strText )
{
TCHAR c = *strText++;
if( c == _T('\n') )
{
fRowWidth = 0.0f;
fHeight += fRowHeight;
}
if( (c-32) < 0 || (c-32) >= 128-32 )
continue;
FLOAT tx1 = m_fTexCoords[c-32][0];
FLOAT tx2 = m_fTexCoords[c-32][2];
fRowWidth += (tx2-tx1)*m_dwTexWidth - 2*m_dwSpacing;
if( fRowWidth > fWidth )
fWidth = fRowWidth;
}
pSize->cx = (int)fWidth;
pSize->cy = (int)fHeight;
return S_OK;
}
//-----------------------------------------------------------------------------
// Name: DrawTextScaled()
// Desc: Draws scaled 2D text. Note that x and y are in viewport coordinates
// (ranging from -1 to +1). fXScale and fYScale are the size fraction
// relative to the entire viewport. For example, a fXScale of 0.25 is
// 1/8th of the screen width. This allows you to output text at a fixed
// fraction of the viewport, even if the screen or window size changes.
//-----------------------------------------------------------------------------
HRESULT CD3DFont::DrawTextScaled( FLOAT x, FLOAT y, FLOAT z,
FLOAT fXScale, FLOAT fYScale, DWORD dwColor,
const TCHAR* strText, DWORD dwFlags )
{
if( m_pd3dDevice == NULL )
return E_FAIL;
// Set up renderstate
m_pStateBlockSaved->Capture();
m_pStateBlockDrawText->Apply();
m_pd3dDevice->SetFVF( D3DFVF_FONT2DVERTEX );
m_pd3dDevice->SetPixelShader( NULL );
m_pd3dDevice->SetStreamSource( 0, m_pVB, 0, sizeof(FONT2DVERTEX) );
// Set filter states
if( dwFlags & D3DFONT_FILTERED )
{
m_pd3dDevice->SetSamplerState( 0, D3DSAMP_MINFILTER, D3DTEXF_LINEAR );
m_pd3dDevice->SetSamplerState( 0, D3DSAMP_MAGFILTER, D3DTEXF_LINEAR );
}
D3DVIEWPORT9 vp;
m_pd3dDevice->GetViewport( &vp );
FLOAT fLineHeight = ( m_fTexCoords[0][3] - m_fTexCoords[0][1] ) * m_dwTexHeight;
// Center the text block in the viewport
if( dwFlags & D3DFONT_CENTERED_X )
{
const TCHAR* strTextTmp = strText;
float xFinal = 0.0f;
while( *strTextTmp )
{
TCHAR c = *strTextTmp++;
if( c == _T('\n') )
break; // Isn't supported.
if( (c-32) < 0 || (c-32) >= 128-32 )
continue;
FLOAT tx1 = m_fTexCoords[c-32][0];
FLOAT tx2 = m_fTexCoords[c-32][2];
FLOAT w = (tx2-tx1)*m_dwTexWidth;
w *= (fXScale*vp.Height)/fLineHeight;
xFinal += w - (2 * m_dwSpacing) * (fXScale*vp.Height)/fLineHeight;
}
x = -xFinal/vp.Width;
}
if( dwFlags & D3DFONT_CENTERED_Y )
{
y = -fLineHeight/vp.Height;
}
FLOAT sx = (x+1.0f)*vp.Width/2;
FLOAT sy = (y+1.0f)*vp.Height/2;
FLOAT sz = z;
FLOAT rhw = 1.0f;
// Adjust for character spacing
sx -= m_dwSpacing * (fXScale*vp.Height)/fLineHeight;
FLOAT fStartX = sx;
// Fill vertex buffer
FONT2DVERTEX* pVertices;
DWORD dwNumTriangles = 0L;
m_pVB->Lock( 0, 0, (void**)&pVertices, D3DLOCK_DISCARD );
while( *strText )
{
TCHAR c = *strText++;
if( c == _T('\n') )
{
sx = fStartX;
sy += fYScale*vp.Height;
}
if( (c-32) < 0 || (c-32) >= 128-32 )
continue;
FLOAT tx1 = m_fTexCoords[c-32][0];
FLOAT ty1 = m_fTexCoords[c-32][1];
FLOAT tx2 = m_fTexCoords[c-32][2];
FLOAT ty2 = m_fTexCoords[c-32][3];
FLOAT w = (tx2-tx1)*m_dwTexWidth;
FLOAT h = (ty2-ty1)*m_dwTexHeight;
w *= (fXScale*vp.Height)/fLineHeight;
h *= (fYScale*vp.Height)/fLineHeight;
if( c != _T(' ') )
{
*pVertices++ = InitFont2DVertex( D3DXVECTOR4(sx+0-0.5f,sy+h-0.5f,sz,rhw), dwColor, tx1, ty2 );
*pVertices++ = InitFont2DVertex( D3DXVECTOR4(sx+0-0.5f,sy+0-0.5f,sz,rhw), dwColor, tx1, ty1 );
*pVertices++ = InitFont2DVertex( D3DXVECTOR4(sx+w-0.5f,sy+h-0.5f,sz,rhw), dwColor, tx2, ty2 );
*pVertices++ = InitFont2DVertex( D3DXVECTOR4(sx+w-0.5f,sy+0-0.5f,sz,rhw), dwColor, tx2, ty1 );
*pVertices++ = InitFont2DVertex( D3DXVECTOR4(sx+w-0.5f,sy+h-0.5f,sz,rhw), dwColor, tx2, ty2 );
*pVertices++ = InitFont2DVertex( D3DXVECTOR4(sx+0-0.5f,sy+0-0.5f,sz,rhw), dwColor, tx1, ty1 );
dwNumTriangles += 2;
if( dwNumTriangles*3 > (MAX_NUM_VERTICES-6) )
{
// Unlock, render, and relock the vertex buffer
m_pVB->Unlock();
m_pd3dDevice->DrawPrimitive( D3DPT_TRIANGLELIST, 0, dwNumTriangles );
m_pVB->Lock( 0, 0, (void**)&pVertices, D3DLOCK_DISCARD );
dwNumTriangles = 0L;
}
}
sx += w - (2 * m_dwSpacing) * (fXScale*vp.Height)/fLineHeight;
}
// Unlock and render the vertex buffer
m_pVB->Unlock();
if( dwNumTriangles > 0 )
m_pd3dDevice->DrawPrimitive( D3DPT_TRIANGLELIST, 0, dwNumTriangles );
// Restore the modified renderstates
m_pStateBlockSaved->Apply();
return S_OK;
}
//-----------------------------------------------------------------------------
// Name: DrawText()
// Desc: Draws 2D text. Note that sx and sy are in pixels
//-----------------------------------------------------------------------------
HRESULT CD3DFont::DrawText( FLOAT sx, FLOAT sy, DWORD dwColor,
const TCHAR* strText, DWORD dwFlags )
{
if( m_pd3dDevice == NULL )
return E_FAIL;
// Setup renderstate
m_pStateBlockSaved->Capture();
m_pStateBlockDrawText->Apply();
m_pd3dDevice->SetFVF( D3DFVF_FONT2DVERTEX );
m_pd3dDevice->SetPixelShader( NULL );
m_pd3dDevice->SetStreamSource( 0, m_pVB, 0, sizeof(FONT2DVERTEX) );
// Set filter states
if( dwFlags & D3DFONT_FILTERED )
{
m_pd3dDevice->SetSamplerState( 0, D3DSAMP_MINFILTER, D3DTEXF_LINEAR );
m_pd3dDevice->SetSamplerState( 0, D3DSAMP_MAGFILTER, D3DTEXF_LINEAR );
}
// Center the text block in the viewport
if( dwFlags & D3DFONT_CENTERED_X )
{
D3DVIEWPORT9 vp;
m_pd3dDevice->GetViewport( &vp );
const TCHAR* strTextTmp = strText;
float xFinal = 0.0f;
while( *strTextTmp )
{
TCHAR c = *strTextTmp++;
if( c == _T('\n') )
break; // Isn't supported.
if( (c-32) < 0 || (c-32) >= 128-32 )
continue;
FLOAT tx1 = m_fTexCoords[c-32][0];
FLOAT tx2 = m_fTexCoords[c-32][2];
FLOAT w = (tx2-tx1) * m_dwTexWidth / m_fTextScale;
xFinal += w - (2 * m_dwSpacing);
}
sx = (vp.Width-xFinal)/2.0f;
}
if( dwFlags & D3DFONT_CENTERED_Y )
{
D3DVIEWPORT9 vp;
m_pd3dDevice->GetViewport( &vp );
float fLineHeight = ((m_fTexCoords[0][3]-m_fTexCoords[0][1])*m_dwTexHeight);
sy = (vp.Height-fLineHeight)/2;
}
// Adjust for character spacing
sx -= m_dwSpacing;
FLOAT fStartX = sx;
// Fill vertex buffer
FONT2DVERTEX* pVertices = NULL;
DWORD dwNumTriangles = 0;
m_pVB->Lock( 0, 0, (void**)&pVertices, D3DLOCK_DISCARD );
while( *strText )
{
TCHAR c = *strText++;
if( c == _T('\n') )
{
sx = fStartX;
sy += (m_fTexCoords[0][3]-m_fTexCoords[0][1])*m_dwTexHeight;
}
if( (c-32) < 0 || (c-32) >= 128-32 )
continue;
FLOAT tx1 = m_fTexCoords[c-32][0];
FLOAT ty1 = m_fTexCoords[c-32][1];
FLOAT tx2 = m_fTexCoords[c-32][2];
FLOAT ty2 = m_fTexCoords[c-32][3];
FLOAT w = (tx2-tx1) * m_dwTexWidth / m_fTextScale;
FLOAT h = (ty2-ty1) * m_dwTexHeight / m_fTextScale;
if( c != _T(' ') )
{
*pVertices++ = InitFont2DVertex( D3DXVECTOR4(sx+0-0.5f,sy+h-0.5f,0.9f,1.0f), dwColor, tx1, ty2 );
*pVertices++ = InitFont2DVertex( D3DXVECTOR4(sx+0-0.5f,sy+0-0.5f,0.9f,1.0f), dwColor, tx1, ty1 );
*pVertices++ = InitFont2DVertex( D3DXVECTOR4(sx+w-0.5f,sy+h-0.5f,0.9f,1.0f), dwColor, tx2, ty2 );
*pVertices++ = InitFont2DVertex( D3DXVECTOR4(sx+w-0.5f,sy+0-0.5f,0.9f,1.0f), dwColor, tx2, ty1 );
*pVertices++ = InitFont2DVertex( D3DXVECTOR4(sx+w-0.5f,sy+h-0.5f,0.9f,1.0f), dwColor, tx2, ty2 );
*pVertices++ = InitFont2DVertex( D3DXVECTOR4(sx+0-0.5f,sy+0-0.5f,0.9f,1.0f), dwColor, tx1, ty1 );
dwNumTriangles += 2;
if( dwNumTriangles*3 > (MAX_NUM_VERTICES-6) )
{
// Unlock, render, and relock the vertex buffer
m_pVB->Unlock();
m_pd3dDevice->DrawPrimitive( D3DPT_TRIANGLELIST, 0, dwNumTriangles );
pVertices = NULL;
m_pVB->Lock( 0, 0, (void**)&pVertices, D3DLOCK_DISCARD );
dwNumTriangles = 0L;
}
}
sx += w - (2 * m_dwSpacing);
}
// Unlock and render the vertex buffer
m_pVB->Unlock();
if( dwNumTriangles > 0 )
m_pd3dDevice->DrawPrimitive( D3DPT_TRIANGLELIST, 0, dwNumTriangles );
// Restore the modified renderstates
m_pStateBlockSaved->Apply();
return S_OK;
}
//-----------------------------------------------------------------------------
// Name: Render3DText()
// Desc: Renders 3D text
//-----------------------------------------------------------------------------
HRESULT CD3DFont::Render3DText( const TCHAR* strText, DWORD dwFlags )
{
if( m_pd3dDevice == NULL )
return E_FAIL;
// Setup renderstate
m_pStateBlockSaved->Capture();
m_pStateBlockDrawText->Apply();
m_pd3dDevice->SetFVF( D3DFVF_FONT3DVERTEX );
m_pd3dDevice->SetPixelShader( NULL );
m_pd3dDevice->SetStreamSource( 0, m_pVB, 0, sizeof(FONT3DVERTEX) );
// Set filter states
if( dwFlags & D3DFONT_FILTERED )
{
m_pd3dDevice->SetSamplerState( 0, D3DSAMP_MINFILTER, D3DTEXF_LINEAR );
m_pd3dDevice->SetSamplerState( 0, D3DSAMP_MAGFILTER, D3DTEXF_LINEAR );
}
// Position for each text element
FLOAT x = 0.0f;
FLOAT y = 0.0f;
// Center the text block at the origin (not the viewport)
if( dwFlags & D3DFONT_CENTERED_X )
{
SIZE sz;
GetTextExtent( strText, &sz );
x = -(((FLOAT)sz.cx)/10.0f)/2.0f;
}
if( dwFlags & D3DFONT_CENTERED_Y )
{
SIZE sz;
GetTextExtent( strText, &sz );
y = -(((FLOAT)sz.cy)/10.0f)/2.0f;
}
// Turn off culling for two-sided text
if( dwFlags & D3DFONT_TWOSIDED )
m_pd3dDevice->SetRenderState( D3DRS_CULLMODE, D3DCULL_NONE );
// Adjust for character spacing
x -= m_dwSpacing / 10.0f;
FLOAT fStartX = x;
TCHAR c;
// Fill vertex buffer
FONT3DVERTEX* pVertices;
DWORD dwNumTriangles = 0L;
m_pVB->Lock( 0, 0, (void**)&pVertices, D3DLOCK_DISCARD );
while( (c = *strText++) != 0 )
{
if( c == '\n' )
{
x = fStartX;
y -= (m_fTexCoords[0][3]-m_fTexCoords[0][1])*m_dwTexHeight/10.0f;
}
if( (c-32) < 0 || (c-32) >= 128-32 )
continue;
FLOAT tx1 = m_fTexCoords[c-32][0];
FLOAT ty1 = m_fTexCoords[c-32][1];
FLOAT tx2 = m_fTexCoords[c-32][2];
FLOAT ty2 = m_fTexCoords[c-32][3];
FLOAT w = (tx2-tx1) * m_dwTexWidth / ( 10.0f * m_fTextScale );
FLOAT h = (ty2-ty1) * m_dwTexHeight / ( 10.0f * m_fTextScale );
if( c != _T(' ') )
{
*pVertices++ = InitFont3DVertex( D3DXVECTOR3(x+0,y+0,0), D3DXVECTOR3(0,0,-1), tx1, ty2 );
*pVertices++ = InitFont3DVertex( D3DXVECTOR3(x+0,y+h,0), D3DXVECTOR3(0,0,-1), tx1, ty1 );
*pVertices++ = InitFont3DVertex( D3DXVECTOR3(x+w,y+0,0), D3DXVECTOR3(0,0,-1), tx2, ty2 );
*pVertices++ = InitFont3DVertex( D3DXVECTOR3(x+w,y+h,0), D3DXVECTOR3(0,0,-1), tx2, ty1 );
*pVertices++ = InitFont3DVertex( D3DXVECTOR3(x+w,y+0,0), D3DXVECTOR3(0,0,-1), tx2, ty2 );
*pVertices++ = InitFont3DVertex( D3DXVECTOR3(x+0,y+h,0), D3DXVECTOR3(0,0,-1), tx1, ty1 );
dwNumTriangles += 2;
if( dwNumTriangles*3 > (MAX_NUM_VERTICES-6) )
{
// Unlock, render, and relock the vertex buffer
m_pVB->Unlock();
m_pd3dDevice->DrawPrimitive( D3DPT_TRIANGLELIST, 0, dwNumTriangles );
m_pVB->Lock( 0, 0, (void**)&pVertices, D3DLOCK_DISCARD );
dwNumTriangles = 0L;
}
}
x += w - (2 * m_dwSpacing) / 10.0f;
}
// Unlock and render the vertex buffer
m_pVB->Unlock();
if( dwNumTriangles > 0 )
m_pd3dDevice->DrawPrimitive( D3DPT_TRIANGLELIST, 0, dwNumTriangles );
// Restore the modified renderstates
m_pStateBlockSaved->Apply();
return S_OK;
}
再来看d3dutil.h的代码:
//-----------------------------------------------------------------------------
// File: D3DUtil.h
//
// Desc: Helper functions and typing shortcuts for Direct3D programming.
//
// Copyright (c) 1997-2001 Microsoft Corporation. All rights reserved
//-----------------------------------------------------------------------------
#ifndef D3DUTIL_H
#define D3DUTIL_H
#include <D3D9.h>
#include <D3DX9Math.h>
//-----------------------------------------------------------------------------
// Name: D3DUtil_InitMaterial()
// Desc: Initializes a D3DMATERIAL9 structure, setting the diffuse and ambient
// colors. It does not set emissive or specular colors.
//-----------------------------------------------------------------------------
VOID D3DUtil_InitMaterial( D3DMATERIAL9& mtrl, FLOAT r=0.0f, FLOAT g=0.0f,
FLOAT b=0.0f, FLOAT a=1.0f );
//-----------------------------------------------------------------------------
// Name: D3DUtil_InitLight()
// Desc: Initializes a D3DLIGHT structure, setting the light position. The
// diffuse color is set to white, specular and ambient left as black.
//-----------------------------------------------------------------------------
VOID D3DUtil_InitLight( D3DLIGHT9& light, D3DLIGHTTYPE ltType,
FLOAT x=0.0f, FLOAT y=0.0f, FLOAT z=0.0f );
//-----------------------------------------------------------------------------
// Name: D3DUtil_CreateTexture()
// Desc: Helper function to create a texture. It checks the root path first,
// then tries the DXSDK media path (as specified in the system registry).
//-----------------------------------------------------------------------------
HRESULT D3DUtil_CreateTexture( LPDIRECT3DDEVICE9 pd3dDevice, TCHAR* strTexture,
LPDIRECT3DTEXTURE9* ppTexture,
D3DFORMAT d3dFormat = D3DFMT_UNKNOWN );
//-----------------------------------------------------------------------------
// Name: D3DUtil_GetCubeMapViewMatrix()
// Desc: Returns a view matrix for rendering to a face of a cubemap.
//-----------------------------------------------------------------------------
D3DXMATRIX D3DUtil_GetCubeMapViewMatrix( DWORD dwFace );
//-----------------------------------------------------------------------------
// Name: D3DUtil_GetRotationFromCursor()
// Desc: Returns a quaternion for the rotation implied by the window's cursor
// position.
//-----------------------------------------------------------------------------
D3DXQUATERNION D3DUtil_GetRotationFromCursor( HWND hWnd,
FLOAT fTrackBallRadius=1.0f );
//-----------------------------------------------------------------------------
// Name: D3DUtil_SetDeviceCursor
// Desc: Builds and sets a cursor for the D3D device based on hCursor.
//-----------------------------------------------------------------------------
HRESULT D3DUtil_SetDeviceCursor( LPDIRECT3DDEVICE9 pd3dDevice, HCURSOR hCursor,
BOOL bAddWatermark );
//-----------------------------------------------------------------------------
// Name: D3DUtil_D3DFormatToString
// Desc: Returns the string for the given D3DFORMAT.
// bWithPrefix determines whether the string should include the "D3DFMT_"
//-----------------------------------------------------------------------------
TCHAR* D3DUtil_D3DFormatToString( D3DFORMAT format, bool bWithPrefix = true );
//-----------------------------------------------------------------------------
// Name: class CD3DArcBall
// Desc:
//-----------------------------------------------------------------------------
class CD3DArcBall
{
INT m_iWidth; // ArcBall's window width
INT m_iHeight; // ArcBall's window height
FLOAT m_fRadius; // ArcBall's radius in screen coords
FLOAT m_fRadiusTranslation; // ArcBall's radius for translating the target
D3DXQUATERNION m_qDown; // Quaternion before button down
D3DXQUATERNION m_qNow; // Composite quaternion for current drag
D3DXMATRIXA16 m_matRotation; // Matrix for arcball's orientation
D3DXMATRIXA16 m_matRotationDelta; // Matrix for arcball's orientation
D3DXMATRIXA16 m_matTranslation; // Matrix for arcball's position
D3DXMATRIXA16 m_matTranslationDelta; // Matrix for arcball's position
BOOL m_bDrag; // Whether user is dragging arcball
BOOL m_bRightHanded; // Whether to use RH coordinate system
D3DXVECTOR3 ScreenToVector( int sx, int sy );
public:
LRESULT HandleMouseMessages( HWND, UINT, WPARAM, LPARAM );
D3DXMATRIX* GetRotationMatrix() { return &m_matRotation; }
D3DXMATRIX* GetRotationDeltaMatrix() { return &m_matRotationDelta; }
D3DXMATRIX* GetTranslationMatrix() { return &m_matTranslation; }
D3DXMATRIX* GetTranslationDeltaMatrix() { return &m_matTranslationDelta; }
BOOL IsBeingDragged() { return m_bDrag; }
VOID SetRadius( FLOAT fRadius );
VOID SetWindow( INT w, INT h, FLOAT r=0.9 );
VOID SetRightHanded( BOOL bRightHanded ) { m_bRightHanded = bRightHanded; }
CD3DArcBall();
VOID Init();
};
//-----------------------------------------------------------------------------
// Name: class CD3DCamera
// Desc:
//-----------------------------------------------------------------------------
class CD3DCamera
{
D3DXVECTOR3 m_vEyePt; // Attributes for view matrix
D3DXVECTOR3 m_vLookatPt;
D3DXVECTOR3 m_vUpVec;
D3DXVECTOR3 m_vView;
D3DXVECTOR3 m_vCross;
D3DXMATRIXA16 m_matView;
D3DXMATRIXA16 m_matBillboard; // Special matrix for billboarding effects
FLOAT m_fFOV; // Attributes for projection matrix
FLOAT m_fAspect;
FLOAT m_fNearPlane;
FLOAT m_fFarPlane;
D3DXMATRIXA16 m_matProj;
public:
// Access functions
D3DXVECTOR3 GetEyePt() { return m_vEyePt; }
D3DXVECTOR3 GetLookatPt() { return m_vLookatPt; }
D3DXVECTOR3 GetUpVec() { return m_vUpVec; }
D3DXVECTOR3 GetViewDir() { return m_vView; }
D3DXVECTOR3 GetCross() { return m_vCross; }
FLOAT GetFOV() { return m_fFOV; }
FLOAT GetAspect() { return m_fAspect; }
FLOAT GetNearPlane() { return m_fNearPlane; }
FLOAT GetFarPlane() { return m_fFarPlane; }
D3DXMATRIX GetViewMatrix() { return m_matView; }
D3DXMATRIX GetBillboardMatrix() { return m_matBillboard; }
D3DXMATRIX GetProjMatrix() { return m_matProj; }
VOID SetViewParams( D3DXVECTOR3 &vEyePt, D3DXVECTOR3& vLookatPt,
D3DXVECTOR3& vUpVec );
VOID SetProjParams( FLOAT fFOV, FLOAT fAspect, FLOAT fNearPlane,
FLOAT fFarPlane );
CD3DCamera();
};
#endif // D3DUTIL_H
再来看d3dutil.cpp的代码:
//-----------------------------------------------------------------------------
// File: D3DUtil.cpp
//
// Desc: Shortcut macros and functions for using DX objects
//
// Copyright (c) 1997-2001 Microsoft Corporation. All rights reserved
//-----------------------------------------------------------------------------
#define STRICT
#include <Windows.h>
#include <WindowsX.h>
#include <tchar.h>
#include <stdio.h>
#include "D3DUtil.h"
#include "DXUtil.h"
#include "D3DX9.h"
//-----------------------------------------------------------------------------
// Name: D3DUtil_InitMaterial()
// Desc: Initializes a D3DMATERIAL9 structure, setting the diffuse and ambient
// colors. It does not set emissive or specular colors.
//-----------------------------------------------------------------------------
VOID D3DUtil_InitMaterial( D3DMATERIAL9& mtrl, FLOAT r, FLOAT g, FLOAT b,
FLOAT a )
{
ZeroMemory( &mtrl, sizeof(D3DMATERIAL9) );
mtrl.Diffuse.r = mtrl.Ambient.r = r;
mtrl.Diffuse.g = mtrl.Ambient.g = g;
mtrl.Diffuse.b = mtrl.Ambient.b = b;
mtrl.Diffuse.a = mtrl.Ambient.a = a;
}
//-----------------------------------------------------------------------------
// Name: D3DUtil_InitLight()
// Desc: Initializes a D3DLIGHT structure, setting the light position. The
// diffuse color is set to white; specular and ambient are left as black.
//-----------------------------------------------------------------------------
VOID D3DUtil_InitLight( D3DLIGHT9& light, D3DLIGHTTYPE ltType,
FLOAT x, FLOAT y, FLOAT z )
{
D3DXVECTOR3 vecLightDirUnnormalized(x, y, z);
ZeroMemory( &light, sizeof(D3DLIGHT9) );
light.Type = ltType;
light.Diffuse.r = 1.0f;
light.Diffuse.g = 1.0f;
light.Diffuse.b = 1.0f;
D3DXVec3Normalize( (D3DXVECTOR3*)&light.Direction, &vecLightDirUnnormalized );
light.Position.x = x;
light.Position.y = y;
light.Position.z = z;
light.Range = 1000.0f;
}
//-----------------------------------------------------------------------------
// Name: D3DUtil_CreateTexture()
// Desc: Helper function to create a texture. It checks the root path first,
// then tries the DXSDK media path (as specified in the system registry).
//-----------------------------------------------------------------------------
HRESULT D3DUtil_CreateTexture( LPDIRECT3DDEVICE9 pd3dDevice, TCHAR* strTexture,
LPDIRECT3DTEXTURE9* ppTexture, D3DFORMAT d3dFormat )
{
HRESULT hr;
TCHAR strPath[MAX_PATH];
// Get the path to the texture
if( FAILED( hr = DXUtil_FindMediaFileCb( strPath, sizeof(strPath), strTexture ) ) )
return hr;
// Create the texture using D3DX
return D3DXCreateTextureFromFileEx( pd3dDevice, strPath,
D3DX_DEFAULT, D3DX_DEFAULT, D3DX_DEFAULT, 0, d3dFormat,
D3DPOOL_MANAGED, D3DX_FILTER_TRIANGLE|D3DX_FILTER_MIRROR,
D3DX_FILTER_TRIANGLE|D3DX_FILTER_MIRROR, 0, NULL, NULL, ppTexture );
}
//-----------------------------------------------------------------------------
// Name: D3DUtil_GetCubeMapViewMatrix()
// Desc: Returns a view matrix for rendering to a face of a cubemap.
//-----------------------------------------------------------------------------
D3DXMATRIX D3DUtil_GetCubeMapViewMatrix( DWORD dwFace )
{
D3DXVECTOR3 vEyePt = D3DXVECTOR3( 0.0f, 0.0f, 0.0f );
D3DXVECTOR3 vLookDir;
D3DXVECTOR3 vUpDir;
switch( dwFace )
{
case D3DCUBEMAP_FACE_POSITIVE_X:
vLookDir = D3DXVECTOR3( 1.0f, 0.0f, 0.0f );
vUpDir = D3DXVECTOR3( 0.0f, 1.0f, 0.0f );
break;
case D3DCUBEMAP_FACE_NEGATIVE_X:
vLookDir = D3DXVECTOR3(-1.0f, 0.0f, 0.0f );
vUpDir = D3DXVECTOR3( 0.0f, 1.0f, 0.0f );
break;
case D3DCUBEMAP_FACE_POSITIVE_Y:
vLookDir = D3DXVECTOR3( 0.0f, 1.0f, 0.0f );
vUpDir = D3DXVECTOR3( 0.0f, 0.0f,-1.0f );
break;
case D3DCUBEMAP_FACE_NEGATIVE_Y:
vLookDir = D3DXVECTOR3( 0.0f,-1.0f, 0.0f );
vUpDir = D3DXVECTOR3( 0.0f, 0.0f, 1.0f );
break;
case D3DCUBEMAP_FACE_POSITIVE_Z:
vLookDir = D3DXVECTOR3( 0.0f, 0.0f, 1.0f );
vUpDir = D3DXVECTOR3( 0.0f, 1.0f, 0.0f );
break;
case D3DCUBEMAP_FACE_NEGATIVE_Z:
vLookDir = D3DXVECTOR3( 0.0f, 0.0f,-1.0f );
vUpDir = D3DXVECTOR3( 0.0f, 1.0f, 0.0f );
break;
}
// Set the view transform for this cubemap surface
D3DXMATRIXA16 matView;
D3DXMatrixLookAtLH( &matView, &vEyePt, &vLookDir, &vUpDir );
return matView;
}
//-----------------------------------------------------------------------------
// Name: D3DUtil_GetRotationFromCursor()
// Desc: Returns a quaternion for the rotation implied by the window's cursor
// position.
//-----------------------------------------------------------------------------
D3DXQUATERNION D3DUtil_GetRotationFromCursor( HWND hWnd,
FLOAT fTrackBallRadius )
{
POINT pt;
RECT rc;
GetCursorPos( &pt );
GetClientRect( hWnd, &rc );
ScreenToClient( hWnd, &pt );
FLOAT sx = ( ( ( 2.0f * pt.x ) / (rc.right-rc.left) ) - 1 );
FLOAT sy = ( ( ( 2.0f * pt.y ) / (rc.bottom-rc.top) ) - 1 );
FLOAT sz;
if( sx == 0.0f && sy == 0.0f )
return D3DXQUATERNION( 0.0f, 0.0f, 0.0f, 1.0f );
FLOAT d2 = sqrtf( sx*sx + sy*sy );
if( d2 < fTrackBallRadius * 0.70710678118654752440 ) // Inside sphere
sz = sqrtf( fTrackBallRadius*fTrackBallRadius - d2*d2 );
else // On hyperbola
sz = (fTrackBallRadius*fTrackBallRadius) / (2.0f*d2);
// Get two points on trackball's sphere
D3DXVECTOR3 p1( sx, sy, sz );
D3DXVECTOR3 p2( 0.0f, 0.0f, fTrackBallRadius );
// Get axis of rotation, which is cross product of p1 and p2
D3DXVECTOR3 vAxis;
D3DXVec3Cross( &vAxis, &p1, &p2);
// Calculate angle for the rotation about that axis
D3DXVECTOR3 vecDiff = p2-p1;
FLOAT t = D3DXVec3Length( &vecDiff ) / ( 2.0f*fTrackBallRadius );
if( t > +1.0f) t = +1.0f;
if( t < -1.0f) t = -1.0f;
FLOAT fAngle = 2.0f * asinf( t );
// Convert axis to quaternion
D3DXQUATERNION quat;
D3DXQuaternionRotationAxis( &quat, &vAxis, fAngle );
return quat;
}
//-----------------------------------------------------------------------------
// Name: D3DUtil_SetDeviceCursor
// Desc: Gives the D3D device a cursor with image and hotspot from hCursor.
//-----------------------------------------------------------------------------
HRESULT D3DUtil_SetDeviceCursor( LPDIRECT3DDEVICE9 pd3dDevice, HCURSOR hCursor,
BOOL bAddWatermark )
{
HRESULT hr = E_FAIL;
ICONINFO iconinfo;
BOOL bBWCursor;
LPDIRECT3DSURFACE9 pCursorSurface = NULL;
HDC hdcColor = NULL;
HDC hdcMask = NULL;
HDC hdcScreen = NULL;
BITMAP bm;
DWORD dwWidth;
DWORD dwHeightSrc;
DWORD dwHeightDest;
COLORREF crColor;
COLORREF crMask;
UINT x;
UINT y;
BITMAPINFO bmi;
COLORREF* pcrArrayColor = NULL;
COLORREF* pcrArrayMask = NULL;
DWORD* pBitmap;
HGDIOBJ hgdiobjOld;
ZeroMemory( &iconinfo, sizeof(iconinfo) );
if( !GetIconInfo( hCursor, &iconinfo ) )
goto End;
if (0 == GetObject((HGDIOBJ)iconinfo.hbmMask, sizeof(BITMAP), (LPVOID)&bm))
goto End;
dwWidth = bm.bmWidth;
dwHeightSrc = bm.bmHeight;
if( iconinfo.hbmColor == NULL )
{
bBWCursor = TRUE;
dwHeightDest = dwHeightSrc / 2;
}
else
{
bBWCursor = FALSE;
dwHeightDest = dwHeightSrc;
}
// Create a surface for the fullscreen cursor
if( FAILED( hr = pd3dDevice->CreateOffscreenPlainSurface( dwWidth, dwHeightDest,
D3DFMT_A8R8G8B8, D3DPOOL_SCRATCH, &pCursorSurface, NULL ) ) )
{
goto End;
}
pcrArrayMask = new DWORD[dwWidth * dwHeightSrc];
ZeroMemory(&bmi, sizeof(bmi));
bmi.bmiHeader.biSize = sizeof(bmi.bmiHeader);
bmi.bmiHeader.biWidth = dwWidth;
bmi.bmiHeader.biHeight = dwHeightSrc;
bmi.bmiHeader.biPlanes = 1;
bmi.bmiHeader.biBitCount = 32;
bmi.bmiHeader.biCompression = BI_RGB;
hdcScreen = GetDC( NULL );
hdcMask = CreateCompatibleDC( hdcScreen );
if( hdcMask == NULL )
{
hr = E_FAIL;
goto End;
}
hgdiobjOld = SelectObject(hdcMask, iconinfo.hbmMask);
GetDIBits(hdcMask, iconinfo.hbmMask, 0, dwHeightSrc,
pcrArrayMask, &bmi, DIB_RGB_COLORS);
SelectObject(hdcMask, hgdiobjOld);
if (!bBWCursor)
{
pcrArrayColor = new DWORD[dwWidth * dwHeightDest];
hdcColor = CreateCompatibleDC( hdcScreen );
if( hdcColor == NULL )
{
hr = E_FAIL;
goto End;
}
SelectObject(hdcColor, iconinfo.hbmColor);
GetDIBits(hdcColor, iconinfo.hbmColor, 0, dwHeightDest,
pcrArrayColor, &bmi, DIB_RGB_COLORS);
}
// Transfer cursor image into the surface
D3DLOCKED_RECT lr;
pCursorSurface->LockRect( &lr, NULL, 0 );
pBitmap = (DWORD*)lr.pBits;
for( y = 0; y < dwHeightDest; y++ )
{
for( x = 0; x < dwWidth; x++ )
{
if (bBWCursor)
{
crColor = pcrArrayMask[dwWidth*(dwHeightDest-1-y) + x];
crMask = pcrArrayMask[dwWidth*(dwHeightSrc-1-y) + x];
}
else
{
crColor = pcrArrayColor[dwWidth*(dwHeightDest-1-y) + x];
crMask = pcrArrayMask[dwWidth*(dwHeightDest-1-y) + x];
}
if (crMask == 0)
pBitmap[dwWidth*y + x] = 0xff000000 | crColor;
else
pBitmap[dwWidth*y + x] = 0x00000000;
// It may be helpful to make the D3D cursor look slightly
// different from the Windows cursor so you can distinguish
// between the two when developing/testing code. When
// bAddWatermark is TRUE, the following code adds some
// small grey "D3D" characters to the upper-left corner of
// the D3D cursor image.
if( bAddWatermark && x < 12 && y < 5 )
{
// 11.. 11.. 11.. .... CCC0
// 1.1. ..1. 1.1. .... A2A0
// 1.1. .1.. 1.1. .... A4A0
// 1.1. ..1. 1.1. .... A2A0
// 11.. 11.. 11.. .... CCC0
const WORD wMask[5] = { 0xccc0, 0xa2a0, 0xa4a0, 0xa2a0, 0xccc0 };
if( wMask[y] & (1 << (15 - x)) )
{
pBitmap[dwWidth*y + x] |= 0xff808080;
}
}
}
}
pCursorSurface->UnlockRect();
// Set the device cursor
if( FAILED( hr = pd3dDevice->SetCursorProperties( iconinfo.xHotspot,
iconinfo.yHotspot, pCursorSurface ) ) )
{
goto End;
}
hr = S_OK;
End:
if( iconinfo.hbmMask != NULL )
DeleteObject( iconinfo.hbmMask );
if( iconinfo.hbmColor != NULL )
DeleteObject( iconinfo.hbmColor );
if( hdcScreen != NULL )
ReleaseDC( NULL, hdcScreen );
if( hdcColor != NULL )
DeleteDC( hdcColor );
if( hdcMask != NULL )
DeleteDC( hdcMask );
SAFE_DELETE_ARRAY( pcrArrayColor );
SAFE_DELETE_ARRAY( pcrArrayMask );
SAFE_RELEASE( pCursorSurface );
return hr;
}
//-----------------------------------------------------------------------------
// Name: D3DFormatToString
// Desc: Returns the string for the given D3DFORMAT.
//-----------------------------------------------------------------------------
TCHAR* D3DUtil_D3DFormatToString( D3DFORMAT format, bool bWithPrefix )
{
TCHAR* pstr = NULL;
switch( format )
{
case D3DFMT_UNKNOWN: pstr = TEXT("D3DFMT_UNKNOWN"); break;
case D3DFMT_R8G8B8: pstr = TEXT("D3DFMT_R8G8B8"); break;
case D3DFMT_A8R8G8B8: pstr = TEXT("D3DFMT_A8R8G8B8"); break;
case D3DFMT_X8R8G8B8: pstr = TEXT("D3DFMT_X8R8G8B8"); break;
case D3DFMT_R5G6B5: pstr = TEXT("D3DFMT_R5G6B5"); break;
case D3DFMT_X1R5G5B5: pstr = TEXT("D3DFMT_X1R5G5B5"); break;
case D3DFMT_A1R5G5B5: pstr = TEXT("D3DFMT_A1R5G5B5"); break;
case D3DFMT_A4R4G4B4: pstr = TEXT("D3DFMT_A4R4G4B4"); break;
case D3DFMT_R3G3B2: pstr = TEXT("D3DFMT_R3G3B2"); break;
case D3DFMT_A8: pstr = TEXT("D3DFMT_A8"); break;
case D3DFMT_A8R3G3B2: pstr = TEXT("D3DFMT_A8R3G3B2"); break;
case D3DFMT_X4R4G4B4: pstr = TEXT("D3DFMT_X4R4G4B4"); break;
case D3DFMT_A2B10G10R10: pstr = TEXT("D3DFMT_A2B10G10R10"); break;
case D3DFMT_A8B8G8R8: pstr = TEXT("D3DFMT_A8B8G8R8"); break;
case D3DFMT_X8B8G8R8: pstr = TEXT("D3DFMT_X8B8G8R8"); break;
case D3DFMT_G16R16: pstr = TEXT("D3DFMT_G16R16"); break;
case D3DFMT_A2R10G10B10: pstr = TEXT("D3DFMT_A2R10G10B10"); break;
case D3DFMT_A16B16G16R16: pstr = TEXT("D3DFMT_A16B16G16R16"); break;
case D3DFMT_A8P8: pstr = TEXT("D3DFMT_A8P8"); break;
case D3DFMT_P8: pstr = TEXT("D3DFMT_P8"); break;
case D3DFMT_L8: pstr = TEXT("D3DFMT_L8"); break;
case D3DFMT_A8L8: pstr = TEXT("D3DFMT_A8L8"); break;
case D3DFMT_A4L4: pstr = TEXT("D3DFMT_A4L4"); break;
case D3DFMT_V8U8: pstr = TEXT("D3DFMT_V8U8"); break;
case D3DFMT_L6V5U5: pstr = TEXT("D3DFMT_L6V5U5"); break;
case D3DFMT_X8L8V8U8: pstr = TEXT("D3DFMT_X8L8V8U8"); break;
case D3DFMT_Q8W8V8U8: pstr = TEXT("D3DFMT_Q8W8V8U8"); break;
case D3DFMT_V16U16: pstr = TEXT("D3DFMT_V16U16"); break;
case D3DFMT_A2W10V10U10: pstr = TEXT("D3DFMT_A2W10V10U10"); break;
case D3DFMT_UYVY: pstr = TEXT("D3DFMT_UYVY"); break;
case D3DFMT_YUY2: pstr = TEXT("D3DFMT_YUY2"); break;
case D3DFMT_DXT1: pstr = TEXT("D3DFMT_DXT1"); break;
case D3DFMT_DXT2: pstr = TEXT("D3DFMT_DXT2"); break;
case D3DFMT_DXT3: pstr = TEXT("D3DFMT_DXT3"); break;
case D3DFMT_DXT4: pstr = TEXT("D3DFMT_DXT4"); break;
case D3DFMT_DXT5: pstr = TEXT("D3DFMT_DXT5"); break;
case D3DFMT_D16_LOCKABLE: pstr = TEXT("D3DFMT_D16_LOCKABLE"); break;
case D3DFMT_D32: pstr = TEXT("D3DFMT_D32"); break;
case D3DFMT_D15S1: pstr = TEXT("D3DFMT_D15S1"); break;
case D3DFMT_D24S8: pstr = TEXT("D3DFMT_D24S8"); break;
case D3DFMT_D24X8: pstr = TEXT("D3DFMT_D24X8"); break;
case D3DFMT_D24X4S4: pstr = TEXT("D3DFMT_D24X4S4"); break;
case D3DFMT_D16: pstr = TEXT("D3DFMT_D16"); break;
case D3DFMT_L16: pstr = TEXT("D3DFMT_L16"); break;
case D3DFMT_VERTEXDATA: pstr = TEXT("D3DFMT_VERTEXDATA"); break;
case D3DFMT_INDEX16: pstr = TEXT("D3DFMT_INDEX16"); break;
case D3DFMT_INDEX32: pstr = TEXT("D3DFMT_INDEX32"); break;
case D3DFMT_Q16W16V16U16: pstr = TEXT("D3DFMT_Q16W16V16U16"); break;
case D3DFMT_MULTI2_ARGB8: pstr = TEXT("D3DFMT_MULTI2_ARGB8"); break;
case D3DFMT_R16F: pstr = TEXT("D3DFMT_R16F"); break;
case D3DFMT_G16R16F: pstr = TEXT("D3DFMT_G16R16F"); break;
case D3DFMT_A16B16G16R16F: pstr = TEXT("D3DFMT_A16B16G16R16F"); break;
case D3DFMT_R32F: pstr = TEXT("D3DFMT_R32F"); break;
case D3DFMT_G32R32F: pstr = TEXT("D3DFMT_G32R32F"); break;
case D3DFMT_A32B32G32R32F: pstr = TEXT("D3DFMT_A32B32G32R32F"); break;
case D3DFMT_CxV8U8: pstr = TEXT("D3DFMT_CxV8U8"); break;
default: pstr = TEXT("Unknown format"); break;
}
if( bWithPrefix || _tcsstr( pstr, TEXT("D3DFMT_") )== NULL )
return pstr;
else
return pstr + lstrlen( TEXT("D3DFMT_") );
}
//-----------------------------------------------------------------------------
// Name: D3DXQuaternionUnitAxisToUnitAxis2
// Desc: Axis to axis quaternion double angle (no normalization)
// Takes two points on unit sphere an angle THETA apart, returns
// quaternion that represents a rotation around cross product by 2*THETA.
//-----------------------------------------------------------------------------
inline D3DXQUATERNION* WINAPI D3DXQuaternionUnitAxisToUnitAxis2
( D3DXQUATERNION *pOut, const D3DXVECTOR3 *pvFrom, const D3DXVECTOR3 *pvTo)
{
D3DXVECTOR3 vAxis;
D3DXVec3Cross(&vAxis, pvFrom, pvTo); // proportional to sin(theta)
pOut->x = vAxis.x;
pOut->y = vAxis.y;
pOut->z = vAxis.z;
pOut->w = D3DXVec3Dot( pvFrom, pvTo );
return pOut;
}
//-----------------------------------------------------------------------------
// Name: D3DXQuaternionAxisToAxis
// Desc: Axis to axis quaternion
// Takes two points on unit sphere an angle THETA apart, returns
// quaternion that represents a rotation around cross product by theta.
//-----------------------------------------------------------------------------
inline D3DXQUATERNION* WINAPI D3DXQuaternionAxisToAxis
( D3DXQUATERNION *pOut, const D3DXVECTOR3 *pvFrom, const D3DXVECTOR3 *pvTo)
{
D3DXVECTOR3 vA, vB;
D3DXVec3Normalize(&vA, pvFrom);
D3DXVec3Normalize(&vB, pvTo);
D3DXVECTOR3 vHalf(vA + vB);
D3DXVec3Normalize(&vHalf, &vHalf);
return D3DXQuaternionUnitAxisToUnitAxis2(pOut, &vA, &vHalf);
}
//-----------------------------------------------------------------------------
// Name:
// Desc:
//-----------------------------------------------------------------------------
CD3DArcBall::CD3DArcBall()
{
Init();
}
//-----------------------------------------------------------------------------
// Name:
// Desc:
//-----------------------------------------------------------------------------
void CD3DArcBall::Init()
{
D3DXQuaternionIdentity( &m_qDown );
D3DXQuaternionIdentity( &m_qNow );
D3DXMatrixIdentity( &m_matRotation );
D3DXMatrixIdentity( &m_matRotationDelta );
D3DXMatrixIdentity( &m_matTranslation );
D3DXMatrixIdentity( &m_matTranslationDelta );
m_bDrag = FALSE;
m_fRadiusTranslation = 1.0f;
m_bRightHanded = FALSE;
}
//-----------------------------------------------------------------------------
// Name:
// Desc:
//-----------------------------------------------------------------------------
VOID CD3DArcBall::SetWindow( int iWidth, int iHeight, float fRadius )
{
// Set ArcBall info
m_iWidth = iWidth;
m_iHeight = iHeight;
m_fRadius = fRadius;
}
//-----------------------------------------------------------------------------
// Name:
// Desc:
//-----------------------------------------------------------------------------
D3DXVECTOR3 CD3DArcBall::ScreenToVector( int sx, int sy )
{
// Scale to screen
FLOAT x = -(sx - m_iWidth/2) / (m_fRadius*m_iWidth/2);
FLOAT y = (sy - m_iHeight/2) / (m_fRadius*m_iHeight/2);
if( m_bRightHanded )
{
x = -x;
y = -y;
}
FLOAT z = 0.0f;
FLOAT mag = x*x + y*y;
if( mag > 1.0f )
{
FLOAT scale = 1.0f/sqrtf(mag);
x *= scale;
y *= scale;
}
else
z = sqrtf( 1.0f - mag );
// Return vector
return D3DXVECTOR3( x, y, z );
}
//-----------------------------------------------------------------------------
// Name:
// Desc:
//-----------------------------------------------------------------------------
VOID CD3DArcBall::SetRadius( FLOAT fRadius )
{
m_fRadiusTranslation = fRadius;
}
//-----------------------------------------------------------------------------
// Name:
// Desc:
//-----------------------------------------------------------------------------
LRESULT CD3DArcBall::HandleMouseMessages( HWND hWnd, UINT uMsg, WPARAM wParam,
LPARAM lParam )
{
UNREFERENCED_PARAMETER( hWnd );
static int iCurMouseX; // Saved mouse position
static int iCurMouseY;
static D3DXVECTOR3 s_vDown; // Button down vector
// Current mouse position
int iMouseX = GET_X_LPARAM(lParam);
int iMouseY = GET_Y_LPARAM(lParam);
switch( uMsg )
{
case WM_RBUTTONDOWN:
case WM_MBUTTONDOWN:
// Store off the position of the cursor when the button is pressed
iCurMouseX = iMouseX;
iCurMouseY = iMouseY;
return TRUE;
case WM_LBUTTONDOWN:
// Start drag mode
m_bDrag = TRUE;
s_vDown = ScreenToVector( iMouseX, iMouseY );
m_qDown = m_qNow;
return TRUE;
case WM_LBUTTONUP:
// End drag mode
m_bDrag = FALSE;
return TRUE;
case WM_MOUSEMOVE:
// Drag object
if( MK_LBUTTON&wParam )
{
if( m_bDrag )
{
// recompute m_qNow
D3DXVECTOR3 vCur = ScreenToVector( iMouseX, iMouseY );
D3DXQUATERNION qAxisToAxis;
D3DXQuaternionAxisToAxis(&qAxisToAxis, &s_vDown, &vCur);
m_qNow = m_qDown;
m_qNow *= qAxisToAxis;
D3DXMatrixRotationQuaternion(&m_matRotationDelta, &qAxisToAxis);
}
else
D3DXMatrixIdentity(&m_matRotationDelta);
D3DXMatrixRotationQuaternion(&m_matRotation, &m_qNow);
m_bDrag = TRUE;
}
else if( (MK_RBUTTON&wParam) || (MK_MBUTTON&wParam) )
{
// Normalize based on size of window and bounding sphere radius
FLOAT fDeltaX = ( iCurMouseX-iMouseX ) * m_fRadiusTranslation / m_iWidth;
FLOAT fDeltaY = ( iCurMouseY-iMouseY ) * m_fRadiusTranslation / m_iHeight;
if( wParam & MK_RBUTTON )
{
D3DXMatrixTranslation( &m_matTranslationDelta, -2*fDeltaX, 2*fDeltaY, 0.0f );
D3DXMatrixMultiply( &m_matTranslation, &m_matTranslation, &m_matTranslationDelta );
}
else // wParam & MK_MBUTTON
{
D3DXMatrixTranslation( &m_matTranslationDelta, 0.0f, 0.0f, 5*fDeltaY );
D3DXMatrixMultiply( &m_matTranslation, &m_matTranslation, &m_matTranslationDelta );
}
// Store mouse coordinate
iCurMouseX = iMouseX;
iCurMouseY = iMouseY;
}
return TRUE;
}
return FALSE;
}
//-----------------------------------------------------------------------------
// Name:
// Desc:
//-----------------------------------------------------------------------------
CD3DCamera::CD3DCamera()
{
// Set attributes for the view matrix
D3DXVECTOR3 vEyePt(0.0f,0.0f,0.0f);
D3DXVECTOR3 vLookatPt(0.0f,0.0f,1.0f);
D3DXVECTOR3 vUpVec(0.0f,1.0f,0.0f);
SetViewParams( vEyePt, vLookatPt, vUpVec );
// Set attributes for the projection matrix
SetProjParams( D3DX_PI/4, 1.0f, 1.0f, 1000.0f );
}
//-----------------------------------------------------------------------------
// Name:
// Desc:
//-----------------------------------------------------------------------------
VOID CD3DCamera::SetViewParams( D3DXVECTOR3 &vEyePt, D3DXVECTOR3& vLookatPt,
D3DXVECTOR3& vUpVec )
{
// Set attributes for the view matrix
m_vEyePt = vEyePt;
m_vLookatPt = vLookatPt;
m_vUpVec = vUpVec;
D3DXVECTOR3 vDir = m_vLookatPt - m_vEyePt;
D3DXVec3Normalize( &m_vView, &vDir );
D3DXVec3Cross( &m_vCross, &m_vView, &m_vUpVec );
D3DXMatrixLookAtLH( &m_matView, &m_vEyePt, &m_vLookatPt, &m_vUpVec );
D3DXMatrixInverse( &m_matBillboard, NULL, &m_matView );
m_matBillboard._41 = 0.0f;
m_matBillboard._42 = 0.0f;
m_matBillboard._43 = 0.0f;
}
//-----------------------------------------------------------------------------
// Name:
// Desc:
//-----------------------------------------------------------------------------
VOID CD3DCamera::SetProjParams( FLOAT fFOV, FLOAT fAspect, FLOAT fNearPlane,
FLOAT fFarPlane )
{
// Set attributes for the projection matrix
m_fFOV = fFOV;
m_fAspect = fAspect;
m_fNearPlane = fNearPlane;
m_fFarPlane = fFarPlane;
D3DXMatrixPerspectiveFovLH( &m_matProj, fFOV, fAspect, fNearPlane, fFarPlane );
}
再来看dxutil.h的代码:
//-----------------------------------------------------------------------------
// File: DXUtil.h
//
// Desc: Helper functions and typing shortcuts for DirectX programming.
//
// Copyright (c) 1997-2001 Microsoft Corporation. All rights reserved
//-----------------------------------------------------------------------------
#ifndef DXUTIL_H
#define DXUTIL_H
//-----------------------------------------------------------------------------
// Miscellaneous helper functions
//-----------------------------------------------------------------------------
#define SAFE_DELETE(p) { if(p) { delete (p); (p)=NULL; } }
#define SAFE_DELETE_ARRAY(p) { if(p) { delete[] (p); (p)=NULL; } }
#define SAFE_RELEASE(p) { if(p) { (p)->Release(); (p)=NULL; } }
#ifndef UNDER_CE
//-----------------------------------------------------------------------------
// Name: DXUtil_GetDXSDKMediaPath() and DXUtil_FindMediaFile()
// Desc: Returns the DirectX SDK path, as stored in the system registry
// during the SDK install.
//-----------------------------------------------------------------------------
HRESULT DXUtil_GetDXSDKMediaPathCch( TCHAR* strDest, int cchDest );
HRESULT DXUtil_GetDXSDKMediaPathCb( TCHAR* szDest, int cbDest );
HRESULT DXUtil_FindMediaFileCch( TCHAR* strDestPath, int cchDest, TCHAR* strFilename );
HRESULT DXUtil_FindMediaFileCb( TCHAR* szDestPath, int cbDest, TCHAR* strFilename );
#endif // !UNDER_CE
//-----------------------------------------------------------------------------
// Name: DXUtil_Read*RegKey() and DXUtil_Write*RegKey()
// Desc: Helper functions to read/write a string registry key
//-----------------------------------------------------------------------------
HRESULT DXUtil_WriteStringRegKey( HKEY hKey, TCHAR* strRegName, TCHAR* strValue );
HRESULT DXUtil_WriteIntRegKey( HKEY hKey, TCHAR* strRegName, DWORD dwValue );
HRESULT DXUtil_WriteGuidRegKey( HKEY hKey, TCHAR* strRegName, GUID guidValue );
HRESULT DXUtil_WriteBoolRegKey( HKEY hKey, TCHAR* strRegName, BOOL bValue );
HRESULT DXUtil_ReadStringRegKeyCch( HKEY hKey, TCHAR* strRegName, TCHAR* strDest, DWORD cchDest, TCHAR* strDefault );
HRESULT DXUtil_ReadStringRegKeyCb( HKEY hKey, TCHAR* strRegName, TCHAR* strDest, DWORD cbDest, TCHAR* strDefault );
HRESULT DXUtil_ReadIntRegKey( HKEY hKey, TCHAR* strRegName, DWORD* pdwValue, DWORD dwDefault );
HRESULT DXUtil_ReadGuidRegKey( HKEY hKey, TCHAR* strRegName, GUID* pGuidValue, GUID& guidDefault );
HRESULT DXUtil_ReadBoolRegKey( HKEY hKey, TCHAR* strRegName, BOOL* pbValue, BOOL bDefault );
//-----------------------------------------------------------------------------
// Name: DXUtil_Timer()
// Desc: Performs timer opertations. Use the following commands:
// TIMER_RESET - to reset the timer
// TIMER_START - to start the timer
// TIMER_STOP - to stop (or pause) the timer
// TIMER_ADVANCE - to advance the timer by 0.1 seconds
// TIMER_GETABSOLUTETIME - to get the absolute system time
// TIMER_GETAPPTIME - to get the current time
// TIMER_GETELAPSEDTIME - to get the time that elapsed between
// TIMER_GETELAPSEDTIME calls
//-----------------------------------------------------------------------------
enum TIMER_COMMAND { TIMER_RESET, TIMER_START, TIMER_STOP, TIMER_ADVANCE,
TIMER_GETABSOLUTETIME, TIMER_GETAPPTIME, TIMER_GETELAPSEDTIME };
FLOAT __stdcall DXUtil_Timer( TIMER_COMMAND command );
//-----------------------------------------------------------------------------
// UNICODE support for converting between CHAR, TCHAR, and WCHAR strings
//-----------------------------------------------------------------------------
HRESULT DXUtil_ConvertAnsiStringToWideCch( WCHAR* wstrDestination, const CHAR* strSource, int cchDestChar );
HRESULT DXUtil_ConvertWideStringToAnsiCch( CHAR* strDestination, const WCHAR* wstrSource, int cchDestChar );
HRESULT DXUtil_ConvertGenericStringToAnsiCch( CHAR* strDestination, const TCHAR* tstrSource, int cchDestChar );
HRESULT DXUtil_ConvertGenericStringToWideCch( WCHAR* wstrDestination, const TCHAR* tstrSource, int cchDestChar );
HRESULT DXUtil_ConvertAnsiStringToGenericCch( TCHAR* tstrDestination, const CHAR* strSource, int cchDestChar );
HRESULT DXUtil_ConvertWideStringToGenericCch( TCHAR* tstrDestination, const WCHAR* wstrSource, int cchDestChar );
HRESULT DXUtil_ConvertAnsiStringToWideCb( WCHAR* wstrDestination, const CHAR* strSource, int cbDestChar );
HRESULT DXUtil_ConvertWideStringToAnsiCb( CHAR* strDestination, const WCHAR* wstrSource, int cbDestChar );
HRESULT DXUtil_ConvertGenericStringToAnsiCb( CHAR* strDestination, const TCHAR* tstrSource, int cbDestChar );
HRESULT DXUtil_ConvertGenericStringToWideCb( WCHAR* wstrDestination, const TCHAR* tstrSource, int cbDestChar );
HRESULT DXUtil_ConvertAnsiStringToGenericCb( TCHAR* tstrDestination, const CHAR* strSource, int cbDestChar );
HRESULT DXUtil_ConvertWideStringToGenericCb( TCHAR* tstrDestination, const WCHAR* wstrSource, int cbDestChar );
//-----------------------------------------------------------------------------
// Readme functions
//-----------------------------------------------------------------------------
VOID DXUtil_LaunchReadme( HWND hWnd, TCHAR* strLoc = NULL );
//-----------------------------------------------------------------------------
// GUID to String converting
//-----------------------------------------------------------------------------
HRESULT DXUtil_ConvertGUIDToStringCch( const GUID* pGuidSrc, TCHAR* strDest, int cchDestChar );
HRESULT DXUtil_ConvertGUIDToStringCb( const GUID* pGuidSrc, TCHAR* strDest, int cbDestChar );
HRESULT DXUtil_ConvertStringToGUID( const TCHAR* strIn, GUID* pGuidOut );
//-----------------------------------------------------------------------------
// Debug printing support
// See dxerr9.h for more debug printing support
//-----------------------------------------------------------------------------
VOID DXUtil_Trace( TCHAR* strMsg, ... );
#if defined(DEBUG) | defined(_DEBUG)
#define DXTRACE DXUtil_Trace
#else
#define DXTRACE sizeof
#endif
//-----------------------------------------------------------------------------
// Name: ArrayListType
// Desc: Indicates how data should be stored in a CArrayList
//-----------------------------------------------------------------------------
enum ArrayListType
{
AL_VALUE, // entry data is copied into the list
AL_REFERENCE, // entry pointers are copied into the list
};
//-----------------------------------------------------------------------------
// Name: CArrayList
// Desc: A growable array
//-----------------------------------------------------------------------------
class CArrayList
{
protected:
ArrayListType m_ArrayListType;
void* m_pData;
UINT m_BytesPerEntry;
UINT m_NumEntries;
UINT m_NumEntriesAllocated;
public:
CArrayList( ArrayListType Type, UINT BytesPerEntry = 0 );
~CArrayList( void );
HRESULT Add( void* pEntry );
void Remove( UINT Entry );
void* GetPtr( UINT Entry );
UINT Count( void ) { return m_NumEntries; }
bool Contains( void* pEntryData );
void Clear( void ) { m_NumEntries = 0; }
};
//-----------------------------------------------------------------------------
// WinCE build support
//-----------------------------------------------------------------------------
#ifdef UNDER_CE
#define CheckDlgButton(hdialog, id, state) ::SendMessage(::GetDlgItem(hdialog, id), BM_SETCHECK, state, 0)
#define IsDlgButtonChecked(hdialog, id) ::SendMessage(::GetDlgItem(hdialog, id), BM_GETCHECK, 0L, 0L)
#define GETTIMESTAMP GetTickCount
#define _TWINCE(x) _T(x)
__inline int GetScrollPos(HWND hWnd, int nBar)
{
SCROLLINFO si;
memset(&si, 0, sizeof(si));
si.cbSize = sizeof(si);
si.fMask = SIF_POS;
if (!GetScrollInfo(hWnd, nBar, &si))
{
return 0;
}
else
{
return si.nPos;
}
}
#else // !UNDER_CE
#define GETTIMESTAMP timeGetTime
#define _TWINCE(x) x
#endif // UNDER_CE
#endif // DXUTIL_H
再来看dxutil.cpp的代码;
//-----------------------------------------------------------------------------
// File: DXUtil.cpp
//
// Desc: Shortcut macros and functions for using DX objects
//
// Copyright (c) Microsoft Corporation. All rights reserved
//-----------------------------------------------------------------------------
#ifndef STRICT
#define STRICT
#endif // !STRICT
#include <windows.h>
#include <mmsystem.h>
#include <tchar.h>
#include <stdio.h>
#include <stdarg.h>
#include "DXUtil.h"
#ifdef UNICODE
typedef HINSTANCE (WINAPI* LPShellExecute)(HWND hwnd, LPCWSTR lpOperation, LPCWSTR lpFile, LPCWSTR lpParameters, LPCWSTR lpDirectory, INT nShowCmd);
#else
typedef HINSTANCE (WINAPI* LPShellExecute)(HWND hwnd, LPCSTR lpOperation, LPCSTR lpFile, LPCSTR lpParameters, LPCSTR lpDirectory, INT nShowCmd);
#endif
#ifndef UNDER_CE
//-----------------------------------------------------------------------------
// Name: DXUtil_GetDXSDKMediaPathCch()
// Desc: Returns the DirectX SDK media path
// cchDest is the size in TCHARs of strDest. Be careful not to
// pass in sizeof(strDest) on UNICODE builds.
//-----------------------------------------------------------------------------
HRESULT DXUtil_GetDXSDKMediaPathCch( TCHAR* strDest, int cchDest )
{
if( strDest == NULL || cchDest < 1 )
return E_INVALIDARG;
lstrcpy( strDest, TEXT("") );
// Open the appropriate registry key
HKEY hKey;
LONG lResult = RegOpenKeyEx( HKEY_LOCAL_MACHINE,
_T("Software\\Microsoft\\DirectX SDK"),
0, KEY_READ, &hKey );
if( ERROR_SUCCESS != lResult )
return E_FAIL;
DWORD dwType;
DWORD dwSize = cchDest * sizeof(TCHAR);
lResult = RegQueryValueEx( hKey, _T("DX9SDK Samples Path"), NULL,
&dwType, (BYTE*)strDest, &dwSize );
strDest[cchDest-1] = 0; // RegQueryValueEx doesn't NULL term if buffer too small
RegCloseKey( hKey );
if( ERROR_SUCCESS != lResult )
return E_FAIL;
const TCHAR* strMedia = _T("\\Media\\");
if( lstrlen(strDest) + lstrlen(strMedia) < cchDest )
_tcscat( strDest, strMedia );
else
return E_INVALIDARG;
return S_OK;
}
#endif // !UNDER_CE
#ifndef UNDER_CE
//-----------------------------------------------------------------------------
// Name: DXUtil_FindMediaFileCch()
// Desc: Returns a valid path to a DXSDK media file
// cchDest is the size in TCHARs of strDestPath. Be careful not to
// pass in sizeof(strDest) on UNICODE builds.
//-----------------------------------------------------------------------------
HRESULT DXUtil_FindMediaFileCch( TCHAR* strDestPath, int cchDest, TCHAR* strFilename )
{
HRESULT hr;
HANDLE file;
TCHAR* strShortNameTmp = NULL;
TCHAR strShortName[MAX_PATH];
int cchPath;
if( NULL==strFilename || NULL==strDestPath || cchDest < 1 )
return E_INVALIDARG;
lstrcpy( strDestPath, TEXT("") );
lstrcpy( strShortName, TEXT("") );
// Build full path name from strFileName (strShortName will be just the leaf filename)
cchPath = GetFullPathName(strFilename, cchDest, strDestPath, &strShortNameTmp);
if ((cchPath == 0) || (cchDest <= cchPath))
return E_FAIL;
if( strShortNameTmp )
lstrcpyn( strShortName, strShortNameTmp, MAX_PATH );
// first try to find the filename given a full path
file = CreateFile( strDestPath, GENERIC_READ, FILE_SHARE_READ, NULL,
OPEN_EXISTING, 0, NULL );
if( INVALID_HANDLE_VALUE != file )
{
CloseHandle( file );
return S_OK;
}
// next try to find the filename in the current working directory (path stripped)
file = CreateFile( strShortName, GENERIC_READ, FILE_SHARE_READ, NULL,
OPEN_EXISTING, 0, NULL );
if( INVALID_HANDLE_VALUE != file )
{
_tcsncpy( strDestPath, strShortName, cchDest );
strDestPath[cchDest-1] = 0; // _tcsncpy doesn't NULL term if it runs out of space
CloseHandle( file );
return S_OK;
}
// last, check if the file exists in the media directory
if( FAILED( hr = DXUtil_GetDXSDKMediaPathCch( strDestPath, cchDest ) ) )
return hr;
if( lstrlen(strDestPath) + lstrlen(strShortName) < cchDest )
lstrcat( strDestPath, strShortName );
else
return E_INVALIDARG;
file = CreateFile( strDestPath, GENERIC_READ, FILE_SHARE_READ, NULL,
OPEN_EXISTING, 0, NULL );
if( INVALID_HANDLE_VALUE != file )
{
CloseHandle( file );
return S_OK;
}
// On failure, just return the file as the path
_tcsncpy( strDestPath, strFilename, cchDest );
strDestPath[cchDest-1] = 0; // _tcsncpy doesn't NULL term if it runs out of space
return HRESULT_FROM_WIN32( ERROR_FILE_NOT_FOUND );
}
#endif // !UNDER_CE
//-----------------------------------------------------------------------------
// Name: DXUtil_ReadStringRegKeyCch()
// Desc: Helper function to read a registry key string
// cchDest is the size in TCHARs of strDest. Be careful not to
// pass in sizeof(strDest) on UNICODE builds.
//-----------------------------------------------------------------------------
HRESULT DXUtil_ReadStringRegKeyCch( HKEY hKey, TCHAR* strRegName, TCHAR* strDest,
DWORD cchDest, TCHAR* strDefault )
{
DWORD dwType;
DWORD cbDest = cchDest * sizeof(TCHAR);
if( ERROR_SUCCESS != RegQueryValueEx( hKey, strRegName, 0, &dwType,
(BYTE*)strDest, &cbDest ) )
{
_tcsncpy( strDest, strDefault, cchDest );
strDest[cchDest-1] = 0;
if( dwType != REG_SZ )
return E_FAIL;
return S_OK;
}
return E_FAIL;
}
//-----------------------------------------------------------------------------
// Name: DXUtil_WriteStringRegKey()
// Desc: Helper function to write a registry key string
//-----------------------------------------------------------------------------
HRESULT DXUtil_WriteStringRegKey( HKEY hKey, TCHAR* strRegName,
TCHAR* strValue )
{
if( NULL == strValue )
return E_INVALIDARG;
DWORD cbValue = ((DWORD)_tcslen(strValue)+1) * sizeof(TCHAR);
if( ERROR_SUCCESS != RegSetValueEx( hKey, strRegName, 0, REG_SZ,
(BYTE*)strValue, cbValue ) )
return E_FAIL;
return S_OK;
}
//-----------------------------------------------------------------------------
// Name: DXUtil_ReadIntRegKey()
// Desc: Helper function to read a registry key int
//-----------------------------------------------------------------------------
HRESULT DXUtil_ReadIntRegKey( HKEY hKey, TCHAR* strRegName, DWORD* pdwDest,
DWORD dwDefault )
{
DWORD dwType;
DWORD dwLength = sizeof(DWORD);
if( ERROR_SUCCESS != RegQueryValueEx( hKey, strRegName, 0, &dwType,
(BYTE*)pdwDest, &dwLength ) )
{
*pdwDest = dwDefault;
if( dwType != REG_DWORD )
return E_FAIL;
return S_OK;
}
return E_FAIL;
}
//-----------------------------------------------------------------------------
// Name: DXUtil_WriteIntRegKey()
// Desc: Helper function to write a registry key int
//-----------------------------------------------------------------------------
HRESULT DXUtil_WriteIntRegKey( HKEY hKey, TCHAR* strRegName, DWORD dwValue )
{
if( ERROR_SUCCESS != RegSetValueEx( hKey, strRegName, 0, REG_DWORD,
(BYTE*)&dwValue, sizeof(DWORD) ) )
return E_FAIL;
return S_OK;
}
//-----------------------------------------------------------------------------
// Name: DXUtil_ReadBoolRegKey()
// Desc: Helper function to read a registry key BOOL
//-----------------------------------------------------------------------------
HRESULT DXUtil_ReadBoolRegKey( HKEY hKey, TCHAR* strRegName, BOOL* pbDest,
BOOL bDefault )
{
DWORD dwType;
DWORD dwLength = sizeof(BOOL);
if( ERROR_SUCCESS != RegQueryValueEx( hKey, strRegName, 0, &dwType,
(BYTE*)pbDest, &dwLength ) )
{
*pbDest = bDefault;
if( dwType != REG_DWORD )
return E_FAIL;
return S_OK;
}
return E_FAIL;
}
//-----------------------------------------------------------------------------
// Name: DXUtil_WriteBoolRegKey()
// Desc: Helper function to write a registry key BOOL
//-----------------------------------------------------------------------------
HRESULT DXUtil_WriteBoolRegKey( HKEY hKey, TCHAR* strRegName, BOOL bValue )
{
if( ERROR_SUCCESS != RegSetValueEx( hKey, strRegName, 0, REG_DWORD,
(BYTE*)&bValue, sizeof(BOOL) ) )
return E_FAIL;
return S_OK;
}
//-----------------------------------------------------------------------------
// Name: DXUtil_ReadGuidRegKey()
// Desc: Helper function to read a registry key guid
//-----------------------------------------------------------------------------
HRESULT DXUtil_ReadGuidRegKey( HKEY hKey, TCHAR* strRegName, GUID* pGuidDest,
GUID& guidDefault )
{
DWORD dwType;
DWORD dwLength = sizeof(GUID);
if( ERROR_SUCCESS != RegQueryValueEx( hKey, strRegName, 0, &dwType,
(LPBYTE) pGuidDest, &dwLength ) )
{
*pGuidDest = guidDefault;
if( dwType != REG_BINARY )
return E_FAIL;
return S_OK;
}
return E_FAIL;
}
//-----------------------------------------------------------------------------
// Name: DXUtil_WriteGuidRegKey()
// Desc: Helper function to write a registry key guid
//-----------------------------------------------------------------------------
HRESULT DXUtil_WriteGuidRegKey( HKEY hKey, TCHAR* strRegName, GUID guidValue )
{
if( ERROR_SUCCESS != RegSetValueEx( hKey, strRegName, 0, REG_BINARY,
(BYTE*)&guidValue, sizeof(GUID) ) )
return E_FAIL;
return S_OK;
}
//-----------------------------------------------------------------------------
// Name: DXUtil_Timer()
// Desc: Performs timer opertations. Use the following commands:
// TIMER_RESET - to reset the timer
// TIMER_START - to start the timer
// TIMER_STOP - to stop (or pause) the timer
// TIMER_ADVANCE - to advance the timer by 0.1 seconds
// TIMER_GETABSOLUTETIME - to get the absolute system time
// TIMER_GETAPPTIME - to get the current time
// TIMER_GETELAPSEDTIME - to get the time that elapsed between
// TIMER_GETELAPSEDTIME calls
//-----------------------------------------------------------------------------
FLOAT __stdcall DXUtil_Timer( TIMER_COMMAND command )
{
static BOOL m_bTimerInitialized = FALSE;
static BOOL m_bUsingQPF = FALSE;
static BOOL m_bTimerStopped = TRUE;
static LONGLONG m_llQPFTicksPerSec = 0;
// Initialize the timer
if( FALSE == m_bTimerInitialized )
{
m_bTimerInitialized = TRUE;
// Use QueryPerformanceFrequency() to get frequency of timer. If QPF is
// not supported, we will timeGetTime() which returns milliseconds.
LARGE_INTEGER qwTicksPerSec;
m_bUsingQPF = QueryPerformanceFrequency( &qwTicksPerSec );
if( m_bUsingQPF )
m_llQPFTicksPerSec = qwTicksPerSec.QuadPart;
}
if( m_bUsingQPF )
{
static LONGLONG m_llStopTime = 0;
static LONGLONG m_llLastElapsedTime = 0;
static LONGLONG m_llBaseTime = 0;
double fTime;
double fElapsedTime;
LARGE_INTEGER qwTime;
// Get either the current time or the stop time, depending
// on whether we're stopped and what command was sent
if( m_llStopTime != 0 && command != TIMER_START && command != TIMER_GETABSOLUTETIME)
qwTime.QuadPart = m_llStopTime;
else
QueryPerformanceCounter( &qwTime );
// Return the elapsed time
if( command == TIMER_GETELAPSEDTIME )
{
fElapsedTime = (double) ( qwTime.QuadPart - m_llLastElapsedTime ) / (double) m_llQPFTicksPerSec;
m_llLastElapsedTime = qwTime.QuadPart;
return (FLOAT) fElapsedTime;
}
// Return the current time
if( command == TIMER_GETAPPTIME )
{
double fAppTime = (double) ( qwTime.QuadPart - m_llBaseTime ) / (double) m_llQPFTicksPerSec;
return (FLOAT) fAppTime;
}
// Reset the timer
if( command == TIMER_RESET )
{
m_llBaseTime = qwTime.QuadPart;
m_llLastElapsedTime = qwTime.QuadPart;
m_llStopTime = 0;
m_bTimerStopped = FALSE;
return 0.0f;
}
// Start the timer
if( command == TIMER_START )
{
if( m_bTimerStopped )
m_llBaseTime += qwTime.QuadPart - m_llStopTime;
m_llStopTime = 0;
m_llLastElapsedTime = qwTime.QuadPart;
m_bTimerStopped = FALSE;
return 0.0f;
}
// Stop the timer
if( command == TIMER_STOP )
{
if( !m_bTimerStopped )
{
m_llStopTime = qwTime.QuadPart;
m_llLastElapsedTime = qwTime.QuadPart;
m_bTimerStopped = TRUE;
}
return 0.0f;
}
// Advance the timer by 1/10th second
if( command == TIMER_ADVANCE )
{
m_llStopTime += m_llQPFTicksPerSec/10;
return 0.0f;
}
if( command == TIMER_GETABSOLUTETIME )
{
fTime = qwTime.QuadPart / (double) m_llQPFTicksPerSec;
return (FLOAT) fTime;
}
return -1.0f; // Invalid command specified
}
else
{
// Get the time using timeGetTime()
static double m_fLastElapsedTime = 0.0;
static double m_fBaseTime = 0.0;
static double m_fStopTime = 0.0;
double fTime;
double fElapsedTime;
// Get either the current time or the stop time, depending
// on whether we're stopped and what command was sent
if( m_fStopTime != 0.0 && command != TIMER_START && command != TIMER_GETABSOLUTETIME)
fTime = m_fStopTime;
else
fTime = GETTIMESTAMP() * 0.001;
// Return the elapsed time
if( command == TIMER_GETELAPSEDTIME )
{
fElapsedTime = (double) (fTime - m_fLastElapsedTime);
m_fLastElapsedTime = fTime;
return (FLOAT) fElapsedTime;
}
// Return the current time
if( command == TIMER_GETAPPTIME )
{
return (FLOAT) (fTime - m_fBaseTime);
}
// Reset the timer
if( command == TIMER_RESET )
{
m_fBaseTime = fTime;
m_fLastElapsedTime = fTime;
m_fStopTime = 0;
m_bTimerStopped = FALSE;
return 0.0f;
}
// Start the timer
if( command == TIMER_START )
{
if( m_bTimerStopped )
m_fBaseTime += fTime - m_fStopTime;
m_fStopTime = 0.0f;
m_fLastElapsedTime = fTime;
m_bTimerStopped = FALSE;
return 0.0f;
}
// Stop the timer
if( command == TIMER_STOP )
{
if( !m_bTimerStopped )
{
m_fStopTime = fTime;
m_fLastElapsedTime = fTime;
m_bTimerStopped = TRUE;
}
return 0.0f;
}
// Advance the timer by 1/10th second
if( command == TIMER_ADVANCE )
{
m_fStopTime += 0.1f;
return 0.0f;
}
if( command == TIMER_GETABSOLUTETIME )
{
return (FLOAT) fTime;
}
return -1.0f; // Invalid command specified
}
}
//-----------------------------------------------------------------------------
// Name: DXUtil_ConvertAnsiStringToWideCch()
// Desc: This is a UNICODE conversion utility to convert a CHAR string into a
// WCHAR string.
// cchDestChar is the size in TCHARs of wstrDestination. Be careful not to
// pass in sizeof(strDest)
//-----------------------------------------------------------------------------
HRESULT DXUtil_ConvertAnsiStringToWideCch( WCHAR* wstrDestination, const CHAR* strSource,
int cchDestChar )
{
if( wstrDestination==NULL || strSource==NULL || cchDestChar < 1 )
return E_INVALIDARG;
int nResult = MultiByteToWideChar( CP_ACP, 0, strSource, -1,
wstrDestination, cchDestChar );
wstrDestination[cchDestChar-1] = 0;
if( nResult == 0 )
return E_FAIL;
return S_OK;
}
//-----------------------------------------------------------------------------
// Name: DXUtil_ConvertWideStringToAnsi()
// Desc: This is a UNICODE conversion utility to convert a WCHAR string into a
// CHAR string.
// cchDestChar is the size in TCHARs of strDestination
//-----------------------------------------------------------------------------
HRESULT DXUtil_ConvertWideStringToAnsiCch( CHAR* strDestination, const WCHAR* wstrSource,
int cchDestChar )
{
if( strDestination==NULL || wstrSource==NULL || cchDestChar < 1 )
return E_INVALIDARG;
int nResult = WideCharToMultiByte( CP_ACP, 0, wstrSource, -1, strDestination,
cchDestChar*sizeof(CHAR), NULL, NULL );
strDestination[cchDestChar-1] = 0;
if( nResult == 0 )
return E_FAIL;
return S_OK;
}
//-----------------------------------------------------------------------------
// Name: DXUtil_ConvertGenericStringToAnsi()
// Desc: This is a UNICODE conversion utility to convert a TCHAR string into a
// CHAR string.
// cchDestChar is the size in TCHARs of strDestination
//-----------------------------------------------------------------------------
HRESULT DXUtil_ConvertGenericStringToAnsiCch( CHAR* strDestination, const TCHAR* tstrSource,
int cchDestChar )
{
if( strDestination==NULL || tstrSource==NULL || cchDestChar < 1 )
return E_INVALIDARG;
#ifdef _UNICODE
return DXUtil_ConvertWideStringToAnsiCch( strDestination, tstrSource, cchDestChar );
#else
strncpy( strDestination, tstrSource, cchDestChar );
strDestination[cchDestChar-1] = '\0';
return S_OK;
#endif
}
//-----------------------------------------------------------------------------
// Name: DXUtil_ConvertGenericStringToWide()
// Desc: This is a UNICODE conversion utility to convert a TCHAR string into a
// WCHAR string.
// cchDestChar is the size in TCHARs of wstrDestination. Be careful not to
// pass in sizeof(strDest)
//-----------------------------------------------------------------------------
HRESULT DXUtil_ConvertGenericStringToWideCch( WCHAR* wstrDestination, const TCHAR* tstrSource,
int cchDestChar )
{
if( wstrDestination==NULL || tstrSource==NULL || cchDestChar < 1 )
return E_INVALIDARG;
#ifdef _UNICODE
wcsncpy( wstrDestination, tstrSource, cchDestChar );
wstrDestination[cchDestChar-1] = L'\0';
return S_OK;
#else
return DXUtil_ConvertAnsiStringToWideCch( wstrDestination, tstrSource, cchDestChar );
#endif
}
//-----------------------------------------------------------------------------
// Name: DXUtil_ConvertAnsiStringToGeneric()
// Desc: This is a UNICODE conversion utility to convert a CHAR string into a
// TCHAR string.
// cchDestChar is the size in TCHARs of tstrDestination. Be careful not to
// pass in sizeof(strDest) on UNICODE builds
//-----------------------------------------------------------------------------
HRESULT DXUtil_ConvertAnsiStringToGenericCch( TCHAR* tstrDestination, const CHAR* strSource,
int cchDestChar )
{
if( tstrDestination==NULL || strSource==NULL || cchDestChar < 1 )
return E_INVALIDARG;
#ifdef _UNICODE
return DXUtil_ConvertAnsiStringToWideCch( tstrDestination, strSource, cchDestChar );
#else
strncpy( tstrDestination, strSource, cchDestChar );
tstrDestination[cchDestChar-1] = '\0';
return S_OK;
#endif
}
//-----------------------------------------------------------------------------
// Name: DXUtil_ConvertAnsiStringToGeneric()
// Desc: This is a UNICODE conversion utility to convert a WCHAR string into a
// TCHAR string.
// cchDestChar is the size in TCHARs of tstrDestination. Be careful not to
// pass in sizeof(strDest) on UNICODE builds
//-----------------------------------------------------------------------------
HRESULT DXUtil_ConvertWideStringToGenericCch( TCHAR* tstrDestination, const WCHAR* wstrSource,
int cchDestChar )
{
if( tstrDestination==NULL || wstrSource==NULL || cchDestChar < 1 )
return E_INVALIDARG;
#ifdef _UNICODE
wcsncpy( tstrDestination, wstrSource, cchDestChar );
tstrDestination[cchDestChar-1] = L'\0';
return S_OK;
#else
return DXUtil_ConvertWideStringToAnsiCch( tstrDestination, wstrSource, cchDestChar );
#endif
}
//-----------------------------------------------------------------------------
// Name: DXUtil_LaunchReadme()
// Desc: Finds and opens the readme.txt for this sample
//-----------------------------------------------------------------------------
VOID DXUtil_LaunchReadme( HWND hWnd, TCHAR* strLoc )
{
#ifdef UNDER_CE
// This is not available on PocketPC
MessageBox( hWnd, TEXT("For operating instructions, please open the ")
TEXT("readme.txt file included with the project."),
TEXT("DirectX SDK Sample"), MB_ICONWARNING | MB_OK );
return;
#else
bool bSuccess = false;
bool bFound = false;
TCHAR strReadmePath[1024];
TCHAR strExeName[MAX_PATH];
TCHAR strExePath[MAX_PATH];
TCHAR strSamplePath[MAX_PATH];
TCHAR* strLastSlash = NULL;
lstrcpy( strReadmePath, TEXT("") );
lstrcpy( strExePath, TEXT("") );
lstrcpy( strExeName, TEXT("") );
lstrcpy( strSamplePath, TEXT("") );
// If the user provided a location for the readme, check there first.
if( strLoc )
{
HKEY hKey;
LONG lResult = RegOpenKeyEx( HKEY_LOCAL_MACHINE,
_T("Software\\Microsoft\\DirectX SDK"),
0, KEY_READ, &hKey );
if( ERROR_SUCCESS == lResult )
{
DWORD dwType;
DWORD dwSize = MAX_PATH * sizeof(TCHAR);
lResult = RegQueryValueEx( hKey, _T("DX9SDK Samples Path"), NULL,
&dwType, (BYTE*)strSamplePath, &dwSize );
strSamplePath[MAX_PATH-1] = 0; // RegQueryValueEx doesn't NULL term if buffer too small
if( ERROR_SUCCESS == lResult )
{
_sntprintf( strReadmePath, 1023, TEXT("%s\\C++\\%s\\readme.txt"),
strSamplePath, strLoc );
strReadmePath[1023] = 0;
if( GetFileAttributes( strReadmePath ) != 0xFFFFFFFF )
bFound = TRUE;
}
}
RegCloseKey( hKey );
}
// Get the exe name, and exe path
GetModuleFileName( NULL, strExePath, MAX_PATH );
strExePath[MAX_PATH-1]=0;
strLastSlash = _tcsrchr( strExePath, TEXT('\\') );
if( strLastSlash )
{
_tcsncpy( strExeName, &strLastSlash[1], MAX_PATH );
strExeName[MAX_PATH-1]=0;
// Chop the exe name from the exe path
*strLastSlash = 0;
// Chop the .exe from the exe name
strLastSlash = _tcsrchr( strExeName, TEXT('.') );
if( strLastSlash )
*strLastSlash = 0;
}
if( !bFound )
{
// Search in "%EXE_DIR%\..\%EXE_NAME%". This matchs the DirectX SDK layout
_tcscpy( strReadmePath, strExePath );
strLastSlash = _tcsrchr( strReadmePath, TEXT('\\') );
if( strLastSlash )
*strLastSlash = 0;
lstrcat( strReadmePath, TEXT("\\") );
lstrcat( strReadmePath, strExeName );
lstrcat( strReadmePath, TEXT("\\readme.txt") );
if( GetFileAttributes( strReadmePath ) != 0xFFFFFFFF )
bFound = TRUE;
}
if( !bFound )
{
// Search in "%EXE_DIR%\"
_tcscpy( strReadmePath, strExePath );
lstrcat( strReadmePath, TEXT("\\readme.txt") );
if( GetFileAttributes( strReadmePath ) != 0xFFFFFFFF )
bFound = TRUE;
}
if( !bFound )
{
// Search in "%EXE_DIR%\.."
_tcscpy( strReadmePath, strExePath );
strLastSlash = _tcsrchr( strReadmePath, TEXT('\\') );
if( strLastSlash )
*strLastSlash = 0;
lstrcat( strReadmePath, TEXT("\\readme.txt") );
if( GetFileAttributes( strReadmePath ) != 0xFFFFFFFF )
bFound = TRUE;
}
if( !bFound )
{
// Search in "%EXE_DIR%\..\.."
_tcscpy( strReadmePath, strExePath );
strLastSlash = _tcsrchr( strReadmePath, TEXT('\\') );
if( strLastSlash )
*strLastSlash = 0;
strLastSlash = _tcsrchr( strReadmePath, TEXT('\\') );
if( strLastSlash )
*strLastSlash = 0;
lstrcat( strReadmePath, TEXT("\\readme.txt") );
if( GetFileAttributes( strReadmePath ) != 0xFFFFFFFF )
bFound = TRUE;
}
if( bFound )
{
// GetProcAddress for ShellExecute, so we don't have to include shell32.lib
// in every project that uses dxutil.cpp
LPShellExecute pShellExecute = NULL;
HINSTANCE hInstShell32 = LoadLibrary(TEXT("shell32.dll"));
if (hInstShell32 != NULL)
{
#ifdef UNICODE
pShellExecute = (LPShellExecute)GetProcAddress(hInstShell32, _TWINCE("ShellExecuteW"));
#else
pShellExecute = (LPShellExecute)GetProcAddress(hInstShell32, _TWINCE("ShellExecuteA"));
#endif
if( pShellExecute != NULL )
{
if( pShellExecute( hWnd, TEXT("open"), strReadmePath, NULL, NULL, SW_SHOW ) > (HINSTANCE) 32 )
bSuccess = true;
}
FreeLibrary(hInstShell32);
}
}
if( !bSuccess )
{
// Tell the user that the readme couldn't be opened
MessageBox( hWnd, TEXT("Could not find readme.txt"),
TEXT("DirectX SDK Sample"), MB_ICONWARNING | MB_OK );
}
#endif // UNDER_CE
}
//-----------------------------------------------------------------------------
// Name: DXUtil_Trace()
// Desc: Outputs to the debug stream a formatted string with a variable-
// argument list.
//-----------------------------------------------------------------------------
VOID DXUtil_Trace( TCHAR* strMsg, ... )
{
#if defined(DEBUG) | defined(_DEBUG)
TCHAR strBuffer[512];
va_list args;
va_start(args, strMsg);
_vsntprintf( strBuffer, 512, strMsg, args );
va_end(args);
OutputDebugString( strBuffer );
#else
UNREFERENCED_PARAMETER(strMsg);
#endif
}
//-----------------------------------------------------------------------------
// Name: DXUtil_ConvertStringToGUID()
// Desc: Converts a string to a GUID
//-----------------------------------------------------------------------------
HRESULT DXUtil_ConvertStringToGUID( const TCHAR* strSrc, GUID* pGuidDest )
{
UINT aiTmp[10];
if( _stscanf( strSrc, TEXT("{%8X-%4X-%4X-%2X%2X-%2X%2X%2X%2X%2X%2X}"),
&pGuidDest->Data1,
&aiTmp[0], &aiTmp[1],
&aiTmp[2], &aiTmp[3],
&aiTmp[4], &aiTmp[5],
&aiTmp[6], &aiTmp[7],
&aiTmp[8], &aiTmp[9] ) != 11 )
{
ZeroMemory( pGuidDest, sizeof(GUID) );
return E_FAIL;
}
else
{
pGuidDest->Data2 = (USHORT) aiTmp[0];
pGuidDest->Data3 = (USHORT) aiTmp[1];
pGuidDest->Data4[0] = (BYTE) aiTmp[2];
pGuidDest->Data4[1] = (BYTE) aiTmp[3];
pGuidDest->Data4[2] = (BYTE) aiTmp[4];
pGuidDest->Data4[3] = (BYTE) aiTmp[5];
pGuidDest->Data4[4] = (BYTE) aiTmp[6];
pGuidDest->Data4[5] = (BYTE) aiTmp[7];
pGuidDest->Data4[6] = (BYTE) aiTmp[8];
pGuidDest->Data4[7] = (BYTE) aiTmp[9];
return S_OK;
}
}
//-----------------------------------------------------------------------------
// Name: DXUtil_ConvertGUIDToStringCch()
// Desc: Converts a GUID to a string
// cchDestChar is the size in TCHARs of strDest. Be careful not to
// pass in sizeof(strDest) on UNICODE builds
//-----------------------------------------------------------------------------
HRESULT DXUtil_ConvertGUIDToStringCch( const GUID* pGuidSrc, TCHAR* strDest, int cchDestChar )
{
int nResult = _sntprintf( strDest, cchDestChar, TEXT("{%0.8X-%0.4X-%0.4X-%0.2X%0.2X-%0.2X%0.2X%0.2X%0.2X%0.2X%0.2X}"),
pGuidSrc->Data1, pGuidSrc->Data2, pGuidSrc->Data3,
pGuidSrc->Data4[0], pGuidSrc->Data4[1],
pGuidSrc->Data4[2], pGuidSrc->Data4[3],
pGuidSrc->Data4[4], pGuidSrc->Data4[5],
pGuidSrc->Data4[6], pGuidSrc->Data4[7] );
if( nResult < 0 )
return E_FAIL;
return S_OK;
}
//-----------------------------------------------------------------------------
// Name: CArrayList constructor
// Desc:
//-----------------------------------------------------------------------------
CArrayList::CArrayList( ArrayListType Type, UINT BytesPerEntry )
{
if( Type == AL_REFERENCE )
BytesPerEntry = sizeof(void*);
m_ArrayListType = Type;
m_pData = NULL;
m_BytesPerEntry = BytesPerEntry;
m_NumEntries = 0;
m_NumEntriesAllocated = 0;
}
//-----------------------------------------------------------------------------
// Name: CArrayList destructor
// Desc:
//-----------------------------------------------------------------------------
CArrayList::~CArrayList( void )
{
if( m_pData != NULL )
delete[] m_pData;
}
//-----------------------------------------------------------------------------
// Name: CArrayList::Add
// Desc: Adds pEntry to the list.
//-----------------------------------------------------------------------------
HRESULT CArrayList::Add( void* pEntry )
{
if( m_BytesPerEntry == 0 )
return E_FAIL;
if( m_pData == NULL || m_NumEntries + 1 > m_NumEntriesAllocated )
{
void* pDataNew;
UINT NumEntriesAllocatedNew;
if( m_NumEntriesAllocated == 0 )
NumEntriesAllocatedNew = 16;
else
NumEntriesAllocatedNew = m_NumEntriesAllocated * 2;
pDataNew = new BYTE[NumEntriesAllocatedNew * m_BytesPerEntry];
if( pDataNew == NULL )
return E_OUTOFMEMORY;
if( m_pData != NULL )
{
CopyMemory( pDataNew, m_pData, m_NumEntries * m_BytesPerEntry );
delete[] m_pData;
}
m_pData = pDataNew;
m_NumEntriesAllocated = NumEntriesAllocatedNew;
}
if( m_ArrayListType == AL_VALUE )
CopyMemory( (BYTE*)m_pData + (m_NumEntries * m_BytesPerEntry), pEntry, m_BytesPerEntry );
else
*(((void**)m_pData) + m_NumEntries) = pEntry;
m_NumEntries++;
return S_OK;
}
//-----------------------------------------------------------------------------
// Name: CArrayList::Remove
// Desc: Remove the item at Entry in the list, and collapse the array.
//-----------------------------------------------------------------------------
void CArrayList::Remove( UINT Entry )
{
// Decrement count
m_NumEntries--;
// Find the entry address
BYTE* pData = (BYTE*)m_pData + (Entry * m_BytesPerEntry);
// Collapse the array
MoveMemory( pData, pData + m_BytesPerEntry, ( m_NumEntries - Entry ) * m_BytesPerEntry );
}
//-----------------------------------------------------------------------------
// Name: CArrayList::GetPtr
// Desc: Returns a pointer to the Entry'th entry in the list.
//-----------------------------------------------------------------------------
void* CArrayList::GetPtr( UINT Entry )
{
if( m_ArrayListType == AL_VALUE )
return (BYTE*)m_pData + (Entry * m_BytesPerEntry);
else
return *(((void**)m_pData) + Entry);
}
//-----------------------------------------------------------------------------
// Name: CArrayList::Contains
// Desc: Returns whether the list contains an entry identical to the
// specified entry data.
//-----------------------------------------------------------------------------
bool CArrayList::Contains( void* pEntryData )
{
for( UINT iEntry = 0; iEntry < m_NumEntries; iEntry++ )
{
if( m_ArrayListType == AL_VALUE )
{
if( memcmp( GetPtr(iEntry), pEntryData, m_BytesPerEntry ) == 0 )
return true;
}
else
{
if( GetPtr(iEntry) == pEntryData )
return true;
}
}
return false;
}
//-----------------------------------------------------------------------------
// Name: BYTE helper functions
// Desc: cchDestChar is the size in BYTEs of strDest. Be careful not to
// pass use sizeof() if the strDest is a string pointer.
// eg.
// TCHAR* sz = new TCHAR[100]; // sizeof(sz) == 4
// TCHAR sz2[100]; // sizeof(sz2) == 200
//-----------------------------------------------------------------------------
HRESULT DXUtil_ConvertAnsiStringToWideCb( WCHAR* wstrDestination, const CHAR* strSource, int cbDestChar )
{
return DXUtil_ConvertAnsiStringToWideCch( wstrDestination, strSource, cbDestChar / sizeof(WCHAR) );
}
HRESULT DXUtil_ConvertWideStringToAnsiCb( CHAR* strDestination, const WCHAR* wstrSource, int cbDestChar )
{
return DXUtil_ConvertWideStringToAnsiCch( strDestination, wstrSource, cbDestChar / sizeof(CHAR) );
}
HRESULT DXUtil_ConvertGenericStringToAnsiCb( CHAR* strDestination, const TCHAR* tstrSource, int cbDestChar )
{
return DXUtil_ConvertGenericStringToAnsiCch( strDestination, tstrSource, cbDestChar / sizeof(CHAR) );
}
HRESULT DXUtil_ConvertGenericStringToWideCb( WCHAR* wstrDestination, const TCHAR* tstrSource, int cbDestChar )
{
return DXUtil_ConvertGenericStringToWideCch( wstrDestination, tstrSource, cbDestChar / sizeof(WCHAR) );
}
HRESULT DXUtil_ConvertAnsiStringToGenericCb( TCHAR* tstrDestination, const CHAR* strSource, int cbDestChar )
{
return DXUtil_ConvertAnsiStringToGenericCch( tstrDestination, strSource, cbDestChar / sizeof(TCHAR) );
}
HRESULT DXUtil_ConvertWideStringToGenericCb( TCHAR* tstrDestination, const WCHAR* wstrSource, int cbDestChar )
{
return DXUtil_ConvertWideStringToGenericCch( tstrDestination, wstrSource, cbDestChar / sizeof(TCHAR) );
}
HRESULT DXUtil_ReadStringRegKeyCb( HKEY hKey, TCHAR* strRegName, TCHAR* strDest, DWORD cbDest, TCHAR* strDefault )
{
return DXUtil_ReadStringRegKeyCch( hKey, strRegName, strDest, cbDest / sizeof(TCHAR), strDefault );
}
HRESULT DXUtil_ConvertGUIDToStringCb( const GUID* pGuidSrc, TCHAR* strDest, int cbDestChar )
{
return DXUtil_ConvertGUIDToStringCch( pGuidSrc, strDest, cbDestChar / sizeof(TCHAR) );
}
#ifndef UNDER_CE
HRESULT DXUtil_GetDXSDKMediaPathCb( TCHAR* szDest, int cbDest )
{
return DXUtil_GetDXSDKMediaPathCch( szDest, cbDest / sizeof(TCHAR) );
}
HRESULT DXUtil_FindMediaFileCb( TCHAR* szDestPath, int cbDest, TCHAR* strFilename )
{
return DXUtil_FindMediaFileCch( szDestPath, cbDest / sizeof(TCHAR), strFilename );
}
#endif // !UNDER_CE
再来看fps.h的代码:
//
//
// File: fps.cpp
//
// Author: Frank Luna (C) All Rights Reserved
//
// System: AMD Athlon 1800+ XP, 512 DDR, Geforce 3, Windows XP, MSVC++ 7.0
//
// Desc: Wraps the code to compute and display the frames rendered per second.
//
//
#include "fps.h"
#include <cstdio>
FPSCounter::FPSCounter(IDirect3DDevice9* device)
{
_device = device;
_font = new CD3DFont("Times New Roman", 24, 0);
_font->InitDeviceObjects( _device );
_font->RestoreDeviceObjects();
_frameCnt = 0;
_timeElapsed = 0.0f;
_fps = 0.0f;
}
FPSCounter::~FPSCounter()
{
if( _font )
{
_font->InvalidateDeviceObjects();
_font->DeleteDeviceObjects();
delete _font;
}
}
bool FPSCounter::render(D3DCOLOR color, float timeDelta)
{
if( _font )
{
_frameCnt++;
_timeElapsed += timeDelta;
if(_timeElapsed >= 1.0f)
{
_fps = (float)_frameCnt / _timeElapsed;
sprintf(_fpsString, "%f", _fps);
_fpsString[8] = '\0'; // mark end of string
_timeElapsed = 0.0f;
_frameCnt = 0;
}
_font->DrawText(20, 20, color, _fpsString);
}
return true;
}
再来看fps.cpp的代码:
//
//
// File: fps.cpp
//
// Author: Frank Luna (C) All Rights Reserved
//
// System: AMD Athlon 1800+ XP, 512 DDR, Geforce 3, Windows XP, MSVC++ 7.0
//
// Desc: Wraps the code to compute and display the frames rendered per second.
//
//
#include "fps.h"
#include <cstdio>
FPSCounter::FPSCounter(IDirect3DDevice9* device)
{
_device = device;
_font = new CD3DFont("Times New Roman", 24, 0);
_font->InitDeviceObjects( _device );
_font->RestoreDeviceObjects();
_frameCnt = 0;
_timeElapsed = 0.0f;
_fps = 0.0f;
}
FPSCounter::~FPSCounter()
{
if( _font )
{
_font->InvalidateDeviceObjects();
_font->DeleteDeviceObjects();
delete _font;
}
}
bool FPSCounter::render(D3DCOLOR color, float timeDelta)
{
if( _font )
{
_frameCnt++;
_timeElapsed += timeDelta;
if(_timeElapsed >= 1.0f)
{
_fps = (float)_frameCnt / _timeElapsed;
sprintf(_fpsString, "%f", _fps);
_fpsString[8] = '\0'; // mark end of string
_timeElapsed = 0.0f;
_frameCnt = 0;
}
_font->DrawText(20, 20, color, _fpsString);
}
return true;
}
再来看terraiin.h的代码:
//
//
// File: terrain.h
//
// Author: Frank Luna (C) All Rights Reserved
//
// System: AMD Athlon 1800+ XP, 512 DDR, Geforce 3, Windows XP, MSVC++ 7.0
//
// Desc: Represents a 3D terrain.
//
//
#ifndef __terrainH__
#define __terrainH__
#include "DirectX3D.h"
#include <string>
#include <vector>
class Terrain
{
public:
Terrain(
IDirect3DDevice9* device,
std::string heightmapFileName,
int numVertsPerRow,
int numVertsPerCol,
int cellSpacing, // space between cells
float heightScale);
~Terrain();
int getHeightmapEntry(int row, int col);
void setHeightmapEntry(int row, int col, int value);
float getHeight(float x, float z);
bool loadTexture(std::string fileName);
bool genTexture(D3DXVECTOR3* directionToLight);
bool draw(D3DXMATRIX* world, bool drawTris);
private:
IDirect3DDevice9* _device;
IDirect3DTexture9* _tex;
IDirect3DVertexBuffer9* _vb;
IDirect3DIndexBuffer9* _ib;
int _numVertsPerRow;
int _numVertsPerCol;
int _cellSpacing;
int _numCellsPerRow;
int _numCellsPerCol;
int _width;
int _depth;
int _numVertices;
int _numTriangles;
float _heightScale;
std::vector<int> _heightmap;
// helper methods
bool readRawFile(std::string fileName);
bool computeVertices();
bool computeIndices();
bool lightTerrain(D3DXVECTOR3* directionToLight);
float computeShade(int cellRow, int cellCol, D3DXVECTOR3* directionToLight);
struct TerrainVertex
{
TerrainVertex(){}
TerrainVertex(float x, float y, float z, float u, float v)
{
_x = x; _y = y; _z = z; _u = u; _v = v;
}
float _x, _y, _z;
float _u, _v;
static const DWORD FVF;
};
};
#endif // __terrainH__
再来看terrain.cpp的代码:
//
//
// File: terrain.cpp
//
// Author: Frank Luna (C) All Rights Reserved
//
// System: AMD Athlon 1800+ XP, 512 DDR, Geforce 3, Windows XP, MSVC++ 7.0
//
// Desc: Represents a 3D terrain.
//
//
#include "terrain.h"
#include <fstream>
#include <cmath>
const DWORD Terrain::TerrainVertex::FVF = D3DFVF_XYZ | D3DFVF_TEX1;
Terrain::Terrain(IDirect3DDevice9* device,
std::string heightmapFileName,
int numVertsPerRow,
int numVertsPerCol,
int cellSpacing,
float heightScale)
{
_device = device;
_numVertsPerRow = numVertsPerRow;
_numVertsPerCol = numVertsPerCol;
_cellSpacing = cellSpacing;
_numCellsPerRow = _numVertsPerRow - 1;
_numCellsPerCol = _numVertsPerCol - 1;
_width = _numCellsPerRow * _cellSpacing;
_depth = _numCellsPerCol * _cellSpacing;
_numVertices = _numVertsPerRow * _numVertsPerCol;
_numTriangles = _numCellsPerRow * _numCellsPerCol * 2;
_heightScale = heightScale;
// 读取高度图,因为RAW文件本质上是一个连续的字节存储块,我们可以使用读文件的方式读取顶点的高度值
if( !readRawFile(heightmapFileName) )
{
::MessageBox(0, "readRawFile - FAILED", 0, 0);
::PostQuitMessage(0);
}
// scale heights
for(int i = 0; i < _heightmap.size(); i++)
_heightmap[i] *= heightScale;
// compute the vertices
if( !computeVertices() )
{
::MessageBox(0, "computeVertices - FAILED", 0, 0);
::PostQuitMessage(0);
}
// compute the indices
if( !computeIndices() )
{
::MessageBox(0, "computeIndices - FAILED", 0, 0);
::PostQuitMessage(0);
}
}
Terrain::~Terrain()
{
d3d::Release<IDirect3DVertexBuffer9*>(_vb);
d3d::Release<IDirect3DIndexBuffer9*>(_ib);
d3d::Release<IDirect3DTexture9*>(_tex);
}
int Terrain::getHeightmapEntry(int row, int col)
{
return _heightmap[row * _numVertsPerRow + col];
}
void Terrain::setHeightmapEntry(int row, int col, int value)
{
_heightmap[row * _numVertsPerRow + col] = value;
}
bool Terrain::computeVertices()
{
HRESULT hr = 0;
//创建高度图的顶点缓存
hr = _device->CreateVertexBuffer(
_numVertices * sizeof(TerrainVertex),
D3DUSAGE_WRITEONLY,
TerrainVertex::FVF,
D3DPOOL_MANAGED,
&_vb,
0);
if(FAILED(hr))
return false;
// coordinates to start generating vertices at
int startX = -_width / 2;
int startZ = _depth / 2;
// coordinates to end generating vertices at
int endX = _width / 2;
int endZ = -_depth / 2;
// compute the increment size of the texture coordinates
// from one vertex to the next.
float uCoordIncrementSize = 1.0f / (float)_numCellsPerRow;
float vCoordIncrementSize = 1.0f / (float)_numCellsPerCol;
TerrainVertex* v = 0;
_vb->Lock(0, 0, (void**)&v, 0);
int i = 0;
for(int z = startZ; z >= endZ; z -= _cellSpacing)
{
int j = 0;
for(int x = startX; x <= endX; x += _cellSpacing)
{
/*我们只需自顶点start起逐行生成每个顶点,保持相邻顶点的行列间隔均为单元间距,直至到达顶点end*/
int index = i * _numVertsPerRow + j;
//这里把起始值到最终值填入顶点缓存中,顶点的y坐标使用RAW文件读出的高度值
v[index] = TerrainVertex(
(float)x,
(float)_heightmap[index],
(float)z,
(float)j * uCoordIncrementSize,
(float)i * vCoordIncrementSize);
j++; // next column
}
i++; // next row
}
_vb->Unlock();
return true;
}
//计算索引缓存
bool Terrain::computeIndices()
{
HRESULT hr = 0;
hr = _device->CreateIndexBuffer(
_numTriangles * 3 * sizeof(WORD), // 3 indices per triangle
D3DUSAGE_WRITEONLY,
D3DFMT_INDEX16,
D3DPOOL_MANAGED,
&_ib,
0);
if(FAILED(hr))
return false;
WORD* indices = 0;
_ib->Lock(0, 0, (void**)&indices, 0);
// 每个方格由6个索引组成
int baseIndex = 0;
// 为了计算三角形栅格的各顶点的索引,只需从左上角起直至右下角,依次遍历每个方格,并计算构成每个方格的三角面片的顶点索引
for(int i = 0; i < _numCellsPerCol; i++)
{
for(int j = 0; j < _numCellsPerRow; j++)
{
indices[baseIndex] = i * _numVertsPerRow + j;
indices[baseIndex + 1] = i * _numVertsPerRow + j + 1;
indices[baseIndex + 2] = (i+1) * _numVertsPerRow + j;
indices[baseIndex + 3] = (i+1) * _numVertsPerRow + j;
indices[baseIndex + 4] = i * _numVertsPerRow + j + 1;
indices[baseIndex + 5] = (i+1) * _numVertsPerRow + j + 1;
// next quad
baseIndex += 6;
}
}
_ib->Unlock();
return true;
}
bool Terrain::loadTexture(std::string fileName)
{
HRESULT hr = 0;
hr = D3DXCreateTextureFromFile(
_device,
fileName.c_str(),
&_tex);
if(FAILED(hr))
return false;
return true;
}
//另外一种对地形进行纹理映射的方法是按顺序逐个计算出纹理内容,即我们首先创建一个空纹理,然后再基于一些已定义的参数计算出
//纹理的颜色,在本例中为地形的高度
bool Terrain::genTexture(D3DXVECTOR3* directionToLight)
{
// 首先用方法D3DXCreateTexture创建一个空纹理,然后将顶层纹理(前面提到一个纹理对象可有多级渐进纹理,所以就有许多纹理层)
// 锁定。至此开始遍历每个纹理元并对其上色,上色的依据是坐标方格所对应的近似高度。
HRESULT hr = 0;
// texel for each quad cell
int texWidth = _numCellsPerRow;
int texHeight = _numCellsPerCol;
// create an empty texture
hr = D3DXCreateTexture(
_device,
texWidth, texHeight,
0, // create a complete mipmap chain
0, // usage
D3DFMT_X8R8G8B8,// 32 bit XRGB format
D3DPOOL_MANAGED, &_tex);
if(FAILED(hr))
return false;
D3DSURFACE_DESC textureDesc;
_tex->GetLevelDesc(0 /*level*/, &textureDesc);
// make sure we got the requested format because our code
// that fills the texture is hard coded to a 32 bit pixel depth.
if( textureDesc.Format != D3DFMT_X8R8G8B8 )
return false;
D3DLOCKED_RECT lockedRect;
_tex->LockRect(0/*lock top surface*/, &lockedRect,
0 /* lock entire tex*/, 0/*flags*/);
DWORD* imageData = (DWORD*)lockedRect.pBits;
for(int i = 0; i < texHeight; i++)
{
for(int j = 0; j < texWidth; j++)
{
D3DXCOLOR c;
// get height of upper left vertex of quad.
float height = (float)getHeightmapEntry(i, j) / _heightScale;
if( (height) < 42.5f ) c = d3d::BEACH_SAND;
else if( (height) < 85.0f ) c = d3d::LIGHT_YELLOW_GREEN;
else if( (height) < 127.5f ) c = d3d::PUREGREEN;
else if( (height) < 170.0f ) c = d3d::DARK_YELLOW_GREEN;
else if( (height) < 212.5f ) c = d3d::DARKBROWN;
else c = d3d::WHITE;
// fill locked data, note we divide the pitch by four because the
// pitch is given in bytes and there are 4 bytes per DWORD.
imageData[i * lockedRect.Pitch / 4 + j] = (D3DCOLOR)c;
}
}
_tex->UnlockRect(0);
//这里为地形添加光照以增强真实感。由于前面已经计算好了地形纹理的颜色,现在我们只需计算地形中个部分在给定
//光源照射下应如何进行明暗调整的明暗因子。
if(!lightTerrain(directionToLight))
{
::MessageBox(0, "lightTerrain() - FAILED", 0, 0);
return false;
}
hr = D3DXFilterTexture(
_tex,
0, // default palette
0, // use top level as source level
D3DX_DEFAULT); // default filter
if(FAILED(hr))
{
::MessageBox(0, "D3DXFilterTexture() - FAILED", 0, 0);
return false;
}
return true;
}
bool Terrain::lightTerrain(D3DXVECTOR3* directionToLight)
{
HRESULT hr = 0;
D3DSURFACE_DESC textureDesc;
_tex->GetLevelDesc(0 /*level*/, &textureDesc);
// make sure we got the requested format because our code that fills the
// texture is hard coded to a 32 bit pixel depth.
if( textureDesc.Format != D3DFMT_X8R8G8B8 )
return false;
D3DLOCKED_RECT lockedRect;
_tex->LockRect(
0, // lock top surface level in mipmap chain
&lockedRect,// pointer to receive locked data
0, // lock entire texture image
0); // no lock flags specified
DWORD* imageData = (DWORD*)lockedRect.pBits;
for(int i = 0; i < textureDesc.Height; i++)
{
for(int j = 0; j < textureDesc.Width; j++)
{
// index into texture, note we use the pitch and divide by
// four since the pitch is given in bytes and there are
// 4 bytes per DWORD.
int index = i * lockedRect.Pitch / 4 + j;
// get current color of quad
D3DXCOLOR c( imageData[index] );
// shade current quad
c *= computeShade(i, j, directionToLight);;
// save shaded color
imageData[index] = (D3DCOLOR)c;
}
}
_tex->UnlockRect(0);
return true;
}
float Terrain::computeShade(int cellRow, int cellCol, D3DXVECTOR3* directionToLight)
{
// get heights of three vertices on the quad
float heightA = getHeightmapEntry(cellRow, cellCol);
float heightB = getHeightmapEntry(cellRow, cellCol+1);
float heightC = getHeightmapEntry(cellRow+1, cellCol);
// build two vectors on the quad
D3DXVECTOR3 u(_cellSpacing, heightB - heightA, 0.0f);
D3DXVECTOR3 v(0.0f, heightC - heightA, -_cellSpacing);
// find the normal by taking the cross product of two
// vectors on the quad.
D3DXVECTOR3 n;
D3DXVec3Cross(&n, &u, &v);
D3DXVec3Normalize(&n, &n);
float cosine = D3DXVec3Dot(&n, directionToLight);
if(cosine < 0.0f)
cosine = 0.0f;
return cosine;
}
bool Terrain::readRawFile(std::string fileName)
{
// Restriction: RAW file dimensions must be >= to the
// dimensions of the terrain. That is a 128x128 RAW file
// can only be used with a terrain constructed with at most
// 128x128 vertices.
// A height for each vertex
std::vector<BYTE> in( _numVertices );
std::ifstream inFile(fileName.c_str(), std::ios_base::binary);
if( inFile == 0 )
return false;
inFile.read(
(char*)&in[0], // buffer
in.size());// number of bytes to read into buffer
inFile.close();
// copy BYTE vector to int vector
_heightmap.resize( _numVertices );
for(int i = 0; i < in.size(); i++)
_heightmap[i] = in[i];
return true;
}
float Terrain::getHeight(float x, float z)
{
// Translate on xz-plane by the transformation that takes
// the terrain START point to the origin.
x = ((float)_width / 2.0f) + x;
z = ((float)_depth / 2.0f) - z;
// Scale down by the transformation that makes the
// cellspacing equal to one. This is given by
// 1 / cellspacing since; cellspacing * 1 / cellspacing = 1.
x /= (float)_cellSpacing;
z /= (float)_cellSpacing;
// From now on, we will interpret our positive z-axis as
// going in the 'down' direction, rather than the 'up' direction.
// This allows to extract the row and column simply by 'flooring'
// x and z:
float col = ::floorf(x);
float row = ::floorf(z);
// get the heights of the quad we're in:
//
// A B
// *---*
// | / |
// *---*
// C D
float A = getHeightmapEntry(row, col);
float B = getHeightmapEntry(row, col+1);
float C = getHeightmapEntry(row+1, col);
float D = getHeightmapEntry(row+1, col+1);
//
// Find the triangle we are in:
//
// Translate by the transformation that takes the upper-left
// corner of the cell we are in to the origin. Recall that our
// cellspacing was nomalized to 1. Thus we have a unit square
// at the origin of our +x -> 'right' and +z -> 'down' system.
float dx = x - col;
float dz = z - row;
// Note the below compuations of u and v are unneccessary, we really
// only need the height, but we compute the entire vector to emphasis
// the books discussion.
float height = 0.0f;
if(dz < 1.0f - dx) // upper triangle ABC
{
float uy = B - A; // A->B
float vy = C - A; // A->C
// Linearly interpolate on each vector. The height is the vertex
// height the vectors u and v originate from {A}, plus the heights
// found by interpolating on each vector u and v.
height = A + d3d::Lerp(0.0f, uy, dx) + d3d::Lerp(0.0f, vy, dz);
}
else // lower triangle DCB
{
float uy = C - D; // D->C
float vy = B - D; // D->B
// Linearly interpolate on each vector. The height is the vertex
// height the vectors u and v originate from {D}, plus the heights
// found by interpolating on each vector u and v.
height = D + d3d::Lerp(0.0f, uy, 1.0f - dx) + d3d::Lerp(0.0f, vy, 1.0f - dz);
}
return height;
}
bool Terrain::draw(D3DXMATRIX* world, bool drawTris)
{
HRESULT hr = 0;
if( _device )
{
_device->SetTransform(D3DTS_WORLD, world);
_device->SetStreamSource(0, _vb, 0, sizeof(TerrainVertex));
_device->SetFVF(TerrainVertex::FVF);
_device->SetIndices(_ib);
_device->SetTexture(0, _tex);
// turn off lighting since we're lighting it ourselves
_device->SetRenderState(D3DRS_LIGHTING, false);
hr =_device->DrawIndexedPrimitive(
D3DPT_TRIANGLELIST,
0,
0,
_numVertices,
0,
_numTriangles);
_device->SetRenderState(D3DRS_LIGHTING, true);
if( drawTris )
{
_device->SetRenderState(D3DRS_FILLMODE, D3DFILL_WIREFRAME);
hr =_device->DrawIndexedPrimitive(
D3DPT_TRIANGLELIST,
0,
0,
_numVertices,
0,
_numTriangles);
_device->SetRenderState(D3DRS_FILLMODE, D3DFILL_SOLID);
}
if(FAILED(hr))
return false;
}
return true;
}
再来看一下DirectX3D.h的代码:
#ifndef __DirectX3DH__
#define __DirectX3DH__
#include <d3dx9.h>
#include <string>
#include <limits>
namespace d3d
{
bool InitD3D(
HINSTANCE hInstance, // [in] Application instance.
int width, int height, // [in] Backbuffer dimensions.
bool windowed, // [in] Windowed (true)or full screen (false).
D3DDEVTYPE deviceType, // [in] HAL or REF
IDirect3DDevice9** device);// [out]The created device.
int EnterMsgLoop(
bool (*ptr_display)(float timeDelta));
LRESULT CALLBACK WndProc(
HWND hwnd,
UINT msg,
WPARAM wParam,
LPARAM lParam);
template<class T> void Release(T t)
{
if( t )
{
t->Release();
t = 0;
}
}
template<class T> void Delete(T t)
{
if( t )
{
delete t;
t = 0;
}
}
const D3DXCOLOR WHITE( D3DCOLOR_XRGB(255, 255, 255) );
const D3DXCOLOR BLACK( D3DCOLOR_XRGB( 0, 0, 0) );
const D3DXCOLOR RED( D3DCOLOR_XRGB(255, 0, 0) );
const D3DXCOLOR GREEN( D3DCOLOR_XRGB( 0, 255, 0) );
const D3DXCOLOR BLUE( D3DCOLOR_XRGB( 0, 0, 255) );
const D3DXCOLOR YELLOW( D3DCOLOR_XRGB(255, 255, 0) );
const D3DXCOLOR CYAN( D3DCOLOR_XRGB( 0, 255, 255) );
const D3DXCOLOR MAGENTA( D3DCOLOR_XRGB(255, 0, 255) );
const D3DXCOLOR BEACH_SAND( D3DCOLOR_XRGB(255, 249, 157) );
const D3DXCOLOR DESERT_SAND( D3DCOLOR_XRGB(250, 205, 135) );
const D3DXCOLOR LIGHTGREEN( D3DCOLOR_XRGB( 60, 184, 120) );
const D3DXCOLOR PUREGREEN( D3DCOLOR_XRGB( 0, 166, 81) );
const D3DXCOLOR DARKGREEN( D3DCOLOR_XRGB( 0, 114, 54) );
const D3DXCOLOR LIGHT_YELLOW_GREEN( D3DCOLOR_XRGB(124, 197, 118) );
const D3DXCOLOR PURE_YELLOW_GREEN( D3DCOLOR_XRGB( 57, 181, 74) );
const D3DXCOLOR DARK_YELLOW_GREEN( D3DCOLOR_XRGB( 25, 123, 48) );
const D3DXCOLOR LIGHTBROWN(D3DCOLOR_XRGB(198, 156, 109));
const D3DXCOLOR DARKBROWN( D3DCOLOR_XRGB(115, 100, 87));
//
// Lights
//
D3DLIGHT9 InitDirectionalLight(D3DXVECTOR3* direction, D3DXCOLOR* color);
D3DLIGHT9 InitPointLight(D3DXVECTOR3* position, D3DXCOLOR* color);
D3DLIGHT9 InitSpotLight(D3DXVECTOR3* position, D3DXVECTOR3* direction, D3DXCOLOR* color);
//
// Materials
//
D3DMATERIAL9 InitMtrl(D3DXCOLOR a, D3DXCOLOR d, D3DXCOLOR s, D3DXCOLOR e, float p);
const D3DMATERIAL9 WHITE_MTRL = InitMtrl(WHITE, WHITE, WHITE, BLACK, 2.0f);
const D3DMATERIAL9 RED_MTRL = InitMtrl(RED, RED, RED, BLACK, 2.0f);
const D3DMATERIAL9 GREEN_MTRL = InitMtrl(GREEN, GREEN, GREEN, BLACK, 2.0f);
const D3DMATERIAL9 BLUE_MTRL = InitMtrl(BLUE, BLUE, BLUE, BLACK, 2.0f);
const D3DMATERIAL9 YELLOW_MTRL = InitMtrl(YELLOW, YELLOW, YELLOW, BLACK, 2.0f);
//
// 外接体对象
//
struct BoundingBox
{
BoundingBox();
bool isPointInside(D3DXVECTOR3& p);
D3DXVECTOR3 _min;
D3DXVECTOR3 _max;
};
struct BoundingSphere
{
BoundingSphere();
D3DXVECTOR3 _center;
float _radius;
};
//
// Constants
//
const float INFINITY = FLT_MAX;
const float EPSILON = 0.001f;
// Function references "desert.bmp" internally. This file must
// be in the working directory.
bool DrawBasicScene(
IDirect3DDevice9* device,// Pass in 0 for cleanup.
float scale); // uniform scale
struct Vertex
{
Vertex(){}
Vertex(float x, float y, float z,
float nx, float ny, float nz, float u, float v)
{
_x = x; _y = y; _z = z;
_nx = nx; _ny = ny; _nz = nz;
_u = u; _v = v;
}
float _x, _y, _z, _nx, _ny, _nz, _u, _v;
static const DWORD FVF;
};
//
// Randomness
//
// Desc: Return random float in [lowBound, highBound] interval.
float GetRandomFloat(float lowBound, float highBound);
// Desc: Returns a random vector in the bounds specified by min and max.
void GetRandomVector(
D3DXVECTOR3* out,
D3DXVECTOR3* min,
D3DXVECTOR3* max);
//
// Conversion
//
DWORD FtoDw(float f);
//
// Interpolation
//
float Lerp(float a, float b, float t);
}
#endif
再来看一下DirectX3D.cpp的代码:
#include "DirectX3D.h"
// vertex formats
const DWORD d3d::Vertex::FVF = D3DFVF_XYZ | D3DFVF_NORMAL | D3DFVF_TEX1;
bool d3d::InitD3D(
HINSTANCE hInstance,
int width, int height,
bool windowed,
D3DDEVTYPE deviceType,
IDirect3DDevice9** device)
{
//
// Create the main application window.
//
WNDCLASS wc;
wc.style = CS_HREDRAW | CS_VREDRAW;
wc.lpfnWndProc = (WNDPROC)d3d::WndProc;
wc.cbClsExtra = 0;
wc.cbWndExtra = 0;
wc.hInstance = hInstance;
wc.hIcon = LoadIcon(0, IDI_APPLICATION);
wc.hCursor = LoadCursor(0, IDC_ARROW);
wc.hbrBackground = (HBRUSH)GetStockObject(WHITE_BRUSH);
wc.lpszMenuName = 0;
wc.lpszClassName = "Direct3D9App";
if( !RegisterClass(&wc) )
{
::MessageBox(0, "RegisterClass() - FAILED", 0, 0);
return false;
}
HWND hwnd = 0;
hwnd = ::CreateWindow("Direct3D9App", "Direct3D9App",
WS_EX_TOPMOST,
0, 0, width, height,
0 /*parent hwnd*/, 0 /* menu */, hInstance, 0 /*extra*/);
if( !hwnd )
{
::MessageBox(0, "CreateWindow() - FAILED", 0, 0);
return false;
}
::ShowWindow(hwnd, SW_SHOW);
::UpdateWindow(hwnd);
//
// Init D3D:
//
//第一步
//要初始化IDirect3D 首先必须获取IDirect3D9的指针,使用一个专门的Direct3D函数就可以很容易做到
IDirect3D9 * _d3d9;
//这个对象的主要有两个用途:设备枚举以及创建IDirect3DDevice9类型的对象。设备枚举是指获取系统中可用的的每块图形卡的
//性能,显示模型,格式以及其他信息。这个函数调用失败会返回一个NULL指针。
if(NULL == (_d3d9 = Direct3DCreate9(D3D_SDK_VERSION))){
return FALSE;
}
//第二步
//创建一个代表主显卡的IDirect3DDevice9类型对象时,必须指定使用该对象进行顶点运算的类型。如果可以,我们希望使用硬件顶点运算
//但是由于并非所有的显卡都支持硬件顶点运算,我们必须首先检查图形卡是否支持该类型的运算。
//要进行检查,必须先根据主显卡的性能参数初始化一个IDirect3DDevice9类型的对象。我们使用如下方法来完成初始化:
/*
HRESULT IDirect3D9:GetDeviceCaps(
UINT Adapter,
D3DDEVTYPE DeviceType,
D3DCAPS9 * pCaps;
)
Adapter : 指定物理显卡的序号。
DeviceType:指定设备类(例如硬件设备(D3DDEVTYPE_HAL)或软件设备(D3DDEVTYPE_REF));
pCaps 返回已初始化的设备性能结构实例。
*/
D3DCAPS9 caps;
int vp = 0; //代表顶点如何操作
_d3d9->GetDeviceCaps(D3DADAPTER_DEFAULT, D3DDEVTYPE_HAL, &caps);
if(caps.DevCaps & D3DDEVCAPS_HWTRANSFORMANDLIGHT){
vp = D3DCREATE_HARDWARE_VERTEXPROCESSING;
}
else
{
vp = D3DCREATE_SOFTWARE_VERTEXPROCESSING;
}
//第三步是填充D3DPRESENT_PARAMETER结构
//该结构用于指定所要创建的IDirect3DDevice9类型对象的一些特性,该结构定义如下:
/*
typedef struct _D3DPRESENT_PARAMETERS_{
UINT BackBufferWidth;
UINT BackBufferHeight;
UINT BackBufferFormat;
UINT BackBufferCount;
D3DMULTISAMPLE_TYPE MultiSampleType;
DWORD MultiSampleQuality;
D3DSWAPEFFECT SwapEffect;
HWND hDeviceWindow;
BOOL Windowed;
BOOL EnableAutoDepthStencil;
D3DFORMAT AutoDepthStencilFormat;
DWORD Flags;
UINT FullScreen_RefreshRateInHz;
UINT PresentationInterval;
};
*/
/*
BackBufferWidth: 后台缓存中表面的宽度,单位为像素。
BackBufferHeight:后台缓存中表面的高度,单位为像素。
BackBufferFormat:后台缓存的像素格式(如32位像素格式:D3DFMT_A8R8G8B8);
BackBufferCount: 所需使用的后台缓存的个数,通常指定为1,表明我们仅需要一个后台缓存。
MultiSampleType: 后台缓存所使用的多重采样类型。
MultiSampleQuality:多重采样的质量水平。
SwapEffect:D3DSWAPEFFECT 枚举类型的一个成员。该枚举类型指定了交换链中的缓存的页面置换方式。指定D3DSWAPEFFECT_DISCARD时效率最高。
hDeviceWindow:与设备相关的窗口句柄。指定了所要进行绘制的应用程序窗口。
Windowed:为true时表示窗口模式,false时为全屏模式
EnableAutoDepthStencil:设为true,则Direct3D自动创建并维护深度缓存或模板缓存。
AutoDepthStencilFormat:深度缓存或模板缓存的像素格式(例如,用24位表示深度并将8位保留供模板缓存使用,D3DFMT_D24S8).
Flags:一些附加的特性。可以指定为0,表示无标记,或D3DPRESENTFLAG集合中的一个成员,其中两个成员较常用。
D3DPRESENTFLAG_LOCKABLE_DEPTHBUFFER 指定为可锁定的后台缓存。注意,使用一个可锁定的后台缓存会降低性能。
D3DPRESENTFLAG_DISCARD_DEPTHBUFFER 指定当下一个后台缓存提交时,哪个深度或模块缓存将被丢弃。丢弃的意思是深度或模板缓存存储区
中的内容别丢弃或无效。这样可以提升性能。
FullScreen_RefreshRateInHz: 刷新频率,如果想使用默认的刷新频率,则可将该参数指定为D3DPRESENT_RATE_DEFAULT;
PresentationInterval:D3DPRESENT集合的一个成员,其中有两个比较常用。
D3DPRESENT_INTERVAL_IMMEDIATE 立即提交。
D3DPRESENT_INTERVAL_DEFAULT 由Direct3D来选择提交频率,通常该值等于刷新频率。
*/
D3DPRESENT_PARAMETERS d3dpp;
ZeroMemory(&d3dpp, sizeof(d3dpp));
d3dpp.BackBufferWidth = 800;
d3dpp.BackBufferHeight = 600;
d3dpp.BackBufferFormat = D3DFMT_A8R8G8B8;
d3dpp.BackBufferCount = 1;
d3dpp.MultiSampleType = D3DMULTISAMPLE_NONE;
d3dpp.MultiSampleQuality = 0;
d3dpp.SwapEffect = D3DSWAPEFFECT_DISCARD;
d3dpp.hDeviceWindow = hwnd;
d3dpp.Windowed = true;
d3dpp.EnableAutoDepthStencil = true;
d3dpp.AutoDepthStencilFormat = D3DFMT_D24S8;
d3dpp.Flags = 0;
d3dpp.FullScreen_RefreshRateInHz = 0;
d3dpp.PresentationInterval = D3DPRESENT_INTERVAL_IMMEDIATE;
//第四步 创建IDirectDevice9类型的对象
/*
HRESULT IDirect3D9::CreateDevice(
UINT Adapter,
D3DDEVTYPE DeviceType,
HWND hFocusWindow,
DWORD BehaviorFlags,
D3DPRESENT_PARAMETERS *pPresentationParameters,
IDirect3DDevice9 ** ppReturnedDeviceInterface
);
Adapter:指定我们希望用已创建的IDirect3DDevice9对象代表哪块物理显卡。
DeviceType:指定需要使用的设备类型()如,硬件设备用D3DDEVTYPE_HAL,或D3DDEVTYPE_REF代表软件设备。
hFocusWindow:与设备相关的窗口句柄。通常情况下是指设备所要进行绘制的目标窗口。
为了达到预期的目的,该句柄与D3DPRESENT_PARAMETER结构的数据成员hDeviceWindow应为同一个句柄。
BehaviorFlags:该参数可为D3DCREATE_HARDWARE_VERTEXPROCESSING或D3DCREATE_SOFTWARE_VERTEXPROCESSING.
pPresentationParameters:一个已经完成初始化的D3DPRESENT_PARAMETERS类型的实例,该实例定义了设备的一些特性。
ppReturnedDeviceInterface:返回所创建的设备。
*/
if(FAILED(_d3d9->CreateDevice(D3DADAPTER_DEFAULT, D3DDEVTYPE_HAL,
hwnd, vp, &d3dpp, device)))
return FALSE;
_d3d9->Release();
return TRUE;
}
int d3d::EnterMsgLoop( bool (*ptr_display)(float timeDelta) )
{
MSG msg;
::ZeroMemory(&msg, sizeof(MSG));
static float lastTime = (float)timeGetTime();
while(msg.message != WM_QUIT)
{
if(::PeekMessage(&msg, 0, 0, 0, PM_REMOVE))
{
::TranslateMessage(&msg);
::DispatchMessage(&msg);
}
else
{
float currTime = (float)timeGetTime();
float timeDelta = (currTime - lastTime)*0.001f;
ptr_display(timeDelta);
lastTime = currTime;
}
}
return msg.wParam;
}
D3DLIGHT9 d3d::InitDirectionalLight(D3DXVECTOR3* direction, D3DXCOLOR* color)
{
D3DLIGHT9 light;
::ZeroMemory(&light, sizeof(light));
light.Type = D3DLIGHT_DIRECTIONAL;
light.Ambient = *color * 0.4f;
light.Diffuse = *color;
light.Specular = *color * 0.6f;
light.Direction = *direction;
return light;
}
D3DLIGHT9 d3d::InitPointLight(D3DXVECTOR3* position, D3DXCOLOR* color)
{
D3DLIGHT9 light;
::ZeroMemory(&light, sizeof(light));
light.Type = D3DLIGHT_POINT;
light.Ambient = *color * 0.4f;
light.Diffuse = *color;
light.Specular = *color * 0.6f;
light.Position = *position;
light.Range = 1000.0f;
light.Falloff = 1.0f;
light.Attenuation0 = 1.0f;
light.Attenuation1 = 0.0f;
light.Attenuation2 = 0.0f;
return light;
}
D3DLIGHT9 d3d::InitSpotLight(D3DXVECTOR3* position, D3DXVECTOR3* direction, D3DXCOLOR* color)
{
D3DLIGHT9 light;
::ZeroMemory(&light, sizeof(light));
light.Type = D3DLIGHT_SPOT;
light.Ambient = *color * 0.4f;
light.Diffuse = *color;
light.Specular = *color * 0.6f;
light.Position = *position;
light.Direction = *direction;
light.Range = 1000.0f;
light.Falloff = 1.0f;
light.Attenuation0 = 1.0f;
light.Attenuation1 = 0.0f;
light.Attenuation2 = 0.0f;
light.Theta = 0.5f;
light.Phi = 0.7f;
return light;
}
D3DMATERIAL9 d3d::InitMtrl(D3DXCOLOR a, D3DXCOLOR d, D3DXCOLOR s, D3DXCOLOR e, float p)
{
D3DMATERIAL9 mtrl;
mtrl.Ambient = a;
mtrl.Diffuse = d;
mtrl.Specular = s;
mtrl.Emissive = e;
mtrl.Power = p;
return mtrl;
}
d3d::BoundingBox::BoundingBox()
{
// infinite small
_min.x = d3d::INFINITY;
_min.y = d3d::INFINITY;
_min.z = d3d::INFINITY;
_max.x = -d3d::INFINITY;
_max.y = -d3d::INFINITY;
_max.z = -d3d::INFINITY;
}
bool d3d::BoundingBox::isPointInside(D3DXVECTOR3& p)
{
if( p.x >= _min.x && p.y >= _min.y && p.z >= _min.z &&
p.x <= _max.x && p.y <= _max.y && p.z <= _max.z )
{
return true;
}
else
{
return false;
}
}
d3d::BoundingSphere::BoundingSphere()
{
_radius = 0.0f;
}
bool d3d::DrawBasicScene(IDirect3DDevice9* device, float scale)
{
static IDirect3DVertexBuffer9* floor = 0;
static IDirect3DTexture9* tex = 0;
static ID3DXMesh* pillar = 0;
HRESULT hr = 0;
if( device == 0 )
{
if( floor && tex && pillar )
{
// they already exist, destroy them
d3d::Release<IDirect3DVertexBuffer9*>(floor);
d3d::Release<IDirect3DTexture9*>(tex);
d3d::Release<ID3DXMesh*>(pillar);
}
}
else if( !floor && !tex && !pillar )
{
// 创建顶点缓存,并设置6个顶点坐标,两个三角形组成一个矩形
device->CreateVertexBuffer(
6 * sizeof(Vertex),
0,
d3d::Vertex::FVF,
D3DPOOL_MANAGED,
&floor,
0);
Vertex* v = 0;
floor->Lock(0, 0, (void**)&v, 0);
v[0] = Vertex(-20.0f, -2.5f, -20.0f, 0.0f, 1.0f, 0.0f, 0.0f, 1.0f);
v[1] = Vertex(-20.0f, -2.5f, 20.0f, 0.0f, 1.0f, 0.0f, 0.0f, 0.0f);
v[2] = Vertex( 20.0f, -2.5f, 20.0f, 0.0f, 1.0f, 0.0f, 1.0f, 0.0f);
v[3] = Vertex(-20.0f, -2.5f, -20.0f, 0.0f, 1.0f, 0.0f, 0.0f, 1.0f);
v[4] = Vertex( 20.0f, -2.5f, 20.0f, 0.0f, 1.0f, 0.0f, 1.0f, 0.0f);
v[5] = Vertex( 20.0f, -2.5f, -20.0f, 0.0f, 1.0f, 0.0f, 1.0f, 1.0f);
floor->Unlock();
//创建一个圆柱体
D3DXCreateCylinder(device, 0.5f, 0.5f, 5.0f, 20, 20, &pillar, 0);
//创建纹理
D3DXCreateTextureFromFile(
device,
"desert.bmp",
&tex);
}
else
{
//
// 处理纹理
//
device->SetSamplerState(0, D3DSAMP_MAGFILTER, D3DTEXF_LINEAR);
device->SetSamplerState(0, D3DSAMP_MINFILTER, D3DTEXF_LINEAR);
device->SetSamplerState(0, D3DSAMP_MIPFILTER, D3DTEXF_POINT);
//启用光照
D3DXVECTOR3 dir(0.707f, -0.707f, 0.707f);
D3DXCOLOR col(1.0f, 1.0f, 1.0f, 1.0f);
D3DLIGHT9 light = d3d::InitDirectionalLight(&dir, &col);
device->SetLight(0, &light);
device->LightEnable(0, true);
device->SetRenderState(D3DRS_NORMALIZENORMALS, true);
device->SetRenderState(D3DRS_SPECULARENABLE, true);
//
// Render
//
D3DXMATRIX T, R, P, S;
D3DXMatrixScaling(&S, scale, scale, scale);
// used to rotate cylinders to be parallel with world's y-axis
D3DXMatrixRotationX(&R, -D3DX_PI * 0.5f);
// 渲染地板
D3DXMatrixIdentity(&T);
T = T * S;
device->SetTransform(D3DTS_WORLD, &T);
device->SetMaterial(&d3d::WHITE_MTRL);
device->SetTexture(0, tex);
device->SetStreamSource(0, floor, 0, sizeof(Vertex));
device->SetFVF(Vertex::FVF);
device->DrawPrimitive(D3DPT_TRIANGLELIST, 0, 2);
// 6个圆柱体
device->SetMaterial(&d3d::BLUE_MTRL);
device->SetTexture(0, 0);
for(int i = 0; i < 5; i++)
{
D3DXMatrixTranslation(&T, -5.0f, 0.0f, -15.0f + (i * 7.5f));
P = R * T * S;
device->SetTransform(D3DTS_WORLD, &P);
pillar->DrawSubset(0);
D3DXMatrixTranslation(&T, 5.0f, 0.0f, -15.0f + (i * 7.5f));
P = R * T * S;
device->SetTransform(D3DTS_WORLD, &P);
pillar->DrawSubset(0);
}
}
return true;
}
float d3d::GetRandomFloat(float lowBound, float highBound)
{
if( lowBound >= highBound ) // bad input
return lowBound;
// get random float in [0, 1] interval
float f = (rand() % 10000) * 0.0001f;
// return float in [lowBound, highBound] interval.
return (f * (highBound - lowBound)) + lowBound;
}
void d3d::GetRandomVector(
D3DXVECTOR3* out,
D3DXVECTOR3* min,
D3DXVECTOR3* max)
{
out->x = GetRandomFloat(min->x, max->x);
out->y = GetRandomFloat(min->y, max->y);
out->z = GetRandomFloat(min->z, max->z);
}
DWORD d3d::FtoDw(float f)
{
return *((DWORD*)&f);
}
float d3d::Lerp(float a, float b, float t)
{
return a - (a*t) + (b*t);
}
最后看一下wmain.cpp的代码:
#include "DirectX3D.h"
#include "terrain.h"
#include "camera.h"
#include "fps.h"
//#include <fstream>
//#include <vector>
//
// Globals
//
IDirect3DDevice9* Device = 0;
const int Width = 640;
const int Height = 480;
Terrain* TheTerrain = 0;
Camera TheCamera(Camera::LANDOBJECT);
FPSCounter* FPS = 0;
//
// Framework Functions
//
bool Setup()
{
//
// Create the terrain.
//
//光照的方向向量
D3DXVECTOR3 lightDirection(0.0f, 1.0f, 0.0f);
//从高度图中得到高度信息
TheTerrain = new Terrain(Device, "coastMountain64.raw", 64, 64, 10, 0.5f);
TheTerrain->genTexture(&lightDirection);
//
// Create the font.
//
FPS = new FPSCounter(Device);
//
// Set texture filters.
//
Device->SetSamplerState(0, D3DSAMP_MAGFILTER, D3DTEXF_LINEAR);
Device->SetSamplerState(0, D3DSAMP_MINFILTER, D3DTEXF_LINEAR);
Device->SetSamplerState(0, D3DSAMP_MIPFILTER, D3DTEXF_LINEAR);
//
// Set projection matrix.
//
D3DXMATRIX proj;
D3DXMatrixPerspectiveFovLH(
&proj,
D3DX_PI * 0.25f, // 45 - degree
(float)Width / (float)Height,
1.0f,
1000.0f);
Device->SetTransform(D3DTS_PROJECTION, &proj);
return true;
}
//将之前分配的内存进行清理,也就是顶点缓存和索引缓存
void Cleanup()
{
d3d::Delete<Terrain*>(TheTerrain);
d3d::Delete<FPSCounter*>(FPS);
}
bool Display(float timeDelta)
{
if( Device )
{
//
// Update: Update the camera.
//
if( ::GetAsyncKeyState('W') & 0x8000f )
TheCamera.walk(4.0f * timeDelta);
if( ::GetAsyncKeyState('S') & 0x8000f )
TheCamera.walk(-4.0f * timeDelta);
if( ::GetAsyncKeyState('A') & 0x8000f )
TheCamera.strafe(-4.0f * timeDelta);
if( ::GetAsyncKeyState('D') & 0x8000f )
TheCamera.strafe(4.0f * timeDelta);
if( ::GetAsyncKeyState('R') & 0x8000f )
TheCamera.fly(4.0f * timeDelta);
if( ::GetAsyncKeyState('F') & 0x8000f )
TheCamera.fly(-4.0f * timeDelta);
if( ::GetAsyncKeyState(VK_UP) & 0x8000f )
TheCamera.pitch(1.0f * timeDelta);
if( ::GetAsyncKeyState(VK_DOWN) & 0x8000f )
TheCamera.pitch(-1.0f * timeDelta);
if( ::GetAsyncKeyState(VK_LEFT) & 0x8000f )
TheCamera.yaw(-1.0f * timeDelta);
if( ::GetAsyncKeyState(VK_RIGHT) & 0x8000f )
TheCamera.yaw(1.0f * timeDelta);
if( ::GetAsyncKeyState('N') & 0x8000f )
TheCamera.roll(1.0f * timeDelta);
if( ::GetAsyncKeyState('M') & 0x8000f )
TheCamera.roll(-1.0f * timeDelta);
// 这里通过用户的输入处理,不断的设置取景矩阵并进行设置。
//
D3DXVECTOR3 pos;
TheCamera.getPosition(&pos);
float height = TheTerrain->getHeight( pos.x, pos.z );
pos.y = height + 5.0f; // add height because we're standing up
TheCamera.setPosition(&pos);
D3DXMATRIX V;
TheCamera.getViewMatrix(&V);
Device->SetTransform(D3DTS_VIEW, &V);
//
// Draw the scene:
//
Device->Clear(0, 0, D3DCLEAR_TARGET | D3DCLEAR_ZBUFFER, 0xff000000, 1.0f, 0);
Device->BeginScene();
D3DXMATRIX I;
D3DXMatrixIdentity(&I);
if( TheTerrain )
TheTerrain->draw(&I, false);
if( FPS )
FPS->render(0xffffffff, timeDelta);
Device->EndScene();
Device->Present(0, 0, 0, 0);
}
return true;
}
//
// WndProc
//
LRESULT CALLBACK d3d::WndProc(HWND hwnd, UINT msg, WPARAM wParam, LPARAM lParam)
{
switch( msg )
{
case WM_DESTROY:
::PostQuitMessage(0);
break;
case WM_KEYDOWN:
if( wParam == VK_ESCAPE )
::DestroyWindow(hwnd);
break;
}
return ::DefWindowProc(hwnd, msg, wParam, lParam);
}
//
// WinMain
//
int WINAPI WinMain(HINSTANCE hinstance,
HINSTANCE prevInstance,
PSTR cmdLine,
int showCmd)
{
if(!d3d::InitD3D(hinstance,
640, 480, true, D3DDEVTYPE_HAL, &Device))
{
::MessageBox(0, "InitD3D() - FAILED", 0, 0);
return 0;
}
if(!Setup())
{
::MessageBox(0, "Setup() - FAILED", 0, 0);
return 0;
}
d3d::EnterMsgLoop( Display );
Cleanup();
Device->Release();
return 0;
}
bool ComputeBoundingSphere(ID3DXMesh* mesh, d3d::BoundingSphere* sphere)
{
HRESULT hr = 0;
BYTE* v = 0;
mesh->LockVertexBuffer(0, (void**)&v);//得到网格的顶点缓存
/*
我们来看一下D3DX库提供的用来计算一个网格的外接球的函数
HRESULT D3DXComputeBoundingSphere(
__in const D3DXVECTOR3 *pFirstPosition,
__in DWORD NumVertices,
__in DWORD dwStride,
__in D3DXVECTOR3 *pCenter,
__in FLOAT *pRadius
);
pFirstPosition:指向顶点数组(该数组的每个元素都描述了对应顶点)中第一个顶点的位置向量的指针。我们可以通过网格对象得到顶点缓存的指针,最后
可转化为该值。
NumVertices:该网格中顶点数组中顶点的个数。可通过网格mesh->GetNumVertices()得到
dsStride:每个顶点的大小,单位为字节。该值很重要,因为一种顶点结构可能包含了许多该函数所不需要的附加信息,如法向量和纹理坐标等。这样该函数
就需要知道应跳过多少字节才能找到下一个顶点的位置。mesh->GetFVF()可以返回一个描述了顶点格式的DWORD类型值。D3DXGetFVFVertexSize这个
函数可以得到该顶点占用多少个字节。
pCenter:返回的外接球的球心位置。
pRadius: 返回外接球的半径。
*/
hr = D3DXComputeBoundingSphere(
(D3DXVECTOR3*)v,
mesh->GetNumVertices(),
D3DXGetFVFVertexSize(mesh->GetFVF()),
&sphere->_center,
&sphere->_radius);
mesh->UnlockVertexBuffer();
if( FAILED(hr) )
return false;
return true;
}
bool ComputeBoundingBox(ID3DXMesh* mesh, d3d::BoundingBox* box)
{
HRESULT hr = 0;
BYTE* v = 0;
mesh->LockVertexBuffer(0, (void**)&v);
//这里是D3DX中计算一个网格外接体的函数,跟外接球的函数很类似,只是最后两个参数,返回外接体的最大点和最小点。
hr = D3DXComputeBoundingBox(
(D3DXVECTOR3*)v,
mesh->GetNumVertices(),
D3DXGetFVFVertexSize(mesh->GetFVF()),
&box->_min,
&box->_max);
mesh->UnlockVertexBuffer();
if( FAILED(hr) )
return false;
return true;
}
再来看一下程序运行的截图:
每日总结:
我们可用具有不同高度的三角形栅格来建立地形的模型,这些高度值可用于描述山脉和山谷的海拔,从而模拟了真实地形。
高度图是包含了地形中顶点的高度值的数据集。
地形进行纹理映射时,纹理数据即可取自磁盘中的图像,也可取自过程化方法生成的纹理数据。
通过计算每个坐标方格的明暗因子,我们可对地形进行光照处理。明暗因子指定了坐标方格的明暗度。明暗因子由光线到达坐标方格表面时的入射角决定。
为了使摄像机能够在地形中行走,必须求出我们当前所处的三角形面片的位置。然后需要计算出位于该三角形面片中相邻两边上但方向相背的两个向量。通过一个平移变换和一个比例变换,使当前摄像机所处的坐标方格归一化并且使该方格的左上角与坐标原点重合,然后依据上一步求得的两个向量沿着x方向和z方向依次进行线性插值就可求出指定点(在归一化坐标方格中用x和z坐标)的高度。
