QtCreator创建CMake工程

一、MinGw

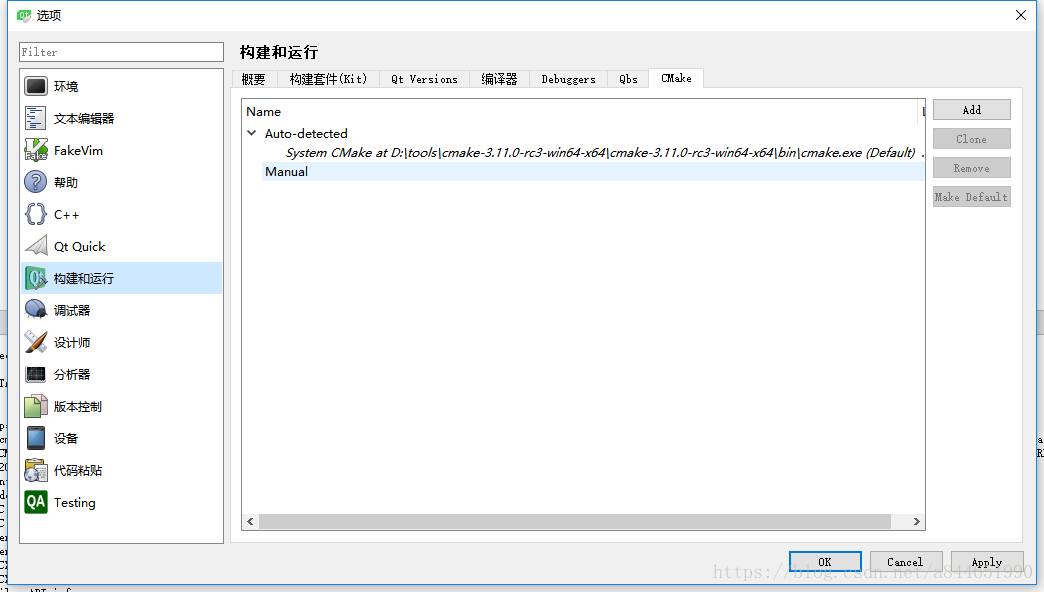

确保cmake已经安装并且添加到了系统环境变量（Qtcreator会自动检测），或者Qtcreator中手动添加。

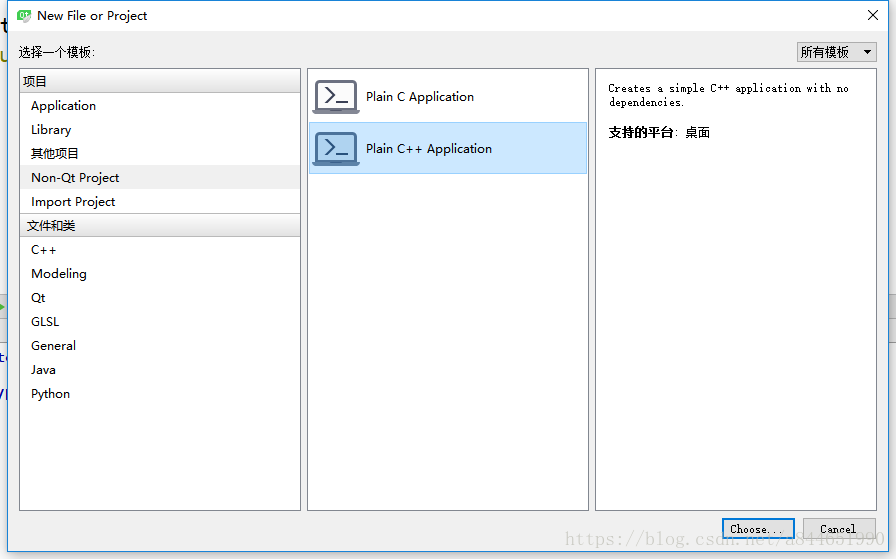

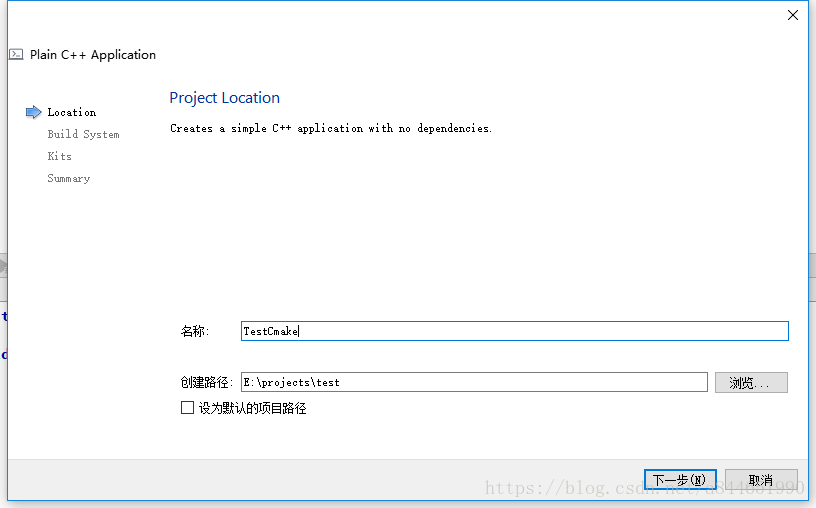

  使用Mingw编译器的话创建很简单，新建工程-Non-Qt Project-Plain C++ Application：

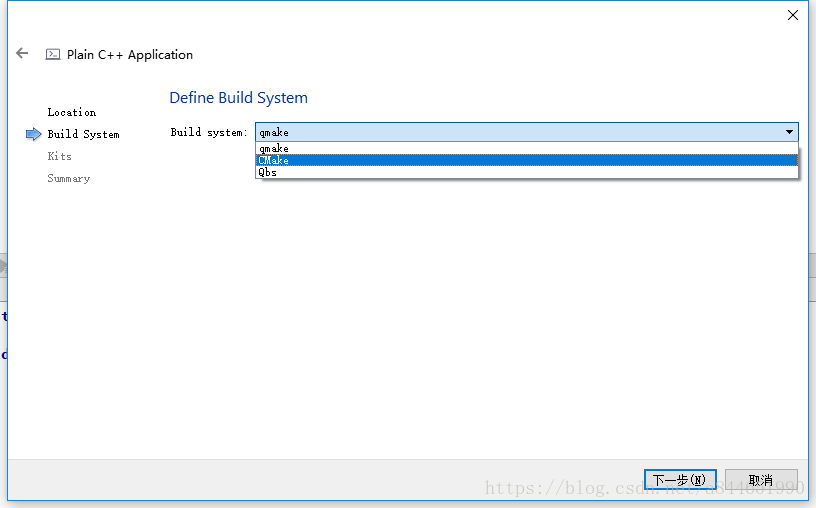

选择Cmake：

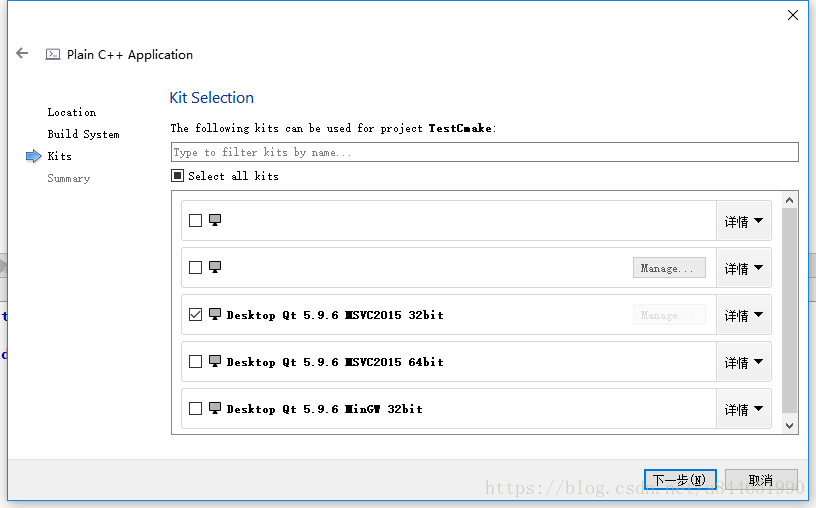

选择Mingw编译器即可。

二、MSVC

  如果使用vs编译器的话，需要准备：
1、vs已经安装。
2、win10 SDK（本人使用的是win10）已经安装。
3、将D:\Qt\Qt5.9.6\Tools\QtCreator\bin（根据自己的实际情况）添加到系统环境变量，不然会报错：

Running "D:\tools\cmake-3.11.0-rc3-win64-x64\cmake-3.11.0-rc3-win64-x64\bin\cmake.exe -E server "--pipe=\\.\pipe\{b2aa12d0-6e73-49b3-8b91-b084356be455}" --experimental" in C:\Users\84465\AppData\Local\Temp\QtCreator-P1XkOA\qtc-cmake-XXBA6dX1.
Starting to parse CMake project, using: "-DCMAKE_CXX_COMPILER:STRING=D:/vs2015/VC/BIN/amd64_x86/cl.exe", "-DCMAKE_C_COMPILER:STRING=D:/vs2015/VC/BIN/amd64_x86/cl.exe", "-DCMAKE_PREFIX_PATH:STRING=D:/Qt/Qt5.9.6/5.9.6/msvc2015", "-DQT_QMAKE_EXECUTABLE:STRING=D:/Qt/Qt5.9.6/5.9.6/msvc2015/bin/qmake.exe".
The C compiler identification is MSVC 19.0.24210.0
The CXX compiler identification is MSVC 19.0.24210.0
Check for working C compiler: D:/vs2015/VC/BIN/amd64_x86/cl.exe
CMake Error: Generator: execution of make failed. Make command was: "jom" "/NOLOGO" "cmTC_9a64b\fast"
Check for working C compiler: D:/vs2015/VC/BIN/amd64_x86/cl.exe -- broken
CMake Error at D:/tools/cmake-3.11.0-rc3-win64-x64/cmake-3.11.0-rc3-win64-x64/share/cmake-3.11/Modules/CMakeTestCCompiler.cmake:52 (message):
  The C compiler

    "D:/vs2015/VC/BIN/amd64_x86/cl.exe"

  is not able to compile a simple test program.

  It fails with the following output:

    Change Dir: C:/Users/84465/AppData/Local/Temp/QtCreator-P1XkOA/qtc-cmake-XXBA6dX1/CMakeFiles/CMakeTmp

    Run Build Command:"jom" "/NOLOGO" "cmTC_9a64b\fast"
    系统找不到指定的文件。
    Generator: execution of make failed. Make command was: "jom" "/NOLOGO" "cmTC_9a64b\fast"




  CMake will not be able to correctly generate this project.
Call Stack (most recent call first):
  CMakeLists.txt:3 (project)


Configuring incomplete, errors occurred!
See also "C:/Users/84465/AppData/Local/Temp/QtCreator-P1XkOA/qtc-cmake-XXBA6dX1/CMakeFiles/CMakeOutput.log".
See also "C:/Users/84465/AppData/Local/Temp/QtCreator-P1XkOA/qtc-cmake-XXBA6dX1/CMakeFiles/CMakeError.log".
CMake Project parsing failed.

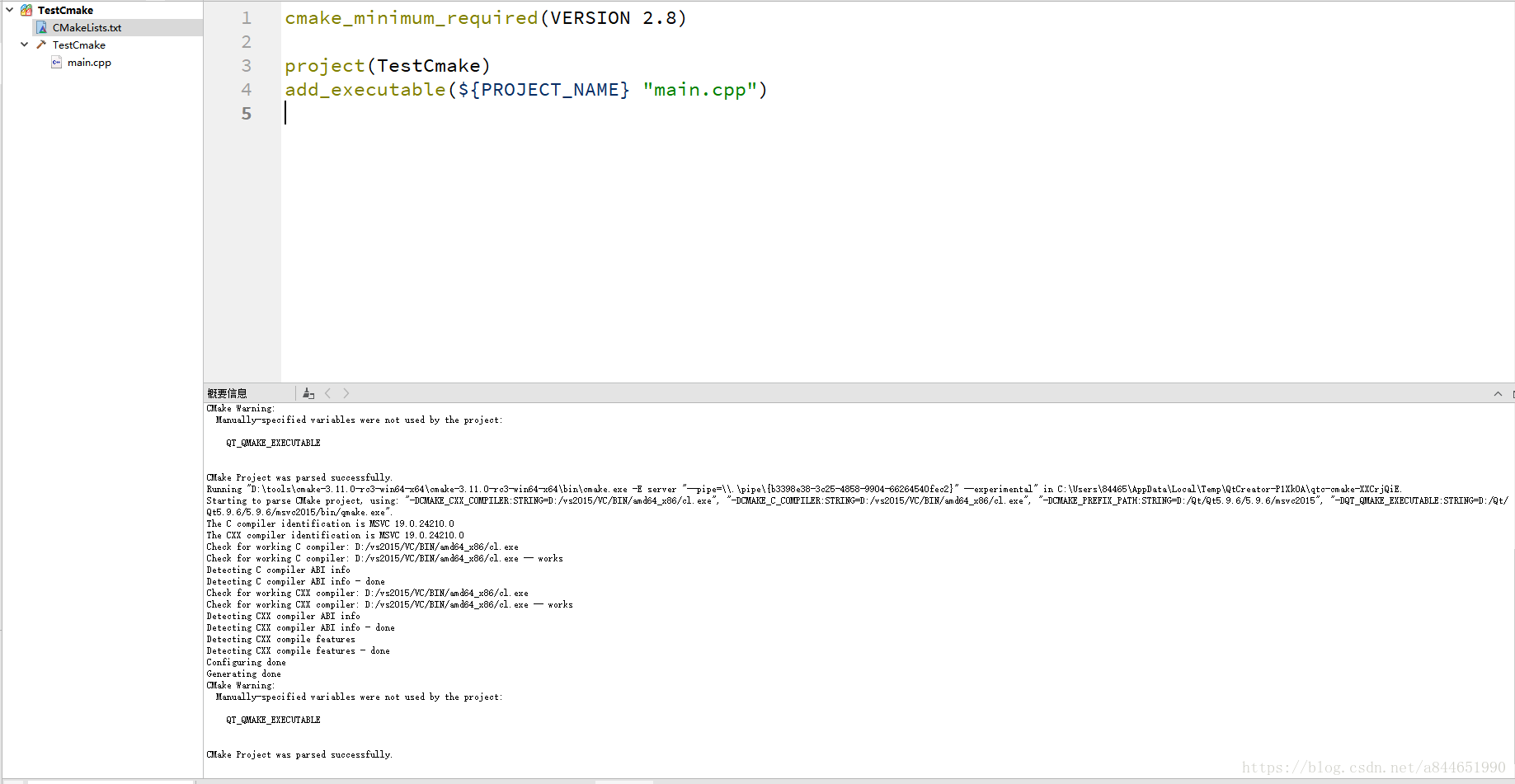

其余步骤与MinGw一致。
