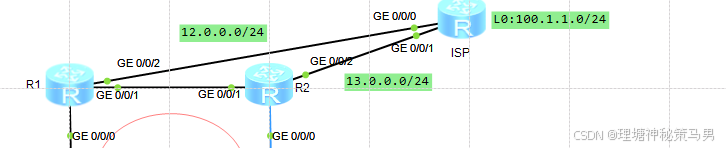

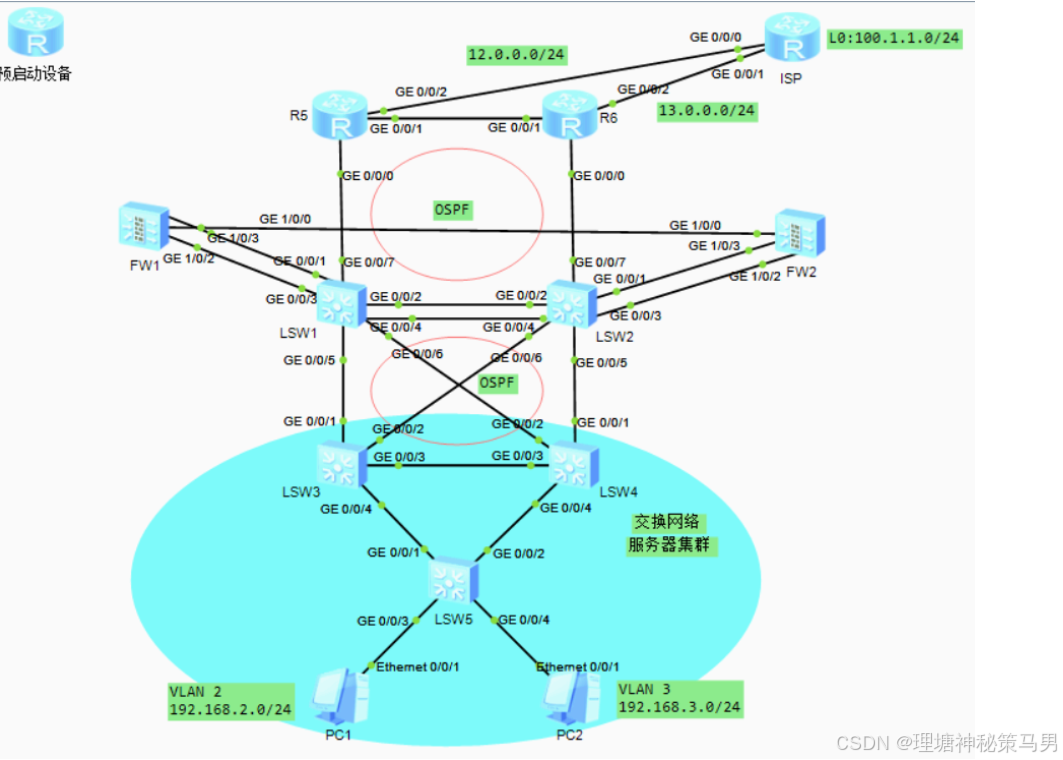

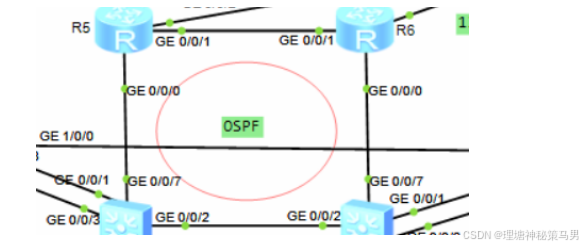

一、实验拓扑图
二、实验需求：
1、SW3的流量 正常情况下：SW1_VRF-->FW1--->SW1_Public--->R5 故障情况下：SW2_VRF-->FW2--->SW2_Public--->R6
2、SW4的流量 正常情况下：SW2_VRF-->FW2--->SW2_Public--->R6 故障情况下：SW1_VRF-->FW1--->SW1_Public--->R5
3、交换网络负载均衡
三、实验配置

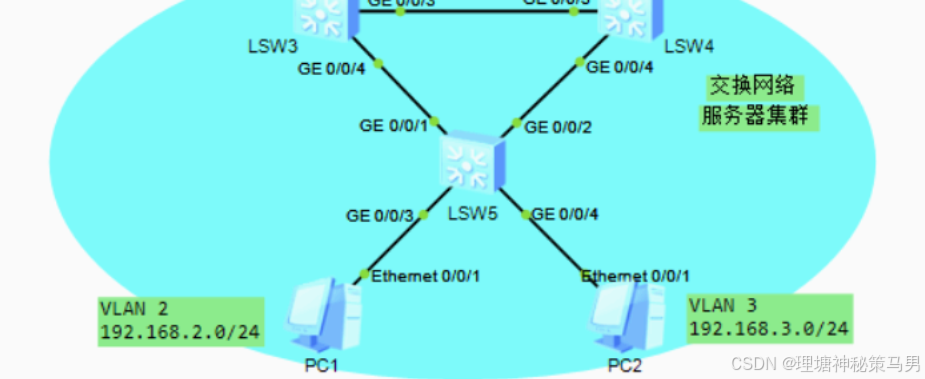

二层交换机配置
SW3：
主要流量发送给SW1，备份发给SW2
SW4：
主要流量发送给SW2，备份发给SW1
SW1：
192.168.2.0/24--->主要发送给SW3，备份给SW4
192.168.3.0/24--->主要发送给SW4，备份给SW3
SW2：
192.168.2.0/24--->主要发送给SW3，备份给SW4
192.168.3.0/24--->主要发送给SW4，备份给SW3具体配置如下：
SW3：
[SW3]vlan batch 2 3
[SW3]interface GigabitEthernet 0/0/3
[SW3-GigabitEthernet0/0/3] port link-type trunk
[SW3-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 3
[SW3]interface GigabitEthernet 0/0/4
[SW3-GigabitEthernet0/0/4] port link-type trunk
[SW3-GigabitEthernet0/0/4] port trunk allow-pass vlan 2 to 3
[SW3]stp enable
[SW3]stp mode mstp
[SW3]stp region-configuration
[SW3-mst-region]region-name aa
[SW3-mst-region]instance 1 vlan 2
[SW3-mst-region]instance 2 vlan 3
[SW3-mst-region]active region-configuration
[SW3-mst-region]q
[SW3]stp instance 1 root primary
[SW3]stp instance 2 root secondary
[SW3]stp instance 0 root primary
[SW3]interface Vlanif 2
[SW3-Vlanif2]ip address 192.168.2.1 24
[SW3-Vlanif2]vrrp vrid 1 virtual-ip 192.168.2.254
[SW3-Vlanif2]vrrp vrid 1 priority 120
[SW3-Vlanif2]vrrp vrid 1 preempt-mode timer delay 20
[SW3-Vlanif2]vrrp vrid 1 track interface GigabitEthernet 0/0/1 reduced 15
[SW3-Vlanif2]vrrp vrid 1 track interface GigabitEthernet 0/0/2 reduced 15
[SW3]interface Vlanif 3
[SW3-Vlanif3]ip add 192.168.3.1 24
[SW3-Vlanif3]vrrp vrid 1 virtual-ip 192.168.3.254
SW4：
[SW4]vlan batch 2 3
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW4]int g 0/0/3
[SW4-GigabitEthernet0/0/3]port link-type trunk
[SW4-GigabitEthernet0/0/3]port trunk allow-pass
[SW4-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 3
[SW4-GigabitEthernet0/0/3]int g 0/0/4
[SW4-GigabitEthernet0/0/4]port link-type trunk
[SW4-GigabitEthernet0/0/4]port trunk allow-pass vlan 2 to 3
[SW4-GigabitEthernet0/0/4]q

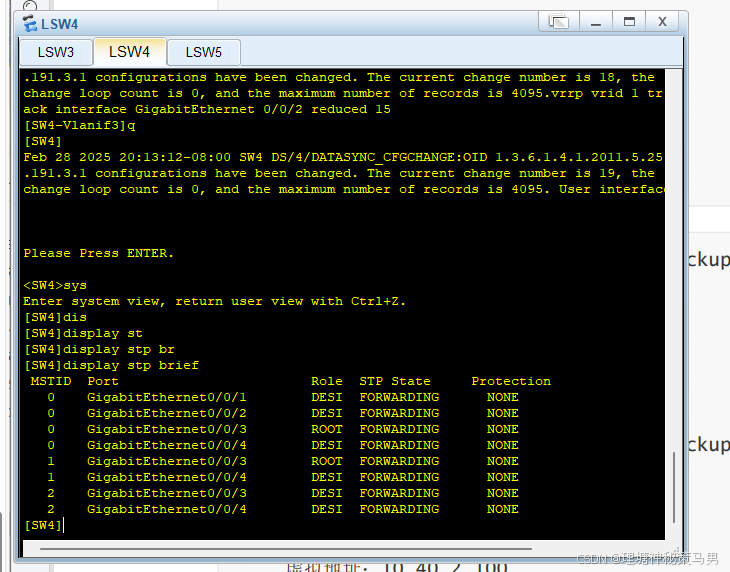

[SW4]stp enable
[SW4]stp mode mstp
[SW4]stp region-configuration
[SW4-mst-region]region-name a
[SW4-mst-region]instance 1 vlan 2
[SW4-mst-region]instance 2 vlan 3
[SW4-mst-region]active region-configuration
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW4-mst-region]q
[SW4]stp instance 1 root secondary
[SW4]stp instance 2 root primary
[SW4]stp instance 0 root secondary
[SW4]int Vlanif 3
[SW4-Vlanif3]ip add 192.168.3.2 255.255.255.0
[SW4-Vlanif3]vrrp vrid 1 virtual-ip 192.168.3.254
[SW4-Vlanif3]vrrp vrid 1 priority 120
[SW4-Vlanif3]vrrp vrid 1 preempt-mode timer delay 20
[SW4-Vlanif3]vrrp vrid 1 track interface GigabitEthernet 0/0/1 reduced 15
[SW4-Vlanif3]vrrp vrid 1 track interface GigabitEthernet 0/0/2 reduced 15
[SW4-Vlanif3]qSW5：
[SW5]vlan batch 2 3
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW5]int g 0/0/3
[SW5-GigabitEthernet0/0/3]port link-type access
[SW5-GigabitEthernet0/0/3]port default vlan 2
[SW5-GigabitEthernet0/0/3]int g 0/0/4
[SW5-GigabitEthernet0/0/4]port link-type access
[SW5-GigabitEthernet0/0/4]port default vlan 3
[SW5-GigabitEthernet0/0/4]int g 0/0/1
[SW5-GigabitEthernet0/0/1]port link-type trunk
[SW5-GigabitEthernet0/0/1]port trunk allow-pass vlan 2 3
[SW5-GigabitEthernet0/0/1]int g 0/0/2
[SW5-GigabitEthernet0/0/2]port link-type trunk
[SW5-GigabitEthernet0/0/2]port trunk allow-pass vlan 2 3
[SW5-GigabitEthernet0/0/2]q

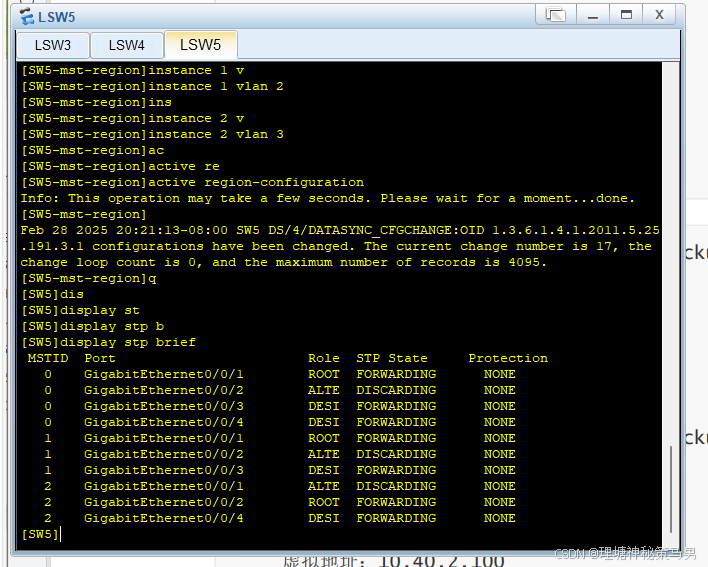

[SW5]stp enable
[SW5]stp mode mstp
[SW5]stp region-configuration
[SW5-mst-region]region-name a
[SW5-mst-region]instance 1 vlan 2
[SW5-mst-region]instance 2 vlan 3
[SW5-mst-region]active region-configuration
Info: This operation may take a few seconds. Please wait for a moment...done.查看STP生成树：

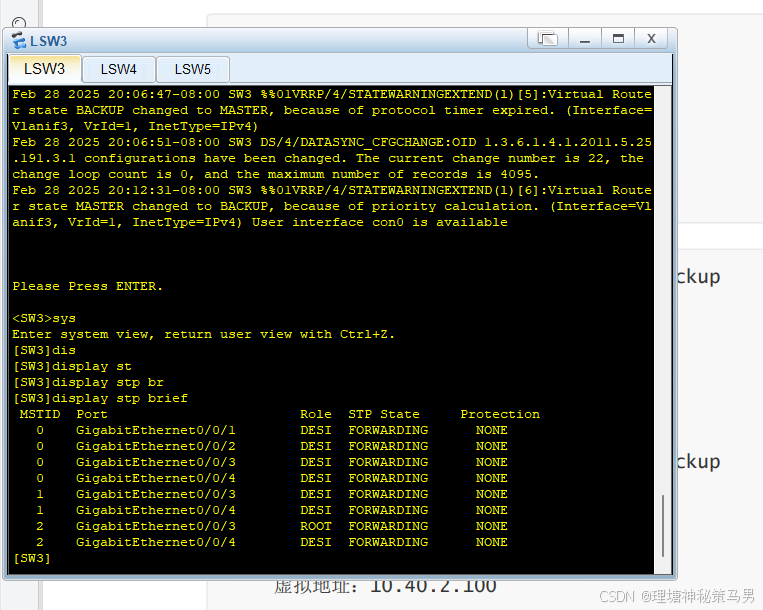

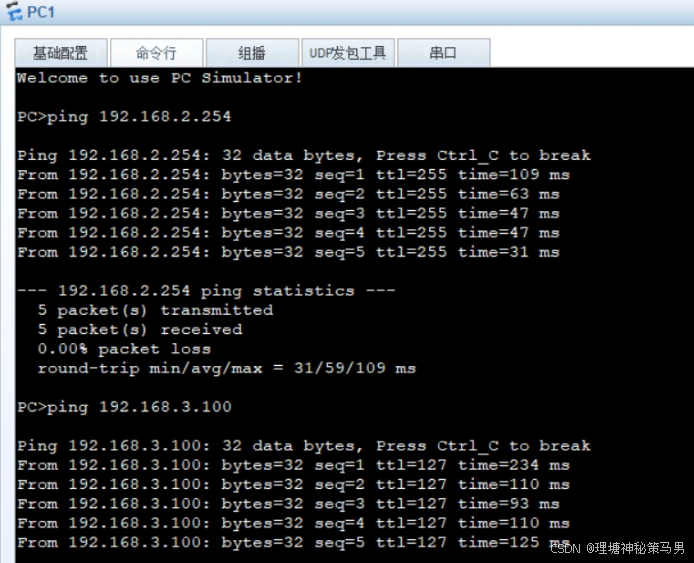

通过PC1测试网络是否能互通：

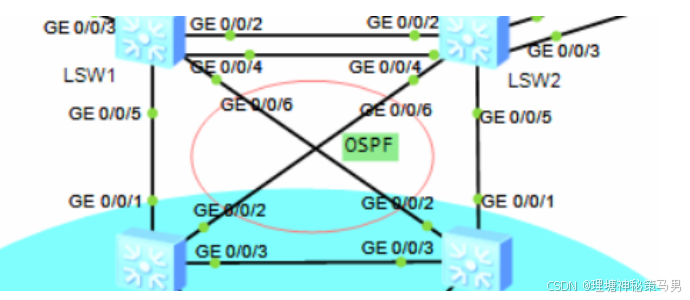

汇聚到核心层配置：
SW1-SW2：VLAN 102---10.10.2.0/24
SW1-SW3：VLAN 103---10.10.3.0/24
SW1-SW4：VLAN 104---10.10.4.0/24
SW2-SW3：VLAN 203---10.20.3.0/24
SW2-SW4：VLAN 204---10.20.4.0/24具体配置如下：
SW3：
[SW3]vlan batch 103 203
[SW3]int g 0/0/1
[SW3-GigabitEthernet0/0/1]port link-type access
[SW3-GigabitEthernet0/0/1]port default vlan 103
[SW3-GigabitEthernet0/0/1]undo stp enable
[SW3]int g 0/0/2
[SW3-GigabitEthernet0/0/2]port link-type access
[SW3-GigabitEthernet0/0/2]port default vlan 203
[SW3-GigabitEthernet0/0/2]undo stp enable
[SW3]interface Vlanif 103
[SW3-Vlanif103]ip add 10.10.3.3 24
[SW3]interface Vlanif 203
[SW3-Vlanif203]ip add 10.20.3.3 24
[SW3]ospf 1 router-id 3.3.3.3
[SW3-ospf-1]area 0
[SW3-ospf-1-area-0.0.0.0]network 10.10.3.3 0.0.0.0
[SW3-ospf-1-area-0.0.0.0]network 10.20.3.3 0.0.0.0
[SW3-ospf-1-area-0.0.0.0]network 192.168.2.1 0.0.0.0
[SW3-ospf-1-area-0.0.0.0]network 192.168.3.1 0.0.0.0
[SW3-ospf-1]silent-interface Vlanif 2
[SW3-ospf-1]silent-interface Vlanif 3
SW4:
[SW4]vlan batch 104 204
[SW4]int g 0/0/1
[SW4-GigabitEthernet0/0/1]port link-type access
[SW4-GigabitEthernet0/0/1]port default vlan 204
[SW4-GigabitEthernet0/0/1]undo stp enable
[SW4]int g 0/0/2
[SW4-GigabitEthernet0/0/2]port link-type access
[SW4-GigabitEthernet0/0/2]port default vlan 104
[SW4-GigabitEthernet0/0/2]undo stp enable
[SW4]interface Vlanif 104
[SW4-Vlanif104]ip address 10.10.4.4 24
[SW4]interface Vlanif 204
[SW4-Vlanif204]ip add 10.20.4.4 24
[SW4]ospf 1 router-id 4.4.4.4
[SW4-ospf-1]area 0
[SW4-ospf-1-area-0.0.0.0] network 10.10.4.4 0.0.0.0
[SW4-ospf-1-area-0.0.0.0] network 10.20.4.4 0.0.0.0
[SW4-ospf-1-area-0.0.0.0] network 192.168.2.2 0.0.0.0
[SW4-ospf-1-area-0.0.0.0] network 192.168.3.2 0.0.0.0
[SW4-ospf-1]silent-interface Vlanif 2
[SW4-ospf-1]silent-interface Vlanif 3
因为SW1和SW2需要被分割为两台设备，分别与上下行设备连接，故需要先创建VRF空间，其中
GE0/0/3-GE0/0/6属于该空间接口。
VRF空间配置信息：
名称：VRF
RD：100:1
RT：100:1
[sw1]ip vpn-instance VRF ---创建VRF空间
[sw1-vpn-instance-VRF]route-distinguisher 100:1 --设定RD值
[sw1-vpn-instance-VRF-af-ipv4]vpn-target 100:1 both ---设定RT值
[sw1-Vlanif102]ip binding vpn-instance VRF ----将接口划入到VRF这个交换机中，在接口进行
配置之前执行对SW1、SW2进行配置并测试
[SW1]vlan batch 102 103 104
[SW1]interface GigabitEthernet 0/0/6
[SW1-GigabitEthernet0/0/6]port link-type access
[SW1-GigabitEthernet0/0/6]port default vlan 103
[SW1-GigabitEthernet0/0/6]undo stp enable
[SW1]interface GigabitEthernet 0/0/5
[SW1-GigabitEthernet0/0/5]port link-type trunk
[SW1-GigabitEthernet0/0/5]undo port trunk allow-pass vlan 1
[SW1-GigabitEthernet0/0/5]port trunk allow-pass vlan 102
[SW1-GigabitEthernet0/0/5]undo stp enable
[SW1]interface GigabitEthernet 0/0/7
[SW1-GigabitEthernet0/0/7]port link-type access
[SW1-GigabitEthernet0/0/7]port default vlan 104
[SW1-GigabitEthernet0/0/7]undo stp enable
[SW1]interface Vlanif 102
[SW1-Vlanif102]ip binding vpn-instance VRF
[SW1-Vlanif102]ip address 10.10.2.1 24
[SW1]interface Vlanif 103
[SW1-Vlanif103]ip binding vpn-instance VRF
[SW1-Vlanif103]ip add 10.10.3.1 24
[SW1]interface Vlanif 104
[SW1-Vlanif104]ip binding vpn-instance VRF
[SW1-Vlanif104]ip add 10.10.4.1 24
[SW2]vlan batch 102 203 204
[SW2]interface GigabitEthernet 0/0/6
[SW2-GigabitEthernet0/0/6]port link-type access
[SW2-GigabitEthernet0/0/6]port default vlan 204
[SW2-GigabitEthernet0/0/6]undo stp enable
[SW2]interface GigabitEthernet 0/0/7
[SW2-GigabitEthernet0/0/7]port link-type access
[SW2-GigabitEthernet0/0/7]port default vlan 203
[SW2-GigabitEthernet0/0/7]undo stp enable
[SW2]interface GigabitEthernet 0/0/5
[SW2-GigabitEthernet0/0/5]port link-type trunk
[SW2-GigabitEthernet0/0/5]port trunk allow-pass vlan 102
[SW2-GigabitEthernet0/0/5]undo port trunk allow-pass vlan 1
[SW2-GigabitEthernet0/0/5]undo stp enable
[SW2]interface Vlanif 102
[SW2-Vlanif102]ip binding vpn-instance VRF
[SW2-Vlanif102]ip address 10.10.2.2 24
[SW2]interface Vlanif 203
[SW2-Vlanif203]ip binding vpn-instance VRF
[SW2-Vlanif203]ip address 10.20.3.2 24
[SW2]interface Vlanif 204
[SW2-Vlanif204]ip binding vpn-instance VRF
[SW2-Vlanif204]ip add 10.20.4.2 24测试：
[SW2]ping -vpn-instance VRF 10.10.2.1
PING 10.10.2.1: 56 data bytes, press CTRL_C to break
Reply from 10.10.2.1: bytes=56 Sequence=1 ttl=255 time=80 ms
Reply from 10.10.2.1: bytes=56 Sequence=2 ttl=255 time=70 ms
Reply from 10.10.2.1: bytes=56 Sequence=3 ttl=255 time=60 ms
Reply from 10.10.2.1: bytes=56 Sequence=4 ttl=255 time=70 ms
Reply from 10.10.2.1: bytes=56 Sequence=5 ttl=255 time=60 ms
[SW2]ping -vpn-instance VRF 10.20.4.4
PING 10.20.4.4: 56 data bytes, press CTRL_C to break
Reply from 10.20.4.4: bytes=56 Sequence=1 ttl=255 time=70 ms
Reply from 10.20.4.4: bytes=56 Sequence=2 ttl=255 time=60 ms
Reply from 10.20.4.4: bytes=56 Sequence=3 ttl=255 time=50 ms
Reply from 10.20.4.4: bytes=56 Sequence=4 ttl=255 time=20 ms
Reply from 10.20.4.4: bytes=56 Sequence=5 ttl=255 time=30 ms
配置OSPF
[SW1]ospf 1 router-id 1.1.1.1 vpn-instance VRF ----代表在名称为VRF的VPN实例中配置ospf
[SW1-ospf-1]area 0
[SW1-ospf-1-area-0.0.0.0]network 10.10.2.1 0.0.0.0
[SW1-ospf-1-area-0.0.0.0]network 10.10.3.1 0.0.0.0
[SW1-ospf-1-area-0.0.0.0]network 10.10.4.1 0.0.0.0
[SW1-ospf-1]default-route-advertise
[SW2]ospf 1 router-id 2.2.2.2 vpn-instance VRF
[SW2-ospf-1]area 0
[SW2-ospf-1-area-0.0.0.0]network 10.10.2.2 0.0.0.0
[SW2-ospf-1-area-0.0.0.0]network 10.20.3.2 0.0.0.0
[SW2-ospf-1-area-0.0.0.0]network 10.20.4.2 0.0.0.0
[SW2-ospf-1]default-route-advertise
此时回程流量是等价路由，负载均衡，不符合来回路径一致要求。故需要进行路由干涉，使用路由策略。
SW3：
主要流量发送给SW1，备份发给SW2
SW4：
主要流量发送给SW2，备份发给SW1
SW1：
192.168.2.0/24--->主要发送给SW3，备份给SW4 192.168.3.0/24--->主要发送给SW4，备份给SW3SW2：
192.168.2.0/24--->主要发送给SW3，备份给SW4 192.168.3.0/24--->主要发送给SW4，备份给SW3
解决方案：
SW3和SW4只需要修改接口Cost数值，让SW3优选从SW1学习到的路由即可，让SW4优选从SW2学习到的路由。
具体配置：
[SW3-ospf-1-area-0.0.0.0]undo network 192.168.2.1 0.0.0.0
[SW3-ospf-1-area-0.0.0.0]undo network 192.168.3.1 0.0.0.0
[SW4-ospf-1-area-0.0.0.0]undo network 192.168.2.2 0.0.0.0
[SW4-ospf-1-area-0.0.0.0]undo network 192.168.3.2 0.0.0.0
SW3：
将SW3本地发送的192.168.3.0/24路由的开销值改大 192.168.2.0/24路由开销不变
通过重发布，来调用路由策略
重发布时，不要引入其他路由信息
[SW3]ip ip-prefix aa permit 192.168.2.0 24
[SW3]ip ip-prefix bb permit 192.168.3.0 24
[SW3]route-policy bb permit node 10
[SW3-route-policy]if-match ip-prefix bb
[SW3-route-policy]apply cost 5
[SW3]route-policy bb permit node 20
[SW3-route-policy]if-match ip-prefix aa
[SW3]ospf 1
[SW3-ospf-1]import-route direct route-policy bb
SW4：
将SW4本地发送的192.168.2.0/24路由的开销值改大，192.168.3.0/24路由开销值不变。
通过重发布调用路由策略：重发布时不要引入其他路由信息。
[SW4]ip ip-prefix aa permit 192.168.2.0 24
[SW4]ip ip-prefix bb permit 192.168.3.0 24
[SW4]route-policy aa permit node 10
[SW4-route-policy]if-match ip-prefix aa
[SW4-route-policy]apply cost 5
[SW4]route-policy aa permit node 20
[SW4-route-policy]if-match ip-prefix bb
[SW4]ospf 1
[SW4-ospf-1]import-route direct route-policy aa

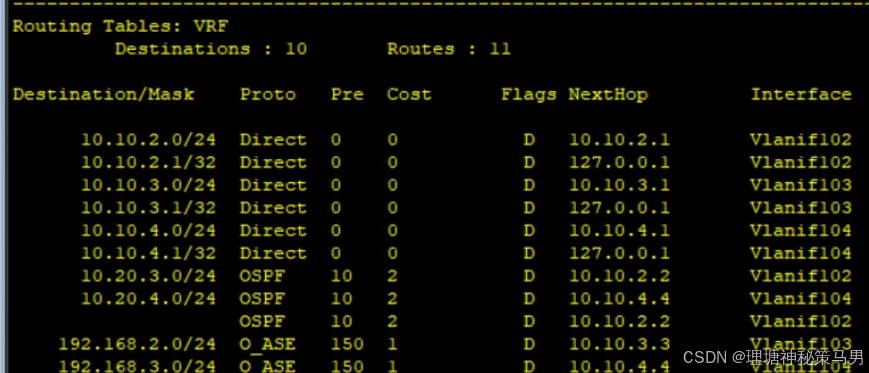

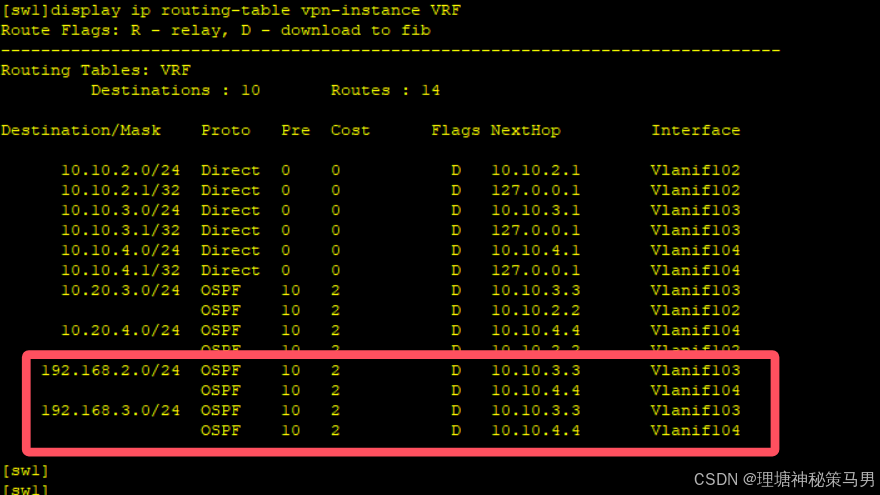

并查看更改后的VRF空间路由表：

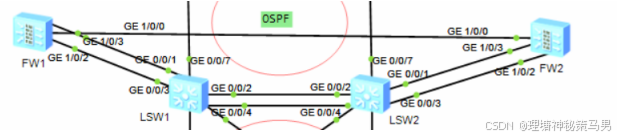

VRF交换机和防火墙的路由交互
FW1为主：
VRRP备份组1-----VRRP备份组5
VRRP备份组3-----VRRP备份组7
FW2为主：
VRRP备份组2-----VRRP备份组6
VRRP备份组4-----VRRP备份组8VRRP备份组1：VRF使用，SW1为Master，SW2为Backup
VLAN 401---10.40.1.0/24
SW1：10.40.1.1/24
SW2：10.40.1.2/24
虚拟地址：10.40.1.100
VRRP备份组2：VRF使用，SW2为Master，SW1为Backup
VLAN 402---10.40.2.0/24
SW1：10.40.2.1/24
SW2：10.40.2.2/24
虚拟地址：10.40.2.100
VRRP备份组3：Public使用，SW1为Master，SW2为Backup VLAN 403---10.40.3.0/24
SW1：10.40.3.1/24
SW2：10.40.3.2/24
虚拟地址：10.40.3.100
VRRP备份组4：Public使用，SW2为Master，SW1为Backup VLAN 404---10.40.4.0/24
SW1：10.40.4.1/24
SW2：10.40.4.2/24
虚拟地址：10.40.4.100
VRRP备份组5：防火墙使用，FW1为Master，FW2为Backup VLAN 401---10.40.1.0/24
FW1：10.40.1.10/24
FW2：10.40.1.20/24
虚拟地址：10.40.1.200
VRRP备份组6：防火墙使用，FW2为Master，FW1为Backup VLAN 402---10.40.2.0/24
FW1：10.40.2.10/24
FW2：10.40.2.20/24
虚拟地址：10.40.2.200
VRRP备份组7：防火墙使用，FW1为Master，FW2为Backup VLAN 403---10.40.3.0/24
FW1：10.40.3.10/24
FW2：10.40.3.20/24
虚拟地址：10.40.3.200
VRRP备份组8：防火墙使用，FW2为Master，FW1为Backup VLAN 404---10.40.4.0/24
FW1：10.40.4.10/24
FW2：10.40.4.20/24
虚拟地址：10.40.4.200
VRF区具体设备配置：
对各交换机设备进行配置并对其区域进行配置操作：
SW1：
[SW1]vlan batch 401 402
[SW1]interface GigabitEthernet 0/0/2
[SW1-GigabitEthernet0/0/2]port link-type trunk
[SW1-GigabitEthernet0/0/2]port trunk allow-pass vlan 401 402
[SW1]interface GigabitEthernet 0/0/5
[SW1-GigabitEthernet0/0/5]port link-type trunk
[SW1-GigabitEthernet0/0/5]port trunk allow-pass vlan 401 402
[SW1]interface Vlanif 401
[SW1-Vlanif401]ip binding vpn-instance VRF
[SW1-Vlanif401]ip address 10.40.1.1 24
[SW1-Vlanif401]vrrp vrid 1 virtual-ip 10.40.1.100
[SW1-Vlanif401]vrrp vrid 1 priority 120
[SW1-Vlanif401]vrrp vrid 1 preempt-mode timer delay 60
[SW1-Vlanif401]vrrp vrid 1 track interface GigabitEthernet 0/0/2 reduced 30
[SW1]interface Vlanif 402
[SW1-Vlanif402]ip binding vpn-instance VRF
[SW1-Vlanif402]ip address 10.40.2.1 24
[SW1-Vlanif402]vrrp vrid 2 virtual-ip 10.40.2.100
[SW1]vlan batch 403 404
[SW1]interface GigabitEthernet 0/0/3
[SW1-GigabitEthernet0/0/3]port link-type trunk
[SW1-GigabitEthernet0/0/3]port trunk allow-pass vlan 403 404
[SW1]interface GigabitEthernet 0/0/4
[SW1-GigabitEthernet0/0/4]port link-type trunk
[SW1-GigabitEthernet0/0/4]port trunk allow-pass vlan 403 404
[SW1]interface Vlanif 403
[SW1-Vlanif403]ip address 10.40.3.1 24
[SW1-Vlanif403]vrrp vrid 3 virtual-ip 10.40.3.100
[SW1-Vlanif403]vrrp vrid 3 priority 120
[SW1-Vlanif403]vrrp vrid 3 preempt-mode timer delay 60
[SW1-Vlanif403]vrrp vrid 3 track interface GigabitEthernet 0/0/3 reduced 30
[SW1]interface Vlanif 404
[SW1-Vlanif404]ip add 10.40.4.1 24
[SW1-Vlanif404]vrrp vrid 4 virtual-ip 10.40.4.100
SW2：
[SW2]vlan batch 401 402
[SW2]interface GigabitEthernet 0/0/3
[SW2-GigabitEthernet0/0/3]port link-type trunk
[SW2-GigabitEthernet0/0/3]port trunk allow-pass vlan 401 402
[SW2]interface GigabitEthernet 0/0/5
[SW2-GigabitEthernet0/0/5]port link-type trunk
[SW2-GigabitEthernet0/0/5]port trunk allow-pass vlan 401 402
[SW2]interface Vlanif 401
[SW2-Vlanif401]ip binding vpn-instance VRF
[SW2-Vlanif401]ip address 10.40.1.2 24
[SW2-Vlanif401]vrrp vrid 1 virtual-ip 10.40.1.100
[SW2]interface Vlanif 402
[SW2-Vlanif402]ip binding vpn-instance VRF
[SW2-Vlanif402]ip address 10.40.2.2 24
[SW2-Vlanif402]vrrp vrid 2 virtual-ip 10.40.2.100
[SW2-Vlanif402]vrrp vrid 2 priority 120
[SW2-Vlanif402]vrrp vrid 2 preempt-mode timer delay 60
[SW2-Vlanif402]vrrp vrid 2 track interface GigabitEthernet 0/0/3 reduced 30
[SW2]vlan batch 403 404
[SW2]interface GigabitEthernet 0/0/2
[SW2-GigabitEthernet0/0/2]port link-type trunk
[SW2-GigabitEthernet0/0/2]port trunk allow-pass vlan 403 404
[SW2]interface GigabitEthernet 0/0/4
[SW2-GigabitEthernet0/0/4]port link-type trunk
[SW2-GigabitEthernet0/0/4]port trunk allow-pass vlan 403 404
[SW2]interface Vlanif 403
[SW2-Vlanif403]ip address 10.40.3.2 24
[SW2-Vlanif403]vrrp vrid 3 virtual-ip 10.40.3.100
[SW2]interface Vlanif 404
[SW2-Vlanif404]ip address 10.40.4.2 24
[SW2-Vlanif404]vrrp vrid 4 virtual-ip 10.40.4.100
[SW2-Vlanif404]vrrp vrid 4 priority 120
[SW2-Vlanif404]vrrp vrid 4 preempt-mode timer delay 60
[SW2-Vlanif404]vrrp vrid 4 track interface GigabitEthernet 0/0/2 reduced 30
对防火墙进行配置并划分安全区域
FW1：
[FW1]vlan batch 401 402 403 404
[FW1]interface GigabitEthernet 1/0/0
[FW1-GigabitEthernet1/0/0]ip add 10.10.10.1 30
[FW1]interface GigabitEthernet 1/0/1.401
[FW1-GigabitEthernet1/0/1.401]ip add 10.40.1.10 24
[FW1-GigabitEthernet1/0/1.401]vlan-type dot1q 401
[FW1]interface GigabitEthernet 1/0/1.402
[FW1-GigabitEthernet1/0/1.402]ip address 10.40.2.10 24
[FW1-GigabitEthernet1/0/1.402]vlan-type dot1q 402
[FW1]interface GigabitEthernet 1/0/2.403
[FW1-GigabitEthernet1/0/2.403]ip address 10.40.3.10 24
[FW1-GigabitEthernet1/0/2.403]vlan-type dot1q 403
[FW1]interface GigabitEthernet 1/0/2.404
[FW1-GigabitEthernet1/0/2.404]ip add 10.40.4.10 24
[FW1-GigabitEthernet1/0/2.404]vlan-type dot1q 404
[FW1]firewall zone trust
[FW1-zone-trust]add interface GigabitEthernet 1/0/1.401
[FW1-zone-trust]add interface GigabitEthernet 1/0/1.402
[FW1]firewall zone untrust
[FW1-zone-untrust]add interface GigabitEthernet 1/0/2.403
[FW1-zone-untrust]add interface GigabitEthernet 1/0/2.404
[FW1]firewall zone dmz
[FW1-zone-dmz]add interface GigabitEthernet 1/0/0
FW2:
[FW2]vlan batch 401 402 403 404
[FW2]interface GigabitEthernet 1/0/0
[FW2-GigabitEthernet1/0/0]ip add 10.10.10.2 30
[FW2]interface GigabitEthernet 1/0/2.401
[FW2-GigabitEthernet1/0/2.401]ip address 10.40.1.20 24
[FW2-GigabitEthernet1/0/2.401]vlan-type dot1q 401
[FW2]interface GigabitEthernet 1/0/2.402
[FW2-GigabitEthernet1/0/2.402]ip add 10.40.2.20 24
[FW2-GigabitEthernet1/0/2.402]vlan-type dot1q 402
[FW2]interface GigabitEthernet 1/0/1.403
[FW2-GigabitEthernet1/0/1.403]ip add 10.40.3.20 24
[FW2-GigabitEthernet1/0/1.403]vlan-type dot1q 403
[FW2]interface GigabitEthernet 1/0/1.404
[FW2-GigabitEthernet1/0/1.404]ip add 10.40.4.20 24
[FW2-GigabitEthernet1/0/1.404]vlan-type dot1q 404
[FW2]firewall zone trust
[FW2-zone-trust]add interface GigabitEthernet 1/0/2.401
[FW2-zone-trust]add interface GigabitEthernet 1/0/2.402
[FW2]firewall zone untrust
[FW2-zone-untrust]add interface GigabitEthernet 1/0/1.403
[FW2-zone-untrust]add interface GigabitEthernet 1/0/1.404
[FW2]firewall zone dmz
[FW2-zone-dmz]add interface GigabitEthernet 1/0/0
再对路由进行补充：
SW1上行路由：
[SW1]ip route-static vpn-instance VRF 0.0.0.0 0 10.40.1.200
[SW1]ip route-static vpn-instance VRF 0.0.0.0 0 10.40.2.200 preference 70SW1下行路由：
[SW1]ip route-static 192.168.0.0 16 10.40.3.200
[SW1]ip route-static 192.168.0.0 16 10.40.4.200 preference 70
SW2上行路由：
[SW2]ip route-static vpn-instance VRF 0.0.0.0 0 10.40.2.200
[SW2]ip route-static vpn-instance VRF 0.0.0.0 0 10.40.1.200 preference 70SW2下行路由：
[SW2]ip route-static 192.168.0.0 16 10.40.4.200
[SW2]ip route-static 192.168.0.0 16 10.40.3.200 preference 70
防火墙双击热备配置：
FW1下联---VRF
[FW1]interface GigabitEthernet 1/0/1.401
[FW1-GigabitEthernet1/0/1.401]vrrp vrid 5 virtual-ip 10.40.1.200 active
[FW1]interface GigabitEthernet 1/0/1.402
[FW1-GigabitEthernet1/0/1.402]vrrp vrid 6 virtual-ip 10.40.2.200 standby
FW1上联---Public
[FW1]interface GigabitEthernet 1/0/2.403
[FW1-GigabitEthernet1/0/2.403]vrrp vrid 7 virtual-ip 10.40.3.200 active
[FW1]interface GigabitEthernet 1/0/2.404
[FW1-GigabitEthernet1/0/2.404]vrrp vrid 8 virtual-ip 10.40.4.200 standby
[FW1]hrp mirror session enable ------开启快速备份功能
[FW1]hrp interface GigabitEthernet 1/0/0 remote 10.10.10.2 ----定义心跳线和对端IP
[FW1]hrp enable -----启动HRP协议
FW1上行路由配置：
HRP_S[FW1]ip route-static 0.0.0.0 0 10.40.3.100
HRP_S[FW1]ip route-static 0.0.0.0 0 10.40.4.100 preference 70
FW1下行路由配置：
HRP_M[FW1]ip route-static 192.168.0.0 16 10.40.1.100
HRP_M[FW1]ip route-static 192.168.0.0 16 10.40.2.100 preference 70
FW2下联---VRF
[FW2]interface GigabitEthernet 1/0/2.401
[FW2-GigabitEthernet1/0/2.401]vrrp vrid 5 virtual-ip 10.40.1.200 standby
[FW2]interface GigabitEthernet 1/0/2.402
[FW2-GigabitEthernet1/0/2.402]vrrp vrid 6 virtual-ip 10.40.2.200 active
FW2上联---Pubilc
[FW2]interface GigabitEthernet 1/0/1.403
[FW2-GigabitEthernet1/0/1.403]vrrp vrid 7 virtual-ip 10.40.3.200 standby
[FW2]interface GigabitEthernet 1/0/1.404
[FW2-GigabitEthernet1/0/1.404]vrrp vrid 8 virtual-ip 10.40.4.200 active
[FW2]hrp mirror session enable
[FW2]hrp interface GigabitEthernet 1/0/0 remote 10.10.10.1
[FW2]hrp enable
FW2上行路由配置：
HRP_S[FW2]ip route-static 0.0.0.0 0 10.40.4.100
HRP_S[FW2]ip route-static 0.0.0.0 0 10.40.3.100 preference 70
FW2下行路由配置：
HRP_S[FW2]ip route-static 192.168.0.0 16 10.40.2.100
HRP_S[FW2]ip route-static 192.168.0.0 16 10.40.1.100 preference 70
并配置安全策略：
HRP_M[FW1]security-policy (+B)
HRP_M[FW1-policy-security]rule name trust_to_untrust (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust]source-zone trust (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust]destination-zone untrust (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust]source-address 192.168.0.0 16 (+B)
HRP_M[FW1-policy-security-rule-trust_to_untrust]action permit (+B)
核心到边界配置：
SW1-SW2：VLAN 12 --- 10.12.1.0/24
SW1-R1：VLAN 11 ---- 10.11.1.0/24
SW2-R2：VLAN 22 ---- 10.22.2.0/24
R1-R2： ---- 10.12.2.0/24
配置如下：
SW1：
[SW1]vlan batch 11 12
[SW1]interface GigabitEthernet 0/0/1
[SW1-GigabitEthernet0/0/1]port link-type access
[SW1-GigabitEthernet0/0/1]port default vlan 11
[SW1-GigabitEthernet0/0/1]undo stp enable
[SW1]interface GigabitEthernet 0/0/4
[SW1-GigabitEthernet0/0/4]port trunk allow-pass vlan 12
[SW1-GigabitEthernet0/0/4]undo stp enable
[SW1]interface Vlanif 11
[SW1-Vlanif11]ip address 10.11.1.1 24
[SW1]interface Vlanif 12
[SW1-Vlanif12]ip add 10.12.1.1 24
[SW1]ospf 2 router-id 1.1.1.1
[SW1-ospf-2]area 0
[SW1-ospf-2-area-0.0.0.0]network 10.11.1.1 0.0.0.0
[SW1-ospf-2-area-0.0.0.0]network 10.12.1.1 0.0.0.0
SW2：
[SW2]vlan batch 12 22
[SW2]interface GigabitEthernet 0/0/1
[SW2-GigabitEthernet0/0/1]port link-type access
[SW2-GigabitEthernet0/0/1]port default vlan 22
[SW2-GigabitEthernet0/0/1]undo stp enable
[SW2]interface GigabitEthernet 0/0/4
[SW2-GigabitEthernet0/0/4]port trunk allow-pass vlan 12
[SW2-GigabitEthernet0/0/4]undo stp enable
[SW2]interface Vlanif 12
[SW2-Vlanif12]ip address 10.12.1.2 24
[SW2]interface Vlanif 22
[SW2-Vlanif22]ip address 10.22.2.1 24
[SW2-ospf-2]dis th
[SW1-ospf-2]ospf 2 router-id 2.2.2.2
[SW1-ospf-2] area 0
[SW2-ospf-2-area-0.0.0.0]network 10.12.1.2 0.0.0.0
[SW2-ospf-2-area-0.0.0.0]network 10.22.2.1 0.0.0.0
R1:
[R1]interface GigabitEthernet 0/0/0
[R1-GigabitEthernet0/0/0]ip add 10.11.1.2 24
[R1]interface GigabitEthernet 0/0/1
[R1-GigabitEthernet0/0/1]ip address 10.12.2.1 24
[R1-ospf-1]display this
[R1-ospf-1]ospf 1 router-id 3.3.3.3
[R1-ospf-1]area 0.0.0.0
[R1-ospf-1-area-0.0.0.0] network 10.11.1.2 0.0.0.0
[R1-ospf-1-area-0.0.0.0] network 10.12.2.1 0.0.0.0
R2:
[R2]interface GigabitEthernet 0/0/0
[R2-GigabitEthernet0/0/0]ip add 10.22.2.2 24
[R2]interface GigabitEthernet 0/0/1
[R2-GigabitEthernet0/0/1]ip add 10.12.2.2 14
[R2]ospf 1 router-id 4.4.4.4
[R2-ospf-1]area 0
[R2-ospf-1-area-0.0.0.0]network 10.22.2.2 0.0.0.0
[R2-ospf-1-area-0.0.0.0]network 10.12.2.2 0.0.0.0
最外层网络：
R1:
[R1]interface GigabitEthernet 0/0/2
[R1-GigabitEthernet0/0/2]ip add 12.0.0.1 24
[R1]ip route-static 0.0.0.0 0 12.0.0.100
[R1-ospf-1]default-route-advertise
[R1]acl 2000
[R1-acl-basic-2000]rule permit source 192.168.0.0 0.0.255.255
[R1]interface GigabitEthernet 0/0/2
[R1-GigabitEthernet0/0/2]nat outbound 2000
R2：
[R2]interface GigabitEthernet 0/0/2
[R2-GigabitEthernet0/0/2]ip add 13.0.0.1 24
[R2]ip route-static 0.0.0.0 0 13.0.0.100
[R2-ospf-1]default-route-advertise
[R2]acl 2000
[R2-acl-basic-2000]rule permit source 192.168.0.0 0.0.255.255
[R2]int g 0/0/2
[R2-GigabitEthernet0/0/2]nat outbound 2000
ISP：
[ISP]interface GigabitEthernet 0/0/0
[ISP-GigabitEthernet0/0/0]ip add 12.0.0.100 24
[ISP]interface GigabitEthernet 0/0/1
[ISP-GigabitEthernet0/0/1]ip add 13.0.0.100 24
[ISP]interface LoopBack 0
[ISP-LoopBack0]ip add 100.1.1.1 24
完成实验。
扫一扫
2194
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
