大疆无人机DJI Mobile SDK入门（一）

目录：

大疆无人机DJI Mobile SDK（Android）入门（一）

大道无疆，创新无限！

将您的想法变为现实！

未来，无所不能！

小Z码农有幸能接触到这么高逼格的玩具。就将这段爱恨往事作为笔记记录下来......哈哈哈哈！下面开始开车了。。请系好安全带！

准备工作：

1、支持Mobile SDK 的DJI 无人机产品一架（满满的土豪感）；

2、DJI Assistant 2 测试PC端模拟器下载安装；

3、android5.0手机一个（Mobile SDK 只支持5.0以上，测试手机型号HUAWEI M5 （版本android 9）和Honor 10 （版本android 10））；

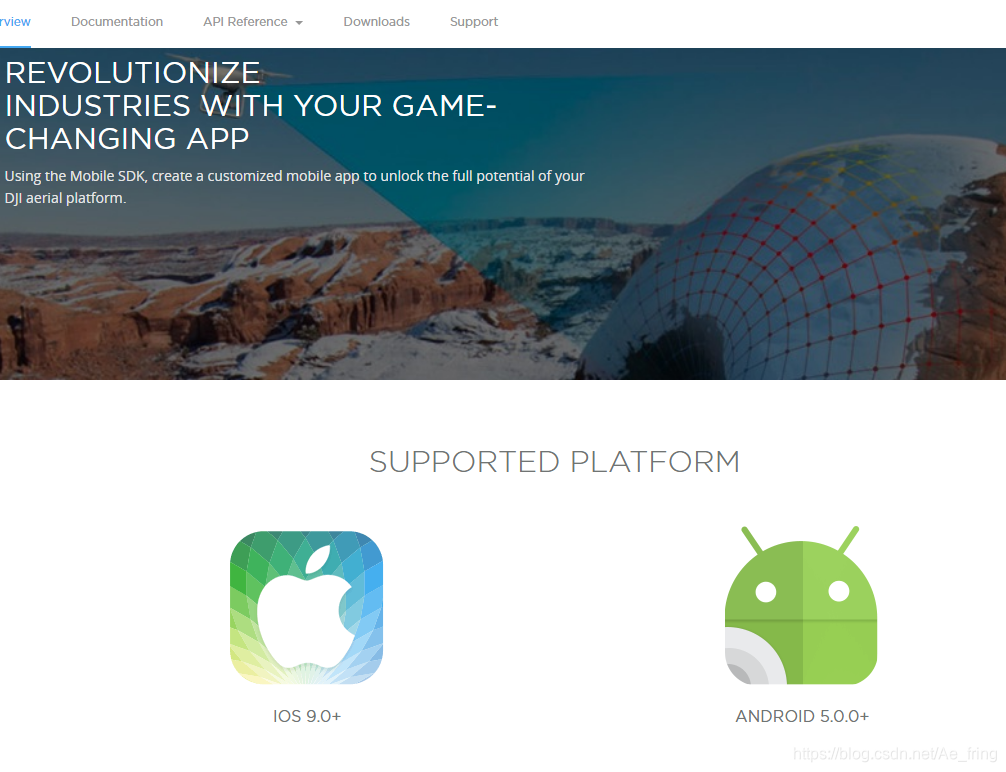

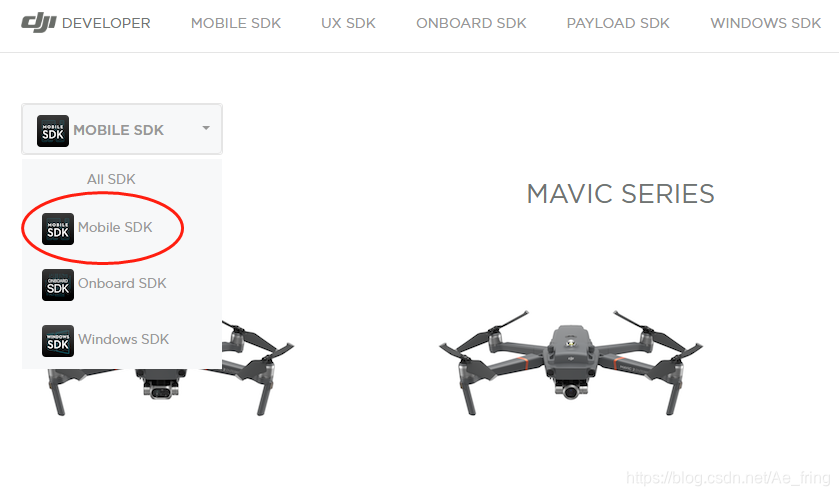

可根据DJI网站查看对应SDK 支持产品型号：https://developer.dji.com/products/#!/mobile

DJI Assistant 2下载地址：https://www.dji.com/cn/downloads?site=brandsite&from=footer



DJI Mobile SDK 文档查看地址：https://developer.dji.com/mobile-sdk/

和其它第三方SDK库一样，

1、注册DJI账号

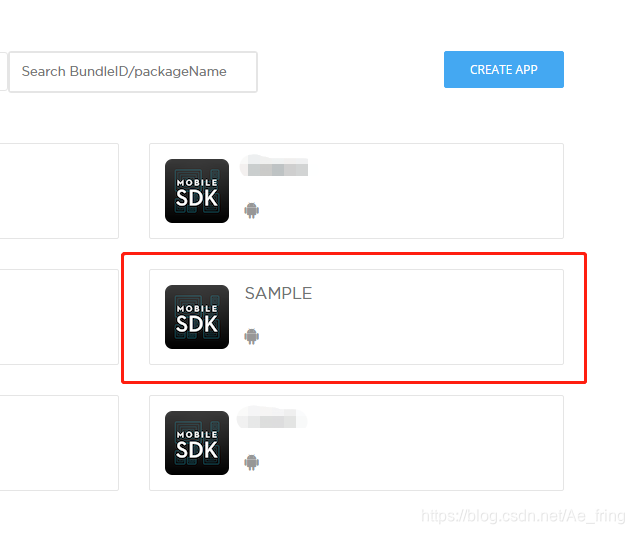

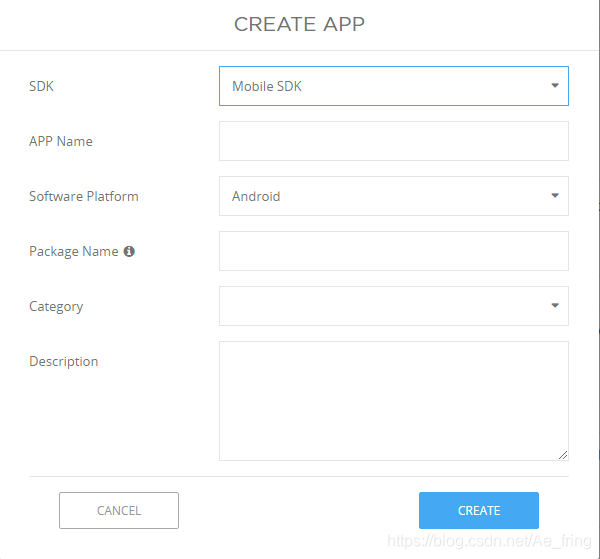

2、创建Mobile SDK 应用

3、AndroidManifest.xml 填写DJI的应用App key

4、app的build.gradle 中依赖DJI库

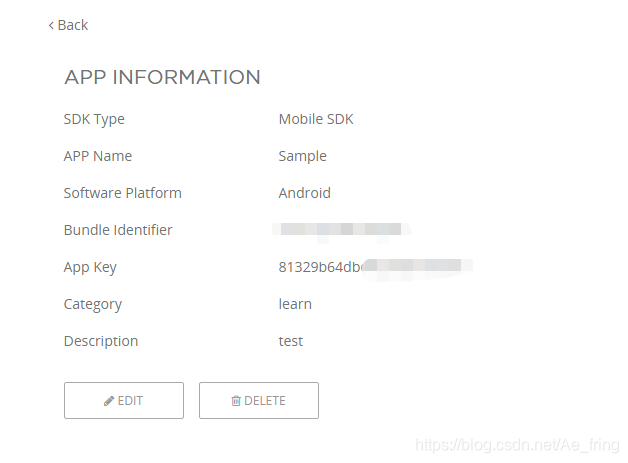

创建DJI应用得到App key



依赖库如下（最新relase）：

implementation('com.dji:dji-sdk:4.11.1', {
    exclude module: 'library-anti-distortion'
    exclude module: 'fly-safe-database'
})
compileOnly 'com.dji:dji-sdk-provided:4.11.1

一、注册SDK使用

1）registerApp必须先成功使用SDK注册，然后才能将DJI产品与SDK一起使用。

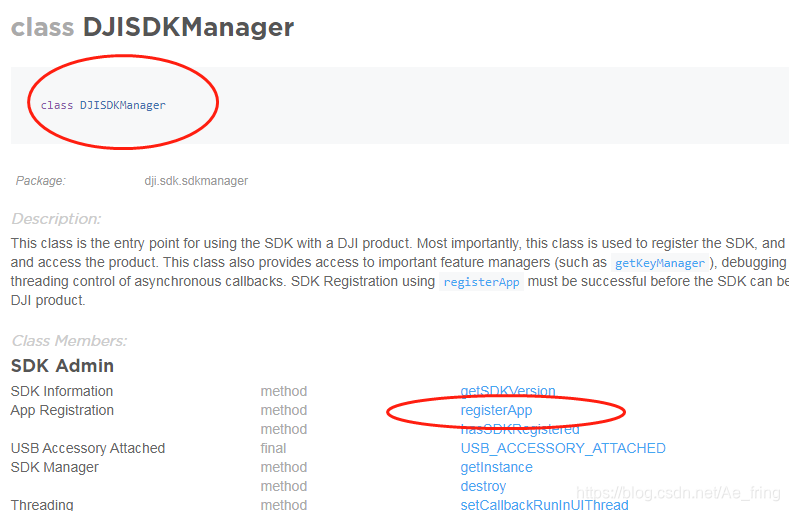

文档中registerApp属于DJISDKManager下的功能，所以调用如下注册方法



2）权限申请：

<!-- SDK permission requirement -->
<uses-permission android:name="android.permission.BLUETOOTH" />
<uses-permission android:name="android.permission.BLUETOOTH_ADMIN" />
<uses-permission android:name="android.permission.VIBRATE" />
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
<uses-permission android:name="android.permission.CHANGE_WIFI_STATE" />
<uses-permission android:name="android.permission.RECORD_AUDIO" />
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.READ_PHONE_STATE" />
<uses-feature
    android:name="android.hardware.usb.host"
    android:required="false"/>
<uses-feature
    android:name="android.hardware.usb.accessory"
    android:required="true"/>

DJISampleApplication

public class DJISampleApplication extends Application {

    public static final String TAG = DJISampleApplication.class.getName();

    private static BaseProduct product;
    private static BluetoothProductConnector bluetoothConnector = null;
    private static Bus bus = new Bus(ThreadEnforcer.ANY);
    private static Application app = null;

    /**
     * Gets instance of the specific product connected after the
     * API KEY is successfully validated. Please make sure the
     * API_KEY has been added in the Manifest
     */
    public static synchronized BaseProduct getProductInstance() {
        product = DJISDKManager.getInstance().getProduct();
        return product;
    }

    public static synchronized BluetoothProductConnector getBluetoothProductConnector() {
        bluetoothConnector = DJISDKManager.getInstance().getBluetoothProductConnector();
        return bluetoothConnector;
    }

    public static boolean isAircraftConnected() {
        return getProductInstance() != null && getProductInstance() instanceof Aircraft;
    }

    public static boolean isHandHeldConnected() {
        return getProductInstance() != null && getProductInstance() instanceof HandHeld;
    }

    public static synchronized Aircraft getAircraftInstance() {
        if (!isAircraftConnected()) {
            return null;
        }
        return (Aircraft) getProductInstance();
    }

    public static synchronized HandHeld getHandHeldInstance() {
        if (!isHandHeldConnected()) {
            return null;
        }
        return (HandHeld) getProductInstance();
    }

    public static Application getInstance() {
        return DJISampleApplication.app;
    }

    public static Bus getEventBus() {
        return bus;
    }

    @Override
    protected void attachBaseContext(Context paramContext) {
        super.attachBaseContext(paramContext);
        MultiDex.install(this);
        com.secneo.sdk.Helper.install(this);
        app = this;
    }
}

MainActivity

private static final String[] REQUIRED_PERMISSION_LIST = new String[] {
    Manifest.permission.VIBRATE, // Gimbal rotation
    Manifest.permission.INTERNET, // API requests
    Manifest.permission.ACCESS_WIFI_STATE, // WIFI connected products
    Manifest.permission.ACCESS_COARSE_LOCATION, // Maps
    Manifest.permission.ACCESS_NETWORK_STATE, // WIFI connected products
    Manifest.permission.ACCESS_FINE_LOCATION, // Maps
    Manifest.permission.CHANGE_WIFI_STATE, // Changing between WIFI and USB connection
    Manifest.permission.WRITE_EXTERNAL_STORAGE, // Log files
    Manifest.permission.BLUETOOTH, // Bluetooth connected products
    Manifest.permission.BLUETOOTH_ADMIN, // Bluetooth connected products
    Manifest.permission.READ_EXTERNAL_STORAGE, // Log files
    Manifest.permission.READ_PHONE_STATE, // Device UUID accessed upon registration
    Manifest.permission.RECORD_AUDIO // Speaker accessory
};
private static final int REQUEST_PERMISSION_CODE = 12345;

//region Life-cycle
@Override
protected void onCreate(Bundle savedInstanceState) {
  super.onCreate(savedInstanceState);
  checkAndRequestPermissions();
  DJISampleApplication.getEventBus().register(this);
  setContentView(R.layout.activity_main);
}
/**
 * Result of runtime permission request
 */
@Override
public void onRequestPermissionsResult(int requestCode,
       @NonNull String[] permissions,@NonNull int[] grantResults) {
    super.onRequestPermissionsResult(requestCode, permissions, grantResults);
    // Check for granted permission and remove from missing list
    if (requestCode == REQUEST_PERMISSION_CODE) {
        for (int i = grantResults.length - 1; i >= 0; i--) {
            if (grantResults[i] == PackageManager.PERMISSION_GRANTED) {
                missingPermission.remove(permissions[i]);
            }
        }
    }
    // If there is enough permission, we will start the registration
    if (missingPermission.isEmpty()) {
        startSDKRegistration();
    } else {
        Toast.makeText(getApplicationContext(), "Missing permissions!!!", Toast.LENGTH_LONG).show();
    }
}

/**
 * Checks if there is any missing permissions, and
 * requests runtime permission if needed.
 */
private void checkAndRequestPermissions() {
    // Check for permissions
    for (String eachPermission : REQUIRED_PERMISSION_LIST) {
        if (ContextCompat.checkSelfPermission(this, eachPermission) != PackageManager.PERMISSION_GRANTED) {
            missingPermission.add(eachPermission);
        }
    }
    // Request for missing permissions
    if (missingPermission.isEmpty()) {
        startSDKRegistration();
    } else if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M) {
        ActivityCompat.requestPermissions(this,
                missingPermission.toArray(new String[missingPermission.size()]),
                REQUEST_PERMISSION_CODE);
    }
}

private void startSDKRegistration() {
    if (isRegistrationInProgress.compareAndSet(false, true)) {
        AsyncTask.execute(new Runnable() {
            @Override
            public void run() {
                ToastUtils.setResultToToast(MainActivity.this.getString(R.string.sdk_registration_doing_message));
                DJISDKManager.getInstance().registerApp(MainActivity.this.getApplicationContext(), new DJISDKManager.SDKManagerCallback() {
                    @Override
                    public void onRegister(DJIError djiError) {
                        if (djiError == DJISDKError.REGISTRATION_SUCCESS) {
                            DJILog.e("App registration", DJISDKError.REGISTRATION_SUCCESS.getDescription());
                            DJISDKManager.getInstance().startConnectionToProduct();
                            ToastUtils.setResultToToast(MainActivity.this.getString(R.string.sdk_registration_success_message));
                            showDBVersion();
                        } else {
                            ToastUtils.setResultToToast(MainActivity.this.getString(R.string.sdk_registration_message) + djiError.getDescription());
                        }
                        Log.v(TAG, djiError.getDescription());

                    }
                    @Override
                    public void onProductDisconnect() {
                        Log.d(TAG, "onProductDisconnect");
                        //断开
                    }
                    @Override
                    public void onProductConnect(BaseProduct baseProduct) {
                        Log.d(TAG, String.format("onProductConnect newProduct:%s", baseProduct));
                        //连上
                    }
                    @Override
                    public void onComponentChange(BaseProduct.ComponentKey componentKey,
                                                  BaseComponent oldComponent,
                                                  BaseComponent newComponent) {
                        if (newComponent != null) {
                            newComponent.setComponentListener(mDJIComponentListener);
                        }
                        Log.d(TAG,
                              String.format("onComponentChange key:%s, oldComponent:%s, newComponent:%s",
                                            componentKey,
                                            oldComponent,
                                            newComponent));

                        notifyStatusChange();
                    }

                    @Override
                    public void onInitProcess(DJISDKInitEvent djisdkInitEvent, int i) {

                    }

                    @Override
                    public void onDatabaseDownloadProgress(long current, long total) {
                        //首次注册使用联网下载基础数据
                    }
                });
            }
        });
    }
}

@Override
protected void onDestroy() {
    DJISampleApplication.getEventBus().unregister(this);
    super.onDestroy();
}

由于涉及某些制度隐私问题，所以就只晒下应用的一些截图结果，欢迎各位留言交流学习！！
