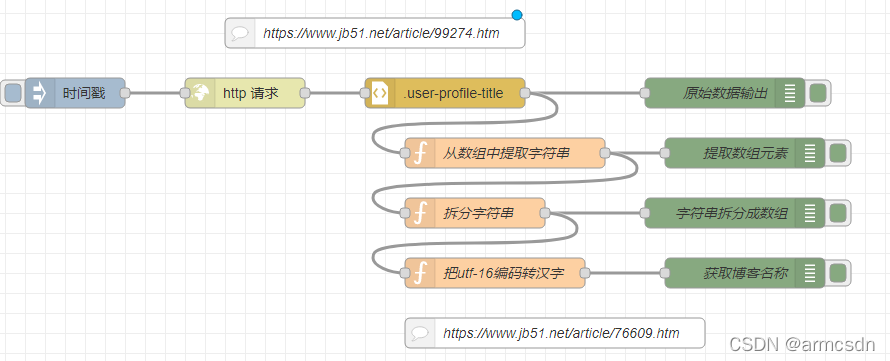

先上流图

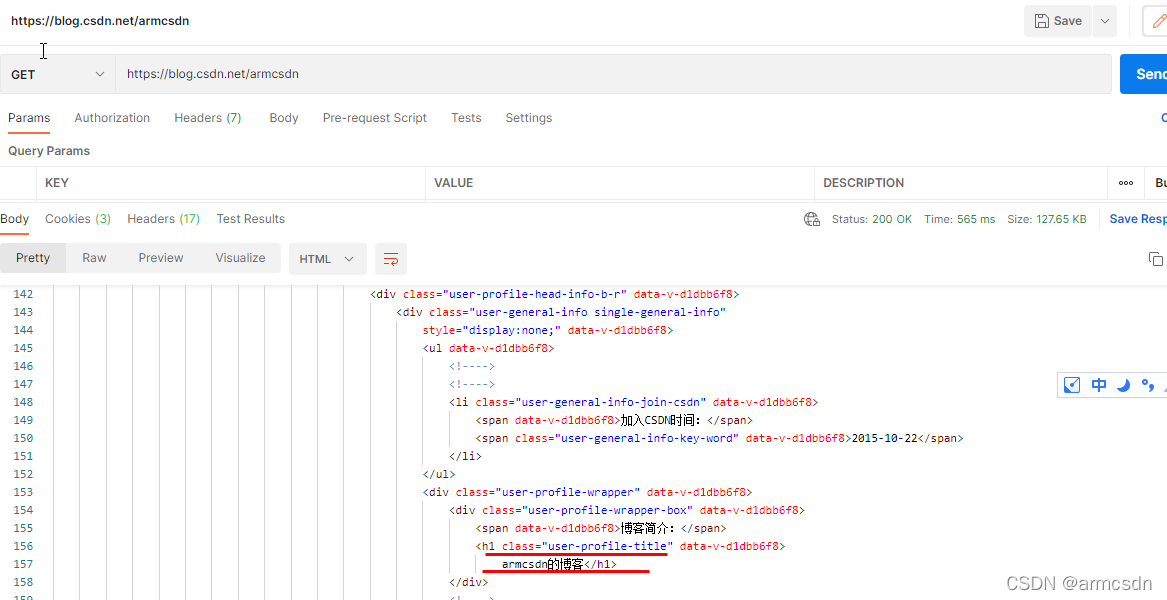

用POSTMAN GET请求armcsdn的博客_CSDN博客-Node-Red,Arduino,Nodemcu领域博主
得到如下数据,注意下划红线的部分是需要提取的数据。
NodeRed GET请求 使用
节点实现,url填入
https://blog.csdn.net/armcsdn

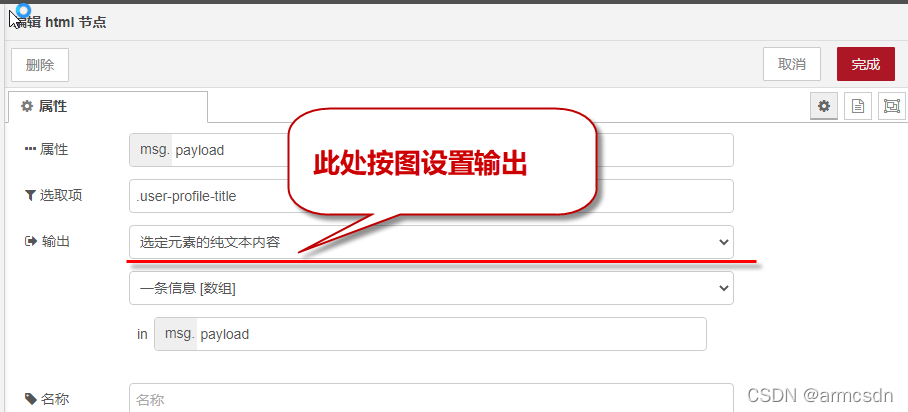

对请求后返回的数据,使用html节点
提取相关数据。
官网关于html的说明
选取项主要是根据css选取器选择网页的元素。
w3school关于CSS选取器的说明

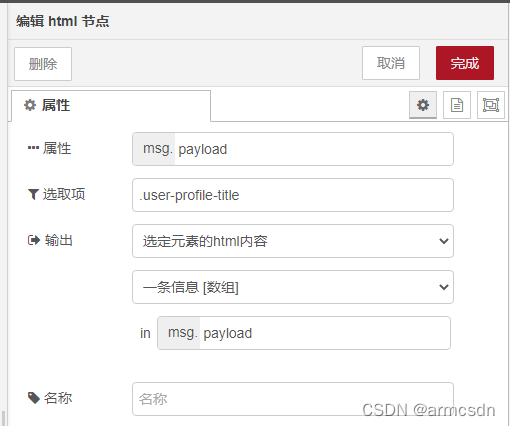

本例博主的名称信息存在于 class="user-profile-title"下,所以选取项是.user-profile-title,注意最前面的点不要忘记。

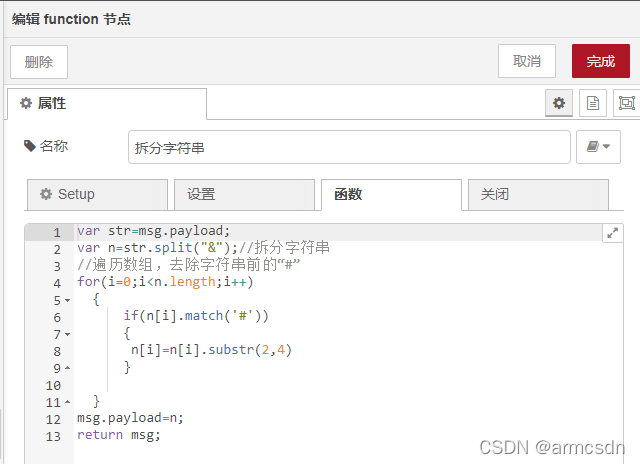

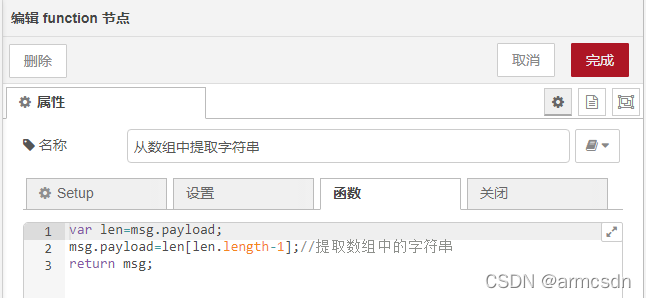

以下是各函数节点截图
最终调试输出
http request节点的url 更换成“单片机菜鸟哥”的博客
https://blog.csdn.net/dpjcn1990?type=blog
完整流图程序
[
{
"id": "09f49222e93c26a6",
"type": "tab",
"label": "流程 6",
"disabled": false,
"info": "",
"env": []
},
{
"id": "6cd2b1acf646d806",
"type": "inject",
"z": "09f49222e93c26a6",
"name": "",
"props": [
{
"p": "payload"
},
{
"p": "topic",
"vt": "str"
}
],
"repeat": "",
"crontab": "",
"once": false,
"onceDelay": 0.1,
"topic": "",
"payload": "",
"payloadType": "str",
"x": 230,
"y": 400,
"wires": [
[
"13dca52d359f0dcf"
]
]
},
{
"id": "13dca52d359f0dcf",
"type": "http request",
"z": "09f49222e93c26a6",
"name": "",
"method": "GET",
"ret": "txt",
"paytoqs": "ignore",
"url": "https://blog.csdn.net/armcsdn?spm=1008.2221.3001.5343",
"tls": "",
"persist": false,
"proxy": "",
"authType": "",
"senderr": false,
"x": 400,
"y": 400,
"wires": [
[
"3aeca66e59c04962"
]
]
},
{
"id": "9567beb168d69146",
"type": "debug",
"z": "09f49222e93c26a6",
"name": "原始数据输出",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "payload",
"targetType": "msg",
"statusVal": "",
"statusType": "auto",
"x": 880,
"y": 400,
"wires": []
},
{
"id": "3aeca66e59c04962",
"type": "html",
"z": "09f49222e93c26a6",
"name": "",
"property": "payload",
"outproperty": "payload",
"tag": ".user-profile-title",
"ret": "html",
"as": "single",
"x": 600,
"y": 400,
"wires": [
[
"9567beb168d69146",
"43c9847f008662e3"
]
]
},
{
"id": "43c9847f008662e3",
"type": "function",
"z": "09f49222e93c26a6",
"name": "从数组中提取字符串",
"func": "var len=msg.payload;\nmsg.payload=len[len.length-1];//提取数组中的字符串\nreturn msg;",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 660,
"y": 460,
"wires": [
[
"be0a617b958deb21",
"ef9fdd440af2d8fc"
]
]
},
{
"id": "be0a617b958deb21",
"type": "debug",
"z": "09f49222e93c26a6",
"name": "提取数组元素",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "payload",
"targetType": "msg",
"statusVal": "",
"statusType": "auto",
"x": 900,
"y": 460,
"wires": []
},
{
"id": "2eafaa36e513fbba",
"type": "comment",
"z": "09f49222e93c26a6",
"name": "https://www.jb51.net/article/99274.htm",
"info": "",
"x": 530,
"y": 340,
"wires": []
},
{
"id": "f076dbfecb66b4ca",
"type": "debug",
"z": "09f49222e93c26a6",
"name": "字符串拆分成数组",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "payload",
"targetType": "msg",
"statusVal": "",
"statusType": "auto",
"x": 890,
"y": 520,
"wires": []
},
{
"id": "ef9fdd440af2d8fc",
"type": "function",
"z": "09f49222e93c26a6",
"name": "拆分字符串",
"func": "var str=msg.payload;\nvar n=str.split(\"&\");//拆分字符串\n//遍历数组,去除字符串前的“#”\nfor(i=0;i<n.length;i++)\n {\n if(n[i].match('#'))\n {\n n[i]=n[i].substr(2,4) \n }\n \n }\nmsg.payload=n;\nreturn msg;",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 630,
"y": 520,
"wires": [
[
"f076dbfecb66b4ca",
"01e96df6367a4c4c"
]
]
},
{
"id": "01e96df6367a4c4c",
"type": "function",
"z": "09f49222e93c26a6",
"name": "把utf-16编码转汉字",
"func": "var jstr=new Array();\nvar obj=new Array();\nvar hz_str=\"\";\nvar str_han=msg.payload;\nhz_str=str_han[0]//获取英文博客名,如果是中文,则直接赋空值\nfor(i=1;i<str_han.length;i++)\n{\n jstr[i]= '{\"ustr\": \"'+'\\\\u'+ str_han[i] +'\"}' \n obj[i] = JSON.parse(jstr[i]);\n hz_str=hz_str+obj[i].ustr;\n}\nmsg.payload=hz_str//博客名称\nreturn msg;",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 650,
"y": 580,
"wires": [
[
"b330f5fb94932d7d"
]
]
},
{
"id": "b330f5fb94932d7d",
"type": "debug",
"z": "09f49222e93c26a6",
"name": "获取博客名称",
"active": true,
"tosidebar": true,
"console": false,
"tostatus": false,
"complete": "payload",
"targetType": "msg",
"statusVal": "",
"statusType": "auto",
"x": 900,
"y": 580,
"wires": []
},
{
"id": "d0dbb6b2df7a93be",
"type": "comment",
"z": "09f49222e93c26a6",
"name": "https://www.jb51.net/article/76609.htm",
"info": "",
"x": 710,
"y": 640,
"wires": []
}
]
后继:
随着摸索,我发现上文方法太麻烦,还有无需编程的方法。可直接输出博客名称。
