Tiny6410 MLC2 UCGUI

硬件配置及软件平台

开发板：Tiny6410， MCL2 2GB Flash， 256M DDR
显示屏：S70
交叉编译： gcc-3.4.5-glibc-2.3.6
标准c库以及数学函数库：arm-uclibc-3.4.6
GUI: ucgui

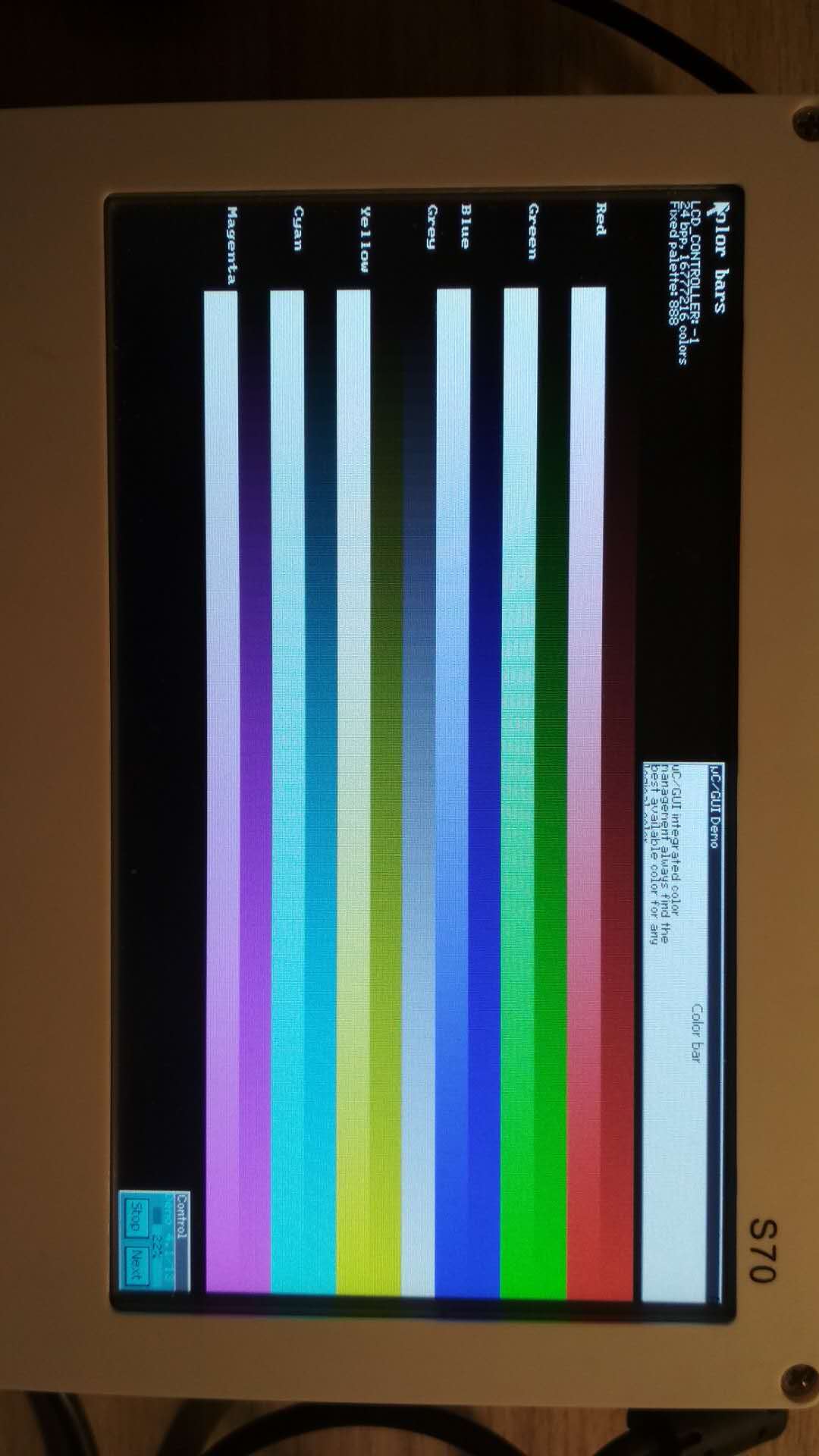

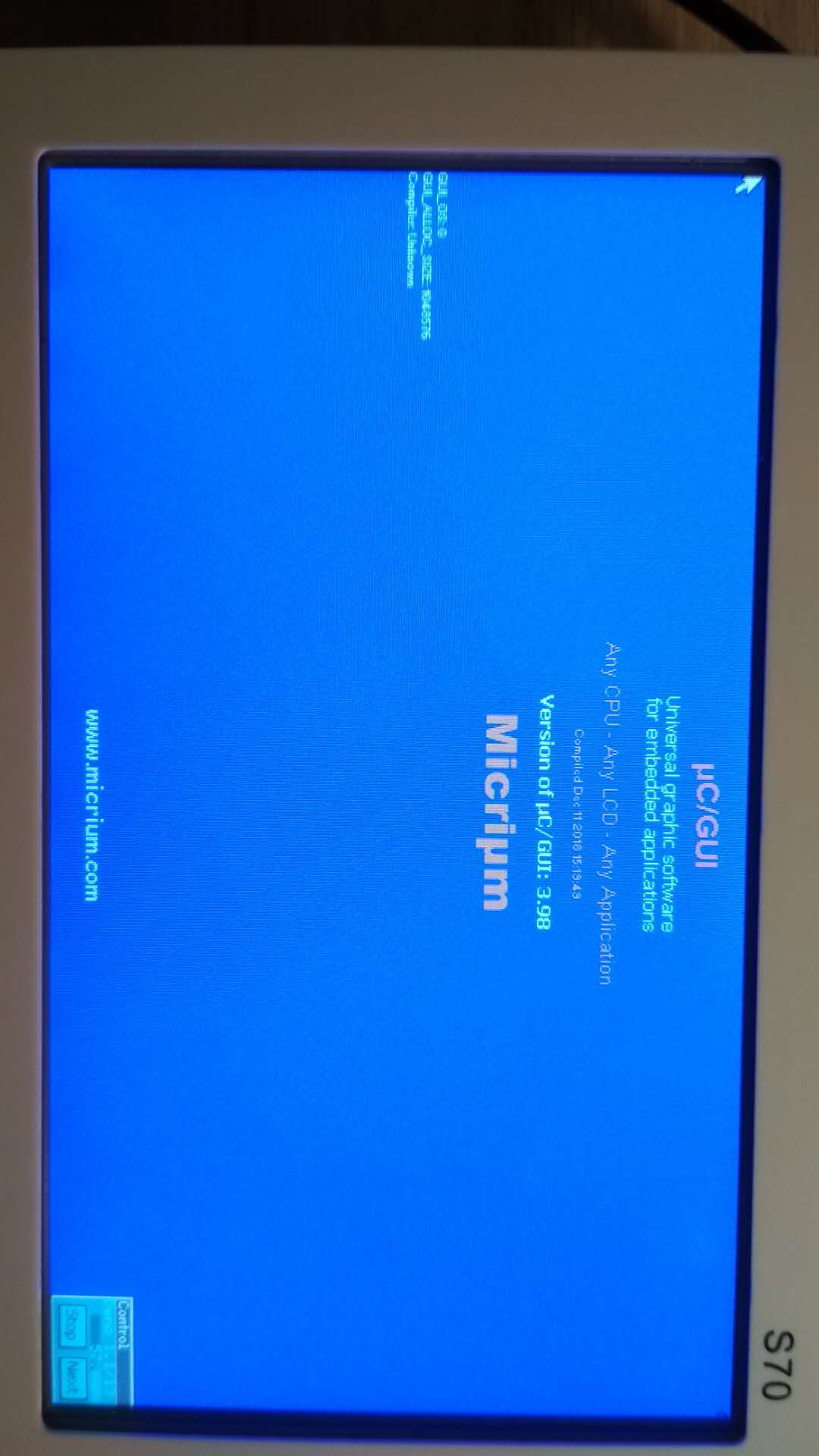

运行效果图

关键代码

1. LCD S70驱动程序

#include "lcd_s70.h"

// 初始化LCD
void  LCD_S70_Init(void)
{
    // 配置GPIO用于LCD相关的功能
    GPICON = 0xAAAAAAAA;
    GPJCON = 0x00AAAAAA;
    // normal mode
    MIFPCON &= ~(1<<3);
    // RGB I/F
    SPCON =  (SPCON & ~(0x3)) | 1;

    // 配置VIDCONx，设置接口类型、时钟、极性和使能LCD控制器等
    // 16位
    VIDCON0 = (0<<26)|(0<<17)|(0<<16)|(0<<6)|(0<<5)|(1<<4)|(0<<2)|(3<<0);
    // HSYNC  VSYNC 反转
    VIDCON1 |= 1<<5 | 1<<6;

    // 配置VIDTCONx，设置时序和长宽等
    // 设置时序
    VIDTCON0 = VBPD<<16 | VFPD<<8 | VSPW<<0;
    VIDTCON1 = HBPD<<16 | HFPD<<8 | HSPW<<0;

    // 设置长宽
    VIDTCON2 = (LINEVAL << 11) | (HOZVAL << 0);

    // 配置WINCON0，设置window0的数据格式
    // 配置RGB位数: 24BPP
    WINCON0 |= 1<<0;
    WINCON0 &= ~(0xf << 2);
    //WINCON0 |= 0x5<<2;
    //WINCON0 |= 0x1<<16;//当字体颠倒
    WINCON0 |= 0xB<<2;

    // 配置VIDOSD0A/B/C,设置window0的坐标系
#define LeftTopX     0
#define LeftTopY     0
#define RightBotX   799
#define RightBotY   479
    VIDOSD0A = (LeftTopX<<11) | (LeftTopY << 0);
    VIDOSD0B = (RightBotX<<11) | (RightBotY << 0);
    VIDOSD0C = (LINEVAL + 1) * (HOZVAL + 1);

    // 置VIDW00ADD0B0和VIDW00ADD1B0，设置framebuffer的地址
    VIDW00ADD0B0 = FRAME_BUFFER;
    VIDW00ADD1B0 = (((HOZVAL + 1)*4 + 0) * (LINEVAL + 1)) & (0xffffff);
}

void LCD_SetPixel(unsigned int x, unsigned int y, unsigned int Color)
{
    unsigned long * pixel = (unsigned long  *)FRAME_BUFFER;
    *(pixel + y * COL + x) = Color;
}

unsigned int LCD_GetPixel(unsigned int x, unsigned int y)
{
    unsigned long * pixel = (unsigned long  *)FRAME_BUFFER;
    return *(pixel + y * COL + x);
}

void LCD_ClearScreen(unsigned int Color)
{
    int i, j;
    for (i = 0; i < ROW; i++)
        for (j = 0; j < COL; j++)
            LCD_SetPixel(j, i, Color);
}

2. 修改UCGUI中的LCDTemplate.c

/*********************************************************************
*
*       LCD_L0_SetPixelIndex
*
* Purpose:
*   Sets the index of the given pixel. The upper layers
*   calling this routine make sure that the coordinates are in range, so
*   that no check on the parameters needs to be performed.
*/
void LCD_L0_SetPixelIndex(int x, int y, int PixelIndex) {
  GUI_USE_PARA(x);
  GUI_USE_PARA(y);
  GUI_USE_PARA(PixelIndex);

  /* Convert logical into physical coordinates (Dep. on LCDConf.h) */
  #if LCD_SWAP_XY | LCD_MIRROR_X| LCD_MIRROR_Y
    int xPhys = LOG2PHYS_X(x, y);
    int yPhys = LOG2PHYS_Y(x, y);
  #else
    #define xPhys x
    #define yPhys y
  #endif

  /* Write into hardware ... Adapt to your system */
  {
    LCD_SetPixel(x,y,PixelIndex);
  }
}

/*********************************************************************
*
*       LCD_L0_GetPixelIndex
*
* Purpose:
*   Returns the index of the given pixel. The upper layers
*   calling this routine make sure that the coordinates are in range, so
*   that no check on the parameters needs to be performed.
*/

unsigned int LCD_L0_GetPixelIndex(int x, int y) {
  LCD_PIXELINDEX PixelIndex;
  GUI_USE_PARA(x);
  GUI_USE_PARA(y);

  /* Convert logical into physical coordinates (Dep. on LCDConf.h) */

  #if LCD_SWAP_XY | LCD_MIRROR_X| LCD_MIRROR_Y
    int xPhys = LOG2PHYS_X(x, y);
    int yPhys = LOG2PHYS_Y(x, y);
  #else
    #define xPhys x
    #define yPhys y
  #endif

  /* Read from hardware ... Adapt to your system */
  {
    PixelIndex = (LCD_PIXELINDEX)(LCD_GetPixel(x, y));
  }
  return PixelIndex;
}

3. 使用Timer0定时中断，在中断服务函数中更新OS_TimeMS

extern volatile int OS_TimeMS;

void irq_init(void)
{
    /* 在中断控制器里使能timer0中断 */
    VIC0INTENABLE |= (1<<23);
}

// timer0中断的中断处理函数

void do_irq(void)
{
    OS_TimeMS++;
    printf("OS_TimeMS=%d\r\n",OS_TimeMS);

    //清timer0的中断状态寄存器
    TINT_CSTAT |= 1<<5;
}

// 初始化timer
void timer_init(unsigned long ms)
{
    // PCLK = 66MHz
    // 定时器的输入时钟 = PCLK / ( {prescaler value + 1} ) / {divider value} = PCLK/(65+1)/1=1Mhz(0.001ms)
    //设置预分频系数为65
    TCFG0 |= 65;

    // 1分频, 定时器时钟为1Mhz(0.001ms)
    TCFG1 = 0;

    // 1s = 1Mhz, 1ms = 1000Hz， 1ns = 1Hz
    TCNTB0 = (ms*1000);
    TCMPB0 = 0;

    // 手动更新
    TCON |= 1<<1;

    // 清手动更新位
    TCON &= ~(1<<1);

    // 自动加载和启动timer0
    TCON |= (1<<0)|(1<<3);

    // 使能timer0中断
    TINT_CSTAT |= 0x1;
}
