PCIe 物理尺寸和形状

1. PCIe Riser (PCIe 插槽)

PowerEdge R7625 机架式服务器 - 高级定制服务
https://www.dell.com/zh-cn/shop/cty/pdp/spd/poweredge-r7625/asper7625
https://www.dell.com/en-us/shop/ipovw/poweredge-r7625
https://www.dell.com/en-us/shop/servers-storage-and-networking/poweredge-r7625-rack-server/spd/poweredge-r7625/pe_r7625_tm_vi_vp_sb
https://www.dell.com/en-us/shop/servers-storage-and-networking/poweredge-r7625-rack-server/spd/poweredge-r7625/pe_r7625_vi_vp_sb_deals

2. Riser 卡与 PCIe 卡

H3C UniServer B5700 G5刀片服务器 用户指南-6W107
https://www.h3c.com/cn/d_202312/1987607_30005_0.htm

2.1. PCIe 卡尺寸

简称	全称	Description
LP 卡	Low Profile card	小尺寸卡
FHHL 卡	Full Height, Half Length card	全高半长卡
FHFL 卡	Full Height, Full Length card	全高全长卡
HHHL 卡	Half Height, Half Length card	半高半长卡
HHFL 卡	Half Height, Full Length card	半高全长卡

Full Length, FL：全长
Half Length, HL：半长
Full Height, FH：全高
Half Height, HH：半高

PCIe 插槽或接口 PCIe3.0 x16 (16,8,4,2,1)：

PCIe 3.0：第三代信号速率
x16：连接器宽度 / 插槽宽度
(16,8,4,2,1)：兼容的总线带宽 / 链路宽度，包括 x16，x8，x4，x2 和 x1

3. Form factors (规格，物理尺寸和形状)

NVIDIA A10 Tensor Core GPU
https://www.nvidia.com/en-us/data-center/products/a10-gpu/

Form factors - Single-slot, full-height, full-length (FHFL)

4. Peripheral Component Interconnect Express (PCI Express, PCIe or PCI-e)

The PCI Express bus is a backwards compatible, high performance, general purpose I/O interconnect bus, and was designed for a range of computing platforms.

The PCI Express bus connects each device directly to the CPU and other system devices through a pair of high speed unidirectional differential links (transmit and recieve, respectively).

PCIe x4 features four PCIe lanes.

PCIe x1: 1 lane, 18 pins, and 25 mm in length
PCIe x4: 4 lanes, 32 pins, and 39 mm in length
PCIe x8: 8 lanes, 49 pins, and 56 mm in length
PCIe x16: 16 lanes, 82 pins, and 89 mm in length

5. HHHL and FHHL

NVIDIA BlueField-2 InfiniBand/Ethernet DPU User Guide
https://docs.nvidia.com/networking/display/bluefield2dpuvpi/supported+interfaces

Half Height, Half Length, HHHL：半高半长
Full Height, Half Length, FHHL：全高半长

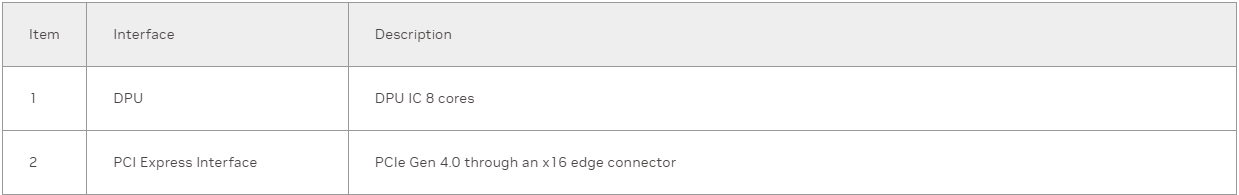

5.1. HHHL DPU Layout and Interface Information

PCI Express Interface: PCIe Gen 4.0 through an x16 edge connector

Half Height, Half Length, HHHL：半高半长

• Component Side

• Print Side

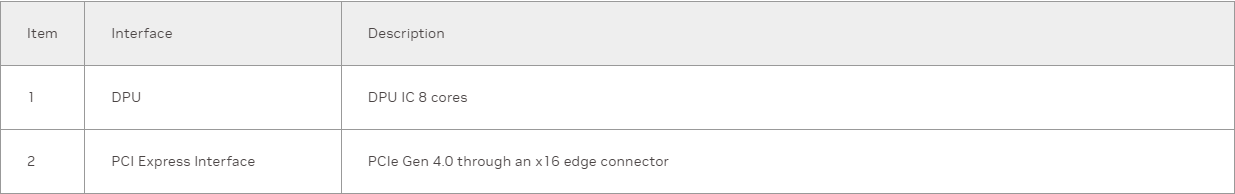

5.2. FHHL DPU Layout and Interface Information

PCI Express Interface: PCIe Gen 4.0 through an x16 edge connector

Full Height, Half Length, FHHL：全高半长

• Component Side

• Print Side

6. 英制单位

中文	英文	缩写	复数	符号	转换
英尺	foot	ft	feet	'	1 foot = 30.48 cm = 12 inches
英寸	inch	in	inches	"	1 inch = 2.54 cm

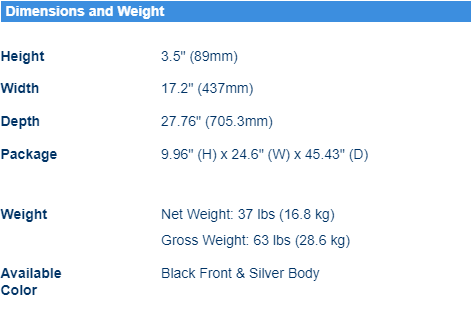

3.5 " = 3.5 * 25.4 mm = 88.9 mm
17.2 " = 17.2 * 25.4 mm = 436.88 mm
27.76 " = 27.76 * 25.4 mm = 705.104 mm

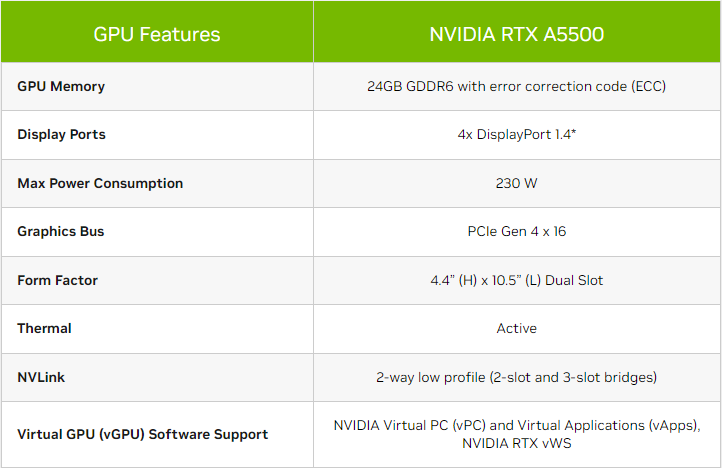

6.1. NVIDIA RTX A5500 Graphics Card

https://www.nvidia.com/en-au/design-visualization/rtx-a5500/

PCIe Gen4 / Active Fan / Dual Slot / FHFL, 4.4"(H) x 10.5"(L)
Form Factor: 4.4" (H) x 10.5" (L) Dual Slot

4.4" = 4.4 * 25.4 mm = 111.76 mm
10.5" = 10.5 * 25.4 mm = 266.7 mm
Full Height Full Length, FHFL：全高全长

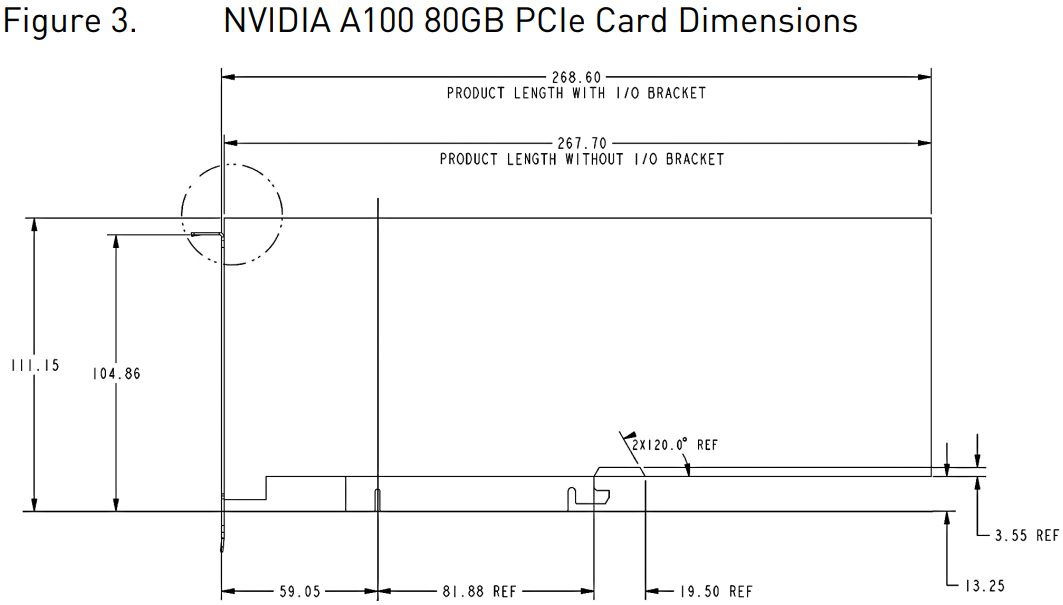

6.2. NVIDIA A100 Tensor Core GPU

https://www.nvidia.com/en-us/data-center/a100/

The NVIDIA A100 80GB PCIe card conforms to NVIDIA Form Factor 5.0 specification for a fullheight, full-length (FHFL) dual-slot PCIe card.

NVIDIA A100 80GB PCIe GPU - Product Brief

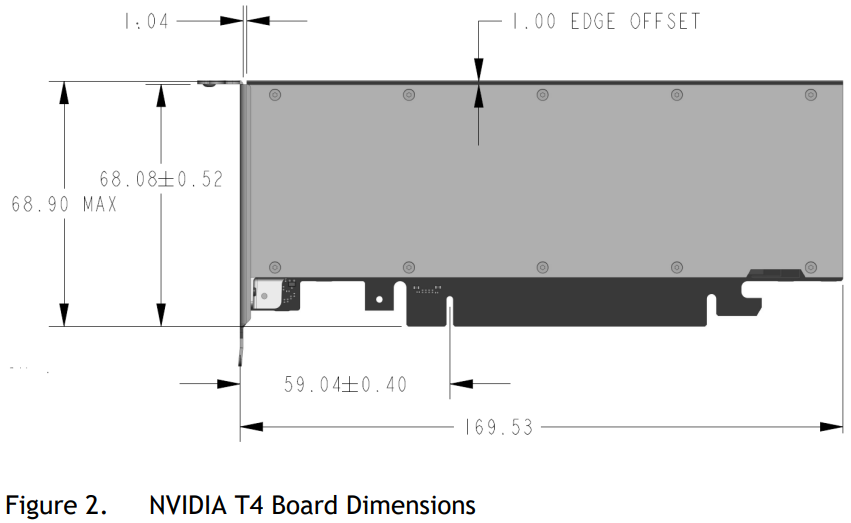

6.3. NVIDIA T4

https://www.nvidia.com/en-us/data-center/tesla-t4/

The NVIDIA T4 board is a half-height, half-length card.

NVIDIA T4 70W LOW PROFILE PCIe GPU ACCELERATOR - Product Brief
