本文介绍MapReduce的计数器使用以及自定义计数器、通过MapReduce读取与写入数据库示例。
本文的前提依赖是hadoop可正常使用、mysql数据库中的表可用且有数据。
本文分为2个部分，即计数器与读写mysql数据库。

一、计数器

1、Counter计数器介绍

在执行MapReduce程序的时候，控制台输出日志中通常有下面所示片段内容
Hadoop内置的计数器可以收集、统计程序运行中核心信息，帮助用户理解程序的运行情况，辅助用户诊断故障
下面是示例性日志，介绍了计数器

一次map-reduce過程的日志
2022-09-15 16:21:33,324 WARN impl.MetricsConfig: Cannot locate configuration: tried hadoop-metrics2-jobtracker.properties,hadoop-metrics2.properties
2022-09-15 16:21:33,361 INFO impl.MetricsSystemImpl: Scheduled Metric snapshot period at 10 second(s).
2022-09-15 16:21:33,361 INFO impl.MetricsSystemImpl: JobTracker metrics system started
2022-09-15 16:21:33,874 WARN mapreduce.JobResourceUploader: No job jar file set.  User classes may not be found. See Job or Job#setJar(String).
#目錄下的文件數量
2022-09-15 16:21:33,901 INFO input.FileInputFormat: Total input files to process : 1
#maptask針對文件的切片數量
2022-09-15 16:21:33,920 INFO mapreduce.JobSubmitter: number of splits:1
#提交的任務編號
2022-09-15 16:21:33,969 INFO mapreduce.JobSubmitter: Submitting tokens for job: job_local279925986_0001
2022-09-15 16:21:33,970 INFO mapreduce.JobSubmitter: Executing with tokens: []
#跟蹤job執行的鏈接
2022-09-15 16:21:34,040 INFO mapreduce.Job: The url to track the job: http://localhost:8080/
#運行中的job
2022-09-15 16:21:34,040 INFO mapreduce.Job: Running job: job_local279925986_0001
2022-09-15 16:21:34,041 INFO mapred.LocalJobRunner: OutputCommitter set in config null
2022-09-15 16:21:34,044 INFO output.FileOutputCommitter: File Output Committer Algorithm version is 2
2022-09-15 16:21:34,044 INFO output.FileOutputCommitter: FileOutputCommitter skip cleanup _temporary folders under output directory:false, ignore cleanup failures: false
2022-09-15 16:21:34,044 INFO mapred.LocalJobRunner: OutputCommitter is org.apache.hadoop.mapreduce.lib.output.FileOutputCommitter
2022-09-15 16:21:34,062 INFO mapred.LocalJobRunner: Waiting for map tasks
#開始map task
2022-09-15 16:21:34,062 INFO mapred.LocalJobRunner: Starting task: attempt_local279925986_0001_m_000000_0
2022-09-15 16:21:34,072 INFO output.FileOutputCommitter: File Output Committer Algorithm version is 2
2022-09-15 16:21:34,072 INFO output.FileOutputCommitter: FileOutputCommitter skip cleanup _temporary folders under output directory:false, ignore cleanup failures: false
2022-09-15 16:21:34,077 INFO util.ProcfsBasedProcessTree: ProcfsBasedProcessTree currently is supported only on Linux.
2022-09-15 16:21:34,102 INFO mapred.Task:  Using ResourceCalculatorProcessTree : org.apache.hadoop.yarn.util.WindowsBasedProcessTree@638e9d1a
#輸入文件
2022-09-15 16:21:34,105 INFO mapred.MapTask: Processing split: file:/D:/workspace/bigdata-component/hadoop/test/in/us-covid19-counties.dat:0+136795
2022-09-15 16:21:34,136 INFO mapred.MapTask: (EQUATOR) 0 kvi 26214396(104857584)
#map task 100M 内存文件存儲空間
2022-09-15 16:21:34,136 INFO mapred.MapTask: mapreduce.task.io.sort.mb: 100
# map task的内存存儲空間使用上限是80M
2022-09-15 16:21:34,136 INFO mapred.MapTask: soft limit at 83886080
2022-09-15 16:21:34,136 INFO mapred.MapTask: bufstart = 0; bufvoid = 104857600
2022-09-15 16:21:34,136 INFO mapred.MapTask: kvstart = 26214396; length = 6553600
2022-09-15 16:21:34,137 INFO mapred.MapTask: Map output collector class = org.apache.hadoop.mapred.MapTask$MapOutputBuffer
2022-09-15 16:21:34,155 INFO mapred.LocalJobRunner:
2022-09-15 16:21:34,155 INFO mapred.MapTask: Starting flush of map output
2022-09-15 16:21:34,155 INFO mapred.MapTask: Spilling map output
2022-09-15 16:21:34,155 INFO mapred.MapTask: bufstart = 0; bufend = 114725; bufvoid = 104857600
2022-09-15 16:21:34,155 INFO mapred.MapTask: kvstart = 26214396(104857584); kvend = 26201420(104805680); length = 12977/6553600
#以上是將map task的内存存儲空間文件spill的過程
2022-09-15 16:21:34,184 INFO mapred.MapTask: Finished spill 0
2022-09-15 16:21:34,199 INFO mapred.Task: Task:attempt_local279925986_0001_m_000000_0 is done. And is in the process of committing
2022-09-15 16:21:34,200 INFO mapred.LocalJobRunner: map
2022-09-15 16:21:34,200 INFO mapred.Task: Task 'attempt_local279925986_0001_m_000000_0' done.
#map task的計數器
2022-09-15 16:21:34,204 INFO mapred.Task: Final Counters for attempt_local279925986_0001_m_000000_0: Counters: 17
	File System Counters
		FILE: Number of bytes read=136992
		FILE: Number of bytes written=632934
		FILE: Number of read operations=0
		FILE: Number of large read operations=0
		FILE: Number of write operations=0
	Map-Reduce Framework
		Map input records=3245
		Map output records=3245
		Map output bytes=114725
		Map output materialized bytes=121221
		Input split bytes=140
		Combine input records=0
		Spilled Records=3245
		Failed Shuffles=0
		Merged Map outputs=0
		GC time elapsed (ms)=5
		Total committed heap usage (bytes)=255328256
	File Input Format Counters
		Bytes Read=136795
2022-09-15 16:21:34,204 INFO mapred.LocalJobRunner: Finishing task: attempt_local279925986_0001_m_000000_0
2022-09-15 16:21:34,205 INFO mapred.LocalJobRunner: map task executor complete.
2022-09-15 16:21:34,207 INFO mapred.LocalJobRunner: Waiting for reduce tasks
2022-09-15 16:21:34,207 INFO mapred.LocalJobRunner: Starting task: attempt_local279925986_0001_r_000000_0
2022-09-15 16:21:34,210 INFO output.FileOutputCommitter: File Output Committer Algorithm version is 2
2022-09-15 16:21:34,210 INFO output.FileOutputCommitter: FileOutputCommitter skip cleanup _temporary folders under output directory:false, ignore cleanup failures: false
2022-09-15 16:21:34,210 INFO util.ProcfsBasedProcessTree: ProcfsBasedProcessTree currently is supported only on Linux.
2022-09-15 16:21:34,239 INFO mapred.Task:  Using ResourceCalculatorProcessTree : org.apache.hadoop.yarn.util.WindowsBasedProcessTree@274c3e94
2022-09-15 16:21:34,240 INFO mapred.ReduceTask: Using ShuffleConsumerPlugin: org.apache.hadoop.mapreduce.task.reduce.Shuffle@5d892772
2022-09-15 16:21:34,241 WARN impl.MetricsSystemImpl: JobTracker metrics system already initialized!
2022-09-15 16:21:34,248 INFO reduce.MergeManagerImpl: MergerManager: memoryLimit=2639842560, maxSingleShuffleLimit=659960640, mergeThreshold=1742296192, ioSortFactor=10, memToMemMergeOutputsThreshold=10
#EventFetcher 拉取map task的輸出
2022-09-15 16:21:34,249 INFO reduce.EventFetcher: attempt_local279925986_0001_r_000000_0 Thread started: EventFetcher for fetching Map Completion Events
2022-09-15 16:21:34,263 INFO reduce.LocalFetcher: localfetcher#1 about to shuffle output of map attempt_local279925986_0001_m_000000_0 decomp: 121217 len: 121221 to MEMORY
2022-09-15 16:21:34,264 INFO reduce.InMemoryMapOutput: Read 121217 bytes from map-output for attempt_local279925986_0001_m_000000_0
#合并reduce task從map task輸出文件拉取過來的文件
2022-09-15 16:21:34,265 INFO reduce.MergeManagerImpl: closeInMemoryFile -> map-output of size: 121217, inMemoryMapOutputs.size() -> 1, commitMemory -> 0, usedMemory ->121217
2022-09-15 16:21:34,265 INFO reduce.EventFetcher: EventFetcher is interrupted.. Returning
#reduce task拷貝文件
2022-09-15 16:21:34,266 INFO mapred.LocalJobRunner: 1 / 1 copied.
#將内存中的文件輸出到磁盤上
2022-09-15 16:21:34,266 INFO reduce.MergeManagerImpl: finalMerge called with 1 in-memory map-outputs and 0 on-disk map-outputs
2022-09-15 16:21:34,273 INFO mapred.Merger: Merging 1 sorted segments
2022-09-15 16:21:34,274 INFO mapred.Merger: Down to the last merge-pass, with 1 segments left of total size: 121179 bytes
2022-09-15 16:21:34,278 INFO reduce.MergeManagerImpl: Merged 1 segments, 121217 bytes to disk to satisfy reduce memory limit
2022-09-15 16:21:34,279 INFO reduce.MergeManagerImpl: Merging 1 files, 121221 bytes from disk
2022-09-15 16:21:34,279 INFO reduce.MergeManagerImpl: Merging 0 segments, 0 bytes from memory into reduce
2022-09-15 16:21:34,279 INFO mapred.Merger: Merging 1 sorted segments
2022-09-15 16:21:34,280 INFO mapred.Merger: Down to the last merge-pass, with 1 segments left of total size: 121179 bytes
2022-09-15 16:21:34,280 INFO mapred.LocalJobRunner: 1 / 1 copied.
2022-09-15 16:21:34,283 INFO Configuration.deprecation: mapred.skip.on is deprecated. Instead, use mapreduce.job.skiprecords
2022-09-15 16:21:34,299 INFO mapred.Task: Task:attempt_local279925986_0001_r_000000_0 is done. And is in the process of committing
2022-09-15 16:21:34,301 INFO mapred.LocalJobRunner: 1 / 1 copied.
2022-09-15 16:21:34,301 INFO mapred.Task: Task attempt_local279925986_0001_r_000000_0 is allowed to commit now
#reduce task的輸出文件位置
2022-09-15 16:21:34,306 INFO output.FileOutputCommitter: Saved output of task 'attempt_local279925986_0001_r_000000_0' to file:/D:/workspace/bigdata-component/hadoop/test/out/covid/topn
2022-09-15 16:21:34,307 INFO mapred.LocalJobRunner: reduce > reduce
2022-09-15 16:21:34,307 INFO mapred.Task: Task 'attempt_local279925986_0001_r_000000_0' done.

2022-09-15 16:21:34,307 INFO mapred.Task: Final Counters for attempt_local279925986_0001_r_000000_0: Counters: 24
	File System Counters
		FILE: Number of bytes read=379466
		FILE: Number of bytes written=758828
		FILE: Number of read operations=0
		FILE: Number of large read operations=0
		FILE: Number of write operations=0
	Map-Reduce Framework
		Combine input records=0
		Combine output records=0
		Reduce input groups=55
		Reduce shuffle bytes=121221
		Reduce input records=3245
		Reduce output records=160
		Spilled Records=3245
		Shuffled Maps =1
		Failed Shuffles=0
		Merged Map outputs=1
		GC time elapsed (ms)=0
		Total committed heap usage (bytes)=255328256
	Shuffle Errors
		BAD_ID=0
		CONNECTION=0
		IO_ERROR=0
		WRONG_LENGTH=0
		WRONG_MAP=0
		WRONG_REDUCE=0
	File Output Format Counters
		Bytes Written=4673
2022-09-15 16:21:34,307 INFO mapred.LocalJobRunner: Finishing task: attempt_local279925986_0001_r_000000_0
#reduce task任務執行完成
2022-09-15 16:21:34,308 INFO mapred.LocalJobRunner: reduce task executor complete.
2022-09-15 16:21:35,045 INFO mapreduce.Job: Job job_local279925986_0001 running in uber mode : false
2022-09-15 16:21:35,047 INFO mapreduce.Job:  map 100% reduce 100%
2022-09-15 16:21:35,048 INFO mapreduce.Job: Job job_local279925986_0001 completed successfully
2022-09-15 16:21:35,056 INFO mapreduce.Job: Counters: 30
	File System Counters
		FILE: Number of bytes read=516458
		FILE: Number of bytes written=1391762
		FILE: Number of read operations=0
		FILE: Number of large read operations=0
		FILE: Number of write operations=0
	Map-Reduce Framework
		Map input records=3245
		Map output records=3245
		Map output bytes=114725
		Map output materialized bytes=121221
		Input split bytes=140
		Combine input records=0
		Combine output records=0
		Reduce input groups=55
		Reduce shuffle bytes=121221
		Reduce input records=3245
		Reduce output records=160
		Spilled Records=6490
		Shuffled Maps =1
		Failed Shuffles=0
		Merged Map outputs=1
		GC time elapsed (ms)=5
		Total committed heap usage (bytes)=510656512
	Shuffle Errors
		BAD_ID=0
		CONNECTION=0
		IO_ERROR=0
		WRONG_LENGTH=0
		WRONG_MAP=0
		WRONG_REDUCE=0
	File Input Format Counters
		Bytes Read=136795
	File Output Format Counters
		Bytes Written=4673

2、MapReduce内置Counter

  • Hadoop为每个MapReduce作业维护了一些内置的计数器，报告程序执行时各种指标信息。用户可以根据这些信息进行判断程序：执行逻辑是否合理、执行结果是否正确。
  • Hadoop内置计数器根据功能进行分组（Counter Group）。每个组包括若干个不同的计数器。
  • Hadoop计数器都是MapReduce程序中全局的计数器，跟MapReduce分布式运算没有关系，不是所谓的局部统计信息。
  • 内置Counter Group包括：MapReduce任务计数器（Map-Reduce Framework）、文件系统计数器（File System Counters）、作业计数器（Job Counters）、输入文件任务计数器（File Input Format Counters）、输出文件计数器（File Output Format Counters）

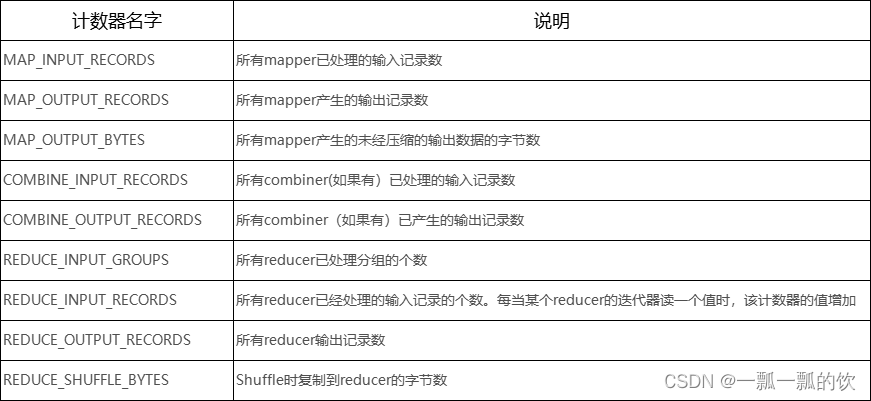

    在这里插入图片描述
Map-Reduce Framework
		Map input records=3245
		Map output records=3245
		Map output bytes=114725
		Map output materialized bytes=121221
		Input split bytes=140
		Combine input records=0
		Combine output records=0
		Reduce input groups=55
		Reduce shuffle bytes=121221
		Reduce input records=3245
		Reduce output records=160
		Spilled Records=6490
		Shuffled Maps =1
		Failed Shuffles=0
		Merged Map outputs=1
		GC time elapsed (ms)=5
		Total committed heap usage (bytes)=510656512

1）、File System Counters

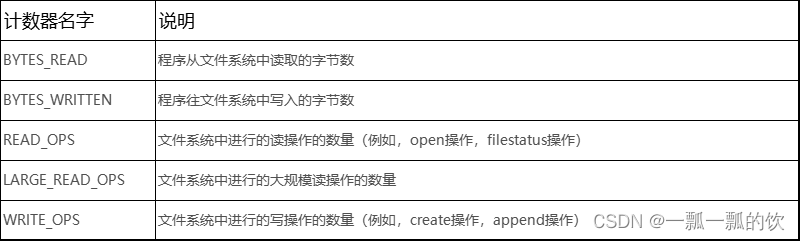

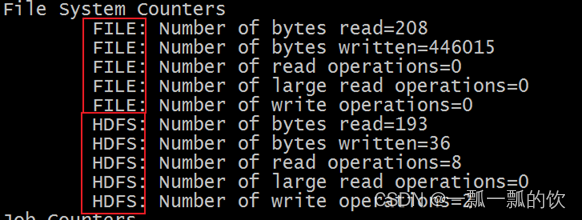

文件系统的计数器会针对不同的文件系统使用情况进行统计，比如HDFS、本地文件系统
在这里插入图片描述

File System Counters
		FILE: Number of bytes read=516458
		FILE: Number of bytes written=1391762
		FILE: Number of read operations=0
		FILE: Number of large read operations=0
		FILE: Number of write operations=0

在这里插入图片描述

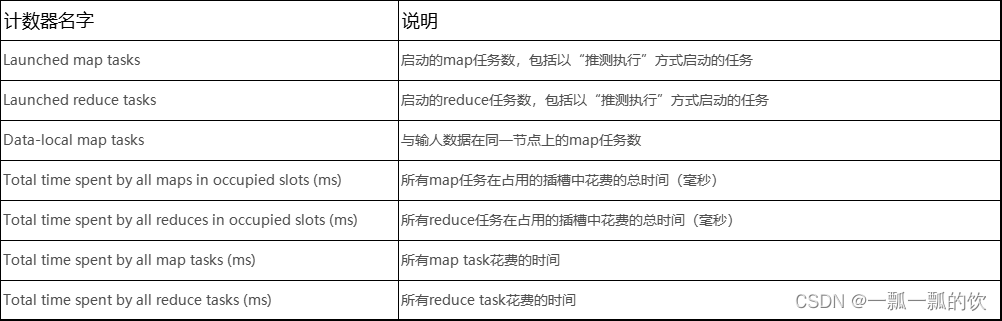

2）、Job Counters

统计记录MapReduce 任务启动的task情况，包括:个数、使用资源情况等
在这里插入图片描述

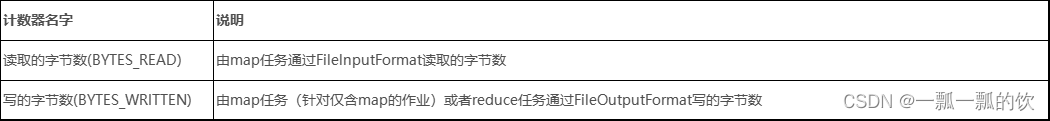

3）、File Input|Output Format Counters

在这里插入图片描述

File Input Format Counters
		Bytes Read=136795
	File Output Format Counters
		Bytes Written=4673

3、MapReduce自定义Counter

MapReduce提供了用户编写自定义计数器的方法，计数器是全局（整个集群）的统计

1）、需求

针对一批文件进行词频统计（wordcount）MR程序。现要求使用计数器统计出数据中apple出现的总次数。

2）、需求实现

  • 通过context.getCounter方法获取一个全局计数器，创建的时候需要指定计数器所属的组名和计数器的名字
  • 在程序中需要使用计数器的地方，调用counter提供的方法即可，比如+1操作

3）、实现

  • Mapper
import java.io.IOException;
import org.apache.hadoop.io.LongWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Counter;
import org.apache.hadoop.mapreduce.Mapper;

public class CusCounterMapper extends Mapper<LongWritable, Text, Text, LongWritable> {
	Text outKey = new Text();
	LongWritable outValue = new LongWritable();

	protected void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {
		// 从程序上下文对象获取一个全局计数器：用于统计hello出现的个数
		// 需要指定计数器组 和计数器的名字
		Counter counter = context.getCounter("test_cus_counters", "apple Counter");
		String[] line = value.toString().split("\t");
		for (String word : line) {
			if (word.equals("apple")) {
				counter.increment(1);
			}
			outKey.set(word);
			outValue.set(1);
			context.write(outKey, outValue);
		}
	}
}
  • Reducer
import java.io.IOException;
import org.apache.hadoop.io.LongWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Reducer;

public class CusCounterReducer extends Reducer<Text, LongWritable, Text, LongWritable> {
	LongWritable outValue = new LongWritable();

	protected void reduce(Text key, Iterable<LongWritable> values, Context context)
			throws IOException, InterruptedException {
		int num = 0;
		for (LongWritable value : values) {
			num++;
		}
		outValue.set(num);
		context.write(key, outValue);
	}
}
  • Driver
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.conf.Configured;
import org.apache.hadoop.fs.FileSystem;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.LongWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.lib.input.FileInputFormat;
import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;
import org.apache.hadoop.util.Tool;
import org.apache.hadoop.util.ToolRunner;

public class CusCounterDriver extends Configured implements Tool {
	static String in = "D:/workspace/bigdata-component/hadoop/test/in";
	static String out = "D:/workspace/bigdata-component/hadoop/test/out/counter";

	public static void main(String[] args) throws Exception {
		Configuration conf = new Configuration();
		int status = ToolRunner.run(conf, new CusCounterDriver(), args);
		System.exit(status);
	}

	@Override
	public int run(String[] args) throws Exception {
		Job job = Job.getInstance(getConf(), CusCounterDriver.class.getSimpleName());

		job.setJarByClass(CusCounterDriver.class);

		job.setMapperClass(CusCounterMapper.class);
		job.setReducerClass(CusCounterReducer.class);

		// map阶段输出的key-value类型
		job.setMapOutputKeyClass(Text.class);
		job.setMapOutputValueClass(LongWritable.class);

		// reducer阶段输出的key-value类型
		job.setOutputKeyClass(Text.class);
		job.setOutputValueClass(LongWritable.class);

		FileInputFormat.addInputPath(job, new Path(in));
		FileSystem fs = FileSystem.get(getConf());
		if (fs.exists(new Path(out))) {
			fs.delete(new Path(out), true);
		}

		FileOutputFormat.setOutputPath(job, new Path(out));

		return job.waitForCompletion(true) ? 0 : 1;
	}

}
  • 验证
    输入文件需要自己造

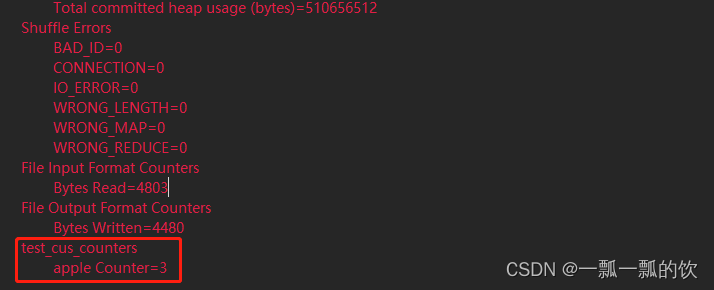

    在执行程序的时候，在控制台输出的信息上就有自定义计数器组和计数器统计信息.(源文件中增加了三個apple字符串)
    在这里插入图片描述

二、读写mysql数据库

读写mysql仅仅是示例性的，其他的数据库操作类似。

1、介绍

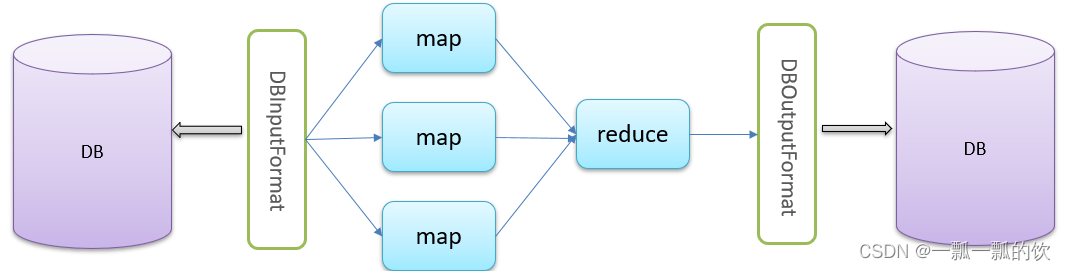

  • 对于MapReduce框架来说，使用inputform进行数据读取操作，读取的数据首先由mapper处理，然后交给reducer处理，最终使用outputformat进行数据的输出操作。默认情况下，输入输出的组件实现都是针对文本数据处理的，分别是TextInputFormat、TextOutputFormat。

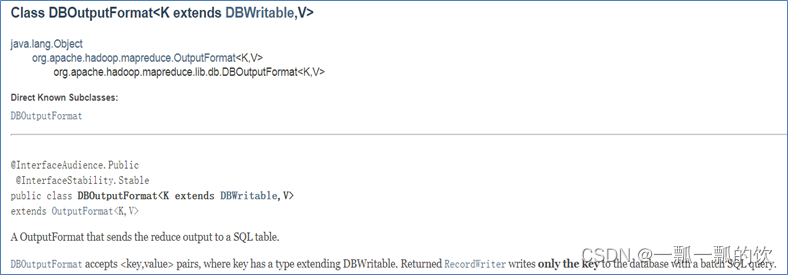

  • 为了方便 MapReduce 直接访问关系型数据库（Mysql，Oracle），Hadoop提供了DBInputFormat和DBOutputFormat两个类。其中DBInputFormat负责从数据库中读取数据，而DBOutputFormat负责把数据最终写入数据库中
    在这里插入图片描述

2、读取mysql数据

1）、需求

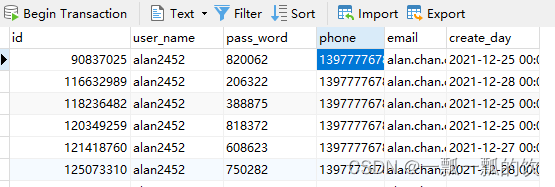

使用MapReduce程序将表中的数据导出存放在指定的文件系统目录下

2）、实现说明

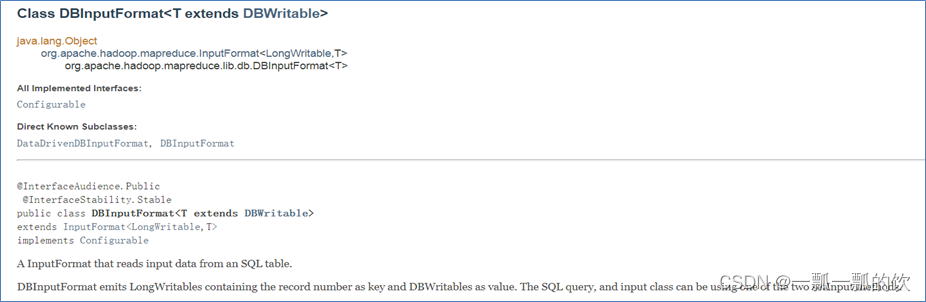

DBInputFormat类用于从SQL表读取数据。底层一行一行读取表中的数据，返回<k,v>键值对。

  • 其中k是LongWritable类型，表中数据的记录行号，从0开始；
  • 其中v是DBWritable类型，表示该行数据对应的对象类型。
    在这里插入图片描述
    本示例本身是不需要进行数据聚合的，仅仅一个是输出到一个文件中，mapper即可完成，所以不需要reducer。

3）、实现

1、pom.xml
        <dependency>
			<groupId>org.apache.hadoop</groupId>
			<artifactId>hadoop-common</artifactId>
			<version>3.1.4</version>
		</dependency>
		<dependency>
			<groupId>org.apache.hadoop</groupId>
			<artifactId>hadoop-client</artifactId>
			<version>3.1.4</version>
		</dependency>
		<dependency>
			<groupId>org.apache.hadoop</groupId>
			<artifactId>hadoop-hdfs</artifactId>
			<version>3.1.4</version>
		</dependency>
		<dependency>
			<groupId>jdk.tools</groupId>
			<artifactId>jdk.tools</artifactId>
			<version>1.8</version>
			<scope>system</scope>
			<systemPath>${JAVA_HOME}/lib/tools.jar</systemPath>
		</dependency>
		<dependency>
			<groupId>org.apache.hadoop</groupId>
			<artifactId>hadoop-mapreduce-client-core</artifactId>
			<version>3.1.4</version>
		</dependency>
		<!-- Google Options -->
		<dependency>
			<groupId>com.github.pcj</groupId>
			<artifactId>google-options</artifactId>
			<version>1.0.0</version>
		</dependency>
		<dependency>
			<groupId>commons-io</groupId>
			<artifactId>commons-io</artifactId>
			<version>2.6</version>
		</dependency>


		<dependency>
			<groupId>org.apache.hadoop</groupId>
			<artifactId>hadoop-mapreduce-client-core</artifactId>
			<version>3.1.4</version>
		</dependency>

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>5.1.46</version>
		</dependency>
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<version>1.18.22</version>
		</dependency>
2、bean
  • 用于封装查询返回的结果（如果要查询表的所有字段，那么属性就跟表的字段一一对应即可）。
  • 需要实现setter、getter、toString、构造方法。
  • 实现Hadoop序列化接口Writable
  • 从数据库读取/写入数据库的对象应实现DBWritable。
    DBWritable与Writable相似，区别在于write（PreparedStatement）方法采用PreparedStatement，而readFields（ResultSet）采用ResultSet。
import java.io.DataInput;
import java.io.DataOutput;
import java.io.IOException;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.text.ParseException;
import java.text.SimpleDateFormat;
import java.util.Date;

import org.apache.hadoop.io.Writable;
import org.apache.hadoop.mapreduce.lib.db.DBWritable;

import lombok.Data;

/**
 * @author alanchan
 * 实现Hadoop序列化接口Writable
 * 从数据库读取/写入数据库的对象应实现DBWritable
 */
@Data
public class User implements Writable, DBWritable {
	private int id;
	private String userName;
	private String password;
	private String phone;
	private String email;
	private Date createDay;
	private SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");

	@Override
	public void write(PreparedStatement ps) throws SQLException {
		ps.setInt(0, id);
		ps.setString(1, userName);
		ps.setString(2, password);
		ps.setString(3, phone);
		ps.setString(4, email);
		ps.setDate(5, (java.sql.Date) createDay);
	}

	@Override
	public void readFields(ResultSet rs) throws SQLException {
		this.id = rs.getInt(0);
		this.userName = rs.getString(1);
		this.password = rs.getString(2);
		this.phone = rs.getString(3);
		this.email = rs.getString(4);
		this.createDay = rs.getDate(5);
	}

	@Override
	public void write(DataOutput out) throws IOException {
		out.writeInt(id);
		out.writeUTF(userName);
		out.writeUTF(password);
		out.writeUTF(phone);
		out.writeUTF(email);
		out.writeUTF(sdf.format(createDay));
	}

	@Override
	public void readFields(DataInput in) throws IOException {
		id = in.readInt();
		userName = in.readUTF();
		password = in.readUTF();
		phone = in.readUTF();
		email = in.readUTF();
		try {
			createDay = sdf.parse(in.readUTF());
		} catch (ParseException e) {
			e.printStackTrace();
		}

	}

	public String toString() {
		return id + "\t" + userName + "\t" + password + "\t" + phone + "\t" + email + "\t" + createDay;
	}

}
3、mapper
    // LongWritable 是数据库记录的符合条件读取的每行行号，不是数据库中的原始行号
	// User 是每行记录的字段值，经过user的DBWrite实现
	public static class ReadFromMysqlMapper extends Mapper<LongWritable, User, LongWritable, Text> {
		LongWritable outKey = new LongWritable();
		Text outValue = new Text();

		/**
		 * 此处加入了一个全局的计数器，看写出的记录数是否与数据库的记录数一致
		 */
		protected void map(LongWritable key, User value, Context context) throws IOException, InterruptedException {
			Counter counter = context.getCounter("mysql_records_counters", "User Records");
			outKey.set(key.get());
			outValue.set(value.toString());
			counter.increment(1);
			context.write(outKey, outValue);
		}
	}
4、reducer

无

5、driver
import java.io.IOException;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.conf.Configured;
import org.apache.hadoop.fs.FileSystem;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.LongWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Counter;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.Mapper;
import org.apache.hadoop.mapreduce.lib.db.DBConfiguration;
import org.apache.hadoop.mapreduce.lib.db.DBInputFormat;
import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;
import org.apache.hadoop.util.Tool;
import org.apache.hadoop.util.ToolRunner;

/**
 * @author alanchan
 * 从mysql中读取数据，并写入到文件中
 *
 */

public class ReadFromMysql extends Configured implements Tool {
	static String out = "D:/workspace/bigdata-component/hadoop/test/out/mysql";

	@Override
	public int run(String[] args) throws Exception {
		Configuration conf = getConf();

		// 配置当前作业需要使用的JDBC信息
		DBConfiguration.configureDB(conf, "com.mysql.jdbc.Driver", "jdbc:mysql://192.168.10.44:3306/test", "root","root");

		// 创建作业实例
		Job job = Job.getInstance(conf, ReadFromMysql.class.getSimpleName());
		// 设置作业驱动类
		job.setJarByClass(ReadFromMysql.class);

		// 设置inputformat类
		job.setInputFormatClass(DBInputFormat.class);
		FileSystem fs = FileSystem.get(getConf());
		if (fs.exists(new Path(out))) {
			fs.delete(new Path(out), true);
		}
		FileOutputFormat.setOutputPath(job, new Path(out));

		job.setMapperClass(ReadFromMysqlMapper.class);
	    job.setMapOutputKeyClass(LongWritable.class);
	    job.setMapOutputValueClass(Text.class);
	    job.setNumReduceTasks(0);

		// 配置当前作业要查询的SQL语句和接收查询结果的JavaBean

//	    public static void setInput(JobConf job,
//                Class<? extends DBWritable> inputClass,
//                String tableName,
//                String conditions,
//                String orderBy,
//                String... fieldNames)

//	    job - The job
//	    inputClass - the class object implementing DBWritable, which is the Java object holding tuple fields.
//	    inputQuery - the input query to select fields. Example : "SELECT f1, f2, f3 FROM Mytable ORDER BY f1"
//	    inputCountQuery - the input query that returns the number of records in the table. Example : "SELECT COUNT(f1) FROM Mytable"
//	    public static void setInput(JobConf job,
//                Class<? extends DBWritable> inputClass,
//                String inputQuery,
//                String inputCountQuery)
		DBInputFormat.setInput(job, User.class,
				"select id, user_Name,pass_word,phone,email,create_day from dx_user ",
				// 12606948 条数据
				"select count(*) from dx_user ");

		return job.waitForCompletion(true) ? 0 : 1;
	}

	public static void main(String[] args) throws Exception {
		Configuration conf = new Configuration();
		int status = ToolRunner.run(conf, new ReadFromMysql(), args);
		System.exit(status);
	}
}
6、mapper与driver合并成一个java文件

mapper和驱动类写在一个文件中了，javabean单独

import java.io.IOException;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.conf.Configured;
import org.apache.hadoop.fs.FileSystem;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.LongWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Counter;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.Mapper;
import org.apache.hadoop.mapreduce.lib.db.DBConfiguration;
import org.apache.hadoop.mapreduce.lib.db.DBInputFormat;
import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;
import org.apache.hadoop.util.Tool;
import org.apache.hadoop.util.ToolRunner;

/**
 * @author alanchan
 * 从mysql中读取数据，并写入到文件中
 *
 */

public class ReadFromMysql extends Configured implements Tool {
	static String out = "D:/workspace/bigdata-component/hadoop/test/out/mysql";

	// LongWritable 是数据库记录的符合条件读取的每行行号，不是数据库中的原始行号
	// User 是每行记录的字段值，经过user的DBWrite实现
	public static class ReadFromMysqlMapper extends Mapper<LongWritable, User, LongWritable, Text> {
		LongWritable outKey = new LongWritable();
		Text outValue = new Text();

		/**
		 * 此处加入了一个全局的计数器，看写出的记录数是否与数据库的记录数一致
		 */
		protected void map(LongWritable key, User value, Context context) throws IOException, InterruptedException {
			Counter counter = context.getCounter("mysql_records_counters", "User Records");
			outKey.set(key.get());
			outValue.set(value.toString());
			counter.increment(1);
			context.write(outKey, outValue);
		}
	}

	@Override
	public int run(String[] args) throws Exception {
		Configuration conf = getConf();

		// 配置当前作业需要使用的JDBC信息
		DBConfiguration.configureDB(conf, "com.mysql.jdbc.Driver", "jdbc:mysql://192.168.10.44:3306/test", "root",
				"root");

		// 创建作业实例
		Job job = Job.getInstance(conf, ReadFromMysql.class.getSimpleName());
		// 设置作业驱动类
		job.setJarByClass(ReadFromMysql.class);

		// 设置inputformat类
		job.setInputFormatClass(DBInputFormat.class);
		FileSystem fs = FileSystem.get(getConf());
		if (fs.exists(new Path(out))) {
			fs.delete(new Path(out), true);
		}
		FileOutputFormat.setOutputPath(job, new Path(out));

		job.setMapperClass(ReadFromMysqlMapper.class);
	    job.setMapOutputKeyClass(LongWritable.class);
	    job.setMapOutputValueClass(Text.class);
	    job.setNumReduceTasks(0);

		// 配置当前作业要查询的SQL语句和接收查询结果的JavaBean

//	    public static void setInput(JobConf job,
//                Class<? extends DBWritable> inputClass,
//                String tableName,
//                String conditions,
//                String orderBy,
//                String... fieldNames)

//	    job - The job
//	    inputClass - the class object implementing DBWritable, which is the Java object holding tuple fields.
//	    inputQuery - the input query to select fields. Example : "SELECT f1, f2, f3 FROM Mytable ORDER BY f1"
//	    inputCountQuery - the input query that returns the number of records in the table. Example : "SELECT COUNT(f1) FROM Mytable"
//	    public static void setInput(JobConf job,
//                Class<? extends DBWritable> inputClass,
//                String inputQuery,
//                String inputCountQuery)
		DBInputFormat.setInput(job, User.class,
				"select id, user_Name,pass_word,phone,email,create_day from dx_user",
				// 12606948 条数据
				"select count(*) from dx_user ");
//		DBInputFormat.setInput(job, User.class,
//				"select id, user_Name,pass_word,phone,email,create_day from dx_user where user_name = 'alan2452'",
//				"select count(*) from dx_user where user_name = 'alan2452'");

		return job.waitForCompletion(true) ? 0 : 1;
	}

	public static void main(String[] args) throws Exception {
		Configuration conf = new Configuration();
		int status = ToolRunner.run(conf, new ReadFromMysql(), args);
		System.exit(status);
	}
}
7、验证

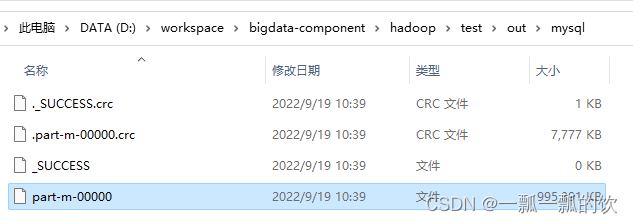

MR输出目录
在这里插入图片描述

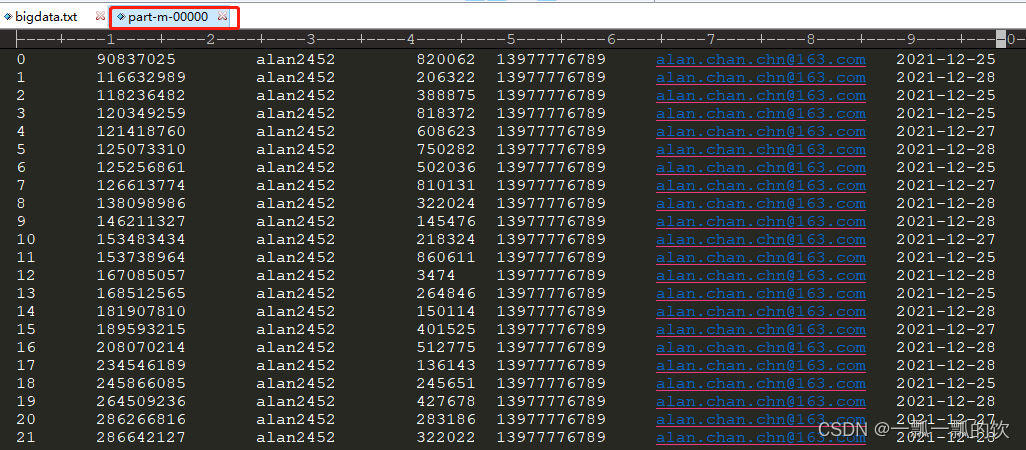

打开文件后的内容
在这里插入图片描述
运行日志

2022-09-19 10:39:17,656 WARN impl.MetricsConfig: Cannot locate configuration: tried hadoop-metrics2-jobtracker.properties,hadoop-metrics2.properties
2022-09-19 10:39:17,691 INFO impl.MetricsSystemImpl: Scheduled Metric snapshot period at 10 second(s).
2022-09-19 10:39:17,691 INFO impl.MetricsSystemImpl: JobTracker metrics system started
2022-09-19 10:39:18,211 WARN mapreduce.JobResourceUploader: No job jar file set.  User classes may not be found. See Job or Job#setJar(String).
2022-09-19 10:39:23,973 INFO mapreduce.JobSubmitter: number of splits:1
2022-09-19 10:39:24,016 INFO mapreduce.JobSubmitter: Submitting tokens for job: job_local996413693_0001
2022-09-19 10:39:24,017 INFO mapreduce.JobSubmitter: Executing with tokens: []
2022-09-19 10:39:24,115 INFO mapreduce.Job: The url to track the job: http://localhost:8080/
2022-09-19 10:39:24,115 INFO mapreduce.Job: Running job: job_local996413693_0001
2022-09-19 10:39:24,116 INFO mapred.LocalJobRunner: OutputCommitter set in config null
2022-09-19 10:39:24,119 INFO output.FileOutputCommitter: File Output Committer Algorithm version is 2
2022-09-19 10:39:24,119 INFO output.FileOutputCommitter: FileOutputCommitter skip cleanup _temporary folders under output directory:false, ignore cleanup failures: false
2022-09-19 10:39:24,120 INFO mapred.LocalJobRunner: OutputCommitter is org.apache.hadoop.mapreduce.lib.output.FileOutputCommitter
2022-09-19 10:39:24,138 INFO mapred.LocalJobRunner: Waiting for map tasks
2022-09-19 10:39:24,139 INFO mapred.LocalJobRunner: Starting task: attempt_local996413693_0001_m_000000_0
2022-09-19 10:39:24,150 INFO output.FileOutputCommitter: File Output Committer Algorithm version is 2
2022-09-19 10:39:24,151 INFO output.FileOutputCommitter: FileOutputCommitter skip cleanup _temporary folders under output directory:false, ignore cleanup failures: false
2022-09-19 10:39:24,157 INFO util.ProcfsBasedProcessTree: ProcfsBasedProcessTree currently is supported only on Linux.
2022-09-19 10:39:24,181 INFO mapred.Task:  Using ResourceCalculatorProcessTree : org.apache.hadoop.yarn.util.WindowsBasedProcessTree@7c7106fc
2022-09-19 10:39:24,199 INFO mapred.MapTask: Processing split: org.apache.hadoop.mapreduce.lib.db.DBInputFormat$DBInputSplit@3aa21f6e
2022-09-19 10:39:25,122 INFO mapreduce.Job: Job job_local996413693_0001 running in uber mode : false
2022-09-19 10:39:25,124 INFO mapreduce.Job:  map 0% reduce 0%
2022-09-19 10:39:36,173 INFO mapred.LocalJobRunner: map > map
2022-09-19 10:39:36,227 INFO mapreduce.Job:  map 67% reduce 0%
2022-09-19 10:39:42,172 INFO mapred.LocalJobRunner: map > map
2022-09-19 10:39:42,178 INFO mapred.LocalJobRunner: map
2022-09-19 10:39:42,180 INFO mapred.Task: Task:attempt_local996413693_0001_m_000000_0 is done. And is in the process of committing
2022-09-19 10:39:42,181 INFO mapred.LocalJobRunner: map
2022-09-19 10:39:42,181 INFO mapred.Task: Task attempt_local996413693_0001_m_000000_0 is allowed to commit now
2022-09-19 10:39:42,184 INFO output.FileOutputCommitter: Saved output of task 'attempt_local996413693_0001_m_000000_0' to file:/D:/workspace/bigdata-component/hadoop/test/out/mysql
2022-09-19 10:39:42,184 INFO mapred.LocalJobRunner: map
2022-09-19 10:39:42,184 INFO mapred.Task: Task 'attempt_local996413693_0001_m_000000_0' done.
2022-09-19 10:39:42,188 INFO mapred.Task: Final Counters for attempt_local996413693_0001_m_000000_0: Counters: 16
	File System Counters
		FILE: Number of bytes read=125
		FILE: Number of bytes written=1027755264
		FILE: Number of read operations=0
		FILE: Number of large read operations=0
		FILE: Number of write operations=0
	Map-Reduce Framework
		Map input records=12606948
		Map output records=12606948
		Input split bytes=78
		Spilled Records=0
		Failed Shuffles=0
		Merged Map outputs=0
		GC time elapsed (ms)=122
		Total committed heap usage (bytes)=434634752
	mysql_records_counters
		User Records=12606948
	File Input Format Counters
		Bytes Read=0
	File Output Format Counters
		Bytes Written=1027243421
2022-09-19 10:39:42,188 INFO mapred.LocalJobRunner: Finishing task: attempt_local996413693_0001_m_000000_0
2022-09-19 10:39:42,189 INFO mapred.LocalJobRunner: map task executor complete.
2022-09-19 10:39:42,273 INFO mapreduce.Job:  map 100% reduce 0%
2022-09-19 10:39:42,274 INFO mapreduce.Job: Job job_local996413693_0001 completed successfully
2022-09-19 10:39:42,284 INFO mapreduce.Job: Counters: 16
	File System Counters
		FILE: Number of bytes read=125
		FILE: Number of bytes written=1027755264
		FILE: Number of read operations=0
		FILE: Number of large read operations=0
		FILE: Number of write operations=0
	Map-Reduce Framework
		Map input records=12606948
		Map output records=12606948
		Input split bytes=78
		Spilled Records=0
		Failed Shuffles=0
		Merged Map outputs=0
		GC time elapsed (ms)=122
		Total committed heap usage (bytes)=434634752
	mysql_records_counters
		User Records=12606948
	File Input Format Counters
		Bytes Read=0
	File Output Format Counters
		Bytes Written=1027243421

3、写数据到mysql

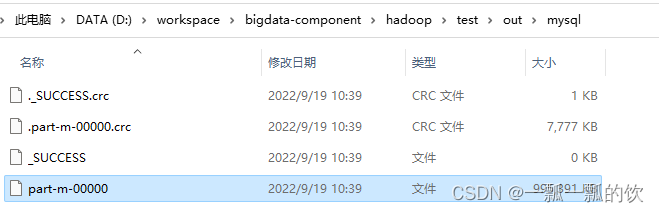

本示例是将上述示例的文件内容读出并写入至数据库
在这里插入图片描述

1）、創建需要寫入的表

DROP TABLE IF EXISTS `dx_user_copy`;
CREATE TABLE `dx_user_copy`  (
  `id` int(11) NOT NULL,
  `user_name` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `pass_word` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `phone` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `email` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
  `create_day` datetime(0) NULL DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE,
  INDEX `id_idx`(`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

SET FOREIGN_KEY_CHECKS = 1;

2）、实现说明

DBOutputFormat ，它将reduce输出发送到SQL表。
DBOutputFormat接受<key，value>键值对，其中key必须具有扩展DBWritable的类型
在这里插入图片描述

3）、bean

import java.io.DataInput;
import java.io.DataOutput;
import java.io.IOException;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.text.ParseException;
import java.text.SimpleDateFormat;
import java.util.Date;

import org.apache.hadoop.io.Writable;
import org.apache.hadoop.mapreduce.lib.db.DBWritable;

import lombok.Data;

/**
 * @author alanchan
 * 实现Hadoop序列化接口Writable
 * 从数据库读取/写入数据库的对象应实现DBWritable
 */
@Data
public class User implements Writable, DBWritable {
	private int id;
	private String userName;
	private String password;
	private String phone;
	private String email;
	private Date createDay;
	private SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");

	@Override
	public void write(PreparedStatement ps) throws SQLException {
		ps.setInt(1, id);
		ps.setString(2, userName);
		ps.setString(3, password);
		ps.setString(4, phone);
		ps.setString(5, email);
		ps.setDate(6, (java.sql.Date) createDay);
	}

	@Override
	public void readFields(ResultSet rs) throws SQLException {
		this.id = rs.getInt(1);
		this.userName = rs.getString(2);
		this.password = rs.getString(3);
		this.phone = rs.getString(4);
		this.email = rs.getString(5);
		this.createDay = rs.getDate(6);
	}

	@Override
	public void write(DataOutput out) throws IOException {
		out.writeInt(id);
		out.writeUTF(userName);
		out.writeUTF(password);
		out.writeUTF(phone);
		out.writeUTF(email);
		out.writeUTF(sdf.format(createDay));
	}

	@Override
	public void readFields(DataInput in) throws IOException {
		id = in.readInt();
		userName = in.readUTF();
		password = in.readUTF();
		phone = in.readUTF();
		email = in.readUTF();
		try {
			createDay = sdf.parse(in.readUTF());
		} catch (ParseException e) {
			e.printStackTrace();
		}

	}

	public String toString() {
		return id + "\t" + userName + "\t" + password + "\t" + phone + "\t" + email + "\t" + createDay;
	}

}

4）、mapper

public static class WriteToMysqlMapper extends Mapper<LongWritable, Text, NullWritable, User> {
//		private SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd");

		User outValue = new User();
//		IntWritable outKey = new IntWritable();
		NullWritable outKey = NullWritable.get();
		// 數據格式：0 90837025 alan2452 820062 13977776789 alan.chan.chn@163.com 2021-12-25
		// 數據格式：行號 id userName password phone email createday
		protected void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {
			Counter counter = context.getCounter("file_records_counters", "Files of User Records");
			counter.increment(1);

			String[] fileds = value.toString().split("\t");
			if (fileds.length == 7) {

//				outKey.set(Integer.parseInt(fileds[0]));

				outValue.setId(Integer.parseInt(fileds[1]));
				outValue.setUserName(fileds[2]);
				outValue.setPassword(fileds[3]);
				outValue.setPhone(fileds[4]);
				outValue.setEmail(fileds[5]);
				outValue.setCreateDay(fileds[6]);

				context.write(outKey, outValue);
			}
		}

	}

5）、reducer

public static class WriteToMysqlReducer extends Reducer<NullWritable, User, User, NullWritable> {
		protected void reduce(NullWritable key, Iterable<User> values, Context context)
				throws IOException, InterruptedException {
			for (User value : values) {
				context.write(value, NullWritable.get());
			}

		}
	}

6）、driver

import java.io.IOException;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.conf.Configured;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.LongWritable;
import org.apache.hadoop.io.NullWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Counter;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.Mapper;
import org.apache.hadoop.mapreduce.Reducer;
import org.apache.hadoop.mapreduce.lib.db.DBConfiguration;
import org.apache.hadoop.mapreduce.lib.db.DBOutputFormat;
import org.apache.hadoop.mapreduce.lib.input.FileInputFormat;
import org.apache.hadoop.util.Tool;
import org.apache.hadoop.util.ToolRunner;

/**
 * @author alanchan
 * 将文件的内容写入mysql
 */
public class WriteToMysql extends Configured implements Tool {
	static String in = "D:/workspace/bigdata-component/hadoop/test/out/mysql";

	@Override
	public int run(String[] args) throws Exception {
		Configuration conf = getConf();

		// 配置当前作业需要使用的JDBC信息
		DBConfiguration.configureDB(conf, "com.mysql.jdbc.Driver", "jdbc:mysql://192.168.10.44:3306/test", "root",
				"root");

		// 创建作业实例
		Job job = Job.getInstance(conf, WriteToMysql.class.getSimpleName());
		// 设置作业驱动类
		job.setJarByClass(WriteToMysql.class);

		// 设置mapper相关信息LongWritable, Text, IntWritable, User
		job.setMapperClass(WriteToMysqlMapper.class);
		job.setMapOutputKeyClass(NullWritable.class);
		job.setMapOutputValueClass(User.class);

		// 设置reducer相关信息 IntWritable, User, User, NullWritable
		job.setReducerClass(WriteToMysqlReducer.class);
		job.setOutputKeyClass(User.class);
		job.setOutputValueClass(NullWritable.class);

		// 设置输入的文件的路径
		FileInputFormat.setInputPaths(job, new Path(in));

		// 设置输出的format类型
		job.setOutputFormatClass(DBOutputFormat.class);

		//设置reducetask的数量
		job.setNumReduceTasks(2);

		// 配置当前作业输出到数据库的表、字段信息
//		public static void setOutput(Job job,
//                String tableName,
//                int fieldCount)

//		public static void setOutput(Job job,
//                String tableName,
//                String... fieldNames)
//		job - The job
//		tableName - The table to insert data into
//		fieldNames - The field names in the table.

		// id, user_Name,pass_word,phone,email,create_day
		DBOutputFormat.setOutput(job, "dx_user_copy", "id", "user_name", "pass_word", "phone", "email", "create_day");

//		DBOutputFormat.setOutput(job, "dx_user_copy", 6);

		return job.waitForCompletion(true) ? 0 : 1;
	}

	public static void main(String[] args) throws Exception {
		Configuration conf = new Configuration();
		int status = ToolRunner.run(conf, new WriteToMysql(), args);
		System.exit(status);
	}

}

7）、验证

数据库验证，登录数据库查询结果即可
在这里插入图片描述
运行日志验证，本日志是带条件写入后，再将读取的文件作为本示例的输入，所以记录数不是1260多万条，而是5万多条。

2022-09-20 16:52:29,476 WARN impl.MetricsConfig: Cannot locate configuration: tried hadoop-metrics2-jobtracker.properties,hadoop-metrics2.properties
2022-09-20 16:52:29,513 INFO impl.MetricsSystemImpl: Scheduled Metric snapshot period at 10 second(s).
2022-09-20 16:52:29,513 INFO impl.MetricsSystemImpl: JobTracker metrics system started
2022-09-20 16:52:30,038 WARN mapreduce.JobResourceUploader: No job jar file set.  User classes may not be found. See Job or Job#setJar(String).
2022-09-20 16:52:30,070 INFO input.FileInputFormat: Total input files to process : 1
2022-09-20 16:52:30,090 INFO mapreduce.JobSubmitter: number of splits:1
2022-09-20 16:52:30,142 INFO mapreduce.JobSubmitter: Submitting tokens for job: job_local368221435_0001
2022-09-20 16:52:30,143 INFO mapreduce.JobSubmitter: Executing with tokens: []
2022-09-20 16:52:30,217 INFO mapreduce.Job: The url to track the job: http://localhost:8080/
2022-09-20 16:52:30,217 INFO mapreduce.Job: Running job: job_local368221435_0001
2022-09-20 16:52:30,218 INFO mapred.LocalJobRunner: OutputCommitter set in config null
2022-09-20 16:52:30,221 INFO output.FileOutputCommitter: File Output Committer Algorithm version is 2
2022-09-20 16:52:30,221 INFO output.FileOutputCommitter: FileOutputCommitter skip cleanup _temporary folders under output directory:false, ignore cleanup failures: false
2022-09-20 16:52:30,221 INFO mapred.LocalJobRunner: OutputCommitter is org.apache.hadoop.mapreduce.lib.output.FileOutputCommitter
2022-09-20 16:52:30,224 WARN output.FileOutputCommitter: Output Path is null in setupJob()
2022-09-20 16:52:30,237 INFO mapred.LocalJobRunner: Waiting for map tasks
2022-09-20 16:52:30,237 INFO mapred.LocalJobRunner: Starting task: attempt_local368221435_0001_m_000000_0
2022-09-20 16:52:30,248 INFO output.FileOutputCommitter: File Output Committer Algorithm version is 2
2022-09-20 16:52:30,248 INFO output.FileOutputCommitter: FileOutputCommitter skip cleanup _temporary folders under output directory:false, ignore cleanup failures: false
2022-09-20 16:52:30,254 INFO util.ProcfsBasedProcessTree: ProcfsBasedProcessTree currently is supported only on Linux.
2022-09-20 16:52:30,281 INFO mapred.Task:  Using ResourceCalculatorProcessTree : org.apache.hadoop.yarn.util.WindowsBasedProcessTree@7c7e9f9c
2022-09-20 16:52:30,284 INFO mapred.MapTask: Processing split: file:/D:/workspace/bigdata-component/hadoop/test/out/mysql/part-m-00000:0+4659135
2022-09-20 16:52:30,313 INFO mapred.MapTask: (EQUATOR) 0 kvi 26214396(104857584)
2022-09-20 16:52:30,313 INFO mapred.MapTask: mapreduce.task.io.sort.mb: 100
2022-09-20 16:52:30,313 INFO mapred.MapTask: soft limit at 83886080
2022-09-20 16:52:30,313 INFO mapred.MapTask: bufstart = 0; bufvoid = 104857600
2022-09-20 16:52:30,313 INFO mapred.MapTask: kvstart = 26214396; length = 6553600
2022-09-20 16:52:30,315 INFO mapred.MapTask: Map output collector class = org.apache.hadoop.mapred.MapTask$MapOutputBuffer
2022-09-20 16:52:30,441 INFO mapred.LocalJobRunner:
2022-09-20 16:52:30,441 INFO mapred.MapTask: Starting flush of map output
2022-09-20 16:52:30,441 INFO mapred.MapTask: Spilling map output
2022-09-20 16:52:30,441 INFO mapred.MapTask: bufstart = 0; bufend = 4353577; bufvoid = 104857600
2022-09-20 16:52:30,441 INFO mapred.MapTask: kvstart = 26214396(104857584); kvend = 26003288(104013152); length = 211109/6553600
2022-09-20 16:52:30,481 INFO mapred.MapTask: Finished spill 0
2022-09-20 16:52:30,490 INFO mapred.Task: Task:attempt_local368221435_0001_m_000000_0 is done. And is in the process of committing
2022-09-20 16:52:30,491 INFO mapred.LocalJobRunner: map
2022-09-20 16:52:30,491 INFO mapred.Task: Task 'attempt_local368221435_0001_m_000000_0' done.
2022-09-20 16:52:30,496 INFO mapred.Task: Final Counters for attempt_local368221435_0001_m_000000_0: Counters: 18
	File System Counters
		FILE: Number of bytes read=4695740
		FILE: Number of bytes written=4972724
		FILE: Number of read operations=0
		FILE: Number of large read operations=0
		FILE: Number of write operations=0
	Map-Reduce Framework
		Map input records=52778
		Map output records=52778
		Map output bytes=4353577
		Map output materialized bytes=4459145
		Input split bytes=136
		Combine input records=0
		Spilled Records=52778
		Failed Shuffles=0
		Merged Map outputs=0
		GC time elapsed (ms)=0
		Total committed heap usage (bytes)=8236040192
	file_records_counters
		Files of User Records=52778
	File Input Format Counters
		Bytes Read=4695547
2022-09-20 16:52:30,496 INFO mapred.LocalJobRunner: Finishing task: attempt_local368221435_0001_m_000000_0
2022-09-20 16:52:30,496 INFO mapred.LocalJobRunner: map task executor complete.
2022-09-20 16:52:30,498 INFO mapred.LocalJobRunner: Waiting for reduce tasks
2022-09-20 16:52:30,498 INFO mapred.LocalJobRunner: Starting task: attempt_local368221435_0001_r_000000_0
2022-09-20 16:52:30,502 INFO output.FileOutputCommitter: File Output Committer Algorithm version is 2
2022-09-20 16:52:30,502 INFO output.FileOutputCommitter: FileOutputCommitter skip cleanup _temporary folders under output directory:false, ignore cleanup failures: false
2022-09-20 16:52:30,502 INFO util.ProcfsBasedProcessTree: ProcfsBasedProcessTree currently is supported only on Linux.
2022-09-20 16:52:30,527 INFO mapred.Task:  Using ResourceCalculatorProcessTree : org.apache.hadoop.yarn.util.WindowsBasedProcessTree@3690ac3
2022-09-20 16:52:30,529 INFO mapred.ReduceTask: Using ShuffleConsumerPlugin: org.apache.hadoop.mapreduce.task.reduce.Shuffle@7843679b
2022-09-20 16:52:30,530 WARN impl.MetricsSystemImpl: JobTracker metrics system already initialized!
2022-09-20 16:52:30,537 INFO reduce.MergeManagerImpl: MergerManager: memoryLimit=5765228032, maxSingleShuffleLimit=1441307008, mergeThreshold=3805050624, ioSortFactor=10, memToMemMergeOutputsThreshold=10
2022-09-20 16:52:30,538 INFO reduce.EventFetcher: attempt_local368221435_0001_r_000000_0 Thread started: EventFetcher for fetching Map Completion Events
2022-09-20 16:52:30,553 INFO reduce.LocalFetcher: localfetcher#1 about to shuffle output of map attempt_local368221435_0001_m_000000_0 decomp: 4459135 len: 4459139 to MEMORY
2022-09-20 16:52:30,558 INFO reduce.InMemoryMapOutput: Read 4459135 bytes from map-output for attempt_local368221435_0001_m_000000_0
2022-09-20 16:52:30,559 INFO reduce.MergeManagerImpl: closeInMemoryFile -> map-output of size: 4459135, inMemoryMapOutputs.size() -> 1, commitMemory -> 0, usedMemory ->4459135
2022-09-20 16:52:30,559 INFO reduce.EventFetcher: EventFetcher is interrupted.. Returning
2022-09-20 16:52:30,559 INFO mapred.LocalJobRunner: 1 / 1 copied.
2022-09-20 16:52:30,560 INFO reduce.MergeManagerImpl: finalMerge called with 1 in-memory map-outputs and 0 on-disk map-outputs
2022-09-20 16:52:30,567 INFO mapred.Merger: Merging 1 sorted segments
2022-09-20 16:52:30,567 INFO mapred.Merger: Down to the last merge-pass, with 1 segments left of total size: 4459133 bytes
2022-09-20 16:52:30,589 INFO reduce.MergeManagerImpl: Merged 1 segments, 4459135 bytes to disk to satisfy reduce memory limit
2022-09-20 16:52:30,589 INFO reduce.MergeManagerImpl: Merging 1 files, 4459139 bytes from disk
2022-09-20 16:52:30,590 INFO reduce.MergeManagerImpl: Merging 0 segments, 0 bytes from memory into reduce
2022-09-20 16:52:30,590 INFO mapred.Merger: Merging 1 sorted segments
2022-09-20 16:52:30,591 INFO mapred.Merger: Down to the last merge-pass, with 1 segments left of total size: 4459133 bytes
2022-09-20 16:52:30,591 INFO mapred.LocalJobRunner: 1 / 1 copied.
2022-09-20 16:52:30,745 INFO Configuration.deprecation: mapred.skip.on is deprecated. Instead, use mapreduce.job.skiprecords
2022-09-20 16:52:31,224 INFO mapreduce.Job: Job job_local368221435_0001 running in uber mode : false
2022-09-20 16:52:31,224 INFO mapreduce.Job:  map 100% reduce 0%
2022-09-20 16:52:42,524 INFO mapred.LocalJobRunner: reduce > reduce
2022-09-20 16:52:43,342 INFO mapreduce.Job:  map 100% reduce 50%
2022-09-20 16:53:03,408 INFO mapred.Task: Task:attempt_local368221435_0001_r_000000_0 is done. And is in the process of committing
2022-09-20 16:53:03,409 INFO mapred.LocalJobRunner: reduce > reduce
2022-09-20 16:53:03,409 INFO mapred.Task: Task 'attempt_local368221435_0001_r_000000_0' done.
2022-09-20 16:53:03,410 INFO mapred.Task: Final Counters for attempt_local368221435_0001_r_000000_0: Counters: 24
	File System Counters
		FILE: Number of bytes read=13614080
		FILE: Number of bytes written=9431863
		FILE: Number of read operations=0
		FILE: Number of large read operations=0
		FILE: Number of write operations=0
	Map-Reduce Framework
		Combine input records=0
		Combine output records=0
		Reduce input groups=1
		Reduce shuffle bytes=4459139
		Reduce input records=52778
		Reduce output records=52778
		Spilled Records=52778
		Shuffled Maps =1
		Failed Shuffles=0
		Merged Map outputs=1
		GC time elapsed (ms)=29
		Total committed heap usage (bytes)=8236040192
	Shuffle Errors
		BAD_ID=0
		CONNECTION=0
		IO_ERROR=0
		WRONG_LENGTH=0
		WRONG_MAP=0
		WRONG_REDUCE=0
	File Output Format Counters
		Bytes Written=0
2022-09-20 16:53:03,410 INFO mapred.LocalJobRunner: Finishing task: attempt_local368221435_0001_r_000000_0
2022-09-20 16:53:03,410 INFO mapred.LocalJobRunner: Starting task: attempt_local368221435_0001_r_000001_0
2022-09-20 16:53:03,411 INFO output.FileOutputCommitter: File Output Committer Algorithm version is 2
2022-09-20 16:53:03,411 INFO output.FileOutputCommitter: FileOutputCommitter skip cleanup _temporary folders under output directory:false, ignore cleanup failures: false
2022-09-20 16:53:03,411 INFO util.ProcfsBasedProcessTree: ProcfsBasedProcessTree currently is supported only on Linux.
2022-09-20 16:53:03,432 INFO mapred.Task:  Using ResourceCalculatorProcessTree : org.apache.hadoop.yarn.util.WindowsBasedProcessTree@68ad8cf0
2022-09-20 16:53:03,432 INFO mapred.ReduceTask: Using ShuffleConsumerPlugin: org.apache.hadoop.mapreduce.task.reduce.Shuffle@4d1099c4
2022-09-20 16:53:03,432 WARN impl.MetricsSystemImpl: JobTracker metrics system already initialized!
2022-09-20 16:53:03,433 INFO reduce.MergeManagerImpl: MergerManager: memoryLimit=5765228032, maxSingleShuffleLimit=1441307008, mergeThreshold=3805050624, ioSortFactor=10, memToMemMergeOutputsThreshold=10
2022-09-20 16:53:03,433 INFO reduce.EventFetcher: attempt_local368221435_0001_r_000001_0 Thread started: EventFetcher for fetching Map Completion Events
2022-09-20 16:53:03,436 INFO reduce.LocalFetcher: localfetcher#2 about to shuffle output of map attempt_local368221435_0001_m_000000_0 decomp: 2 len: 6 to MEMORY
2022-09-20 16:53:03,436 INFO reduce.InMemoryMapOutput: Read 2 bytes from map-output for attempt_local368221435_0001_m_000000_0
2022-09-20 16:53:03,436 INFO reduce.MergeManagerImpl: closeInMemoryFile -> map-output of size: 2, inMemoryMapOutputs.size() -> 1, commitMemory -> 0, usedMemory ->2
2022-09-20 16:53:03,436 INFO reduce.EventFetcher: EventFetcher is interrupted.. Returning
2022-09-20 16:53:03,437 INFO mapred.LocalJobRunner: 1 / 1 copied.
2022-09-20 16:53:03,437 INFO reduce.MergeManagerImpl: finalMerge called with 1 in-memory map-outputs and 0 on-disk map-outputs
2022-09-20 16:53:03,440 INFO mapred.Merger: Merging 1 sorted segments
2022-09-20 16:53:03,440 INFO mapred.Merger: Down to the last merge-pass, with 0 segments left of total size: 0 bytes
2022-09-20 16:53:03,441 INFO reduce.MergeManagerImpl: Merged 1 segments, 2 bytes to disk to satisfy reduce memory limit
2022-09-20 16:53:03,441 INFO reduce.MergeManagerImpl: Merging 1 files, 6 bytes from disk
2022-09-20 16:53:03,441 INFO reduce.MergeManagerImpl: Merging 0 segments, 0 bytes from memory into reduce
2022-09-20 16:53:03,441 INFO mapred.Merger: Merging 1 sorted segments
2022-09-20 16:53:03,442 INFO mapred.Merger: Down to the last merge-pass, with 0 segments left of total size: 0 bytes
2022-09-20 16:53:03,442 INFO mapred.LocalJobRunner: 1 / 1 copied.
2022-09-20 16:53:03,451 INFO mapred.Task: Task:attempt_local368221435_0001_r_000001_0 is done. And is in the process of committing
2022-09-20 16:53:03,452 INFO mapred.LocalJobRunner: reduce > reduce
2022-09-20 16:53:03,452 INFO mapred.Task: Task 'attempt_local368221435_0001_r_000001_0' done.
2022-09-20 16:53:03,452 INFO mapred.Task: Final Counters for attempt_local368221435_0001_r_000001_0: Counters: 24
	File System Counters
		FILE: Number of bytes read=13614148
		FILE: Number of bytes written=9431869
		FILE: Number of read operations=0
		FILE: Number of large read operations=0
		FILE: Number of write operations=0
	Map-Reduce Framework
		Combine input records=0
		Combine output records=0
		Reduce input groups=0
		Reduce shuffle bytes=6
		Reduce input records=0
		Reduce output records=0
		Spilled Records=0
		Shuffled Maps =1
		Failed Shuffles=0
		Merged Map outputs=1
		GC time elapsed (ms)=0
		Total committed heap usage (bytes)=8236040192
	Shuffle Errors
		BAD_ID=0
		CONNECTION=0
		IO_ERROR=0
		WRONG_LENGTH=0
		WRONG_MAP=0
		WRONG_REDUCE=0
	File Output Format Counters
		Bytes Written=0
2022-09-20 16:53:03,452 INFO mapred.LocalJobRunner: Finishing task: attempt_local368221435_0001_r_000001_0
2022-09-20 16:53:03,452 INFO mapred.LocalJobRunner: reduce task executor complete.
2022-09-20 16:53:03,455 WARN output.FileOutputCommitter: Output Path is null in commitJob()
2022-09-20 16:53:03,551 INFO mapreduce.Job:  map 100% reduce 100%
2022-09-20 16:53:03,552 INFO mapreduce.Job: Job job_local368221435_0001 completed successfully
2022-09-20 16:53:03,563 INFO mapreduce.Job: Counters: 31
	File System Counters
		FILE: Number of bytes read=31923968
		FILE: Number of bytes written=23836456
		FILE: Number of read operations=0
		FILE: Number of large read operations=0
		FILE: Number of write operations=0
	Map-Reduce Framework
		Map input records=52778
		Map output records=52778
		Map output bytes=4353577
		Map output materialized bytes=4459145
		Input split bytes=136
		Combine input records=0
		Combine output records=0
		Reduce input groups=1
		Reduce shuffle bytes=4459145
		Reduce input records=52778
		Reduce output records=52778
		Spilled Records=105556
		Shuffled Maps =2
		Failed Shuffles=0
		Merged Map outputs=2
		GC time elapsed (ms)=29
		Total committed heap usage (bytes)=24708120576
	Shuffle Errors
		BAD_ID=0
		CONNECTION=0
		IO_ERROR=0
		WRONG_LENGTH=0
		WRONG_MAP=0
		WRONG_REDUCE=0
	file_records_counters
		Files of User Records=52778
	File Input Format Counters
		Bytes Read=4695547
	File Output Format Counters
		Bytes Written=0

至此，已经完成了MR的计数器、读写数据库的介绍。

一瓢一瓢的饮 alanchanchn
关注
  • 1
    点赞
  • 踩
  • 1
    收藏
    觉得还不错? 一键收藏
  • 打赏
    打赏
  • 0
    评论
专栏目录
Java/Web调用Hadoop进行MapReduce示例代码
08-28
本篇文章主要介绍了Java/Web调用Hadoop进行MapReduce示例代码，小编觉得挺不错的，现在分享给大家，也给大家做个参考。一起跟随小编过来看看吧
初学Hadoop之图解MapReduce与WordCount示例分析
02-01
Hadoop的框架最核心的设计就是：HDFS和MapReduce。HDFS为海量的数据提供了存储，MapReduce则为海量的数据提供了计算。 HDFS是GoogleFileSystem（GFS）的开源实现。MapReduce是GoogleMapReduce的开源实现。HDFS和MapReduce实现是完全分离的，并不是没有HDFS就不能MapReduce运算。本文主要参考了以下三篇博客学习整理而成。1、Hadoop示例程序WordCount详解及实例2、hadoop学习笔记：mapreduce框架详解3、hadoop示例程序wo
18、MapReduce的计数器与通过MapReduce读取-写入数据库示例
05-29
18、MapReduce的计数器与通过MapReduce读取_写入数据库示例 网址：https://blog.csdn.net/chenwewi520feng/article/details/130454774 本文介绍MapReduce的计数器使用以及自定义计数器、通过MapReduce读取与写入数据库示例。 本文的前提依赖是hadoop可正常使用、mysql数据库中的表可用且有数据。 本文分为2个部分，即计数器与读写mysql数据库。
分布式mapreduce与raft与分布式数据库
06-16
本节为?分布式mapreduce与raft算法与分布式数据库，主要讲解mapreduce、raft算法和分布式数据库在go中的应用。
MapReduce全局程序计数器Counters
01-07
文章目录Counters定义以源码的TaskCounter计数器为例自定义Counter例子 Counters定义 Counters represent global counters, defined either by the MapReduce framework or applications. Each Counter can be of any Enum type. Counters of a particular Enum are bunched into groups of type Counters.Group. Applications can define arbitra
20、MapReduce 工作流介绍
alanchanchn的专栏
05-01 2万+
多个MR作业，先后依次执行来计算得出最终结果。这类作业类似于DAG的任务，各个作业之间有依赖关系，比如说，这一个作业的输入，依赖上一个作业的输出等等。一般实际的业务场景中，可能使用定时调度工具进行调度，但本示例仅仅说明mapreduce自身也可以做到。JobControl类：工作流job控制器，一次可以提交、管理多个job。JobControl类实现了线程Runnable接口。需要实例化一个线程来让它启动。ControlledJob类：可以将普通作业包装成受控作业。并且支持设置依赖关系。
12、MapReduce编程案例
lixiang987654321的专栏
12-21 794
文件开发环境搭建请参考《11、HDFS编程案例》一文 一、MapReduce项目开发说明 关于MapReduc程序最核心的操作类就是Job接口类，可以知道linux下当我们通过hadoop提交jar包运行的时候，控制台打印的就是job运行整个过程，包括Map完成百分比Reduce完成百分比等。所以Job的核心就主要包括Map数据输入读取过程与Reduce数据的计算输出过程。当然中间也包括一个shu...
15. MapReduce之数据清洗和计数器的应用
weixin_45267102的博客
07-13 191
在运行核心业务MapReduce程序之前，往往要先对数据进行清洗，清理掉不符合用户要求的数据。清理的过程往往只需要运行Mapper程序，不需要运行Reduce程序。
MapReduce处理数据(用户每周登录次数)
u010889990的专栏
09-10 1416
数据格式如下： {   "_id" : 9040001,   "username" : "shao1",   "cityId" : 320200,   "versionVal" : NumberLong("210000200000"),   "loginInIP" : "192.168.2.7",   "logoutTime" : new Date("1/9/2014 21:01:0
采用MapReduce读取数据库的数据
weixin_44899752的博客
04-06 268
采用MapReduce读取数据库的数据
MapReduce高级-读写数据库
wxk的博客
04-22 377
MapReduce出了能直接读写文本，还能对数据库直接进行操作
MapReduce 读写数据库
热门推荐
桃李不言下自成蹊
11-09 3万+
经常听到小伙伴吐槽 MapReduce 计算的结果无法直接写入数据库，实际上 MapReduce 是有操作数据库实现的本案例代码将实现 MapReduce 数据库读写操作和将数据表中数据复制到另外一张数据表中。
MapReduce
qq_14846625的博客
04-30 765
目的: 分析 MR (MapReduce) 作业的执行流程。流程维度: 从节点、状态节点、角色进程等角度进行分析。
报表控件Stimulsoft在JavaScript报告工具中的事件：查看器事件（上）
励志做最业余的专业博主，控件产品可以私我~
04-28 769
在本文中，我们为JS报告工具中的查看器事件提供了全面的指南，包括它们的详细描述、参数列表等一系列详细内容。
探秘MySQL主从复制的多种实现方式
todoitbo的博客
04-26 1056
本文将深入探讨MySQL主从复制的多种实现方式，包括基于语句、基于行和混合模式等。无论您是初学者还是有经验的数据库管理员，都能通过本文全面了解MySQL主从复制技术的多样化选择，从而提高数据库的可用性和性能。
SpringCloudAlibaba：2.nacos
m0_63040701的博客
04-26 941
Nacos是阿里巴巴开源的服务注册中心以及配置中心Nacos=注册中心Eureka + 服务配置Config + 服务总线Bus。
力扣数据库题库学习（4.28日）--1587. 银行账户概要 II
Jesse_Kyrie的博客
04-28 181
对于力扣题1587. 银行账户概要 II的解答，提供解题思路与解题方法，知识点为:1. GROUP BY 2. SUM 3. LEFT JOIN 4. HAVING
ubuntu18源码安装postgresql15.2数据库
04-27 425
由于官方的源只能安装到pg10这个版本，整了好一会没有成功就改为源码安装了。
java线上问题排查之磁盘和网络查看分析（二）
最新发布
wayne_youlu的博客
04-30 263
overflowed 标识全连接队列溢出的次数,最前面是0，标识没有队列溢出的情况，网络环境正常。来查看网络是否连接。如果出现下图内容，则证明网络已经连接。
使用java语言flink实时读取kafka写入hbase数据库
06-06
好的，以下是使用Java语言实现Flink实时读取Kafka并将数据写入HBase数据库的示例代码： ``` import org.apache.flink.api.common.functions.MapFunction; import org.apache.flink.api.common.serialization.SimpleStringSchema; import org.apache.flink.api.java.utils.ParameterTool; import org.apache.flink.streaming.api.datastream.DataStream; import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment; import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer; import org.apache.flink.streaming.connectors.kafka.FlinkKafkaProducer; import org.apache.flink.streaming.util.serialization.KeyedSerializationSchema; import org.apache.flink.streaming.util.serialization.SimpleStringSchema; import org.apache.hadoop.hbase.client.Put; import org.apache.hadoop.hbase.client.TableDescriptorBuilder; import org.apache.hadoop.hbase.client.TableDescriptor; import org.apache.hadoop.hbase.client.ColumnFamilyDescriptorBuilder; import org.apache.hadoop.hbase.client.ConnectionFactory; import org.apache.hadoop.hbase.client.Admin; import org.apache.hadoop.hbase.client.Table; import org.apache.hadoop.hbase.client.Connection; import org.apache.hadoop.hbase.TableName; import org.apache.hadoop.hbase.util.Bytes; import org.apache.hadoop.hbase.HBaseConfiguration; import org.apache.hadoop.conf.Configuration; import org.apache.hadoop.hbase.mapreduce.TableOutputFormat; import org.apache.hadoop.hbase.io.ImmutableBytesWritable; import java.util.Properties; public class KafkaToHbaseExample { public static void main(String[] args) throws Exception { // 设置Kafka消费者配置 String kafkaBroker = "localhost:9092"; String kafkaTopic = "test"; String kafkaGroupId = "flink-kafka-hbase"; Properties kafkaProps = new Properties(); kafkaProps.setProperty("bootstrap.servers", kafkaBroker); kafkaProps.setProperty("group.id", kafkaGroupId); // 设置HBase表格的配置 String hbaseTableName = "test_table"; String hbaseColumnFamily = "cf"; Configuration hbaseConfig = HBaseConfiguration.create(); hbaseConfig.set(TableOutputFormat.OUTPUT_TABLE, hbaseTableName); hbaseConfig.set("hbase.zookeeper.quorum", "localhost"); hbaseConfig.set("hbase.zookeeper.property.clientPort", "2181"); Connection hbaseConnection = ConnectionFactory.createConnection(hbaseConfig); Admin hbaseAdmin = hbaseConnection.getAdmin(); TableDescriptor hbaseTableDescriptor = TableDescriptorBuilder.newBuilder(TableName.valueOf(hbaseTableName)) .setColumnFamily(ColumnFamilyDescriptorBuilder.newBuilder(Bytes.toBytes(hbaseColumnFamily)).build()) .build(); if (!hbaseAdmin.tableExists(TableName.valueOf(hbaseTableName))) { hbaseAdmin.createTable(hbaseTableDescriptor); } hbaseAdmin.close(); hbaseConnection.close(); // 创建Flink执行环境 StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment(); env.setParallelism(1); // 创建Kafka数据流 FlinkKafkaConsumer<String> kafkaConsumer = new FlinkKafkaConsumer<>(kafkaTopic, new SimpleStringSchema(), kafkaProps); DataStream<String> kafkaStream = env.addSource(kafkaConsumer); // 将Kafka数据流转换为HBase数据流 DataStream<Put> hbaseStream = kafkaStream.map(new MapFunction<String, Put>() { @Override public Put map(String value) throws Exception { Put put = new Put(Bytes.toBytes("row key")); put.addColumn(Bytes.toBytes(hbaseColumnFamily), Bytes.toBytes("column"), Bytes.toBytes(value)); return put; } }); // 将HBase数据流写入表格 FlinkKafkaProducer<Put> hbaseSink = new FlinkKafkaProducer<>(kafkaBroker, hbaseTableName, new KeyedSerializationSchema<Put>() { @Override public byte[] serializeKey(Put element) { return null; } @Override public byte[] serializeValue(Put element) { return element.toByteArray(); } @Override public String getTargetTopic(Put element) { return null; } }, kafkaProps, FlinkKafkaProducer.Semantic.EXACTLY_ONCE); hbaseStream.addSink(hbaseSink); // 执行Flink任务 env.execute("Read from Kafka and write to HBase"); } } ``` 在上面的代码中，我们首先设置了Kafka消费者和HBase表格的配置。接下来，我们创建了一个HBase表格，并使用Flink的Kafka源将Kafka数据流读取到Flink中。然后，我们将Kafka数据流转换为HBase数据流，并在每个记录上创建一个Put对象，该对象包含HBase表格的行键和列。 最后，我们将HBase数据流写入Kafka中，以便在后续流程中将其写入HBase表格。请注意，因为我们使用了Flink的Kafka生产者，需要实现KeyedSerializationSchema接口来序列化Put对象。

“相关推荐”对你有帮助么？

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

一瓢一瓢的饮 alanchanchn

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
