Linux工作队列

目录

1.    工作队列概览    1

1.1 重要数据结构说明    1

1.2 工作队列结构关系    3

2.    工作队列初始化    4

3.    工作队列接口    5

3.1 alloc_workqueue    5

3.2 queue_work    9

3.3 work的执行    10

4.    异常情况处理    11

4.1 worker_pool没有空闲的worker    11

4.2 创建worker超时    12

4.3 worker_pool中空闲worker太多    12

4.4 worker_pool卡住    13



1. 工作队列概览

1.1 重要数据结构说明

struct workqueue_struct
struct list_head pwqs	工作队列的所有pwq除了存在于数组numa_pwq_tbl[]中也会挂到这个链表上
struct list_head list	用于将工作队列挂到全局链表workqueues上
struct worker *rescuer	用于处理紧急情况的worker
struct workqueue_attrs *unbound_attrs	工作队列属性，包含工作者线程优先级，允许的cpu位表
char name[WQ_NAME_LEN]	工作队列名
struct pool_workqueue __percpu *cpu_pwqs	如果是bund queue用于保存每cpu pwq
Struct pool_workqueue __rcu *numa_pwq_tbl[]	用于保存Unbund queue的pwq



struct pool_workqueue
struct worker_pool *pool	指向对应的worker_pool
struct workqueue_struct *wq	指向所属的工作队列结构
int nr_active	活动的struct work_struct数
int max_active	当nr_active大于max_active之后再有添添加的work_struct将被添加到链表delayed_works中
struct list_head pwqs_node	用于挂到工作队列的wq-> pwqs
struct list_head delayed_works	说明见max_active



struct worker_pool
int cpu	worker_pool绑定到的cpu或者亲和性最高的cpu
int node	所属的内存节点
unsigned long watchdog_ts	Jiffies， worker_pool被访问的时候更新
struct list_head worklist	用于链接添加到该worker_pool的work_struct
int nr_workers	worker_pool中work_struct计数
int nr_idle	worker_pool中Idle worker的数量
struct list_head idle_list	Worker处于空闲的时候挂到idle_list上
struct timer_list idle_timer	Idle的worker太多而且这种状态持续一段指定的时候该timer将触发
struct timer_list mayday_timer	如果创建worker时间太长就，会触发rescuer
struct list_head workers	worker_pool中的所有worker
struct hlist_node hash_node	用于挂到哈希表unbound_pool_hash中



struct worker
union { struct list_head entry; struct hlist_node hentry; };	空闲的时候用entry挂到worker_pool-> idle_list;忙碌的时候用hentry 挂到worker_pool->busy_hash中
struct work_struct *current_work	当前处理的work
work_func_t current_func	当前处理的work function
struct pool_workqueue *current_pwq	当前处理的work所属的pwq
struct list_head scheduled	如果某个work设置了WORK_STRUCT_LINKED，会将该work和其依赖的work挂到scheduled一并处理
struct task_struct *task	工作者线程
struct worker_pool *pool	Worker所属的worker_pool
struct list_head node	用于挂到worker_pool-> workers



struct work_struct
struct list_head entry	用于挂到worker_pool-> worklist
work_func_t func	Work的处理函数

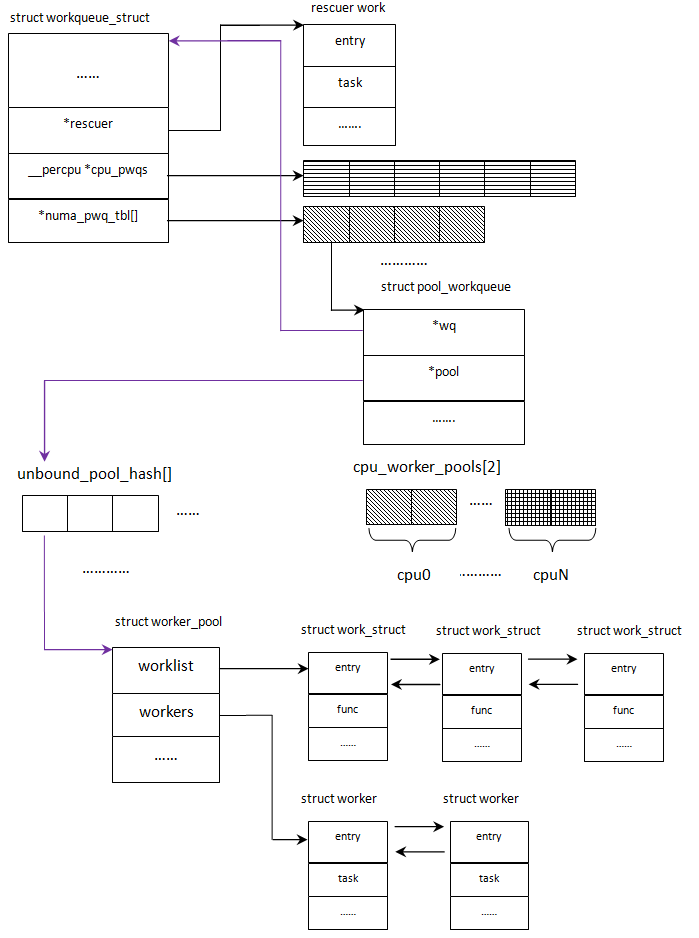

1.2 工作队列结构关系



workqueue_struct：分为绑定到cpu的队列和共享队列，它管理着多个pwq：每个cpu（绑定）或者每个内

    存节点（共享）对应一个pwq。

pool_workqueue：连接worker_pool和workqueue_struct，worker_pool是根据attrs到unbound_pool_hash

或者cpu_worker_pools中查找到的，worker_pool不是特定属于某个pwq的，一个attrs对应一个

worker_pool，系统中attr相同的所有pwq共享一个worker_pool。

worker_pool：管理着添加到pool中的work_struct，和worker，如果work_struct太多worker现有处理不过来就创建更多的worker来处理

worker：工作者线程，它的工作就是从worker_pool->worklist中取下work_struct来调用work_struct->func。

work_struct：就是用户使用的接口，实现work_struct->func添加到工作队列。

2. 工作队列初始化

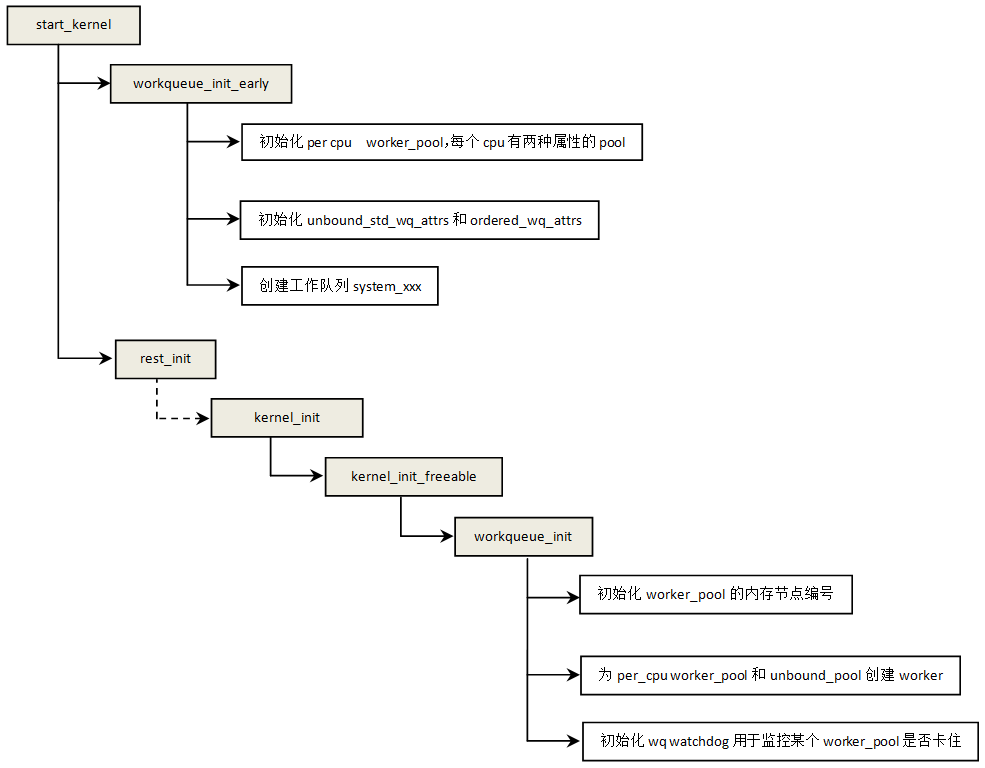

工作队列初始化流程如下：

开机的时候会对工作队列做一系列初始化，其流程如上图。逻辑很明了，下面看看主要代码实现：

int __init workqueue_init_early(void)
{
    int std_nice[NR_STD_WORKER_POOLS] = { 0, HIGHPRI_NICE_LEVEL };
    int i, cpu;

    BUG_ON(!alloc_cpumask_var(&wq_unbound_cpumask, GFP_KERNEL));
    cpumask_copy(wq_unbound_cpumask, cpu_possible_mask);
	//为pool_workqueue创建缓存
    pwq_cache = KMEM_CACHE(pool_workqueue, SLAB_PANIC);
/*下面是个双循环，每个cpu有两个worker_pool，分为高优先级和普通pool，这里的优先级最后会用于worker_pool中的worker线程优先级*/
    for_each_possible_cpu(cpu) {
        struct worker_pool *pool;
        i = 0;
        for_each_cpu_worker_pool(pool, cpu) {
            BUG_ON(init_worker_pool(pool));
            pool->cpu = cpu;
            cpumask_copy(pool->attrs->cpumask, cpumask_of(cpu));
            pool->attrs->nice = std_nice[i++];
            pool->node = cpu_to_node(cpu);
        }
    }
	//创建非绑定工作队列和顺序工作队列属性
    for (i = 0; i < NR_STD_WORKER_POOLS; i++) {
        struct workqueue_attrs *attrs;

        BUG_ON(!(attrs = alloc_workqueue_attrs(GFP_KERNEL)));
        attrs->nice = std_nice[i];
        unbound_std_wq_attrs[i] = attrs;
        BUG_ON(!(attrs = alloc_workqueue_attrs(GFP_KERNEL)));
        attrs->nice = std_nice[i];
        attrs->no_numa = true;
        ordered_wq_attrs[i] = attrs;
    }
//创建系统工作中所需的工作队列
    system_wq = alloc_workqueue("events", 0, 0);
    system_highpri_wq = alloc_workqueue("events_highpri", WQ_HIGHPRI, 0);
    system_long_wq = alloc_workqueue("events_long", 0, 0);
    system_unbound_wq = alloc_workqueue("events_unbound", WQ_UNBOUND,
                        WQ_UNBOUND_MAX_ACTIVE);
    system_freezable_wq = alloc_workqueue("events_freezable",
                          WQ_FREEZABLE, 0);
    system_power_efficient_wq = alloc_workqueue("events_power_efficient",
                          WQ_POWER_EFFICIENT, 0);
    system_freezable_power_efficient_wq = alloc_workqueue("events_freezable_power_efficient",
                          WQ_FREEZABLE | WQ_POWER_EFFICIENT,
                          0);
    return 0;
}

int __init workqueue_init(void)
{
    struct workqueue_struct *wq;
    struct worker_pool *pool;
    int cpu, bkt;
	……
//为per_cpu worker_pool分配worker
    for_each_online_cpu(cpu) {
        for_each_cpu_worker_pool(pool, cpu) {
            pool->flags &= ~POOL_DISASSOCIATED;
            BUG_ON(!create_worker(pool));
        }
    }
//为unbound_pool分配worker
    hash_for_each(unbound_pool_hash, bkt, pool, hash_node)
        BUG_ON(!create_worker(pool));

wq_online = true;
//初始化wq watchdog监控是否有work_pool卡住
    wq_watchdog_init();

    return 0;
}

3. 工作队列接口

3.1 alloc_workqueue

alloc_workqueue是创建工作队列的接口，这是一个宏，实际工作由__alloc_workqueue_key完成

struct workqueue_struct *__alloc_workqueue_key(const char *fmt,
                           unsigned int flags,
                           int max_active,
                           struct lock_class_key *key,
                           const char *lock_name, ...)
{
    size_t tbl_size = 0;
    va_list args;
    struct workqueue_struct *wq;
    struct pool_workqueue *pwq;

    if ((flags & WQ_POWER_EFFICIENT) && wq_power_efficient)
        flags |= WQ_UNBOUND;

    if (flags & WQ_UNBOUND)
        tbl_size = nr_node_ids * sizeof(wq->numa_pwq_tbl[0]);
//如果是非绑定工作队列，就分配数组wq->numa_pwq_tbl[]，用于每个内存节点的pool_workqueue
    wq = kzalloc(sizeof(*wq) + tbl_size, GFP_KERNEL);
    if (!wq)
        return NULL;

    if (flags & WQ_UNBOUND) {//分配unbound_attrs属性
        wq->unbound_attrs = alloc_workqueue_attrs(GFP_KERNEL);
        if (!wq->unbound_attrs)
            goto err_free_wq;
    }

va_start(args, lock_name);
//设置工作队列名
    vsnprintf(wq->name, sizeof(wq->name), fmt, args);
    va_end(args);
    //最大active works
    max_active = max_active ?: WQ_DFL_ACTIVE;
    max_active = wq_clamp_max_active(max_active, flags, wq->name);

    wq->flags = flags;
    wq->saved_max_active = max_active;
......
//根据attrs找到对应的work_pool和分配pwq
    if (alloc_and_link_pwqs(wq) < 0)
        goto err_free_wq;
/*如果有标志WQ_MEM_RECLAIM就用于处理紧急情况的worker直接让wq管理。当工作队列中某个work_pool积压太多work等待处理就启用该worker*/
    if (flags & WQ_MEM_RECLAIM) {
        struct worker *rescuer;
//分配并初始化worker
        rescuer = alloc_worker(NUMA_NO_NODE);
        if (!rescuer)
            goto err_destroy;
        rescuer->rescue_wq = wq;
	//创建worker线程用
        rescuer->task = kthread_create(rescuer_thread, rescuer, "%s",
                           wq->name);
        if (IS_ERR(rescuer->task)) {
            kfree(rescuer);
            goto err_destroy;
        }

        wq->rescuer = rescuer;
        kthread_bind_mask(rescuer->task, cpu_possible_mask);
        wake_up_process(rescuer->task);
    }


    mutex_lock(&wq_pool_mutex);

    mutex_lock(&wq->mutex);
    for_each_pwq(pwq, wq)
        pwq_adjust_max_active(pwq);
    mutex_unlock(&wq->mutex);
//将工作队列结构放到全局链表workqueues中去
    list_add_tail_rcu(&wq->list, &workqueues);

    mutex_unlock(&wq_pool_mutex);

return wq;
……
}

static int alloc_and_link_pwqs(struct workqueue_struct *wq)
{
    bool highpri = wq->flags & WQ_HIGHPRI;
    int cpu, ret;
    /*如果是绑定到特定cpu的工作队列，就为其每个cpu分配一个pwq，并根据cpu和优先级找到每个pwq对应的worker_pool，然后将pwq添加到工作队列相关链表上*/
    if (!(wq->flags & WQ_UNBOUND)) {
        wq->cpu_pwqs = alloc_percpu(struct pool_workqueue);//分配cpu_pwqs数组用于存储pwq
        for_each_possible_cpu(cpu) {
            struct pool_workqueue *pwq =
                per_cpu_ptr(wq->cpu_pwqs, cpu);
            struct worker_pool *cpu_pools =
                per_cpu(cpu_worker_pools, cpu);//根据cpu找到对应的worker_pool
    		//用wq和对应的worker_pool初始化pwq
            init_pwq(pwq, wq, &cpu_pools[highpri]);
            link_pwq(pwq); //把pwq添加到链表wq->pwqs
        }
        return 0;
} else if (wq->flags & __WQ_ORDERED) {
	/*主要做了三件事：1）为每个内存节点创建pwq保存到wq->numa_pwq_tbl[]；2）并根据attrs找到对应的worker_pool；3）将pwq添加到链表wq->pwqs*/
        ret = apply_workqueue_attrs(wq, ordered_wq_attrs[highpri]);
        return ret;
    } else {
        return apply_workqueue_attrs(wq, unbound_std_wq_attrs[highpri]);
    }
}

创建pool_workqueue

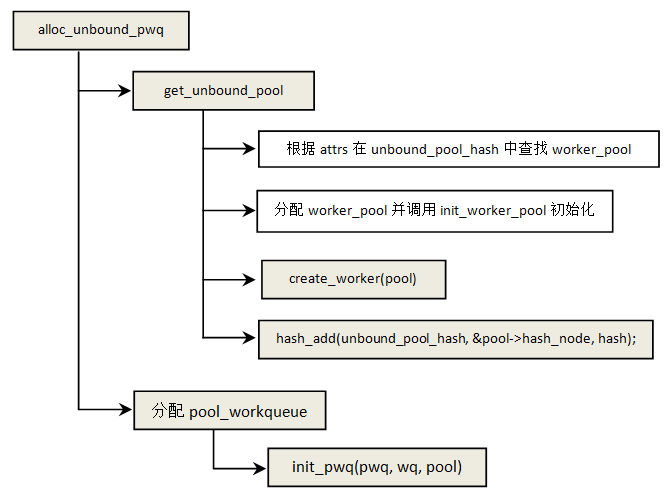

如果是非绑定的工作队列就通过函数alloc_unbound_pwq分配pwq，该函数主要做两件事：1）根据attrs找到对应的worker_pool，如果没有就创建一个；2）创建pool_workqueue，并将wq和worker_pool关联到pwq。



函数init_worker_pool用于初始化一个worker_pool：

static int init_worker_pool(struct worker_pool *pool)
{
    spin_lock_init(&pool->lock);
    pool->id = -1;
    pool->cpu = -1;
    pool->node = NUMA_NO_NODE;
    pool->flags |= POOL_DISASSOCIATED;
    pool->watchdog_ts = jiffies;
    INIT_LIST_HEAD(&pool->worklist);
    INIT_LIST_HEAD(&pool->idle_list);
    hash_init(pool->busy_hash);
/* 如果有work进入idle会检查当前pool中空闲worker数，如果太多就触发idle_timer，在一定时间之后问题还没有缓解就尝试destroy一些空闲的worker*/
    setup_deferrable_timer(&pool->idle_timer, idle_worker_timeout,
                   (unsigned long)pool);
/*果worker_pool中有太多的worke要处，就会不断尝试创建更多的worker，这个时候触发mayday_timer，如果一直没有创建到足够的worker，就会唤醒wq->rescuer->task*/
    setup_timer(&pool->mayday_timer, pool_mayday_timeout,
            (unsigned long)pool);

    INIT_LIST_HEAD(&pool->workers);//用于链接worker

    ida_init(&pool->worker_ida);
    INIT_HLIST_NODE(&pool->hash_node);//用于将worker_pool添加到哈希表unbound_pool_hash
    pool->refcnt = 1;
    pool->attrs = alloc_workqueue_attrs(GFP_KERNEL);// worker_pool的属性，工作队列就是根据属性找到对应的worker_pool的
    if (!pool->attrs)
        return -ENOMEM;
    return 0;
}

pwq关联到其所属的wq和选定的worker_pool

static void init_pwq(struct pool_workqueue *pwq, struct workqueue_struct *wq,
             struct worker_pool *pool)
{
    memset(pwq, 0, sizeof(*pwq));
    pwq->pool = pool;
    pwq->wq = wq;
    pwq->flush_color = -1;
    pwq->refcnt = 1;
    INIT_LIST_HEAD(&pwq->delayed_works);
    INIT_LIST_HEAD(&pwq->pwqs_node);
    INIT_LIST_HEAD(&pwq->mayday_node);
    INIT_WORK(&pwq->unbound_release_work, pwq_unbound_release_workfn);
}

create_worker

static struct worker *create_worker(struct worker_pool *pool)
{
    struct worker *worker = NULL;
    int id = -1;
    char id_buf[16];
	……
//分配一个worker并初始化其相关链表
    worker = alloc_worker(pool->node);
    if (!worker)
        goto fail;

    worker->pool = pool; //关联到所属的worker_pool
    worker->id = id;
	//获取worker线程名
    if (pool->cpu >= 0)
        snprintf(id_buf, sizeof(id_buf), "%d:%d%s", pool->cpu, id,
             pool->attrs->nice < 0  ? "H" : "");
    else
        snprintf(id_buf, sizeof(id_buf), "u%d:%d", pool->id, id);
   //创建worker线程，用于一一处理worker_pool-> worklist上的work_struct
    worker->task = kthread_create_on_node(worker_thread, worker, pool->node,
                          "kworker/%s", id_buf);
   //设置worker->task优先级
    set_user_nice(worker->task, pool->attrs->nice);
    kthread_bind_mask(worker->task, pool->attrs->cpumask);
   //将worker链接到pool->workers上
    worker_attach_to_pool(worker, pool);

    spin_lock_irq(&pool->lock);
    worker->pool->nr_workers++; //增加pool上的worker计数
    worker_enter_idle(worker);
    wake_up_process(worker->task);
    spin_unlock_irq(&pool->lock);
    return worker;
fail:
	……
    return NULL;
}

3.2 queue_work

static void __queue_work(int cpu, struct workqueue_struct *wq,
             struct work_struct *work)
{
    struct pool_workqueue *pwq;
    struct worker_pool *last_pool;
    struct list_head *worklist;
    unsigned int work_flags;
    unsigned int req_cpu = cpu;
//1）根据work找到在工作队列中找到合适的pwq
retry:
    if (req_cpu == WORK_CPU_UNBOUND)
        cpu = wq_select_unbound_cpu(raw_smp_processor_id());

    if (!(wq->flags & WQ_UNBOUND))
        pwq = per_cpu_ptr(wq->cpu_pwqs, cpu);
    else
        pwq = unbound_pwq_by_node(wq, cpu_to_node(cpu));
		……
    pwq->nr_in_flight[pwq->work_color]++;
    work_flags = work_color_to_flags(pwq->work_color);
//2）找到将要添加到的链表
    if (likely(pwq->nr_active < pwq->max_active)) {
        trace_workqueue_activate_work(work);
        pwq->nr_active++;
        worklist = &pwq->pool->worklist;
        if (list_empty(worklist))
            pwq->pool->watchdog_ts = jiffies;
    } else {//如果活跃的work太多就添加到pwq->delayed_works中
        work_flags |= WORK_STRUCT_DELAYED;
        worklist = &pwq->delayed_works;
    }
//3）将work插入到链表中并唤醒工作者线程
    insert_work(pwq, work, worklist, work_flags);

    spin_unlock(&pwq->pool->lock);
}

static void insert_work(struct pool_workqueue *pwq, struct work_struct *work,
            struct list_head *head, unsigned int extra_flags)
{
    struct worker_pool *pool = pwq->pool;

    set_work_pwq(work, pwq, extra_flags);
    list_add_tail(&work->entry, head);
    get_pwq(pwq);

    if (__need_more_worker(pool))
        wake_up_worker(pool); //唤醒工作者线程
}

3.3 work的执行

static int worker_thread(void *__worker)
{
    struct worker *worker = __worker;
    struct worker_pool *pool = worker->pool;

    worker->task->flags |= PF_WQ_WORKER;
woke_up:
    spin_lock_irq(&pool->lock);
    ......
//将worker从worker_pool 的idle_list中取下来并将统计计数nr_idle减一
    worker_leave_idle(worker);
recheck:
    if (!need_more_worker(pool))
        goto sleep;
//如果没有空闲worker了就尝试创建更多的worker
    if (unlikely(!may_start_working(pool)) && manage_workers(worker))
        goto recheck;

    do {
        struct work_struct *work =
            list_first_entry(&pool->worklist,
                     struct work_struct, entry);

        pool->watchdog_ts = jiffies;
/*如果work有设置WORK_STRUCT_LINKED，表示该work有依赖的work，（依赖的work用entry链接在一起），如果有依赖就将依赖的work都添加到worker->scheduled上一并处理*/
        if (likely(!(*work_data_bits(work) & WORK_STRUCT_LINKED))) {
	//将work_struct从worker_pool->worklist中取下来调用work_struct->func。
            process_one_work(worker, work);
            if (unlikely(!list_empty(&worker->scheduled)))
                process_scheduled_works(worker);
        } else {
	//将依赖的work都添加到worker->scheduled上
            move_linked_works(work, &worker->scheduled, NULL);
            process_scheduled_works(worker);
        }
    } while (keep_working(pool));

    worker_set_flags(worker, WORKER_PREP);
sleep:
    worker_enter_idle(worker); //将worker重新添加到worker_pool 的idle_list中
    __set_current_state(TASK_INTERRUPTIBLE);
    spin_unlock_irq(&pool->lock);
    schedule();
    goto woke_up;
}

static void process_one_work(struct worker *worker, struct work_struct *work)
__releases(&pool->lock)
__acquires(&pool->lock)
{
    struct pool_workqueue *pwq = get_work_pwq(work);
    struct worker_pool *pool = worker->pool;
    bool cpu_intensive = pwq->wq->flags & WQ_CPU_INTENSIVE;
    int work_color;
    struct worker *collision;
    ......
    collision = find_worker_executing_work(pool, work);
    if (unlikely(collision)) {
        move_linked_works(work, &collision->scheduled, NULL);
        return;
    }

    debug_work_deactivate(work);
    hash_add(pool->busy_hash, &worker->hentry, (unsigned long)work);
    worker->current_work = work;
    worker->current_func = work->func;
    worker->current_pwq = pwq;
    work_color = get_work_color(work);

    list_del_init(&work->entry);

    if (need_more_worker(pool))
        wake_up_worker(pool);

    set_work_pool_and_clear_pending(work, pool->id);

    ......
    worker->current_func(work); //函数最终要的工作就在这里


    hash_del(&worker->hentry);
    ......
    pwq_dec_nr_in_flight(pwq, work_color);
}

4. 异常情况处理

4.1 worker_pool没有空闲的worker

如果worker_pool中没有空闲的worker就调用函数manage_workers尝试创建一个worker。函数manage_workers调用maybe_create_worker完成实际的工作：

static void maybe_create_worker(struct worker_pool *pool)
{
restart:
spin_unlock_irq(&pool->lock);
//启动mayday_timer，如果创建worker时间太长就唤醒紧急worker（rescuer）处理work_struct
    mod_timer(&pool->mayday_timer, jiffies + MAYDAY_INITIAL_TIMEOUT);
    while (true) {
        if (create_worker(pool) || !need_to_create_worker(pool))
            break;
        schedule_timeout_interruptible(CREATE_COOLDOWN);
        if (!need_to_create_worker(pool))
            break;
    }
    del_timer_sync(&pool->mayday_timer);
spin_lock_irq(&pool->lock);
/* need_to_create_worker 需要三个条件同时成立：1）pool->worklist有待处理的work_struct；2）没有正在运行的worker（pool->nr_running为0）；3）没有空闲的worker（pool->nr_idle为0）*/
    if (need_to_create_worker(pool))
        goto restart;
}

4.2 创建worker超时

如果创建worker超时就唤醒wq->rescuer->task处理pool->worklist上的work

static void pool_mayday_timeout(unsigned long __pool)
{
    struct worker_pool *pool = (void *)__pool;
    struct work_struct *work;

    spin_lock_irq(&pool->lock);
    spin_lock(&wq_mayday_lock);     /* for wq->maydays */

    if (need_to_create_worker(pool)) {
        list_for_each_entry(work, &pool->worklist, entry)
            send_mayday(work);
    }

    spin_unlock(&wq_mayday_lock);
    spin_unlock_irq(&pool->lock);
    mod_timer(&pool->mayday_timer, jiffies + MAYDAY_INTERVAL);
}

static void send_mayday(struct work_struct *work)
{
    struct pool_workqueue *pwq = get_work_pwq(work);
    struct workqueue_struct *wq = pwq->wq;

    lockdep_assert_held(&wq_mayday_lock);

    if (!wq->rescuer)
        return;
    if (list_empty(&pwq->mayday_node)) {
        get_pwq(pwq);
        list_add_tail(&pwq->mayday_node, &wq->maydays);
        wake_up_process(wq->rescuer->task);
    }
}

4.3 worker_pool中空闲worker太多

如果worker进入idle就检查worker_pool中当前idle worker的数量，如果大于busy worker的1/4就启动idle_timer，在IDLE_WORKER_TIMEOUT时间之后如果idle worker仍然没有减少就destroy部分worker。

static void worker_enter_idle(struct worker *worker)
{
    struct worker_pool *pool = worker->pool;
	……
    worker->flags |= WORKER_IDLE;
    pool->nr_idle++;
    worker->last_active = jiffies;

    list_add(&worker->entry, &pool->idle_list);

    if (too_many_workers(pool) && !timer_pending(&pool->idle_timer))
        mod_timer(&pool->idle_timer, jiffies + IDLE_WORKER_TIMEOUT);
}

static void idle_worker_timeout(unsigned long __pool)
{
    struct worker_pool *pool = (void *)__pool;

    spin_lock_irq(&pool->lock);

    while (too_many_workers(pool)) {
        struct worker *worker;
        unsigned long expires;

        worker = list_entry(pool->idle_list.prev, struct worker, entry);
        expires = worker->last_active + IDLE_WORKER_TIMEOUT;

        if (time_before(jiffies, expires)) {
            mod_timer(&pool->idle_timer, expires);
            break;
        }

        destroy_worker(worker);
    }

    spin_unlock_irq(&pool->lock);
}

4.4 worker_pool卡住

工作队列初始化的时候会初始化一个wq_watchdog_timer，用于检测worker_pool，如果哪个worker_pool卡住机会打印出警告信息：

static void wq_watchdog_init(void)
{
    wq_watchdog_set_thresh(wq_watchdog_thresh);
}

static void wq_watchdog_set_thresh(unsigned long thresh)
{
    wq_watchdog_thresh = 0;
    del_timer_sync(&wq_watchdog_timer);

    if (thresh) {
        wq_watchdog_thresh = thresh;
        wq_watchdog_reset_touched();
        mod_timer(&wq_watchdog_timer, jiffies + thresh * HZ);
    }
}

wq_watchdog 超时函数：wq_watchdog_timer_fn

static void wq_watchdog_timer_fn(unsigned long data)
{
    unsigned long thresh = READ_ONCE(wq_watchdog_thresh) * HZ;
    bool lockup_detected = false;
    struct worker_pool *pool;
    int pi;

    if (!thresh)
        return;

    rcu_read_lock();

    for_each_pool(pool, pi) { //遍历系统中的所有worker_pool
        unsigned long pool_ts, touched, ts;

        if (list_empty(&pool->worklist))
            continue;
        pool_ts = READ_ONCE(pool->watchdog_ts);
        touched = READ_ONCE(wq_watchdog_touched);

        if (time_after(pool_ts, touched))
            ts = pool_ts;
        else
            ts = touched;

        if (pool->cpu >= 0) {
            unsigned long cpu_touched =
                READ_ONCE(per_cpu(wq_watchdog_touched_cpu,
                          pool->cpu));
            if (time_after(cpu_touched, ts))
                ts = cpu_touched;
        }

        if (time_after(jiffies, ts + thresh)) { //如果哪个worker_pool卡住30s就打印出该worker_pool的信息
            lockup_detected = true;
            pr_emerg("BUG: workqueue lockup - pool");
            pr_cont_pool_info(pool);
            pr_cont(" stuck for %us!\n",
                jiffies_to_msecs(jiffies - pool_ts) / 1000);
        }
    }

    rcu_read_unlock();

    if (lockup_detected)
        show_workqueue_state();

    wq_watchdog_reset_touched();
    mod_timer(&wq_watchdog_timer, jiffies + thresh);
}
