续：高通 MSM8K bootloader 之一： SBL1
上篇将我重点关注SBL1的内容１和２基本说明完，本篇继续内容３和４。
１、 CDT ： Platform ID和DDR参数
２、 debug log ：
３、 download ： msm8K 新平台软件download支持两种协议，sahara和firehose
４、 ramdump ：死机异常信息dump
四、SW download
１、软件升级模式
高通8K以后平台支持如下两种，说到下载模式，忍不住又得骂高通。
以前6K, 7K平台不支持紧急下载模式，工厂生产软件要down到手机里，非常复杂。
要嘛先用烧录器烧一段sbl image，然后剩下的image自己开发升级软件用usb多路升级。
要嘛全部image用烧录器一次性烧完。
坑人的高通啊！么得办法，就害苦咱苦命的民工。 好了，介绍一下现在支持的两种下载模式吧！
紧急下载模式：pbl负责与ＰＣ交互，实现软件下载
自动进入紧急下载模式：主板刚生产emmc是裸片时，或者sbl运行异常时，系统自动进入紧急下载模式。
这种情况就不多说了，主要是用于工厂生产，及sbl异常处理。
手动进入紧急下载模式：通过硬件一个gpio下拉，pbl检测到该gpio后强制进入紧急下载模式。这种主要
以防不测情况。
另外一种就是软件通过设置magic number，然后由热重启，pbl检测到magic number后，强制进入下载模式。
软件切换接口，参考如下boot_dload.c代码：
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- void <strong>boot_dload_transition_pbl_forced_dload</strong>( void )
- {
-
-
-
- uint32 register_value =
- HWIO_TCSR_BOOT_MISC_DETECT_INM(HWIO_TCSR_BOOT_MISC_DETECT_RMSK);
-
-
- register_value &= ~(FORCE_DLOAD_MASK);
- register_value |= FORCE_DLOAD_HS_USB_MAGIC_NUM;
-
-
- HWIO_TCSR_BOOT_MISC_DETECT_OUTM(FORCE_DLOAD_MASK,
- register_value);
-
- boot_hw_reset(BOOT_WARM_RESET_TYPE);
- }
普通下载模式：sbl负责与ＰＣ交互，实现软件下载
手机第一次下载完软件以后，普通情况下，可不进入pbl紧急下载模式，可由sbl进行软件升级。
sbl是如何进入普通下载模式的呢？看如下函数boot_dload_check()。
boot_dload_check()检测到USB D+ 接地、或者sbl发生异常时调用boot_dload_set_cookie()设置了cookie，进自 动进入普通的下载模式。
- <pre name="code" class="cpp">
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- void boot_dload_check
- (
- bl_shared_data_type *bl_shared_data
- )
- {
-
-
- <strong><span style="color:#cc0000;"> if(boot_qhsusb_al_check_for_pbl_dload(0))
- {
- boot_dload_transition_pbl_forced_dload();
- }</span></strong>
-
-
-
- if ( boot_dload_entry( ) == TRUE )
- {
-
-
- if ( !( boot_shared_imem_cookie_ptr != NULL &&
- boot_shared_imem_cookie_ptr->uefi_ram_dump_magic ==
- UEFI_CRASH_DUMP_MAGIC_NUM ) )
- {
-
-
-
- HWIO_GCC_RESET_DEBUG_OUTM(HWIO_GCC_RESET_DEBUG_BLOCK_RESIN_BMSK,
- 0);
-
-
- sbl_dload_entry();
- }
- }
- }
-
-
-
-
-
-
-
-
-
-
-
-
-
- void boot_dload_set_cookie()
- {
- HWIO_TCSR_BOOT_MISC_DETECT_OUTM(SBL_DLOAD_MODE_BIT_MASK,
- SBL_DLOAD_MODE_BIT_MASK);
- }
再看看下面的代码！！！ 我们又有新的发现！
sbl1_target.c
- <pre name="code" class="cpp">
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- void (*sbl_dload_entry)(void) = boot_dload_transition_pbl_forced_dload;
函数指针sbl_dload_entry默认指向紧急下载模式的入口：boot_dload_transition_pbl_forced_dload ，
该下载方式会切换到pbl，由pbl通过firehose协议实现download。
- void sbl1_dload_entry ()
- {
- static uint32 dload_entry_count = 0;
-
- dload_entry_count++;
-
-
-
- if( dload_entry_count == 1 && &bl_shared_data != NULL )
- {
-
- <strong>boot_do_procedures</strong>( &bl_shared_data, sbl1_pre_dload_procs );
- }
-
- pm_device_config_in_dloadmode();
-
-
- <strong>boot_dload_transition_enter_sahara</strong>();
-
- }
而sbl1定义了另一个下载模式的入口：sbl1_dload_entry，它支持直接在sbl1中通过sahara协议download，
还支持crash ram dump 功能。包括dump to raw partition ,and dump to sdcard 。
见：boot_do_procedures( &bl_shared_data, sbl1_pre_dload_procs );
crash ramdump章节再详细看看。
sbl1_mc.c
- <pre name="code" class="cpp">
- #ifdef BOOT_ENTER_PBL_DLOAD_ON_SBL_ERROR
- static boot_boolean edload_flag = TRUE;
- #else
- static boot_boolean edload_flag = FALSE;
- #endif
- </pre><pre name="code" class="cpp">void sbl1_post_ddr_init(bl_shared_data_type *bl_shared_data)
- {
- ..........
-
- if (edload_flag != TRUE)
- {
-
- sbl_dload_entry = sbl1_dload_entry;
- }
- }
好，既然在sbl1有两个download入口，如何选则呢？
sbl1_mc.c 中通过宏BOOT_ENTER_PBL_DLOAD_ON_SBL_ERROR控制。
如果定义该宏，则dload处理会转交给PBL帮忙处理了。
２、进入升级模式的方法
上节描述的高通默认进入下载模式的方法，都是自动的，显然无法满足开发、生产、售后等需求。
因此如下两种方法，实用于开发、生产、售后。
sbl1扫描按键组合：
关机状态下，sbl1扫描按键组合，比如，扫描到power & vol+ 两个按键同时按下，则进入pbl紧急下模模式。
当然，有些结构设计可能导致power & vol+ 两个按键开机容易误触，则可以采用别的硬件组合方式。比如，
vol+ & usb 等等！
关机状态，进入下载模式，没有ram dump的需求，因此当扫描到相应的硬件组合，
直接调用：boot_dload_transition_pbl_forced_dload
adb reboot + edl / dload :
手机正常开机，能连接usb上的状态下，可以使用 adb reboot edl 或者 adb reboot dload 命令，
使手机进入pbl紧急下载模式，或者进入sbl1普通下载模式。
MSM8916平台参考如下代码，
kernel/drivers/power/reset/msm-poweroff.c ，相关代码由宏CONFIG_MSM_DLOAD_MODE控制。
- static int msm_restart_probe(struct platform_device *pdev)
- {
- struct device *dev = &pdev->dev;
- struct resource *mem;
- struct device_node *np;
- int ret = 0;
-
- #ifdef CONFIG_MSM_DLOAD_MODE
- if (scm_is_call_available(SCM_SVC_BOOT, SCM_DLOAD_CMD) > 0)
- scm_dload_supported = true;
-
- atomic_notifier_chain_register(&panic_notifier_list, &panic_blk);
- np = of_find_compatible_node(NULL, NULL, DL_MODE_PROP);
- if (!np) {
- pr_err("unable to find DT imem DLOAD mode node\n");
- } else {
- dload_mode_addr = of_iomap(np, 0);
- if (!dload_mode_addr)
- pr_err("unable to map imem DLOAD offset\n");
- }
-
- np = of_find_compatible_node(NULL, NULL, EDL_MODE_PROP);
- if (!np) {
- pr_err("unable to find DT imem EDLOAD mode node\n");
- } else {
- emergency_dload_mode_addr = of_iomap(np, 0);
- if (!emergency_dload_mode_addr)
- pr_err("unable to map imem EDLOAD mode offset\n");
- }
-
- set_dload_mode(download_mode);
- #endif
- np = of_find_compatible_node(NULL, NULL,
- "qcom,msm-imem-restart_reason");
- if (!np) {
- pr_err("unable to find DT imem restart reason node\n");
- } else {
- restart_reason = of_iomap(np, 0);
- if (!restart_reason) {
- pr_err("unable to map imem restart reason offset\n");
- ret = -ENOMEM;
- goto err_restart_reason;
- }
- }
-
- mem = platform_get_resource(pdev, IORESOURCE_MEM, 0);
- msm_ps_hold = devm_ioremap_resource(dev, mem);
- if (IS_ERR(msm_ps_hold))
- return PTR_ERR(msm_ps_hold);
-
- pm_power_off = do_msm_poweroff;
- arm_pm_restart = do_msm_restart;
-
- if (scm_is_call_available(SCM_SVC_PWR, SCM_IO_DISABLE_PMIC_ARBITER) > 0)
- scm_pmic_arbiter_disable_supported = true;
-
- return 0;
-
- err_restart_reason:
- #ifdef CONFIG_MSM_DLOAD_MODE
- iounmap(emergency_dload_mode_addr);
- iounmap(dload_mode_addr);
- #endif
- return ret;
- }
msm_restart_probe函数在执行过程中打印出如下log，说明dts中没有设置emergency_dload_mode_addr，及dload_mode_addr的地址。
<3>[ 6.627538] unable to find DT imem DLOAD mode node
<3>[ 6.628075] unable to find DT imem EDLOAD mode node
但添加scm_dload_supported的打印信息，可以看到如下log，
<3>[ 6.626976] scm_dload_supported=1 ，
说明，scm dload是支持的。因此，接下来的两个函数，都是通过scm dload实现download模式切换。
- static void enable_emergency_dload_mode(void)
- {
- int ret;
-
- if (emergency_dload_mode_addr) {
- __raw_writel(EMERGENCY_DLOAD_MAGIC1,
- emergency_dload_mode_addr);
- __raw_writel(EMERGENCY_DLOAD_MAGIC2,
- emergency_dload_mode_addr +
- sizeof(unsigned int));
- __raw_writel(EMERGENCY_DLOAD_MAGIC3,
- emergency_dload_mode_addr +
- (2 * sizeof(unsigned int)));
-
-
-
- qpnp_pon_wd_config(0);
- mb();
- }
-
- if (scm_dload_supported) {
- ret = scm_call_atomic2(SCM_SVC_BOOT,
- SCM_DLOAD_CMD, SCM_EDLOAD_MODE, 0);
- if (ret)
- pr_err("Failed to set EDLOAD mode: %d\n", ret);
- }
- }
使能紧急下载模式。
- static void set_dload_mode(int on)
- {
- int ret;
-
- if (dload_mode_addr) {
- __raw_writel(on ? 0xE47B337D : 0, dload_mode_addr);
- __raw_writel(on ? 0xCE14091A : 0,
- dload_mode_addr + sizeof(unsigned int));
- mb();
- }
-
- if (scm_dload_supported) {
- ret = scm_call_atomic2(SCM_SVC_BOOT,
- SCM_DLOAD_CMD, on ? SCM_DLOAD_MODE : 0, 0);
- if (ret)
- pr_err("Failed to set DLOAD mode: %d\n", ret);
- }
-
- dload_mode_enabled = on;
- }
使能普通下载模式。
这样adb reboot edl 或者 adb reboot dload 命令就可以使手机进入下载模式了。
３、软件升级工具及协议
高通平台，从MSM6K 、7K 到8K， download的方法和协议，一直在更新。
协议经历了从stream dload到sahara，再到现在firehose 。
每一种协议的具体描述参考如下文档：
80-V5348-1_J_Streaming_DLoad_Protocol.pdf
80-N1008-1_H_SaharaProtocolSpecification.pdf
80-NG319-1_A_Firehose Protocol V1.0_Def_Doc.pdf
参见本人的另一篇介绍《qualcomm 8K平台Sahara Protocol相对7K, 6K 平台Software Download优点》。

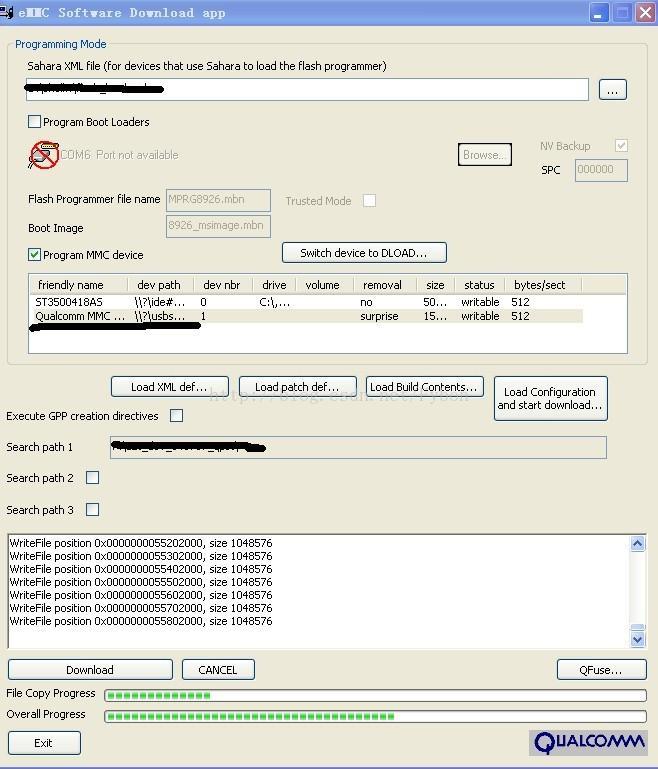

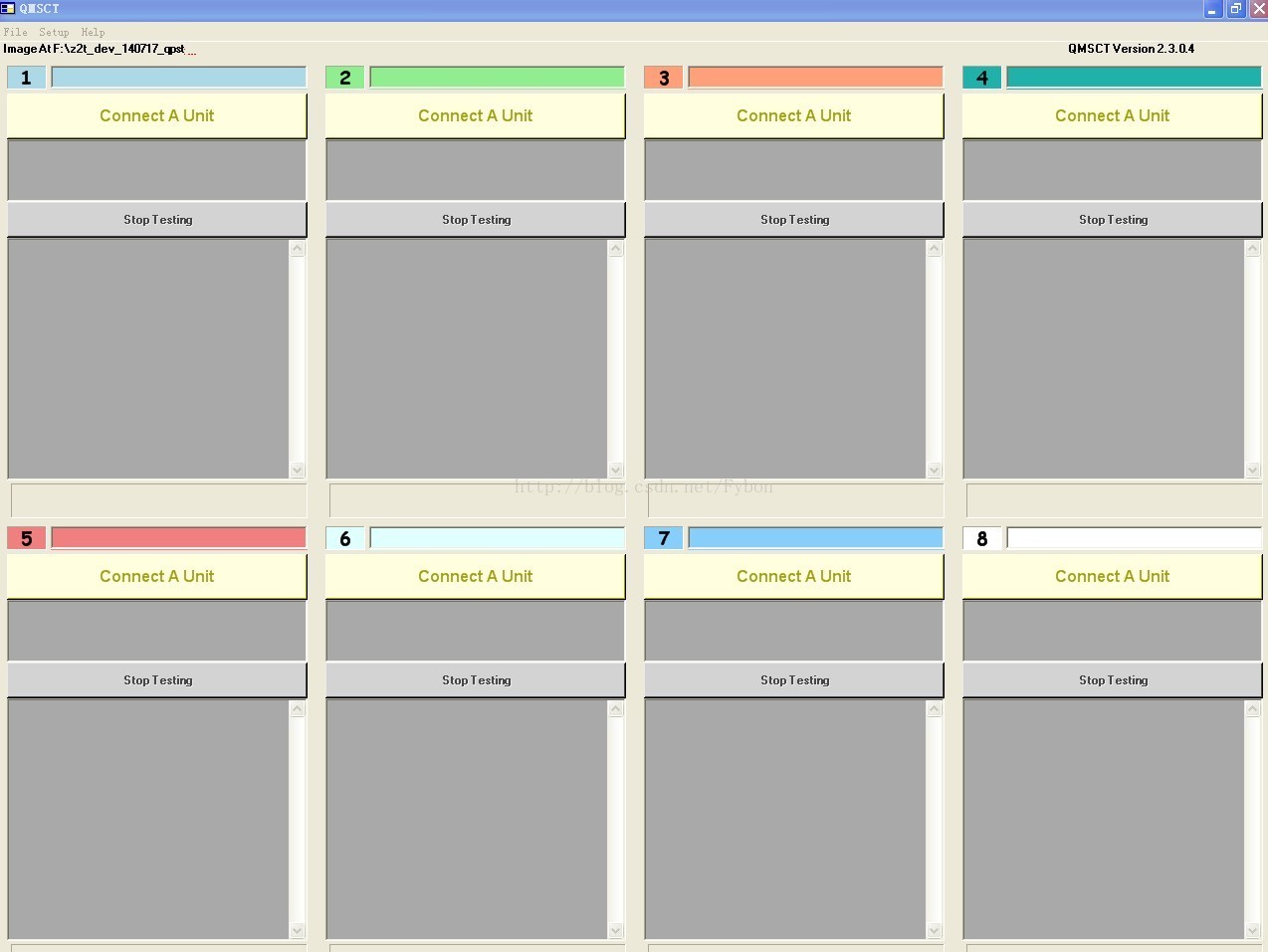

根据使用不同协议，相应的，高通提供两个下载工具：eMMC Software Download 和 QFIL (Qualcomm Flash Image Loader )
如下俩图 ：
通过这种普通下载模式，进入下载模后，windows设备管理器可以看到PC端枚举出一个9006的USB端口，
同时枚举出一个mass storage。
高通这种mass storage模式下载速率是非常的快。可是我也它有如下一些缺点：
pc端枚举mass storage速度很慢，根据测试也非常耗cpu。
pc端枚举mass storage容易出错，特别是多台手机同时枚举时。
纠错不易，按文件方式写入，目前我还没想到什么方法进行纠错？
好，下面贴相关代码所在的路径，及调用到的重要函数贴出来！
boot_images/core/storage/tools/emmcbld
boot_images/core/boot/secboot3/hw/msm8916/sbl1/
sbl1_mc.c
sbl1_target.c
sbl1_sahara.c
boot_images/core/boot/secboot3/src/
boot_sahara.c
boot_extern_hsusb_interface.c
boot_images/core/wiredconnectivity/qhsusb/src/al/qhsusb_al_bulk.c
boot_images/core/wiredconnectivity/qhsusb/src/func/
qhsusb_fd_hdlc.c
qhsusb_fd_ms.c
qhsusb_scsi.c
- void sbl1_dload_entry ()
- {
- static uint32 dload_entry_count = 0;
-
- dload_entry_count++;
-
-
-
- if( dload_entry_count == 1 && &bl_shared_data != NULL )
- {
-
- boot_do_procedures( &bl_shared_data, sbl1_pre_dload_procs );
- }
-
- pm_device_config_in_dloadmode();
-
-
- boot_dload_transition_enter_sahara();
-
- }
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- void boot_dload_transition_enter_sahara(void)
- {
-
- struct boot_sahara_interface* sbl_sahara_interface = sbl_sahara_get_interface();
- BL_VERIFY(sbl_sahara_interface != NULL, BL_ERR_NULL_PTR);
-
-
- sbl_sahara_interface->sahara_mode = SAHARA_MODE_MEMORY_DEBUG;
-
-
- mmu_flush_cache();
-
-
- boot_sahara_entry(sbl_sahara_interface);
- }
调用sbl_sahara_get_interface获取sahara如下函数接口：sbl_sahara_interface
调用boot_sahara_entry。
-
- static struct boot_sahara_dispatch_tbl sbl_sahara_dispatch_tbl =
- {
- SAHARA_INTERFACE_DISPATCH_VERSION,
- sbl_sahara_bulk_init,
- boot_qhsusb_al_bulk_shutdown,
- boot_qhsusb_al_bulk_poll,
- (sahara_rx_bulk_type) sbl_sahara_rx_bulk,
- (sahara_tx_bulk_type) boot_qhsusb_al_bulk_transmit,
- boot_qhsusb_al_bulk_get_max_packet_size,
- sbl_sahara_reset,
- boot_clobber_check_global_whitelist_range,
- sbl_sahara_exec_cmd,
- boot_qhsusb_al_bulk_get_max_raw_data_size,
- sbl_sahara_is_auth_enabled,
- qmemcpy,
- qmemset,
- sbl_sahara_get_bin_header_size,
- sbl_sahara_get_bin_image_id,
- sbl_sahara_get_bin_image_dest,
- sbl_sahara_get_bin_image_size,
- sbl_sahara_get_bin_code_size,
- sbl_sahara_get_bin_cert_chain_size,
- sbl_sahara_get_bin_signature_size,
- sbl_sahara_get_bin_image_src,
- sbl_sahara_unrecoverable_error_handler,
- sbl_sahara_image_load_post_proc,
- sbl_sahara_skip_image_load,
- boot_get_hash_segment_buffer,
- sbl_elf_optimized_segment_load,
- NULL,
- NULL,
- };
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- boolean boot_sahara_entry
- (
- struct boot_sahara_interface* sahara_interface
- )
- {
- boolean status = TRUE;
-
- sahara_if = sahara_interface;
-
-
- status = boot_sahara_init();
-
- if (status)
- {
-
- boot_sahara_handle_hello();
-
-
- boot_sahara_process_packets();
-
-
- sahara_auth_tbl = NULL;
- sahara_auth_elf = FALSE;
- sahara_auth_bin = FALSE;
- }
-
- return status;
- }
调用函数boot_sahara_init初始化sahara协议，枚举usb com口及mass storage。
调用函数boot_sahara_handle_hello主动发送hello packet,
调用函数boot_sahara_process_packets处理其它cmd packets。
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- static boolean boot_sahara_init ( void )
- {
- boolean status = TRUE;
-
- do
- {
-
- if (sahara_if == NULL)
- {
- status = FALSE;
- break;
- }
- if ((sahara_if->sahara_shared_data == NULL) ||
- (sahara_if->dispatch_tbl == NULL))
- {
- status = FALSE;
- break;
- }
-
- sahara_shared_data = sahara_if->sahara_shared_data;
- sahara_dispatch_tbl = sahara_if->dispatch_tbl;
-
- if (sahara_if->sahara_shared_data->cur_image == NULL)
- {
- status = FALSE;
- break;
- }
-
-
- if ((sahara_dispatch_tbl->init == NULL) ||
- (sahara_dispatch_tbl->shutdown == NULL) ||
- (sahara_dispatch_tbl->poll == NULL) ||
- (sahara_dispatch_tbl->rx_bulk == NULL) ||
- (sahara_dispatch_tbl->tx_bulk == NULL) ||
- (sahara_dispatch_tbl->shutdown == NULL) ||
- (sahara_dispatch_tbl->get_max_packet_size == NULL) ||
- (sahara_dispatch_tbl->reset == NULL) ||
- (sahara_dispatch_tbl->valid_address_range == NULL) ||
- (sahara_dispatch_tbl->exec_cmd == NULL) ||
- (sahara_dispatch_tbl->get_max_raw_data_size == NULL) ||
- (sahara_dispatch_tbl->auth_enabled == NULL) ||
- (sahara_dispatch_tbl->memcpy == NULL) ||
- (sahara_dispatch_tbl->memset == NULL) ||
- (sahara_dispatch_tbl->get_bin_header_size == NULL) ||
- (sahara_dispatch_tbl->get_bin_image_id == NULL) ||
- (sahara_dispatch_tbl->get_bin_image_dest == NULL) ||
- (sahara_dispatch_tbl->get_bin_image_size == NULL) ||
- (sahara_dispatch_tbl->get_bin_code_size == NULL) ||
- (sahara_dispatch_tbl->get_bin_cert_chain_size == NULL) ||
- (sahara_dispatch_tbl->get_bin_signature_size == NULL) ||
- (sahara_dispatch_tbl->get_hash_segment_buffer == NULL))
- {
- status = FALSE;
- break;
- }
-
-
- sahara_shared_data->is_secure = sahara_dispatch_tbl->auth_enabled();
- sahara_auth_tbl = sahara_if->auth_tbl;
- if (((sahara_auth_tbl == NULL) ||
- (sahara_auth_tbl->authenticate == NULL)) &&
- (sahara_if->sahara_mode != SAHARA_MODE_MEMORY_DEBUG))
-
- {
- status = FALSE;
- break;
- }
- else if (sahara_shared_data->is_secure &&
- (sahara_shared_data->expected_image_type == SAHARA_IMAGE_TYPE_ELF))
- {
- sahara_auth_elf = TRUE;
- }
- else if (sahara_shared_data->is_secure &&
- (sahara_shared_data->expected_image_type == SAHARA_IMAGE_TYPE_BINARY))
- {
- sahara_auth_bin = TRUE;
- }
-
- sahara_mem_debug_tbl = sahara_if->mem_debug_tbl;
- if (sahara_mem_debug_tbl == NULL)
- {
- sahara_mem_debug_enabled = FALSE;
- }
- else
- {
- if ((sahara_mem_debug_tbl->mem_debug_supported == NULL) ||
- (sahara_mem_debug_tbl->mem_debug_init == NULL) ||
- (sahara_mem_debug_tbl->mem_debug_verify_addr == NULL) ||
- (sahara_mem_debug_tbl->mem_debug_table_addr == NULL) ||
- (sahara_mem_debug_tbl->mem_debug_table_len == NULL) ||
- (sahara_mem_debug_tbl->mem_debug_is_restricted_addr == NULL) ||
- (sahara_mem_debug_tbl->mem_debug_copy_restricted == NULL))
- {
- status = FALSE;
- break;
- }
- else
- {
- sahara_mem_debug_enabled = TRUE;
- }
- }
-
- if (sahara_shared_data->expected_image_type == SAHARA_IMAGE_TYPE_BINARY)
- {
- sahara_binary_image_info =
- (struct boot_sahara_binary_image_info*)sahara_shared_data->cur_image;
-
-
- sahara_binary_image_info->image_id = 0;
-
- if (sahara_binary_image_info->header == NULL)
- {
- status = FALSE;
- break;
- }
- sahara_dispatch_tbl->memset(sahara_binary_image_info->header,
- 0,
- sahara_dispatch_tbl->get_bin_header_size());
- }
- else if (sahara_shared_data->expected_image_type == SAHARA_IMAGE_TYPE_ELF)
- {
- sahara_elf_image_info =
- (struct boot_sahara_elf_image_info*)sahara_shared_data->cur_image;
-
- if (sahara_elf_image_info->prog_headers == NULL)
- {
- status = FALSE;
- break;
- }
-
-
- sahara_elf_image_info->image_id = 0;
- sahara_dispatch_tbl->memset(&(sahara_elf_image_info->elf_header),
- 0,
- sizeof(Elf32_Ehdr));
- sahara_elf_image_info->hash_table = NULL;
- sahara_dispatch_tbl->memset(&(sahara_elf_image_info->shared_seg_index),
- 0,
- sizeof(uint32));
- sahara_dispatch_tbl->memset(&(sahara_elf_image_info->entry_address),
- 0,
- sizeof(uint32));
-
-
- sahara_dispatch_tbl->memset((sahara_elf_image_info->prog_headers),
- 0,
- sizeof(struct progressive_boot_block));
- }
- else if (sahara_if->sahara_mode != SAHARA_MODE_MEMORY_DEBUG)
- {
-
- status = FALSE;
- break;
- }
-
-
- sahara_if->sahara_shared_data->image_rx_complete = FALSE;
- sahara_mode = (enum boot_sahara_mode) sahara_if->sahara_mode;
- sahara_state = SAHARA_STATE_ENTRY;
- sahara_done = FALSE;
-
-
- if(BULK_SUCCESS != sahara_dispatch_tbl->init())
- {
- status = FALSE;
- break;
- }
- } while (0);
-
- if(NULL != sahara_if)
- {
- if (status == FALSE)
- {
-
- sahara_if->sahara_status = SAHARA_NAK_TARGET_INIT_FAILURE;
- }
- else
- {
-
- sahara_if->sahara_status = SAHARA_STATUS_SUCCESS;
- }
- }
-
- return status;
- }
调用sahara_dispatch_tbl->init函数指针, 即sbl1_sahara.c文件中的sbl_sahara_bulk_init()。
- struct qhsusb_dcd_dsc_device* qhsusb_fd_hdlc_init(void (*rx_callback)(struct qhsusb_urb* urb),
- uint8* str_product,
- void (*tx_callback)(struct qhsusb_urb* urb),
- void (*enum_complete)(void),
- void (*error_handler)(void),
- qhsusb_transfer_mode transfer_mode)
- #else
- struct qhsusb_dcd_dsc_device* qhsusb_fd_hdlc_init(void (*rx_callback)(struct qhsusb_urb* urb),
- uint8* str_product,
- void (*tx_callback)(struct qhsusb_urb* urb),
- void (*enum_complete)(void),
- qhsusb_transfer_mode transfer_mode)
- #endif
- {
- boolean hdlc_enum_already_exists = FALSE;
-
- struct qhsusb_urb* urb;
-
- qhsusb_transfer_mode_g = transfer_mode;
- qhsusb_log(QHSUSB_FD_HDLC_INIT_LOG,0,0);
- #ifndef FEATURE_SKIP_SERIAL_STR_UPDATE
- qhsusb_fd_hdlc_update_pid_and_serial_number_string();
- #endif
- if ( NULL != str_product ) {
- sw_device.strings[2].descriptor = (struct usb_desc_header*)(void*)str_product;
- }
-
- #if defined(FEATURE_QHSUSB_HDLC_CDCACM)
- hdlc_shutdown_in_progress = 0;
- if ( 0 != hdlc_use_cdcacm ) {
- sw_data_eps[0].descriptor = &hdlc_usb_config_cdcacm.ep_in;
- sw_data_eps[1].descriptor = &hdlc_usb_config_cdcacm.ep_out;
- sw_data_ifc.descriptor = &hdlc_usb_config_cdcacm.ifc_data;
- sw_config.descriptor = &hdlc_usb_config_cdcacm.conf1;
- sw_device.descriptor = &hdlc_usb_device_cdcacm;
- sw_config.interfaces = &sw_cdc_control_ifc;
- } else
- #endif /* defined(FEATURE_QHSUSB_HDLC_CDCACM) */
- {
- if(QHSUSB_MODE__SER_MS == qhsusb_bulk_mode_g)
- {
- sw_data_eps[0].descriptor = &hdlc_usb_config_obex.ep_in;
- sw_data_eps[1].descriptor = &hdlc_usb_config_obex.ep_out;
- sw_data_ifc.descriptor = &hdlc_usb_config_obex.ifc_data;
- sw_config.descriptor = &hdlc_usb_config_obex.conf1;
- }
- else if (QHSUSB_MODE__SER_ONLY == qhsusb_bulk_mode_g)
- {
- sw_data_ifc.next = NULL;
- sw_data_eps[0].descriptor = &hdlc_usb_config_obex_only.ep_in;
- sw_data_eps[1].descriptor = &hdlc_usb_config_obex_only.ep_out;
- sw_data_ifc.descriptor = &hdlc_usb_config_obex_only.ifc_data;
- sw_config.descriptor = &hdlc_usb_config_obex_only.conf1;
- if(hdlc_usb_device_obex.idProduct == USB_PRODUCT_DIAG_MS )
- {
-
- hdlc_usb_device_obex.idProduct = USB_PRODUCT_DIAG_ONLY;
- hdlc_usb_device_obex.iSerialNumber = 0x0;
- }
- }
- else if (QHSUSB_MODE__SER_ONLY__DL_MODE == qhsusb_bulk_mode_g)
- {
- sw_data_ifc.next = NULL;
- sw_data_eps[0].descriptor = &hdlc_usb_config_obex_only.ep_in;
- sw_data_eps[1].descriptor = &hdlc_usb_config_obex_only.ep_out;
- sw_data_ifc.descriptor = &hdlc_usb_config_obex_only.ifc_data;
- sw_config.descriptor = &hdlc_usb_config_obex_only.conf1;
- if(hdlc_usb_device_obex.idProduct == USB_PRODUCT_DIAG_MS )
- {
-
- hdlc_usb_device_obex.idProduct = USB_PRODUCT_DIAG_ONLY;
- hdlc_usb_device_obex.iSerialNumber = 0x0;
- }
- }
- sw_device.descriptor = &hdlc_usb_device_obex;
- sw_config.interfaces = &sw_data_ifc;
- #ifdef FEATURE_QHSUSB_MS
- if( QHSUSB_MODE__SER_MS == qhsusb_bulk_mode_g )
- {
-
- qhsusb_fd_ms_init();
- }
- #endif /* FEATURE_QHSUSB_MS */
- }
-
- qhsusb_dci_set_enum_flag(TRUE);
- qhsusb_dcd_init(&sw_device);
- user_rx_callback = rx_callback;
- if (tx_callback != NULL)
- {
- user_tx_callback = tx_callback;
- }
- if (enum_complete != NULL)
- {
- user_enum_complete = enum_complete;
- }
- #ifdef FEATURE_QHSUSB_SAHARA_DOWNLOAD_PIPO
- if( error_handler !=NULL)
- {
- user_error_handler = error_handler;
- }
- #endif
- hdlc_enum_already_exists = dci_skip_enumeration(sw_device.core_id);
-
-
-
- urb = &hdlc_tx_urb;
- urb->usb_device = &sw_device;
- urb->endpoint_address = sw_data_eps[0].descriptor->bEndpointAddress;
- urb->transfer_buffer_ptr = hdlc_tx_buffer;
- urb->transfer_length = 0;
- urb->transfer_status = 0;
- urb->send_zlp = TRUE;
- urb->complete_callback = hdlc_tx_callback;
- urb->is_zero_address_chain_required = FALSE;
-
- if (transfer_mode == FD_CLIENT_SUPPLIED_BUFFER_MODE)
- {
-
- urb = &hdlc_rx_urb;
- urb->usb_device = &sw_device;
- urb->endpoint_address = sw_data_eps[1].descriptor->bEndpointAddress;
- urb->transfer_buffer_ptr = NULL;
- urb->transfer_length = 0;
- urb->send_zlp = FALSE;
- urb->complete_callback = hdlc_rx_callback;
- urb->actual_length = 0;
-
- urb->is_zero_address_chain_required = FALSE;
- }
- else
- {
- uint8 i = 0;
- for (i = 0; i < 2; i++) {
- urb = &hdlc_rx_urb_fixed[i];
- urb->usb_device = &sw_device;
- urb->endpoint_address = sw_data_eps[1].descriptor->bEndpointAddress;
- urb->transfer_buffer_ptr = hdlc_rx_buffer_fixed[i];
- urb->transfer_length = RX_BUF_SIZE_FIXED;
- urb->send_zlp = FALSE;
- urb->complete_callback = hdlc_rx_callback_int_buf_mode;
- urb->actual_length = 0;
-
- urb->is_zero_address_chain_required = FALSE;
- }
- }
-
-
- #if defined(FEATURE_QHSUSB_HDLC_CDCACM)
- if ( 0 != hdlc_use_cdcacm ) {
- urb = &cdc_notify_urb;
- urb->usb_device = &sw_device;
- urb->endpoint_address = hdlc_usb_config_cdcacm.ep_notify.bEndpointAddress;
- urb->transfer_length = 0;
- urb->complete_callback = NULL;
- }
- #endif /* defined(FEATURE_QHSUSB_HDLC_CDCACM) */
-
- #ifndef FEATURE_QHSUSB_PBL
- if (hdlc_enum_already_exists)
- {
-
-
-
-
- qhsusb_dcd_port_status_changed(&sw_device);
- sw_device.address = 1;
-
- qhsusb_dci_cancel_transfer_wo_dqh_dtd(sw_device.core_id, 1, QHSUSB_EP_DIR_RX);
- qhsusb_dci_cancel_transfer_wo_dqh_dtd(sw_device.core_id, 1, QHSUSB_EP_DIR_TX);
- qhsusb_dci_cancel_transfer_wo_dqh_dtd(sw_device.core_id, 2, QHSUSB_EP_DIR_RX);
- qhsusb_dci_cancel_transfer_wo_dqh_dtd(sw_device.core_id, 2, QHSUSB_EP_DIR_TX);
-
- qhsusb_dcd_set_config(&sw_device, 1);
-
- if (transfer_mode == FD_USB_INTERNAL_BUFFER_MODE)
- {
- hdlc_init_rx_int_buf_mode(urb->usb_device);
- }
- }
- #endif /* !FEATURE_QHSUSB_PBL */
-
- return &sw_device;
- }
sbl_sahara_bulk_init函数最终调用到qhsusb_fd_ms.c文件中的函数：qhsusb_fd_ms_init ,
整个初始化过程结束后完成com端口及mass storage枚举过程。
还有！！！ 坑爹的高通，以前不提供生产用的软件下载工具，都得手机厂商自己开发。
高通思想终于改变了，QRD加入后，为手机厂商提供支持多路的软件升级工具：QMSCT 。
虽然设置比较繁琐，不管怎么样，总算可用。上张图吧！
QFIL和QMSCT是使用紧急下载模式，由PBL及下面firehose prog代码完成下载过程。
boot_images/core/storage/tools/deviceprogrammer
五、Crash ramdump
哎，这篇被我写得又长又臭啦。算了，这节就不详细写了。
高通平台开放，本身也不稳定，因此做出的手机系统很多都不稳定。因此系统crash发生时，抓取crash现场就非常重要。
这里简单说一下，高通平台抓取系统crash现场的几种方法：
１、 通过QPST提供的 Memory Debug Application工具，当crash发生时，手机通过usb连接到ＰＣ, 然后用这个工具将crash现场的ram dump到电脑。
显然，这种方法是最可靠的，但它有自身的局限性：不可能每次crash发生时，测试人员或者试用人员、研发人员都刚好在pc旁边。
２、 高通平台sbl１提供将crash现场dump到sdcard的功能，如下代码。 这种方法的局性限是：
现在高端手机，都没有外置sdcard的配置的，而内置sdcard又使用fuse ext４文件系统，而sbl１只支持fat文件系统。
因此，这种不配置外置sdcard的手机，这种方法根本不可行。
-
-
-
- boot_procedure_func_type sbl1_pre_dload_procs[] =
- {
-
-
-
-
- boot_init_for_dload,
-
-
-
-
- sbl1_hw_dload_init,
-
-
-
-
-
- (boot_procedure_func_type) boot_ram_dump_to_raw_parition,
-
-
- #ifdef FEATURE_BOOT_RAMDUMPS_TO_SD_CARD
-
-
-
-
- boot_ram_dumps_to_sd_card,
- #endif /*FEATURE_BOOT_RAMDUMPS_TO_SD_CARD*/
-
-
-
-
- NULL
- };
３、 campact ramdump：这是ＱＲＤ提出来的思路，即：仅dump一部分比较有用的ram到一个专门为crash分配的emmc分区。
system crash 的主要发生的，ap核的 kernel及service，rpm , modem 等核，而上层Java代码不容易导致system crash。
而现在手机的内置越来越大，１Ｇ、２Ｇ甚至３Ｇ，整个ram都dump到一个特定分区，就浪费emmc空间了。
因此，compact ramdump就是将一部分关键的ram dump到专门为crash分配的emmc分区。 这样就不依赖于sdcard，也不依赖于usb。而且也不浪费emmc空间。
高通很多平台都没实现这功能，比如，msm8916, msm8974等，实现思路可以参考QRD8x25平台。
六、其它
sbl1_hw_init ()
boot_smem_store_pon_status()
sbl1_hw_init_secondary()
=========> pmic 初始化，电池低电时利用内部pmic进行预充电，power key 配置，获取、保存开机原因等。 见：pm_sbl_boot.c
sbl1_tlmm_init() //gpio 初始化
sbl初始化gpio的初始状态代码如下：core/systemdrivers/tlmm/config/msm8916/TLMMChipset.xml
sbl1_efs_handle_cookies // efs backup/restore
boot_populate_ram_partition_table
====> 解析iram , imem , system ram 的起始地址，大小等， 并保存到smem: SMEM_USABLE_RAM_PARTITION_TABLE ，传递给lk和kernel。
见： boot_ram_partition.c ， 这里重点看看ram的情况吧.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- static void sbl1_update_ddr_info(bl_shared_data_type *bl_shared_data)
- {
- static sbl_if_shared_ddr_device_info_type ddr_info;
- ddr_size_info ddr_available = boot_ddr_get_size();
- ddr_size_partition ddr_partition_info = boot_ddr_get_partition();
-
- boot_share_extended_ddr_info(&ddr_info, &ddr_available, &ddr_partition_info);
- bl_shared_data->sbl_shared_data->ddr_shared_info = &ddr_info;
- boot_set_ddr_info(bl_shared_data);
- }
从ddr driver层获取到ddr 类型、大小，cs等信息，保存到sbl_shared_data->ddr_shared_info， 同时保存到sbl全局变量：boot_ddr_size_info
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- static ram_partition_return_type add_system_ram_partitions
- (
- usable_ram_part_table_t usable_ram_part_tbl_ptr
- )
- {
- ram_part_entry_t ram_part_entry_ptr = NULL;
- sbl_if_shared_ddr_info_type *ddr_info = NULL;
- sbl_if_shared_extended_ddr_info_type *ddr_extended_info = NULL;
- uint32 partition_index = 0;
- ram_partition_return_type result = RAM_PART_SUCCESS;
- sbl_if_shared_ddr_device_info_type *ddr_shared_info = boot_get_ddr_info();
-
-
- ram_part_entry_ptr =
- &usable_ram_part_tbl_ptr->
- ram_part_entry[usable_ram_part_tbl_ptr->num_partitions];
-
-
-
- for(; partition_index < ddr_shared_info->noofddr &&
- usable_ram_part_tbl_ptr->num_partitions < RAM_NUM_PART_ENTRIES;
- partition_index++)
- {
- ddr_info = &ddr_shared_info->ddr_info[partition_index];
-
- ram_part_entry_ptr->partition_category = RAM_PARTITION_SDRAM;
- ram_part_entry_ptr->start_address = ddr_info->cs_addr;
- ram_part_entry_ptr->length = ddr_info->ramsize << CONVERT_TO_BYTE_SHIFT;
- ram_part_entry_ptr->partition_attribute = RAM_PARTITION_READWRITE;
- ram_part_entry_ptr->partition_domain = RAM_PARTITION_DEFAULT_DOMAIN;
- ram_part_entry_ptr->partition_type = RAM_PARTITION_SYS_MEMORY;
-
-
- if(ddr_shared_info->ddr_partition_info != NULL)
- {
- ddr_extended_info = &ddr_shared_info->ddr_partition_info[partition_index];
-
-
- if (ddr_extended_info->sdram_addr != ram_part_entry_ptr->start_address)
- {
- result = RAM_PART_CATEGORY_NOT_EXIST_ERR;
- break;
- }
- ram_part_entry_ptr->num_partitions = ddr_extended_info->num_partitions;
- }
-
- ram_part_entry_ptr++;
- usable_ram_part_tbl_ptr->num_partitions++;
- }
-
- return result;
- }
添加如下打印log语句在代码ddr_info = &ddr_shared_info->ddr_info[partition_index];后面，
snprintf(message, 256,
"noofddr %d , cs_addr %d, ramsize %d", ddr_shared_info->noofddr, ddr_info->cs_addr, ddr_info->ramsize);
boot_log_message(message);
可以看到如下ddr info log信息：
B - 376400 - noofddr 2 , cs_addr 80000000, ramsize 1024
B - 376431 - noofddr 2 , cs_addr c0000000, ramsize 1024
七、sbl1 常用的tools介绍
sbl1常用的tools及源码在如下目录：
boot_images/core/storage/tools/
１、 fat32 udisk 生成工具：
boot_images/core/storage/tools/fattool ，
Python fatgen.py –fat32 --name=udisk.bin --size=2048 # Generate a 2GB FAT32 Container.
python fatadd.py --name=udisk.bin --from=rdcookie.txt ----add rdcookie.txt into udisk.bin ,for test
这两个py比原来７k平台可执行文件cpfatfs功能更强了，cpfatfs只支持fat16
２、QPST下载工具(shahara)：emmc programmer
:/boot_images/core/storage/tools/emmcbld/MPRG8974.mbn
３、 T32 Jtag下载工具
boot_images/core/storage/tools/jsdcc/mjsdload.cmm 与jsdcc.elf
４、分区相关工具
boot_images/core/storage/tools/ptool/
ptool.py //分区生成工具 partition =========> rawprogram0.xml
Python ptool.py –x partition.xml:
msp.py //ubuntu使用：根据 rawprogram0.xml进行升级软件工具
singleimage.py //根据singleimage_partition_8974.xml生成single boot image: 8974_msimage.mbn
python singleimage.py -x singleimage_partition_8974.xml
lsusb.py // ls usb
dd.py // dd command
checksparse.py //sparse system/cache/userdata image
扫一扫
357
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
