android-NDK-Opengl

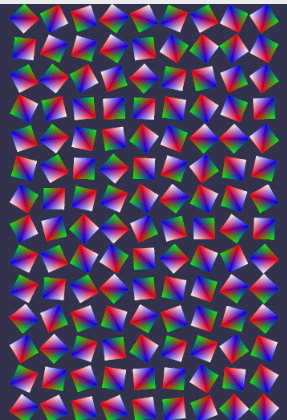

运行界面

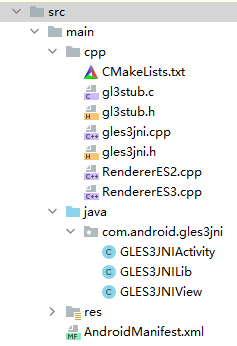

代码架构

CMakeLists.txt

set(CMAKE_C_FLAGS "${CMAKE_C_FLAGS} -Wall")//编译后显示所有的警告
set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -std=c++11 -fno-rtti -fno-exceptions -Wall")//支持c++11, -fno-rtti关闭运行时类型判断 -fno-exceptions：关闭异常机制，减少资源的占用
if (${ANDROID_PLATFORM_LEVEL} LESS 12)//在12以下，不支持opengl
  message(FATAL_ERROR "OpenGL 2 is not supported before API level 11 \
                      (currently using ${ANDROID_PLATFORM_LEVEL}).")
  return()
elseif (${ANDROID_PLATFORM_LEVEL} LESS 18) //在ES2.0的平台上，无法连接ES3.0的函数。所以，这里就需要动态加载ES3.0的函数，在ES2.0的平台上
  add_definitions("-DDYNAMIC_ES3")
  set(GL3STUB_SRC gl3stub.c)
  set(OPENGL_LIB GLESv2)
else ()
  set(OPENGL_LIB GLESv3)
endif (${ANDROID_PLATFORM_LEVEL} LESS 12)

add_library(gles3jni SHARED
            ${GL3STUB_SRC}
            gles3jni.cpp
            RendererES2.cpp
            RendererES3.cpp)

# Include libraries needed for gles3jni lib
target_link_libraries(gles3jni
            ${OPENGL_LIB}
            android
            EGL
            log
            m)
