玩转移远SC60 Android开发板------（2）LCD背光控制

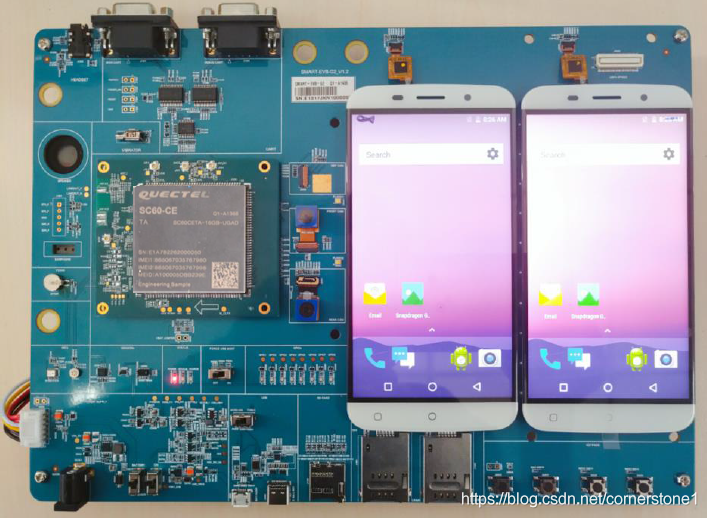

SC60 Android开发板

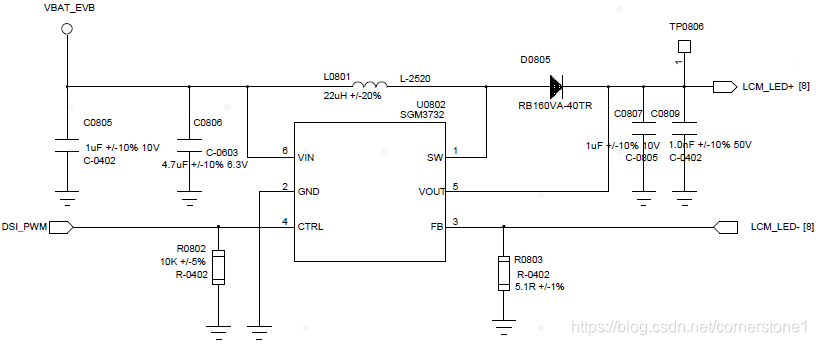

SC60的背光使用PM_MPP4输出PWM信号来控制背光芯片：

但是PMU的MPP4脚默认并不是PWM功能，需要修改配置。PWM的设备树节点为：

		pm8953_pwm: qcom,pwms@bc00 {
			status = "Okay";
			compatible = "qcom,qpnp-pwm";
			reg = <0xbc00 0x100>;
			reg-names = "qpnp-lpg-channel-base";
			qcom,channel-id = <0>;
			qcom,supported-sizes = <6>, <9>;
			#pwm-cells = <2>;
			qcom,dtest-line = <2>; // notice: pwm need config DTETS2
			qcom,dtest-output = <2>;
		};

如下修改把MPP4配置为数字输出功能：

&pm8953_mpps {
	/delete-node/ case_therm;
//begin: stone mofify mpp4 for lcd-backlight
	mpp@a300 {
		reg = <0xa300 0x100>;
