vue3+Element-plus el-select 下拉表格组件（ TSelectTable组件动态赋值默认值回显问题解决及单选默认值修改及新增isClearQuery属性清除查询条件数据）

注意:使用此组件必须:Element-plus版本2.6以上；@wocwin/t-ui-plus最新版本。

2024-04-19 TSelectTable组件动态赋值默认值回显问题解决及单选默认值修改；及新增isClearQuery属性关闭下拉框自动清除查询条件的数据

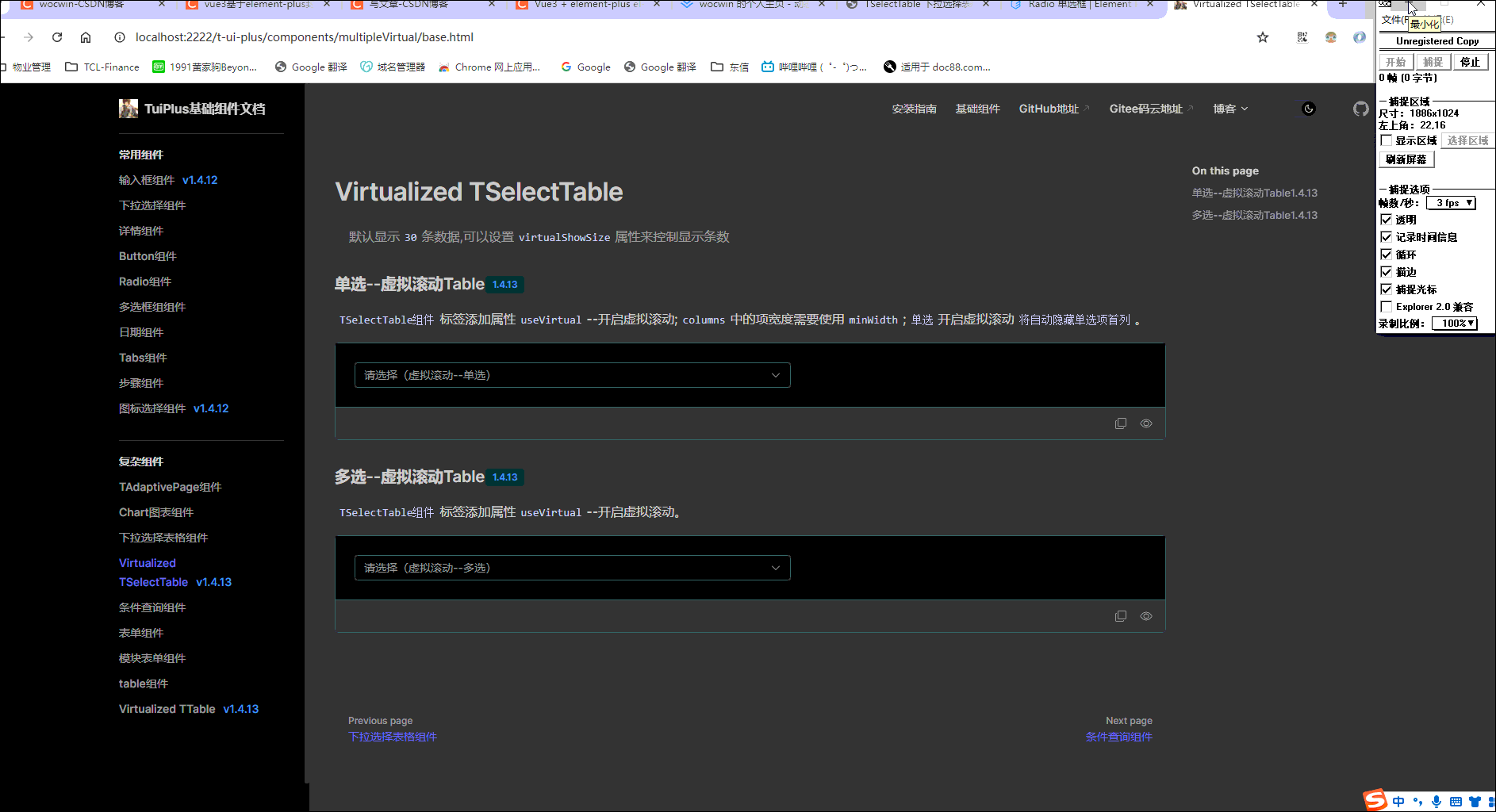

一、最终效果

二、代码示例

<t-select-table
  :table="table"
  :columns="table.columns"
  :max-height="400"
  :keywords="{ label: 'name', value: 'id' }"
  @radioChange="radioChange"
></t-select-table>

三、参数配置

1. 配置参数（Attributes）继承 el-table 及 el-select 属性

参数	说明	类型	默认值
v-model	绑定值	boolean / string / number	仅显示
table	表格数据对象	Object	{}
—data	展示下拉数据源	Array	[]
—total	数据总条数	Number	-
—pageSize	每页显示条目个数	Number	-
—currentPage	当前页数	Number	-
columns	表头信息	Array	[]
----bind	el-table-column Attributes	Object	-
----noShowTip	是否换行 （设置：noShowTip:true）	Boolean	false
----fixed	列是否固定( left, right)	string, boolean	-
----align	对齐方式(left/center/right)	String	center
----render	返回三个参数(text：当前值,row：当前整条数据 ,index：当前行)	function	-
----slotName	插槽显示此列数据（其值是具名作用域插槽）	String	-
------scope	具名插槽获取此行数据必须用解构接收{scope}	Object	当前行数据
keywords	关键字配置（value-key 配置）	Object	无
------label	选项的标签	String	‘label’
------value	选项的值	String / number	‘value’
radioTxt	单选文案	String	单选
multiple	是否开启多选	Boolean	false
rowClickRadio	是否开启整行选中(单选)	boolean	true
isShowFirstColumn	是否显示首列(单选)	boolean	true
defaultSelectVal	设置第一页默认选中项–keywords.value 值）	Array	-
filterable	是否开启过滤(根据 keywords 的 label 值进行过滤)	Boolean	true
reserveSelection	是否支持翻页选中	Boolean	true
isShowPagination	开启分页	Boolean	false
tableWidth	table 宽度	Number	550
isKeyup	单选是否开启键盘事件	Boolean	false
isShowQuery	是否允许配置查询条件(继承TQueryCondition的所有属性、事件、插槽)	Boolean	false
isShowBlurBtn	条件查询组件是否显示隐藏下拉框按钮	Boolean	false
btnBind	显示下拉框按钮配置，继承el-button所有属性;默认值{type:'danger',btnTxt:'关闭下拉框'}	Object	-
isClearQuery	关闭下拉框是否清空搜索条件	Boolean	false

2. 事件（events）继承 el-table 及 el-select 属性

事件名	说明	回调参数
page-change	页码改变事件	返回选中的页码
selectionChange	多选事件	返回选中的项数据及选中项的 keywords.value 集合
radioChange	单选	返回当前项所有数据

3.方法（Methods）继承 el-table 及 el-select 属性

方法名	说明	回调参数
clear	清空选中项
focus	使 input 获取焦点
blur	使 input 失去焦点，并隐藏下拉框

四、具体代码

<template>
  <el-select
    ref="selectRef"
    :model-value="multiple ? state.defaultValue : selectDefaultLabel"
    popper-class="t-select-table"
    :style="{ width: selectWidth ? `${selectWidth}px` : '100%' }"
    :multiple="multiple"
    v-bind="selectAttr"
    :value-key="keywords.value"
    :filterable="filterable"
    :filter-method="filterMethod || filterMethodHandle"
    v-click-outside="closeBox"
    @visible-change="visibleChange"
    @remove-tag="removeTag"
    @clear="clear"
    @keyup="selectKeyup"
  >
    <template #empty>
      <div
        class="t-table-select__table"
        :style="{ width: tableWidth ? `${tableWidth}px` : '100%' }"
      >
        <div class="table_query_condition" v-if="isShowQuery">
          <t-query-condition
            ref="tQueryConditionRef"
            :boolEnter="false"
            @handleEvent="handleEvent"
            v-bind="$attrs"
          >
            <template v-for="(index, name) in slots" v-slot:[name]="data">
              <slot :name="name" v-bind="data"></slot>
            </template>
            <template #querybar v-if="isShowBlurBtn">
              <el-button
                v-bind="{ type: 'danger', ...btnBind }"
                @click="blur"
                >{{ btnBind.btnTxt || '关闭下拉框' }}</el-button
              >
              <slot name="querybar"></slot>
            </template>
          </t-query-condition>
        </div>
        <el-table
          ref="selectTable"
          :data="state.tableData"
          :class="{
            radioStyle: !multiple,
            highlightCurrentRow: isRadio,
            keyUpStyle: isKeyup,
          }"
          highlight-current-row
          border
          :row-key="getRowKey"
          @row-click="rowClick"
          @cell-dblclick="cellDblclick"
          @selection-change="handlesSelectionChange"
          v-bind="$attrs"
        >
          <el-table-column
            v-if="multiple"
            type="selection"
            width="55"
            align="center"
            :reserve-selection="reserveSelection"
            fixed
          ></el-table-column>
          <el-table-column
            type="radio"
            width="55"
            :label="radioTxt"
            fixed
            align="center"
            v-if="!multiple && isShowFirstColumn"
          >
            <template #default="scope">
              <el-radio
                v-model="radioVal"
                :label="scope.$index + 1"
                @click.stop="
                  radioChangeHandle($event, scope.row, scope.$index + 1)
                "
              ></el-radio>
            </template>
          </el-table-column>
          <el-table-column
            v-for="(item, index) in columns"
            :key="index + 'i'"
            :type="item.type"
            :label="item.label"
            :prop="item.prop"
            :min-width="item['min-width'] || item.minWidth"
            :width="item.width"
            :align="item.align || 'center'"
            :fixed="item.fixed"
            :show-overflow-tooltip="item.noShowTip"
            v-bind="{ ...item.bind, ...$attrs }"
          >
            <template #default="scope">
              <!-- render方式 -->
              <template v-if="item.render">
                <render-col
                  :column="item"
                  :row="scope.row"
                  :render="item.render"
                  :index="scope.$index"
                />
              </template>
              <!-- 作用域插槽 -->
              <template v-if="item.slotName">
                <slot :name="item.slotName" :scope="scope"></slot>
              </template>
              <div v-if="!item.render && !item.slotName">
                <span>{{ scope.row[item.prop] }}</span>
              </div>
            </template>
          </el-table-column>
          <slot></slot>
        </el-table>
        <div class="t-table-select__page" v-if="isShowPagination">
          <el-pagination
            v-model:current-page="table.currentPage"
            v-model:page-size="table.pageSize"
            small
            background
            @current-change="handlesCurrentChange"
            layout="total, prev, pager, next, jumper"
            :pager-count="5"
            :total="table.total"
            v-bind="$attrs"
          />
        </div>
      </div>
    </template>
  </el-select>
</template>

<script setup lang="ts" name="TSelectTable">
import TQueryCondition from '../../query-condition/src/index.vue'
import RenderCol from './renderCol.vue'
import {
  computed,
  useAttrs,
  useSlots,
  ref,
  watch,
  nextTick,
  reactive,
  onMounted,
} from 'vue'
import { ElMessage } from 'element-plus'
import ClickOutside from '../../utils/directives/click-outside/index'
const props = defineProps({
  modelValue: {
    type: [Array, String, Number, Boolean, Object],
    default: undefined,
  },
  // 选择值
  value: {
    type: [String, Number, Array],
  },
  // table所需数据
  table: {
    type: Object,
    default: () => {
      return {}
    },
  },
  // 表头数据
  columns: {
    type: Array as unknown as any[],
    default: () => [],
  },
  // 单选文案
  radioTxt: {
    type: String,
    default: '单选',
  },
  // 是否显示搜索条件
  isShowQuery: {
    type: Boolean,
    default: false,
  },
  // 是否清空搜索条件
  isClearQuery: {
    type: Boolean,
    default: false,
  },
  // 是否显示隐藏下拉框按钮
  isShowBlurBtn: {
    type: Boolean,
    default: false,
  },
  // 显示隐藏下拉框按钮属性
  btnBind: {
    type: Object,
    default: () => {
      return {
        btnTxt: '关闭下拉框',
      }
    },
  },
  // 单选框--是否开启点击整行选中
  rowClickRadio: {
    type: Boolean,
    default: true,
  },
  // 是否显示首列
  isShowFirstColumn: {
    type: Boolean,
    default: true,
  },
  // 是否过滤
  filterable: {
    type: Boolean,
    default: true,
  },
  // 是否支持翻页选中
  reserveSelection: {
    type: Boolean,
    default: true,
  },
  // 是否显示分页
  isShowPagination: {
    type: Boolean,
    default: false,
  },
  // 是否自定义过滤
  filterMethod: {
    type: Function,
  },
  // 下拉数据指向的label/value
  keywords: {
    type: Object,
    default: () => {
      return {
        label: 'label',
        value: 'value',
      }
    },
  },
  // 单选是否开启键盘事件
  isKeyup: {
    type: Boolean,
    default: false,
  },
  // 多选
  multiple: {
    type: Boolean,
    default: false,
  },
  // select 宽度
  selectWidth: {
    type: [String, Number],
    default: 550,
  },
  // table宽度
  tableWidth: {
    type: [String, Number],
    default: 550,
  },
  // 设置默认选中项--keywords.value值（单选是String, Number类型；多选时是数组）
  defaultSelectVal: {
    type: Array,
    default: () => [],
  },
})
const selectAttr = computed(() => {
  return {
    clearable: true,
    ...useAttrs(),
  }
})
// 自定义指令
const vClickOutside = ClickOutside
const slots = useSlots()
const isDefaultSelectVal = ref(true) // 是否已经重新选择了
const forbidden = ref(true) // 判断单选选中及取消选中
const isRadio = ref(false)
const isQueryVisible = ref(false) // 查询条件是否显示隐藏下拉框
const isVisible = ref(false) // 是否显示隐藏下拉框
const radioVal: any = ref('')
const selectDefaultLabel: any = ref(props.modelValue) // 单选赋值
const state: any = reactive({
  defaultSelectValue: props.defaultSelectVal, // 默认选中
  tableData: props.table.data, // table数据
  defaultValue: props.value,
  ids: [], // 多选id集合
  tabularMap: {}, // 存储下拉tale的所有name
})
// 获取ref
const selectRef: any = ref<HTMLElement | null>(null)
const selectTable: any = ref<HTMLElement | null>(null)
const tQueryConditionRef: any = ref<HTMLElement | null>(null)
const nowIndex = ref(-1)
watch(
  () => props.table.data,
  (val) => {
    state.tableData = val
    nextTick(() => {
      state.tableData &&
        state.tableData.length > 0 &&
        state.tableData.forEach((item: { [x: string]: any }) => {
          state.tabularMap[item[props.keywords.value]] =
            item[props.keywords.label]
        })
    })
  },
  { deep: true }
)
watch(
  () => props.defaultSelectVal,
  (val) => {
    console.log('props.defaultSelectVal---watch', val, isDefaultSelectVal.value)
    state.defaultSelectValue = val
    if (val.length > 0 && isDefaultSelectVal.value) {
      defaultSelect(val)
    }
  },
  { deep: true }
)
onMounted(() => {
  // 设置默认选中项（单选）
  if (state.defaultSelectValue.length > 0 && isDefaultSelectVal.value) {
    defaultSelect(state.defaultSelectValue)
  }
})
// 表格显示隐藏回调
const visibleChange = (visible: boolean) => {
  // console.log('表格显示隐藏回调', visible)
  isVisible.value = visible
  if (isQueryVisible.value) {
    selectRef.value.expanded = true
  }
  // console.log('表格显示隐藏回调--222', visible)
  if (visible) {
    if (props.defaultSelectVal.length > 0 && isDefaultSelectVal.value) {
      defaultSelect(props.defaultSelectVal)
    }
    initTableData()
  } else {
    if (
      tQueryConditionRef.value &&
      props.isShowQuery &&
      props.isClearQuery &&
      !selectRef.value.expanded
    ) {
      tQueryConditionRef.value?.resetHandle()
    }
    findLabel()
    filterMethodHandle('')
  }
}
// 查询条件change事件触发
const handleEvent = () => {
  // console.log('查询条件change事件触发')
  selectRef.value.expanded = true
}
// 条件查询组件的visible-change事件
const queryVisibleChange = (val: boolean) => {
  // console.log('selectVisibleChange---999', val)
  isQueryVisible.value = val
}
// el-select点击了空白区域
const closeBox = () => {
  // console.log('select点击了空白区域', tQueryConditionRef.value)
  // 获取查询条件组件的项
  if (tQueryConditionRef.value && props.isShowQuery) {
    selectRef.value.expanded = true
    Object.values(tQueryConditionRef.value?.props?.opts).map((val: any) => {
      if (
        val.comp.includes('select') ||
        val.comp.includes('picker') ||
        val.comp.includes('date')
      ) {
        val.eventHandle = {
          'visible-change': ($event: boolean) => queryVisibleChange($event),
        }
        // queryVisibleChange(true)
        // isQueryVisible.value = true
        selectRef.value.expanded = true
      }
    })
    if (isVisible.value && props.isShowQuery) {
      selectRef.value.expanded = true
    } else {
      selectRef.value.expanded = false
    }
  }
}
// 单选键盘事件
const selectKeyup = (e: { keyCode: any }) => {
  if (!props.multiple) {
    if (!props.isKeyup) return
    if (state.tableData.length === 0) return
    switch (e.keyCode) {
      case 40: // 下键
        if (state.tableData[nowIndex.value * 1 + 1] !== undefined) {
          selectTable.value.setCurrentRow(
            state.tableData[nowIndex.value * 1 + 1]
          )
          nowIndex.value = nowIndex.value * 1 + 1
        } else {
          nowIndex.value = 0
          selectTable.value.setCurrentRow(state.tableData[0])
        }
        break
      case 38: // 上键
        if (
          state.tableData[nowIndex.value * 1 - 1] !== undefined &&
          nowIndex.value > 0
        ) {
          selectTable.value.setCurrentRow(
            state.tableData[nowIndex.value * 1 - 1]
          )
          nowIndex.value = nowIndex.value * 1 - 1
        } else {
          nowIndex.value = 0
          selectTable.value.setCurrentRow(state.tableData[0])
        }
        break
      case 13: // 回车
        rowClick(state.tableData[nowIndex.value])
        break
    }
  }
}
// 赋值
const findLabel = () => {
  nextTick(() => {
    if (props.multiple) {
      selectRef.value.selected?.forEach(
        (item: { currentLabel: any; value: any }) => {
          item.currentLabel = item.value
        }
      )
    } else {
      selectDefaultLabel.value =
        (state.defaultValue && state.defaultValue[props.keywords.label]) || ''
    }
  })
}

// 抛出事件
const emits = defineEmits(['page-change', 'selectionChange', 'radioChange'])

// 当前页码
const handlesCurrentChange = (val: any) => {
  if (props.multiple) {
    if (!props.reserveSelection) {
      clear()
    }
  } else {
    clear()
  }
  emits('page-change', val)
}
// 默认选中（且只能默认选中第一页的数据）
const defaultSelect = (defaultSelectVal: any[]) => {
  if (props.multiple) {
    let multipleList: any = []
    defaultSelectVal.map((val) => {
      state.tableData.forEach((row: any) => {
        if (val === row[props.keywords.value]) {
          multipleList.push(row)
        }
      })
    })
    setTimeout(() => {
      state.defaultValue = multipleList.map(
        (item: { [x: string]: any }) => item[props.keywords.label]
      )
      multipleList.forEach((row: { [x: string]: any }) => {
        const arr = state.tableData.filter(
          (item: { [x: string]: any }) =>
            item[props.keywords.value] === row[props.keywords.value]
        )
        if (arr.length > 0) {
          selectTable.value.toggleRowSelection(arr[0], true)
        }
      })
      selectRef.value?.selected?.forEach(
        (item: { currentLabel: any; value: any }) => {
          item.currentLabel = item.value
        }
      )
    }, 0)
  } else {
    let row: any, index: any
    state.tableData.map((val: { [x: string]: any }, i: any) => {
      if (val[props.keywords.value] === defaultSelectVal[0]) {
        row = val
        index = i
      }
    })
    radioVal.value = index + 1
    state.defaultValue = row
    setTimeout(() => {
      selectDefaultLabel.value = row && row[props.keywords.label]
    }, 0)
    emits('radioChange', row, row && row[props.keywords.value])
  }
}
// 复选框(多选)
const handlesSelectionChange = (val: any[]) => {
  // console.log('复选框', val)
  isDefaultSelectVal.value = false
  state.defaultValue = val.map((item) => item[props.keywords.label])
  state.ids = val.map((item) => item[props.keywords.value])
  if (val.length === 0) isDefaultSelectVal.value = true
  emits('selectionChange', val, state.ids)
}
// 搜索后表格勾选不取消
const getRowKey = (row: { [x: string]: any }) => {
  return row[props.keywords.value]
}
// 搜索过滤
const filterMethodHandle = (val: string) => {
  if (!props.filterable) return
  const tableData = JSON.parse(JSON.stringify(props.table?.data))
  if (tableData && tableData.length > 0) {
    if (!props.multiple) {
      if (val) {
        radioVal.value = ''
      } else {
        tableData.map((item: { [x: string]: any }, index: number) => {
          if (
            item[props.keywords.value] === selectDefaultLabel.value &&
            selectDefaultLabel.value[props.keywords.value]
          ) {
            radioVal.value = index + 1
          }
        })
      }
    }
    state.tableData = tableData.filter(
      (item: { [x: string]: string | string[] }) => {
        if (item[props.keywords.label].includes(val)) {
          return item
        }
      }
    )
  }
}

// 获取表格数据
const initTableData = () => {
  // 表格默认赋值
  nextTick(() => {
    if (props.multiple) {
      state.defaultValue?.forEach((row: { [x: string]: any }) => {
        const arr = state.tableData.filter(
          (item: { [x: string]: any }) =>
            item[props.keywords.value] === row[props.keywords.value]
        )
        if (arr.length > 0) {
          selectTable.value.toggleRowSelection(arr[0], true)
        }
      })
    } else {
      const arr = state.tableData.filter(
        (item: { [x: string]: any }) =>
          item[props.keywords.value] === selectDefaultLabel.value &&
          selectDefaultLabel.value[props.keywords.value]
      )
      selectTable.value.setCurrentRow(arr[0])
    }
  })
}
// 复制内容
const copyDomText = (val: any) => {
  // 获取需要复制的元素以及元素内的文本内容
  const text = val
  // 添加一个input元素放置需要的文本内容
  const input = document.createElement('input')
  input.value = text
  document.body.appendChild(input)
  // 选中并复制文本到剪切板
  input.select()
  document.execCommand('copy')
  // 移除input元素
  document.body.removeChild(input)
}
// 双击复制单元格内容
const cellDblclick = (
  row: { [x: string]: any },
  column: { property: string | number }
) => {
  try {
    copyDomText(row[column.property])
    ElMessage.success('复制成功')
  } catch (e) {
    ElMessage.error('复制失败')
  }
}
// 点击单选框单元格触发事件
const radioChangeHandle = (
  event: { preventDefault: () => void },
  row: any,
  index: any
) => {
  event.preventDefault()
  isDefaultSelectVal.value = false
  radioClick(row, index)
}
// forbidden取值
const isForbidden = () => {
  forbidden.value = false
  setTimeout(() => {
    forbidden.value = true
  }, 0)
}
// 单选抛出事件radioChange
const radioClick = (row: { [x: string]: any }, index: any) => {
  forbidden.value = !!forbidden.value
  if (radioVal.value) {
    if (radioVal.value === index) {
      radioVal.value = ''
      isForbidden()
      state.defaultValue = {}
      isDefaultSelectVal.value = true
      emits('radioChange', {}, null) // 取消勾选就把回传数据清除
      blur()
    } else {
      isForbidden()
      radioVal.value = index
      state.defaultValue = row
      emits('radioChange', row, row[props.keywords.value])
      blur()
    }
  } else {
    isForbidden()
    radioVal.value = index
    state.defaultValue = row
    emits('radioChange', row, row[props.keywords.value])
    blur()
  }
}
// 单击行
const rowClick = async (row: { [x: string]: any }) => {
  if (!props.rowClickRadio) return
  if (!props.multiple) {
    let rowIndex: any
    // eslint-disable-next-line no-unused-expressions
    props.table?.data.forEach((item: { [x: string]: any }, index: any) => {
      if (item[props.keywords.value] === row[props.keywords.value]) {
        // console.log('index', index)
        rowIndex = index
      }
    })
    // await this.radioClick(row, rowIndex + 1)
    isDefaultSelectVal.value = false
    await radioClick(row, rowIndex + 1)
    if (radioVal.value) {
      isRadio.value = true
    } else {
      isRadio.value = false
    }
  }
}
// tags删除后回调
const removeTag = (tag: any) => {
  const row = state.tableData.find(
    (item: { [x: string]: any }) => item[props.keywords.label] === tag
  )
  console.log('tags删除后回调', row)
  selectTable.value.toggleRowSelection(row, false)
  isDefaultSelectVal.value = true
}
// 清空后的回调
const clear = () => {
  if (props.multiple) {
    selectTable.value.clearSelection()
    isDefaultSelectVal.value = true
    state.defaultValue = []
  } else {
    // 取消高亮
    selectTable.value.setCurrentRow(-1)
    nowIndex.value = -1
    radioVal.value = ''
    isDefaultSelectVal.value = true
    forbidden.value = false
    selectDefaultLabel.value = null
    state.defaultValue = null
    emits('radioChange', {}, null)
  }
}
// 触发select隐藏
const blur = () => {
  selectRef.value.blur()
}
// 触发select显示
const focus = () => {
  selectRef.value.focus()
}
// 暴露方法出去
defineExpose({ focus, blur, clear, tQueryConditionRef })
</script>

<style lang="scss">
.t-select-table {
  // 单选样式
  .radioStyle {
    .el-radio {
      .el-radio__label {
        display: none;
      }
      &:focus:not(.is-focus):not(:active):not(.is-disabled) .el-radio__inner {
        box-shadow: none;
      }
    }
    .el-table__row {
      cursor: pointer;
    }
  }
  // 键盘事件开启选择高亮
  .keyUpStyle {
    .el-table__body {
      tbody {
        .current-row {
          color: var(--el-color-primary) !important;
          cursor: pointer;
        }
      }
    }
  }
  // 选中行样式
  .highlightCurrentRow {
    :deep(.current-row) {
      color: var(--el-color-primary);
      cursor: pointer;
    }
  }
  .t-table-select__table {
    padding: 10px;

    .el-table__body,
    .el-table__header {
      margin: 0;
    }
    // 条件查询组件样式
    .table_query_condition {
      width: 100%;
      overflow-x: auto;
      overflow-y: hidden;
      padding: 10px;
    }
  }

  .t-table-select__page {
    padding-top: 5px;
    padding-right: 10px;
    .el-pagination {
      display: flex;
      justify-content: flex-end;
      align-items: center;
      margin-right: calc(2% - 20px);
      background-color: var(--el-table-tr-bg-color);
    }
  }
}
</style>

五、组件地址

gitHub组件地址

gitee码云组件地址

六、相关文章

vue3+ts基于Element-plus再次封装基础组件文档

---

基于ElementUi再次封装基础组件文档

---

基于ant-design-vue再次封装基础组件文档
