malloc()函数是C语言中内存分配函数，学习c语言的初学者经常会有如下的困扰。

    假设系统中有进程A和进程B，分别用testA和testB函数分配内存：

//进程A

void testA(void)
{
    char * bufA = malloc(100);
    ......
    *buf = 100;
}
//进程B
void testB(void)
{
    char * bufB = malloc(100);
    mlock(bufB, 100);
    .....
}

问题：

  • malloc()函数返回的内存是否马上就分配物理内存？testA和testB分别在何时分配物理内存？

答：

  • 假设不考虑libc的因素，malloc分配100Byte，那么实际上内核是为其分配100Byte吗？

答：

  • 假设使用printf打印指针bufA和bufB指向的地址是一样的，那么在内核中这两块虚拟内存是否"打架"了呢？

答：

  • vm_normal_page()函数返回的什么样页面的struct page数据结构？为什么内存管理代码需要这个函数？

答：

  • 请简述get_user_page()函数的作用和实现流程。

答：

  • 请简述follow_page()函数的作用的实现流程。

答：

    malloc()函数是C函数封装的一个核心函数，C函数库会做一些处理后调用linux内核系统去调用brk，所以大家并不熟悉brk的系统调用，原因在于很少有人会直接使用系统调用brk向系统申请内存，而总是通过malloc()之类的C函数库的API函数。如果把malloc()想象成零售，那么brk就是代理商。malloc函数的实现为用户进程维护一个本地小仓库，当进程需要使用更多的内存时就向这个小仓库要货，小仓库存量不足时就通过代理商，brk向内核批发。

brk实现：

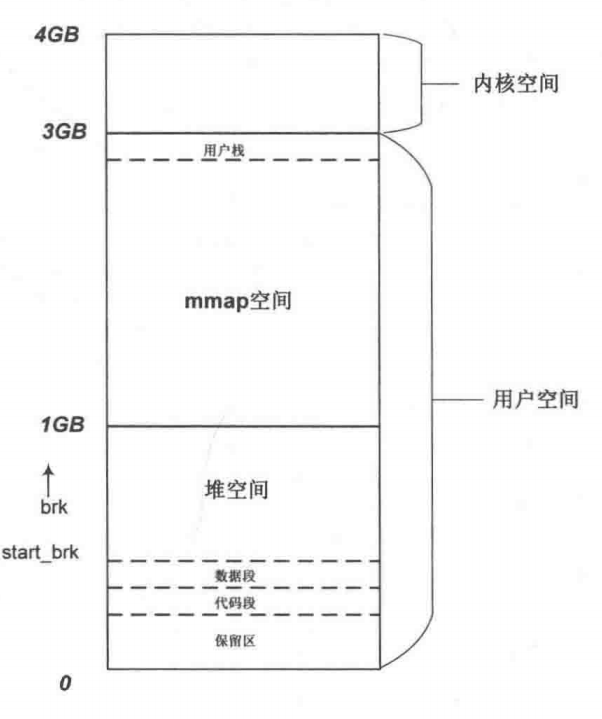

    在32位linux内核中，每个用户进程拥有3GB的虚拟空间。内核如何为用户空间来划分这3GB的虚拟空间呢？用户进程的可执行文件由代码段和数据段组成，数据段包括所有的静态分配的数据空间，例如全局变量和静态局部变量等。这些空间在可执行文件装载时，内核就为其分配好这些空间，包括虚拟地址和物理页面，并建立好二者的映射关系。如下图，用户进程的用户栈从3GB虚拟空间的顶部开始，由顶向下延伸，而brk分配的空间是从数据段的顶部end_data到用户栈的底部。所以动态分配空间是从进程的end_data开始，每次分配一块空间，就把这个边界往上推进一段，同时内核和进程都会记录当前的边界的位置。

brk系统调用主要实现在mm/mmap.c函数中。

SYSCALL_DEFINE1(brk, unsigned long, brk)
{
    unsigned long retval;
    unsigned long newbrk, oldbrk;
    struct mm_struct *mm = current->mm;
    unsigned long min_brk;
    bool populate;

    down_write(&mm->mmap_sem);

#ifdef CONFIG_COMPAT_BRK
    /*
     * CONFIG_COMPAT_BRK can still be overridden by setting
     * randomize_va_space to 2, which will still cause mm->start_brk
     * to be arbitrarily shifted
     */
    if (current->brk_randomized)
        min_brk = mm->start_brk;
    else
        min_brk = mm->end_data;/*用户进程的struct mm_struct数据结构有一个变量存放数据段的结束地址，
        如果brk请求的边界小于这个地址，那么请求无效*/
#else

    min_brk = mm->start_brk;
#endif
    if (brk < min_brk)/*无效的地址*/
        goto out;

    /*
     * Check against rlimit here. If this check is done later after the test
     * of oldbrk with newbrk then it can escape the test and let the data
     * segment grow beyond its set limit the in case where the limit is
     * not page aligned -Ram Gupta
     */
    if (check_data_rlimit(rlimit(RLIMIT_DATA), brk, mm->start_brk,
                  mm->end_data, mm->start_data))
        goto out;

     /*newbrk表示新边界*/
    newbrk = PAGE_ALIGN(brk);
    /*mm->brk记录动态分配区的当前底部，参数brk表示所要求的的新边界，是用户进程要求分配内存的大小与当前
    底部边界相减*/
    oldbrk = PAGE_ALIGN(mm->brk);
    if (oldbrk == newbrk)
        goto set_brk;

    /* Always allow shrinking brk.*/
    /*如果新边界小于老边界，那么表示释放空间，调用do_munmap()来释放这一部分空间内存*/
    if (brk <= mm->brk) {
        if (!do_munmap(mm, newbrk, oldbrk-newbrk))
            goto set_brk;
        goto out;
    }

    /* Check against existing mmap mappings. */
    /*find_vma_intersection()函数以老边界oldbrk地址去查找系统中有没有一块已经存在的VMA，
    它通过find_vma()来查找当前用户进程中是否已经有一块VMA和start_addr地址有重叠。
    如果老边界开始的地址空间在使用了，就不需要再寻找了。*/
    if (find_vma_intersection(mm, oldbrk, newbrk+PAGE_SIZE))
        goto out;

    /* Ok, looks good - let it rip. */
    /*do_brk是brk的核心函数，我们查看其实现*/
    if (do_brk(oldbrk, newbrk-oldbrk) != oldbrk)
        goto out;

set_brk:
    mm->brk = brk;
    populate = newbrk > oldbrk && (mm->def_flags & VM_LOCKED) != 0;
    up_write(&mm->mmap_sem);
    if (populate)
        mm_populate(oldbrk, newbrk - oldbrk);
    return brk;

out:
    retval = mm->brk;
    up_write(&mm->mmap_sem);
    return retval;
}

do_brk()函数实现：

/*
 *  this is really a simplified "do_mmap".  it only handles
 *  anonymous maps.  eventually we may be able to do some
 *  brk-specific accounting here.
 */
static unsigned long do_brk(unsigned long addr, unsigned long len)
{
    struct mm_struct *mm = current->mm;
    struct vm_area_struct *vma, *prev;
    unsigned long flags;
    struct rb_node **rb_link, *rb_parent;
    pgoff_t pgoff = addr >> PAGE_SHIFT;
    int error;

    /*申请分配内存大小要以页面大小对齐。*/
    len = PAGE_ALIGN(len);
    if (!len)
        return addr;

    flags = VM_DATA_DEFAULT_FLAGS | VM_ACCOUNT | mm->def_flags;

    /*get_unmapped_area()函数用来判断虚拟内存空间是否有足够的空间，返回一段没有映射过的
    空间的起始地址，这个函数会调用到具体的体系结构中实现，下面我们看下此函数实现*/
    error = get_unmapped_area(NULL, addr, len, 0, MAP_FIXED);
    if (error & ~PAGE_MASK)
        return error;

    /*此函数判断flags是否置位VM_LOCKED,这个VM_LOCKED通常从mlock系统调用中设置而来。如果有
    那么需要调用mm_populate()马上分配物理内存并建立映射。通常用户程序很少使用VM_LOCKED分配
    掩码，所以brk不会为这个用户进程立马分配物理页面，而是一直将分配物理页面的工作推延到用户
    进程要访问这个虚拟页面时，发生了缺页中断才会分配物理内存，并和虚拟地址建立映射关系。*/
    error = mlock_future_check(mm, mm->def_flags, len);
    if (error)
        return error;

    /*
     * mm->mmap_sem is required to protect against another thread
     * changing the mappings in case we sleep.
     */
    verify_mm_writelocked(mm);

    /*
     * Clear old maps.  this also does some error checking for us
     */
 munmap_back:
    /*find_vma_links()函数查看之前的文章，它循环遍历用户进程红黑树中的VMAs，然后根据addr来查找
    最合适插入到红黑树的节点，最终rb_link指针指向最合适节点的br_left或rb_right指针本身的地址。
    返回0表示寻找到最合适插入的节点，返回-ENOMEM表示现有的VMA重叠，这时会调用do_munmap()函数来
    释放这段重叠的空间。*/
    if (find_vma_links(mm, addr, addr + len, &prev, &rb_link, &rb_parent)) {
        if (do_munmap(mm, addr, len))
            return -ENOMEM;
        goto munmap_back;
    }

    /* Check against address space limits *after* clearing old maps... */
    if (!may_expand_vm(mm, len >> PAGE_SHIFT))
        return -ENOMEM;

    if (mm->map_count > sysctl_max_map_count)
        return -ENOMEM;

    if (security_vm_enough_memory_mm(mm, len >> PAGE_SHIFT))
        return -ENOMEM;

    /* Can we just expand an old private anonymous mapping? */
    /*vma_merge()函数去找有没有可能合并addr附近的VMA。如果没办法合并，那么
    只能新创建一个VMA，VMA的地址空间就是[addr, addr+len]*/
    vma = vma_merge(mm, prev, addr, addr + len, flags,
                    NULL, NULL, pgoff, NULL);
    if (vma)
        goto out;

    /*
     * create a vma struct for an anonymous mapping
     */
    vma = kmem_cache_zalloc(vm_area_cachep, GFP_KERNEL);
    if (!vma) {
        vm_unacct_memory(len >> PAGE_SHIFT);
        return -ENOMEM;
    }

    INIT_LIST_HEAD(&vma->anon_vma_chain);
    vma->vm_mm = mm;
    vma->vm_start = addr;
    vma->vm_end = addr + len;
    vma->vm_pgoff = pgoff;
    vma->vm_flags = flags;
    vma->vm_page_prot = vm_get_page_prot(flags);

    /*新创建的VMA需要加入到mm->mmap链表和红黑树中，vma_link()函数实这个功能*/
    vma_link(mm, vma, prev, rb_link, rb_parent);
out:
    perf_event_mmap(vma);
    mm->total_vm += len >> PAGE_SHIFT;
    if (flags & VM_LOCKED)
        mm->locked_vm += (len >> PAGE_SHIFT);
    vma->vm_flags |= VM_SOFTDIRTY;
    return addr;
}
返回到brk()函数

get_unmapped_area()函数实现：判断虚拟地址空间是否充足，返回一段没有映射过的虚拟地址空间

[do_brk()->get_unmapped_area()]

unsigned long
get_unmapped_area(struct file *file, unsigned long addr, unsigned long len,
        unsigned long pgoff, unsigned long flags)
{
    unsigned long (*get_area)(struct file *, unsigned long,
                  unsigned long, unsigned long, unsigned long);

    unsigned long error = arch_mmap_check(addr, len, flags);
    if (error)
        return error;

    /* Careful about overflows.. */
    if (len > TASK_SIZE)
        return -ENOMEM;

    get_area = current->mm->get_unmapped_area;
    if (file && file->f_op->get_unmapped_area)
        get_area = file->f_op->get_unmapped_area;
    /*get_area()是体系结构相关的函数，在ARM架构中的实现函数为arch_get_unmapped_area_topdown()
     下面查看其实现*/
    addr = get_area(file, addr, len, pgoff, flags);
    if (IS_ERR_VALUE(addr))
        return addr;

    if (addr > TASK_SIZE - len)
        return -ENOMEM;
    if (addr & ~PAGE_MASK)
        return -EINVAL;

    addr = arch_rebalance_pgtables(addr, len);
    error = security_mmap_addr(addr);
    return error ? error : addr;
}
回到do_brk函数
static inline int mlock_future_check(struct mm_struct *mm,
                     unsigned long flags,
                     unsigned long len)
{
    unsigned long locked, lock_limit;

    /*  mlock MCL_FUTURE? */
    if (flags & VM_LOCKED) {
        locked = len >> PAGE_SHIFT;
        locked += mm->locked_vm;
        lock_limit = rlimit(RLIMIT_MEMLOCK);
        lock_limit >>= PAGE_SHIFT;
        if (locked > lock_limit && !capable(CAP_IPC_LOCK))
            return -EAGAIN;
    }
    return 0;
}

arch_get_unmapped_area_topdown()函数实现:

[arch/arm/mm/mmap.c]

[do_brk()->get_unmapped_area()->arch_get_unmapped_area_topdown()]

unsigned long
arch_get_unmapped_area_topdown(struct file *filp, const unsigned long addr0,
            const unsigned long len, const unsigned long pgoff,
            const unsigned long flags)
{
    struct vm_area_struct *vma;
    struct mm_struct *mm = current->mm;
    unsigned long addr = addr0;
    int do_align = 0;
    int aliasing = cache_is_vipt_aliasing();
    struct vm_unmapped_area_info info;

    /*
     * We only need to do colour alignment if either the I or D
     * caches alias.
     */
    if (aliasing)
        do_align = filp || (flags & MAP_SHARED);

    /* requested length too big for entire address space */
    if (len > TASK_SIZE)
        return -ENOMEM;

    if (flags & MAP_FIXED) {
        if (aliasing && flags & MAP_SHARED &&
            (addr - (pgoff << PAGE_SHIFT)) & (SHMLBA - 1))
            return -EINVAL;
        return addr;
    }

    /* requesting a specific address */
    if (addr) {
        if (do_align)
            addr = COLOUR_ALIGN(addr, pgoff);
        else
            addr = PAGE_ALIGN(addr);
        vma = find_vma(mm, addr);
        if (TASK_SIZE - len >= addr &&
                (!vma || addr + len <= vma->vm_start))
            return addr;
    }

    info.flags = VM_UNMAPPED_AREA_TOPDOWN;
    info.length = len;
    info.low_limit = FIRST_USER_ADDRESS;
    info.high_limit = mm->mmap_base;
    info.align_mask = do_align ? (PAGE_MASK & (SHMLBA - 1)) : 0;
    info.align_offset = pgoff << PAGE_SHIFT;
    addr = vm_unmapped_area(&info);

    /*
     * A failed mmap() very likely causes application failure,
     * so fall back to the bottom-up function here. This scenario
     * can happen with large stack limits and large mmap()
     * allocations.
     */
    if (addr & ~PAGE_MASK) {
        VM_BUG_ON(addr != -ENOMEM);
        info.flags = 0;
        info.low_limit = mm->mmap_base;
        info.high_limit = TASK_SIZE;
        addr = vm_unmapped_area(&info);
    }

    return addr;
}
