srs代码学习（7）--消息接收过程

通过前几篇的分析。我们发现，如果一份数据推上来的话，有点时候需要转发多路出去，比如forward，多路forward,或者多个edge的出现，这时候的消息如果每一路都复制一份的话，内存开销会非常的打。那么srs怎么处理呢？

首先看看消息的结构，为了能正确的解析消息，srs吧接受消息的过程分成了大概五个类来执行，从下往上依次是

SrsStSocket

SrsFastBuffer

SrsChunkStream

SrsCommonMessage

SrsSharedPtrMessage

这五个类的数据拷贝已有依次，就是从fastbufet里会拷贝到chunkstream里面，然后到这层数据指针一直应用到SrsSharedPtrMessage类里，在SrsSharedPtrMessage中会增加conut变量，来做数据引用，而且SrsSharedPtrMessage类隐藏了构造和拷贝函数，只能通过copy()函数来新建一个引用。这样多路发送只需要一份数据就可以了。下面我们看具体的流程。

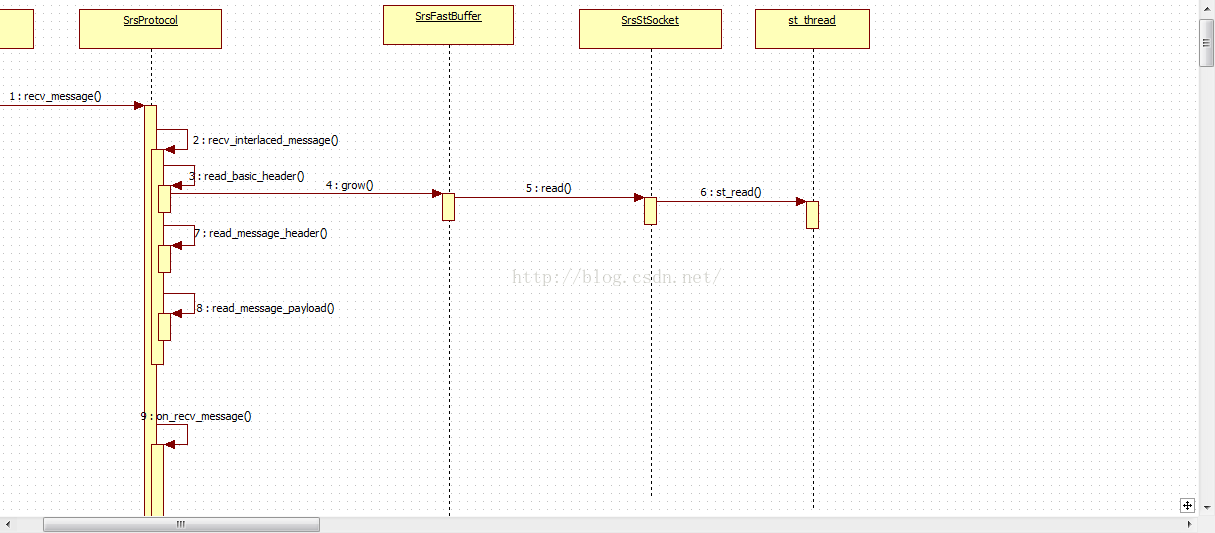

流程图上可以看出，最底层的是st_thread的库函数st_read,读取的数据经过srssocket的简单转手，就会提交个bufff库，看看buf的grow（）函数的实现

int SrsFastBuffer::grow(ISrsBufferReader* reader, int required_size)
{
    int ret = ERROR_SUCCESS;

    // already got required size of bytes.
    if (end - p >= required_size) {
        return ret;
    }

    // must be positive.
    srs_assert(required_size > 0);

    // the free space of buffer,
    //      buffer = consumed_bytes + exists_bytes + free_space.
    int nb_free_space = (int)(buffer + nb_buffer - end);
    // resize the space when no left space.
    if (nb_free_space < required_size) {
        // the bytes already in buffer
        int nb_exists_bytes = (int)(end - p);
        srs_assert(nb_exists_bytes >= 0);
        srs_verbose("move fast buffer %d bytes", nb_exists_bytes);

        // reset or move to get more space.
        if (!nb_exists_bytes) {
            // reset when buffer is empty.
            p = end = buffer;
            srs_verbose("all consumed, reset fast buffer");
        } else {
            // move the left bytes to start of buffer.
            srs_assert(nb_exists_bytes < nb_buffer);
            buffer = (char*)memmove(buffer, p, nb_exists_bytes);
            p = buffer;
            end = p + nb_exists_bytes;
        }

        // check whether enough free space in buffer.
        nb_free_space = (int)(buffer + nb_buffer - end);
        if (nb_free_space < required_size) {
            ret = ERROR_READER_BUFFER_OVERFLOW;
            srs_error("buffer overflow, required=%d, max=%d, left=%d, ret=%d",
                required_size, nb_buffer, nb_free_space, ret);
            return ret;
        }
    }

    // buffer is ok, read required size of bytes.
    while (end - p < required_size) {
        ssize_t nread;
        if ((ret = reader->read(end, nb_free_space, &nread)) != ERROR_SUCCESS) {
            return ret;
        }

#ifdef SRS_PERF_MERGED_READ
        /**
        * to improve read performance, merge some packets then read,
        * when it on and read small bytes, we sleep to wait more data.,
        * that is, we merge some data to read together.
        * @see https://github.com/ossrs/srs/issues/241
        */
        if (merged_read && _handler) {
            _handler->on_read(nread);
        }
#endif

        // we just move the ptr to next.
        srs_assert((int)nread > 0);
        end += nread;
        nb_free_space -= nread;
    }

    return ret;
}

buff类里会有一个缓冲区buffer，长度为128k

#define SRS_DEFAULT_RECV_BUFFER_SIZE 131072

有两个移动指针p和end.来标志里面的数据。那么如果这个空间不够怎么办，有两个办法，一个是数据大小nb_exists_bytes，如果为0，那么表示数据都用完了，reset指针。如果还有数据，那么只好重新分配内存大小 buffer = (char*)memmove(buffer, p, nb_exists_bytes);

在获取到数据后，提供两个接口，让外部类来读取数据

char SrsFastBuffer::read_1byte()
{
    srs_assert(end - p >= 1);
    return *p++;
}

char* SrsFastBuffer::read_slice(int size)
{
    srs_assert(size >= 0);
    srs_assert(end - p >= size);
    srs_assert(p + size >= buffer);

    char* ptr = p;
