CH340 RTS DTR引脚编程驱动OLED

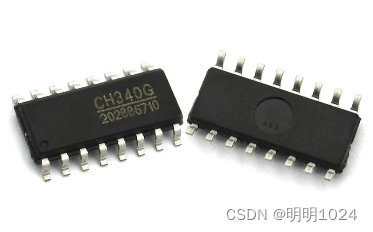

提到CH340想必大家都不会陌生
在这里插入图片描述

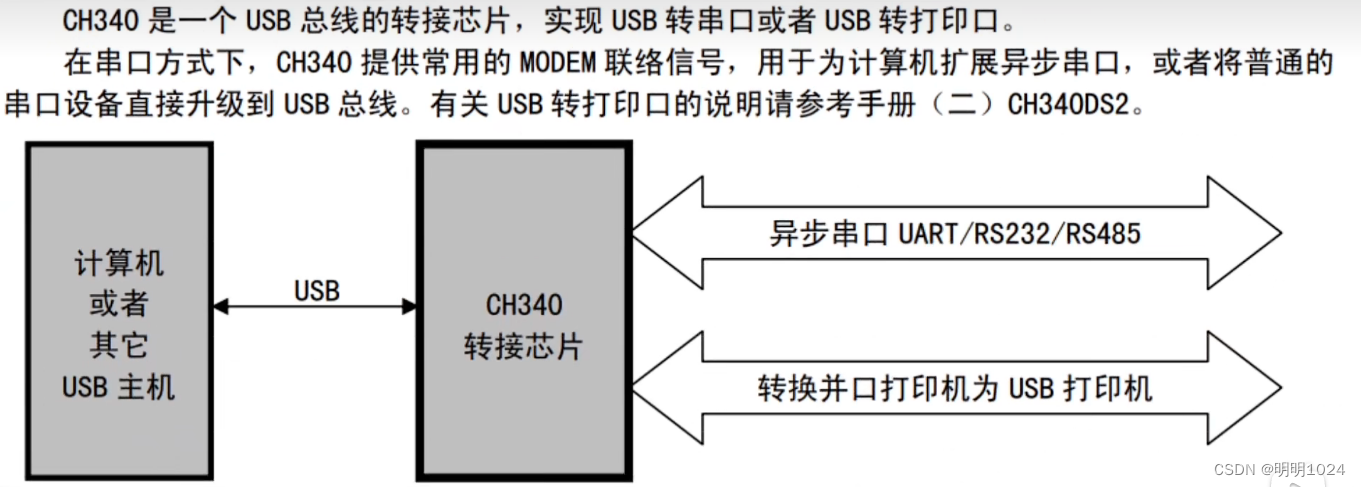

尤其是玩单片机的朋友们，他是沁恒微电子推出的一款USB转串口芯片
在这里插入图片描述

今天咱们不玩串口通信，拿ch340搞点事情。

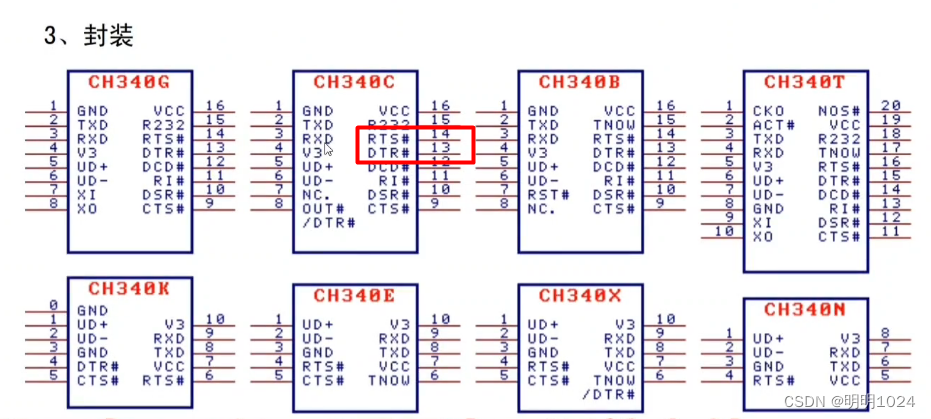

CH340除了RXD TXD用于串口通信外，还有两个特殊的引脚，RTS和DTR 。
在这里插入图片描述

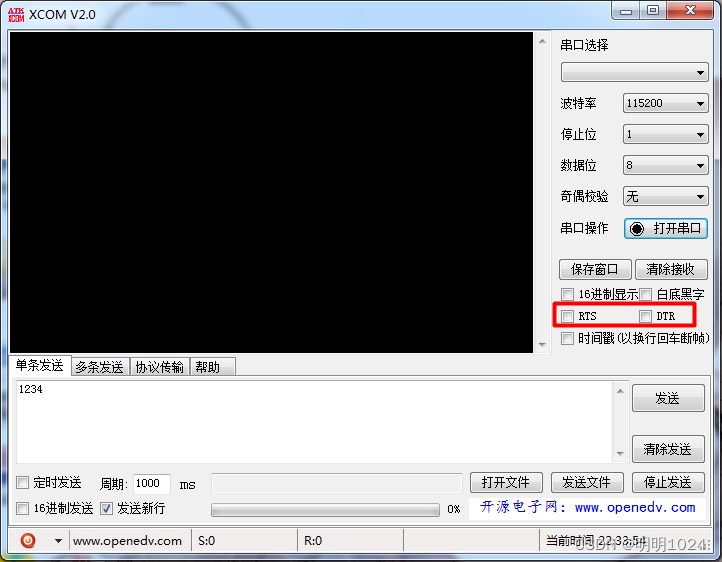

是不是有点眼熟，没错，51单片机的免冷启动下载器，esp8266的自动下载，都是用的这两个引脚，除了自动下载软件，有一些串口软件也有操控这两个引脚的功能键，比如XCOM
在这里插入图片描述

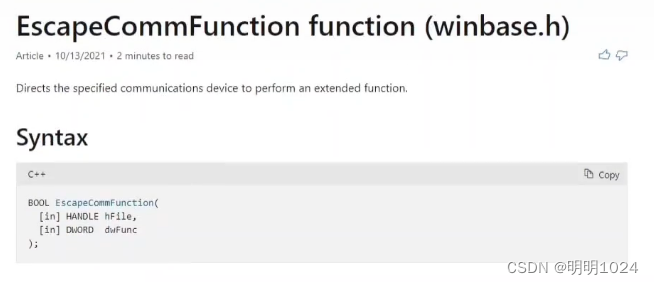

那我们能否用代码控制这两个引脚呢，可以，我在微软的网站上找到了这个API :
在这里插入图片描述
他有两个参数，
参数1是串口的文件指针，
参数2是要执行的功能,参数2支持以下值
CLRDTR 清除DTR，由于这两个引脚默认为高电平，所以清除就是清除为高电平，
CLRRTS 清除RTS
SETDTR 将DTR设为低电平
STERTS 将RTS设为低电平。
那么理论存在，实践开始，由于常见的CH340模块都没有RTS和DTR引脚，所以第一步，需要一块电路板。
在这里插入图片描述

可以看到板子上有5个LED,分别对应电源 DTR RTS RXD TXD
万物基于点灯
下面随便写两行代码测试一下。功能很简单，将RTS和DTR设置为低电平，等待0.5s 再设置为高电平，再等待0.5s,如此循环，实现闪烁效果。
1111111111

#include "windows.h"
#include <conio.h>
#include <stdio.h>

HANDLE hComm;


int main()
{
	char ch;

	hComm = CreateFileA("COM3", GENERIC_READ | GENERIC_WRITE,
		0,
		0,
		OPEN_EXISTING,
		NULL,
		0);

	if (hComm == INVALID_HANDLE_VALUE)
	{
		printf("Cannot open %s\n", "COM3");        //error occured alert user about error
		return -1;
	}
	while(1)
	{
			EscapeCommFunction(hComm, CLRRTS);
			EscapeCommFunction(hComm, CLRDTR);
			Sleep(500);
			EscapeCommFunction(hComm, SETRTS);
			EscapeCommFunction(hComm, SETDTR);
			Sleep(500);
	}
return 0;
}

既然能点灯了，呼吸灯怎么能少呢，这是一个软件模拟PWM的呼吸灯程序

#include "windows.h"
#include <conio.h>
#include <stdio.h>
#include <time.h>
HANDLE hComm;
void Delay(ULONG ulMicroSeconds)
{
	LARGE_INTEGER		timeStop;
	LARGE_INTEGER		timeStart;
	LARGE_INTEGER		Freq;
	ULONG				ulTimeToWait;

	if (!QueryPerformanceFrequency(&Freq))
		return;

	ulTimeToWait = Freq.QuadPart * ulMicroSeconds / 1000 / 1000;

	QueryPerformanceCounter(&timeStart);

	timeStop = timeStart;

	while (timeStop.QuadPart - timeStart.QuadPart < ulTimeToWait)
	{
		QueryPerformanceCounter(&timeStop);
	}
}


int main()
{
	char ch;

	hComm = CreateFileA("COM3", GENERIC_READ | GENERIC_WRITE,
		0,
		0,
		OPEN_EXISTING,
		NULL,
		0);

	if (hComm == INVALID_HANDLE_VALUE)
	{
		printf("Cannot open %s\n", "COM3");        //error occured alert user about error
		return -1;
	}

	while (1)
	{
		for (int i = 0; i < 3000; i+=10)
		{
			EscapeCommFunction(hComm, CLRRTS);
			EscapeCommFunction(hComm, CLRDTR);
			Delay(i);
			EscapeCommFunction(hComm, SETRTS);
			EscapeCommFunction(hComm, SETDTR);
			Delay(3000-i);
		}
		for (int i = 3000; i >0; i-=10)
		{
			EscapeCommFunction(hComm, CLRRTS);
			EscapeCommFunction(hComm, CLRDTR);
			Delay(i);
			EscapeCommFunction(hComm, SETRTS);
			EscapeCommFunction(hComm, SETDTR);
			Delay(3000 - i);
		}

	}

	return 0;
}

如果感觉这些都是小儿科，那么重头戏来了，能想到什么主流的通信协议是两根数据线的呢，没错，IIC!!
我们常用的四线OLED就是IIC通信的，那么我们能不能用ch340来模拟一个IIC呢，当然可以我移植了中景园的OLED驱动，接下来就是见证奇迹的时刻，成功点亮，受限于CH340的引脚速度，模拟IIC的通信速度只有3k左右，所有刷新有点慢,目前我们可以用它显示文字或图片，后期我会给他写一个上位机，把他当做电脑的一个外设来使用实现像Linkcard那样的功能，比如便签，图片显示，模拟灰度，显示电脑的，CPU占用率，硬盘使用情况，当前网速，歌词，邮件等待，敬请期待！
演示视频：

CH340竟然能驱动OLED屏幕！！！

main.c

#include "windows.h"
#include <conio.h>
#include <stdio.h>
HANDLE hComm;
#include "OLED.h"
int main()
{
	char ch;
	hComm = CreateFileA("COM3", GENERIC_READ | GENERIC_WRITE,
		0,
		0,
		OPEN_EXISTING,
		NULL,
		0);

	if (hComm == INVALID_HANDLE_VALUE)
	{
		printf("Cannot open %s\n", "COM3");        //error occured alert user about error
		return -1;
	}

	printf("OLED Initing......\n");
	OLED_Init();
	printf("OLED Displaying......\n");
	while (1)
	{
		Draw_BMP(0, 0, 128, 8, bilibili_tv);
		//OLED_P8x16Str(0, 0, "hello world!");
		Sleep(10000);
		OLED_Fill(0xff);
		Sleep(100);
		OLED_Fill(0x00);
		Sleep(100);

	}
	return 0;
}

oled.h :

#include "codetab.h"
#define SCL1 EscapeCommFunction(hComm, CLRRTS)
#define SCL0 EscapeCommFunction(hComm, SETRTS)
#define SDA1 EscapeCommFunction(hComm, CLRDTR)
#define SDA0 EscapeCommFunction(hComm, SETDTR)

#define	Brightness	0xCF
#define X_WIDTH 	128
#define Y_WIDTH 	64

/**********************************************
//IIC Start
**********************************************/
void IIC_Start()
{
	SCL1;
	SDA1;
	SDA0;
	SCL0;
}

/**********************************************
//IIC Stop
**********************************************/
void IIC_Stop()
{
	SCL0;
	SDA0;
	SCL1;
	SDA1;
}

/**********************************************
// 通过I2C总线写一个字节
**********************************************/
void Write_IIC_Byte(unsigned char IIC_Byte)
{
	unsigned char i;
	for (i = 0; i<8; i++)
	{
		if (IIC_Byte & 0x80)
			SDA1;
		else
			SDA0;
		SCL1;
		SCL0;
		IIC_Byte <<= 1;
	}
	SDA1;
	SCL1;
	SCL0;
}

/*********************OLED写数据************************************/
void OLED_WrDat(unsigned char IIC_Data)
{
	IIC_Start();
	Write_IIC_Byte(0x78);
	Write_IIC_Byte(0x40);			//write data
	Write_IIC_Byte(IIC_Data);
	IIC_Stop();
}
/*********************OLED写命令************************************/
void OLED_WrCmd(unsigned char IIC_Command)
{
	IIC_Start();
	Write_IIC_Byte(0x78);            //Slave address,SA0=0
	Write_IIC_Byte(0x00);			//write command
	Write_IIC_Byte(IIC_Command);
	IIC_Stop();
}
/*********************OLED 设置坐标************************************/
void OLED_Set_Pos(unsigned char x, unsigned char y)
{
	OLED_WrCmd(0xb0 + y);
	OLED_WrCmd(((x & 0xf0) >> 4) | 0x10);
	OLED_WrCmd((x & 0x0f) | 0x00);
}
/*********************OLED全屏************************************/
void OLED_Fill(unsigned char bmp_dat)
{
	unsigned char y, x;
	for (y = 0; y<8; y++)
	{
		OLED_WrCmd(0xb0 + y);
		OLED_WrCmd(0x00);
		OLED_WrCmd(0x10);
		for (x = 0; x<X_WIDTH; x++)
			OLED_WrDat(bmp_dat);
	}
}
/*********************OLED复位************************************/
void OLED_CLS(void)
{
	unsigned char y, x;
	for (y = 0; y<8; y++)
	{
		OLED_WrCmd(0xb0 + y);
		OLED_WrCmd(0x01);
		OLED_WrCmd(0x10);
		for (x = 0; x<X_WIDTH; x++)
			OLED_WrDat(0);
	}
}
/*********************OLED初始化************************************/

void OLED_Init(void)
{
	OLED_WrCmd(0xae);//--turn off oled panel关闭OLED面板
	OLED_WrCmd(0x00);//---set low column address设置低列地址00
	OLED_WrCmd(0x10);//---set high column address设置高列地址10
	OLED_WrCmd(0x40);//--set start line address  Set Mapping RAM Display Start Line (0x00~0x3F)设置起始行地址，设置映射RAM显示起始线
	OLED_WrCmd(0x81);//--set contrast control register设置对比度控制寄存器
	OLED_WrCmd(Brightness); // Set SEG Output Current Brightness设置SEG输出电流亮度
	OLED_WrCmd(0xa1);//--Set SEG/Column Mapping     0xa0左右反置 0xa1正常
	OLED_WrCmd(0xc8);//Set COM/Row Scan Direction   0xc0上下反置 0xc8正常
	OLED_WrCmd(0xa6);//--set normal display设置正常显示
	OLED_WrCmd(0xa8);//--set multiplex ratio(1 to 64)设置分辨率
	OLED_WrCmd(0x3f);//--12864 :0x3f    12832 0x1f
	OLED_WrCmd(0xd3);//-set display offset	Shift Mapping RAM Counter (0x00~0x3F)设置显示偏移量，移位映射RAM计数器
	OLED_WrCmd(0x00);//-not offset不是抵消
	OLED_WrCmd(0xd5);//--set display clock divide ratio/oscillator frequency设置显示时钟分频比/振荡器频率
	OLED_WrCmd(0x80);//--set divide ratio, Set Clock as 100 Frames/Sec
	OLED_WrCmd(0xd9);//--set pre-charge period
	OLED_WrCmd(0xf1);//Set Pre-Charge as 15 Clocks & Discharge as 1 Clock
	OLED_WrCmd(0xda);//--设置COM硬件引脚配置，适应分辨率
	OLED_WrCmd(0x12);//12864:0x12  12832 :0x02
	OLED_WrCmd(0xdb);//--set vcomh
	OLED_WrCmd(0x40);//Set VCOM Deselect Level
	OLED_WrCmd(0x20);//-Set Page Addressing Mode (0x00/0x01/0x02)
	OLED_WrCmd(0x02);//
	OLED_WrCmd(0x8d);//--set Charge Pump enable/disable
	OLED_WrCmd(0x14);//--set(0x10) disable
	OLED_WrCmd(0xa4);// Disable Entire Display On (0xa4/0xa5)
	OLED_WrCmd(0xa6);// Disable Inverse Display On (0xa6/a7)
	OLED_WrCmd(0xaf);//--turn on oled panel打开OLED面板
	OLED_Fill(0x00); //初始清屏
	OLED_Set_Pos(0, 0);
}
/***************功能描述：显示6*8一组标准ASCII字符串	显示的坐标（x,y），y为页范围0～7****************/
void OLED_P6x8Str(unsigned char x, unsigned char y, unsigned char ch[])
{
	unsigned char c = 0, i = 0, j = 0;
	while (ch[j] != '\0')
	{
		c = ch[j] - 32;
		if (x>126) { x = 0; y++; }
		OLED_Set_Pos(x, y);
		for (i = 0; i<6; i++)
			OLED_WrDat(F6x8[c][i]);
		x += 6;
		j++;
	}
}
/*******************功能描述：显示8*16一组标准ASCII字符串	 显示的坐标（x,y），y为页范围0～7****************/
void OLED_P8x16Str(unsigned char x, unsigned char y, const char ch[])
{
	unsigned char c = 0, i = 0, j = 0;
	while (ch[j] != '\0')
	{
		c = ch[j] - 32;
		if (x>120) { x = 0; y++; }
		OLED_Set_Pos(x, y);
		for (i = 0; i<8; i++)
			OLED_WrDat(F8X16[c * 16 + i]);
		OLED_Set_Pos(x, y + 1);
		for (i = 0; i<8; i++)
			OLED_WrDat(F8X16[c * 16 + i + 8]);
		x += 8;
		j++;
	}
}


/*****************功能描述：显示16*16点阵  显示的坐标（x,y），y为页范围0～7****************************/
void OLED_P16x16Ch(unsigned char x, unsigned char y, unsigned char N)
{
	unsigned char wm = 0;
	unsigned int adder = 32 * N;
	OLED_Set_Pos(x, y);
	for (wm = 0; wm < 16; wm++)
	{
		OLED_WrDat(F16x16[adder]);
		adder += 1;
	}
	OLED_Set_Pos(x, y + 1);
	for (wm = 0; wm < 16; wm++)
	{
		OLED_WrDat(F16x16[adder]);
		adder += 1;
	}
}
/***********功能描述：显示显示BMP图片128×64起始点坐标(x,y),x的范围0～127，y为页的范围0～7*****************/
void Draw_BMP(unsigned char x0, unsigned char y0, unsigned char x1, unsigned char y1, const unsigned char BMP[])
{
	unsigned int j = 0;
	unsigned char x, y;

	if (y1 % 8 == 0) y = y1 / 8;
	else y = y1 / 8 + 1;
	for (y = y0; y<y1; y++)
	{
		OLED_Set_Pos(x0, y);
		for (x = x0; x<x1; x++)
		{
			OLED_WrDat(BMP[j++]);
		}
	}
}

codetab.h:


/***************************16*16的点阵字体取模方式：共阴——列行式——逆向输出*********/
const unsigned char F16x16[] =
{
	0x00
};


/************************************6*8的点阵************************************/
const unsigned char F6x8[][6] =
{
	0x00, 0x00, 0x00, 0x00, 0x00, 0x00,// sp
	0x00, 0x00, 0x00, 0x2f, 0x00, 0x00,// !
	0x00, 0x00, 0x07, 0x00, 0x07, 0x00,// "
	0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14,// #
	0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12,// $
	0x00, 0x62, 0x64, 0x08, 0x13, 0x23,// %
	0x00, 0x36, 0x49, 0x55, 0x22, 0x50,// &
	0x00, 0x00, 0x05, 0x03, 0x00, 0x00,// '
	0x00, 0x00, 0x1c, 0x22, 0x41, 0x00,// (
	0x00, 0x00, 0x41, 0x22, 0x1c, 0x00,// )
	0x00, 0x14, 0x08, 0x3E, 0x08, 0x14,// *
	0x00, 0x08, 0x08, 0x3E, 0x08, 0x08,// +
	0x00, 0x00, 0x00, 0xA0, 0x60, 0x00,// ,
	0x00, 0x08, 0x08, 0x08, 0x08, 0x08,// -
	0x00, 0x00, 0x60, 0x60, 0x00, 0x00,// .
	0x00, 0x20, 0x10, 0x08, 0x04, 0x02,// /
	0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E,// 0
	0x00, 0x00, 0x42, 0x7F, 0x40, 0x00,// 1
	0x00, 0x42, 0x61, 0x51, 0x49, 0x46,// 2
	0x00, 0x21, 0x41, 0x45, 0x4B, 0x31,// 3
	0x00, 0x18, 0x14, 0x12, 0x7F, 0x10,// 4
	0x00, 0x27, 0x45, 0x45, 0x45, 0x39,// 5
	0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30,// 6
	0x00, 0x01, 0x71, 0x09, 0x05, 0x03,// 7
	0x00, 0x36, 0x49, 0x49, 0x49, 0x36,// 8
	0x00, 0x06, 0x49, 0x49, 0x29, 0x1E,// 9
	0x00, 0x00, 0x36, 0x36, 0x00, 0x00,// :
	0x00, 0x00, 0x56, 0x36, 0x00, 0x00,// ;
	0x00, 0x08, 0x14, 0x22, 0x41, 0x00,// <
	0x00, 0x14, 0x14, 0x14, 0x14, 0x14,// =
	0x00, 0x00, 0x41, 0x22, 0x14, 0x08,// >
	0x00, 0x02, 0x01, 0x51, 0x09, 0x06,// ?
	0x00, 0x32, 0x49, 0x59, 0x51, 0x3E,// @
	0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C,// A
	0x00, 0x7F, 0x49, 0x49, 0x49, 0x36,// B
	0x00, 0x3E, 0x41, 0x41, 0x41, 0x22,// C
	0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C,// D
	0x00, 0x7F, 0x49, 0x49, 0x49, 0x41,// E
	0x00, 0x7F, 0x09, 0x09, 0x09, 0x01,// F
	0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A,// G
	0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F,// H
	0x00, 0x00, 0x41, 0x7F, 0x41, 0x00,// I
	0x00, 0x20, 0x40, 0x41, 0x3F, 0x01,// J
	0x00, 0x7F, 0x08, 0x14, 0x22, 0x41,// K
	0x00, 0x7F, 0x40, 0x40, 0x40, 0x40,// L
	0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F,// M
	0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F,// N
	0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E,// O
	0x00, 0x7F, 0x09, 0x09, 0x09, 0x06,// P
	0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E,// Q
	0x00, 0x7F, 0x09, 0x19, 0x29, 0x46,// R
	0x00, 0x46, 0x49, 0x49, 0x49, 0x31,// S
	0x00, 0x01, 0x01, 0x7F, 0x01, 0x01,// T
	0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F,// U
	0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F,// V
	0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F,// W
	0x00, 0x63, 0x14, 0x08, 0x14, 0x63,// X
	0x00, 0x07, 0x08, 0x70, 0x08, 0x07,// Y
	0x00, 0x61, 0x51, 0x49, 0x45, 0x43,// Z
	0x00, 0x00, 0x7F, 0x41, 0x41, 0x00,// [
	0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55,// 55
	0x00, 0x00, 0x41, 0x41, 0x7F, 0x00,// ]
	0x00, 0x04, 0x02, 0x01, 0x02, 0x04,// ^
	0x00, 0x40, 0x40, 0x40, 0x40, 0x40,// _
	0x00, 0x00, 0x01, 0x02, 0x04, 0x00,// '
	0x00, 0x20, 0x54, 0x54, 0x54, 0x78,// a
	0x00, 0x7F, 0x48, 0x44, 0x44, 0x38,// b
	0x00, 0x38, 0x44, 0x44, 0x44, 0x20,// c
	0x00, 0x38, 0x44, 0x44, 0x48, 0x7F,// d
	0x00, 0x38, 0x54, 0x54, 0x54, 0x18,// e
	0x00, 0x08, 0x7E, 0x09, 0x01, 0x02,// f
	0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C,// g
	0x00, 0x7F, 0x08, 0x04, 0x04, 0x78,// h
	0x00, 0x00, 0x44, 0x7D, 0x40, 0x00,// i
	0x00, 0x40, 0x80, 0x84, 0x7D, 0x00,// j
	0x00, 0x7F, 0x10, 0x28, 0x44, 0x00,// k
	0x00, 0x00, 0x41, 0x7F, 0x40, 0x00,// l
	0x00, 0x7C, 0x04, 0x18, 0x04, 0x78,// m
	0x00, 0x7C, 0x08, 0x04, 0x04, 0x78,// n
	0x00, 0x38, 0x44, 0x44, 0x44, 0x38,// o
	0x00, 0xFC, 0x24, 0x24, 0x24, 0x18,// p
	0x00, 0x18, 0x24, 0x24, 0x18, 0xFC,// q
	0x00, 0x7C, 0x08, 0x04, 0x04, 0x08,// r
	0x00, 0x48, 0x54, 0x54, 0x54, 0x20,// s
	0x00, 0x04, 0x3F, 0x44, 0x40, 0x20,// t
	0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C,// u
	0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C,// v
	0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C,// w
	0x00, 0x44, 0x28, 0x10, 0x28, 0x44,// x
	0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C,// y
	0x00, 0x44, 0x64, 0x54, 0x4C, 0x44,// z
	0x14, 0x14, 0x14, 0x14, 0x14, 0x14,// horiz lines
};
/****************************************8*16的点阵************************************/
const unsigned char F8X16[] =
{
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,// 0
	0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,//! 1
	0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//" 2
	0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//# 3
	0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$ 4
	0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//% 5
	0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//& 6
	0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//' 7
	0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//( 8
	0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//) 9
	0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//* 10
	0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+ 11
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//, 12
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//- 13
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//. 14
	0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,/// 15
	0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//0 16
	0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//1 17
	0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//2 18
	0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//3 19
	0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//4 20
	0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//5 21
	0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//6 22
	0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//7 23
	0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//8 24
	0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//9 25
	0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//: 26
	0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//; 27
	0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//< 28
	0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//= 29
	0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//> 30
	0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//? 31
	0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//@ 32
	0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A 33
	0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B 34
	0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C 35
	0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D 36
	0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E 37
	0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F 38
	0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G 39
	0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H 40
	0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I 41
	0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J 42
	0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K 43
	0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L 44
	0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M 45
	0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N 46
	0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O 47
	0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P 48
	0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,//Q 49
	0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R 50
	0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S 51
	0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T 52
	0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U 53
	0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V 54
	0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W 55
	0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X 56
	0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y 57
	0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z 58
	0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[ 59
	0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\ 60
	0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//] 61
	0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^ 62
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_ 63
	0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//` 64
	0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a 65
	0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b 66
	0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c 67
	0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d 68
	0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e 69
	0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f 70
	0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g 71
	0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h 72
	0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i 73
	0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j 74
	0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k 75
	0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l 76
	0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m 77
	0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n 78
	0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o 79
	0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p 80
	0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q 81
	0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r 82
	0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s 83
	0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t 84
	0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u 85
	0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v 86
	0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w 87
	0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x 88
	0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y 89
	0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z 90
	0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{ 91
	0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,//| 92
	0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//} 93
	0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//~ 94
};


unsigned char bilibili_tv[] = {
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0x80,0x80,0x80,0x80,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0xE0,0xE0,
	0xE0,0xE0,0xE0,0xE0,0xE0,0xF0,0xF0,0xF0,0xF0,0xF8,0xFC,0xFC,0xFC,0xFC,0xFE,0xFE,
	0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFE,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0xE0,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
	0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFE,0xFC,0xFC,0xFC,0xF8,0xF0,0xF0,0xF0,0xF0,
	0xF0,0xF0,0xF0,0xF0,0xE0,0xE0,0xE0,0xE0,0xC0,0xC0,0xC0,0x80,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0xFE,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
	0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
	0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x7F,0x7F,0x7F,0x7F,0x3F,0x1F,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x1F,0x3F,0x3F,0x7F,0x7F,0x7F,0x7F,0x7F,0x7F,0x7F,0xFF,0xFF,0xFF,0xFF,
	0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
	0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x1F,0x3F,0x7F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x7F,0x3F,0x3F,
	0x3F,0x3F,0x1F,0x1F,0x1F,0x1F,0x1F,0x0F,0x07,0x07,0x07,0x07,0x07,0x07,0x03,0x03,
	0x03,0x03,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x01,0x01,0x03,0x03,0x07,0x07,0x07,0x07,0x07,0x07,0x0F,0x1F,0x1F,0x1F,0x1F,
	0x1F,0x1F,0x1F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x1F,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xC0,0xC0,0xC0,0xE0,0xE0,0xC0,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xE0,0xF0,0xE0,
	0xC0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x80,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x06,0x0F,0x3F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFE,
	0xFC,0xF8,0xF0,0xF0,0xF0,0xF0,0xF0,0xF0,0xF0,0xF8,0xFC,0xFE,0xFF,0xFF,0xFF,0xFF,
	0xFF,0xFF,0xFE,0xFC,0xFC,0xFC,0xF8,0xF0,0xF0,0xF0,0xF0,0xF0,0xF0,0xF0,0xF8,0xFC,
	0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x7F,0x3F,0x1E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x03,0x07,0x07,0x07,0x0F,0x0F,0x0F,
	0x0F,0x1F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x1F,0x0F,0x0F,0x07,0x07,
	0x07,0x07,0x07,0x0F,0x1F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x3F,0x1F,0x0F,
	0x07,0x07,0x07,0x03,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//G:\项目\ch340小电视\未标题-1.bmp,0,
};
