百度地图计算不同等级像素与实际距离比

 本篇使用两种方式计算像素与实际距离比，两种方式都是根据百度地图提供的方法、信息计算。

第一种

 利用getDistance、pointToOverlayPixel计算两坐标的像素位置以及真实距离进而推算像素与实际距离比。

            var pointA = r.point;
            var pointB = new BMap.Point(pointA.lng + 0.0005, pointA.lat);
            var realDistanceBetween2Points = map.getDistance(pointA, pointB);
            var pointAPixel = map.pointToOverlayPixel(pointA);
            var pointBPixel = map.pointToOverlayPixel(pointB);
            var pixelDistanceBetween2Points = Math.abs(pointBPixel.x - pointAPixel.x);
            console.log(`像素坐标：${JSON.stringify(pointAPixel)}和${JSON.stringify(pointBPixel)}`);
            console.log(`实际距离:${realDistanceBetween2Points}`);
            console.log(`1px对应的实际距离:${realDistanceBetween2Points/pixelDistanceBetween2Points}`);

            var _pointA = r.point;
            var _pointB = new BMap.Point(_pointA.lng , _pointA.lat + 0.0005);
            var _realDistanceBetween2Points = map.getDistance(_pointA, _pointB);
            var _pointAPixel = map.pointToOverlayPixel(_pointA);
            var _pointBPixel = map.pointToOverlayPixel(_pointB);
            var _pixelDistanceBetween2Points = Math.abs(_pointBPixel.y - _pointAPixel.y);
            console.log(`像素坐标:${JSON.stringify(_pointAPixel)}和${JSON.stringify(_pointBPixel)}`);
            console.log(`实际距离：${_realDistanceBetween2Points}`);
            console.log(`1px对应的实际距离:${_realDistanceBetween2Points/_pixelDistanceBetween2Points}`);

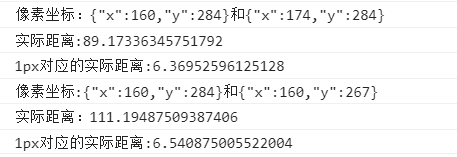

在地图等级为15时打印结果如下：

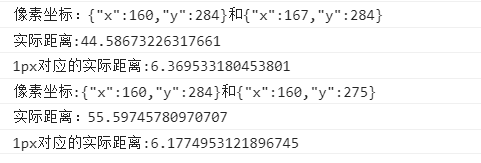

这种方式偏差主要有两点，1是1像素对应x、y轴实际距离不同，2是在不同的实际距离时1px对应像素有偏差。嘛是会有这样的问题啦毕竟地球是个椭圆，而这里计算像素是在平面计算的。

第二种

直接利用百度地图提供的比例尺直接计算像素与实际距离比

new BMap.Circle(r.point,10, {fillColor:'black', strokeWeight:1, strokeColor:'red'});

这里用Circle构造函数生成一个半径10m的圆，对照比例尺内边距与实际距离比即像素与实际距离比。

贴代码

const scaleData =[
    {zoom:19 ,length:20 ,Pixels:48},
    {zoom:18 ,length:50 ,Pixels:61},
    {zoom:17 ,length:100 ,Pixels:61},
    {zoom:16 ,length:200 ,Pixels:61},
    {zoom:15 ,length:500 ,Pixels:78},
    {zoom:14 ,length:1000 ,Pixels:78},
    {zoom:13 ,length:2000 ,Pixels:78},
    {zoom:12 ,length:5000 ,Pixels:99},
    {zoom:11 ,length:10000 ,Pixels:99},
    {zoom:10 ,length:20000 ,Pixels:99},
    {zoom:9 ,length:25000 ,Pixels:59},
    {zoom:8 ,length:50000 ,Pixels:59},
    {zoom:7 ,length:100000 ,Pixels:59},
    {zoom:6 ,length:200000 ,Pixels:59},
    {zoom:5 ,length:500000 ,Pixels:76},
    {zoom:4 ,length:1000000 ,Pixels:76},
    {zoom:3 ,length:2000000 ,Pixels:75}];


/**
 * @param distance 实际距离
 * @returns 像素距离
 */
function RealDistanceTranPixels(distance) {
    let zoom = map.getZoom();
    let pixDistance;
    for (let i=0;i<scaleData.length;i++){
        if(scaleData[i].zoom === zoom){
            let scale = scaleData[i].Pixels / scaleData[i].length;
            pixDistance = scale * distance
        }
    }
    return pixDistance
}
