☉目標:使用內建的Mapkit Framework建立一個Google Map畫面,可以對地圖進行拖曳、放大、縮小。
☉限制:必須將iPhone的作業系統更新到 OS 3.0 版本,開發使用的SDK也要是 SDK3.0 才有內建 Mapkit Framework 。

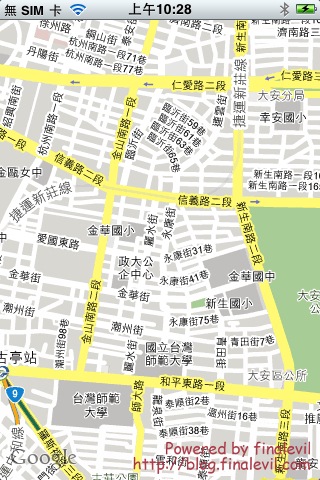

☉效果畫面:
☉步驟說明:
(1)建立一個新的Window-Based專案,將專案命名為LearnLoadMap
實際上我是繼續使用在 iPhone開發心得03 中所建立的專案。

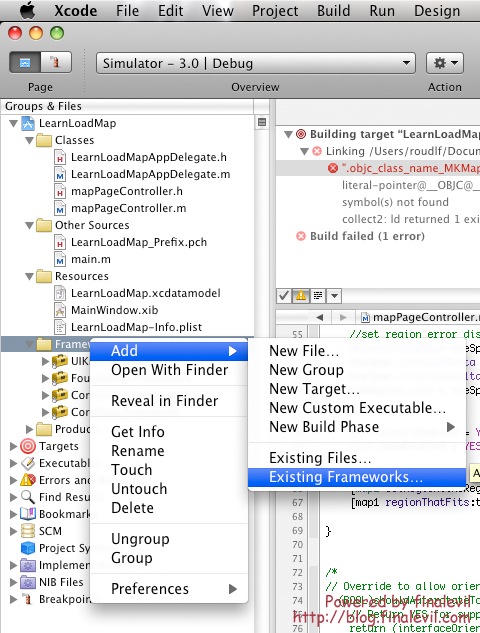

(2)加入 Mapkit Framework
在左方專案目錄的Framework資料夾上點選右鍵 Add->Existing Frameworks,選擇Mapkit.Framework
(3)接著我在專案中加入了ViewController,並命名為mapPageController
不知道怎麼加入和使用Library中的View Controller可以參考
[iPhone程式]iPhone開發心得03-在Window中加入一個UIViewController
現在MainWindow.xib的內容應該長的像這樣:
(4)在mapPageController.h中import mapkit.h,mapkit.h包含了所有關於map會使用到的類別,並且宣告一個MKMapView,我們會在mapPageController.m中使用到。最重要的一點是 宣告<mkmapviewdelegate>,表示mapPageController可以指定成MKMapView的委派 。
(5)在mapPageController.m
用synthesize指示詞設定map1變數為public
在viewDidLoad方法中撰寫載入地圖。
當地圖由中心往外延伸的距離小,那麼螢幕上地圖要顯示的區域就會比較小塊,地圖看起來就會比較大。
當MKMapView準備完成後,我們要將它顯示在畫面上,因此最後一行可以看到我將map加入self.view中。
☉限制:必須將iPhone的作業系統更新到 OS 3.0 版本,開發使用的SDK也要是 SDK3.0 才有內建 Mapkit Framework 。
☉效果畫面:
☉步驟說明:
(1)建立一個新的Window-Based專案,將專案命名為LearnLoadMap
實際上我是繼續使用在 iPhone開發心得03 中所建立的專案。
(2)加入 Mapkit Framework
在左方專案目錄的Framework資料夾上點選右鍵 Add->Existing Frameworks,選擇Mapkit.Framework
(3)接著我在專案中加入了ViewController,並命名為mapPageController
不知道怎麼加入和使用Library中的View Controller可以參考
[iPhone程式]iPhone開發心得03-在Window中加入一個UIViewController
現在MainWindow.xib的內容應該長的像這樣:
(4)在mapPageController.h中import mapkit.h,mapkit.h包含了所有關於map會使用到的類別,並且宣告一個MKMapView,我們會在mapPageController.m中使用到。最重要的一點是 宣告<mkmapviewdelegate>,表示mapPageController可以指定成MKMapView的委派 。
#import <uikit uikit.h> #import <mapkit/mapkit.h> @interface mapPageController : UIViewController <mkmapviewdelegate> { MKMapView *map1; } @property (nonatomic,retain) IBOutlet MKMapView *map1; @end
(5)在mapPageController.m
用synthesize指示詞設定map1變數為public
@synthesize map1;
在viewDidLoad方法中撰寫載入地圖。
- (void)viewDidLoad { [super viewDidLoad]; // Override point for customization after app launch CGRect rect = CGRectMake(0, 0, 320, 460); map1 = [[MKMapView alloc] initWithFrame:rect]; [map1 setDelegate: self]; [map1 setMapType: MKMapTypeStandard]; MKCoordinateRegion theRegion; //set region center CLLocationCoordinate2D theCenter; theCenter.latitude =25.032054; theCenter.longitude = 121.529266; theRegion.center=theCenter; //set zoom level MKCoordinateSpan theSpan; theSpan.latitudeDelta = 0.009; theSpan.longitudeDelta = 0.009; theRegion.span = theSpan; //set scroll and zoom action map1.scrollEnabled = YES; map1.zoomEnabled = YES; //set map Region [map1 setRegion:theRegion]; [map1 regionThatFits:theRegion]; [self.view addSubview:map1]; }MKCoordinateRegion表示座標區域(地圖上的某個區域),其中包含兩個重要的屬性,Center和Span。Center表示這塊區域的中心位置。Span表示這塊區域由中心往外延伸的距離(也就是Zoon Level)。
當地圖由中心往外延伸的距離小,那麼螢幕上地圖要顯示的區域就會比較小塊,地圖看起來就會比較大。
當MKMapView準備完成後,我們要將它顯示在畫面上,因此最後一行可以看到我將map加入self.view中。
